K66VX-2500VVHF FM Mobile Transceiver

VX-2500 OPERATING MANUAL VERTEX STANDARD CO., LTD. 4-8-8 Nakameguro, Meguro-Ku, Tokyo 153-8644, Japan VERTEX STANDARD US Headquarters 17210 Edwards Rd., Cerritos, CA 90703, U.S.A. International Division 8350 N.W. 52nd Terrace, Suite 201, Miami, FL 33166, U.S.A. YAESU EUROPE B.V. P.O. Box 75525, 1118 ZN Schiphol, The Netherlands YAESU UK LTD. Unit 12, Sun Valley Business Park, Winnall Close Winchester, Hampshire, SO23 0LB, U.K. VERTEX STANDARD HK LTD. Unit 5, 20/F., Seaview Centre, 139-141 Hoi Bun Road, Kwun Tong, Kowloon, Hong Kong VX-2500 OPERATING MANUAL VX-2500 OPERATING MANUAL Congratulations! You now have at your fingertips a valuable communications tool: a VERTEX STAN- DARD two-way radio! Rugged, reliable and easy to use, your VERTEX STANDARD radio will keep you in constant touch with your colleagues for years to come, with negligible maintenance downtime. Please take a few minutes to read this manual carefully. The information presented here will allow you to derive maximum performance from your radio, in case ques- tions arise later on. We’re glad you joined the VERTEX STANDARD team. Call on us anytime, because communications is our business. Let us help you get your message across. NOTICE ! There are no owner-serviceable parts inside the transceiver. All service jobs must be referred to an authorized VERTEX STANDARD Service Represen- tative. Consult your Authorized VERTEX STANDARD Dealer for installa- tion of optional accessories. SAFETY/WARNING INFORMATION WARNING - DO NOT operate the VX-2500 radio when any person(s) (by- standers) outside the vehicle are within the distances shown in the chart at the bottom of this section. Safety Training information: Antennas used for this transmitter must not exceed an antenna gain of 0 dBd. The radio must be used in vehicle-mount configurations with a maximum op- erating duty factor not exceeding 50%, in typical Push-to-Talk configurations. This radio is restricted to occupational use, work related operations only where the radio operator must have the knowledge to control the exposure condi- tions of its passengers and bystanders by maintaining the minimum separa- tion distance shown below. Failure to observe these restrictions will result in exceeding the FCC RF ex- posure limits. Antenna Installation: For rear deck trunk installation, the antenna must be located at least the fol- lowing distance away from rear-seat passengers in order to comply with the FCC RF exposure requirements. For roof top installations, the antenna must be placed in the center of the roof. Radiated Frequency and Distance VX-2500V 2.31 Feet ( 0.705 m ) VX-2500 OPERATING MANUALPage 1 INTRODUCTION The VX-2500 Series are full-featured FM transceivers designed for flexible mobile and base station business communications in the VHF or UHF Land Mobile bands. These transceiver are designed for reliable business communications in a wide vari- ety of applications with a wide range of operating capability provided by their lead- ing-edge design. The 250-channel memories can each be programmed with an 8-character channel name. Important channel frequency data is stored in EEPROM and flash memory on the CPU, and is easily programmable by dealers using a personal computer and the VER- TEX STANDARD VPL-1 Programming Cable and CE47 Software. The pages which follow will detail the many advanced features provided on the VX- 2500 transceiver. After reading this manual, you may wish to consult with your Net- work Administrator regarding precise details of the configuration of this equipment for use in your application VX-2500 OPERATING MANUALPage 2 CONTROLS & CONNECTORS Front Panel Important! - All buttons located on the Front Panel are Programmable Function ( PF ) Buttons, configured according to your network requirements and programmed by your VERTEX STANDARD dealer. The instructions below a typically-config- ured radio. VOL/PWR Knob Turn this control clockwise to turn the radio on and to increase the volume. Turn it counterclockwise into the click-stop to turn the radio off. BUSY/TX Indicator Indicate transceiver Transmit/Receive Status CONVENTIONAL SYSTEM Steady Red:Transmitting in progress Steady Green:Busy Channel Blinking Green:Tone Squelch in defeated condition LTR TRUNKING SYSTEM Steady Red:Transmission in progress Steady Green:System Busy LCD (Liquid Crystal Display) The display includes an 8-character alpha-numeric section showing System and Group names, status and identity information, and error messages. VX-2500 OPERATING MANUALPage 3 [ q ] / [ p ] Buttons (Programmable Function Buttons) Pressing either button changes the current group (and displayed group number or name). Holding a button for more than 1/2 second causes the function to repeat. Microphone Jack Connect the microphone plug to this jack. [ A ] Button (Programmable Function Button) This button can be set up for special applications, such as High/Low power se- lection, Monitor, Talk-Around, etc, as determined by your network requirements and programmed by your VERTEX STANDARD dealer. [ s ] / [ r ] Buttons (Programmable Function Buttons) Pressing either button changes the current system (and displayed system number or name). Holding a button for more than 1/2 second causes the function to repeat. [ P1 ] - [ P4 ] Buttons (Programmable Function Buttons) These buttons can be set up for special applications, such as High/Low power selection, Monitor, Talk-Around, etc, as determined by your network require- ments and programmed by your VERTEX STANDARD dealer. CONTROLS & CONNECTORS Current Group on “Scan” List LCD Icons & Indicators 8-Character Alpha-Numeric Display Transmission in progress, (follows Red BUSY/TX in- dicator). Busy Channel (follows Green BUSY/TX indicator). Talk-Around Enabled Low TX Power Horn Function Activate Home System/Group VX-2500 OPERATING MANUALPage 4 Rear Panel Antenna Socket The 50-Ohm coaxial feedline to the antenna must be connected here, using a type-M (PL-259) plug. 13.8V DC Cable Pig…

Text truncated - open the document above for the full version.

C:\windows\TEMP\probonholdemail.doc TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] October 4, 2002 FCC SUBJECT: VERTEX STANDARD CO., LTD. FCC ID: K66 VX-2500V REFERENCE: JOB #: 981UC2 Re: Test Report Template To Whom It May Concern: There is a typographical error on page 6 of the Test Report. The check mark for Part 74 compliance is marked “Subpart H.” It should be identified as “Subpart D.” Very truly yours, Frank (for) Sid Sanders

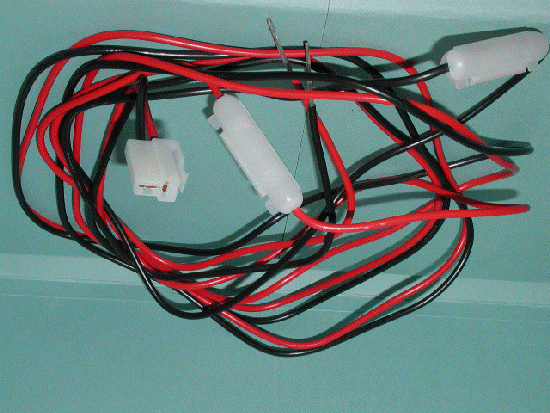

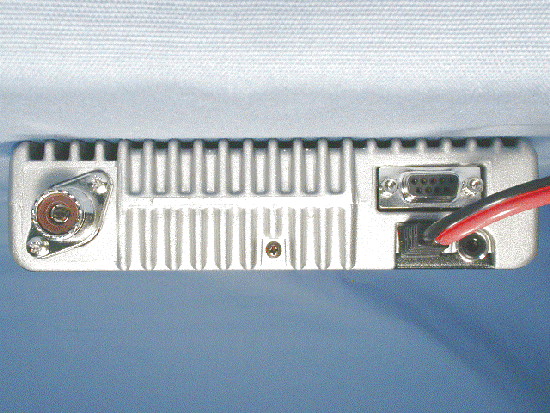

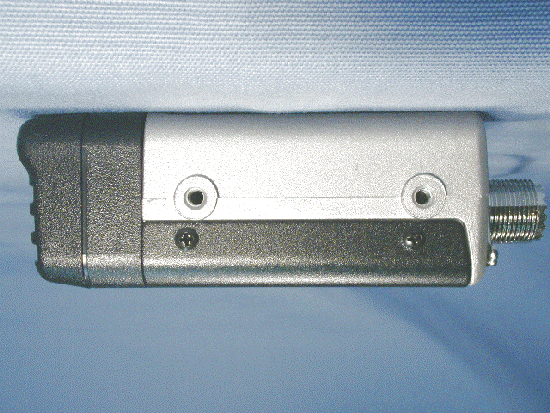

FCC ID: K66VX-2500V Vertex Standard Co., Ltd. Front of EUT Rear of EUT FCC ID: K66VX-2500V Vertex Standard Co., Ltd. Right side of EUT Left side of EUT FCC ID: K66VX-2500V Vertex Standard Co., Ltd. Top of EUT Bottom of EUT FCC ID: K66VX-2500V Vertex Standard Co., Ltd. Microphone DC Power cable

43.543.543.543.5 2 0 . 5 2 0 . 5 2 0 . 5 2 0 . 5 1 6 1 6 1 6 1 6 3232 3232 3- R1 3- R1 3- R1 3- R1 3 - R 1 .5 3 - R 1 .5 3 - R 1 . 5 3 - R 1 . 5 C 1 .5 C 1 .5 C 1 .5 C 1 .5 C 1 .5 C 1 .5 C 1 .5 C 1 .5 VX-2500VVX-2500V LABEL DRAWINGLABEL DRAWING Vertex Standard Co., Ltd.Vertex Standard Co., Ltd. K66VXA-700 4909959000000 SER. NO. 00000000 VX-2500VVX-2500V 40 3 5 22 RR VERTEX STANDARD CO.,LTD.VERTEX STANDARD CO.,LTD. MADE IN JAPANMADE IN JAPAN FCC ID:K66VX-2500VFCC ID:K66VX-2500V CANADA: xxxx xxxxxxxCANADA: xxxx xxxxxxx xxxxxxxxxxxxxx 4909959000000 SER. NO. 00000000 VX-2500VVX-2500V 40 3 5 22 RR VERTEX STANDARD CO.,LTD.VERTEX STANDARD CO.,LTD. MADE IN JAPANMADE IN JAPAN FCC ID:K66VX-2500VFCC ID:K66VX-2500V CANADA: xxxx xxxxxxxCANADA: xxxx xxxxxxx xxxxxxxxxxxxxx (1:1) (1:2) ID / Part 15.19 and Caution drawings

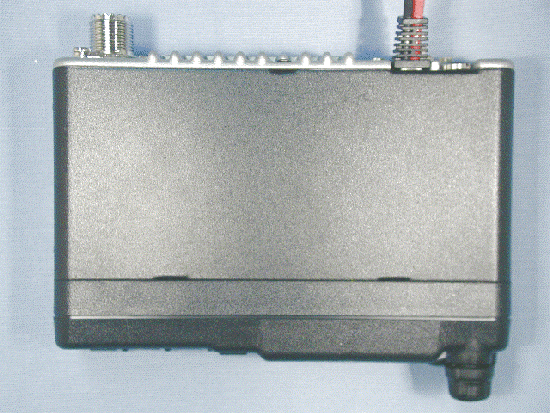

FCC ID: K66VX-2500V Vertex Standard Co., Ltd. Top of EUT Bottom of EUT

FCC ID: K66VX-2500V Vertex Standard Co., Ltd. Inside of EUT Inside of EUT FCC ID: K66VX-2500V Vertex Standard Co., Ltd. Component side of RF-UNIT with shield cases Component side of RF-UNIT without shield cases FCC ID: K66VX-2500V Vertex Standard Co., Ltd. Solder side of RF-UNIT Inside front panel with PWB FCC ID: K66VX-2500V Vertex Standard Co., Ltd. Inside front panel without PWB Component side of PANEL-UNIT with LCD FCC ID: K66VX-2500V Vertex Standard Co., Ltd. Component side of PANEL-UNIT without LCD Solder side of PANEL-UNIT FCC ID: K66VX-2500V Vertex Standard Co., Ltd. Front of LCD Back of LCD FCC ID: K66VX-2500V Vertex Standard Co., Ltd. Inside of chassis with power module Inside of chassis FCC ID: K66VX-2500V Vertex Standard Co., Ltd. Inside of top case Inside of microphone

FCC ID: K66VX-2500V Circuit Description Vertex Standard Co., Ltd. 1/3 VX-2500V Circuit Description 1. Overview The VX-2500V is a VHF/FM mobile transceiver designed to operate in the frequency range of 148 to 174MHz(C Band). 2. Circuit Configuration by Frequency The receiver is a double-conversion superheterodyne with a first intermediate frequency (IF) of 44.25MHz and a second IF of 450kHz. Incoming signals from the antenna are mixed with the local signal from PLL to produce the first IF of 44.25MHz. This is then mixed with the 43.8MHz second local oscillator (using the 14.6MHz TCXO) output to produce the 450kHz second IF. This is detected to give the demodulated signal. The transmit signal frequency is generated by PLL VCO, and modulated by the signal from the microphone. It is then amplified and sent to the antenna. 3. Receive Signal Path Incoming RF signals from the antenna connector are delivered to the RF Unit, and pass through a low-pass filter (LPF) antenna switching network consisting of coils L1002, L1003, and L1007, capacitors C1004, C1009, C1016, C1019, and C1282, and antenna switching diodes D1005, and D1007 for delivery to the receiver front end. Signals within the frequency range of the transceiver are then passed through a varactor-tuned bandpass filter consisting of L1008, L1009 before RF amplification by Q1011 (2SC4226). The amplified RF is then band-pass filtered again by varactor-tuned resonators L1019, L1023 to ensure pure in-band input to 1st mixer Q1026 (3SK228). Buffered output from the VCO Unit is amplified by Q1021 (2SC5107) and low- pass filtered by L1030, L1032 and C1184, C1188, C1192 to provide a pure 1st local signal between 192.25 and 218.25MHz(C Band), 178.25 and 204.25MHz. The 44.25MHz 1st mixer product then passes through monolithic crystal filters XF1001, and is amplified by Q1029 (2SC4215Y) and delivered to the input of the FM IF subsystem IC Q1028 (TA31136FN). This IC contains the 2nd mixer, 2nd local oscillator, limiter amplifier, FM detector, noise amplifier, and squelch gates. The 2nd LO in the IF-IC is produced from TCXO X1001 (14.600MHz), and the 1st IF is converted to 450kHz by the 2nd mixer and stripped of unwanted components by ceramic filter CF1001 or CF1002. After passing through a limiter amplifier, the signal is demodulated by the FM detector CD1001 (CDBC450CX24). Detected audio from Q1029 is applied to Q2016(AK2345) and audio low-pass filter. After volume adjustment by Q2014(M62364FP), the audio signal is amplified by the AF power amplifier Q1509 (TDA2003H) and passed to speaker jack. 4. Transmit Signal Path Voice audio from the microphone is delivered via the Mic (Jack) Unit to the FCC ID: K66VX-2500V Circuit Description Vertex Standard Co., Ltd. 2/3 PANEL Unit, after passing through amplifier Q2022 (NJM2902V), Mic gain- volume Q2014 (M62364FP) pre-emphasis Q2015 (NJM2902V),and limiter Q2016 (IDC instantaneous deviation control), is adjusted for optimum deviation level and delivered to the next stage. Voice input from the microphone and CTCSS are FM-modulated to the VCO of the synthesizer, while DCS audio is modulated by the reference frequency oscillator of the synthesizer. Synthesizer output, after passing through diode switch D1022 (1SS321), is amplified by driver Q1022 (2SC5415E) / Q1025 (2SC5107) and power module Q1014 (RA30H1317M) to obtain full RF output. The RF energy then passes through antenna switch D1005 / D1007 and a low-pass filter circuit and finally to the antenna connector. RF output power from the final amplifier is sampled by CM coupler and is rectified by D1011,D1012(HSM88AS2). The resulting DC is fed through Automatic Power Controller Q1003 (NJM2902V) to transmitter RF amplifier and thus the power output. Generation of spurious products by the transmitter is minimized by the fundamental carrier frequency being equal to the final transmitting frequency, modulated directly in the transmit VCO. Additional harmonic suppression is provided by a low-pass filter consisting of L1002, L1003, L1015, L1016, C1004, C1282, C1009, C1016, C1019, C1025, C1034 and C1283, resulting in more than 60dB of harmonic suppression prior to delivery to the RF energy to the antenna. 5 PLL Frequency Synthesizer PLL frequency synthesizer consists of the VCO Q1013 (2SK508-K52:RX) and Q1015 (2SC4226-R24:TX), VCO buffers Q1018 (2SC5107-0), Q1020 (2SC5107-0), Q1021 (2SC5107-0), PLL subsystem IC Q1023 (SA7025DK) and 14.6MHz reference crystal X1001. The frequency stability is +/- 2.5ppm within temperature range of –30 to +60 degree. The output of the 14.6MHz reference is applied to pin 8 of the PLL IC. While receiving, VCO Q1013 oscillates between 192.25 and 218.25MHz(C Band), 178.25 and 204.25MHz according to the transceiver version and the programmed receiving frequency. The VCO generates 192.25 and 218.25MHz(C Band), for providing to the first local signal. In TX, the VCO generates 148 to 174MHz(C Band). The output of the VCO is amplified by the Q1020 and routed to the pin 5 of the PLL IC. Also the output of the VCO is amplified by the Q1021 and routed first local /Power Module according to D1022. The PLL IC consists of a prescaler, fractional divider, reference divider and phase comparator and charge pump. This PLL IC is fractional-N type synthesizer and performs in the 40 or 50kHz reference signal, which is eighth of the channel step (5, or 6.25kHz). The input signal from pin 5 and 8 of the PLL IC is divided down to the 20kHz and compared at phase comparator. The pulsed output signal of the phase comparator is applied to the charge pump and transformed into DC signal in the loop filter. The DC signal is applied to the VCO and locked to keep the VCO frequency constant. PLL data is output from DCS_E (pin100), CLOCK (pin2) and PLL_E (pin98) of the microprocessor Q2013. The data are input to PLL IC when the channel is changed or when transmission is changed to reception and vice versa. A PLL lock condition is always monitored by the pin20 of the Q2013.…

Text truncated - open the document above for the full version.

FCC ID: K66VX-2500V Alignment Vertex Standard Co., Ltd. 1/6 VX-2500V Alignment Introduction The VX-2500V is carefully aligned at the factory for the specified performance across the frequency range specified for each version. Realignment should therefore not be necessary except in the event of a component failure, or altering version type. All component replacement and service should be performed only by an authorized Vertex Standard representative,or the warranty policy may be void. The following procedures cover the sometimes critical and tedious adjustments that are not normally required once the transceiver has left the factory. However, if damage occurs and some parts subsequently are placed, realignment may be required. If a sudden problem occurs during normal operation, it is likely due to component failure; realignment should not be done until after the faulty component has been replaced. We recommend that servicing be performed only by authorized Vertex Standard service technicians who are experienced with the circuitry and fully equipped for repair and alignment. Therefore, if a fault is suspected, contact the dealer from whom the transceiver was purchased for instructions regarding repair. Authorized Vertex Standard service technicians realign all circuits and make complete performance checks to ensure compliance with factory specifications after replacing any faulty components. Those who do undertake any of the following alignments are cautioned to proceed at their own risk. Problems caused by unauthorized attempts at realignment are not covered by the warranty policy. Also, Vertex Standard reserves the right to change circuits and alignment procedures in the interest of improved performance, without notifying owners. Under no circumstances should any alignment be attempted unless the normal function and operation of the transceiver are clearly understood, the cause of the malfunction has been clearly pinpointed and any faulty components replaced, and realignment determined to be absolutely necessary. The following test equipment (and thorough familiarity with its correct use) is necessary for complete realignment. Correction of problems caused by misalignment resulting from use of improper test equipment is not covered under the warranty policy. While most steps do not require all of the equipment listed, the interactions of some adjustments may require that more complex adjustments be performed afterwards. Do not attempt to perform only a single step unless it is clearly isolated electrically from all other steps. Have all test equipment ready before beginning, and follow all of the steps in a section in the order presented. Required Test Equipment ˆ RF Signal Generator with calibrated output level at 1000MHz ˆ Deviation Meter (linear detector) ˆ In-line Wattmeter with 5% accuracy at 1000MHz ˆ 50- Ω RF Dummy Load with power rating 100W at 1000MHz ˆ 4- Ω AF Dummy Load ˆ Regulated DC Power Supply (standard 13.8V DC, 15A) FCC ID: K66VX-2500V Alignment Vertex Standard Co., Ltd. 2/6 ˆ Frequency Counter with 0.1ppm accuracy at 1000MHz ˆ AC Voltmeter ˆ DC Voltmeter ˆ VHF Sampling Coupler ˆ IBM PC / compatible Computer ˆ Oscilloscope ˆ Vertex Standard VPL-1 Connection Cable & Alignment program Alignment Preparation & Precautions A 50- Ω RF Dummy Load and in-line wattmeter must be connected to the main antenna jack in all procedures that call for transmission, except where specified otherwise. Correct alignment is not possible with an antenna. After completing one step, read the following step to determine whether the same test equipment will be required. If not, remove the test equipment (except dummy load and wattmeter, in connected) before proceeding. Correct alignment requires that the ambient temperature be the same as that of the transceiver and test equipment, and that this temperature be held constant between 20 and 30 ° C (68 ∼ 86 ° F). When the transceiver is brought into the shop from hot or cold air, it should be allowed time to come to room temperature before alignment. Whenever possible, alignments should be made with oscillator shields and circuit boards firmly affixed in place. Also, the test equipment must be thoroughly warmed up before beginning. Note: Signal levels in dB referred to in the alignment procedure are based on 0dB μ EMF = 0.5 μ V. Setup the test equipment as shown for transceiver alignment,apply 13.8V DC power to the transceiver. Refer to the drawings above for Alignment Points. VPL-1 cable J1502 Data port VX-2500 In-Line Wattmeter RF sampling coupler Deviation meter Frequency counter 50ohm Dummy Load 13.8Vdc power supply Signal generator Antenna Port Oscilloscope AF Generator Sinad Meter 4ohm Dummy Personal Computer See Fig 2 FCC ID: K66VX-2500V Alignment Vertex Standard Co., Ltd. 3/6 (Fig 2: J1502 connection for the modulation adjustment) The transceiver must be programmed for use in the intended system before alignment is attempted. The RF parameters are loaded from the file during the alignment process. [Important] In order to facilitate alignment over the complete switching range of the equipment it is recommended that the channel data in the transceiver is preset as the chart below. Table.1 RF Ch. List Frequency(Simplex) RF Ch. listCh. Space Ver. C Ch #1 Wide161.100MID Frequency(Wide) [use in the SVC47] Ch #2 Narrow161.100MID Frequency(Narrow) [use in the SVC47 ] Ch #3 Wide148.100LOW Frequency [for PLL VCV adjustment] Ch #4 Wide173.900HIGH Frequency [for PLL VCV adjustment] The alignment mode is accessed by “Alignment mode” command from the computer whilst switching on. And it is operated by the alignment tool automatically. During the alignment mode, normal operation is suspended. Use the alignment tool program running on PC. PLL VCV Connect the positive lead of the DC voltmeter to the test point TP1007 (VCV) on the RF-Unit, as indicated in the figure, and the negative lead to chassis ground. Set the transceiver to the high band edge frequency c…

Text truncated - open the document above for the full version.

FCC ID: K66VX-2500V MFA p0290009, d0290077 ENVIRONMENTAL ASSESSMENT for MOBILES/FIXED BASE STATION for FCC ID: FCC ID: K66VX-2500V Model:VX-2500V to FEDERAL COMMUNICATIONS COMMISSION 47 CFR 1.1310 (MPE) Radiofrequency Radiation Exposure Limits DATE OF REPORT: September 25, 2002 ON THE BEHALF OF THE APPLICANT: Vertex Standard Co., Ltd. AT THE REQUEST OF: P.O. M.M. Email 9/10/2002 Vertex Standard USA Inc. 10900 Walker Street Cypress, CA 90630 Attention of: Mikio Maruya, Executive Vice President (800) 255-9237; FAX: (800) 477-9237 (714) 827-7600; FAX: -8100 [email protected] SUPERVISED BY: Morton Flom, P. Eng. FCC ID: K66VX-2500V MFA p0290009, d0290077 TABLE OF CONTENTS RULEDESCRIPTIONPAGE . Test Report 1 . Identification of the Equipment Under Test 2 . Standard Test Conditions and Engineering Practices 4 1.1310 Environmental Assessment 5 FCC ID: K66VX-2500V MFA p0290009, d0290077 PAGE NO.1of9. Required information per ISO/IEC Guide 25-1990, paragraph 13.2: a) TEST REPORT (SUPPLEMENTAL) b) Laboratory: (FCC: 31040/SIT) (Canada: IC 2044) M. Flom Associates, Inc. 3356 N. San Marcos Place, Suite 107 Chandler, AZ 85225 c) Report Number: d0290077 d) Client: Vertex Standard USA Inc. 10900 Walker Street Cypress, CA 90630 e) Identification: VX-2500V FCC ID: K66VX-2500V Description: VHF FM Mobile Transceiver f) EUT Condition: Not required unless specified in individual tests. g) Report Date: September 25, 2002 EUT Received: September 10, 2002 h, j, k): As indicated in individual tests. i) Sampling method: No sampling procedure used. l) Uncertainty: In accordance with MFA internal quality manual. m) Supervised by: Morton Flom, P. Eng. n) Results: The results presented in this report relate only to the item tested. o) Reproduction: This report must not be reproduced, except in full, without written permission from this laboratory. FCC ID: K66VX-2500V MFA p0290009, d0290077 PAGE NO.2of9. IDENTIFICATION OF THE EQUIPMENT UNDER TEST (EUT) NAME AND ADDRESS OF APPLICANT: Vertex Standard Co., Ltd. 4-8-8 Nakameguro, Meguro-Ku Tokyo 153-8644 Japan MANUFACTURER: Vertex Standard Co., Ltd. 4-8-8 Nakameguro, Meguro-Ku Tokyo 153-8644 Japan FCC ID: K66VX-2500V MODEL NO: VX-2500V DESCRIPTION: VHF FM Mobile Transceiver TYPE OF EMISSION: 16K0F3E, 11K0F3E FREQUENCY RANGE, MHz: 148 to 174 POWER RATING, Watts: 5 to 25 Switchable x Variable N/A MODULATION: AMPS TDMA CDMA x OTHER ANTENNA: HELICAL MONOPOLE WHIP x OTHER NOTE: For RF Safety test antenna gain taken at the upper range of expected gain (i.e. 0 dBd) and RF Power set to highest nominal power across all channels. FCC ID: K66VX-2500V MFA p0290009, d0290077 PAGE NO.3of9. M. Flom Associates, Inc. is accredited by the American Association for Laboratory Association (A2LA) as shown in the scope below. "This laboratory is accredited by the American Association for Laboratory Accreditation (A2LA) and the results shown in this report have been determined in accordance with the laboratory's terms of accreditation unless stated otherwise in the report." Should this report contain any data for tests for which we are not accredited, or which have been undertaken by a subcontractor that is not A2LA accredited, such data would not covered by this laboratory's A2LA accreditation. FCC ID: K66VX-2500V MFA p0290009, d0290077 PAGE NO.4of9. STANDARD TEST CONDITIONS and ENGINEERING PRACTICES Except as noted herein, the following conditions and procedures were observed during the testing: In accordance with ANSI C63.4-1992/2000, section 6.1.9, and unless otherwise indicated in the specific measurement results, the ambient temperature of the actual EUT was maintained within the range of 10°to 40°C (50°to 104°F) unless the particular equipment requirements specify testing over a different temperature range. Also, unless otherwise indicated, the humidity levels were in the range of 10% to 90% relative humidity. Prior to testing, the EUT was tuned up in accordance with the manufacturer's alignment procedures. All external gain controls were maintained at the position of maximum and/or optimum gain throughout the testing. Measurement results, unless otherwise noted, are worst case measurements. FCC ID: K66VX-2500V MFA p0290009, d0290077 PAGE NO.5of9. Name of test:Environmental Assessment Specification:FCC: 47 CFR 1.1310 Measurement Guide:ANSI/IEEE C95.1 1992 Test Equipment:Maximum Permissible Exposure (MPE) measurement system, consisting of: Narda 8717-1174R, Radiation meter Narda 8761D, E-field probe (300 kHz – 3 GHz) (Calibrated Nov-98) Measurement Procedure: 1. The following measurements were performed with a Narda probe using ANSI/IEEE C95.1 as a guide. 2. Prior to making any measurements, the measurements system was calibrated in accordance with the manufacturer’s procedures. 3. The EUT’s radiating element (antenna) was placed ona1mtall table for ease of testing. For equipment normally operated on a metal surface, a ground plane was used. 4. The remaining equipment necessary to operate the EUT was maintained at a distance from the measurement arrangement suitable to minimize interference with the measurements. 5. The minimum safe distance was calculated from the formula Power Density = EIRP / 4πR 2 (Peak Watts/m 2 ). The calculation is shown with the measurement data. 6. With the EUT operating at maximum power, a search was initiated for worst case emissions with the probe raised and lowered over a range of 0.2 to 2 meters in height and over a horizontal plane of 0 o to 360 o . 7. Average values were calculated for the whole body (0.2-2.0m), lower body (0.2-0.8m) and upper body (1.0-2.0m). Results: Attached. FCC ID: K66VX-2500V MFA p0290009, d0290077 PAGE NO.6of9. TEST SETUP: Maximum Permissible Exposure (MPE) STATE: FCC ID: K66VX-2500V MFA p0290009, d0290077 PAGE NO.7of9. Name of test:R.F. Radiation Exposure FCC Rules: 1.1307, 1.1310, 1.1311, 2.1091 Description, EUT: See page 2 of Test Report Test Frequency, MHz = 147.9 Antenna Gain = 0 dBd Antenna Model ½ Wave Rated Probe: Narda 876…

Text truncated - open the document above for the full version.
