K66VX-3200U-2UHF FM Mobile Transceiver

VX-3200 OPERATING MANUAL VERTEX STANDARD CO., LTD. 4-8-8 Nakameguro, Meguro-Ku, Tokyo 153-8644, Japan VERTEX STANDARD US Headquarters 17210 Edwards Rd., Cerritos, CA 90703, U.S.A. International Division 8350 N.W. 52nd Terrace, Suite 201, Miami, FL 33166, U.S.A. YAESU EUROPE B.V. P.O. Box 75525, 1118 ZN Schiphol, The Netherlands YAESU UK LTD. Unit 12, Sun Valley Business Park, Winnall Close Winchester, Hampshire, SO23 0LB, U.K. VERTEX STANDARD HK LTD. Unit 5, 20/F., Seaview Centre, 139-141 Hoi Bun Road, Kwun Tong, Kowloon, Hong Kong VX-3200 OPERATING MANUAL VX-3200 OPERATING MANUAL Congratulations! You now have at your fingertips a valuable communications tool: a VERTEX STAN- DARD two-way radio! Rugged, reliable and easy to use, your VERTEX STANDARD radio will keep you in constant touch with your colleagues for years to come, with negligible maintenance downtime. Please take a few minutes to read this manual carefully. The information presented here will allow you to derive maximum performance from your radio, in case ques- tions arise later on. We’re glad you joined the VERTEX STANDARD team. Call on us anytime, because communications is our business. Let us help you get your message across. NOTICE ! There are no owner-serviceable parts inside the transceiver. All service jobs must be referred to an authorized VERTEX STANDARD Service Represen- tative. Consult your Authorized VERTEX STANDARD Dealer for installa- tion of optional accessories. SAFETY/WARNING INFORMATION WARNING - DO NOT operate the VX-3200 radio when any person(s) (by- standers) outside the vehicle are within the distances shown in the chart at the bottom of this section. Safety Training information: Antennas used for this transmitter must not exceed an antenna gain of 0 dBd. The radio must be used in vehicle-mount configurations with a maximum op- erating duty factor not exceeding 50%, in typical Push-to-Talk configurations. This radio is restricted to occupational use, work related operations only where the radio operator must have the knowledge to control the exposure condi- tions of its passengers and bystanders by maintaining the minimum separa- tion distance shown below. Failure to observe these restrictions will result in exceeding the FCC RF ex- posure limits. Antenna Installation: For rear deck trunk installation, the antenna must be located at least the fol- lowing distance away from rear-seat passengers and bystanders in order to comply with the FCC RF exposure requirements. For roof top installations, the antenna must be placed in the center of the roof. Radiated Frequency and Distance VX-3200VVX-3200U ( A ) VX-3200U ( D ) VX-3200U ( F ) 3.27 Feet2.69 Feet2.53 Feet2.45 Feet ( 0.997 m )( 0.819 m )( 0.773 m )( 0.748 m ) VX-3200 OPERATING MANUALPage 1 INTRODUCTION For North American Users Regarding 406 MHz Guard Band The U.S. Coast Guard and National Oceanographic and Atmospheric Admin- istration have requested the cooperation of the U.S. Federal Communications Commission in preserving the integrity of the protected frequency range 406.0 to 406.1 MHz, which is reserved for use by distress beacons. Do not attempt to program this apparatus, under any circumstances, for operation in the fre- quency range 406.0 - 406.1 MHz if the apparatus is to be used in or near North America. The VX-3200 Series are full-featured FM transceivers designed for flexible mobile and base station business communications in the VHF or UHF Land Mobile bands. These transceiver are designed for reliable business communications in a wide vari- ety of applications with a wide range of operating capability provided by their lead- ing-edge design. The 128-channel memories can each be programmed with an 8-character channel name. Important channel frequency data is stored in EEPROM and flash memory on the CPU, and is easily programmable by dealers using a personal computer and the VER- TEX STANDARD VPL-1 Programming Cable and CE52 Software. The pages which follow will detail the many advanced features provided on the VX- 3200 transceiver. After reading this manual, you may wish to consult with your Net- work Administrator regarding precise details of the configuration of this equipment for use in your application VX-3200 OPERATING MANUALPage 2 CONTROLS & CONNECTORS Front Panel Important! - All buttons located on the Front Panel are Programmable Function ( PF ) Buttons, configured according to your network requirements and programmed by your VERTEX STANDARD dealer. The instructions below a typically-config- ured radio. VOL/PWR Knob Turn this control clockwise to turn the radio on and to increase the volume. Turn it counterclockwise into the click-stop to turn the radio off. BUSY/TX Indicator Indicate transceiver Transmit/Receive Status Steady Red:Transmitting in progress Steady Green:Busy Channel Blinking Green:Tone Squelch in defeated condition LCD (Liquid Crystal Display) The display includes an 8-character alpha-numeric section showing Group and Channel names, status and identity information, and error messages. VX-3200 OPERATING MANUALPage 3 [ q ] / [ p ] Buttons (Programmable Function Buttons) Pressing either button changes the current channel (and displayed channel num- ber or name). Holding a button for more than 1/2 second causes the function to repeat. Microphone Jack Connect the microphone plug to this jack. [A] Button (Programmable Function Button) This button can be set up for special applications, such as High/Low power se- lection, Monitor, Talk-Around, etc, as determined by your network requirements and programmed by your VERTEX STANDARD dealer. [s]/[r] Buttons (Programmable Function Buttons) Pressing either button changes the current group (and displayed group number or name). Holding a button for more than 1/2 second causes the function to repeat. [P1] - [P4] Buttons (Programmable Function Buttons) These buttons can be set up for special applications, such as High/Low power selection, Monitor, Talk-Around, etc, as determined by your n…

Text truncated - open the document above for the full version.

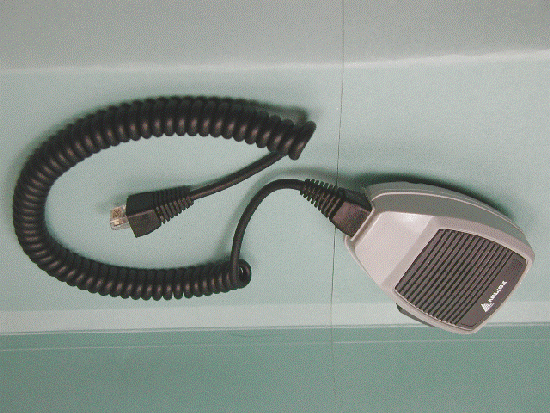

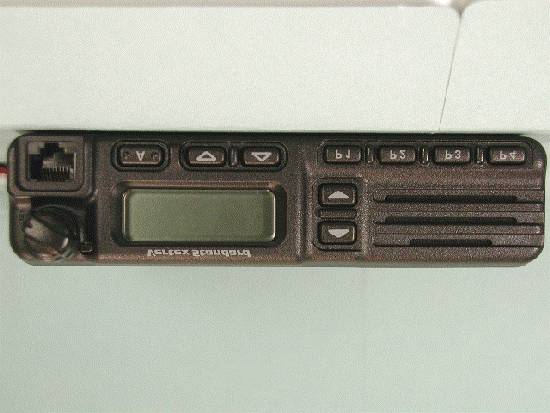

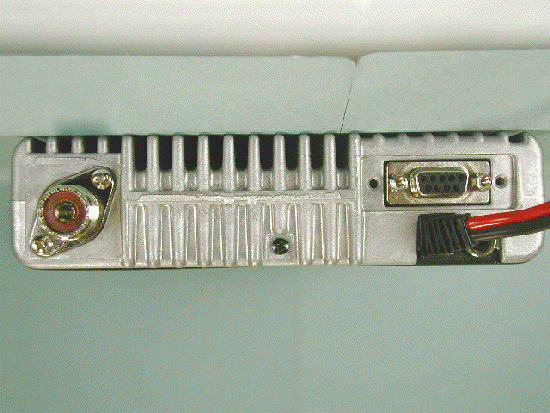

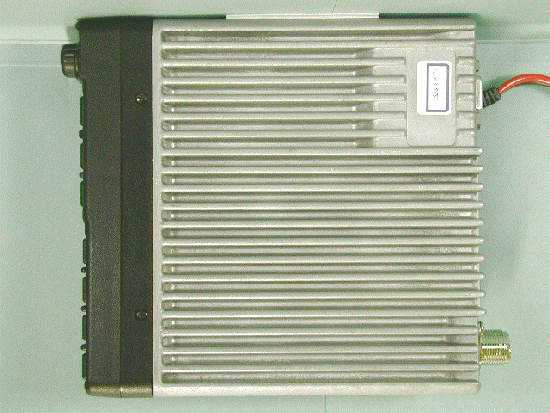

Front of EUT Back of EUT Right side of EUT Left side of EUT Top of EUT Bottom of EUT Microphone DC Power cable

VX-3200U (Type A)VX-3200U (Type A) LABEL DRAWINGLABEL DRAWING Vertex Standard Co., Ltd.Vertex Standard Co., Ltd. (1:1) (1:2) ID / Part 15.19 and CAUTION drawings VX-3200U-2 K66VX-3200U-2 ID drawing Part 15.19 and CAUTION drawings This device complies with part 15 of FCC Rules. Operation is subject to that this device dose not cause harmful interference. Device restricted to occupational use to satisfy FCC RF exposure compliance. See owner’s manual for specific operating requirement. VX-3200U K66VX-3200U-2 Label location CAUTION This device complies with part 15 of FCC Rules. Operation is subject to that this device dose not cause harmful interference. Device restricted to occupational use to satisfy FCC RF exposure compliance. See owner’s manual for specific operating requirement. CAUTION

Component side of RF-UNIT with shield cases Component side of RF-UNIT without shield cases Solder side of RF-UNIT Inside front panel with PWB Inside front panel without PWB Component side of PANEL-UNIT with LCD Component side of PANEL-UNIT without LCD Solder side of PANEL-UNIT Front of LCD Back of LCD Inside of chassis Inside of microphone

1/2 AddressDevice nameDescriptionApplicationType [RF-UNIT] D 1001 DiodeRLS135 TE-11RF Limiting D 1002 DiodeBAS316RF Limiting D 1003 DiodeMC2850-T11-1Temp. Comp. D 1004 DiodeP6KA18Reverse Voltage Protection D 1005 DiodeUM9957F/TRAntenna Switch D 1006 DiodeBAS316APC Switch D 1007 DiodeUM9957F/TRAntenna Switch D 1008 Varactor DiodeHVC358B(TAPE)BPF Tune D 1009 DiodeBAS316APC D 1010 Varactor DiodeHVC358B(TAPE)BPF Tune D 1011 DiodeHSM88AS TRPower Detector D 1012 DiodeHSM88AS TRPower Detector D 1013 Varactor DiodeHVU306A5TRFRX VCO D 1014 Varactor DiodeHVU306A5TRFRX VCO D 1015 Varactor Diode1SV276(TPH3)TX VCO D 1016 Varactor Diode1SV276(TPH3)TX VCO D 1017 Varactor Diode1SV214 TPHTX MOD D 1018 Varactor DiodeHVC358B(TAPE)BPF Tune D 1019 Varactor DiodeHVC358B(TAPE)BPF Tune D 1020 Varactor DiodeHVU300A-TRTemp. Control for PLL REF D 1021 Not Used D 1022 Diode1SS321 TE85RTx/Rx RF Switch D 1023 Varactor DiodeHVU359TRFTemp. Control for PLL REF D 1024 DiodeMC2848-T11-12nd IF Filter Switch D 1025 DiodeGN2011-Q(TX)Mixer D 1026 DiodeMC2848-T11-12nd IF Filter Switch D 1027 DiodeBAS316Temp. Control for TX Driver D 1028 DiodeHZU5ALL-TRProtection D 1029 Varactor DiodeHVU359TRFTX MOD D 1501 DiodeMC2850-T11-1Protection D 1502 DiodeMC2850-T11-1Protection D 1503 DiodeMC2850-T11-1Protection D 1504 DiodeBAS316External PTT D 1505 DiodeD1F20-4063Protection D 1506 DiodeMC2850-T11-1SQ Noise Detector D 1507 DiodeMC2850-T11-1SQ Noise Detector D 1508 not used Q 1001 Transistor2SC4154-T11-1EClock Triple Q 1002 Transistor2SC4154-T11-1EDC AMP Q 1003 ICM5223AGP 600CAPC COMP Q 1004 ICMM1216ENRE9V Regulator Q 1005 Transistor2SB1201S-TL9V Regulator Q 1006 TransistorRT1N241M-T11-1Tx Power Control Q 1007 Transistor2SC4154-T11-1EVCO 9V Regulator Q 1008 ICDTB123EK T146Rx 9V Switch Q 1009 Transistor2SB1132 T100 RTx 9V Switch Q 1010 TransistorIMH6A T108Tx/Rx Switch Q 1011 Transistor2SC4227-T2 R34RF Amplifier Q 1012 TransistorRT1N241M-T11-1MOD Mute Switch Q 1013 Transistor2SK508-T2B K52RX Voltage Control Oscillator Q 1014 ICRA45H4047MRF Power MODULEA Q 1014 ICRA45H4452MRF Power MODULED,F Q 1015 Transistor2SC4226-T2B R24TX Voltage Control Oscillator Q 1016 TransistorRT1N241M-T11-1RX VCO Switch Q 1017 TransistorIMH6A T108TX VCO Switch Q 1018 Transistor2SC5107-O(TE85R)Buff AMP Q 1019 ICM5223AGP 600CAF Modulation Q 1020 Transistor2SC5107-O(TE85R)Buff AMP Q 1021 Transistor2SC5107-O(TE85R)Buff AMP Q 1022 TransistorRT1N241M-T11-1Temp. Control Switch Q 1023 ICMB15A02PFV1-G-BND-EFPLL Subsystem Q 1024 ICNJM78L05UA TE15V Regulator Q 1025 Transistor2SC5415E-TDTx Driver AMP Q 1026 Transistor2SC5107-O(TE85R)Tx Driver AMP Q 1027 Transistor2SC4116GR TE85RReference Oscillator Q 1028 ICTA31136FN(EL)IF Subsystem Q 1029 Transistor2SC4215Y TE85RIF AMP Q 1030 TransistorRT1N241M-T11-1Wide/Narrow Switch Q 1031 Transistor2SA1602A-T11-1FRx Wide/Narrow Switch Q 1032 Transistor2SC4154-T11-1EDC AMP Q 1033 Transistor2SC4154-T11-1ETx Power Control Q 1034 Transistor2SC4154-T11-1ECharge Pomp Q 1035 Transistor2SA1162GR TE85RCharge Pomp VX-3200U COMPONENT APPLICATIONS Vertex Standard Co., Ltd. 2/2 AddressDevice nameDescriptionApplicationType VX-3200U COMPONENT APPLICATIONS Q 1036 Transistor2SC2712GR TE85RCharge Pomp Q 1037 Transistor2SC4215Y TE85RMixer AMP D 1038 ICGN2011-Q(TX)Mixer Q 1501 Transistor2SC4154-T11-1E5V Regulator Q 1502 TransistorRT1N241M-T11-1SB Switch Q 1503 ICNJM2902V-TE1AF AMP/SQL Q 1504 Transistor2SD1368CB TLH_A/IG Switch Q 1505 Transistor2SC4116GR TE85RH_A/IG Switch Q 1506 TransistorRT1N241M-T11-1IG Switch Q 1507 TransistorRT1N241M-T11-1H_A Switch Q 1508 TransistorPDTC114TEAF Mute Q 1509 ICTDA2003HAF Power AMP Q 1510 TransistorPDTC114TESQL Switch Q 1511 Transistor2SB1301-T2 ZQAF Power AMP Switch Q 1512 TransistorRT1N241M-T11-1AF Power AMP Switch Q 1513 ICS-93C56AMFN-TBProgrammable Data Store Q 1514 Not Used Q 1515 FET2SJ125D-T12-1DAF Mute [PANEL-UNIT] D 2001 DiodeDA221Protector D 2002 DiodeDA221Protector D 2003 DiodeDA221Reset D 2004 LEDBRPG1211CRX/TX LED D 2005 DiodeDA221Protector D 2006 LEDTLOU262Back Light LED D 2007 DiodeMA2S111Protector D 2008 LEDTLOU262Back Light LED D 2009 DiodeDA221PSK Detector D 2010 DiodeMA2S111Protector D 2011 DiodeMC2846Protector D 2012 DiodeDA221Protector D 2013 DiodeDA221DCS Detector D 2014 DiodeMA2S111Switch D 2015 DiodeMA2S111KEY Matrix Switch D 2016 DiodeMA2S111KEY Matrix Switch D 2017 DiodeMA2S111KEY Matrix Switch D 2018 Not Used D 2019 Not Used D 2020 Not Used D 2021 Not Used D 2022 Not Used D 2023 Not Used D 2024 Not Used D 2025 Not Used D 2026 Not Used D 2027 DiodeMA2S111KEY Matrix Switch D 2028 DiodeMA2S111KEY Matrix Switch D 2029 DiodeMA2S111KEY Matrix Switch D 2030 DiodeMA2S111KEY Matrix Switch D 2031 DiodeMA2S111KEY Matrix Switch D 2032 DiodeMA2S111KEY Matrix Switch Q 2001 Transistor2SC4617RESET Switch Q 2002 Transistor2SC4617RXD Switch Q 2003 TransistorS-80735SNPower Down Q 2004 Transistor2SC4617RESET Q 2005 Transistor2SC4617TXD Switch Q 2006 TransistorNJM78L05UA5V Regulator Q 2007 Transistor2SC4617Clock Shift Q 2008 TransistorRT1N241MLAMP LED Drive Q 2009 TransistorRT1P441USEL Switch Q 2010 TransistorRT1N241MRX LED Drive Q 2011 Not Used Q 2012 Not Used Q 2013 ICLC87F72C8A-F5N19 Microprocessor Q 2014 ICM62364FP 600DD/A Converter Q 2015 ICNJM2902VAF AMP/Pre-Emphasis/PSK Detect Q 2016 ICIC AK2345(TAPE)Base Band IC Q 2017 ICIC LA8630MCompander Q 2019 TransistorPDTC144EECompander Switch Q 2020 Transistor2SC4617DCS Encode Q 2021 ICNJM2902VDCS Decode Detect/DCS Encode Filter/ D/A Converter Reference Q 2022 ICNJM2902VDTMF Encode/AF AMP/De-Emphasis Q 2024 ICBU4066BFAnalog Switch Q 2025 TransistorRT1N241MTX LED Drive Vertex Standard Co., Ltd.

FCC ID: K66VX-3200U-2/K66VX3200U-3 Alignment, Page 1/4 Vertex Standard Co., Ltd. VX-3200U Alignment The VX-3200U has been carefully aligned at the factory for the specified performance across the frequency range specified for each version. Realignment should therefore not be necessary except in the event of a component failure, or alteration of version. All component replacement and service should be performed only by an authorized Vertex Standard representative, or the warranty policy may be voided. The following procedures cover the sometimes critical and tedious adjustments that are not normally required once the transceiver has left the factory. However, if damage occurs and some parts are replaced, realignment may be required. If a sudden problem occurs during normal operation, it is likely due to component failure; realignment should not be done until after the faulty component has been replaced. We recommend that servicing be performed only by authorized Vertex Standard service technicians who are experienced with the circuitry and fully equipped for repair and alignment. Therefore, if a fault is suspected, contact the dealer from whom the transceiver was purchased for instructions regarding repair. Authorized Vertex Standard service technicians realign all circuits and make complete performance checks to ensure compliance with factory specifications after replacing any faulty components. Those who do undertake any of the following alignments are cautioned to proceed at their own risk. Problems caused by unauthorized attempts at realignment are not covered by the warranty policy. Also, Vertex Standard must reserve the right to change circuits and alignment procedures in the interest of improved performance, without notifying owners. Under no circumstances should any alignment be attempted unless the normal function and operation of the transceiver are clearly understood, the cause of the malfunction has been clearly pinpointed and any faulty components replaced, and the need for realignment determined to be absolutely necessary. The following test equipment (and thorough familiarity with its correct use) is necessary for complete realignment. Correction of problems caused by misalignment resulting from use of improper test equipment is not covered under the warranty policy. While most steps do not require all of the equipment listed, the interactions of some adjustments may require that more complex adjustments be performed afterwards. Do not attempt to perform only a single step unless it is clearly isolated electrically from all other steps. Have all test equipment ready before beginning, and follow all of the steps in a section in the order presented. Required Test Equipment RF signal generator: calibrated output level at 1000MHz (0dBμ = 0.5μV - closed circuit) Deviation Meter (linear detector) AF Millivoltmeter SINAD Meter Inline Wattmeter with 5% accuracy at 1000MHz Regulated DC Power Supply: adjustable from 10 to 17 VDC, 15A 50 Ω Non-reactive Dummy Load: 100W at 1000MHz Frequency Counter: >0.1ppm accuracy at 1000MHz AF Signal Generator DC Voltmeter: high impedance RF Sampling Coupler (attenuation pad) AF Dummy Load: 4Ω, 20W Oscilloscope Spectrum Analyzer IBM PC/compatible computer Vertex Standard VPL-1 programming cable and CE-** channel programming editor. FCC ID: K66VX-3200U-2/K66VX3200U-3 Alignment, Page 2/4 Vertex Standard Co., Ltd. Alignment Preparation & Precautions A dummy load and inline wattmeter must be connected to the main antenna jack in all procedures that call for transmission, except where specified otherwise. Correct alignment is not possible with an antenna. After completing one step, read the following step to determine whether the same test equipment will be required. If not, remove the test equipment (except dummy load and wattmeter, if connected) before proceeding. Correct alignment requires that the ambient temperature be the same as that of the transceiver and test equipment, and that this temperature be held constant between 20 and 30°C (68 and 86°F). When the transceiver is brought into the shop from hot or cold air it should be allowed some time for thermal equalization with the environment before alignment. If possible, alignments should be made with oscillator shields and circuit boards firmly affixed in place. Also, the test equipment must be thoroughly warmed up before beginning. Before beginning, connect the transceiver and PC using the VPL-1 programming cable as described in the EEPROM Programming chapter, and downloads the EEPROM data from the transceiver to the computer. Store this data in a disk file so that it can be saved and retrieved later. Using the table below, program the channel, CTCSS, and DCS alignment settings for your transceiver version. Upload this file to the transceiver. Note: Signal levels in dB referred to in this procedure are based on 0 dBμ = 0.5 μV (closed circuit). Set up the test equipment as shown for transmitter alignment. Maintain the supply voltage at 13.8V DC for all steps. 50Ω Dummy Load Inline Wattmeter Deviation Meter Frequency Counter RF Sampling Coupler Transceiver RF Signal Generator Power Supply VPL-1 IBM PC FCC ID: K66VX-3200U-2/K66VX3200U-3 Alignment, Page 3/4 Vertex Standard Co., Ltd. Alignment Channel Frequencies UHF TYPE A ChannelFrequency (simplex) CTCSS Encode DCS Encode Narrow /wide Group 1400.1MHzNoneNoneWide Group 2415.1MHzNoneNoneWide Group 3429.9MHzNoneNoneWide Group 4400.1MHzNoneNoneNarrow Group 5415.1MHzNoneNoneNarrow Group 6429.9MHzNoneNoneNarrow Group 7415.1MHz151.4HzNoneWide Group 8415.1MHzNone023Wide Group 9415.1MHz151.4HzNoneNarrow Group10415.1MHzNone023Narrow UHF TYPE D ChannelFrequency (simplex) CTCSS Encode DCS Encode Narrow /wide Group 1450.1MHzNoneNoneWide Group 2470.1MHzNoneNoneWide Group 3489.9MHzNoneNoneWide Group 4450.1MHzNoneNoneNarrow Group 5470.1MHzNoneNoneNarrow Group 6489.9MHzNoneNoneNarrow Group 7470.1MHz151.4HzNoneWide Group 8470.1MHzNone023Wide Group 9470.1MHz151.4HzNon…

Text truncated - open the document above for the full version.

FCC ID: K66VX-3200U-2 MFA p02c0004, d02c0036 Date: December 24, 2002 Applicant: Vertex Standard Co., Ltd. 4-8-8 Nakameguro, Meguro-Ku Tokyo 153-8644 Japan Attention of: Tomiro Ohmoto, General Manager, Export Division 81-03-5725-6122; FAX: -6205 Mailing: Vertex Standard USA Inc. 10900 Walker Street Cypress, CA 90630 Attention of: Mikio Maruya, Executive Vice President (800) 255-9237; FAX: (800) 477-9237 (714) 827-7600; FAX: -8100 [email protected] Equipment: VX-3200U-2 FCC ID: K66VX-3200U-2 P.O. Number: UPS 12/10/2002 FCC Rules: Radiofrequency Radiation Exposure Limits 47 CFR 1.1310 MPE - Mobiles x Fixed Based Station x Gentlemen: Enclosed please find your copy of the Supplemental Test Data Report, the whole for Environmental Assessment (MPE) of the referenced equipment as shown. Should you need any clarification, just fax or phone. Thank you again for this order - it has been a pleasure to be of service. Sincerely yours, Morton Flom, P. Eng. enclosure(s) MF/cva FCC ID: K66VX-3200U-2 MFA p02c0004, d02c0036 ENVIRONMENTAL ASSESSMENT for MOBILES/FIXED BASE STATION for FCC ID: FCC ID: K66VX-3200U-2 Model:VX-3200U-2 to FEDERAL COMMUNICATIONS COMMISSION 47 CFR 1.1310 (MPE) Radiofrequency Radiation Exposure Limits DATE OF REPORT: December 24, 2002 ON THE BEHALF OF THE APPLICANT: Vertex Standard Co., Ltd. AT THE REQUEST OF: P.O. UPS 12/10/2002 Vertex Standard USA Inc. 10900 Walker Street Cypress, CA 90630 Attention of: Mikio Maruya, Executive Vice President (800) 255-9237; FAX: (800) 477-9237 (714) 827-7600; FAX: -8100 [email protected] SUPERVISED BY: Morton Flom, P. Eng. FCC ID: K66VX-3200U-2 MFA p02c0004, d02c0036 TABLE OF CONTENTS RULE DESCRIPTION PAGE . Test Report 1 . Identification of the Equipment Under Test 2 . Standard Test Conditions and Engineering Practices 4 1.1310 Environmental Assessment 5 FCC ID: K66VX-3200U-2 MFA p02c0004, d02c0036 PAGE NO. 1 of 9. Required information per ISO/IEC Guide 25-1990, paragraph 13.2: a) TEST REPORT (SUPPLEMENTAL) b) Laboratory: (FCC: 31040/SIT) (Canada: IC 2044) M. Flom Associates, Inc. 3356 N. San Marcos Place, Suite 107 Chandler, AZ 85225 c) Report Number: d02c0036 d) Client: Vertex Standard USA Inc. 10900 Walker Street Cypress, CA 90630 e) Identification: VX-3200U-2 FCC ID: K66VX-3200U-2 Description: UHF FM Mobile Transceiver f) EUT Condition: Not required unless specified in individual tests. g) Report Date: December 24, 2002 EUT Received: December 12, 2002 h, j, k): As indicated in individual tests. i) Sampling method: No sampling procedure used. l) Uncertainty: In accordance with MFA internal quality manual. m) Supervised by: Morton Flom, P. Eng. n) Results: The results presented in this report relate only to the item tested. o) Reproduction: This report must not be reproduced, except in full, without written permission from this laboratory. FCC ID: K66VX-3200U-2 MFA p02c0004, d02c0036 PAGE NO. 2 of 9. IDENTIFICATION OF THE EQUIPMENT UNDER TEST (EUT) NAME AND ADDRESS OF APPLICANT: Vertex Standard Co., Ltd. 4-8-8 Nakameguro, Meguro-Ku Tokyo 153-8644 Japan MANUFACTURER: Vertex Standard Co., Ltd. 4-8-8 Nakameguro, Meguro-Ku Tokyo 153-8644 Japan FCC ID: K66VX-3200U-2 MODEL NO: VX-3200U-2 DESCRIPTION: UHF FM Mobile Transceiver TYPE OF EMISSION: 16K0F3E, 11K0F3E FREQUENCY RANGE, MHz: 400 to 430 POWER RATING, Watts: 10 to 45 Switchable x Variable N/A MODULATION: AMPS TDMA CDMA x OTHER ANTENNA: HELICAL MONOPOLE WHIP x OTHER NOTE: For RF Safety test antenna gain taken at the upper range of expected gain (i.e. 0 dBd) and RF Power set to highest nominal power across all channels. FCC ID: K66VX-3200U-2 MFA p02c0004, d02c0036 PAGE NO. 3 of 9. M. Flom Associates, Inc. is accredited by the American Association for Laboratory Association (A2LA) as shown in the scope below. "This laboratory is accredited by the American Association for Laboratory Accreditation (A2LA) and the results shown in this report have been determined in accordance with the laboratory's terms of accreditation unless stated otherwise in the report." Should this report contain any data for tests for which we are not accredited, or which have been undertaken by a subcontractor that is not A2LA accredited, such data would not covered by this laboratory's A2LA accreditation. FCC ID: K66VX-3200U-2 MFA p02c0004, d02c0036 PAGE NO. 4 of 9. STANDARD TEST CONDITIONS and ENGINEERING PRACTICES Except as noted herein, the following conditions and procedures were observed during the testing: In accordance with ANSI C63.4-1992/2000, section 6.1.9, and unless otherwise indicated in the specific measurement results, the ambient temperature of the actual EUT was maintained within the range of 10° to 40°C (50° to 104 °F) unless the particular equipment requirements specify testing over a different temperature range. Also, unless otherwise indicated, the humidity levels were in the range of 10% to 90% relative humidity. Prior to testing, the EUT was tuned up in accordance with the manufacturer's alignment procedures. All external gain controls were maintained at the position of maximum and/or optimum gain throughout the testing. Measurement results, unless otherwise noted, are worst case measurements. FCC ID: K66VX-3200U-2 MFA p02c0004, d02c0036 PAGE NO. 5 of 9. Name of test: Environmental Assessment Specification: FCC: 47 CFR 1.1310 Measurement Guide: ANSI/IEEE C95.1 1992 Test Equipment: Maximum Permissible Exposure (MPE) measurement system, consisting of: Narda 8717-1174R, Radiation meter Narda 8761D, E-field probe (300 kHz – 3 GHz) (Calibrated Nov-98) Measurement Procedure: 1. The following measurements were performed with a Narda probe using ANSI/IEEE C95.1 as a guide. 2. Prior to making any measurements, the measurements system was calibrated in accordance with the manufacturer’s procedures. 3. The EUT’s radiating element (antenna) was placed on a 1 m tall table for ease of testing. For equipment normally operated on a metal surface, a ground plane was used. 4. The remaining equipment necessary t…

Text truncated - open the document above for the full version.

FCC ID: K66VX-3200U-2 MFA p02c0004, d02c0034 T R A N S M I T T E R C E R T I F I C A T I O N of FCC ID: K66VX-3200U-2 MODEL: VX-3200U-2 to FEDERAL COMMUNICATIONS COMMISSION Rule Part(s) 90, 90.210, Confidentiality DATE OF REPORT: December 24, 2002 ON THE BEHALF OF THE APPLICANT: Vertex Standard Co., Ltd. AT THE REQUEST OF : P.O. UPS 12/10/2002 Vertex Standard USA Inc. 10900 Walker Street Cypress, CA 90630 Attention of: Mikio Maruya, Executive Vice President (800) 255-9237; FAX: (800) 477-9237 (714) 827-7600; FAX: -8100 [email protected] SUPERVISED BY: Morton Flom, P. Eng. FCC ID: K66VX-3200U-2 MFA p02c0004, d02c0034 THE APPLICANT HAS BEEN CAUTIONED AS TO THE FOLLOWING: 15.21 INFORMATION TO USER. The users manual or instruction manual for an intentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 15.27(a) SPECIAL ACCESSORIES. Equipment marketed to a consumer must be capable of complying with the necessary regulations in the configuration in which the equipment is marketed. Where special accessories, such as shielded cables and/or special connectors are required to enable an unintentional or intentional radiator to comply with the emission limits in this part, the equipment must be marketed with, i.e. shipped and sold with, those special accessories. However, in lieu of shipping or packaging the special accessories with the unintentional or intentional radiator, the responsible party may employ other methods of ensuring that the special accessories are provided to the consumer, without additional charge. Information detailing any alternative method used to supply the special accessories for a grant of equipment authorization or retained in the verification records, as appropriate. The party responsible for the equipment, as detailed in § 2.909 of this chapter, shall ensure that these special accessories are provided with the equipment. The instruction manual for such devices shall include appropriate instructions on the first page of text concerned with the installation of the device that these special accessories must be used with the device. It is the responsibility of the user to use the needed special accessories supplied with the equipment. FCC ID: K66VX-3200U-2 MFA p02c0004, d02c0034 TABLE OF CONTENTS RULE DESCRIPTION PAGE . Test Report 1 2.1033(c) General Information Required 2 2.1033(c)(14) Rule Summary 6 . Standard Test Conditions and Engineering Practices 7 2.1046(a) Carrier Output Power (Conducted) 8 2.1046(a) ERP Carrier Power (Radiated) 10 2.1051 Unwanted Emissions (Transmitter Conducted) 11 2.1053(a) Field Strength of Spurious Radiation 15 2.1049(c)(1) Emission Masks (Occupied Bandwidth) 19 90.214 Transient Frequency Behavior 27 2.1047(a) Audio Low Pass Filter (Voice Input) 33 2.1047(a) Audio Frequency Response 36 2.1047(b) Modulation Limiting 38 2.1055(a)(1) Frequency Stability (Temperature Variation) 41 2.1055(b)(1) Frequency Stability (Voltage Variation) 44 2.202(g) Necessary Bandwidth and Emission Bandwidth 45 FCC ID: K66VX-3200U-2 MFA p02c0004, d02c0034 PAGE NO. 1 of 45. Required information per ISO/IEC Guide 25-1990, paragraph 13.2: a) TEST REPORT b) Laboratory: (FCC: 31040/SIT) (Canada: IC 2044) M. Flom Associates, Inc. 3356 N. San Marcos Place, Suite 107 Chandler, AZ 85225 c) Report Number: d02c0034 d) Client: Vertex Standard USA Inc. 10900 Walker Street Cypress, CA 90630 e) Identification: VX-3200U-2 FCC ID: K66VX-3200U-2 EUT Description: UHF FM Mobile Transceiver f) EUT Condition: Not required unless specified in individual tests. g) Report Date: December 24, 2002 EUT Received: December 12, 2002 h, j, k): As indicated in individual tests. i) Sampling method: No sampling procedure used. l) Uncertainty: In accordance with MFA internal quality manual. m) Supervised by: Morton Flom, P. Eng. n) Results: The results presented in this report relate only to the item tested. o) Reproduction: This report must not be reproduced, except in full, without written permission from this laboratory. FCC ID: K66VX-3200U-2 MFA p02c0004, d02c0034 PAGE NO. 2 of 45. LIST OF GENERAL INFORMATION REQUIRED FOR CERTIFICATION IN ACCORDANCE WITH FCC RULES AND REGULATIONS, VOLUME II, PART 2 AND TO 90, 90.210, Confidentiality Sub-part 2.1033 (c)(1): NAME AND ADDRESS OF APPLICANT: Vertex Standard Co., Ltd. 4-8-8 Nakameguro, Meguro-Ku Tokyo 153-8644 Japan MANUFACTURER: Applicant (c)(2): FCC ID: K66VX-3200U-2 MODEL NO: VX-3200U-2 (c)(3): INSTRUCTION MANUAL(S): PLEASE SEE ATTACHED EXHIBITS (c)(4): TYPE OF EMISSION: 16K0F3E, 11K0F3E (c)(5): FREQUENCY RANGE, MHz : 400 to 430 (c)(6): POWER RATING, Watts: 10 to 45 Switchable x Variable N/A FCC GRANT NOTE: BF - The output power is continuously variable from the value listed in this entry to 20%-25% of the value listed. (c)(7): MAXIMUM POWER RATING, Watts: 300 DUT RESULTS : Passes x Fails FCC ID: K66VX-3200U-2 MFA p02c0004, d02c0034 PAGE NO. 3 of 45. INFORMATION FOR PUSH-TO-TALK DEVICES Type and number of antenna to be used for this device: ¼ wave, one Maximum antenna …
