K66VX-6000LLow VHF Transceiver

VX-6000L OPERATING MANUAL VERTEX STANDARD CO., LTD. 4-8-8 Nakameguro, Meguro-Ku, Tokyo 153-8644, Japan VERTEX STANDARD US Headquarters 17210 Edwards Rd., Cerritos, CA 90703, U.S.A. International Division 8350 N.W. 52nd Terrace, Suite 201, Miami, FL 33166, U.S.A. YAESU EUROPE B.V. P.O. Box 75525, 1118 ZN Schiphol, The Netherlands YAESU UK LTD. Unit 12, Sun Valley Business Park, Winnall Close Winchester, Hampshire, SO23 0LB, U.K. VERTEX STANDARD HK LTD. Unit 5, 20/F., Seaview Centre, 139-141 Hoi Bun Road, Kwun Tong, Kowloon, Hong Kong POWER Congratulations! You now have at your fingertips a valuable communications tool - a two-way radio! Rugged, reliable and easy to use, your radio will keep you in constant touch with your colleagues for years to come, with negligible main- tenance down time. Please take a few minutes to read this manual carefully. The information presented here will allow you to derive maximum performance from your radio. After reading it, keep the manual handy for quick reference, in case questions arise later on. We’re glad you joined the team. Call on us any time, because our business is communications. Let us help you get your message across. NOTICE There are no user-serviceable points inside this transceiver. All service jobs must be referred to your Authorized Service Center or Network Administrator. Safety / Warning Information WARNING - DO NOT operate the VX-6000L radio when someone (bystanders) outside the vehicle is within following range. Safety Training information: Antennas used for this transmitter must not exceed an antenna gain of 0 dB. The radio must be used in vehicle-mount configurations with a maximum operating duty factor not exceeding 50%, in typical Push-to-Talk configurations. This radio is restricted to occupational use, work related operations only where the radio operator must have the knowledge to control the exposure conditions of its passengers and bystanders by maintaining the minimum separation distance of following range. Failure to observe these restrictions will result in exceeding the FCC RF exposure limits. Antenna Installation: For rear deck trunk installation, the antenna must be located at least following range away from rear seat passengers in order to comply with the FCC RF exposure requirements. For roof top installation, the antenna must be placed in the center of the roof. Radiated frequency and Distance VX-6000L 1.55 m Page 1 VX-6000 Operating Manual VX-6000 Operating Manual The VX-6000L is full-featured FM transceivers designed for flexible mobile and base station business communications in the VHF Low-Band (120/50 Watts: programmable) Land Mobile Bands. Each model is designed for reliable business communications in a wide variety of applications, with a wide range of operating capability provided by its leading-edge design. The 250-channels memories can each be programmed with a 8-character channel name. Important channel frequency data is stored in EEPROM and flash memory on the CPU, and is easily programmable by dealers using a personal computer and the VERTEX STAN- DARD CT-71 Programming Cable and CE35 Software. The pages which follow will detail the many advanced features provided on the VX- 6000L transceiver. After reading this manual, you may wish to consult with your Network Administrator regarding precise details of the configuration of this equipment for use in your application. POWER Page 2 VX-6000 Operating Manual CONTROLS & CONNECTORS Front Panel 1POWER Botton Press the button to turn the transceiver ON and OFF. 2 TX Indicator This lamp glows red when the radio is transmitting. 3 BUSY Indicator This lamp glows green when the channel is busy. 4 Liquid Crystal Display The display include an 8-character alpha-numeric section showing channel and group names, status and identity information, and error messages. Additional indicators on the display show priority channel assignments and scan include / exclude selection. 8 Character Alpha-numeric Invertible Display Channel Group Number This channel on “INTERCOM” ListThis channel on “SELECTABLE TONE” List This channel on “S CAN” List Receiver MonitorThis channel on “PUBLIC ADDRESS” or “C HANNEL RECALL” List This channel on “HORN ALERT” List This channel on “O PTION” List This channel on “AUX A/B/C” List POWER !"#$ % &'( ) * Page 3 VX-6000 Operating Manual 5 !! !! !/ "" "" " Button Pressing these buttons changes the current group (and displayed group number or name). Holding this button for more than 1/2 second causes the function to repeat. 6 SQC Indicator This lamp glows orange when incorrect position at the setting of CE35. 7 Programmable Function Button (PF button) This button can be set up for special applications, such as high/low power selection, monitor, dimmer, talk-around, and call alert function, as determined by your network requirements and programmed by your VERTEX STANDARD dealer. 8 VOLUME Knob This knob sets the volume of the receiver. 9 EMERGENCY Microphone The emergency microphone is located behind this small slit. When the emergency feature is activated, this Microphone is enabled. 10 CHANNEL Selector Knob This knob select the operating channel. 11Programmable Function Button (PF button) This button can be set up for special applications, such as high/low power selection, monitor, dimmer, talk-around, and call alert function, as determined by your network requirements and programmed by your VERTEX STANDARD dealer. Side Panel Microphone Jack (It is on both sides.) Connect the microphone plug to this jack. CONTROLS & CONNECTORS Microphone Jack Page 4 VX-6000 Operating Manual REAR (Heatsink) 1 Antenna Socket The 50-ohm coaxial feedline to the antenna must be connected here, using a type-M (PL-259) plug. 2 External Speaker Jack An external loudspeaker may be connected to this 2-contact, 3.5-mm mini-phone jack. Caution: Do not connect this line to ground, and be certain that the speaker has adequate capability to handle the audio output from the VX-6000. 3 13…

Text truncated - open the document above for the full version.

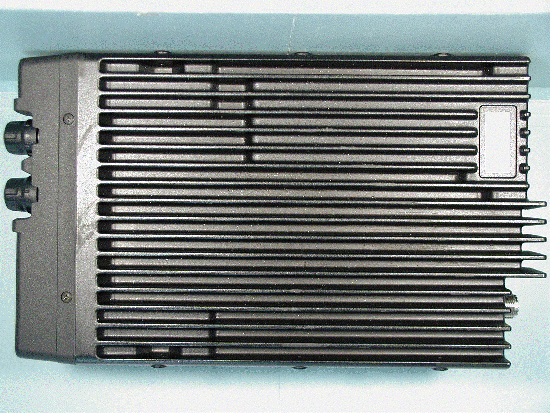

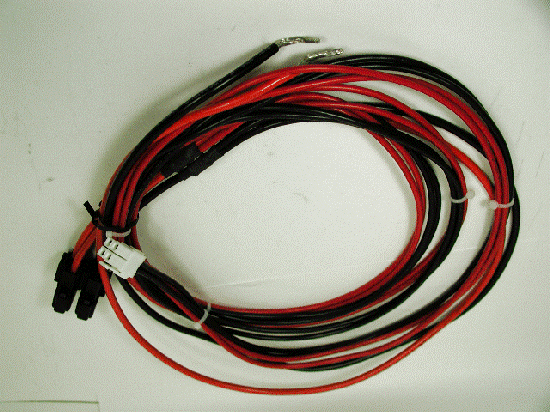

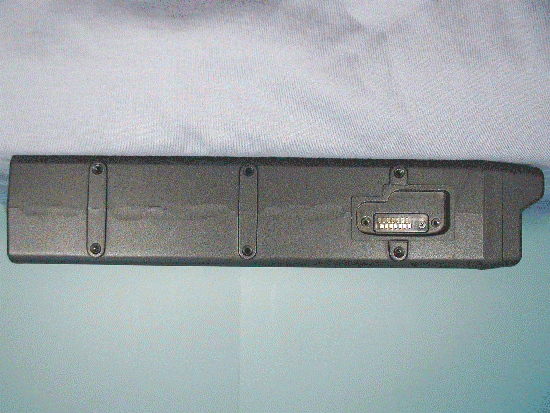

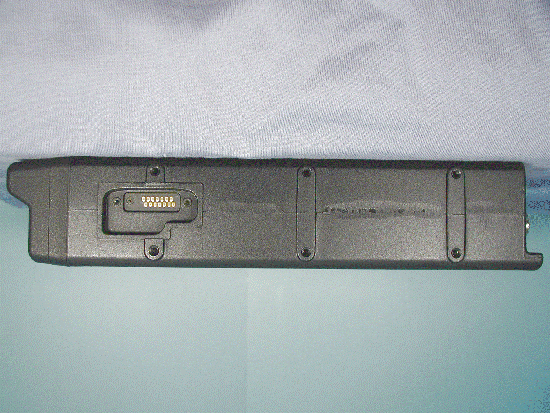

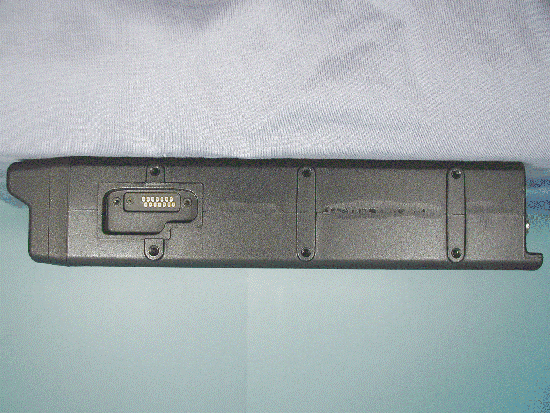

Front of EUT Back of EUT Right side of EUT Left side of EUT Top of EUT Bottom of EUT Microphone DC Power cable

VX-6000L K66VX-6000L

Inside of EUT Side-A of MAIN-UNIT with shield cases Side-A of MAIN-UNIT without shield cases Side-B of MAIN-UNIT Side-A of PA-UNIT Side-B of PA-UNIT Side-A of DISPLAY-UNIT with LCD Side-A of DISPLAY-UNIT without LCD Side-B of DISPLAY-UNIT Front of LCD Back of LCD Side-A of KEY-UNIT Side-B of KEY-UNIT Side-A of VR-UNIT Side-B of VR-UNIT Side-A of MIC-CONN-UNIT Side-B of MIC-CONN-UNIT Inside of front panel Inside of chassis Inside of top plate Inside of microphone

FCC ID: K66VX-6000L Circuit Description Vertex Standard Co., Ltd. 1 VX-6000L Circuit Description Reception and transmission are switched by “ RX ” and ” TX ” lines from the microprocessor unit (MPU). The receiver uses double-conversion superheterodyne circuitry, with a 17.7 MHz 1st IF and 450 KHz 2nd IF. The 1st LO, produced by a PLL synthesizer, yields the 17.7 MHz 1st IF. The 2nd LO uses a 17.25 MHz (17.7 MHz - 450 KHz) signal generated by a crystal oscillator. The 2nd mixer and other circuits use a custom IC to convert and amplify the 2nd IF, and detect FM to obtain demodulated signals. During transmit, the PLL synthesizer oscillates at the desired frequency directly, for amplification to obtain RF power output. During transmit, voice modulation and CTCSS (or DCS) modulation are applied to this synthesizer. Transceiver functions, such as TX/RX control, PLL synthesizer settings, and channel programming, are controlled using the MPU. Receive r Incoming RF signals from the antenna connector are delivered to the PA Unit, and pass through a low-pass filter (LPF) consisting of coils L6011, L6010, and L6009, capacitors C6047, C6045, C6044, C6075, C6043, C6042, and C6074 and antenna switching Relay for delivery to the receiver front end in the Main Unit. Signals within the frequency range of the transceiver are then passed through a varactor-tuned bandpass filter consisting of L1008, L1009 / L1018, L1019 before RF amplification by Q1012 (3SK240). The amplified RF is then band-pass filtered again by varactor-tuned resonators L1024, L1025 / L1038, L1039 and then to ensure pure in-band input to 1st mixer by Q1025 (3SK240) Buffered output from the VCO Unit is amplified by Q1021 (2SC5415) and low-pass filtered by L1042 / L1046 and C1132 / C1139 / C1142, to provide a pure 1st local signal between 54.7 and 67.7 MHz to the 1st mixer. The 17.7 MHz 1st mixer product then passes through dual monolithic crystal filters XF1001 and XF1002 (12 KHz BW) is amplified by Q1029 (2SC4215) and delivered to the input of the FM IF subsystem IC Q1026 (TA31136FN). This IC contains the 2nd mixer, 2nd local oscillator, limiter amplifier, FM detector, noise amplifier, and squelch gates. The 2nd LO in the IF-IC is produced from crystal X1001 (17.25 MHz), and the 1st IF is converted to 450 KHz by the 2nd mixer and stripped of unwanted components by ceramic FCC ID: K66VX-6000L Circuit Description Vertex Standard Co., Ltd. 2 filter CF1002. After passing through a limiter amplifier, the signal is demodulated by the FM detector. Demodulated receive audio from the IF-IC is amplified by Q2014 (CXA1846N). After volume adjustment by the AF power amplifier Q2029 (TDA7240AV), the audio signal is passed to the optional speaker jack or 4 Ω loudspeaker. PLL synthesizer The 1st LO maintains stability from the PLL synthesizer by using a 17.25 MHz reference signal from crystal X1001. PLL synthesizer IC Q1024 (SA7025DK) consists of a prescaler, reference counter, swallow counter, programmable counter, a serial data input port to set these counters based on the external data, a phase comparator, and charge pump. The PLL-IC divides the 17.25 MHz reference signal by 1725 using the reference counter (10.0 KHz comparison frequency). The phase detector comparison frequency to be two times the channel spacing (5 KHz). The VCO output is divided by the prescaler, swallow counter and programmable counter. These two signals are compared by the phase comparator and input to the charge pump. A voltage proportional to their phase difference is delivered to the low-pass filter circuit, then fed back to the VCO as a voltage with phase error, controlling and stabilizing the oscillating frequency. This synthesizer also operates as a modulator during transmit. The RX-VCO is comprised of Q1015 (2SK508) and D1017, D1018 (HVU306A x 2), and oscillates between 54.7 MHz and 67.7 MHz according to the programmed receiving frequency. And the TX-VCO is comprised of Q1014 (2SC4226) and D1015, D1016, D1034, D1035 (HVU300A x 4), and oscillates between 37.0 MHz and 50.0 MHz according to the programmed transmit frequency. The VCO output passes through buffer amplifier Q1018 (2SC5107), and a portion is fed to the buffer amplifier Q1019 (2SC4215) of the PLL IC, and at the same time amplified by Q1021 (2SC5415) to obtain stable output. The VCO DC supply is regulated by Q1008 (2SC4154E). Synthesizer output is fed to the 1st mixer by diode switch D1024 (1SS321) during receive, and for transmit. The reference oscillator feeds the PLL synthesizer, and is composed of crystal X1001 (14.500 MHz), the temperature compensation circuit which includes D1033 (MC2850) and thermostats TH1002 and TH1003, and transmit (DCS) modulation circuit D1029 (HVU306A). Transmitter Voice audio from the microphone is delivered via the MIC (Jack) Unit to the MAIN Unit, after passing through amplifier Q3039/Q2108 (NJM2902V), pre-emphasis, limiter (IDC instantaneous deviation control), and LPF Q2001 (NJM2902V), is adjusted for optimum deviation level and delivered to the next stage. Voice input from the microphone and CTCSS are FM-modulated to the VCO of the synthesizer, while DCS audio is modulated by the reference frequency oscillator of the synthesizer. FCC ID: K66VX-6000L Circuit Description Vertex Standard Co., Ltd. 3 Synthesizer output, after passing through diode switch D1024 (1SS321), to obtain RF output. The RF energy then delivered to the PA Unit. Then its RF energy amplified by push-pull junction transistor Q6006 / Q6007 (SD1405 x 2) and passes through antenna switching relay RL6001 and a low-pass filter circuit. And finally to the antenna connector. RF output power from the final amplifier is sampled by CM coupler and is rectified by D6006, D6007 (MA729 x 2). The resulting DC is fed through Automatic Power Controller Q1007 (NJM2902V), Q2131 (DTC124EK), Q2132 (DTB124EK) to transmitter RF amplifier and thus the power output. Generation of spurious products by the transmitter is minimized by the f…

Text truncated - open the document above for the full version.

VX-6000L_ComponentApplications.xls, 1/4 Device nameDescriptionApplications [MAIN-UNIT] Q 1003Transistor2SB1201STP9V Regulator Q 1005TransistorDTB123EKRx 9V Switch Q 1006Transistor2SB1132RTx 9V Switch Q 1007ICNJM2902VRX Tune Buff/APC COMP Q 1008Transistor2SC4154EVCO 8V Regulator Q 1009TransistorIMH6Tx/Rx Switch Q 1011TransistorRT1N241MMOD Mute Switch Q 1012Transistor3SK228RF Amplifier Q 1014Transistor2SC4226TX Voltage Control Oscillator Q 1015Transistor2SK508RX Voltage Control Oscillator Q 1016TransistorRT1N241MRx VCO Switch Q 1017TransistorIMH6ATx VCO Switch Q 1018Transistor2SC5107-OBuff AMP Q 1019Transistor2SC4215Buff AMP Q 1021Transistor2SC5415ERF AMP Q 1023ICNJM78L05UA5V Regulator Q 1024ICSA7025DKPLL Subsystem Q 1025Transistor3SK2401st MIX Q 1026ICTA31136FNIF Subusystem Q 1027Transistor2SC4154EReference Oscillator Q 1029Transistor2SC4226IF AMP Q 1030ICMM1216ENRE9V Regulator Q 1034Transistor2SK2035PLL Filter Q 1035Transistor2SA1602A-FPLL Filter Q 1036Transistor2SC4154EPLL Filter Q 1037Transistor2SC4154EPLL Filter Q 1038ICTA75S01Fsub-audio AMP Q 1501Transistor3SK131Noise AMP Q 1502Transistor3SK131Noise AMP Q 1503TransistorIMD3Switch Q 1504Transistor2SC4215Pulse AMP Q 1505Transistor2SC4215Pulse AMP Q 1507Transistor2SK508IF Switch Q 1508Transistor2SK508IF Switch Q 1509Transistor2SC4215Pulse AMP Q 2001ICNJM2902VEmphasis/IDC/LPF/MIX Q 2002TransistorIMZ1Analog Switch Q 2003ICNJM2902VRSSI/SQL/LPF Q 2004TransistorRT1N241MAnalog Switch Q 2006TransistorDTC323TKMute Switch Q 2007ICBU4066BFAnalog Switch Q 2008TransistorRT1N241MMIC Mute Switch Q 2009TransistorIMX1Analog Switch Q 2011TransistorRT1N241MAF Mute Q 2012TransistorDTC323TKAF Mute Q 2013ICMX165CDWCTCSS Encoder/Decoder Q 2014ICCXA1846NAF Volume Q 2015TransistorDTB123EKAnalog Switch Q 2016ICBU4053BCFAnalog Switch Q 2018Transistor2SC4154EClock Freq. Shift switch Q 2019ICMB90F583BMicroprocessor Q 2020Transistor2SJ327-ZPower Supply Switch Q 2024ICNJM78L05UA5V Regulator Q 2025Transistor2SA1602A-FPower Down detect Q 2026TransistorRT1N241MPower Down detect Q 2027ICS-80735SN-DZCPU Reset Q 2028ICHN58X2432TIProgrammable Data Store Q 2029ICTDA7240AVAF Power AMP Q 2108ICNJM2902VEmphasis /AF AMP Q 2110ICNJM2902VLPF Q 2111TransistorDTB123EKPTT Switch Q 2112TransistorIMD3Analog Switch Q 2114TransistorRT1N241MEXT SQ Switch Q 2115TransistorIMD3Analog Switch Address VX-6000L COMPONENT APPLICATIONS Vertex Standard Co., Ltd. VX-6000L_ComponentApplications.xls, 2/4 Device nameDescriptionApplications Address VX-6000L COMPONENT APPLICATIONS Q 2116TransistorRT1N241MAnalog Switch Q 2117ICTC4W53FUAnalog Switch Q 2118TransistorRT1N241MAnalog Switch Q 2119TransistorRT1N241MAF Switch Q 2120TransistorRT1N241MAnalog Switch Q 2121TransistorRT1N241MAnalog Switch Q 2122TransistorRT1N241MAnalog Switch Q 2125TransistorRT1N241MDCS SW Q 2127TransistorRT1N241MAnalog Switch Q 2130Transistor2SC4215AGC AMP Q 2131TransistorDTC124EKTX Power Control Q 2132TransistorDTB123EKTX Power Control D 1001DiodeRLS135RF Limitting D 1002DiodeBAS316RF Limitting D 1003DiodeP6KA18Reverse Voltage Protecion D 1005DiodeBAS316Switch D 1009Varactor DiodeHVU356BPF Tune D 1010Varactor Diode1SV229BPF Tune D 1012Varactor DiodeHVU356BPF Tune D 1013Varactor Diode1SV229BPF Tune D 1015Varactor DiodeHVU300ATX VCO D 1016Varactor DiodeHVU300ATX VCO D 1017Varactor DiodeHVU306ARX VCO D 1018Varactor DiodeHVU306ARX VCO D 1019Varactor DiodeHVU359TX VCO MOD D 1020Varactor DiodeHVU356BPF Tune D 1021Varactor Diode1SV229BPF Tune D 1022Varactor DiodeHVU356BPF Tune D 1023Varactor Diode1SV229BPF Tune D 1024Diode1SS321Tx/Rx RF Switch D 1026DiodeMC28482nd IF Filter Switch D 1027DiodeHZM5.6NB25V Supply D 1028DiodeMC28482nd IF Filter Switch D 1029Varactor DiodeHVU359DCS MOD D 1030Varactor Diode1SV230Temp. Control for PLL REF D 1033DiodeMC2850Temp. Control for PLL REF D 1034DiodeHVU300ATX VCO D 1035Varactor DiodeHVU300ATX VCO D 1036Varactor DiodeHVU306ABPF Tune D 1038Varactor DiodeHVU306ABPF Tune D 1039Varactor DiodeHVU356BPF Tune D 1040Varactor DiodeHVU306ABPF Tune D 1041DiodeHSB88WSDBM Mixer D 1042DiodeBAS316Switch D 1043Varactor DiodeHVU300APLL VCO Filter Tuning D 1044Varactor DiodeHVU300APLL VCO Filter Tuning D 1501DiodeHSM88ASNoise DET D 1510DiodeHSM88ASAGC DET D 1511DiodeBAS316Switch D 2001DiodeMC2846Switch D 2002DiodeMC2850Detector D 2003DiodeMC2850SQ Noise Detector D 2004DiodeMC2850Temp. Comp. D 2005DiodeBAS316CTCSS Detector D 2006DiodeMC2850limitter D 2007DiodeMC2846DC Switch D 2010DiodeMC2850Protection D 2011DiodeBAS316Reverse Current Protecion D 2012DiodeBAS316Reverse Current Protecion D 2014DiodeBAS316Switch D 2015DiodeBAS316Switch [DISPLAY-UNIT] Q 3001ICLC75823WLCD Driver Q 3003TransistorRT1N241MMic Mute Vertex Standard Co., Ltd. VX-6000L_ComponentApplications.xls, 3/4 Device nameDescriptionApplications Address VX-6000L COMPONENT APPLICATIONS Q 3004TransistorIMZ1 Line Buff Q 3005TransistorRT1N241MDATA Line Mute Q 3008TransistorRT1N241MMic Mute Q 3009TransistorRT1N241MMic Mute Q 3010TransistorIMX1Line Buff Q 3011TransistorIMZ1 Buff Q 3012ICS-93C46AMFNProgrammable Data Store Q 3013TransistorIMD3Buff Q 3014ICHD64F3642AHMicroprocessor Q 3015TransistorIMH6ASwitich for flash mode Q 3016ICS-80735SNMicroprocessor Reset Q 3017Transistor2SA1602APower Down Detect Q 3019Transistor2SC4154Clock Freq. Shift switch Q 3020TransistorRT1N241MAF MUTE Q 3021ICNJM78L05UA5V Regulator Q 3022TransistorRT1N241MSwitich for flash mode Q 3024TransistorRT1N241MPanel Interface Detect Q 3025TransistorRT1N241MVolume Control ON/OFF Q 3026TransistorRT1N241MPower Switch Control Q 3027TransistorRT1N241MPower Down Detect Q 3028Transistor2SB1132Power Switch Q 3029Transistor2SB1132LED Switch Q 3030TransistorUMW1NBrightness Control Q 3031Transistor2SB1132Power Switch Q 3033TransistorIMH6APower Switch Control Q 3038TransistorIMX1AGC AMP Q 3039ICNJM2902VMIC AMP Q 3040TransistorIMZ1 BUFF Q 3043ICTC4S66FAnalog Switch D 3005Diode1SS226AGC rectification D 3006DiodeDAP202U FLASH MPU Writing D 3008DiodeMC2848DC Switch D 3010LEDTLOU1008LED for illumination D 3011LEDTL…

Text truncated - open the document above for the full version.

FCC ID: K66VX-6000L MFA p0230004, d0230041 Date: March 22, 2002 Federal Communications Commission Via: Electronic Filing Attention: Authorization & Evaluation Division Applicant: Vertex Standard Co., Ltd. Equipment: VX-6000L FCC ID: K66VX-6000L FCC Rules: 1, 2, 15, 90, Confidentiality Gentlemen: On behalf of the Applicant, enclosed please find Application Form 731, Engineering Test Report and all pertinent documentation, the whole for approval of the referenced equipment as shown. Filing fees are attached. We trust the same is in order. Should you need any further information, kindly contact the writer who is authorized to act as agent. Sincerely yours, Morton Flom, P. Eng. enclosure(s) cc: Applicant MF/cvr FCC ID: K66VX-6000L MFA p0230004, d0230041 LIST OF EXHIBITS (FCCCERTIFICATION(TRANSMITTERS) - REVISED 9/28/98) APPLICANT: Vertex Standard Co., Ltd. FCC ID: K66VX-6000L BY APPLICANT: 1. LETTER OF AUTHORIZATION x 2. IDENTIFICATION DRAWINGS, 2.1033(c)(11) xLABEL xLOCATION OF LABEL xCOMPLIANCE STATEMENT xLOCATION OF COMPLIANCE STATEMENT 3. CONFIDENTIALITY REQUEST: 0.457 and 0.459 x 4. PHOTOGRAPHS, 2.1033(c)(12) x 5. DOCUMENTATION: 2.1033(c) (3) USER MANUAL x (9) TUNE UP INFO x (10) SCHEMATIC DIAGRAM x (10) CIRCUIT DESCRIPTION x BLOCK DIAGRAM x PARTS LIST x ACTIVE DEVICES x 6. PART 90.203(e) & (g) ATTESTATION x 7. MPE Report x BY M.F.A. INC. A. TESTIMONIAL & STATEMENT OF CERTIFICATION B. STATEMENT OF QUALIFICATIONS FCC ID: K66VX-6000L MFA p0230004, d0230041 TRANSMITTER CERTIFICATION of FCC ID: K66VX-6000L MODEL: VX-6000L to FEDERAL COMMUNICATIONS COMMISSION Rule Part(s) 1, 2, 15, 90, Confidentiality DATE OF REPORT: March 22, 2002 ON THE BEHALF OF THE APPLICANT: Vertex Standard Co., Ltd. AT THE REQUEST OF : P.O. UPS 3/18/2002 Vertex Standard USA Inc. 17210 Edwards Rd. Cerritos, CA 90703 Attention of: Mikio Maruya, Executive Vice President (800) 255-9237; FAX: (800) 477-9237 (562) 404-2700, x280; FAX: -1210 [email protected] SUPERVISED BY: Morton Flom, P. Eng. FCC ID: K66VX-6000L MFA p0230004, d0230041 THE APPLICANT HAS BEEN CAUTIONED AS TO THE FOLLOWING: 15.21 INFORMATION TO USER. The users manual or instruction manual for an intentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 15.27(a) SPECIAL ACCESSORIES. Equipment marketed to a consumer must be capable of complying with the necessary regulations in the configuration in which the equipment is marketed. Where special accessories, such as shielded cables and/or special connectors are required to enable an unintentional or intentional radiator to comply with the emission limits in this part, the equipment must be marketed with, i.e. shipped and sold with, those special accessories. However, in lieu of shipping or packaging the special accessories with the unintentional or intentional radiator, the responsible party may employ other methods of ensuring that the special accessories are provided to the consumer, without additional charge. Information detailing any alternative method used to supply the special accessories for a grant of equipment authorization or retained in the verification records, as appropriate. The party responsible for the equipment, as detailed in § 2.909 of this chapter, shall ensure that these special accessories are provided with the equipment. The instruction manual for such devices shall include appropriate instructions on the first page of text concerned with the installation of the device that these special accessories must be used with the device. It is the responsibility of the user to use the needed special accessories supplied with the equipment. FCC ID: K66VX-6000L MFA p0230004, d0230041 TABLE OF CONTENTS RULEDESCRIPTIONPAGE . Test Report 1 2.1033(c) General Information Required 2 2.1033(c)(14) Rule Summary 6 . Standard Test Conditions and Engineering Practices 7 2.1046(a) Carrier Output Power (Conducted) 8 2.1046(a) ERP Carrier Power (Radiated) 10 2.1051 Unwanted Emissions (Transmitter Conducted) 11 2.1053(a) Field Strength of Spurious Radiation 15 2.1049(c)(1) Emission Masks (Occupied Bandwidth) 19 2.1047(a) Audio Low Pass Filter (Voice Input) 25 2.1047(a) Audio Frequency Response 28 2.1047(b) Modulation Limiting 31 2.1055(a)(1) Frequency Stability (Temperature Variation) 33 2.1055(b)(1) Frequency Stability (Voltage Variation) 36 2.202(g) Necessary Bandwidth and Emission Bandwidth 37 FCC ID: K66VX-6000L MFA p0230004, d0230041 PAGE NO.1of37. Required information per ISO/IEC Guide 25-1990, paragraph 13.2: a) TEST REPORT b) Laboratory: (FCC: 31040/SIT) (Canada: IC 2044) M. Flom Associates, Inc. 3356 N. San Marcos Place, Suite 107 Chandler, AZ 85225 c) Report Number: d0230041 d) Client: Vertex Standard USA Inc. 17210 Edwards Rd. Cerritos, CA 90703 e) Identification: VX-6000L FCC ID: K66VX-6000L EUT Description: VHF FM Mobile Transceiver f) EUT Condition: Not required unless specified in individual tests. g) Report Date: March 22, 2002 EUT Received: March 18, 2002 h, j, k): As indicated in individual tests. i) Sampling method: No sampling procedure used. l) Uncertainty: In accordance with MFA internal quality manual. m) Supervised by: Morton Flom, P. Eng. n) Results: The results presented in this report relate only to the item tested. o) Reproduction: This report must not be reproduced, except in full, without written permission from this laboratory. FCC ID: K66VX-6000L MFA p0230004, d0230041 PAGE NO.2of37. LIST OF GENERAL INFORMATION REQUIRED FOR CERTIFICATION IN ACCORDANCE WITH FCC RULES AND REGULATIONS, VOLUME II, PART 2 AND TO 1, 2, 15, 90, Confidentiality Sub-part 2.1033 (c)(1): NAME AND ADDRESS OF APPLICANT: Vertex Standard Co., Ltd. 4-8-8 Nakameguro, Meguro-Ku Tokyo 153-8644 Japan MANUFACTURER: Applicant (c)(2): FCC ID: K66VX-6000L MODEL NO: VX-6000L (c)(3): INSTRUCTION MANUAL(S): PLEASE SEE ATTACHED EXHIBITS (c)(4): TYPE OF EMISSION: 16K0F3E (c)(5): FREQUENCY RA…
