K66VX-7RAmateur Scanning Transceiver

FCC ID: K66VX-7R Operating Manual Vertex Standard Co., Ltd. 1 50/144/430 MHz Triple-Band Heavy Duty FM Transceiver 50/144/430 MHz Triple-Band Heavy Duty FM Transceiver50/144/430 MHz Triple-Band Heavy Duty FM Transceiver 50/144/430 MHz Triple-Band Heavy Duty FM Transceiver VX- VX-VX- VX-7R 7R7R 7R Operating Manual Operating ManualOperating Manual Operating Manual Introduction IntroductionIntroduction Introduction The VX- VX-VX- VX-7R 7R7R 7R is a miniature triband FM transceiver with extensive receive frequency coverage, providing leading-edge features for VHF and UHF two-way amateur communications along with unmatched monitoring capability. The VX- VX-VX- VX-7R 7R7R 7R’s small size allows you to take it anywhere - hiking, skiing, or while walking around town, and its operating flexibility brings the user many avenues of operating enjoyment. Besides 50, 144, and 430 MHz transceive operation, the VX- VX-VX- VX-7R 7R7R 7R provides receive coverage of the AM (MF) and FM broadcast bands, HF Shortwave Bands up to 16 MHz, VHF and UHF TV bands, the VHF AM aircraft band, and a wide range of commercial and public safety frequencies! And the optional Barometer pressure Sensor Unit provides readout of barometric pressure and altitude while mountain climbing or hiking. The transmitter section provides 5 Watts of clean power output on the FM operation on the 50 MHz, 144 MHz, and 430 MHz bands with the supplied FNB-80LI Battery Pack, and 0.2 Watts output on 430 MHz, and also 1.0 Watts output on AM operation on 50 MHz. A wide variety of tone signaling formats are built into the VX- VX-VX- VX-7R 7R7R 7R, in addition to Yaesu’s exclusive ARTS TM -(Auto-Range Transponder System), which “beeps” the user when you move out of communications range with another ARTS TM -equipped station. We appreciate your purchase of the VX- VX-VX- VX-7R 7R7R 7R, and encourage you to read this manual thoroughly, so as to learn about the many exciting features of your exciting new Yaesu hand-held transceiver! Controls & Connections Controls & ConnectionsControls & Connections Controls & Connections ANTENNA ANTENNAANTENNA ANTENNA Connect the supplied rubber flex antenna (or another antenna presenting a 50-ohm impedance) here. VOLUME VOLUMEVOLUME VOLUME This control adjusts the audio volume level. Clockwise rotation increases the volume FCC ID: K66VX-7R Operating Manual Vertex Standard Co., Ltd. 2 level. DIAL DIALDIAL DIAL The main tuning Dial is used for setting the operating frequency, and also is used for Menu selections and other adjustments. Intelligent-Beam (I-Beam) Intelligent-Beam (I-Beam)Intelligent-Beam (I-Beam) Intelligent-Beam (I-Beam) The Intelligent-Beam (I-Beam) is the unique indicator which indicate the transceiver’s status. The I-Beam glows Red during transmission, glows Green when a Main band signal is being received (of sufficient strength to open the noise squelch), glows Blue when a Sub band signal is being received (of sufficient strength to open the noise squelch), and glows Orange when a both (Main & Sub) bands signal are being received (of sufficient strength to open the noise squelch). Also, the I-Beam flash by various color while emergency operation. You may customize the I-Beam color by the menu mode. MIC MICMIC MIC The internal microphone is located at the bottom right-hand corner of the display. SPEAKER SPEAKERSPEAKER SPEAKER The internal speaker is located directly below the display. MONI MONIMONI MONI Pressing this key disables the noise squelching action, allowing you to hear very weak signals near the background noise level. PTT PTTPTT PTT Press this key to transmit, and release it to receive after your transmission is completed. MIC/SP MIC/SPMIC/SP MIC/SP This four-conductor miniature jack provides connection points for microphone audio, earphone audio, PTT, and ground. FCC ID: K66VX-7R Operating Manual Vertex Standard Co., Ltd. 3 EXT DC EXT DCEXT DC EXT DC This coaxial DC jack allows connection to an external DC power source (10-16V DC). The center pin of this jack is the Positive (+) line. Display Icons AND Indicators Display Icons AND IndicatorsDisplay Icons AND Indicators Display Icons AND Indicators Double size display (default) Press and hold the [4(MG) DSP] key for one second Small character display Frequency/Data Field S- and TX Power Meter Operating Mode Low Battery! Battery Saver Active (page ??) DTMFG Autodialer Active (page ??) Bell Alarm Active (page ??) Low TX Power Selected (page ??) Automatic Power-Off Active (page ??) Digital Coded Squelch Active (page ??) CTCSS Decoder Active (page ??) CTCSS Encoder Active (page ??) Repeater Shift Direction (page ??) Dual Watch Active (page ??) Keypad Function Keypad FunctionKeypad Function Keypad Function [1(SCAN)] key Press key: Frequency entry digit “1.” Press [MON/F] +: Activate the Scanner. Press and hold key: Store the current setting into the Hyper Memory “1.” [2(DW)] key Press key: Frequency entry digit “2.” Press [MON/F] +: Activate the Dual Watch Feature. FCC ID: K66VX-7R Operating Manual Vertex Standard Co., Ltd. 4 Press and hold key: Store the current setting into the Hyper Memory “2.” [3(WX)] key Press key: Frequency entry digit “3.” Press [MON/F] +: Recall the “Weather” broadcast channel. Press and hold key: Store the current setting into the Hyper Memory “3.” [4(ARTS)] key Press key: Frequency entry digit “4.” Press [MON/F] +: Activate the ARTS feature. Press and hold key: Store the current setting into the Hyper Memory “4.” [5(S.SCH)] key Press key: Frequency entry digit “5.” Press [MON/F] +: Activate the Smart Search feature. Press and hold key: Store the current setting into the Hyper Memory “5.” [6(SP-ANA)] key Press key: Frequency entry digit “6.” Press [MON/F] +: Activate the Spectrum Analyzer (Spectra-Scope TM ) feature. Press and hold key: Store the current setting into the Hyper Memory “6.” [7(CH.CNT)] key Press key: Frequency entry digit “7.” Press [MON/F] +: Activate the Channel Counter feature. Press and hold key: Sto…

Text truncated - open the document above for the full version.

L:\WordDocs\&&aLetterhead.doc Sincerely yours, Morton Flom, P. Eng.

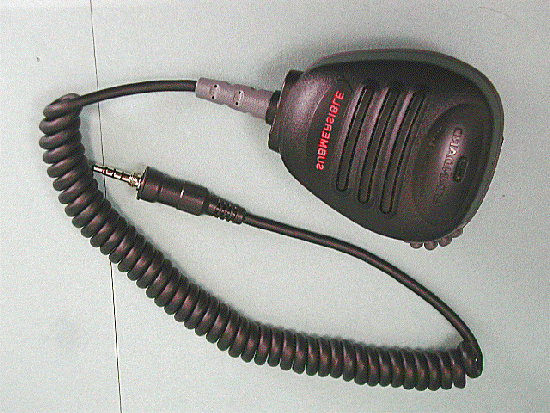

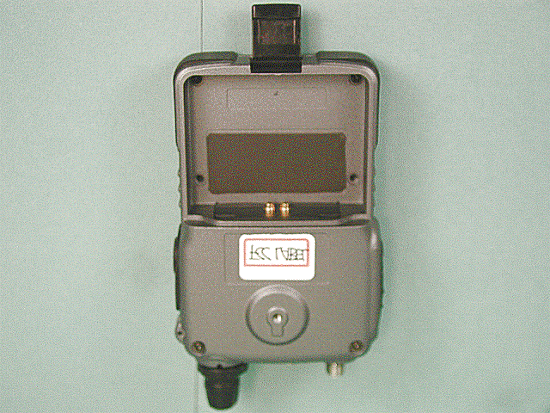

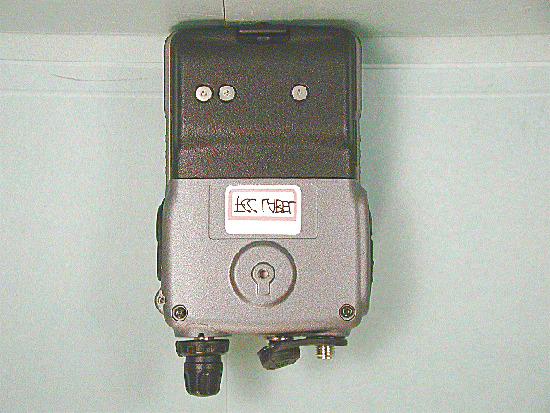

Front view with Antenna Front view without Antenna Rear view with Battery Pack Rear view without Battery Pack Left side view Right side view Top view Bottom view Top of Battery Charger Bottom of Battery Charger Microphone Antenna

6 . 5 6 . 5 9 . 5 9 . 5 30.530.5 66 3030 5 0 5 0 1 6 . 5 1 6 . 5 32.532.5 3232 1 6 1 6 4 - R 1 4 - R 1 4 - R 1 4 - R 1

FCC ID: K66VX-7R MFA p0220004, d0220024 CERTIFICATION of FCC ID: K66VX-7R AMATEUR TRANSCEIVER MODEL: VX-7R to FEDERAL COMMUNICATIONS COMMISSION Part 15.121(B) and Confidentiality DATE OF REPORT: February 26, 2002 ON THE BEHALF OF THE APPLICANT: Vertex Standard Co., Ltd. AT THE REQUEST OF: P.O. UPS 2/14/2002 Vertex Standard USA Inc. 17210 Edwards Rd. Cerritos, CA 90703 Attention of: Mikio Maruya, Executive Vice President (800) 255-9237; FAX: (800) 477-9237 (562) 404-2700, x280; FAX: -1210 [email protected] SUPERVISED BY: Morton Flom, P. Eng. FCC ID: K66VX-7R MFA p0220004, d0220024 TABLE OF CONTENTS RULEDESCRIPTIONPAGE 2.948 Description of Measurement Facilities 1 15.109 Receiver Spurious Emissions (Radiated) 6 15.121(b) Scanning Receiver 12 15.107 A/C Powerline Conducted Emissions 14 FCC ID: K66VX-7R MFA p0220004, d0220024 PAGE NO.1of18. Required information per ISO/IEC Guide 25-1990, paragraph 13.2: a) TEST REPORT b) Laboratory: (FCC: 31040/SIT) (Canada: IC 2044) M. Flom Associates, Inc. 3356 N. San Marcos Place, Suite 107 Chandler, AZ 85225 c) Report Number: d0220024 d) Client: Vertex Standard USA Inc. 17210 Edwards Rd. Cerritos, CA 90703 e) Identification: VX-7R FCC ID: K66VX-7R Description: Scanning Receiver f) EUT Condition: Not required unless specified in individual tests. g) Report Date: February 26, 2002 EUT Received: February 14, 2002 h, j, k): As indicated in individual tests. i) Sampling method: No sampling procedure used. l) Uncertainty: In accordance with MFA internal quality manual. m) Supervised by: Morton Flom, P. Eng. n) Results: The results presented in this report relate only to the item tested. o) Reproduction: This report must not be reproduced, except in full, without written permission from this laboratory. FCC ID: K66VX-7R MFA p0220004, d0220024 PAGE NO.2of18. M. Flom Associates, Inc. is accredited by the American Association for Laboratory Association (A2LA) as shown in the scope below. "This laboratory is accredited by the American Association for Laboratory Accreditation (A2LA) and the results shown in this report have been determined in accordance with the laboratory's terms of accreditation unless stated otherwise in the report." Should this report contain any data for tests for which we are not accredited, or which have been undertaken by a subcontractor that is not A2LA accredited, such data would not covered by this laboratory's A2LA accreditation. FCC ID: K66VX-7R MFA p0220004, d0220024 PAGE NO.3of18. GENERAL INFORMATION Part 2.948: (a)(b) DESCRIPTION OF MEASUREMENT FACILITIES: FILE: 31040/SIT A description of the measurement facilities was filed with the Commission and was found to be in compliance with the requirements of Section 2.948, by letter dated March 13, 2000. All pertinent changes will be reported to the Commission by up-date prior to March 2003. (b)(4) SUPPORTING STRUCTURES: SKETCH - ATTACHED EXHIBITS (b)(5)(6) TEST INSTRUMENTATION: LIST - SEE EXHIBITS 2.925: IDENTIFICATION OF AN AUTHORIZED DEVICE: DRAWING - SEE EXHIBITS LOCATION OF LABEL - SEE PHOTOS NAME AND ADDRESS OF APPLICANT : Vertex Standard Co., Ltd. 4-8-8 Nakameguro, Meguro-Ku Tokyo 153-8644 Japan FCC ID: K66VX-7R MFA p0220004, d0220024 PAGE NO.4of18. 2.911: 2.1033(b)(6) TECHNICAL REPORT MANUFACTURER: Applicant TRADE NAME: Yaesu FCC ID: K66VX-7R MODEL NO: VX-7R PHOTOGRAPHS: SEE LIST OF EXHIBITS DUT DESCRIPTION : This unit Passes 15.31: MEASUREMENT STANDARD & PROCEDURE: IEEE STANDARD 187 WAS USED AS A GUIDE. FCC MEASUREMENT PROCEDURE MP-1 x ANSI 63.4 (1992/2000) “Methods of measurement of radio-noise emissions from low-voltage electrical and electronic equipment in the range of 9 kHz to 40 GHz.” FCC ID: K66VX-7R MFA p0220004, d0220024 PAGE NO.5of18. EXPOSITORY STATEMENT 1. BANDS, MHz = 11 2. NUMBER OF CHANNELS = 9 3. TUNING RANGE, MHz = 0.5 to 1.8 1.8 to 30 30 to 59 59 to 108 108 to 137 137 to 174 174 to 222 222 to 225 225 to 420 420 to 470 470 to 729 800 to 999 Cellular Bands Blocked 4. OSCILLATOR RANGE, MHz = per manual 5. I.F., MHz = 1.0, 10.7, 45.8, 47.25 6. BLOCK DIAGRAM = ATTACHED 7. For cellular receiver only, the radio transceiver meets the requirements of FCC Bulletin OET 53 ("Cellular System Mobile Stations-Land-System Compatibility Specification."). See attached affidavit. 15.203 : ANTENNA REQUIREMENT: The antenna is permanently attached to the EUT The antenna uses a unique coupling The EUT must be professionally installed x The antenna requirement does not apply SUPERVISED BY: Morton Flom, P. Eng. FCC ID: K66VX-7R MFA p0220004, d0220024 PAGE NO.6of18. NAME OF TEST: Receiver Spurious Emissions (Radiated) SPECIFICATION: 15.109: Radiated Interference Limits 15.33: Frequency Range of Radiated Measurements 80.217: Suppression of Interference Aboard Ships GUIDE: See measurement procedure below TEST CONDITIONS: Standard Temperature & Humidity TEST EQUIPMENT: As per attached page SEARCH ANTENNAS: 100 Hz - 50 MHz: Emco 3301B Active Rod 10 kHz - 32 MHz: Singer 94593-1 Loop 25 MHz - 300 MHz: Emco 3109 Biconical 200 MHz - 1 GHz: Aprel 2001 Log Periodic 1 GHz - 18 GHz: Emco 3115 Horn 10 GHz - 40 GHz: Emco 3116 Horn with HP11970A Mixer MEASUREMENT PROCEDURE 1. At first, bench tests were performed to locate the spurious emissions at the antenna terminals. 2. In the field, tests were conducted over the range shown, The test sample was set up on a wooden turntable above ground, and at a distance of three meters from the antenna connected tot he Spectrum Analyzer. 3. In order to obtain the maximum response at each frequency, the turntable was rotated, and the search antenna was raised and lowered. The EUT was also adjusted for maximum response. Tests were conducted in Horizontal & Vertical polarization modes. 4. The field strength was calculated from: EμV/m@3m=Log 10 -1 (dBμV + A.F. + C.L.) 20 5. MEASUREMENT RESULTS: Attached for "Worst Case" conditions. FCC ID: K66VX-7R MFA p0220004, d0220024 PAGE NO.7of18. RADIATED TEST SETUP NOTES: (a)Search Antenna - Rotatable on boom (b)Non-metallic…
