K66VX-800UUHF Transceiver

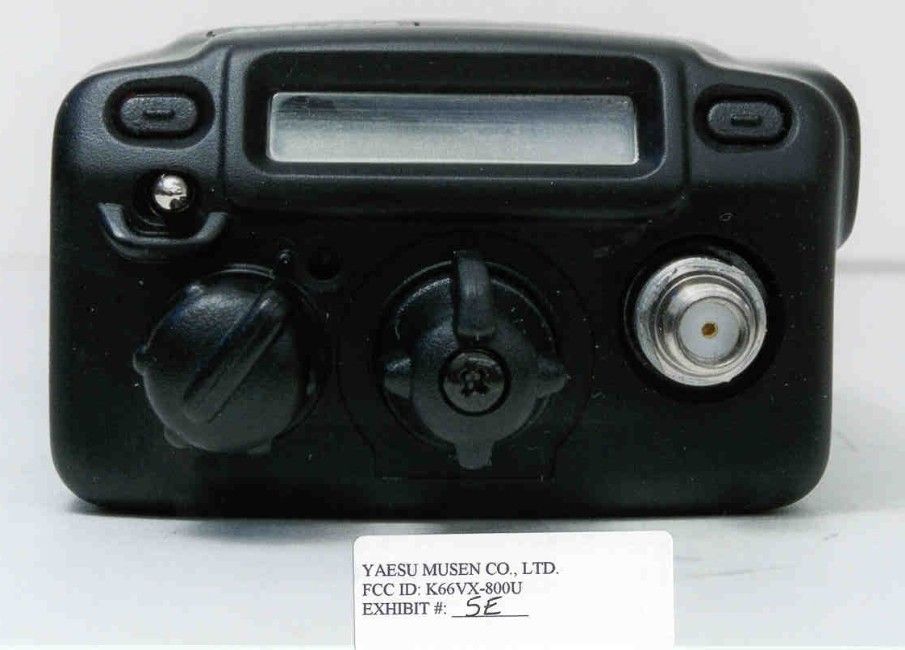

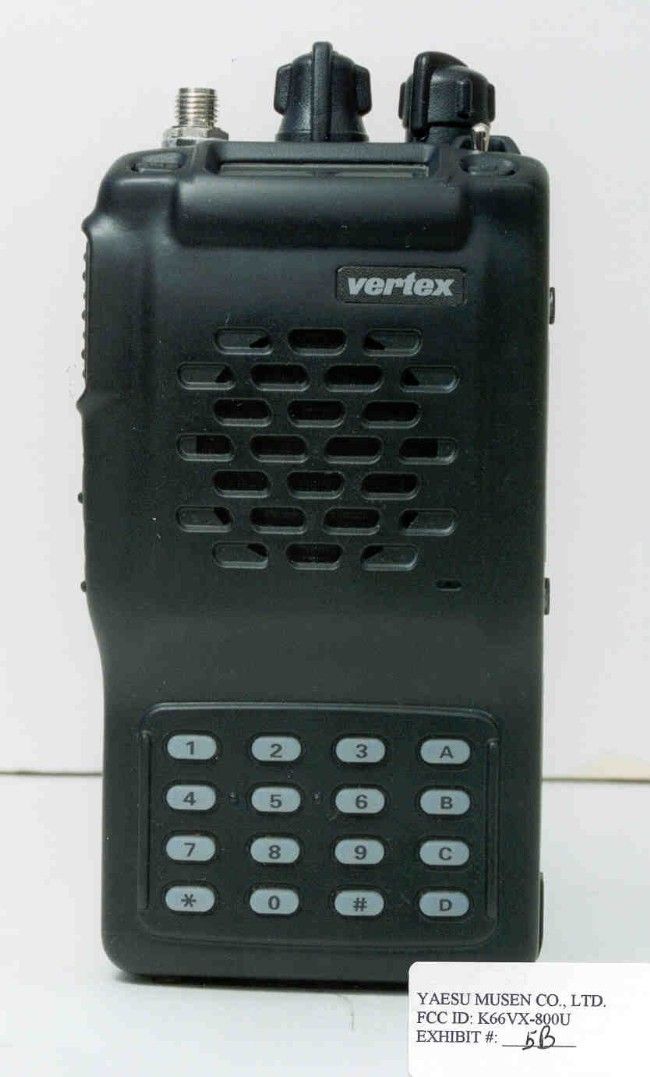

VX-800U@Operating Manual 1 VX-800U Operating Manual 1,Controls & Connectors LED Indicator Glows Green: Scan active Blinks Green: Busy Channel (or SQL off) Glows Red: Transmit Blinks Red: Battery Voltage is low Antenna Jack PTT (Push to Talk) Switch Monitor Button Lamp Button CH (Channel) Selector VOL/PWR Knob LCD SEL1 KEY (Left) SEL2 KEY (Right) Toggle SW MIC/SP Jack (External MIC/SP) Speaker Main Microphone Sub Microphone (Noise Canceling Microphone) Battery Pack Latch 16-Button DTMF Keypad (16-key version only) 2,Before You Begin Battery Pack Installation and Removal
To install the battery, hold the transceiver with your left hand, so your palm is over the speaker and your thumb is on the top of the belt clip. Insert the battery pack into the battery compartment on the back of the radio while tilting the Belt Clip outward, then close the Battery Pack Latch until it locks in place with a “Click.”
To remove the battery, turn the radio off and remove any protective cases. Open the Battery Pack latch on the bottom of the radio, then slide the battery downward and out from the radio while unfolding the Belt Clip. Caution!: Do not attempt to open any of the rechargeable Ni-Cd packs, as they could explode if accidentally short-circuited. Low Battery Indication
As the battery discharges during use, the voltage gradually becomes lower. When the battery voltage reaches 6.0 volts, substitute a freshly charged battery and recharge the depleted pack. The TX/BUSY indicator on the top of the radio will blink red when the battery voltage is low.
Avoid recharging Ni-Cd batteries often with little use between charges, as this can degrade the charge capacity. We recommend that you carry an extra, fully-charged pack with you so the operational battery may be used until depletion (this “deep cycling” technique promotes better long-term battery capacity). 3,Operation Preliminary Steps
Install a charged battery pack onto the transceiver, as described previously.
Screw the supplied antenna onto the Antenna jack. Never attempt to operate this transceiver without an antenna connected.
If you have a Speaker/Microphone, we recommend that it not be connected until you are YAESU MUSEN CO., LTD. FCC ID: K66VX-800U EXHIBIT # 11A VX-800U@Operating Manual 2 familiar with the basic operation of the VX-800. Operation Quick Start
To turn the top panel’s VOL/PWR knob clockwise to turn on the radio on.
Pull and turn the top panel’s CH selector knob to choose the desired operating channel. A channel number or channel name will appear on the LCD.
Rotate the VOL/PWR knob to set the volume level. If no signal is present, press and hold the Monitor button (the center button on the left side) more than 2 seconds; background noise will now be heard, and you may use this to set the VOL/PWR knob for the desired audio level. Press and hold the Monitor button more than 2 seconds (or press the Monitor button twice) to quiet the noise and resume normal (quiet) monitoring.
To transmit, press and hold the PTT switch. Speak into the microphone area of the front panel grille (lower right-hand corner) in a normal voice level. To return to the Receive mode, release the PTT switch.
Press the top panel’s SEL1/SEL2 button to active one of the preprogrammed functions, which may have been enabled at the time of programming by the dealer. See the next section for details regarding the available features.
Switch the top panel’s Toggle SW position to active one of the preprogrammed functions, which may have been enabled at the time of programming by the dealer. There are three positions of [A (left)], [B (center)] and [C (right)] in the toggle switch. See the next section for details regarding the available features.
Press the DTMF keys on the telephone keypad to send DTMF tones.(16-key version only)
If a Speaker/Microphone is available, remove the plastic cap and its two mounting screws from the right side of the transceiver, then make the connector of the Speaker/Microphone touch; secure the connector pin using the screw supplied with the Speaker/Microphone. Hold the speaker grille up next to your ear while receiving. To transmit, press the PTT switch on the Speaker/Microphone, just as you would on the main transceiver’s body. Note: Save the original plastic cap and its mounting screws. They should be re-installed when not using the Speaker/Microphone. 4,KEY and TOGGLE Functions VX-800 have the [SEL1], [SEL2], [MON], [LAMP] Key, ([A], [B], [C], [D] Key: only 16-key version) and Toggle SW. The Key and SW function can be customized, via programmed by YAESU dealer, to meet your communications requirements. Some features may require the purchase and installation of optional internal accessories. The possible KEY and SW programming features are illustrated below. [SEL1], [SEL2], [MON], [LAMP],[A], [B], [C] and [D] Key Monitor (Generally, it sets to MON Key) Lamp (Generally, it sets to LAMP Key) Channel Scan Dual Watch High/Low Power Talk Around TX Save Disable Encryption Disable (only, when using DTMF/Encryption Unit) Follow-Me DW Group Up Group Down Channel Up Channel Down SET Mode Call/Reset (only, when using DTMF/Encryption Unit) YAESU MUSEN CO., LTD. FCC ID: K66VX-800U EXHIBIT # 11B VX-800U@Operating Manual 3 Speed Dial (only, when using DTMP/Encryption Unit) Emergency (only, when using DTMF/Encryption Unit) LCD Invert TOGGLE Switch Channel Scan Dual Watch High/Low Power Talk Around TX Save Disable Encryption Disable (only, when using DTMF/Encryption Unit) Follow-Me Scan Lock LCD Invert 5,Understanding Radio Waves Radio waves travel from one point to another by several different means. The general term for these methods of wave travel is “propagation”. You may know that “shortwave” signals can be propagated over distances of several thousand miles by reflection off of the upper regions of the atmosphere. Your hand-held transceiver, on the other hand, operates on the so-called VHF (Very-High Frequency) band. On this b…

Text truncated - open the document above for the full version.

849 NW State Road 45 • P. O. Box 370 • Newberry, Florida 32669 USA Telephone (352) 472-5500 • (888) 472-2424 • FAX (352) 472-2030 • email: [email protected] January 25, 2000 Mr. Frank Coperich Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: YAESU MUSEN CO., LTD.’S FCC ID: K66VX-800U CONFIRMATION #: EA95929 Dear Frank: This is a request for a correction on the 731 form for the above mentioned application. As submitted, the 731 form shows an output power of 1 watt and 5 watt with 2 emission designators. We would like the 731 form corrected to show both output powers with both emission designators. Please correct the 731 form to read the following: FREQ RATED RF POWER FREQ EMISSION RANGEOUTPUT IN WATTS TOLERANCEDESIGNATOR 450-4851.00025%11KOF3E 450-4855.00025%11KOF3E 450-4851.00025%16KOF3E 450-4855.00025%16KOF3E If you need any further information, please advise. Regards, Sharon Hoffman Timco Engineering, Inc. SAH/hs T:\CUS\Y\YAE\YAE418A9\fc00125ltr.doc

849 NW State Road 45 • P. O. Box 370 • Newberry, Florida 32669 USA Telephone (352) 472-5500 • (888) 472-2424 • FAX (352) 472-2030 • email: [email protected] January 25, 2000 (MODIFIED) Mr. Frank Coperich Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: YAESU MUSEN CO., LTD.’S FCC ID: K66VX-800U CONFIRMATION #: EA95929 Dear Frank: This is a request for a correction on the 731 form for the above mentioned application. As submitted, the 731 form shows an output power of 1 watt and 5 watt with 2 emission designators. We would like the 731 form corrected to show both output powers with both emission designators. Please correct the 731 form to read the following: FCC RULES FREQ OUTPUT FREQ EMISSION PART # RANGE POWER TOL DESIGNATOR 22, 74, 90, 95 450-485 5 0.00025% 16K0F3E 22, 74, 90.210, 95 459-485 5 0.00025% 11K0F3E 22, 74, 90, 95 450-485 1 0.00025% 16K0F3E 22, 74, 90.210, 95 459-485 1 0.00025% 11K0F3E If you need any further information, please advise. Regards, Sharon Hoffman Timco Engineering, Inc. SAH/hs – 2 –April 25, 2001

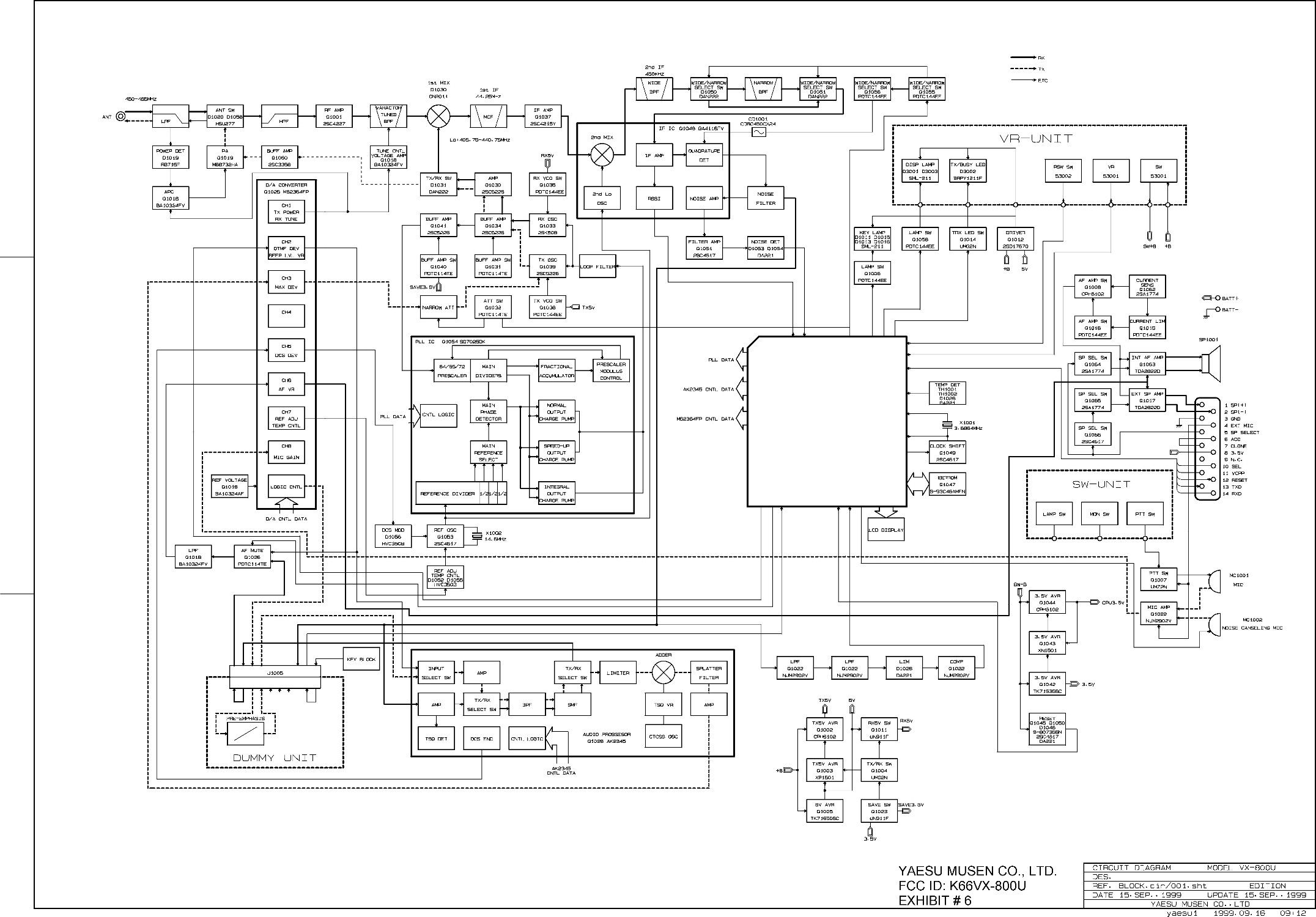

VX-800U Circuit Description YAESU MUSEN Co., Ltd. 1/4 VX-800U Circuit Description 1. Overview The VX-800U is a UHF/FM hand-held transceiver designed to operate in the frequency range of 400 to 512MHz. 2. Circuit Configuration by Frequency The receiver is a double-conversion superheterodyne with a first intermediate frequency@(IF) of 44.25MHz and a second IF of 450kHz. Incoming signals from the antenna are mixed with the local signal from PLL to produce the first IF of 44.25MHz. This is then mixed with the 43.8MHz second local oscillator (using the 14.6MHz reference crystal) output to produce the 450kHz second IF. This is detected to give the demodulated signal. The transmit signal frequency is generated by PLL VCO, and modulated by the signal from the microphone. It is then amplified and sent to the antenna. 3. Receive Signal Path 3-1 Front-end RF amplifier Incoming RF from the antenna jack is delivered to the RF Unit and passes through a low- pass filter and high-pass filter consisting of coils L1004, L1005, L1006, L1030, L1001, L1028, L1029, L1002 & L1003, capacitors C1013, C1014, C1015, C1017, C1019, C1020, C1282, C1001, C1005, C1006, C1283, C1007, C1008, & C1009 and antenna switching diode D1020 (HSU277). Signals within the frequency range of the transceiver are then amplified by Q1001 (2SC4227-R34) and enter a varactor-tuned band-pass filter consisting of coils L1008, L1010 & L1011, capacitors C1041, C1042, C1044, C1045, C1046, C1047, C1068, C1069, C1070, C1071, C1072, C1073, C1074 & C1174 and diodes D1018, D1023 & D1024 (all HVC350) before first mixer. 3-2 First Mixer Buffered output from the VCO is amplified by Q1030 (2SC5226-4/5) to provide a pure first local signal between 355.75 and 467MHz for injection to the first mixer D1030 (GN2011- Q). The 44.25MHz first mixer product then passes through monolithic crystal filters XF1001, XF1002 (44-11BF-P2, +/- 5.5 kHz BW) to strip away all but the desired signal. 3-3 IF amplifier The first IF signal is amplified by Q1037 (2SC4215Y). The amplified first IF signal is applied to FM IF subsystem IC Q1046 (BA4116FV) which contains the second mixer, second local oscillator, limiter amplifier, noise amplifier, and S- meter amplifier. A second local signal is generated by Q1022 (2SC4617) using the 14.6MHz crystal X1002 as a reference, producing a 43.8MHz signal which yields a 450kHz second IF when mixed with the first IF signal within Q1046. The second IF then passes through the ceramic filter CF1001 (PBFC450R15D), CF1002 (SFPC450G: only Narrow Channel) to strip away unwanted mixer products, and is applied to the limiter amplifier in Q1046, which removes amplitude variations in the 450kHz IF, before detection of the speech by the ceramic discriminator CD1001 (CDBC450CX24). 3-4 Audio amplifier Detected audio from Q1046 is applied to Q1028 (AK2345) and audio low-pass filter, and then past the volume control (Q1025: M62364FP) to the audio amplifier Q1017 (TDA2822D; external speaker) or Q1063 (TDA2822D; internal speaker), providing up to 0.5 Watts to the optional headphone jack or 16-ohm loudspeaker. Attention: Audio output is BTL output. YAESU MUSEN CO., LTD. FCC ID: K66VX-800U EXHIBIT # 12A VX-800U Circuit Description YAESU MUSEN Co., Ltd. 2/4 3-5 Squelch Control The squelch circuitry consists of a noise amplifier & band-pass filter within Q1046, and noise detector D1053 (DA221). When no carrier received, noise at the output of the detector stage in Q1046 is amplified and band-pass filtered by the noise amplifier section of Q1046 and the network between pins 7 and 8, and then rectified by D1053. The resulting DC squelch control voltage is passed to pin 19 of the microprocessor Q1048. If no carrier is received, this signal causes pin 32 of Q1048 to go low and pin 89 to go high. Pin 32 signals Q1008 (CPH6102), Q1064 (2SA1774-R) and Q1065 (2SA1774-R) to disable the supply voltage to the audio amplifier Q1017 and Q1063, while pin 89 makes Q1014 (UMA2N) hold the green (Busy) half of the LED off, when pin 32 is low and pin 89 is high. Thus, the microprocessor blocks output from the audio amplifier, and silences the receiver while no signal is being received, and during transmission. When a carrier appears at the discriminator, noise is removed from the output, causing pin 19 of Q1048 to go low and the microprocessor to blink the busy LED via Q1048. The microprocessor then checks the DTMF decoder chip on the Optional Unit, the CTCSS and the CDCSS code for DTMF or CTCSS or CDCSS code squelch information, if enabled, respectively. If not transmitting and CTCSS or CDCSS is not activated, or if the received tone or code matches that programmed, the microprocessor stops scanning, if active, and allows audio to pass through the audio amplifier Q1017, Q1063 (TDA2822D) to the loudspeaker by enabling the supply voltage to it via Q1008, Q1064 and Q1065. 4. Transmit Signal Path 4-1 Microphone amplifier Speech input from the microphone is amplified in Q1022 (BA10324AFV) after there is a filter and is sent to Q1025 (M62364FP) and sent to Dummy Unit (or Optional Unit). The audio, which returned from Dummy Unit, passes Q1028 (AK2345) to be pre-emphasized. The processed audio is then mixed with a CTCSS tone generated by Q1028 (AK2345) and delivered to D1035 (HVC350) for frequency modulating the PLL carrier up to +/- 5kHz from the unmodulated carrier at the transmitting frequency. If an external microphone is used, PTT switching is controlled by Q1007 (UMZ2N), which signals the microprocessor when the impedance at the microphone jack drops. If a CDCSS code is enabled for transmission, the code is generated by microprocessor Q1048 and delivered to D1055 (HVC350) for CDCSS modulating. If DTMF is enabled for transmission, the tone is generated by the microprocessor Q1048 and applied to the splutter filter section in place of speech audio. Also, the tone is amplified for monitoring in the loudspeaker. 4-2 Noise canceling microphone circuit The two signals from internal micr…

Text truncated - open the document above for the full version.

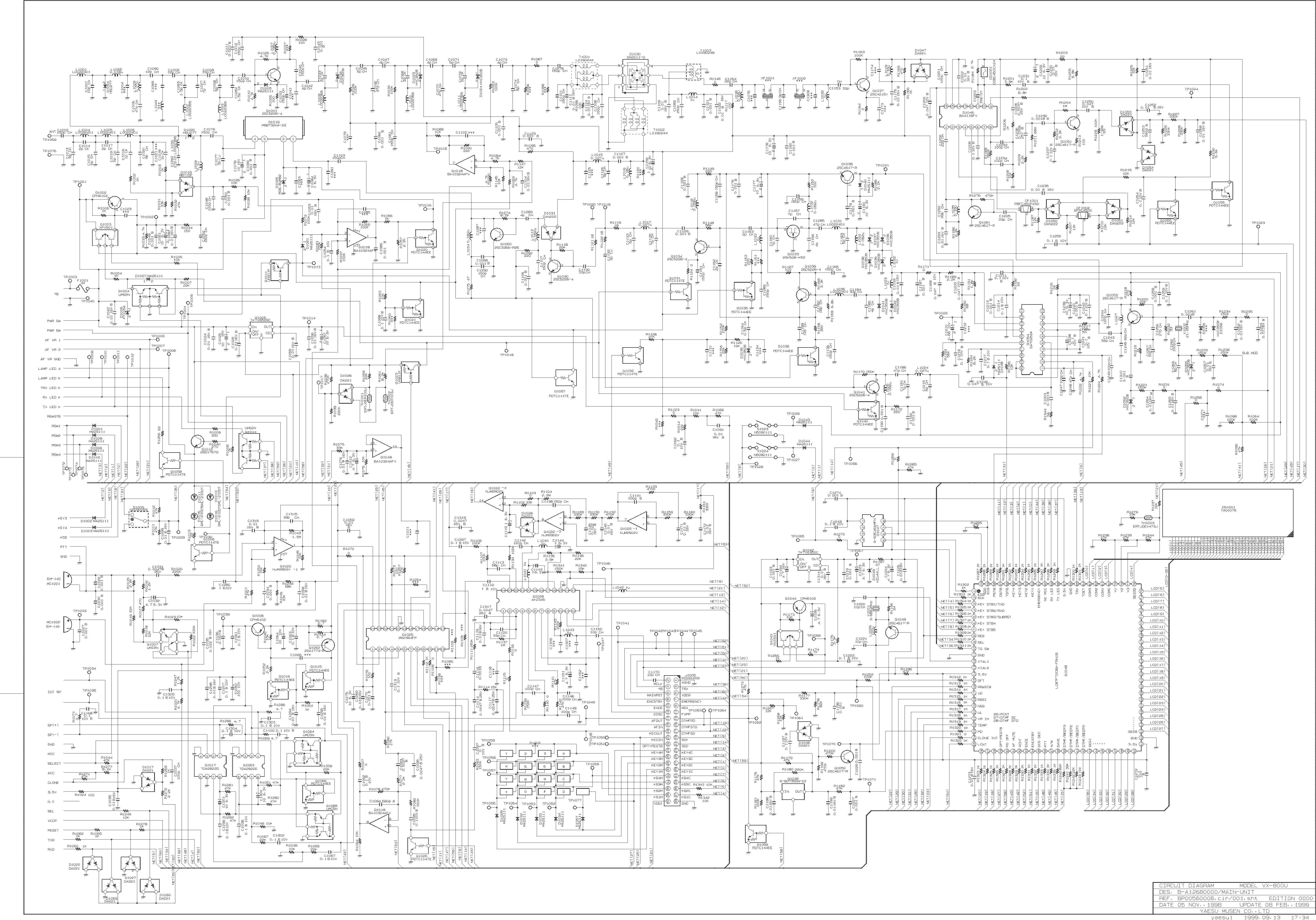

VX-800U Component Application Address Parts Type Description Application Q 1001 Transistor 2SC4227-R34 RF AMP Q 1002 Transistor CPH6102-TL TX5V AVR Q 1003 Dual Transistor XP1501- (TX) TX5V AVR Q 1004 Dual Transistor UMG2N TR TX/RX SW Q 1005 IC TK71650SCL 5V AVR Q 1006 Transistor PDTC144EE LAMP SW Q 1007 Dual Transistor UMZ2N TR PTT Q 1008 Transistor CPH6102-TL AF SW Q 1009 Not Used - - Q 1010 Not Used - - Q 1011 Transistor UN911F- (TX) TX/RX SW Q 1012 Transistor 2SD1767 T100 Q LAMP SW Q 1013 Not Used - - Q 1014 Dual Transistor UMG2N TR TRX LED SW Q 1015 Transistor PDTC144EE AF SW Q 1016 Transistor PDTC144EE AF SW Q 1017 IC TDA2822D013TR Audio AMP Q 1018 Quadruple OP-AMPBA10324AFV-E2 APC/RX Tune Q 1019 Hybrid RF ModuleM68732LA (typ A) PA Q 1019 Hybrid RF ModuleM68732HA (typ CS, D) PA Q 1019 Hybrid RF ModuleM68732SHA (typ F) PA Q 1020 Transistor PDTC144EE TX/RX SW Q 1021 Transistor PDTC144EE TX/RX SW Q 1022 Quadruple OP-AMPBA10324AFV-E2 AF, DCS Filter Q 1023 Transistor UN911F- (TX) Save SW Q 1024 Not Used - - Q 1025 IC M62364FP 600D D/A Converter Q 1026 Transistor PDTC114TE AF Mute Q 1027 Transistor PDTC144EE TX/RX SW Q 1028 IC AK2345-T4 Base band Q 1029 Not Used - - Q 1030 Transistor 2SC5226-4-TL Buff AMP Q 1031 Transistor PDTC114TE Buff AMP SW Q 1032 Transistor PDTC114TE ATT SW Q 1033 Transistor 2SK508-T2B K52 VCO Q 1034 Transistor 2SC5226-4-TL Buff Q 1035 Transistor PDTC144EE RX VCO SW Q 1036 Transistor PDTC144EE TX VCO SW Q 1037 Transistor 2SC5226-4-TL IF AMP Q 1038 Transistor 2SC4617 TL Ripple Filter Q 1039 Transistor 2SC5226-4-TL VCO Q 1040 Transistor PDTC144EE Buff AMP SW Q 1041 Transistor 2SC5226-4-TL Buff AMP Address Parts Type Description Application Q 1042 IC TK71635SCL 3.5V AVR YAESU MUSEN CO., LTD. FCC ID: K66VX-800U EXHIBIT # 10A Q 1043 Dual Transistor XN1501- (TX) 3.5V AVR Q 1044 Transistor CPH6102-TL 3.5V AVR Q 1045 IC S-80735SN-DZ-T1 RESET Q 1046 IC BA4116FV-E2 FM Sub-System IC Q 1047 IC S-93C46AMFN-TB EEPROM Q 1048 IC LC87F72C8A Main Microprocessor Q 1049 Transistor 2SC4617 TL Clock Shift Q 1050 Transistor 2SC4617 TL RESET Q 1051 Transistor 2SC4617 TL FILTER AMP Q 1052 Not Used - - Q 1053 Transistor 2SC4617 TL Reference OSC Q 1054 IC SA7025DK PLL IC Q 1055 Transistor PDTC144EE Wide/Narrow SW Q 1056 Transistor PDTC144EE Wide/Narrow SW Q 1057 Not Used - - Q 1058 Transistor PDTC144EE LAMP SW Q 1059 Transistor PDTC144EE PO OFF Q 1060 Transistor 2SC3356-R25 Pre DRIVE Q 1061 Transistor 2SC4617 TL 2ND LOCAL OSC Q 1062 Transistor 2SA1774 TL R SP SEL Q 1063 Transistor TDA2822D013TR Audio AMP Q 1064 Transistor 2SA1774 TL R SP SEL Q 1065 Transistor 2SA1774 TL R SP SEL Q 1066 Transistor 2SC4617 TL SP SEL D 1001 Diode MA2S111- (TX) Protector D 1002 Diode MA2S111- (TX) Protector D 1003 Diode MA2S111- (TX) Protector D 1004 Diode HSU277TRF ANT SW D 1005 Diode MA2S111- (TX) Limiter D 1006 Zener Diode PTZ TE25 15A Protector D 1007 Diode MA2S111- (TX) TX/RX SW D 1008 Diode MA2S111- (TX) Protector D 1009 Diode MA2S111- (TX) Protector D 1010 Not Used - - D 1011 LED SML-210MTT86 KEY LAMP D 1012 Diode MA2S111- (TX) Protector D 1013 LED SML-210MTT86 KEY LAMP D 1014 Not Used - - D 1015 LED SML-210MTT86 KEY LAMP D 1016 LED SML-210MTT86 KEY LAMP D 1017 Dual Diode DA221 TL Protector D 1018 Varactor Diode HVC350B-TRF RX tune D 1019 Dual Diode RB715F T106 Power DET Address Parts Type Description Application D 1020 Diode HSU277TRF ANT SW D 1021 Diode MA2S111- (TX) TX/RX SW D 1022 Dual Diode DA221 TL Protector YAESU MUSEN CO., LTD. FCC ID: K66VX-800U EXHIBIT # 10B D 1023 Varactor Diode HVC350B-TRF RX tune D 1024 Varactor Diode HVC350B-TRF RX tune D 1025 Zener Diode UDZ TE17 3.9B Protector D 1026 Dual Diode DA221 TL TEMP SENS D 1027 Dual Diode DA221 TL Protector D 1028 Dual Diode DA221 TL Limiter D 1029 Diode MA2S111- (TX) Protector D 1030 FET GN2011-Q (TX) MIXER D 1031 Dual Diode DAN222 TL TX/RX SW D 1032 Diode MA2S111- (TX) Protector D 1033 Diode MA2S111- (TX) Protector D 1034 Diode MA2S111- (TX) Protector D 1035 Varactor Diode HVC350B-TRF MOD D 1036 Varactor Diode HVC350B-TRF VCO Freq Cont D 1037 Varactor Diode HVC350B-TRF VCO Freq Cont D 1038 Varactor Diode HVC350B-TRF VCO Freq Cont D 1039 Varactor Diode HVC350B-TRF VCO Freq Cont D 1040 Diode MA2S111- (TX) Ripple Filter D 1041 Varactor Diode HVC350B-TRF VCO Freq Cont D 1042 Varactor Diode HVC350B-TRF VCO Freq Cont D 1043 Diode MA2S111- (TX) Protector D 1044 Diode MA2S111- (TX) Protector D 1045 Not Used - - D 1046 Dual Diode DA221 TL RESET D 1047 Dual Diode DA221 TL Limiter D 1048 Diode MA2S111- (TX) UL D 1049 Zener Diode HZU4ALL-TR Protector D 1050 Dual Diode DAN222 TL Wide/Narrow SW D 1051 Dual Diode DAN222 TL Wide/Narrow SW D 1052 Varactor Diode HVC350B-TRF Freq Adj D 1053 Dual Diode DA221 TL NOISE DET D 1054 Dual Diode DA221 TL NOISE DET D 1055 Varactor Diode HVC350B-TRF DCS MOD D 1056 Varactor Diode HVC350B-TRF Freq Adj D 1057 Diode MA2S111- (TX) Protector D 1058 Diode HSU277TRF ANT SW D 1059 Dual Diode DA221 TL Protector D 1060 Dual Diode DA221 TL Protector YAESU MUSEN CO., LTD. FCC ID: K66VX-800U EXHIBIT # 10C

VX-800U Alignment YAESU MUSEM Co., Ltd. 1/6 VX-800U Alignment Introduction The VX-800 is carefully aligned at the factory for the specified performance across the frequency range specified for each version. Realignment should therefore not be necessary except in the event of a component failure, or altering version type. All component replacement and service should be performed only by an authorized YAESU representative, or the warranty policy may be void. The following procedures cover the sometimes critical and tedious adjustments that are not normally required once the transceiver has left the factory. However, if damage occurs and some parts subsequently are placed, realignment may be required. If a sudden problem occurs during normal operation, it is likely due to component failure; realignment should not be done until after the faulty component has been replaced. We recommend that servicing be performed only by authorized YAESU service technicians who are experienced with the circuitry and fully equipped for repair and alignment. Therefore, if a fault is suspected, contact the dealer from whom the transceiver was purchased for instructions regarding repair. Authorized YAESU service technicians realign all circuits and make complete performance checks to ensure compliance with factory specifications after replacing any faulty components. Those who do undertake any of the following alignments are cautioned to proceed at their own risk. Problems caused by unauthorized attempts at realignment are not covered by the warranty policy. Also, YAESU reserves the right to change circuits and alignment procedures in the interest of improved performance, without notifying owners. Under no circumstances should any alignment be attempted unless the normal function and operation of the transceiver are clearly understood, the cause of the malfunction has been clearly pinpointed and any faulty components replaced, and realignment determined to be absolutely necessary. The following test equipment (and thorough familiarity with its correct use) is necessary for complete realignment. Correction of problems caused by misalignment resulting from use of improper test equipment is not covered under the warranty policy. While most steps do not require all of the equipment listed, the interactions of some adjustments may require that more complex adjustments be performed afterwards. Do not attempt to perform only a single step unless it is clearly isolated electrically from all other steps. Have all test equipment ready before beginning, and follow all of the steps in a section in the order presented. Required Test Equipment
RF Signal Generator with calibrated output level at 600MHz
Deviation Meter (linear detector)
In-line Wattmeter with 5% accuracy at 600MHz YAESU MUSEN CO., LTD. FCC ID: K66VX-800U EXHIBIT # 13A VX-800U Alignment YAESU MUSEM Co., Ltd. 2/6
50-Ω RF Dummy Load with power rating 10W at 600MHz
16- Ω AF Dummy Load (Attention: Audio output is BTL output)
Regulated DC Power Supply (standard 7.5V DC, 3A)
Frequency Counter with 0.2ppm accuracy at 600MHz
AC Voltmeter
DC Voltmeter
VHF Sampling Coupler
IBM PC / compatible Computer with Microsoft DOS v3.0 or later operating system
YAESU CT-71 Connection Cable & Alignment program Alignment Preparation & Precautions A 50-Ω RF Dummy Load and in-line wattmeter must be connected to the main antenna jack in all procedures that call for transmission, except where specified otherwise. Correct alignment is not possible with an antenna. After completing one step, read the following step to determine whether the same test equipment will be required. If not, remove the test equipment (except dummy load and wattmeter, in connected) before proceeding. Correct alignment requires that the ambient temperature be the same as that of the transceiver and test equipment, and that this temperature be held constant between 20 and 30 °C (68 ∼ 86 °F). When the transceiver is brought into the shop from hot or cold air, it should be allowed time to come to room temperature before alignment. Whenever possible, alignments should be made with oscillator shields and circuit boards firmly affixed in place. Also, the test equipment must be thoroughly warmed up before beginning. Note: Signal levels in dB referred to in the alignment procedure are based on 0dB μ EMF = 1μV. Setup the test equipment as shown for transceiver alignment, apply 7.5V DC power to the transceiver. Refer to the drawings above for Alignment Points. PC POWER SUPPLY 7.5V DC RF SIGNAL GENERATOR 50 ƒ¶ DUMMY LOAD IN-LINE WATTMETER DEVIATION METER FREQUENCY COUNTER RF SAMPLING COUPLER TRANSCEIVER ANT MIC/EAR COM port CT-71 connection cable The transceiver must be programmed for use in the intended system before alignment is attempted. The RF parameters are loaded from the file during the alignment process. In order to facilitate alignment over the complete switching range of the equipment it is recommended that the channel data in the transceiver is preset as the chart below. YAESU MUSEN CO., LTD. FCC ID: K66VX-800U EXHIBIT # 13B VX-800U Alignment YAESU MUSEM Co., Ltd. 3/6 Channels Frequency (Simplex) Type- A Type- CS Type- D Type- F Band-LOW400.000MHz440.000MHz450.000MHz485.000MHz Band-MID415.000MHz455.000MHz470.000MHz500.000MHz Band-HIGH430.000MHz470.000MHz485.000MHz512.000MHz The alignment mode is accessed by “Alignment mode” command from the computer whilst switching on. And it is operated by the alignment tool automatically. During the alignment mode, normal operation is suspended. Use the alignment tool program running on PC. The alignment tool outline Installation the tool This alignment tool consists, MS-DOS based, only one execute file " vx-800adj.exe ". You make a directly as you think fit, and copy this file. That is all of the installation process. Boot the tool Change directly and input in command line, " vx-800adj [enter] ", and boot the alignment tool. Enter to the alignment mode T…

Text truncated - open the document above for the full version.

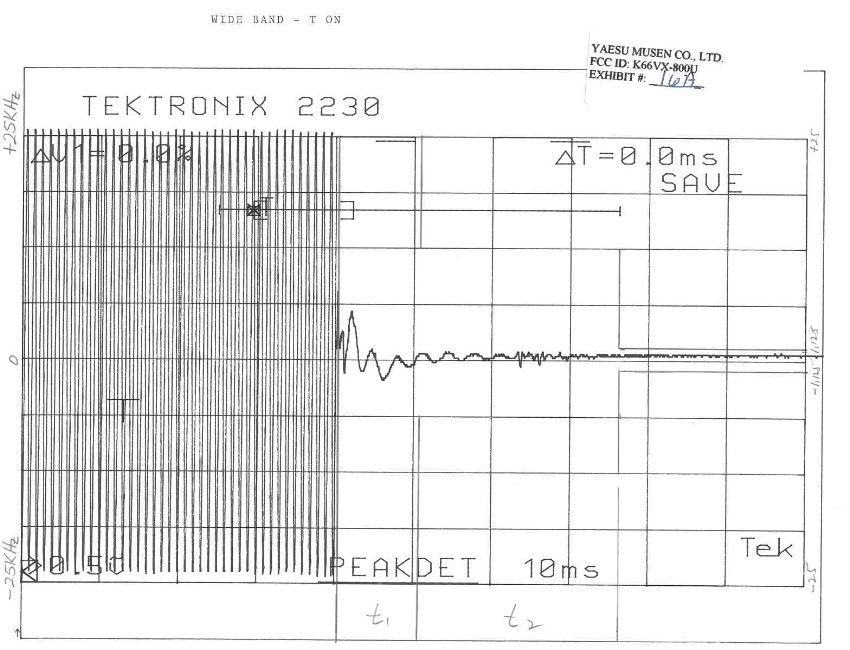

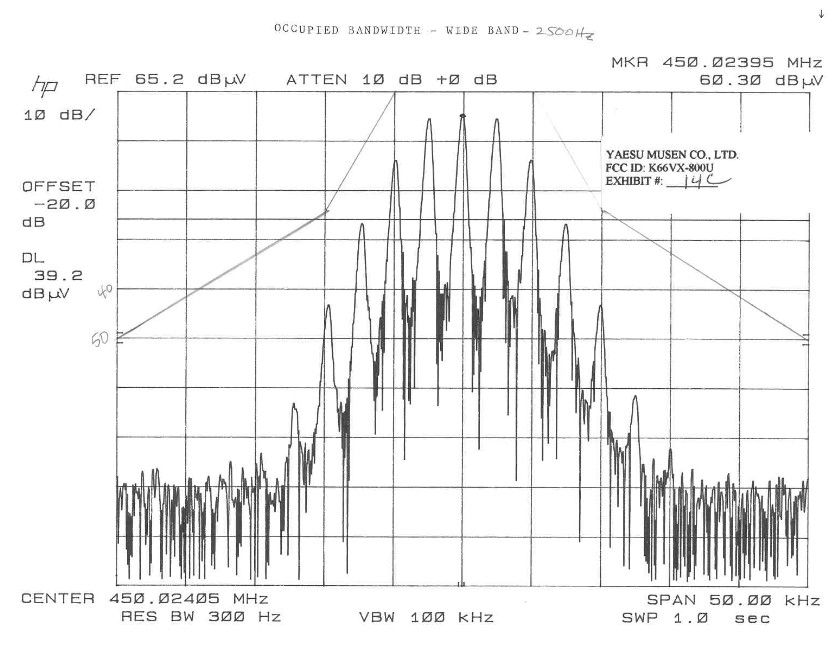

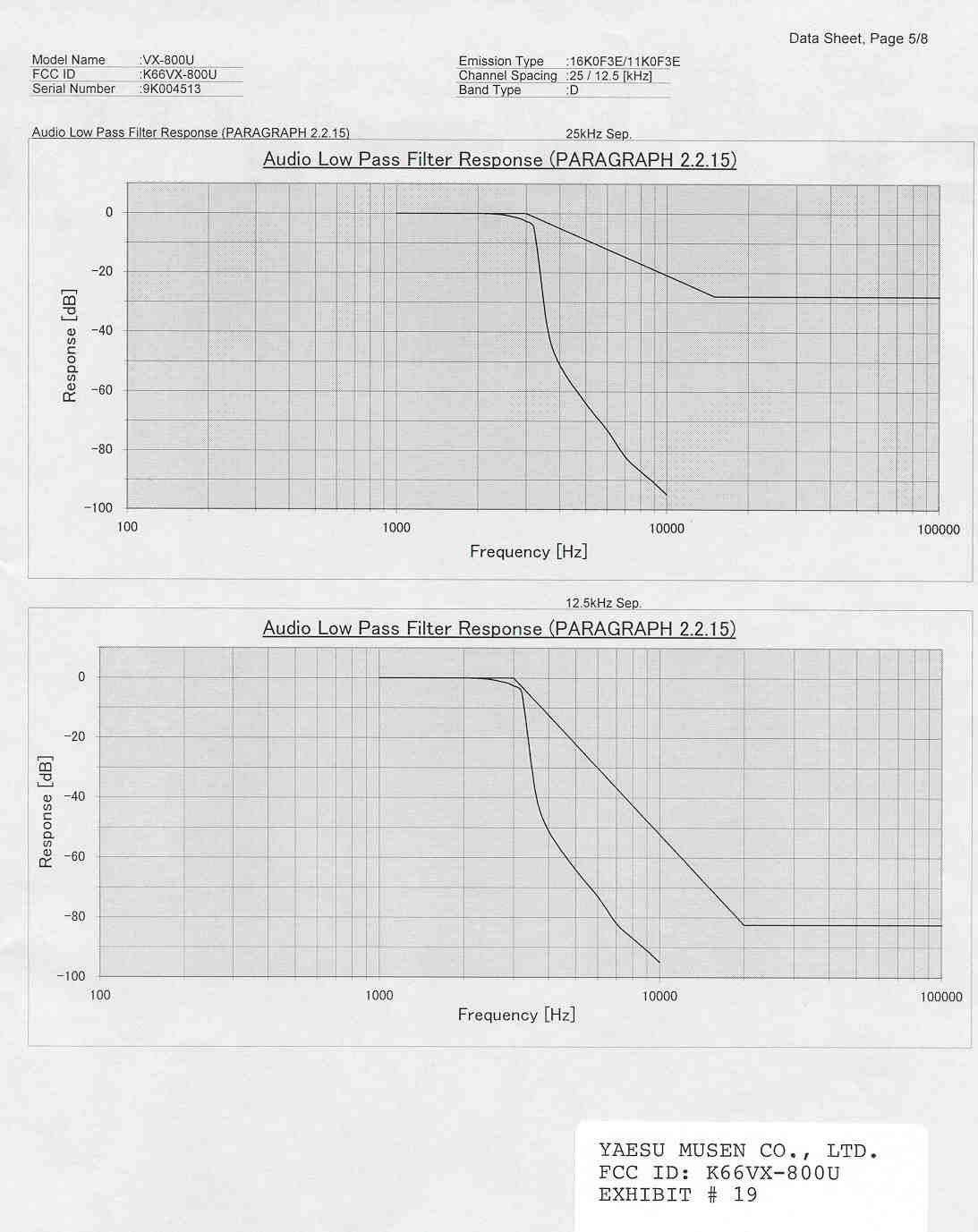

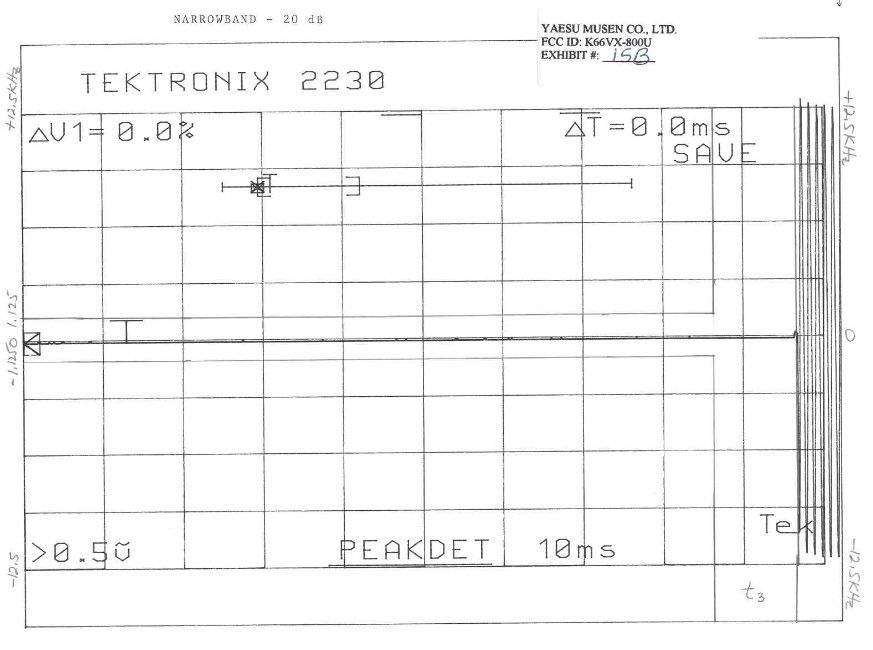

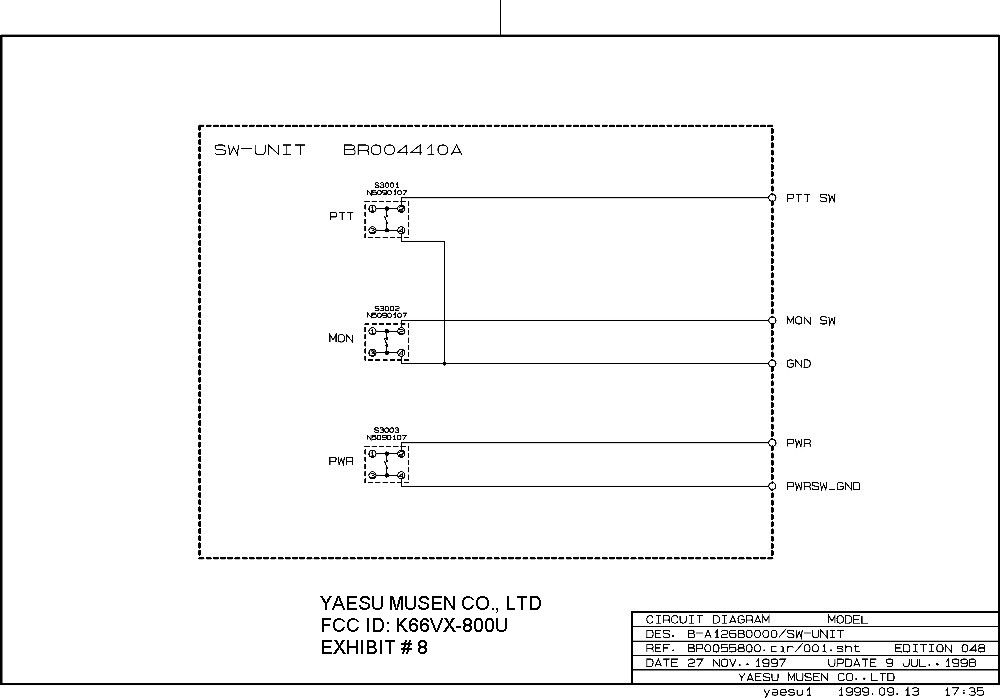

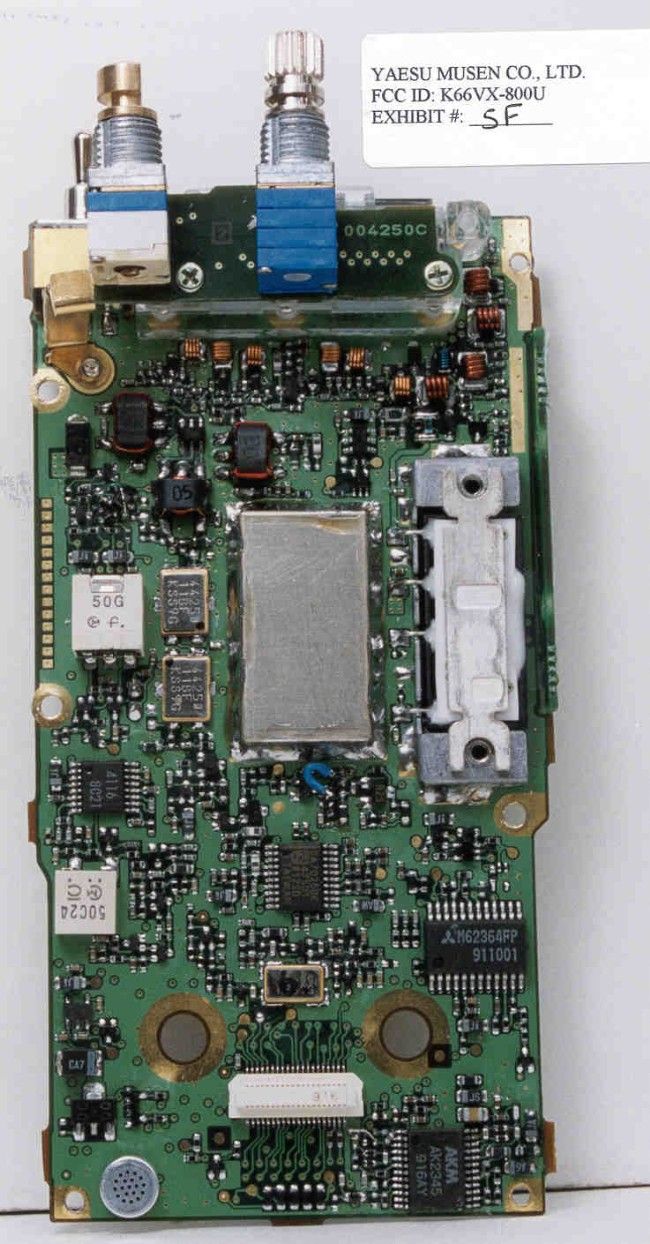

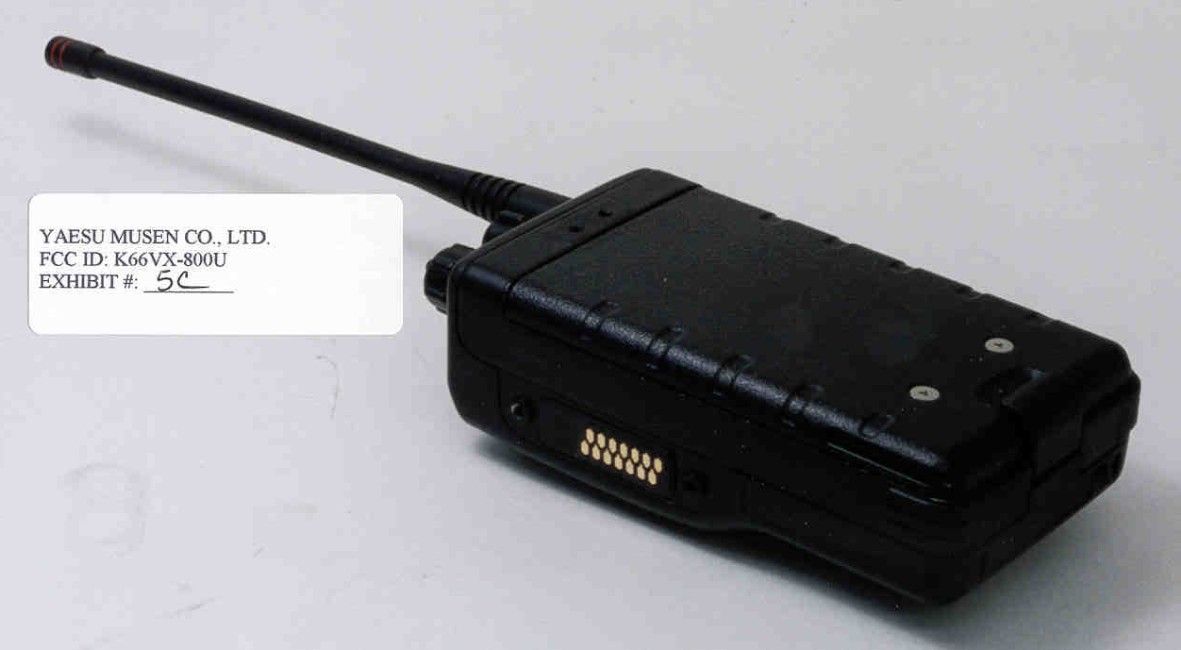

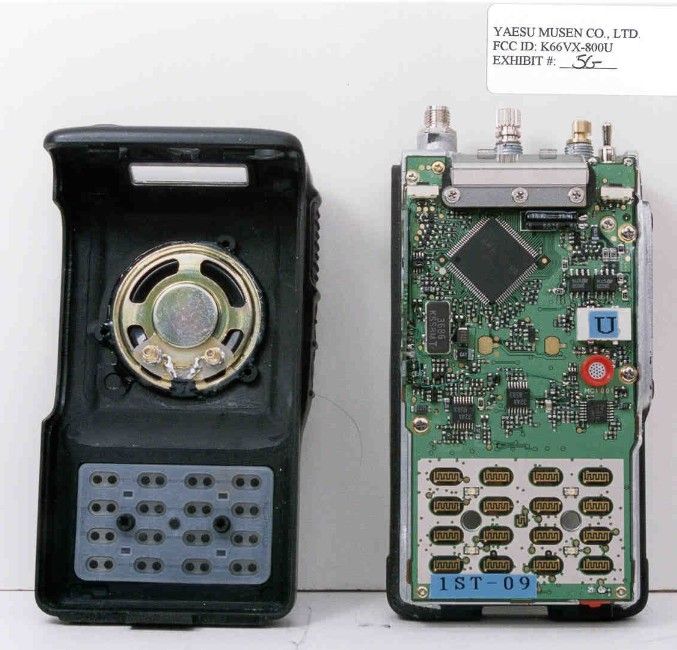

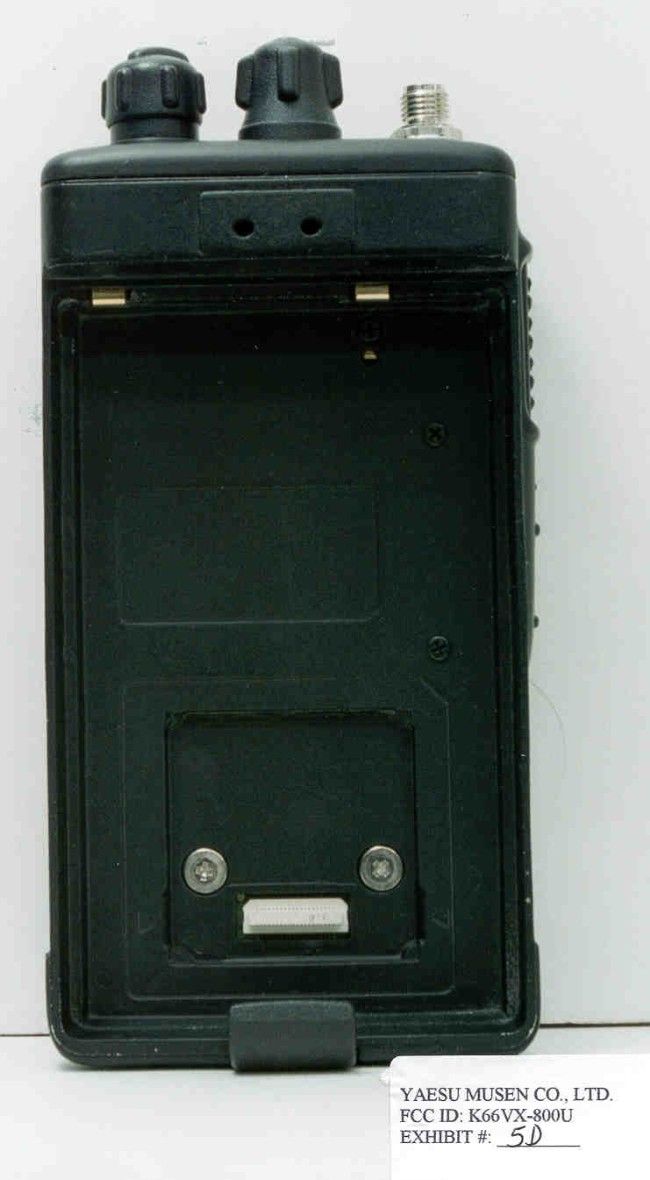

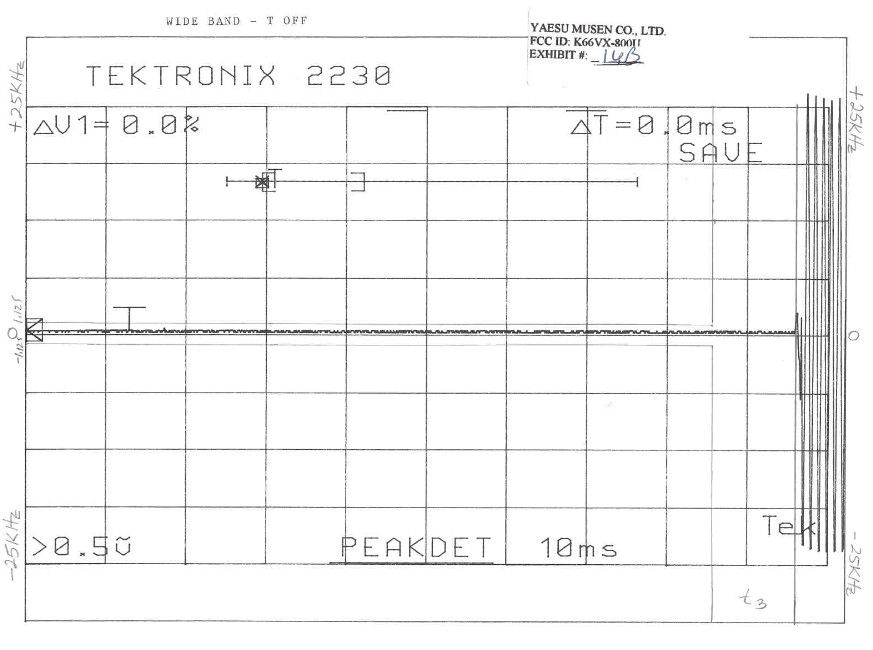

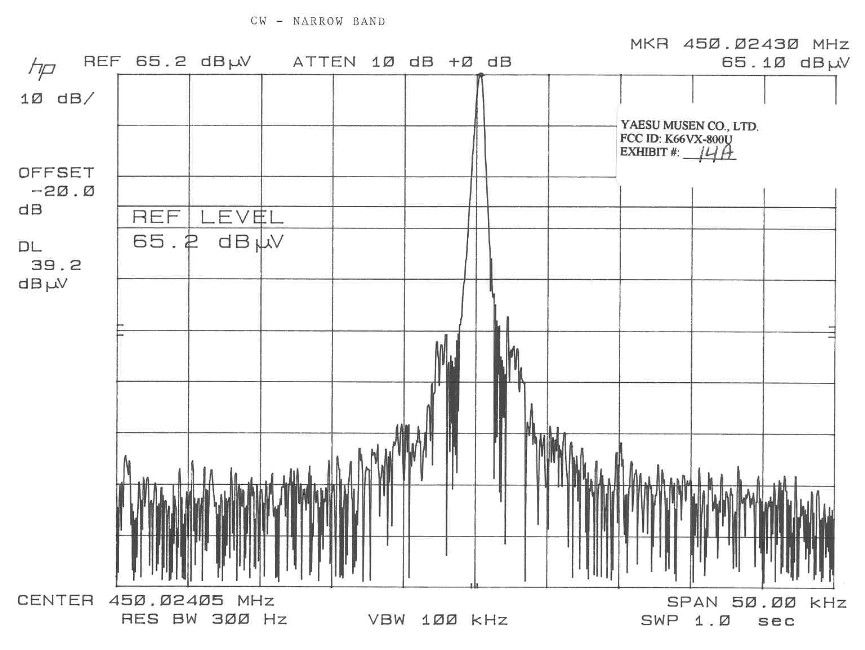

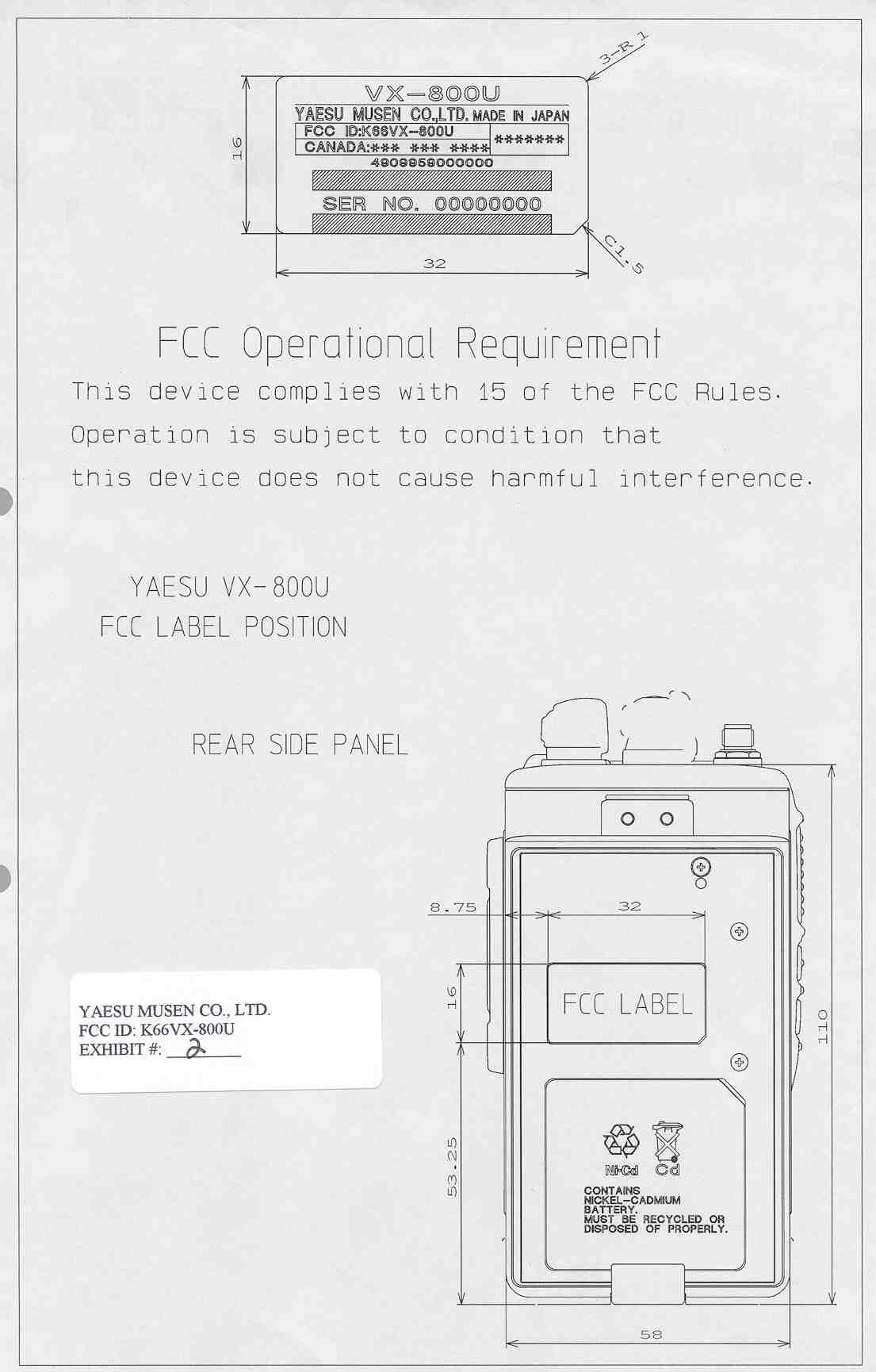

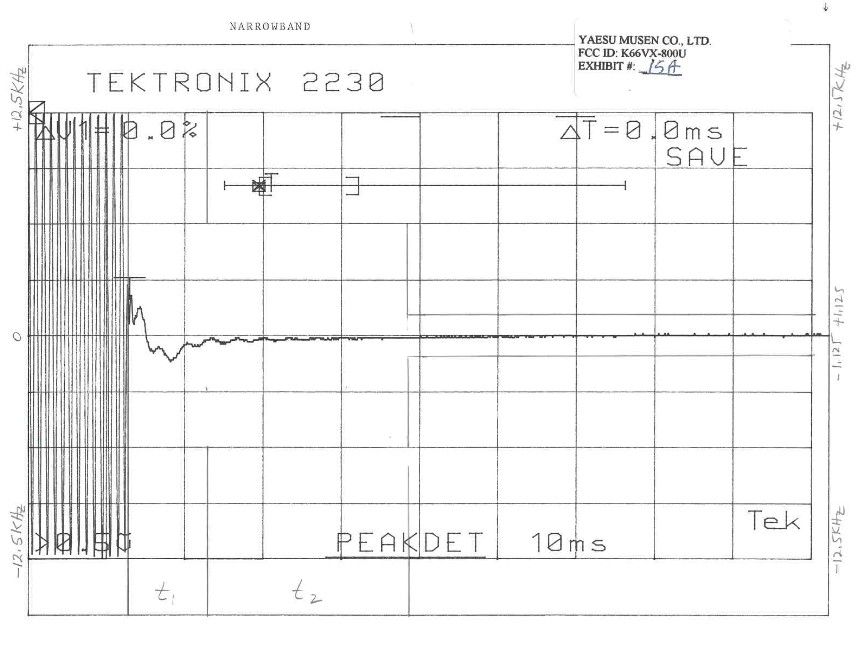

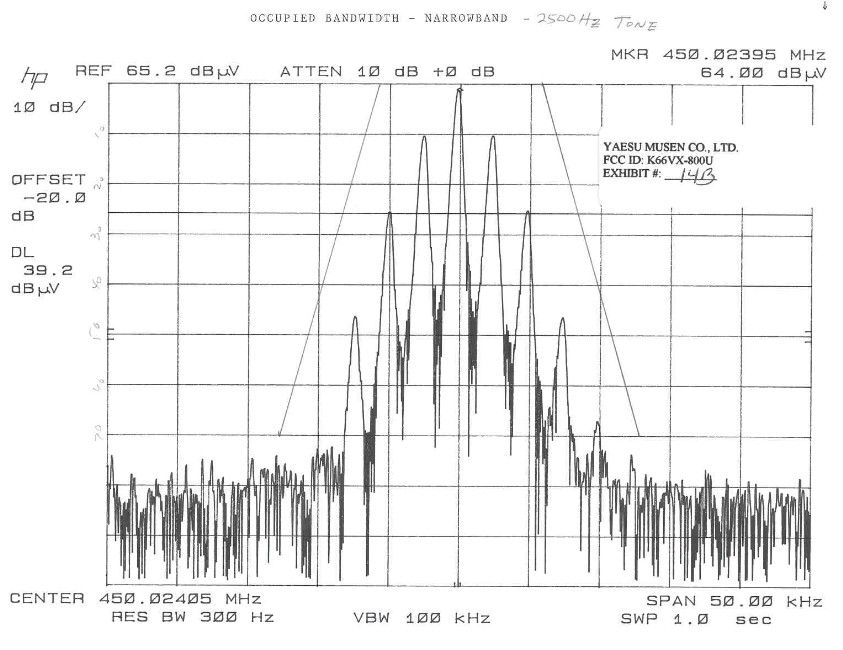

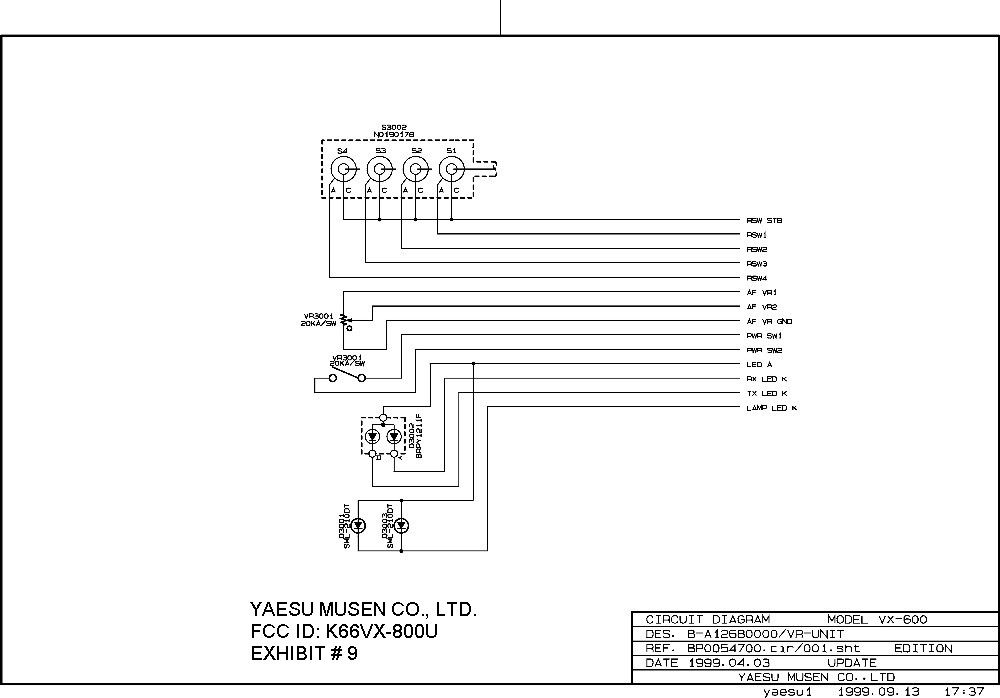

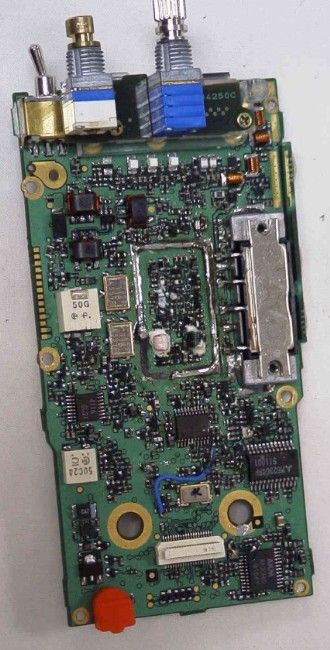

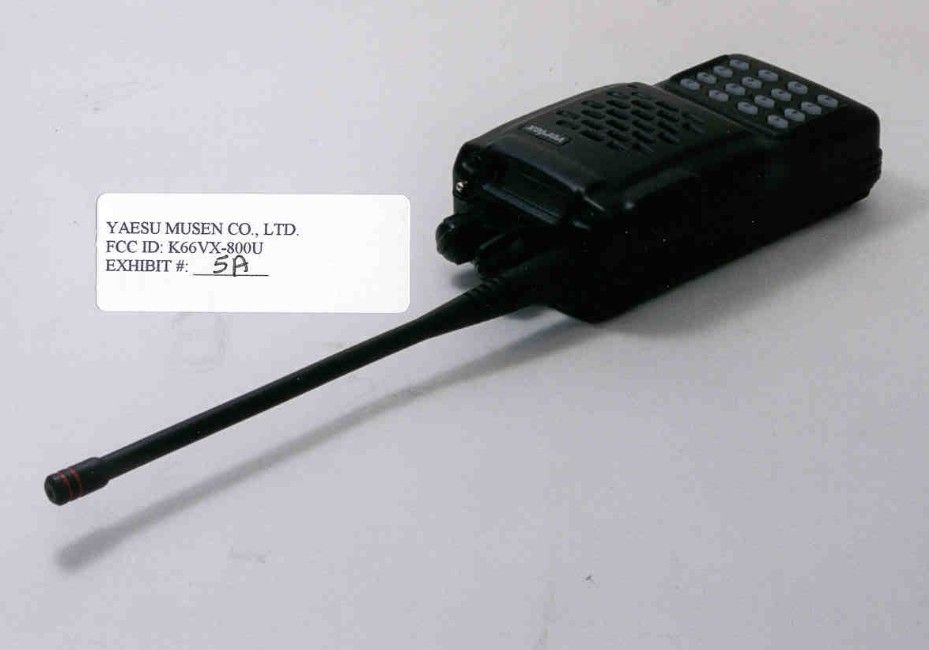

TABLE OF CONTENTS LIST APPLICANT: YAESU MUSEN CO., LTD. FCC ID: K66VX-800U TEST REPORT: PAGE 1......COVER SHEET - GENERAL INFORMATION & TECHNICAL DESCR. PAGE 2......TECHNICAL DESCRIPTION CONTD. & RF POWER OUTPUT PAGE 3......RF POWER OUTPUT AND MODULATION CHARACTERISTICS PAGE 4-5....OCCUPIED BANDWIDTH PAGE 6......SPURIOUS EMISSIONS AT ANTENNA TERMINALS PAGE 7......FIELD STRENGTH OF SPURIOUS EMISSIONS PAGE 8......METHOD OF MEASURING RADIATED SPURIOUS EMISSIONS PAGE 9......FREQUENCY STABILITY PAGE 10-11...TRANSIENT FREQUENCY STABILITY PAGE 12......CERTIFICATION OF TECHNICAL DATA AND LIST OF TEST EQUIPMENT EXHIBITS CONTAINING: EXHIBIT 1.........POWER OF ATTORNEY LETTER EXHIBIT 2.........FCC ID LABEL SAMPLE AND SKETCH OF LOCATION EXHIBIT 3.........COMPLIANCE STATEMENT FOR EQUIPMENT EXHIBIT 4.........LETTER REGARDING FREQUENCY CHANGES EXHIBIT 5A-5B.....EXTERNAL FRONT VIEW PHOTOGRAPHS EXHIBIT 5C-5D.....EXTERNAL REAR VIEW PHOTOGRAPHS EXHIBIT 5E........EXTERNAL TOP VIEW PHOTOGRAPH EXHIBIT 5F........INTERNAL COMPONENT SIDE PHOTOGRAPH EXHIBIT 5G........INTERNAL SOLDER SIDE PHOTOGRAPH EXHIBIT 6.........BLOCK DIAGRAM EXHIBIT 7.........MAIN SCHEMATIC EXHIBIT 8.........SW SCHEMATIC EXHIBIT 9.........VR SCHEMATIC EXHIBIT 10A-10C...PARTS LIST EXHIBIT 11A-11D...USER'S MANUAL EXHIBIT 12A-12D...CIRCUIT DESCRIPTION EXHIBIT 13A-13F...TUNING PROCEDURE EXHIBIT 14A.......OCCUPIED BANDWIDTH PLOT - CW - 12.5 kHZ CH EXHIBIT 14B.......OCCUPIED BANDWIDTH PLOT - 12.5 kHZ CH EXHIBIT 14C.......OCCUPIED BANDWIDTH PLOT - 25 kHZ CH EXHIBIT 15A-15B...TRANSIENT FREQUENCY REPONSE - 20dB - 12.5kHz CH EXHIBIT 16A-16B...TRANSIENT FREQUENCY REPONSE - 25 kHz CH EXHIBIT 17A.......AUDIO FREQUENCY RESPONSE GRAPH - 12.5 kHz CH EXHIBIT 17B.......AUDIO FREQUENCY RESPONSE GRAPH - 25 kHz CH EXHIBIT 18A.......MODULATION LIMITING - 12.5 kHz CH -300 Hz EXHIBIT 18B.......MODULATION LIMITING - 12.5 kHz CH -1000 Hz EXHIBIT 18C.......MODULATION LIMITING - 12.5 kHz CH -3000 Hz EXHIBIT 18D.......MODULATION LIMITING - 25 kHz CH -300 Hz EXHIBIT 18E.......MODULATION LIMITING - 25kHz CH -1000 Hz EXHIBIT 18F.......MODULATION LIMITING - 25kHz CH -3000 Hz EXHIBIT 19........AUDIO LOW PASS FILTER GRAPH DATE: NOVEMBER 5, 1999 REPORT #: T:\CUS\Y\YAE\YAE418A9\YAE418A9.RPT PAGE: TABLE OF CONTENTS GENERAL_INFORMATION_REQUIRED FOR_TYPE_ACCEPTANCE 2.983 (a,b,c) YAESU MUSEN CO., LTD. will sell the FCCID: K66VX-800U UHF transciever in quantity, for use under FCC RULES PART 22, 74, 90, 95, & 90.210. 2.983 (d) TECHNICAL_DESCRIPTION (1) ALLOWED AUTHORIZED BANDWIDTH = 11.25KHz. 90.209(b)(5) Bn=2M+2DK M = 3000 D = 2.5KHz (Peak Deviation) K=1 Bn = 2(3.0K) + 2(2.5K)(1) = 6.0K + 5.0K = 11.0K Type of Emission: 11K0F3E (2) ALLOWED AUTHORIZED BANDWIDTH = 20.0KHz. 90.209(b)(5) Bn=2M+2DK M = 3000 D = 5.0KHz (Peak Deviation) K=1 Bn = 2(3.0K) + 2(5.0K)(1) = 6.0K + 10.0K = 16.0K Type of Emission: 16K0F3E (2) Frequency Range: 450-485 MHz (3) Power Range and Controls: This UUT has two(2) power ranges, 1.0Watt & 5.0Watt. (4) Maximum Output Power Rating: 5.0Watts into a 50 ohm resistive load. (5) DC Voltages and Current into Final Amplifier: POWER INPUT FINAL AMPLIFIER ONLY POWER OUT 5.4 Vce Volts 7.2 Ice Amps 1.5 Pin Watts 10.2 (6) Function of each electron tube or semiconductor device or other active circuit device: See attached list in Exhibit 10A-10C. DATE: NOVEMBER 5, 1999 REPORT #: T:\CUS\Y\YAE\YAE418A9\YAE418A9.RPT PAGE #: 1 2.983(d) (7) Complete Circuit Diagrams: The circuit diagram is included as PAGES 7-9. The block diagram is included as PAGE 6. (8) Instruction book. The instruction manual is in cluded as 11A-11D. (9) Tune-up procedure. The tune-up procedure is given in exhibit 13A-13F. (10) Description of all circuitry and devices provided for determining and stabilizing frequency is included in the circuit description in 12A-12D. 2.983 (11) Description of any circuits or devices employed for suppression of spurious radiation, for limit- ing modulation, and for limiting power. In addition to the interstage filtering the multi- section low pass filter is described in paragraph 6.3.5 of the instruction manuel. Limiting Modulaton: The transmitter audio limiting circuitry is con- tained in the loop filter U501, U502, & U503. Limiting Power: The power is preset at the factory for either high or low. There is no provision for limiting power. (12) Digital modulation. This unit does NOT use digi- tal modulation. 2.983(e) The data required by 2.985 through 2.997 is submitted below. 2.985(a) RF_power_output. The test procedure used was TIA/EIA-603 S2.2.1. RF power is measured by connecting a 50 ohm, resistive wattmeter to the RF output connec- tor. With a nominal battery voltage of 7.2V, and the transmitter properly adjusted the RF output measures: INPUT POWER: (7.2V)(1.5A) = 10.80Watts OUTPUT POWER: 5.4…
