K66VXR-9000ULow Power UHF Transceiver

FCC ID: K66VXR-9000U Operating Manual 1/13 Vertex Standard Co., Ltd. Front Panel (1) Power Switch Operate the switch to turn the repeater On and Off. (2) Power Indicator (Main) A green LED lights when the main power source is used. (3) Power Indicator (Backup) A red LED lights whrn the backup power source is used. (4) Microphone Jack Connect the microphone plug to this jack. This jack is also used for writing and reading channel frequency or other configurations via COM Port of PC on which the clone editor (CE60) is running. (5) Programmable Function Key Six push keys are programmable function key (PFK) which have orange indicator inside each of them. Each key can be programmed two functions for long push and short push. (1) (2) (3) (5)(6)(10) (8) (9)(7)(4) FCC ID: K66VXR-9000U Operating Manual 2/13 Vertex Standard Co., Ltd. (6) Numeric Display The display is consisted of two digits seven-segment LED, which shows channel number when the repeater works normally. An error code is displlayed in case the repeater has a trouble with it. (7) TX Indicator A red LED lights when the repeater is transmitting. (8) Busy Indicator A green LED lights when the receiving channel is busy. (9) Volume Knob Volume knob to adjust the output level of front speaker and external speaker jack on the back panel. (10) Speaker Internal Speaker. FCC ID: K66VXR-9000U Operating Manual 3/13 Vertex Standard Co., Ltd. Rear Panel (1) Antenna Connector for Transmission The 50-ohm coaxial feedline to the antenna for transmission must be connected here, using Type-N coaxial connector. (2) DSUB 25-pin Accessory Connector DB-25 connector allows the repeater to be remote-controlled by external controller. Analog signals, such as TX_AF_IN, DISC_OUT, RSSI, and so on, are input and output. Furthermore, this repeater has eight port programmable input/output feature (PIO) for various control (or being controlled). Each port can be programmed their function, input or output, and its logic (output only). (3) Antenna Connector for Reception The 50-ohm coaxial feedline to the antenna for reception must be connected here, using Type-BNC coaxial connector. (4) Main Power Source Connector A power supply for main power source should be connected here. (1) (2) (3)(4) (5)(6) (7) FCC ID: K66VXR-9000U Operating Manual 4/13 Vertex Standard Co., Ltd. (5) Backup Power Source Terminals A power supply for backup power source, such as rechargeable battery should be connected here. When the repeater is working by main power source, a trickle charge current is present here. (6) Circuit Protection Fuse Two 15A blade fuses for main and backup power source. (7) External Speaker Jack 3.5 mm 2-pin extenal speaker jack. Recommanded load impedance is from 4 ohm to 16 ohm. The output level varies in accordance with the position of volume knob on the front panel. FCC ID: K66VXR-9000U Operating Manual 5/13 Vertex Standard Co., Ltd. The VXR-9000 repeater is provided with a 25-pin DB-25F female connector for interconnections to accessories.Use a DB-25M 25-pin male connector to connect accessories to the repeater. The pins on the accessory connector are explained in detail as follows: Pin 1: GND Chassis ground for all logic levels and power supply return. Pin 2: GND Chassis ground for all logic levels and power supply return. Pin 3: +13.6 V [Power Supply] This pin provides 13.6 Volts, 1.0 A, regulated DC from the repeater supply. Use a 1 A fuse in the external device’s DC line to prevent damage to the repeater. Pin 4,6,8,10,12,16,19,25: Programmable I/O_0~7 this repeater has eight port programmable input/output feature (PIO) for various control (or being controlled). Each port can be programmed their function, input or output, and its logic (output only). Pin 5: TX AF IN [Analog Transmitter Input] ( Voice Band: 300 ~ 3,000 Hz) Approximately 0.254 V rms audio input on this pin will produce full system deviation at 1 kHz (±5 kHz deviation with 25 kHz channel spacing, ±2.5 kHz deviation with 12.5 kHz channel spacing). Input impedance is 600 .. This audio is injected before the splatter filter stage, so excess signal input levels are clipped. Use shielded cable to connect to this pin, and connect the shield to GND. Pin 7: TONE IN [Transmitter Input] ( Sub-audible Band: 6 ~ 250 Hz) Applying a 0.1 V rms sub-audible tone produces 10% of full system deviation. The input impedance is 600 W, and has a flat response characteristic (repeater deviation is constant for a given signal level over the frequency range of 6 ~ 250 Hz). Injecting too high a voltage here causes over-deviation of CTCSS or DCS, degrading performance. Use shielded cable to connect to this pin, connecting the shield to GND. FCC ID: K66VXR-9000U Operating Manual 6/13 Vertex Standard Co., Ltd. Pin 9: TX ATT This output is intended for controlling an external coaxial switching relay. It is an open collector output which can sink approx. 10 mA when active. This signal only switches if the repeater has been programmed Pin 11: DISC OUT [Analog Output] ( Wide-Band: 0 ~ 3,000 Hz) Received signals with full system deviation produce 1 V p-p audio at this pin. The output impedance is 600 ., and is extracted before the de-emphasis and squelch circuitry. Use shielded cable to connect to this pin, and connect the shield to GND. Pin 13: GND Chassis ground for all logic levels and power supply return. Pin 14: GND Chassis ground for all logic levels and power supply return. Pin 15: RSSI [Analog Output] A DC voltage proportional to the strength of the signal currently being received (Receiver Signal Strength Indicator) is provided on this pin. This low impedance output is generated by the receiver IF sub-system and buffered by an internal op-amp. Typical voltages are graphed as follows: Pin 17: COAX. SW [Logic Output (Active Low)] This output is intended for controlling an external coaxial switching relay. It is an open collector output which can sink approx. 10 mA when active. This signal only switches if the repeater has b…

Text truncated - open the document above for the full version.

FCC ID: K66VXR-9000U Vertex Standard Co., Ltd. Safety / Warning information The antenna(s) used for this transmitter must be fixed-mounted on outdoor permanent structures with a separation distance of at least 74cm from all persons during normal operation and must not exceed an antenna gain of 0 dBd. This device must be restricted to work related operations in an Occupational/Controlled RF exposure Environment, not exceeding a maximum transmitting duty factor of 50%. The antenna(s) used with this device must satisfy the antenna co-location requirements of 47 C.F.R. §1.1307(b)(3).

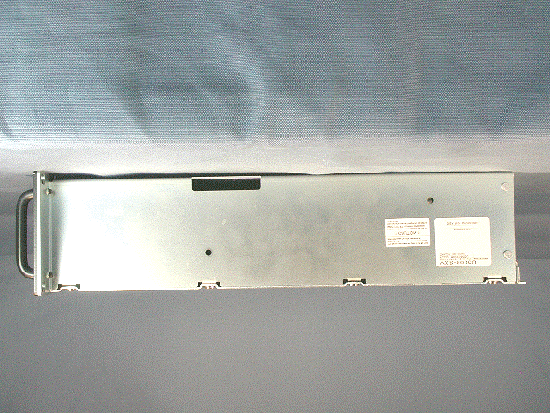

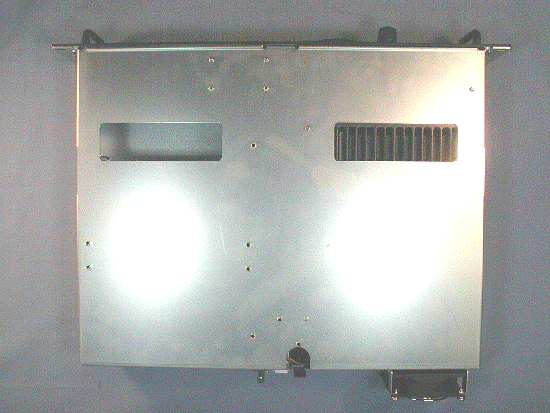

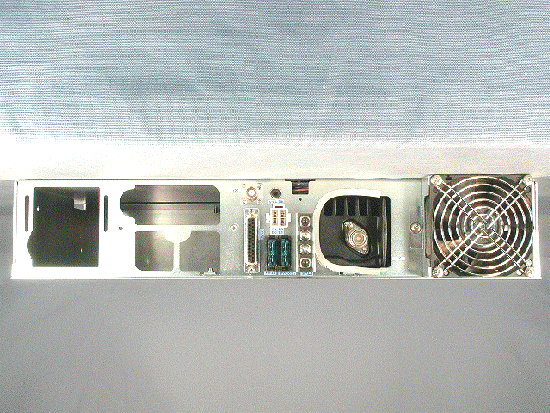

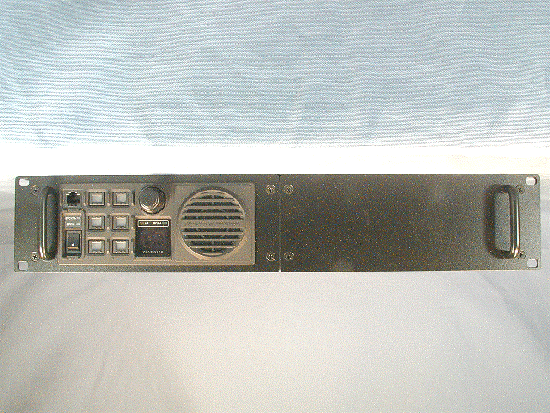

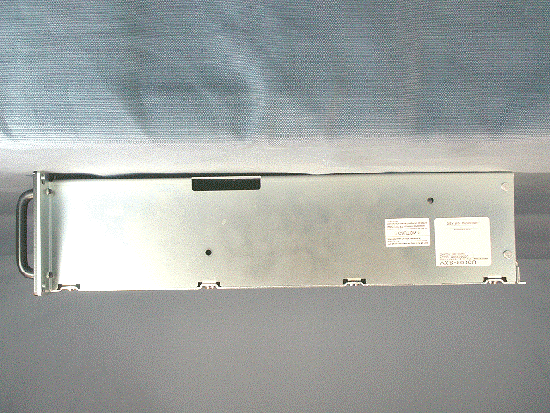

FCC ID: K66VXR-9000U Vertex Standard Co., Ltd. Front view Rear view FCC ID: K66VXR-9000U Vertex Standard Co., Ltd. Left view Right view FCC ID: K66VXR-9000U Vertex Standard Co., Ltd. Top view Bottom view FCC ID: K66VXR-9000U Vertex Standard Co., Ltd. Microphone DC Power Cable

FCC ID: K66VXR-9000U Circuit Description 1/4 Vertex Standard Co., Ltd. VXR-9000U C IRCUIT D ESCRIPTION R ECEIVE S IGNAL P ATH Incoming RF from the RX antenna jack is delivered to the RX Unit and passes through the protection diode D1001 and a varactor-tuned band pass filter consisting of coils L1003 and L1004, capacitors C1015, C1018, C1021, C1032, and C1044, and diodes D1003 and D1004. Signals are then applied to the RF amplifier, Q1009. The amplified RF signal is applied through a varactor-tuned band pass filter consisting of coils L1010 and L1011, capacitors C1079, C1092, C1082, C1095 and C1075, and diodes D1007 and D1005 to the first mixer Q1018 along with the first local signal from the PLL circuit. The first local signal is generated between 376.65 MHz and 416.65 MHz by the RX VCO, which consists of FET Q1048 and varactor diodes D1018, D1019 according to the programmed receiving frequency; the local signal then passes through buffer amplifier Q1059 and first local amplifier Q1019 to the first mixer Q1018. The 73.35 MHz first IF signal is applied to monolithic crystal filters XF1001 and XF1002 which strip away unwanted mixer products, and the IF signal is applied to the first IF amplifiers Q1022. The amplified first IF signal is then delivered to the FM IF subsystem IC Q1028, which contains the second mixer, second local oscillator, limiter amplifier, noise amplifier, and FM detector. The second local oscillator signal, generated by the 72.895 MHz crystal X1002, produces the 455 kHz second IF signal when mixed with the first IF signal within Q1028. The second IF signal passes through ceramic filter CF1001 or CF1002 which strips away all but the desired signal, and then passes through the limiter amplifier within Q1028 to ceramic discriminator CD1001, which removes any amplitude variations in the 455 kHz IF signal before detection of speech. The detected audio passes through the low pass filter, consisting of R1199 and C1244, which rejects the 455 kHz IF component. The audio signal from the RX Unit is delivered to the CNTL Unit and passes through the audio amplifier Q1020 to the active high pass filter section of Q3020, which rejects the sub- audible frequency component. The filtered audio signal is delivered to electronic volume Q1056, which adjusts the audio sensitivity to compensate for audio level variations, then passes through audio amplifier Q1020, audio switch Q1040, attenuator consisting of R1233, and limiter amplifier Q1050, to the electronic volume control Q1056, where the maximum deviation is set. The audio signal subsequently passes through the 3-section active low pass filter consisting of Q1017-1/-2/-3 and audio amplifier Q1001 to providing the repeater transmit audio. A portion of the audio signal from the active high pass filter section of Q4024 is de- emphasized by R**** and C****, providing a flat audio response. The filtered audio then passes through the active band pass filter Q3021 and audio mute gate Q3015 to audio power amplifier Q1057, providing up to 2 Watts of audio power to the 8Ω loudspeaker. A portion of the audio signal from the audio amplifier Q1020 passes through the 3-section active low pass filter Q1025 and the low pass filtering section of Q3020 to separate the CTCSS tones from the received audio signal. Sub-Audible Signaling (Decoder) A portion of the audio signal from the audio amplifier Q1020 passes through the 3-section active low pass filter Q1025 and the low pass filtering section of Q3020 to separate the CTCSS tones from the received audio signal. The CTCSS tones are sent to the CTCSS FCC ID: K66VXR-9000U Circuit Description 2/4 Vertex Standard Co., Ltd. decoder section of Q3020. When a CTCSS tone is received, the CTCSS information is delivered to pin 20 of the Main CPU Q3014 from pin 4 and 8 of Q3020, which compares the CTCSS tone with the programmed tone. Another portion of the audio signal amplified by Q1020 passes through the 3-section active low pass filter Q3044 to separate the DCS codes from the received audio signal. The low pass filtered signal passes through the phase detector Q3044 to pin 39 of the Main CPU Q3014. When a DCS code is received, the Main CPU Q3014 compares the DCS code with the programmed code. If the received CTCSS tone or DCS code matches the programmed tone or code, pin 4 of the Main CPU Q3014 goes low, turning on the squelch switch Q3015 and passing the received audio signal to the audio power amplifier Q1057. Squelch Control The squelch circuit consists of noise amplifier Q1033 and noise detector D1015 on the RX Unit, and control circuitry within main microprocessor Q3014 on the CNTL Unit. When no carrier is received, noise at the output of the audio detector stage of Q1028 is amplified by Q1033, and then rectified by D1015 to provide a DC control voltage for the squelch switch. The resulting DC voltage is delivered to pin 23 of J1005. The DC voltage from the RX Unit is delivered to the A-D analog input port (pin 51) of the Main CPU Q3014 on the CNTL Unit, which compares the squelch threshold level to that which is memorized in EEPROM Q3006 or set by the front panel SQL control RX PLL and VCO Circuits The receiver’s PLL circuitry consists of PLL subsystem IC Q1052 on the MAIN Unit, which contains a reference oscillator/divider, serial-to-parallel data latch, programmable divider, phase comparator and a swallow counter. Stability is obtained by a regulated 5 VDC supply via Q1062 and temperature compensated 14.4 MHz crystal oscillator X1003. The RX VCO, consisting of FET Q1048 and varactor diodes D1018, D1019, oscillates between 376.65 MHz and 416.65 MHz according to the programmed receiving frequency. The RX VCO output passes through buffer amplifier Q1059 and first local amplifier Q1019 to the first mixer Q1018, as described previously. A portion of the RX VCO output is applied to the prescaler/swallow counter section in the PLL IC, Q1052. There the RX VCO signal is divided by 64 or 65, according to a control si…

Text truncated - open the document above for the full version.

1/4 FCC ID: K66VXR-9000U Component Applications Address Device nameDescriptionApplication D1001 Silicon Diode1SS302RF Limiter D1002 PIN DiodeRN739FRF Switch D1003 Varactor DiodeHVU350BPF Tuning D1004 Varactor DiodeHVU350BPF Tuning D1005 Varactor DiodeHVU350BPF Tuning D1006 Zener DiodeHZU5ALLVoltage Regulator D1007 Varactor DiodeHVU350BPF Tuning D1008 Varactor Diode1SV282TX VCO D1009 Varactor Diode1SV282TX VCO D1010 Varactor DiodeHVU350TX VCO D1011 Zener DiodeHZM5.6NB2Voltage Regulator D1012 Silicon DiodeMA142WKRF Switch D1013 Silicon DiodeMA142WKRF Switch D1014 Silicon DiodeMA143Voltage Limiter D1015 Silicon DiodeMA143Noise Rectification D1016 PIN DiodeRN739FRF Switch D1017 PIN DiodeRN739FRF Switch D1018 Varactor Diode1SV282RX VCO D1019 Varactor Diode1SV282RX VCO D1020 Varactor Diode1SV282RX VCO D1021 Varactor Diode1SV282RX VCO D1022 Zener DiodeHZU5ALLVoltage Regulator Q1001 ICNJM2902VAF Amplifier Q1002 Transistor2SD1664DC Switch Q1003 ICTA75S01FComparator Q1004 ICNJM2904VAF Amplifier Q1005 ICTAR5S30Voltage Regulator (3V) Q1006 ICM51132FPVoltage Controlled Amplifier Q1007 Transistor2SC4116GRRF Buffer Amplifier Q1008 ICMB15A02PFV1TX PLL Subsystem Q1009 Transistor2SC3357-RFRF Amplifier Q1010 ICNJM2904VAF Amplifier Q1011 Transistor2SC4116GRRF Buffer Amplifier Q1012 Transistor2SA1586YDC Switch Q1013 TransistorUN5215DC Switch Q1014 Transistor2SA1162GRCharge Pump for TX PLL Q1015 Transistor2SC2712GRCharge Pump for TX PLL Q1016 Transistor2SC4116GRRipple Filter Q1017 ICNJM2902VAF Amplifier/AF Mixer Q1018 ICSPM5001Double Balanced Mixer Q1019 Transistor2SC3357RFRF Amplifier Q1020 ICNJM2904VAF Amplifier Q1021 FET2SK508TX VCO Q1022 Transistor2SC5226RF Amplifier Q1023 Transistor2SC2812N-L6Voltage Regulator Q1024 TransistorXN1213DC Switch Q1025 ICNJM2902VAF Amplifier/AF Filter Q1026 Transistor2SC5226RF Amplifier Q1027 Transistor2SC4116GRRipple Filter Q1028 ICTA31136FNIF Subsystem Q1029 Transistor2SB1122SDC Switch Q1030 Transistor2SC3357-RFRF Amplifier Q1031 TransistorXN1213DC Switch Q1032 TransistorUN5213DC Switch Q1033 Transistor2SC4116GRNoise Amplifier Q1034 Transistot2SA1179-M6DC Switch Q1035 TransistorXN1213DC Switch Q1036 TransistorXN1213DC Switch Q1037 TransistorDTA144EEDC Switch Q1038 ICTA75S01FAF Amplifier Q1039 TransistorXN1213DC Switch Q1040 ICBU4066BCFVAnalog Switches Q1041 Transistor2SA1162GRCharge Pump for RX PLL Q1042 Transistor2SC2712GRCharge Pump for RX PLL Q1043 TransistorDTC144EKDC Switch Q1044 TransistorFMG2DC Switch Q1045 Transistor2SC4116GRRF Amplifier Q1046 Transistor2SC4116GRRipple Filter Q1047 TransistorUN5215DC Switch Q1048 FET2SK508RX VCO Q1049 FET2SK508RX VCO Q1050 ICNJM2904VAF Amplifier Q1051 Transistor2SA1586YDC Switch Q1052 ICMB15A02PFV1RX PLL Subsystem Q1053 TransistorDTC144EEDC Switch Vertex Standard Co., Ltd. 2/4 FCC ID: K66VXR-9000U Component Applications Address Device nameDescriptionApplication Q1054 TransistorDTC144EEDC Switch Q1055 ICM62364FPD/A Converter Q1056 ICM51132FPVoltage Controlled Amplifier Q1057 ICTDA2003VAF Power Amplifier Q1058 Transistor2SC4116GRRF Amplifier Q1059 Transisror2SC5226RF Amplifier Q1060 TransistorDTC144EEDC Switch Q1061 Transistor2SC4116GRRipple Filter Q1062ICL78M05TVoltage Regulator (5V) [CNTL-UNIT] Q3001 ICNJM2902VAF Amplifier Q3002 ICTA75S01FVoltage Buffer Q3003 ICTC4W53FUAnalog Switch Q3004 FET2SK3065DC Switch Q3005 FET2SK3065DC Switch Q3006 ICBR24L32FEEPROM Q3007 ICAN8005MVoltage Regulator (5V) Q3008 ICKIA7809APIVoltage Regulator (9V) Q3009 FET2SK3065DC Switch Q3010 TransistorFMG2DC Switch Q3011 TransistorFMG2DC Switch Q3012 ICBD4845FVEVoltage Comparator Q3013 ICKIA7805APIVoltage Regulator (5V) Q3014 ICHD64F2238BFA13Central Processing Unit Q3015 TransistorDTC323TKDC Switch Q3016 ICTA75S01FAF Amplifier Q3017 Transistor2SC4116GRSwitch Q3018 Transistor2SC4116GRSwitch Q3019 ICTA75S01FAF Amplifier Q3020 ICFX805LGCTCSS Decorder Q3021 ICNJM2902VAF Amplifier Q3022 Transistor2SA1586YDC Switch Q3023 ICTA75S01FAF Amplifier Q3024 TransistorFMG2DC Switch Q3025 Transistor2SC4116GRAF Amplifier Q3026 TransistorDTA144EEDC Switch Q3027 Not Used Q3028 TransistorDTC144EEDC Switch Q3029 TransistorDTC144EEDC Switch Q3030 ICBU4066BCFVAnalog Switches Q3031 TransistorDTC124TEDC Switch Q3032 ICBU4066BCFVAnalog Switches Q3033 ICBU4066BCFVAnalog Switches Q3034 ICLM8630MAF Compressor/Expander Q3035 ICNJM2904VAF Amplifier Q3036 ICTA75S01FAF Amplifier Q3037 TransistorDTC144EEDC Switch Q3038 TransistorDTC323TKAF Switch Q3039 TransistorFMG2DC Switch Q3040 TransistorDTC144EEDC Switch Q3041 ICNJM2904VAF Amplifier Q3042 Transistor2SC4154EAF Amplifier Q3043 ICNJM12903RComparator Q3044 ICNJM2902VAF Amplifier/Comparator Q3045 Not Used Q3046 TransistorDTC144EEDC Switch Q3047 Not Used Q3048 Not Used Q3049 Not Used Q3050 TransistorDTC144EEDC Switch Q3051 ICTC7S66FUAnalog Switch Q3052 TransistorDTC144EEDC Switch Q3053 TransistorDTC144EEDC Switch Q3054 Transistor2SA1586YDC Switch Q3055 Transistor2SB1201SDC Switch Q3056 TransistorDTC144EEDC Switch Q3057 TransistorDTC144EEDC Switch D3001 Silicon DiodeMC2850Static Electricity Protection D3002 Silicon DiodeBAS316Surge Protection D3003 Silicon DiodeMC2850Static Electricity Protection D3004 Silicon DiodeMC2850Static Electricity Protection D3005 Silicon DiodeMC2850Static Electricity Protection D3006 Silicon DiodeMC2850Static Electricity Protection D3007 Silicon DiodeMC2850Static Electricity Protection D3008 Silicon DiodeMC2850Static Electricity Protection Vertex Standard Co., Ltd. 3/4 FCC ID: K66VXR-9000U Component Applications Address Device nameDescriptionApplication D3009 Silicon DiodeMC2850Static Electricity Protection D3010 Silicon DiodeMC2850Static Electricity Protection D3011 Silicon DiodeD1F20Prevention of currect backflow D3012 Silicon DiodeBAS316Surge Protection D3013 Not Used D3014 Silicon DiodeMC2850Hysteresis Comparator D3015 Silicon DiodeMC2850Surge Protection D3016 Not Used D3017 Not Used D3018 Silicon DiodeMC2850Static Electricity Protection D3019 Silicon DiodeMC2850Static Electricity Protection D3020 Silicon DiodeMC2…

Text truncated - open the document above for the full version.

FCC ID: K66VXR-9000U Alignment 1/4 Vertex Standard Co., Ltd. VXR-9000U Alignment The VXR-9000 has been carefully aligned at the factory for the specified performance across the frequency range specified for each version. Realignment should therefore not be necessary except in the event of a component failure, or alteration of version. All component replacement and service should be performed only by an authorized VERTEX STANDSRD representative, or the warranty policy may be voided. The following procedures cover the sometimes critical and tedious adjustments that are not normally required once the transceiver has left the factory. However, if damage occurs and some parts are replaced, realignment may be required. If a sudden problem occurs during normal operation, it is likely due to component failure; realignment should not be done until after the faulty component has been replaced. We recommend that servicing be performed only by authorized VERTEX STANDARD service technicians who are experienced with the circuitry and fully equipped for repair and alignment. Therefore, if a fault is suspected, contact the dealer from whom the transceiver was purchased for instructions regarding repair. Authorized VERTEX STANDARD service technicians realign all circuits and make complete performance checks to ensure compliance with factory specifications after replacing any faulty components. Those who do undertake any of the following alignments are cautioned to proceed at their own risk. Problems caused by unauthorized attempts at realignment are not covered by the warranty policy. Also, VERTEX STANDARD must reserve the right to change circuits and alignment procedures in the interest of improved performance, without notifying owners. Under no circumstances should any alignment be attempted unless the normal function and operation of the transceiver are clearly understood, the cause of the malfunction has been clearly pinpointed and any faulty components replaced, and the need for realignment determined to be absolutely necessary. The following test equipment (and thorough familiarity with its correct use) is necessary for complete realignment. Correction of problems caused by misalignment resulting from use of improper test equipment is not covered under the warranty policy. While most steps do not require all of the equipment listed, the interactions of some adjustments may require that more complex adjustments be performed afterwards. Do not attempt to perform only a single step unless it is clearly isolated electrically from all other steps. Have all test equipment ready before beginning, and follow all of the steps in a section in the order presented. Required Test Equipment RF signal generator: calibrated output level at 1000 MHz (0 dBμ =1.0 μV - closed circuit) Deviation Meter (linear detector) AF Millivoltmeter SINAD Meter Inline Wattmeter with 5% accuracy at 1000 MHz Regulated DC Power Supply: adjustable from 10 to 17 VDC, 15A 50 Ω Non-reactive Dummy Load: 100W at 1000 MHz Frequency Counter: >0.1-ppm accuracy at 1000 MHz AF Signal Generator DC Voltmeter: high impedance RF Sampling Coupler (attenuation pad) AF Dummy Load: 4 Ω , 20W Oscilloscope Spectrum Analyzer IBM PC/compatible computer w/ VERTEX STANDARD VPL-1 programming cable and CE-49 channel programming editor. FCC ID: K66VXR-9000U Alignment 2/4 Vertex Standard Co., Ltd. 50-Ω RF Signal Dummy load Generator RF Sampling Inline Wattmater Coupler Transceiver Deviation Meter VPL-1 Frequeuncy Power Supply Counter IBM PC 13.8V DC COM port Alignment Preparation & Precautions A dummy load and inline wattmeter must be connected to the main antenna jack in all procedures that call for transmission, except where specified otherwise. Correct alignment is not possible with an antenna. After completing one step, read the following step to determine whether the same test equipment will be required. If not, remove the test equipment (except dummy load and wattmeter, if connected) before proceeding. Correct alignment requires that the ambient temperature be the same as that of the transceiver and test equipment, and that this temperature be held constant between 20 and 30 °C (68 and 86 °F). When the transceiver is brought into the shop from hot or cold air it should be allowed some time for thermal equalization with the environment before alignment. If possible, alignments should be made with oscillator shields and circuit boards firmly affixed in place. Also, the test equipment must be thoroughly warmed up before beginning. Before beginning, connect the transceiver and PC using the VPL-1 programming cable as described in the EEPROM Programming chapter, and downloads the EEPROM data from the transceiver to the computer. Store this data in a disk file so that it can be saved and retrieved later. Using the table below, program the channel, CTCSS, and DCS alignment settings for your transceiver version. Upload this file to the transceiver. Note: Signal levels in dB referred to in this procedure are based on 0 dBm = 0.5 μV (closed circuit). Caution: Do not connect this line to ground, and be certain that the speaker has adequate capability to handle the audio output from the radio. Because of the bridge audio amplifier circuit used in the radio, it is necessary to construct and use a simple audio load test adapter as shown in the schematic diagram above, when conducting receiver alignment steps. 3.5 φ PLUG Attenuated Test Output (1/2) 2 Ω  10 W Ground + 470 μF 2 Ω 10 W AF Test Adapter Schematic FCC ID: K66VXR-9000U Alignment 3/4 Vertex Standard Co., Ltd. Alignment Channel Frequencies ChannelFrequency (simplex) CTCSS Encode DCS Encode Narrow /wide CH1450.00MHzNoneNoneWide CH2460.00MHzNoneNoneWide CH3470.00MHzNoneNoneWide CH4480.00MHzNoneNoneWide CH5490.00MHzNoneNoneWide CH6450.00MHzNoneNoneNarrow CH7460.00MHzNoneNoneNarrow CH8470.00MHzNoneNoneNarrow CH9480.00MHzNoneNoneNarrow CH10490.00MHzNoneNoneNarrow CH11470.00MHz151.4HzNoneWide CH12470.00MHzNone023Wide C…

Text truncated - open the document above for the full version.

FCC ID: K66VXR-9000U MFA p0340011, d0350033 ENVIRONMENTAL ASSESSMENT for MOBILES/FIXED BASE STATION for FCC ID: FCC ID: K66VXR-9000U Model:VXR-9000U to FEDERAL COMMUNICATIONS COMMISSION 47 CFR 1.1310 (MPE) Radiofrequency Radiation Exposure Limits DATE OF REPORT: May 22, 2003 ON THE BEHALF OF THE APPLICANT: Vertex Standard Co., Ltd. AT THE REQUEST OF: P.O. UPS 04/29/2003 Vertex Standard USA Inc. 10900 Walker Street Cypress, CA 90630 Attention of: Mikio Maruya, Executive Vice President (800) 255-9237; FAX: (800) 477-9237 (714) 827-7600; FAX: -8100 [email protected] SUPERVISED BY: Morton Flom, P. Eng. FCC ID: K66VXR-9000U MFA p0340011, d0350033 TABLE OF CONTENTS RULE DESCRIPTION PAGE . Test Report 1 . Identification of the Equipment Under Test2 . Standard Test Conditions and Engineering Practices4 1.1310Environmental Assessment 5 FCC ID: K66VXR-9000U MFA p0340011, d0350033 PAGE NO. 1 of 9. Required information per ISO/IEC Guide 25-1990, paragraph 13.2: a) TEST REPORT (SUPPLEMENTAL) b) Laboratory: (FCC: 31040/SIT) (Canada: IC 2044) M. Flom Associates, Inc. 3356 N. San Marcos Place, Suite 107 Chandler, AZ 85225 c) Report Number: d0350033 d) Client: Vertex Standard USA Inc. 10900 Walker Street Cypress, CA 90630 e) Identification: VXR-9000U FCC ID: K66VXR-9000U Description: UHF Base Station / Repeater f) EUT Condition: Not required unless specified in individual tests. g) Report Date: May 22, 2003 EUT Received: April 29, 2003 h, j, k): As indicated in individual tests. i) Sampling method: No sampling procedure used. l) Uncertainty: In accordance with MFA internal quality manual. m) Supervised by: Morton Flom, P. Eng. n) Results: The results presented in this report relate only to the item tested. o) Reproduction: This report must not be reproduced, except in full, without written permission from this laboratory. FCC ID: K66VXR-9000U MFA p0340011, d0350033 PAGE NO. 2 of 9. IDENTIFICATION OF THE EQUIPMENT UNDER TEST (EUT) NAME AND ADDRESS OF APPLICANT: Vertex Standard Co., Ltd. 4-8-8 Nakameguro, Meguro-Ku Tokyo 153-8644 Japan MANUFACTURER: Vertex Standard Co., Ltd. 4-8-8 Nakameguro, Meguro-Ku Tokyo 153-8644 Japan FCC ID: K66VXR-9000U MODEL NO: VXR-9000U DESCRIPTION: UHF Base Station / Repeater TYPE OF EMISSION: 16K0F3E, 11K0F3E FREQUENCY RANGE, MHz: 450 to 490 POWER RATING, Watts: 10 to 50 Switchable x Variable N/A MODULATION: AMPS TDMA CDMA x OTHER ANTENNA: HELICAL MONOPOLE WHIP x OTHER NOTE: For RF Safety test antenna gain taken at the upper range of expected gain (i.e. 0 dBd) and RF Power set to highest nominal power across all channels. FCC ID: K66VXR-9000U MFA p0340011, d0350033 PAGE NO. 3 of 9. M. Flom Associates, Inc. is accredited by the American Association for Laboratory Association (A2LA) as shown in the scope below. "This laboratory is accredited by the American Association for Laboratory Accreditation (A2LA) and the results shown in this report have been determined in accordance with the laboratory's terms of accreditation unless stated otherwise in the report." Should this report contain any data for tests for which we are not accredited, or which have been undertaken by a subcontractor that is not A2LA accredited, such data would not covered by this laboratory's A2LA accreditation. FCC ID: K66VXR-9000U MFA p0340011, d0350033 PAGE NO. 4 of 9. STANDARD TEST CONDITIONS and ENGINEERING PRACTICES Except as noted herein, the following conditions and procedures were observed during the testing: In accordance with ANSI C63.4-1992/2000, section 6.1.9, and unless otherwise indicated in the specific measurement results, the ambient temperature of the actual EUT was maintained within the range of 10° to 40°C (50° to 104 °F) unless the particular equipment requirements specify testing over a different temperature range. Also, unless otherwise indicated, the humidity levels were in the range of 10% to 90% relative humidity. Prior to testing, the EUT was tuned up in accordance with the manufacturer's alignment procedures. All external gain controls were maintained at the position of maximum and/or optimum gain throughout the testing. Measurement results, unless otherwise noted, are worst case measurements. FCC ID: K66VXR-9000U MFA p0340011, d0350033 PAGE NO. 5 of 9. Name of test: Environmental Assessment Specification: FCC: 47 CFR 1.1310 Measurement Guide: ANSI/IEEE C95.1 1992 Test Equipment: Maximum Permissible Exposure (MPE) measurement system, consisting of: Narda 8717-1174R, Radiation meter Narda 8761D, E-field probe (300 kHz – 3 GHz) (Calibrated Nov-98) Measurement Procedure: 1. The following measurements were performed with a Narda probe using ANSI/IEEE C95.1 as a guide. 2. Prior to making any measurements, the measurements system was calibrated in accordance with the manufacturer’s procedures. 3. The EUT’s radiating element (antenna) was placed on a 1 m tall table for ease of testing. For equipment normally operated on a metal surface, a ground plane was used. 4. The remaining equipment necessary to operate the EUT was maintained at a distance from the measurement arrangement suitable to minimize interference with the measurements. 5. The m…

Text truncated - open the document above for the full version.
