Two-Way Radio User Guide MD Series Safety and General Information Licensing Information Control Buttons KEM-ML36801 Important Information on Safe and Efficient Operation Read This Information Before Using Your Radio. The information provided in this document supersedes the general safety information in user guides published prior to December 1, 2002. Transmit and Receive Procedure Your two-way radio contains a transmitter and a receiver. To control your exposure and ensure compliance with the general population/uncontrolled environment exposure limits, always adhere to the following procedure: • Transmit no more than 50% of the time. • To receive calls, release the Push-to-Talk (PTT) button. • To transmit (talk), press the PTT button. Transmitting 50% of the time, or less, is important because the radio generates measurable RF energy exposure only when transmitting (in terms of measuring standards compliance). Exposure to Radio Frequency Energy Your Motorola two-way radio complies with the following RF energy exposure standards and guidelines: • United States Federal communications Commission, Code of Federal Regulations; 47CFR part 2 sub-part J. • American National Standards Institute (ANSI)/Institute of Electrical and Electronic Engineers (IEEE) C95. 1-1992. • Institute of Electrical and Electronics Engineers (IEEE) C95.1-1999 Edition. • International Commission on Non-Ionizing Radiation Protection (ICNIRP) 1998. • Ministry of Health (Canada) Safety Code 6. Limits of Human Exposure to Radiofrequency Electromagnetic Fields in the Frequency Range from 3 KHz to 300 GHz, 1999. • Australian communications Authority Radiocommunications (Electromagnetic Radiation—Human Exposure) Standard, 2003. Getting Started Display Screen Guide Installing the Batteries Each radio uses 1 NiMH rechargeable battery pack or 3 AA alkaline batteries and beeps when the batteries are low. Installing NiMH Rechargeable Battery Pack 1. Turn the radio off. 2. With the back of the radio facing you, lift the battery latch up to release the battery cover and remove the cover. 3. Remove the NiMH battery pack from the clear plastic bag (do not disassemble or unwrap the battery pack). 4. Insert the NiMH battery pack with the diagram facing you. 5. Reposition the battery cover and press down to secure. Installing the Three AA Alkaline Batteries (Optional Accessory) 1. Turn the radio off. 2. With the back of the radio facing you, lift the battery latch up to release the battery cover and remove the cover. 3. Insert the three AA alkaline batteries with + and - polarity as shown inside. 4. Reposition the battery cover and press down to secure. Radio Battery Meter The radio battery icon shows the radio battery charge level, from full to empty . When the radio has one segment left, the radio chirps periodically or after releasing (Low Battery Alert). Talking and Listening To communicate, all radios in your group must be set to the same channel. 1. To talk, press and hold . 2. When you are finished talking, release . For maximum clarity, hold the radio two to three inches away from your mouth and speak directly into the microphone. Do not cover the microphone while talking. Talk Range Your radio is designed to maximize performance and improve transmission range. Do not use the radios closer than five feet apart. Note: This radio does not have Interference Eliminator Codes. To communicate with radios that use Interference Eliminator Codes, the Interference Eliminator Code must be set to 0. Monitor Button Pressing and holding for three seconds allows you to listen to the volume level of the radio when you are not receiving. This allows you to adjust the volume, if necessary. You can also press to check for activity on the current channel before you talk. Push-to-Talk Timeout Timer To prevent accidental transmissions and save battery life, the radio emits a continuous warning tone and stops transmitting if you press for 60 continuous seconds. For More Information For further information, you may call Motorola Solutions at 1-800-638-5119 (U.S. and Canada), e-mail us at [email protected] or visit us on the Internet at www.motorolasolutions.com. • ANATEL ANNEX to Resolution No. 303 of July 2, 2002. • ANATEL ANNEX to Resolution No. 533 of September 10, 2009. T o ensure optimal radio performance and make sure human exposure t o radio frequency electromagnetic energy is within the guidelines set f orth in the above standards, always adhere to the following p rocedures. Portable Radio Operation and EME Exposure Antenna Care U se only the supplied or an approved replacement antenna. U nauthorized antennas, modifications, or attachments could damage the radio and may violate FCC regulations. D o NOT hold the antenna when the radio is “IN USE.” Holding the a ntenna affects the effective range. Body-Worn Operation To maintain compliances with FCC/Health Canada RF exposure g uidelines, if you wear a radio on your body when transmitting, always p lace the radio in a Motorola-supplied or approved clip, holder, holster, case or body harness for this product. Use of non-Motorola-approved accessories may exceed FCC/Health Canada RF exposure guidelines. I f you do not use one of the Motorola-supplied or approved body-worn accessories and are not using the radio held in the normal use position, e nsure the radio and its antenna are at least 1 inch (2.5 cm) from your b ody when transmitting. D ata Operation If applicable, when using any data feature of the radio with or without a n accessory cable, position the radio and its antenna at least one i nch (2.5 cm) from the body. A pproved Accessories 53724: Remote Speaker with Push-to-Talk Microphone 53727: Earbud with Push-to-Talk Microphone 5 3728: Flexible Ear Receiver Electromagnetic Interference/Compatibility Note:Nearly every electronic device is susceptible to electromagnetic i nterference (EMI) if inadequately shielded, designed or otherwise c onfigured for electromagnetic compatibility. This…

Text truncated - open the document above for the full version.

The content of this document is Giant Electronics Ltd.'s intellectual property and is the property of Giant. It is to be treated as strictly confidential and is not to be disclosed, reproduced, or used except as authorized in writing by Giant Electronics Ltd. In connection with the manufacture, maintenance and use of the Giant equipment to which it pertains. Copyright @Giant Electronics Ltd. All rights reserved. Letter of Agency LETER OF AGENCY “I, am officer of Giant Electronics Ltd. do hereby authorize Intertek Testing Services to act on our behalf in front of the Federal Communications Commission with Respect to all matters relating to certification of equipment under part 15 and Part 18 of the FCC Rules until further notice.” I further certify that no party (as defined in 1.2002(b) of CFR 47, 1992) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C., 853(a). EQUIPMENT: 1) 462MHz Two Way Radio w/GMRS (10 Call tone, 22 RF Channel Scan, plug in charger .) MD200 Dated this: 13 th day of Feb 2012 By : Yumin Zou Signature Printed Title: A. Manager

The content of this document is Giant Electronics Ltd.'s intellectual property and is the property of Giant. It is to be treated as strictly confidential and is not to be disclosed, reproduced, or used except as authorized in writing by Giant Electronics Ltd. In connection with the manufacture, maintenance and use of the Giant equipment to which it pertains. Copyright @Giant Electronics Ltd. All rights reserved. Re: FCC ID: K7GMDBJJ Pursuant to 47 CFR 0.459, Giant Electronics Ltd. request confidential protection of the following documents submitted electronically in furtherance of the above-reference application as containing propriety information listed below: ■ Schematic ■ Block Diagram ■ Operational Description This information represents intellectual property of Giant Electronics Ltd. and it is subject to competition. This information should not be made routinely available for public inspection, and Giant Electronics Ltd. reserves the right to discern which parties can obtain access to this information. Dated this 13 th day of Feb 2012 By: YuminZou . Signature Printed Title : A. Manager

Re: FCC ID: K7GMDBJJ Tune up procedure and parts list We, Giant Electronics Ltd. aware that Tune up procedure and parts list has been publicly available at the date of Mar 02 2012 to Mar 07 2012. These information belong to Giant Electronics Ltd. intellectual property, Pursuant to 47 CFR 0.459, Giant Electronics Ltd. request confidential protection of them. Dated this 07 th day of Mar 2012 By: YuminZou . Signature Printed Title : A. Manager The content of this document is Giant Electronics Ltd.'s intellectual property and is the property of Giant. It is to be treated as strictly confidential and is not to be disclosed, reproduced, or used except as authorized in writing by Giant Electronics Ltd. In connection with the manufacture, maintenance and use of the Confidentiality Request Letter Giant equipment to which it pertains. Copyright @Giant Electronics Ltd. All rights reserved. The content of this document is Giant Electronics Ltd.'s intellectual property and is the property of Giant. It is to be treated as strictly confidential and is not to be disclosed, reproduced, or used except as authorized in writing by Giant Electronics Ltd. In connection with the manufacture, maintenance and use of the Giant equipment to which it pertains. Copyright @Giant Electronics Ltd. All rights reserved. Re: FCC ID: K7GMDBJJ Pursuant to 47 CFR 0.459, Giant Electronics Ltd. request confidential protection of the following documents submitted electronically in furtherance of the above-reference application as containing propriety information listed below: ■ Schematic ■ Block Diagram ■ Operational Description ■ Tune Up Procedure ■ Parts List This information represents intellectual property of Giant Electronics Ltd. and it is subject to competition. This information should not be made routinely available for public inspection, and Giant Electronics Ltd. reserves the right to discern which parties can obtain access to this information. Dated this 06 th day of Mar 2012 By: YuminZou . Signature Printed Title : A. Manager

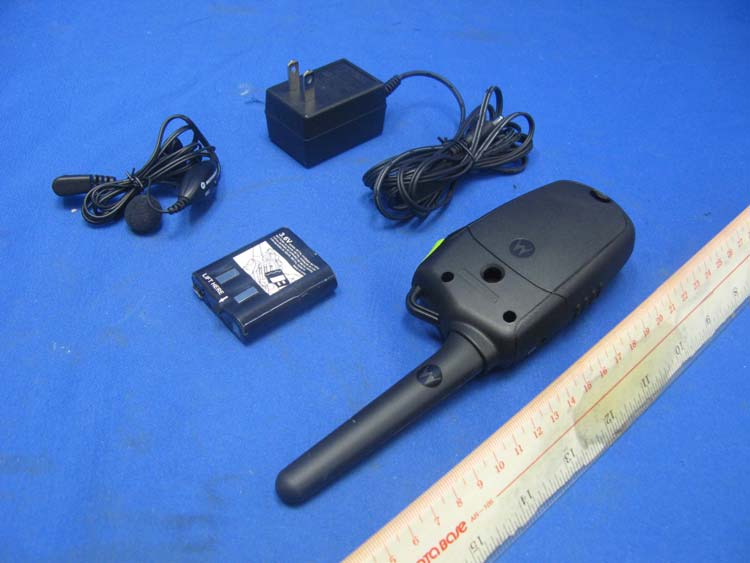

INTERTEK TESTING SERVICES External Photos FCC ID: K7GMDBJJ external photos - 1 of 1 External Photo - Front Job Number HK11120816 External Photo - Rear Job Number HK11120816

NOTE: 1. STICK THE MODEL NUMBER LABEL & FCC ID LABEL INTO THE BATTERY BOX. MODEL NUMBER LABEL SIZE:W45H7.5MM FCC ID LABEL SIZE: W19.7H3.3MM FCC ID:K7GMDBJJ Model:MD200R SN:WYMXXXXX MOTOROLA Tnp:MD200BAXUSBKXX DD/MMM/YYYY IC: 2415B-MDBJJ 4.5VDC MADE IN CHINA Model:MD203R SN:WYMXXXXX MOTOROLA Tnp:MD200BAXUSBKXX DD/MMM/YYYY IC: 2415B-MDBJJ 4.5VDC MADE IN CHINA Model:MD200MR SN:WYMXXXXX MOTOROLA Tnp:MD200BAXUSBKXX DD/MMM/YYYY IC: 2415B-MDBJJ 4.5VDC MADE IN CHINA Model:MD203MR SN:WYMXXXXX MOTOROLA Tnp:MD200BAXUSBKXX DD/MMM/YYYY IC: 2415B-MDBJJ 4.5VDC MADE IN CHINA Model:MD321CR SN:WYMXXXXX MOTOROLA Tnp:MD200BAXUSBKXX DD/MMM/YYYY IC: 2415B-MDBJJ 4.5VDC MADE IN CHINA Model:MD320CR SN:WYMXXXXX MOTOROLA Tnp:MD200BAXUSBKXX DD/MMM/YYYY IC: 2415B-MDBJJ 4.5VDC MADE IN CHINA Model:MD200TPR SN:WYMXXXXX MOTOROLA Tnp:MD200BAXUSBKXX DD/MMM/YYYY IC: 2415B-MDBJJ 4.5VDC MADE IN CHINA WYMXXXXX W=GIANT(Vendor Code) Y=Year Code A=2000, B=2001, C=2003,......H=2007 J=2008, K=2009, L=2010, M=2011 N=2012, P=2013, Q=2014, R=2015 S=2016, T=2-017, U=2018, V=2019 W=2020, X=2021, Y=2022, Z=2023,etc. Serial number format: M=Month Code A or B=Jan, C or D=Feb E or F=Mar, G or G=Apr J or K=May, L or M=Jun N or P=Jul, Q or R=Aug S or T=Sep, U or V=Oct W or X=Nov, Y or Z=Dec Date Format: DD/MMM/YYYY DD=Day Code 01, 02, 03......31. MMM=Month Code 01=JAN, 02=FEB 03=MAR, 04=APR, 05=MAY, 06=JUN 07=JUL, 08=AUG, 09=SEP 10=OCT, 11=NOV, 12=DEC YYYY=Year Code 2011, 2012, 2013.....2030 etc. Example: 20/JUL/2011 Serial Number of unit format: S/N is printed base same customer number one by one. Start from first 00000, first unit is 00000, the second is 00001, the eleven is 0000B etc. Include 10 numbers and 21 letters( Igrone 5 English Letters "A, E, I, O, U" ), total 31 digits is a circle: 0,1,2,3,4,5,6,7,8,9,B,C,D,F, G,H,J,K,L,M,N,P,Q,R,S,T,V,W,X,Y,Z. Example: 00000......1 00001......2 00002......3 . . 00009......10 0000B......11(No A) . . 0000F......14(No E) . . 0000J......17(No I) . . 0000P......22(No O) . . 0000V......27(No U) . . 0000Z......31 00010......32 MD200 serial MODEL NUMBER LABEL

INTERTEK TESTING SERVICES Internal Photos FCC ID: K7GMDGJJ Internal photos - 1 of 4 Internal Photo - 1 Internal Photo - 2 INTERTEK TESTING SERVICES Internal Photos FCC ID: K7GMDGJJ Internal photos - 2 of 4 Internal Photo - 3 Internal Photo - 4 INTERTEK TESTING SERVICES Internal Photos FCC ID: K7GMDGJJ Internal photos - 3 of 4 Internal Photo - 5 Internal Photo - 6 INTERTEK TESTING SERVICES Internal Photos FCC ID: K7GMDGJJ Internal photos - 4 of 4 Internal Photo - 7 Internal Photo – 8

A Test Lab Techno Corp. Changan Lab：No. 140 -1, Changan Street, Bade City, Taoyuan County, Taiwan R.O.C. Te l：886-3-271-0188 / Fax：886-3-271-0190 SAR EVALUATION REPORT Test Report No. ： 1201FS13 Applicant ： Giant Electronics Limited Product Name ： Two Way Radio with GMRS and FRS Trade Mark ： MOTOROLA Model Number ： MD200 Date of Received ： Jan. 03, 2012 Date of Test ： Jan. 04 ~ 05, 2012 Issued Date ： Jan. 16, 2012 Test Environment ： Ambient Temperature： 22 ± 2 °C Relative Humidity：40 - 70 % Test Specification ： Standard C95.1-1992 IEEE Std. 1528-2003 2.1093;FCC/OET Bulletin 65 Supplement C [July 2001] Max. SAR ： 0.025 W/kg FRS Brain SAR _15mm (50% Duty Cycle) 0.908 W/kg GMRS Brain SAR _15mm (50% Duty Cycle) 0.025 W/kg FRS Muscle SAR With Headset_15mm(50% Duty Cycle) 1.303 W/kg GMRS Muscle SAR With Headset_15mm (50% Duty Cycle) 0.003 W/kg FRS Muscle SAR With Headset_Belt Clip_15mm(50% Duty Cycle) 0.743 W/kg GMRS Muscle SAR With Headset_Belt Clip_15mm (50% Duty Cycle) (Condition: 50% Duty Cycle and positive power drift) Test Lab ： Changan Lab. 1. The test operations have to be performed with cautious behavior, the test results are as attached. 2. The test results are under chamber environment of A Test Lab Techno Corp. A Test Lab Techno Corp. does not assume responsibility for any conclusions and generalizations drawn from the test results with regard to other specimens or samples. 3. The measurement report has to be written approval of A Test Lab Techno Corp. It may only be reproduced or published in full. This report shall not be reproduced except in full, without the written approval of A Test Lab Techno Corp. The test results in the report only apply to the tested sample. Approved By ： Tested By ： (Yung Tan Tsai ) (Bill Hu) ©2012 A Test Lab Techno Corp. Report Number: 1201FS13Page 1 of 74 Contents 1. Description of Equipment under Test (EUT) ............................................................ 3 2. Introduction ................................................................................................................ 4 3. SAR Definition ............................................................................................................ 4 4. SAR Measurement Setup........................................................................................... 5 5. System Components.................................................................................................. 6 5.1 DASY 5 E-Field Probe System............................................................................. 6 5.2 Data Acquisition Electronic (DAE) System ........................................................... 9 5.3 Robot ................................................................................................................... 9 5.4 Measurement Server............................................................................................ 9 5.5 Device Holder for Transmitters........................................................................... 10 5.6 Phantom - SAM v4.0 .......................................................................................... 10 5.7 Data Storage and Evaluation...............................................................................11 6. Test Equipment List ................................................................................................. 14 7. Tissue Simulating Liquids ....................................................................................... 15 7.1 Ingredients ......................................................................................................... 16 7.2 Recipes.............................................................................................................. 16 7.3 Liquid Confirmation ............................................................................................ 17 7.3.1 Parameters......................................................................................................... 17 7.3.2 Liquid Depth ....................................................................................................... 18 8. Measurement Process ............................................................................................. 19 8.1 Device and Test Conditions ................................................................................ 19 8.2 System Performance Check............................................................................... 20 8.3 Dosimetric Assessment Setup............................................................................ 23 8.4 Spatial Peak SAR Evaluation ............................................................................. 25 9. Measurement Uncertainty........................................................................................ 26 10. SAR Test Results Summary .................................................................................... 29 10.1 Brain SAR .......................................................................................................... 29 10.2 Muscle SAR ....................................................................................................... 31 10.3 Std. C95.1-1992 RF Exposure Limit ................................................................... 35 11. Conclusion................................................................................................................ 36 12. References................................................................................................................ 36 Appendix A - System Performance Check ................................................................. 37 Appendix B - SAR Measurement Data ........................................................................ 39 Appendix C - Calibration.............................................................................................. 49 ©2012 A Test Lab Techno Corp. Report Number: 1201FS13Page 2 of 74 1. Description of Equipment under Test (EUT) Applicant ： Giant …

Text truncated - open the document above for the full version.

SAR EUT Photographs EUT Photo ( 1 ) EUT Photo ( 2 ) ©2012 A Test Lab Techno Corp. Report Number: 1201FS13Page 1 of 5 EUT Photo ( 3 ) EUT Photo ( 4 ) ©2012 A Test Lab Techno Corp. Report Number: 1201FS13Page 2 of 5 EUT Photo ( 5 ) EUT Photo ( 6 ) ©2012 A Test Lab Techno Corp. Report Number: 1201FS13Page 3 of 5 EUT Photo ( 7 ) EUT Photo ( 8 ) ©2012 A Test Lab Techno Corp. Report Number: 1201FS13Page 4 of 5 EUT Photo ( 9 ) ©2012 A Test Lab Techno Corp. Report Number: 1201FS13Page 5 of 5

SAR Test Setup Photographs EUT Back side EUT Front side ©2012 A Test Lab Techno Corp. Report Number: 1201FS13Page 1 of 4 Brain Setup (The front surface to phantom 15mm) Figure 2. Brain SAR Test Setup (Flat Section) EUT Front side EUT Back side ©2012 A Test Lab Techno Corp. Report Number: 1201FS13Page 2 of 4 Muscle Setup (The back surface with headset to phantom 15mm) Figure 3. Muscle SAR Test Setup (Flat Section) EUT Front side EUT Back side ©2012 A Test Lab Techno Corp. Report Number: 1201FS13Page 3 of 4 Muscle Setup (The back surface with headset and belt-clip to phantom 0mm) Figure 4. Muscle SAR Test Setup (Flat Section) EUT Front side EUT Back side ©2012 A Test Lab Techno Corp. Report Number: 1201FS13Page 4 of 4

- The test report only allows to be revised the retention period issued date unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Giant Electronics Ltd. Application For Certification Two Way Radio with GMRS and FRS (FCC ID: K7GMDBJJ) HK11120816-1 KS/ cl February 17, 2012 INTERTEK TESTING SERVICES Test Report Number: HK11120816-1 FCC ID: K7GMDBJJ Page 1 of 40 MEASUREMENT/TECHNICAL REPORT Applicant : Giant Electronics Ltd. Trade Name/Model No : MD200R MD200MR, MD200TPR, MD203R, MD203MR Date : February 17, 2012 This report concerns (check one:)Original Grant X Class II Change Equipment Type: FRF – Part 95 Family Radio Face Held Transmitter Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Report prepared by: Sit Kim Wai, Ken Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Phone: 852-2173-8538 Fax: 852-2741-1693 INTERTEK TESTING SERVICES Test Report Number: HK11120816-1 FCC ID: K7GMDBJJ Page 2 of 40 Table of Contents 1.0 General Description................................................................................................. 4 1.1 Product Description ................................................................................................. 4 1.2 Related Submittal(s) Grants .................................................................................... 5 1.3 Test Methodology.................................................................................................... 5 1.4 Test Facility............................................................................................................. 5 2.0 System Test Configuration...................................................................................... 7 2.1 Justification ............................................................................................................. 7 2.2 EUT Exercising Software......................................................................................... 8 2.3 Special Accessories ................................................................................................ 8 2.4 Measurement Uncertainty ....................................................................................... 8 2.5 Equipment Modification ........................................................................................... 8 2.6 Support Equipment.................................................................................................. 8 3.0 RF Power Output (Section 2.1046(a), 95.639(d))................................................. 10 4.0 Modulation Characteristics (Section 2.1047(a)(b), 95.637(a))............................... 14 4.1 Modulation Frequency Response......................................................................... 15 4.2 Modulation Limiting Characteristics...................................................................... 17 4.3 Audio Low Pass Filter Response.......................................................................... 19 5.0 Occupied Bandwidth (Section 95.633(c))............................................................ 22 6.0 Spurious Emission................................................................................................ 25 6.1 Power of Spurious Radiation (Section 2.1053, 95.635(b)) ................................... 26 7.0 Frequency Stability (Section 2.1055(a)(b)(d), 95.627(b))...................................... 32 7.1 Frequency Tolerance ........................................................................................... 33 7.2 Temperature Extreme Condition .......................................................................... 35 7.3 Voltage Extreme Condition................................................................................... 37 8.0 Equipment List....................................................................................................... 39 INTERTEK TESTING SERVICES Test Report Number: HK11120816-1 FCC ID: K7GMDBJJ Page 3 of 40 EXHIBIT 1 GENERAL DESCRIPTION INTERTEK TESTING SERVICES Test Report Number: HK11120816-1 FCC ID: K7GMDBJJ Page 4 of 40 1.0 General Description 1.1 Product Description The Equipment Under Test (EUT) is a Two Way Radio with GMRS and FRS operating between 462.5500MHz and 467.7125MHz. The EUT is powered by 3.6V (1 x 3.6V “Ni-MH” type rechargeable battery) or 4.5V (3 x “AA” size 1.5V alkaline batteries). Transmitter Portion (i) Type of Emission : GMRS: 5K64F3E; FRS: 5K48F3E (ii) Frequency Range : GMRS 15 Channels from 462.5500MHz to 462.7250MHz FRS 7 Channels from 467.5625MHz to 467.7125MHz (iii) Maximum Power Rating : GMRS: 0.62W ERP; FRS: 0.2W ERP (iv) Antenna Type : Integral, vertically polarized with 0dBi gain (iv) dc volta…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES Occupied Bandwidth Plots FCC ID: K7GMDBJJ IC : 2415B-MDBJJ bw - 1 of 1 Plot CH4 Plot CH11

INTERTEK TESTING SERVICES A udio Low Pass Filter Response -70.0-60.0-50.0-40.0-30.0-20.0-10.0 0.0 10.0 1 10 100 Frequency (kHz) dB relative to 1 kHz LPF ResponseTIA/EIA-603C Audio Input Strength = 150 mVrms FCC ID: K7GMDBJJ lpf - 1 of 1 60 log (F/3)

INTERTEK TESTING SERVICES Modulation Frequency Response -30.00-25.00-20.00-15.00-10.00 -5.00 0.00 100 600 1100 1600 2100 2600 3100 3600 4100 4600 Modulation Frequency (Hz) Audio Frequency Response FCC ID: K7GMDBJJ mfr - 1 of 1

INTERTEK TESTING SERVICES Modulation Limiting Characteristic 0.0000.5001.0001.5002.0002.500 47 57 67 77 87 97 107 117 127 137 Modulation Input (dBSPL) Frequency Deviation (kHz) 500Hz1000Hz2500Hz3125Hz FCC ID: K7GMDBJJ mlc - 1 of 1

INTERTEK TESTING SERVICES Spurious Emission Plots FCC ID: K7GMDBJJ IC: 2415B-MDBJJ spurious - 1 of 1 Plot CH4 Plot CH11

INTERTEK TESTING SERVICES The Worst Case Configuration Photographs FCC ID: K7GMDBJJ config photos (conducted emission) 1 of 1 Radiated Emission Front View Rear View
