K7GMDBJJPRTwo Way Radio - FRS

Two-Way Radio UserGuide Models MD200CLR, MD200CMR,MD200PR SafetyandGeneralInformation LicensingInformation ControlButtons KEM-ML36801-06 ImportantInformationonSafeandEfficientOperation Read This Information Before Using Your Radio. The information provided in this document supersedes the general safety information in user guides published prior to December 1, 2002. TransmitandReceiveProcedure Your two-way radio contains a transmitter and a receiver. To control your exposure and ensure compliance with the general population/uncontrolled environment exposure limits, always adhere to the following procedure: • Transmit no more than 50% of the time. • To receive calls, release the Push-to-Talk (PTT) button. • To transmit (talk), press the PTT button. Transmitting 50% of the time, or less, is important because the radio generates measurable RF energy exposure only when transmitting (in terms of measuring standards compliance). ExposuretoRadioFrequencyEnergy Your Motorola two-way radio complies with the following RF energy exposure standards and guidelines: • United States Federal communications Commission, Code of Federal Regulations; 47CFR part 2 sub-part J. • American National Standards Institute (ANSI)/Institute of Electrical and Electronic Engineers (IEEE) C95. 1-1992. • Institute of Electrical and Electronics Engineers (IEEE) C95.1-1999 Edition. • International Commission on Non-Ionizing Radiation Protection (ICNIRP) 1998. • Ministry of Health (Canada) Safety Code 6. Limits of Human Exposure to Radiofrequency Electromagnetic Fields in the Frequency Range from 3 KHz to 300 GHz, 1999. • Australian communications Authority Radiocommunications (Electromagnetic Radiation—Human Exposure) Standard, 2003. • ANATEL ANNEX to Resolution No. 303 of July 2, 2002. • ANATEL ANNEX to Resolution No. 533 of September 10, 2009. To ensure optimal radio performance and make sure human exposure to radio frequency electromagnetic energy is within the guidelines set forth in the above standards, always adhere to the following procedures. GettingStarted DisplayScreenGuide InstallingtheBatteries E ach radio uses 1 NiMH rechargeable battery pack or 3 AA alkaline b atteries and beeps when the batteries are low. InstallingNiMHRechargeableBatteryPack 1. Turn the radio off. 2 . With the back of the radio facing you, lift the battery latch up to r elease the battery cover and remove the cover. 3. Remove the NiMH battery pack from the clear plastic bag (do not disassemble or unwrap the battery pack). 4. Insert the NiMH battery pack with the diagram facing you. 5 . Reposition the battery cover and press down to secure. InstallingtheThreeAAAlkalineBatteries(OptionalAccessory) 1. Turn the radio off. 2. With the back of the radio facing you, lift the battery latch up to release the battery cover and remove the cover. 3. Insert the three AA alkaline batteries with + and - polarity as shown inside. 4. Reposition the battery cover and press down to secure. RadioBatteryMeter The radio battery icon shows the radio battery charge level, from full to empty . When the radio has one segment left, the radio chirps periodically or after releasing (Low Battery Alert). RemovingtheNiMHBatteryPack 1. Turn the radio off. 2. With the back of the radio facing you, lift the battery latch up to release the battery cover and remove the cover. 3. Gently remove the NiMH battery by easing it out. 4. Reposition the battery cover and press down to secure. RemovingtheThreeAAAlkalineBatteries(OptionalAccessory) 1. Turn the radio off. 2. With the back of the radio facing you, lift the battery latch up to release the battery cover and remove the cover. 3. Remove each alkaline battery by easing each battery out individually. 4. Reposition the battery cover and press down to secure. Notes: • Exercise care when removing NiMH or AA batteries. Do not use sharp or conductive tools to remove either of these batteries. • Remove the batteries before storing your radio for extended periods of time. Batteries corrode over time and may cause permanent damage to your radio. UsingthePlug-inChargingAdaptor The battery plug-in charger (adaptor) provides charging convenience for NiMH batteries in one or both radios. Charge the NiMH battery overnight (at least 16 hours) before using it for the first time. After the initial charge, an empty battery is fully charged within 14 hours. 1. Follow the steps above to install a NiMH battery pack. 2. Connect the AC power adaptor plug into the recharging jack at the bottom of the radio. (The adaptor charges two radios.) 3. Plug the AC power supply into a standard wall outlet. ForMoreInformation For further information, you may contact Motorola Solutions, Inc. as follows: Chile:Call 0-800-201-442 Colombia:Call 1-800-700-15-04 Peru:Call 0-800-52-470 PortableRadioOperationandEMEExposure A ntenna Care U se only the supplied or an approved replacement antenna. U nauthorized antennas, modifications, or attachments could damage t he radio and may violate FCC regulations. Do NOT hold the antenna when the radio is “IN USE.” Holding the a ntenna affects the effective range. B ody-Worn Operation To maintain compliances with FCC/Health Canada RF exposure g uidelines, if you wear a radio on your body when transmitting, always p lace the radio in a Motorola-supplied or approved clip, holder, holster, c ase or body harness for this product. Use of non-Motorola-approved accessories may exceed FCC/Health Canada RF exposure guidelines. I f you do not use one of the Motorola-supplied or approved body-worn a ccessories and are not using the radio held in the normal use position, ensuretheradioanditsantennaareatleast1inch(2.5cm)fromyour bodywhentransmitting. Data Operation If applicable, when using any data feature of the radio with or without a n accessory cable, positiontheradioanditsantennaatleastone i nch(2.5cm)fromthebody. Approved Accessories 5 3724:…

Text truncated - open the document above for the full version.

Letter of Agency for FCC Certification [May 08 2012] To whom it may concern, Letter of Agency I, an officer of Giant Electronic Ltd. do hereby authorize Intertek Testing Services (Mr. Ken Sit/Mr. Melvin Nip) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and/or Part 95 of the FCC Rules until further notice. I further certify that no party (as defined in §1.2002(b) of CFR 47, 2004) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C., 862. Regards, YuminZou A. Manager

The content of this document is Giant Electronics Ltd.'s intellectual property and is the property of Giant. It is to be treated as strictly confidential and is not to be disclosed, reproduced, or used except as authorized in writing by Giant Electronics Ltd. In connection with the manufacture, maintenance and use of the Giant equipment to which it pertains. Copyright @Giant Electronics Ltd. All rights reserved. Re: FCC ID: K7GMDBJJPR Pursuant to 47 CFR 0.459, Giant Electronics Ltd. request confidential protection of the following documents submitted electronically in furtherance of the above-reference application as containing propriety information listed below: ■ Schematic ■ Block Diagram ■ Operational Description ■ Tune Up Procedure ■ Parts List This information represents intellectual property of Giant Electronics Ltd. and it is subject to competition. This information should not be made routinely available for public inspection, and Giant Electronics Ltd. reserves the right to discern which parties can obtain access to this information. Dated this 12 th day of Mar 2012 By: YuminZou . Signature Printed Title : A. Manager

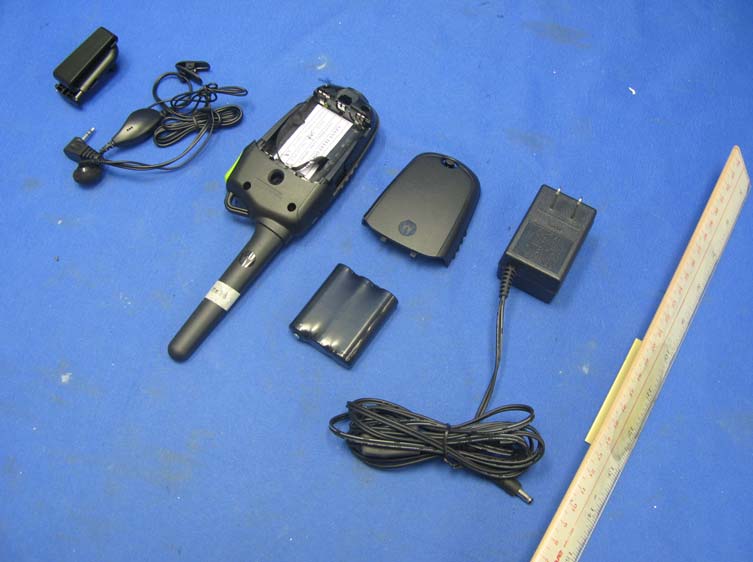

INTERTEK TESTING SERVICES External Photos FCC ID: K7GMDBJJPR external photos - 1 of 1 External Photo - Front Job Number HK12030038 External Photo - Rear Job Number HK12030038

GIANT MODEL: MD200XXXPEBKE4 CUSTOMER MODEL: MD200PR TITLE: ANATEL& MODEL NUMBER LABEL GIANT TELECOM LIMITED DOCUMENT NO. ENG-MD200-09 REV # A PAGE P3 NOTE: 1. STICK THE MODEL NUMBER LABEL INTO THE BATTERY BOX. 2. STICK THE FCC ID LABEL ON THE RADIO OF BACKSIDE MODEL NUMBER LABEL SIZE:W45H7.5MM Model:MD200PR 4.5VDC MOTOROLA Tnp:MD200BAXPEBKXX DD/MMM/YYYY Peru MTC: XXXXXXXX MADE IN CHINA Date Format: DD/MMM/YYYY DD=Day Code 01, 02, 03......31. MMM=Month Code 01=JAN, 02=FEB 03=MAR, 04=APR, 05=MAY, 06=JUN 07=JUL, 08=AUG, 09=SEP 10=OCT, 11=NOV, 12=DEC YYYY=Year Code 2011, 2012, 2013.....2030 etc. Example: 20/JUL/2011 FCC ID LABEL SIZE: W19.7H3.3MM FCC ID:K7GMDBJJPR

INTERTEK TESTING SERVICES Internal Photos FCC ID: K7GMDBJJPR Internal photos - 1 of 4 Internal Photo - 1 Internal Photo - 2 INTERTEK TESTING SERVICES Internal Photos FCC ID: K7GMDBJJPR Internal photos - 2 of 4 Internal Photo - 3 Internal Photo - 4 INTERTEK TESTING SERVICES Internal Photos FCC ID: K7GMDBJJPR Internal photos - 3 of 4 Internal Photo - 5 Internal Photo - 6 INTERTEK TESTING SERVICES Internal Photos FCC ID: K7GMDBJJPR Internal photos - 4 of 4 Internal Photo - 7 Internal Photo – 8

INTERTEK TESTING SERVICES FCC ID: K7GMDBJJPR RF exposure - 1 of 1 For Specific Absorption Rate (SAR) evaluation of the walkie talkie, with reference to Mobile and Portable Device RF Exposure Procedures and Equipment Authorization Policies, portable transmitter with output power less than Power Thresholds for PTT devices, and operating greater than that distance which show in the table 1 (>=1.5cm) from person’s body can be exempt from SAR test. The output power for portable transmitters is defined as emission radiated power (ERP) with 50% duty cycle. For the portable transmitter of the tested model of MD200PR, the measured maximum effective radiated power was 200(mW). From these data, the radiated power with 50 % duty cycle is : The radiated power = 200(mW)*50% = 100(mW) From the above calculation, output power obtained in method is less than low threshold , it is concluded that the device can be exempt from SAR test. Table 1- SAR Evaluation Power Thresholds for PTT devices, f ≤ 0.5 GHz Exposure Conditions mW Held to face >= 2.5cm 250 Body-worn >= 1.5cm 200 Body-worn >= 1.0cm 150 1. The time-averaged output power, corresponding to the required PTT duty factor, is compared with these thresholds. 2. The closest distance between the user and the device or its antenna is used to determine the power thresholds.

INTERTEK TESTING SERVICES Occupied Bandwidth Plots FCC ID: K7GMDBJJPR bw - 1 of 1 Plot CH4 Plot CH11

INTERTEK TESTING SERVICES Audio Low Pass Filter Response -70.0-60.0-50.0-40.0-30.0-20.0-10.0 0.0 10.0 1 10 100 Frequency (kHz) dB relative to 1 kHz LPF ResponseTIA/EIA-603C Audio Input Strength = 150 mVrms FCC ID: K7GMDBJJ PR lpf - 1 of 1 60 log (F/3)

Code: FCC95a IC210a_FreqChar/Effective Date: 11 May 2010 Page 4 of 11 INTERTEK TESTING SERVICES Modulation Frequency Response -30.00-25.00-20.00-15.00-10.00 -5.00 0.00 100 600 1100 1600 2100 2600 3100 3600 4100 4600 Modulation Frequency (Hz) Audio Frequency Response FCC ID: K7GMDBJJ PR mfr - 1 of 1

INTERTEK TESTING SERVICES Modulation Limiting Characteristic 0.0000.5001.0001.5002.0002.500 47 57 67 77 87 97 107 117 127 137 Modulation Input (dBSPL) Frequency Deviation (kHz) 500Hz1000Hz2500Hz3125Hz FCC ID: K7GMDBJJ PR mlc - 1 of 1

INTERTEK TESTING SERVICES Spurious Emission Plots FCC ID: K7GMDBJJPR spurious - 1 of 1 Plot CH4 Plot CH11

- The test report only allows to be revised the retention period issued date unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Giant Electronics Ltd. Application For Certification Two Way Radio with FRS (FCC ID: K7GMDBJJPR) HK12030038-1 KS/ KY April 23, 2012 INTERTEK TESTING SERVICES Test Report Number: HK12030038-1 FCC ID: K7GMDBJJPR Page 1 of 38 MEASUREMENT/TECHNICAL REPORT Applicant : Giant Electronics Ltd. Trade Name/Model No : MD200PR Date : April 23, 2012 This report concerns (check one:)Original Grant X Class II Change Equipment Type: FRF – Part 95 Family Radio Face Held Transmitter Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Report prepared by: Sit Kim Wai, Ken Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Phone: 852-2173-8538 Fax: 852-2741-1693 INTERTEK TESTING SERVICES Test Report Number: HK12030038-1 FCC ID: K7GMDBJJPR Page 2 of 38 Table of Contents 1.0 General Description................................................................................................. 4 1.1 Product Description ................................................................................................. 4 1.2 Test Methodology.................................................................................................... 4 1.3 Test Facility............................................................................................................. 4 2.0 System Test Configuration...................................................................................... 6 2.1 Justification ............................................................................................................. 6 2.2 EUT Exercising Software......................................................................................... 7 2.3 Special Accessories ................................................................................................ 7 2.4 Measurement Uncertainty ....................................................................................... 7 2.5 Equipment Modification ........................................................................................... 7 2.6 Support Equipment.................................................................................................. 7 3.0 RF Power Output (Section 2.1046(a), 95.639(d))................................................... 9 4.0 Modulation Characteristics (Section 2.1047(a)(b), 95.637(a))............................... 13 4.1 Modulation Frequency Response......................................................................... 14 4.2 Modulation Limiting Characteristics...................................................................... 16 4.3 Audio Low Pass Filter Response.......................................................................... 18 5.0 Occupied Bandwidth (Section 95.633(c))............................................................ 21 6.0 Spurious Emission................................................................................................ 24 6.1 Power of Spurious Radiation (Section 2.1053, 95.635(b)) ................................... 25 7.1 Frequency Tolerance ........................................................................................... 32 7.2 Temperature Extreme Condition .......................................................................... 34 7.3 Voltage Extreme Condition................................................................................... 36 8.0 Equipment List....................................................................................................... 38 INTERTEK TESTING SERVICES Test Report Number: HK12030038-1 FCC ID: K7GMDBJJPR Page 3 of 38 EXHIBIT 1 GENERAL DESCRIPTION INTERTEK TESTING SERVICES Test Report Number: HK12030038-1 FCC ID: K7GMDBJJPR Page 4 of 38 1.0 General Description 1.1 Product Description The Equipment Under Test (EUT) is a Two Way Radio with FRS operating between 462.5625 to 462.7125MHz and 467.5625 to 467.7125MHz. The EUT is powered by 3.6V (1 x 3.6V “Ni-MH” type rechargeable battery) or 4.5V (3 x “AA” size 1.5V alkaline batteries). Transmitter Portion (i) Type of Emission : FRS: 5K64F3E (ii) Frequency Range : FRS 14 channels from 462.5625MHz to 462.7125MHz & 467.5625 to 467.7125MHz (iii) Maximum Power Rating : FRS: 0.2W ERP (iv) Antenna Type : Integral, vertically polarized with 0dBi gain (iv) dc voltage of radio frequency amplifying device : 4.5V dc current of radio frequency amplifying device : 700mA The brief circuit description is saved with filename: descri.pdf 1.2 Test Methodology Radiated emission measurements were performed according to the procedures in ANSI C63.4 (2003) and ANSI/TIA-6…
