K7GT2007Two Way Radio with GMRS and FRS

LOGO PHOTO RADIO USER GUIDE SAFETY AND GENERAL INFORMATION Important Information for Safe and Efficient Operation Please read this information before using your radio. Safety and General 1.Do not transmit more than 50% of time. It is important as the radio generates measurable RF energy exposure only when transmitting. 2. Changes or modifications not expressly approved by the manufacturer could void the user's authority to operate the equipment. 3.Radio frequency signals transmitted may cause interference to hearing aids. 4.Turn off the radio when near medical equipment. 5.This product should not be used by people with pacemakers. 6.Do not use the radio when driving a vehicle or operating machinery. 7.Do not use the radio when on board aircraft. 8.Do not hold the antenna when transmitting. 9.Do not use the radio when the antenna has damaged. 10. Turn off the radio and remove the batteries if you are not going to use it for a long time. Two-way Radio Operation The device was tested for typical body-worn operations using the supplied belt-clip. To maintain compliance with FCC RF exposure requirements, body-worn operations are restricted to the supplied belt-clip.For hand-held operation, the radio should be held at least 1 inch (2.5cm) from the user’s face. The use of accessories that do not satisfy these requirements may not comply with FCC RF exposure requirements and should be avoided. For more information about RF exposure, please visit the FCC web site at www.fcc.gov. OPERATIONAL CAUTIONS 1.Never dispose of batteries in a fire. There is a serious risk of explosion and /or the release of highly toxic chemicals. 2.Do not expose your product to direct sunlight, extreme cold or place it near heating appliances. 3.Do not submerge any part of your product in water and do not use it in damp, humid or wet conditions. 4.Do not expose your product to fire, explosive or other hazardous conditions. For example, at petrol stations or areas where explosive products are used. FCC LICENSING INFORMATION This two-way radio operates on GMRS (General Mobile Radio Service) frequencies which require an FCC (Federal Communications Commission) license. A user must be licensed prior to operating on any GMRS channels. Serious penalties could result for unlicensed use of GMRS channels, in violation of FCC rules, as stipulated in the Communications Act’s Sections 501 and 502 (amended). Licensed users will be issued a call sign by the FCC, which should be used for station identification when operating this radio. GMRS users should also cooperate by engaging in permissible transmissions only, avoiding channel interference with other GMRS users, and being prudent with the length of their transmission time. Application for a GMRS system license can be made on FCC Form 605. You can call the FCC Forms Hotline 1-800-418-FORM (3676). If You Have Questions about the FCC License: Call the FCC 1-888-CALL-FCC (225-5322). You may also visit the FCC’s Web site at http://www.fcc.gov or http://wireless.fcc.gov/services/personal/generalmobile/ concerning GMRS. Note: Use of this radio outside the country where it was intended to be distributed is subject to government regulations and may be prohibited. Warning: Any adjustment to this equipment is recommended to be performed by or under the immediate supervision and responsibility of a person certified as technically qualified to perform transmitter maintenance and repair duties in the private land mobile services and fixed services by an organization or committee representative of users of those services. Warning: Replacement of any transmitter component (crystal, semiconductor, etc.) for this equipment could result in violation of FCC rules. Use only the supplied antenna. Unauthorized antennas, modifications, or attachments could damage the transmitter and may violate FCC regulations. FCC STATEMENTS: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: „Reorient or relocate the receiving antenna. „Increase the separation between the equipment and receiver. „Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. Safety Information 3 Disposal You are obliged to dispose of consumable goods according to legal requirements. The adjacent symbol indicates that electrical and electronic apparatus and batteries no longer required must be disposed of separ- ate from domestic waste. Electrical and electronic devices must be disposed of at suitable collection points provided by the public waste authorities. Batteries must be disposed of at the point of sale or at the appropriate collection points provided by the public waste authorities. Packaging materials must be disposed of according to local regulations. Putting the WalkieíTalkies into Operation 4 23XWWLQJWKH:DONLHí7DONLHVLQWR2SHUDWLRQ Safety information Attention: It is essential to read the Safety Information in Chapter…

Text truncated - open the document above for the full version.

The content of this document is Giant Electronics Ltd.'s intellectual property and is the property of Giant. It is to be treated as strictly confidential and is not to Re: FCC ID: K7GT2007 Pursuant to 47 CFR 0.459, Giant Electronics Ltd. request confidential protection of the following documents submitted electronically in furtherance of the above-reference application as containing propriety information listed below: ■ Schematic ■ Block Diagram ■ Operational Description ■ Tune Up Procedure ■ Part List This information represents intellectual property of Giant Electronics Ltd. and it is subject to competition. This information should not be made routinely available for public inspection, and Giant Electronics Ltd. reserves the right to discern which parties can obtain access to this information. Dated this 24 th day of Feb 2010 By: YuminZou . Signature Printed Title : A. Manager be disclosed, reproduced, or used except as authorized in writing by Giant Electronics Ltd. In connection with the manufacture, maintenance and use of the Giant equipment to which it pertains. Copyright @Giant Electronics Ltd. All rights reserved.

The content of this document is Giant Electronics Ltd.'s intellectual property and is the property of Giant. It is to be treated as strictly confidential and is not to Re: FCC ID: K7GT2007 Pursuant to 47 CFR 0.459, Giant Electronics Ltd. request confidential protection of the following documents submitted electronically in furtherance of the above-reference application as containing propriety information listed below: ■ Schematic ■ Block Diagram ■ Operational Description ■ Tune Up Procedure ■ Part List This information represents intellectual property of Giant Electronics Ltd. and it is subject to competition. This information should not be made routinely available for public inspection, and Giant Electronics Ltd. reserves the right to discern which parties can obtain access to this information. Dated this 24 th day of Feb 2010 By: YuminZou . Signature Printed Title : A. Manager be disclosed, reproduced, or used except as authorized in writing by Giant Electronics Ltd. In connection with the manufacture, maintenance and use of the Giant equipment to which it pertains. Copyright @Giant Electronics Ltd. All rights reserved.

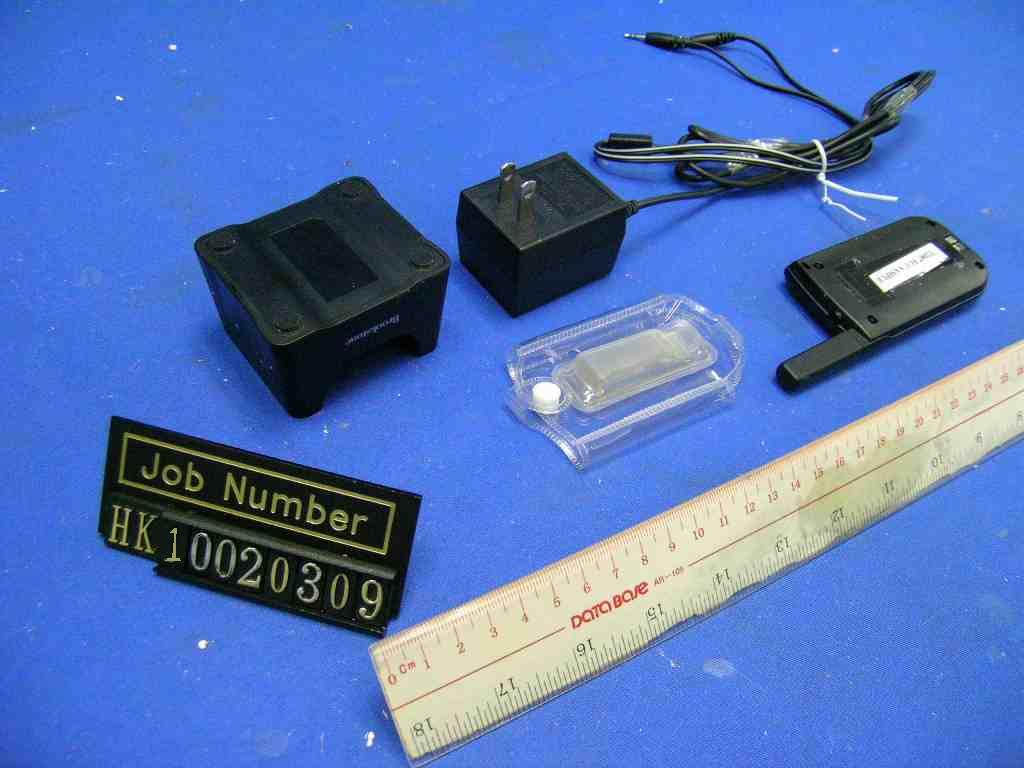

INTERTEK TESTING SERVICES External Photos FCC ID: K7GT2007 external photos - 1 of 2 External Photo - Front External Photo - Rear INTERTEK TESTING SERVICES External Photos FCC ID: K7GT2007 external photos - 2 of 2 External Photo - Headset

T2007 CUSTOMER MODEL: TITLE: BASE RATING LABEL MADE IN CHINA Transparence background silver text Silver PMS 877C The Date Code would be provided by marketing per order DATE CODE Size:13x5mm D A TE CODE SKU No.: 641068 T2007ABSUSSR04 / T2007ABSUSRD04 Input: 120V, 60Hz Output: 5V, 80mA Model No: T2007 T2007 CUSTOMER MODEL: TITLE: LCD PROTECTIVEL LABEL AND WARRANTY LABEL T2007ABSUSSR04 / T2007ABSUSRD04 T2007 CUSTOMER MODEL: TITLE: PRODUCT LABEL AND DATE CODE LABEL MADE IN CHINA Model: T2007 SKU NO.: 641068 FCC ID: K7GT2007 MADE IN CHINA Model: T2007 SKU NO.: 641068 FCC ID: K7GT2007 Transparence background silver text Silver PMS 877C Transparence background silver text Silver PMS 877C The Date Code would be provided by marketing per order DATE CODE Size:13x5mm D A TE CODE T2007ABSUSSR04 / T2007ABSUSRD04 HS RATING LABEL AND DATE CODE LABEL ON THE BOTTOM OF THE RADIO. FCC 15 PART LABEL SIZE: 35X13mm white background red text Giant Giant Giant Size: 20x10mm Material: removed label Printing color: WHITE (Bold) Scale: 1:1 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

INTERTEK TESTING SERVICES Internal photos FCC ID: K7GT2007 internal photos - 1 of 4 Internal Photo - 1 Internal Photo - 2 INTERTEK TESTING SERVICES Internal photos FCC ID: K7GT2007 internal photos - 2 of 4 Internal Photo - 3 Internal Photo - 4 INTERTEK TESTING SERVICES Internal photos FCC ID: K7GT2007 internal photos - 3 of 4 Internal Photo - 5 Internal Photo - 6 INTERTEK TESTING SERVICES Internal photos FCC ID: K7GT2007 internal photos - 4 of 4 Internal Photo - 7

A Test Lab Techno Corp. Changan Lab：No. 140 -1, Changan Street, Bade City, Taoyuan County, Taiwan R.O.C. Te l：886-3-271-0188 / Fax：886-3-271-0190 SAR EVALUATION REPORT Test Report No. ：1003FS14 Applicant ： Giant Electronics Limited Trade Mark ： Giant Model Number ： T2007 Battery Type ： Internal Battery(3.7 V Li-ion Battery, 700 mAh) Product Name ： Two Way Radio with GMRS and FRS Date of Test ： Mar. 08, 2010 Test Environment ： Ambient Temperature： 22 ± 3 °C Relative Humidity：40 - 70 % Test Specification ： Standard C95.1-2005 IEEE Std. 1528-2003 2.1093;FCC/OET Bulletin 65 Supplement C [July 2001] Max. SAR ： 0.750 W/kg FRS FACE SAR_15mm (50% Duty Cycle) 0.600 W/kg GMRS FACE SAR_15mm (50% Duty Cycle) 0.549 W/kg FRS Body SAR With Headset_15mm(50% Duty Cycle) 0.447 W/kg GMRS Body SAR With Headset_15mm (50% Duty Cycle) 0.553 W/kg FRS Body SAR With Headset_Belt Clip_15mm(50% Duty Cycle) 0.475 W/kg GMRS Body SAR With Headset_Belt Clip_15mm (50% Duty Cycle) (Condition: 50% Duty Cycle and positive power drift) Test Lab ： Changan Lab. 1. The test operations have to be performed with cautious behavior, the test results are as attached. 2. The test results are under chamber environment of A Test Lab Techno Corp. A Test Lab Techno Corp. does not assume responsibility for any conclusions and generalizations drawn from the test results with regard to other specimens or samples. 3. The measurement report has to be written approval of A Test Lab Techno Corp. It may only be reproduced or published in full. This report shall not be reproduced except in full, without the written approval of A Test Lab Techno Corp. The test results in the report only apply to the tested sample. Sam Chuang 20100311 Alex Wu 20100311 Approve Signer Testing Engineer Test Report No： ©2010 A Test Lab Techno Corp. 1003fFS13Page 1 of 85 Contents 1. Description of Equipment Under Test (EUT)............................................................ 3 2. Other Accessories...................................................................................................... 5 3. Introduction ................................................................................................................ 6 4. SAR Definition ............................................................................................................ 6 5. SAR Measurement Setup........................................................................................... 7 6. System Components.................................................................................................. 9 6.1 DASY5 E-Field Probe System......................................................................................................... 9 6.2 Data Acquisition Electronic (DAE) System .................................................................................... 12 6.3 Robot ............................................................................................................................................. 12 6.4 Measurement Server ..................................................................................................................... 12 6.5 Device Holder for Transmitters ...................................................................................................... 13 6.6 Phantom - SAM v4.0 ..................................................................................................................... 14 6.7 Data Storage and Evaluation......................................................................................................... 14 7. Test Equipment List ................................................................................................. 17 8. Tissue Simulating Liquids ....................................................................................... 18 8.1 Ingredients ..................................................................................................................................... 19 8.2 Recipes.......................................................................................................................................... 19 8.3 Liquid Confirmation........................................................................................................................ 20 9. Measurement Process ............................................................................................. 22 9.1 Device and Test Conditions ........................................................................................................... 22 9.2 System Performance Check.......................................................................................................... 23 9.3 Dosimetric Assessment Setup....................................................................................................... 26 9.4 Spatial Peak SAR Evaluation ........................................................................................................ 28 10. Measurement Uncertainty........................................................................................ 29 11. SAR Test Results Summary .................................................................................... 31 11.1 FRS Face SAR _ 15 mm Spacing ................................................................................................. 31 11.2 GMRS Face SAR _ 15mm Spacing............................................................................................... 33 11.3 FRS Body SAR with Headset _ 15 mm Spacing ........................................................................... 35 11.4 GMRS Body SAR with Headset _15 mm Spacing ........................................................................ 37 11.5 FRS Body SAR with Headset & Belt Clip ...................................................................................... 39 11.6 GMRS Body SAR with Headset_Belt Clip ..................................................................................... 41 11.7 Setup Photo ....................................…

Text truncated - open the document above for the full version.

- The test report only allows to be revised the retention period issued date unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Giant Electronics Ltd. Application For Certification Two Way Radio with GMRS and FRS (FCC ID: K7GT2007) HK10020309-1 KS/ cl April 01, 2010 INTERTEK TESTING SERVICES Test Report Number: HK10020309-1 FCC ID: K7GT2007 Page 1 of 38 MEASUREMENT/TECHNICAL REPORT Applicant : Giant Electronics Ltd. Trade Name/Model No : T2007 Date : April 01, 2010 This report concerns (check one:)Original Grant X Class II Change Equipment Type: FRF – Part 95 Family Radio Face Held Transmitter Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Report prepared by: Sit Kim Wai, Ken Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Phone: 852-2173-8538 Fax: 852-2741-1693 INTERTEK TESTING SERVICES Test Report Number: HK10020309-1 FCC ID: K7GT2007 Page 2 of 38 Table of Contents 1.0 General Description................................................................................................. 4 1.1 Product Description ................................................................................................. 4 1.2 Related Submittal(s) Grants .................................................................................... 5 1.3 Test Methodology.................................................................................................... 5 1.4 Test Facility............................................................................................................. 5 2.0 System Test Configuration...................................................................................... 7 2.1 Justification ............................................................................................................. 7 2.2 EUT Exercising Software......................................................................................... 8 2.3 Special Accessories ................................................................................................ 8 2.4 Measurement Uncertainty ....................................................................................... 8 2.5 Equipment Modification ........................................................................................... 8 2.6 Support Equipment.................................................................................................. 8 3.0 RF Power Output (Section 2.1046(a), 95.639(d))................................................. 10 4.0 Modulation Characteristics (Section 2.1047(a)(b), 95.637(a))............................... 14 4.1 Modulation Frequency Response......................................................................... 15 4.2 Modulation Limiting Characteristics...................................................................... 17 4.3 Audio Low Pass Filter Response.......................................................................... 19 5.0 Occupied Bandwidth (Section 95.633(c))............................................................ 22 6.0 Spurious Emission................................................................................................ 25 6.1 Power of Spurious Radiation (Section 2.1053, 95.635(b)) ................................... 26 7.0 Frequency Stability (Section 2.1055(a)(b)(d), 95.627(b))...................................... 32 7.1 Frequency Tolerance ........................................................................................... 33 7.2 Temperature Extreme Condition .......................................................................... 35 7.3 Voltage Extreme Condition................................................................................... 37 INTERTEK TESTING SERVICES Test Report Number: HK10020309-1 FCC ID: K7GT2007 Page 3 of 38 EXHIBIT 1 GENERAL DESCRIPTION INTERTEK TESTING SERVICES Test Report Number: HK10020309-1 FCC ID: K7GT2007 Page 4 of 38 1.0 General Description 1.1 Product Description The Equipment Under Test (EUT) is a Two Way Radio with GMRS and FRS operating between 462.5500MHz and 467.7125MHz. The EUT is powered by 3.7V (3.7V “Li-ion” type rechargeable battery). The EUT is turned off when the EUT charging by charging tray. Transmitter Portion (i) Type of Emission : GMRS: 5K60F3E; FRS: 5K60F3E (ii) Frequency Range : GMRS 15 Channels from 462.5500MHz to 462.7250MHz FRS 7 Channels from 467.5625MHz to 467.7125MHz (iii) Maximum Power Rating : GMRS: 0.49W ERP; FRS: 0.49W ERP (iv) Antenna Type : Integral The brief circuit description is saved with filename: descri.pdf INTERTEK TESTING SERVICES Test Report Number: HK10020309-1 FCC ID: K7GT2007 Page 5 of 38 1.2 Related Submittal(s) Grants This is an Applicat…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES Spurious Emission Plots FCC ID: K7GT2007 spurious - 1 of 1 Plot CH4

INTERTEK TESTING SERVICES Occupied Bandwidth Plots FCC ID: K7GT2007 bw - 1 of 1 Plot CH4

INTERTEK TESTING SERVICES Audio Low Pass Filter Response -70.0-60.0-50.0-40.0-30.0-20.0-10.0 0.0 10.0 1 10 100 Frequency (kHz) dB relative to 1 kHz LPF ResponseTIA/EIA-603C Audio Input Strength = 200mVrms FCC ID: K7GT2007 lpf - 1 of 1 60 log (F/3)

INTERTEK TESTING SERVICES Modulation Frequency Response 0.0000.5001.0001.5002.000 100 600 1100 1600 2100 2600 3100 3600 4100 4600 Modulation Frequency (Hz) Frequency Deviation (kHz) FCC ID: K7GT2007 mfr - 1 of 2 INTERTEK TESTING SERVICES Modulation Frequency Response 0.000.501.001.50 100 600 1100 1600 2100 2600 3100 3600 4100 4600 Modulation Frequency (Hz) Modulation Index FCC ID:K7GT2007 mfr - 2 of 2

INTERTEK TESTING SERVICES Modulation Limiting Characteristic 0.0000.5001.0001.5002.0002.500 47 57 67 77 87 97 107 117 127 137 Modulation Input (dBSPL) Frequency Deviation (kHz) 500Hz1000Hz2500Hz3125Hz FCC ID: K7GT2007 mlc - 1 of 1

INTERTEK TESTING SERVICES The Worst Case Configuration Photographs FCC ID: K7GT2007 config photos (radiated emission) - 1 of 2 Radiated Emission – Mode: Transmitter without Earphone Front View Rear View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs FCC ID: K7GT2007 config photos (radiated emission) - 2 of 2 Radiated Emission – Mode: Transmitter with Earphone Front View Rear View
