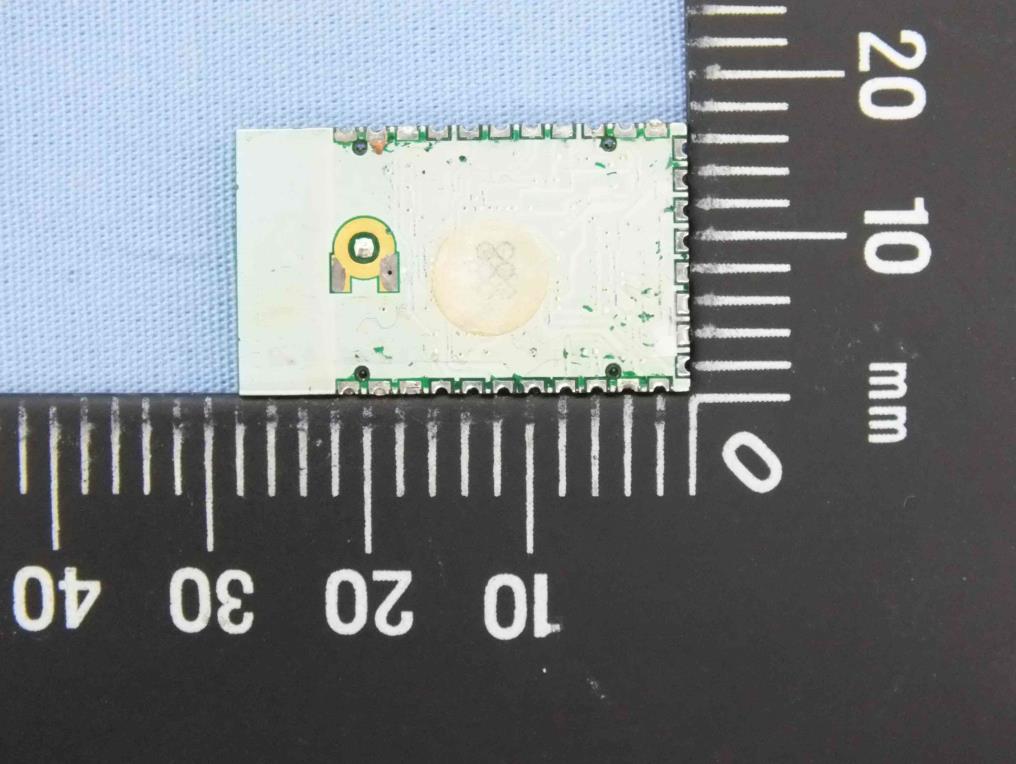

K7T-BPM2001CSR8311 BlueTooth Module

Radicom Research, Inc. Preliminary Designers Guide for the BPM2001 BPM2001-EK RoHS Bluetooth HCI Modules BPM2001 SMD Module BPM2001-HM Dip Module November 22 th , 2012 1 Table of Contents Introduction 3 Features 4 Applications 5 Specifications 6 Electronic Character 7 Model and Ordering Information 7 Layout Design Considerations 8 BPM2001 SMD Module Mechanical Diagram & Pin Assignments 9 BPM2001 SMD Module Interface Signal Definitions 10 BPM2001-HM Mechanical Diagram & Pin Assignments 12 BPM2001-EK Switches & Connector Functional Descriptions 16 Operating the BPM2001-EK Evaluation Kit 17 BPM2001-MB Carrier Board RS232 DE-9 Pin Definitions 17 FCC & IC Label and Model Identification 18 Important Regulatory Compliance and User Information 19 Industry Canada statement: 21 CE Declaration of Conformity 24 Limited Warranty 25 Contacting Radicom 27 Information furnished by Radicom is believed to be accurate and reliable. However Radicom assumes no responsibility for its use, or any infringement of patents or other rights of third parties that may result from its use. Radicom reserves the right to change circuitry at any time without notice. This document is subject to change without notice. 2 3 Introduction Radicom BPM2001 is a single chip based radio and baseband for Bluetooth v4.0 systems and Bluetooth low energy. With host software, BPM2001 provides a system fully qualified to the Bluetooth v4.0 specification for data and voice applications. 4 Features • Fully qualified Bluetooth Bluetooth® v4.0 system • Full-speed Bluetooth operation with full piconet and scatternet support • Class 2 Bluetooth power level supported • High-sensitivity Bluetooth receiver • Wideband speech • SBC encoding • Low-power selectable 1.2 to 3.6V I/O • Full-speed USB 2.0 interface • High-speed UART port (up to 4Mbps) • 2 x PCM/I2S digital audio interfaces • Support for IEEE 802®.11 coexistence • Dual-mode Bluetooth low energy radio • 3 Bluetooth low energy connections at the same time as basic rate A2DP • Approx. 27.9mm x 16.5mm FR4 PCB. • On-board antenna • -40°C to +85°C temperature operating • RoHS compliant 5 Applications • Industrial • Medical • For AP Switch, Router, PC, NB, PND, PDA, Mobile devices, USB dongle 6 Specifications Dimensions 27.94mm x 16.51mm x 2.20mm (BPM2001) 83.73mm x 66.11mm (BPM2001HM) Device Type Embedded Bluetooth OEM modules Interface Serial UART / PCM / I2S / USB Data Link Protocol Bluetooth 4.0 Frequency 2.402 – 2.480 GHz Transmit Power 6 dBm (typical) Receiver Sensitivity -92.5dBm (typical) Bluetooth Class Class 2 Range Up to 10 meters Security 128-bit encryption (optional) Power Consumption IDE: 3~6mA / Play: 22~38mA Power Supply Voltage 1.8V~ 3.6V Normal Voltage 3.3V Operating Temperature -40ºC to +85ºC Environmental RoHS compliant 7 Electronic Character Minimum Typical Maximum Unit Operation voltage 1.8 3.3 3.6 V Output Power 6 dBm Sensitivity -84 dBm active mode, VBAT=3.3V 24 mA Model and Ordering Information Model Number Description BPM2001 Surface mount, class 2, Bluetooth HCI module with on-board antenna BPM2001-HM BPM2001HM-a: DIP, through hole module with on-board antenna. BPM2001HM-c: DIP, through hole module with U.FL antenna connector for external antenna BPM2001-MB BPM2001-MB Evaluation PCB Model: BPM2001-MB BPM2001-EK Evaluation Kit. Each kit consists of the following components: 1. BPM2001HM (-a or -c) on a testing board 2. USB cables (A to B) 3. Null modem cables (DB9F to DB9F) * BPM2001HM-c ships with 1 external antenna and cable. 8 Layout Design Suggestions • General Layout Rules- All Printed Circuit Boards must comply with UL94V0 standard for flammability. Always use RoHS compliant Parts and materials. • Suggestions for Layout: 1. Do not place Power circuit, X’tal, Inductor, etc near RF area. 2. The bigger Antenna clearance area, the better. The Antenna itself needs to stay away from any circuit or component at least 2mm. Antenna clearance area means Top and Bottom both required to be cleared. 3. Do not use metal materials on design where near Antenna area. For example, battery snaps, USB connector, iron case, etc. 4. Except ground, do not place any circuit below Bluetooth IC. The area below Bluetooth IC is required to be ground and be connected by through hole. 5. When meeting a turning point, try to make the circuit as smooth as you can. 6. Put all TP (Test-Point) in one area, in order to make easier for a fixture design. 7. Within the acceptance, please make circuit diameter as big as you can. 8. If a position hole is needed, please make them in diagonal location. This design could make easier for fixture allocation and save cost in fixture designing. These guidelines are for design reference; real performance still depends on actual design. 9 BPM2001 SMD Module Mechanical Diagram & Pin Assignments Top side view:  Board size = 27.940 mm x 16.510 mm  Pitch of short and long side = 1.905 mm  Pad width = 1.524 mm x 1.000 mm Module Height  Maximun height = 2.2 mm  Board thickness = 0.80 mm 10 BPM2001 SMD Module Interface Signal Definitions Pin# Pin Name Type Description I/O Voltage Range 01 GND Power System ground --- 02 GND Power System ground --- 03 GND Power System ground --- 04 /PCM_SEL I High switches SPI/PCM lines to SPI, low switches SPI/ PCM lines to PCM/PIO use. Vih: 0.7 X VDD – VDD + 0.4V Vil: -0.4V -- 0.4 VDD 05 UART_CTS I UART clear to send, active low Vih: 0.7 X VDD – VDD + 0.4V Vil: -0.4V -- 0.4 VDD 06 POWER_ON I Take high to enable internal regulators. Maximum voltage is VREG_IN_HV. Note: USB regulator is always enabled and not controlled by VREG_EN Vih: 0.7 X VDD – VDD + 0.4V Vil: -0.4V -- 0.4 VDD 07 UART_RTS O UART request to send, active low Voh: 0.75 X VDD Vol: 0 – 0.4V 08 UART_TXD O UART data output, active high Voh: 0.75 X VDD Vol: 0 – 0.4V 09 UART_RXD I UART data input, active high Vih: 0.7 X VDD – VDD + 0.4V Vil: -0.4V -- 0.4 VDD 10 GND Power System ground --- 11 VDD_IN Power 1.8V power output Input voltage: 2.3V – 4.8V 12 USB_DP I USB data pl…
