K7T-RB4000Bluetooth Module

Radicom Research, Inc. Designers Guide for the RB4000 H4000CE RB4000HM MDK4000 Kit RoHS Serial TTL Bluetooth Modules RB4000 RB4000HM RoHS Compliant 1 April 18, 2012 Table of Contents Introduction 3 Features 4 Specifications 5 Model and Ordering Information 6 FCC& IC Label and Model Identification 7 Important Regulatory Compliance and User Information 8 CE Declaration of Conformity 10 Layout Design Suggestions 10 RB4000 Pad Size 11 RB4000 Mechanical Diagram & Pin Assignments 12 RB4000 Interface Signal Level Definitions 13 RB4000HM Mechanical Diagram & Pin Assignments 14 RB4000HM Switch settings 15 RB4000HM Interface Signal Level Definitions 15 RB4000MB Carrier Board RS232 DB 9 Pin Definitions 16 LED Operation 16 Connecting to Your System 17 Limited Warranty 18 Contacting Radicom Research 20 2 Information furnished by Radicom Research is believed to be accurate and reliable. However Radicom Research assumes no responsibility for its use, or any infringement of patents or other rights of third parties that may result from its use. Radicom Research reserves the right to change circuitry at any time without notice. This document is subject to change without notice. Introduction Thank you for purchasing Radicom Research’s RB4000 Bluetooth Module. We are committed to providing you quality service and technical support. The RB4000 and RB4000HM Bluetooth modules are designed to meet OEM’s needs of embedding short- range wireless data connectivity to their products. The RB4000 family offers a quick and simple solution for wireless point-to-point Bluetooth communications. The RB4000 series are Class 2 Bluetooth modules using BlueCore4-External Chipset from CSR, the leader in Bluetooth chipsets. These embedded modules are Bluetooth V.2.0 + EDR (Enhanced Data Rate) compliant that increase throughput, reduce battery consumption and improve security. It provides faster pairing and allows superior performance in the presence of interference from 802.11 WiFi wireless devices and other 2.4GHz radios. The RB4000 series has 8Mbits flash memory on board for upgrading the modules firmware. OEM specific parameters and settings can be loaded into these modules. Radicom can modify the firmware to meet OEM requirements and create custom Bluetooth functionality to meet your specific needs. The RB4000 Series supports Serial Port Profile functionality for setting up virtual serial ports on two devices (e.g. PCs) and connecting the two devices using the RB4000 Bluetooth modules to emulate a RS232 serial cable between the two devices. There are 4 models available, RB4000, H4000CE, RB4000HM-a, and RB4000HM-c. The RB4000 and H4000CE are surface mount PCB Bluetooth modules with on-board antenna. The RB4000 and H4000CE are identical except for the name that was changed for marketing reasons. The RB4000HM-a is serial through-hole Bluetooth module with an on board antenna. The RB4000HM-c is serial through-hole Bluetooth module with an U.FL connector for an external antenna to provide the flexibility for placing antennas in a desired location. For evaluation purposes we offer kits for both the onboard and external antenna versions of the modules. Each kit will include one each SPP-A Initiator and SPP- B Acceptor Bluetooth module installed into carrier boards with a RS232 Serial connector. Upon receipt of the Evaluation kits, the user can immediately connect the carrier boards to any standard serial port to evaluate the Bluetooth modules. 3 Features • Bluetooth 2.0+EDR support • Small sizes: 0.57” x 1.26” x 0.08” (RB4000) or 1” x 1.26” x 0.2” (RB4000HM) • Class 2 radio, 4dBm transmission power • Serial Port Profile (SPP) support • Secure simple pairing support • Link Data Rate 2.1Mbps Max • SPP/ UART data rates: 115.2Kbps • GAP (Generic Access Protocol) • SDP (Service Discovery Protocol) • L2CAP (Logical link control and adaptation protocol) • RFCOMM embedded stack profiles support • 8Mbits flash memory on board • Secure communications with 128-bit encryption • Onboard antenna or with an U.FL connector for external antenna • Supports 802.11 wireless co-existence • Custom application specific Firmware is possible. Contact Radicom Research, Inc. • Available as either SPP-A Initiator and SPP-B Acceptor Bluetooth module • RTS/CTS Flow Control (Hardware Flow Control) Supported Approvals • FCC Part 15: FCC OET 65 Supplement C (SAR), 47 CFR FCC Part 15 Subpart C 15.247, 47 CFR FCC Part 15 Subpart B 2009 (Class B) • IC RSS-102, IC ES-003 issue 4, IC RSS-210 issue 8:2010 • RoHS Compliant • CE Marked: EN 61000-3-2:2006+A2:2009, EN 62311:2008, EN 300 328 V1.7.1, EN 301 489-1, V1.8.1, EN 61000-3-3:2008, EN 301 489-17 V2.1.1) 4 • EN 60950-1:2006+A11:2009+A1:2010+A12:2011 Specifications Dimensions RB4000: 0.57”x1.26”x0.08” ????? RB4000HM: 1” x 1.26” x 0.2” ?????? Device Type Embedded Bluetooth OEM module Interface Serial Data Link Protocol Bluetooth 2.0+EDR Frequency ISM 2.4 GHz short-range radio frequency band Frequency Range 2,402 – 2,483.5 MHz Max Transmit Power +4dBm Receive Sensitivity -89dBm Bluetooth Class Class 2 Link Data Transfer Rate 2.1Mbps Max UART /SPP Data Transfer Rate 115.2Kbps Sustained Data Through-put 720Kbps Flow Control RTS/CTS Hardware Range Up to 20 meters (60 feet, basic rate, line of sight) On Board Flash 8Mbits Compliant Standards Bluetooth 1.1, 1.2, and 2.0 Security 128-bit encryption Supply Voltage: VDD 2.2V to 4.2V (RB4000) or 3.15V ~ 3.45V (RB4000HM) Current Consumption SPP-A Code SPP-B Code Before connection: 40mA 38mA Connected (Sniff Mode): 7mA 15mA Connected (full TX/RX): 11mA 35mA Antenna On-board antenna or with an U.FL connector for external antenna On-Board Antenna Gain 1 dBi External Antenna Gain 2 dBi Baseband Crystal OSC 16MHz RF Input Impedance 50 ohms Receiver IF Frequency 1.5MHz Receiving Signal Range -80 to –20dBm typical Hopping 1600hops/sec, 1MHz channel space Operating Temperature -40ºC to +85ºC Environmental RoHS compliant 5 Model and Ordering Information Model Number Description RB4000 or …

Text truncated - open the document above for the full version.

Radicom Research, Inc. www.Radi.com 2148 Bering Drive, San Jose, CA 95131 U.S.A. Tel: 408-383-9006 Fax: 408-383-9007 Attestation for FCC Declaration of Conformity FCC ID: K7T-RB4000 Date: 2012-03-21 Please be notified that we, the undersigned, Radicom Research Inc. declares that the product which bears the above FCC ID is also compliant with the FCC requirements for DoC. The test report number supporting the DoC is TS12010104-EME. Testing in regards to this report was done by Intertek Testing Services Taiwan Ltd., located at 11, Ln. 275, Ko Nan 1st Street, Shiang-Shan District, Hsinchu 300 Taiwan, R.O.C., which has been accredited in accordance to all of the requirements of 47CFR 2.948 (d) and (e) of the FCC rules and KDB349827. Sincerely, Printed name: Roger L. Sheridan Position: Quality Manager Company Name: Radicom Research, Inc. Tel: 408-383-9006 Fax: 408-383-9007 Email: [email protected]

Radicom Research, Inc. www.Radi.com 2148 Bering Drive, San Jose, CA 95131 U.S.A. Tel: 408-383-9006 Fax: 408-383-9007 Confidentility Letter (Permanent) Attention: Application Examiner Re: Request for confidentiality Applicant: Radicom Research Inc. FCC ID: K7T- RB4000 To whom it may concern, Request is hereby submitted by Radicom Research Inc. to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential: • Schematics • Detailed Block diagrams • Detailed Operational/Functional Description Rationale for request for confidentiality: Radicom Research Inc. has invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. If you have questions or need further information, please contact the undersigned. Sincerely, Printed name: Roger L. Sheridan Title: Quality Manager Company name: Radicom Research, Inc. Date: 2012-03-28

FCC ID: K7T-RB4000 Date: Mar. 28, 2012 Modular Approval Request Letter Dear Sir, There’s a Bluetooth Module that would like to have your authorization as a modular approval. The specific product as below, Bluetooth Module, with its designed features and specified description, meets special requirements for full modular approval on FCC Public Notice DA 00-1407 by cross-reference list below. Com pany: Radicom Research Inc. Product Name: Bluetooth Module Model Number: RB4000HM-a, RB4000HM-c, RB4000, H4000CE FCC ID: K7T-RB4000 Requirement of Part 15.212 Reference to RB4000HM-a, RB4000HM-c, RB4000, H4000CE 1. The radio elements of the modular transmitter must have their own shielding. The physical crystal and tuning capacitors may be located internal to the shielded radio elements. The module has its own RF shielding. Please see internal photo.pdf 2. The modular transmitter must have buffered modulation/data inputs. The modular has buffered data inputs, it is integrated in chip”BC417143B”. Please see diagram.pdf 3. The modular transmitter must have its own power supply regulation. The module has linear regulator, it is integrated in chip”BC417143B”. Please see circuit.pdf 4. The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(c). The RB4000HM-a, RB4000HM-c, RB4000, H4000CE meets the FCC antenna requirements. It has a unique connector. Please see internal photo.pdf 5. The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing. The RB4000HM-a, RB4000HM-c, RB4000, H4000CE were tested in a stand-alone configuration. We control the RB4000HM-a, RB4000HM-c, RB4000, H4000CE via an specific console cable and a software name “CSR Bluesuite”. 6. The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number. The label position of RB4000HM-a, RB4000HM-c, RB4000, H4000CE is clearly indicated. Please see the label.pdf 7. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. The RB4000HM-a, RB4000HM-c, RB4000, H4000CE is compliant with all applicable FCC rules. Detail instructions are given in the Users Manual. Please see User's manual.pdf 8. The modular transmitter must comply with any applicable RF exposure requirements. For example, FCC Rules in Sections 2.1091, 2.1093 and specific Sections of Part 15, including 15.319(i), 15.407(f), 15.253(f) and 15.255(g), require that Unlicensed PCS, UNII and millimeter wave devices perform routine environmental evaluation for RF Exposure to demonstrate compliance. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF Exposure compliance in accordance with Section 15.247(b)(4). The RB4000HM-a, RB4000HM-c, RB4000, H4000CE comply with applicable RF exposure requirements. Please see RF Exposure Statement. pdf Yours sincerely, Jimmy Yang Engineer Intertek Testing Service Taiwan Ltd .

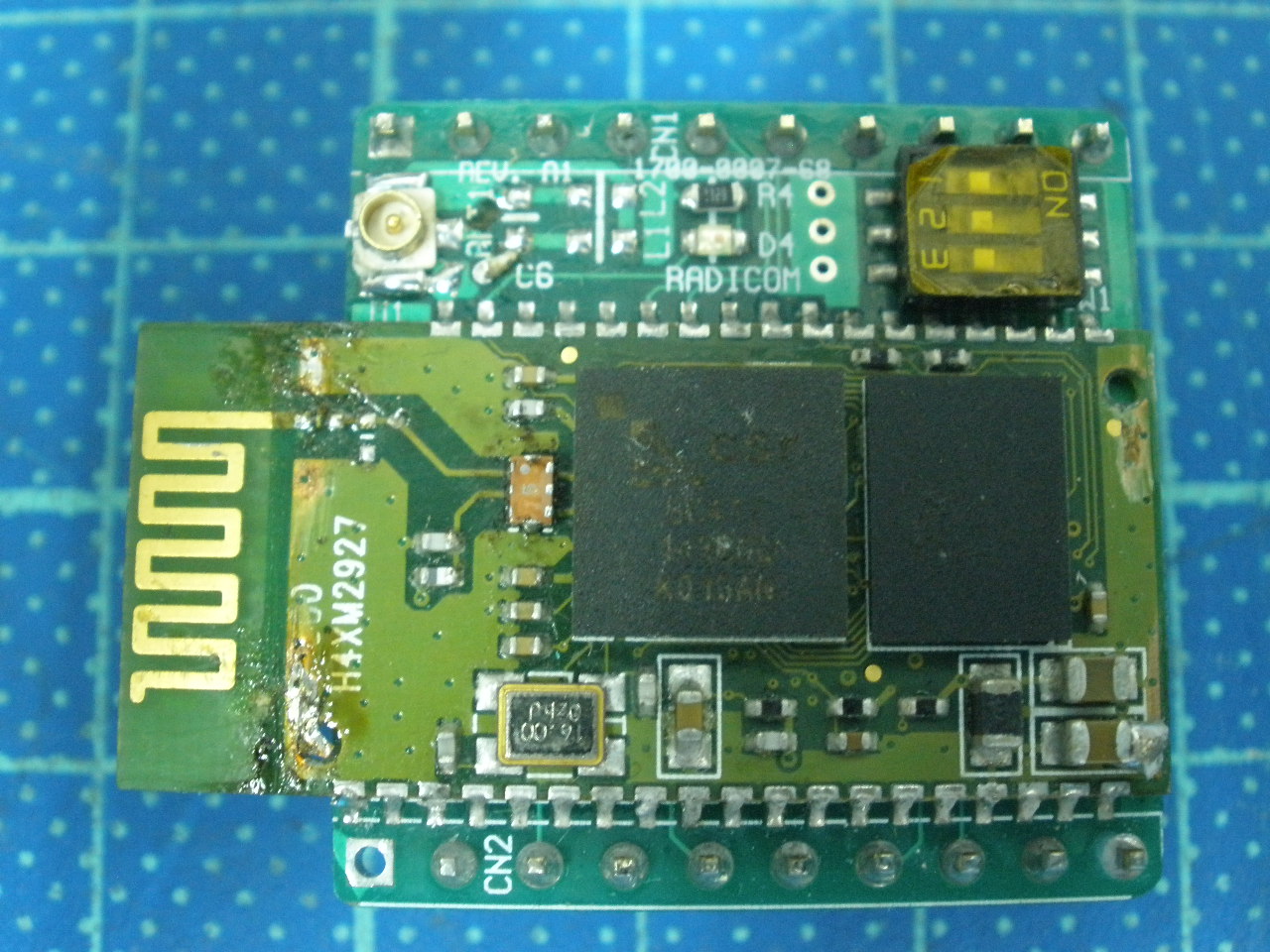

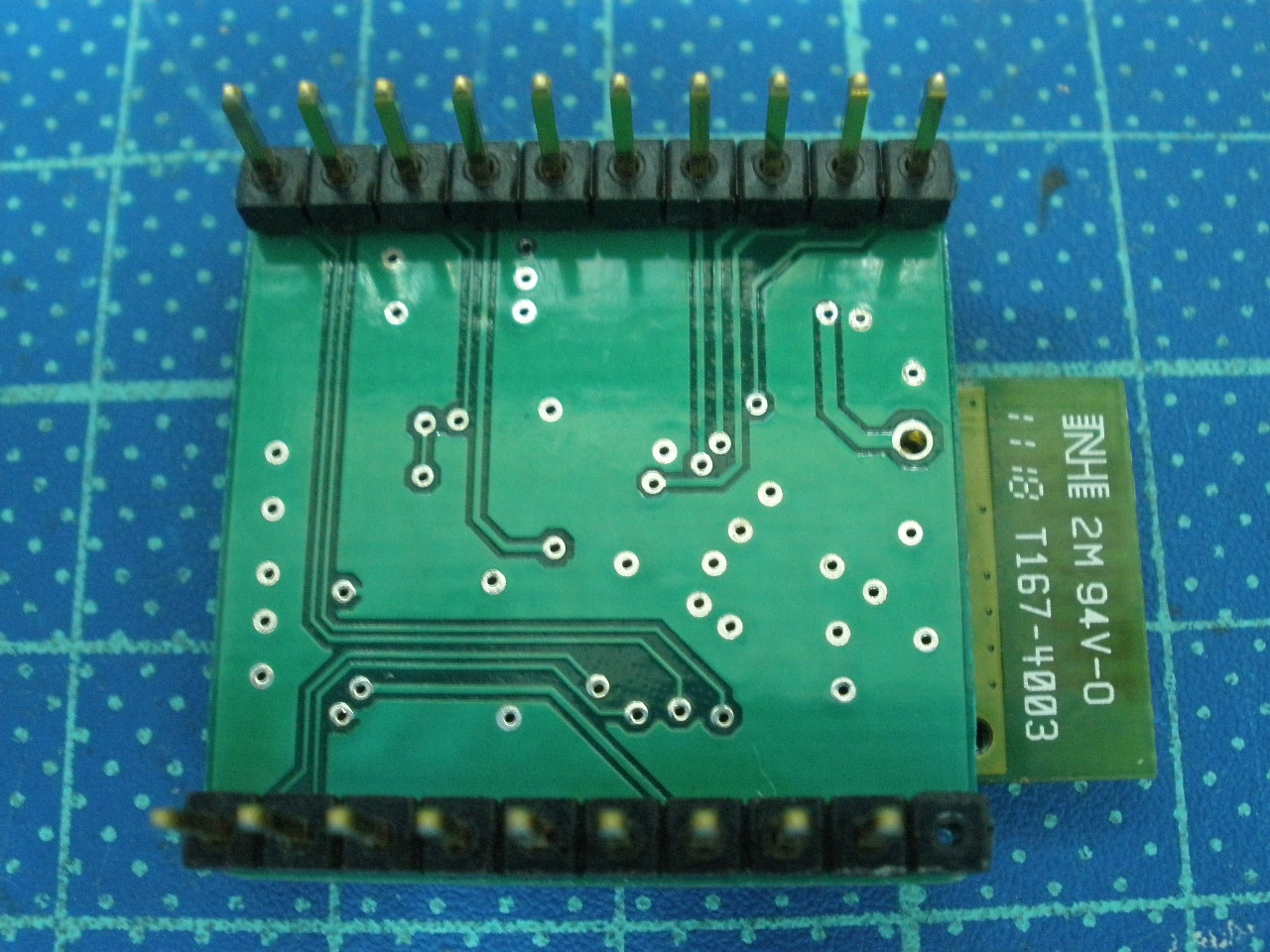

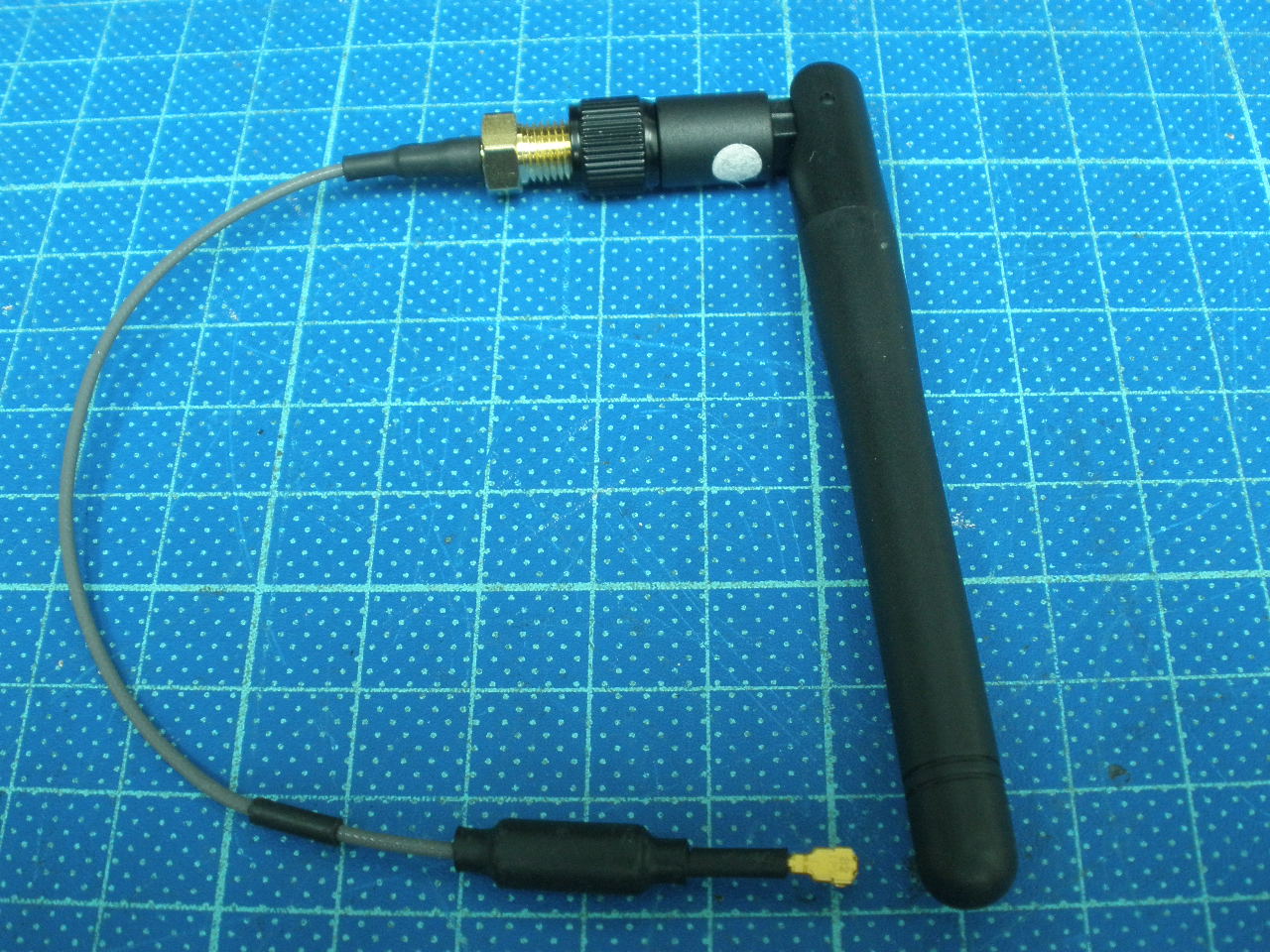

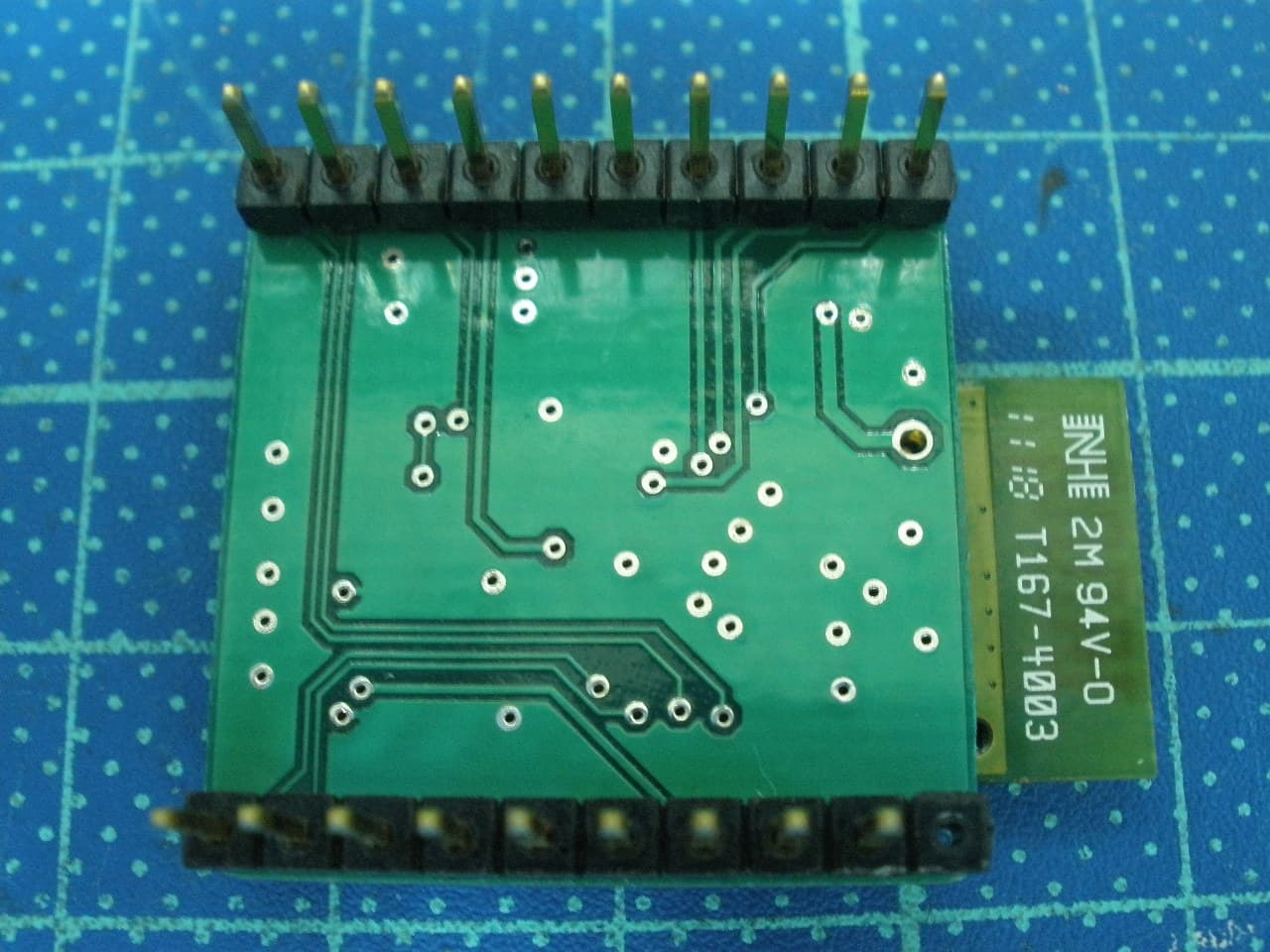

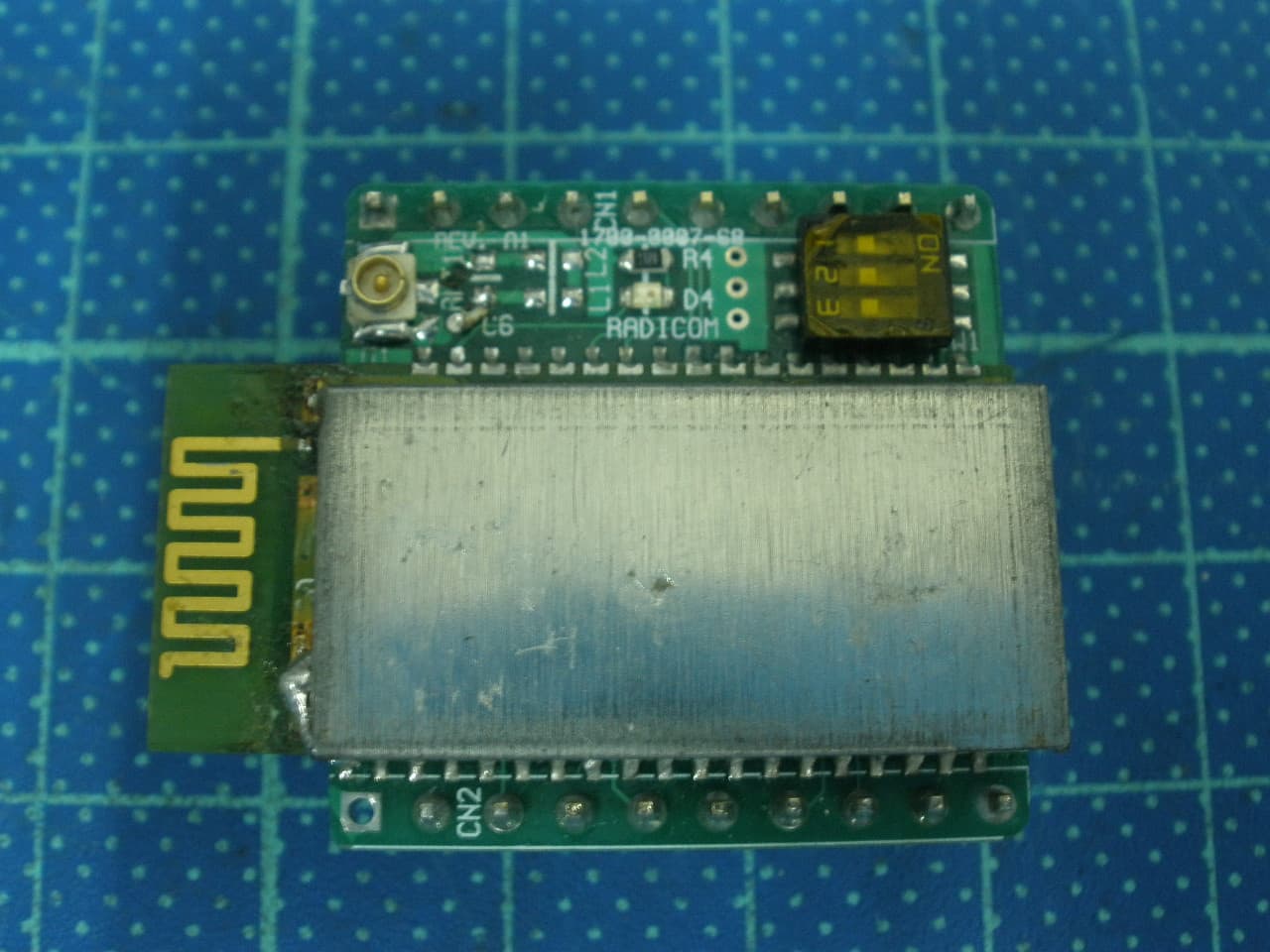

Internal photo of EUT Model: RB4000HM-a Model: RB4000HM-a Internal photo of EUT Model: RB4000HM-a Model: RB4000/H4000CE Antenna 1 Internal photo of EUT Model: RB4000HM-c Model: RB4000HM-c Internal photo of EUT Model: RB4000HM-c Model: RB4000HM-c Internal photo of EUT Model: RB4000/H4000CE Antenna 2

Model: RB4000HM-a FCC ID & IC Label Location Model: RB4000HM-c FCC ID & IC Label Location Model: RB4000/H4000CE FCC ID & IC Label Location

Internal photo of EUT Model: RB4000HM-a Model: RB4000HM-a Internal photo of EUT Model: RB4000HM-a Model: RB4000/H4000CE Antenna 1 Internal photo of EUT Model: RB4000HM-c Model: RB4000HM-c Internal photo of EUT Model: RB4000HM-c Model: RB4000HM-c Internal photo of EUT Model: RB4000/H4000CE Antenna 2

FCC ID. K7T-RB4000 Report No.: TS12010105-EME Page 1 of 68 EMC TEST REPORT Report No.: TS12010105-EME Model No.: RB4000HM-a, RB4000HM-c, RB4000, H4000CE Issued Date: May. 16, 2012 Applicant: Radicom Research Inc. 2148 Bering Dr., San Jose, CA. 95131, USA Test Method/ Standard: FCC Part 15 Subpart C Section §15.205、§15.207、§15.209、 §15.247, DA 00-705 and ANSI C63.4/2003. Test By: Intertek Testing Services Taiwan Ltd. No. 11, Lane 275, Ko-Nan 1 Street, Chia-Tung Li, Shiang-Shan District, Hsinchu City, Taiwan It may be duplicated completely for legal use with the allowance of the applicant. It shall not be reproduced except in full, without the written approval of Intertek Laboratory. The test result(s) in this report only applies to the tested sample(s). The test report was prepared by: Sign on File Julie Wang / Senior Assistant These measurements were taken by: Sign on File Terry Hsu / Engineer The test report was reviewed by: Name Jimmy Yang Title Engineer FCC ID. K7T-RB4000 Report No.: TS12010105-EME Page 2 of 68 Table of Contents Summary of Tests ..............................................................................................................3 1. General information ......................................................................................................4 2. Test specifications .........................................................................................................6 3. 20dB Bandwidth test .....................................................................................................8 4. Carrier Frequency Separation test ...............................................................................14 5. Number of hopping frequencies test ...........................................................................17 6. Time of Occupancy (dwell time) & Duty Cycle Correction Factor test .....................20 7. Maximum Output Power test ......................................................................................31 8. RF Antenna Conducted Spurious test..........................................................................32 9. Radiated Emission test ................................................................................................38 10. Emission on the band edge §FCC 15.247(d).............................................................53 11. Power Line Conducted Emission test §FCC 15.207 .................................................63 FCC ID. K7T-RB4000 Report No.: TS12010105-EME Page 3 of 68 Summary of Tests Test Reference Results 20dB Bandwidth test 15.247(a)(1) Pass Carrier Frequency Separation test 15.247(a)(1) Pass Number of hopping frequencies test 15.247(a)(1) Pass Time of Occupancy (dwell time) test 15.247(a)(1) Pass Maximum Output Power test 15.247(b) Pass RF Antenna Conducted Spurious test 15.247(d) Pass Radiated Spurious Emission test 15.205, 15.209 Pass Emission on the Band Edge test 15.247(d) Pass AC Power Line Conducted Emission test 15.207 Pass FCC ID. K7T-RB4000 Report No.: TS12010105-EME Page 4 of 68 1. General information 1.1 Identification of the EUT Product: Bluetooth Module Model No.: RB4000HM-a, RB4000HM-c FCC ID.: K7T-RB4000 Frequency Range: 2402 MHz ~ 2480 MHz Channel Number: 79 channels Frequency of Each Channel: 2402 + k MHz; k = 0~78 Type of Modulation: GFSK, π/4DPSK, 8DPSK Rated Power: DC 5 V Power Cord: N/A Sample Received: Jan. 04, 2012 Test Date(s): Jan. 04, 2012 ~ May. 15, 2012 Note 1: This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Note 2: When determining the test conclusion, the Measurement Uncertainty of test has been considered. FCC ID. K7T-RB4000 Report No.: TS12010105-EME Page 5 of 68 1.2 Additional information about the EUT The EUT is a Bluetooth Module, and was defined as information technology equipment. The customer confirmed the models listed as below were series model to model RB4000HM-a, RB4000HM-c (EUT), the difference between main model and series model are listed as below. Model Number Product Description RB4000HM-a Modules (with on- board antenna) RB4000HM-c Modules (with two antenna connectors) RB4000 Modules (with on- board antenna) H4000CE Identical model to RB4000 For more detail features, please refer to User's manual as file name “Installation guide.pdf” 1.3 Antenna description (1) Antenna 1 The EUT uses a permanently connected antenna. Antenna Gain : 1 dBi Antenna Type : Printed antenna Connector Type : N/A (2) Antenna 2 The antenna is affixed to the EUT using a unique connector, which allows for replacement of a broken antenna, but DOES NOT use a standard antenna jack or electrical connector. Antenna Gain : 2 dBi Antenna Type : Dipole antenna Connector Type : IPX FCC ID. K7T-RB4000 Report No.: TS12010105-EME Page 6 of 68 1.4 Peripherals equipment Peripherals Brand Model No. Serial No. Description of Data Cable Notebook PC DELL Latitude D610JXWZK1S 1. USB shielded cable 1.8 meter × 1 2. LPT console cable 0.2 meter × 1 Carrier board N/A N/A N/A N/A 2. Test specifications 2.1 Test standard The EUT was performed according to the procedures in FCC Part 15 Subpart C Section § 15.205、§15.207、§15.209、§15.247, DA 00-…

Text truncated - open the document above for the full version.

FCC ID. K7T-RB4000 Report No.: TS12010105-EME Page 32 of 68 8. RF Antenna Conducted Spurious test 8.1 Operating environment Temperature: 25 °C Relative Humidity: 58 % 8.2 Test setup & procedure The test procedure was according to FCC measurement guidelines DA 00-705. The measurements were performed from 30MHz to 25GHz RF antenna conducted per FCC 15.247 (c) was measured from the EUT antenna port using a 50ohm spectrum analyzer with the resolution bandwidth set at 100 kHz, and the video bandwidth set at 100 kHz. Harmonics and spurious noise must be at least 20dB down from the highest emission level within the authorized band as measured with a 100 kHz RBW. The table below is the results from the highest emission for each channel within the authorized band. This table was used to determine the spurious limits for each channel. 8.3 Measured data of the highest RF Antenna Conducted Spurious test result The test results please see the plot below. FCC ID. K7T-RB4000 Report No.: TS12010105-EME Page 33 of 68 For RB4000HM-a & RB4000HM-c Conducted spurious @ GFSK channel 0 Conducted spurious @ GFSK channel 39 FCC ID. K7T-RB4000 Report No.: TS12010105-EME Page 34 of 68 Conducted spurious @ GFSK channel 78 Conducted spurious @π /4 DPSK channel 0 FCC ID. K7T-RB4000 Report No.: TS12010105-EME Page 35 of 68 Conducted spurious @π /4 DPSK channel 39 Conducted spurious @π /4 DPSK channel 78 FCC ID. K7T-RB4000 Report No.: TS12010105-EME Page 36 of 68 Conducted spurious @ 8DPSK channel 0 Conducted spurious @ 8DPSK channel 39 FCC ID. K7T-RB4000 Report No.: TS12010105-EME Page 37 of 68 Conducted spurious @ 8DPSK channel 78 FCC ID. K7T-RB4000 Report No.: TS12010105-EME Page 38 of 68 9. Radiated Emission test 9.1 Operating environment Temperature: 23 °C Relative Humidity: 53 % Atmospheric Pressure:1008 hPa 9.2 Test setup & procedure The test procedure was according to FCC measurement guidelines DA 00-705 and ANSI C63.4/2003. The Diagram below shows the test setup, which is utilized to make these measurements. The frequency spectrum from 30MHz to 1000MHz was investigated. RF Test Receiver 0.8 m EUT & Peripherals Ground Plane Antenna Tower Receiver Antenna 1.0~4.0 m 3 m □ FCC ID. K7T-RB4000 Report No.: TS12010105-EME Page 39 of 68 The frequency spectrum from over 1GHz was investigated. The signal is maximized through rotation and placement in the three orthogonal axes. Radiated emission measurements were performed from 30 MHz to 25 GHz. Spectrum Analyzer Resolution Bandwidth is 100 kHz or greater for frequencies 30 MHz to 1 GHz, 1MHz – for frequencies above 1 GHz. The EUT for testing is arranged on a fiberglass turntable. If some peripherals apply to the EUT, the peripherals will be connected to EUT and the whole system. During the test, all cables were arranged to produce worst-case emissions. The signal is maximized through rotation. The height of antenna and polarization is changing constantly for exploring for maximum signal level. The height of antenna can be up to 4 meters and down to 1 meter. The measurement for radiated emission will be done at the distance of three meters unless the signal level is too low to measure at that distance. In the case of the reading under noise floor, a pre-amplifier is used and/or the test is conducted at a closer distance. And then all readings are extrapolated back to the equivalent 3 meter reading using inverse scaling with distance. RF Test Receive r Horn or Bilog Antenna Ground Plane Antenna Tower □ 3 m 1~4 m 0.8 m EUT & Peripherals FCC ID. K7T-RB4000 Report No.: TS12010105-EME Page 40 of 68 For the signal from USB WiFi Module is maximized through rotation and placement in the three orthogonal axes. EUT : RB4000HM-a X axis Y axis Z axis After verifying three axes, we found the maximum electromagnetic field was occurred at X axis. The final test data was executed under this configuration. EUT : RB4000HM-c X axis Y axis Z axis After verifying three axes, we found the maximum electromagnetic field was occurred at X axis. The final test data was executed under this configuration. The EUT configuration please refer to the “Spurious set-up photo.pdf”. FCC ID. K7T-RB4000 Report No.: TS12010105-EME Page 41 of 68 9.3 Emission limits The spurious Emission shall test through the 10th harmonic. In addition, radiated emissions which fall in the restricted bands, as defined in §15.205(a), must also comply with the radiated emission limits specified in §15.209(a). Frequency (MHz) Limits (dBμV/m@3m) 30-88 40 88-216 43.5 216-960 46 Above 960 54 Remark: 1. In the above table, the tighter limit applies at the band edges. 2. Distance refers to the distance in meters between the measuring instrument antenna and the closed point of any part of the device or system Measurement uncertainty was calculated in accordance with TR 100 028-1. Parameter Uncertainty Radiated Emission ±5.056 dB FCC ID. K7T-RB4000 Report No.: TS12010105-EME Page 42 of 68 9.4 Radiated spurious emission test data 9.4.1 Measurement results: frequencies equal to or less than 1 GHz EUT : RB4000HM-a Worst Case : GFSK Channel 0 Antenna Polarization Freq. (MHz) Receiver Detector Corr. Factor (dB/m) Reading (dBuV) Corrected Level (dBuV/m) Limit @ 3 m (dBuV/m) Margin (dB) V 106.63 QP 7.64 26.8434.48 43.50 -9.02 V 131.85 QP 11.39 24.1635.55 43.50 -7.95 V 167.74 QP 15.70 20.6936.39 43.50 -7.11 V 399.57 QP 16.40 18.4034.80 46.00 -11.20 V 719.67 QP 22.29 12.8035.08 46.00 -10.92 V 798.00 QP 23.19 19.0642.25 46.00 -3.75 H 128.94 QP 11.62 16.3127.92 43.50 -15.58 H 184.23 QP 12.08 15.2127.29 43.50 -16.21 H 399.57 QP 16.74 13.5530.29 46.00 -15.71 H 599.39 QP 20.84 10.2331.06 46.00 -14.94 H 749.74 QP 22.95 11.3334.28 46.00 -11.72 H 796.30 QP 23.52 20.4343.95 46.00 -2.05 Remark: 1. Corr. Factor = Antenna Factor + Cable Loss 2. Corrected Level = Reading + Corr. Factor FCC ID. K7T-RB4000 Report No.: TS12010105-EME Page 43 of 68 EUT : RB4000HM-c Wo r s t C a s e : GFSK Channel 0 Antenna Polarization Freq. (MHz) Receiver Detector Corr. Factor (…

Text truncated - open the document above for the full version.

Conducted Emission Test set-up photo Model: RB4000HM-a Model: RB4000HM-a Conducted Emission Test set-up photo Model: RB4000HM-c Model: RB4000HM-c

Radiated Emission Test set-up photo Model: RB4000HM-a Model: RB4000HM-a Radiated Emission Test set-up photo Model: RB4000HM-c Model: RB4000HM-c
