K7T-BPM730CE20730 class 2 Bluetooth Module

Radicom BPM730CE series Bluetooth HID Module Datasheet V1.7 Radicom Research, Inc. reserves the right to amend the document without notice at any time. Radicom assumes no responsibility for any errors appeared in the document, and disclaims any express or implied warranty, relating to sale and/or use of Radicom products including liability or warranties relating to fitness for a particular purpose, or Radicom Research, Inc. Copyright © 2014. All rights reserved www.radi.com Index 1. Introduction ..................................................................................................2 2. Features ........................................................................................................3 3. Product Specifications ................................................................................4 3.1 3.2 3.3 3.4 3.5 3.6 3.7 Function Block Diag ram ...................................................................4 Applications Diagram ...........................................................4 Bluetooth Related Specification .....................................................5 Electronic Character ..........................................................................5 Mechanical Dimension ......................................................................6 Pinout Diagram ..................................................................................7 Pin Definition .................................................................................. 8,9 1 4. FCC, IC, and CE Label Location and Module Model identification.........10 5. Important Regulatory Compliance and User Information......................11 6. Industry Canada statement...............................................................14 7. CE Declaration of Conformity.......................................................... ..17 1. Introduction Radicom BPM730CE series is a worldwide Bluetooth Human Interface Device (HID) module based on the latest Broadcom BCM20730 Bluetooth chip. It is integrated with PCB antenna, serial EEPROM, crystal, and also components for the built-in switching regulators to reduce the external BOM cost. Radicom BPM730CE series Bluetooth module integrates the entire profile, application, and Bluetooth protocol stack and is fully compliant with the Bluetooth SIG specification for human interface devices. The BPM730CE series is fully compliant with the version 3.0 Bluetooth specification, including enhanced power control (Unicast Connectionless Data), which is essential to mouse and keyboard applications in personal computers. Integration is the key to achieving the system cost targets of today's PC OEMs. By integrating all components within today's mouse and keyboard into the BPM730C E series, low system costs can be achieved to approach the price points of legacy-wired mice and keyboards. The BPM730CE series can interface directly to mouse optical or ball encoders and keyboard scan matrices. This module is suitable for the following various applications: • • • • • • Wireless keyboards Wireless pointing devices: mice, track balls Game controllers Joysticks Presenter devices Remote controls Class 2, BPM730CE series 2 Radicom Research, Inc. Copyright © 2014. All rights reserved www.radi.com 2. Features 1. Single-chip Bluetooth device with fully integrated Human Interface Device (HID) profile and full Bluetooth stack. 2. On-board ARM processor and RAM/ROM memory. 3. Custom-integrated Bluetooth core processor has been optimized to support the HID V1.0 profile and minimize power consumption. 4. Bluetooth version 3.0 compliant including support for enhanced power control (Unicast Connectionless Data) 5. Integrate serial EEPROM and contains high-performance boost regulator for direct connection with mice electronics. 6. Built-in switching regulator to reduce external BOM and provide high efficient power for external sensor. 7. On-module serial EEPROM for configuration and patch code. 8. Supports SPI (full duplex and half duplex) to communicate with mouse sensor. 9. Direct interface to keyboard scan matrix with full support for up to 8X20 keys and user-customized hot keys. 10. Integrated quadrate signal decoder to support both ball and optical mouse designs. 11. Direct interface to LED 12. Approx. 30.6mm x 15mm x 3mm FR4 PCB. 3 Radicom Research, Inc. Copyright © 2014. All rights reserved www.radi.com 3. Product Specifications 3.1. Function Block Diagram 3.2. Applications Diagram 4 Radicom Research, Inc. Copyright © 2014. All rights reserved www.radi.com 3.3. Bluetooth related Specification meet FCC and R&TTE 3.4 Electronic Character 5 Radicom Research, Inc. Copyright © 2014. All rights reserved www.radi.com Minimum Typical Maximum Unit Operation voltage 2.0 3.0 3.6 V Output Power 2 dBm Sensitivity -84 dBm Key scan active mode, VBAT=3V 2.5 mA Sniff Mode, 100mS, VBAT=3V 0.78 mA Deep sleep, VBAT=3V 40 uA Wireless Bluetooth v3.0 Class 2 (Broadcom20730chip) Data Rate Bluetooth v3.0 (1Mbps) Bandwidth 2.402GHz – 2.480 GHz RF output power Bluetooth class 2 ( up to +2dBm ) Sensitivity Bluetooth class 2 ( down to -84dBm) Spread Spectrum Frequency Hopping Spread Spectrum (FHSS) Modulation method GFSK Operation Range Up to 10M (open space) Note: The maximum operating range depends on the paired PC or Rx dongle performance, battery power, and environmental factors System IBM PC Pentium 233 or Above. Linux and Mac are also acceptable i.e. PowerMac 10.1 / PowerPC G4(1.2) or Above. Win2000/ WinXP/ Vista/ Win7 (Support WinXP SP2, Widcomm BTW, Toshiba Stack or IVT BlueSoleil Bluetooth Softwares) Bluetooth USB dongle or Bluetooth-enabled PC Storage Te m p . -40°C~125°C Operation Humidity 10%~90%(55±2%) Operation Te m p . -20°C ~ +70°C 3.5 Mechanical Dimension To p s i d e view:     Board size = 30.556 mm x 14.986 mm Pitch of short side = 1.27 mm Pitch of long side = 1.143 mm Pad width = 0.914 mm Module Height   Maximum height = 3.0 mm Board thickness = 0.80 mm 6 Radicom Research, Inc.…

Text truncated - open the document above for the full version.

Date: 2014/4/23 Federal Communications Commission 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Product Certification Representative Authorization Letter FCC ID: K7T-BPM730CE Product name: 20730 class 2 Bluetooth Module To whom it may concern: We the undersigned, hereby authorize following person to act as our agent in the preparation of an application for equipment authorization of model BPM730CE / RB730 to the FCC Rules and Regulations. International Certification Corp. Address : No.3-1, Lane 6, Wen San 3rd St. Kwei Shan Hsiang, Tao Yuan Hsein 333, Taiwan (R.O.C.) Name : Gary Chang Job Title : Manager e-mail : [email protected] Webs We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002(b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This appointment also includes the authority to complete FCC Form 731 on our behalf and sign the application as an authorized agent. Applicant : Radicom Research, Inc. Address : 2148 Bering Drive, San Jose, CA 95131 U.S.A Signature : Name and Job Title. : Roger L. Sheridan , Quality Manager E-mail : [email protected] Tel. : 408 383 9006 X114

Date: April 18, 2014 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Request for confidentiality FCC ID: K7T-BPM730CE To whom it may concern: Short-term confidentiality Pursuant to DA 04-1705 of the Commission’s pubic notice, in order to comply with the marketing regulations in 47CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments for 180 days. ☒ Internal Photographs ☒ External Photographs ☒ User's manual ☒ Test Set up photo Permanent confidentiality Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accompanying this Application As outlined below: ☒ Block Diagram ☒ Schematics ☒ Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Applicant : Radicom Research, Inc. Address : 2148 Bering Drive, San Jose, CA 95131 U.S.A Signature : _________________________________ Name and Job Title. : Roger L. Sheridan , Quality Manager E-mail : [email protected] Tel. : 408 383 9006 X114

RF_734_00, Issue 1 Modular Approval Request FCC (per DA 00-1407) FCC ID: K7T-BPM730CE Items to be covered Answer from applicant 1. The modular transmitter must have its own RF shielding. The modular has a shielding Case. Please refer to EUT Photo. 2. The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation. The component number is BCM20730 3. The modular transmitter must have its own power supply regulation. The component number is ELM91301BA-S / BCM20730 4. The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable).. The device has no antenna Connector. And no external amplifier will be used with this modular. 5. The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing. This is intended to demonstrate that the module is capable of complying with Part 15 emission limits regardless of the device into which it is eventually installed. This modular is tested under stand-alone configuration. Please refer to Test setup photo. 6. The modular transmitter must be labeled with its own FCC ID number, and, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL1.” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. The modular transmitter is labeled with its own FCC ID number. Please refer to label sample and label location. 7. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. For example, there are very strict operational and timing requirements that must be met before a transmitter is authorized for operation under Section 15.231. For instance, data transmission is prohibited, except for operation under Section 15.231(e), in which case there are separate field strength level and timing requirements. Compliance with these requirements must be assured. The modular complies with this requirement. Please refer to user manual. 8. The modular transmitter must comply with any applicable RF exposure requirements. For example, FCC Rules in Sections 2.1091, 2.1093 and specific Sections of Part 15, including 15.319(i), 15.407(f), 15.253(f) and 15.255(g), require that Unlicensed PCS, UNII and millimeter wave devices perform routine environmental evaluation for RF Exposure to demonstrate compliance. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF Exposure compliance in accordance with Section 15.247(b)(4). Modular transmitters approved under other Sections of Part 15, when necessary, may also need to address certain RF Exposure concerns, typically by providing specific installation and operating instructions for users, installers and other interested parties to ensure compliance. The device complies with this requirement. Please refer to RF exposure report. Note: If compliance with one or more of the numbered requirements, listed above, cannot be demonstrated, it may be possible to obtain a “Limited Modular Approval” (LMA). Name and surname of applicant (or authorized representative): __________________ Date: ___24 April 2014____ Signature: ___________________________

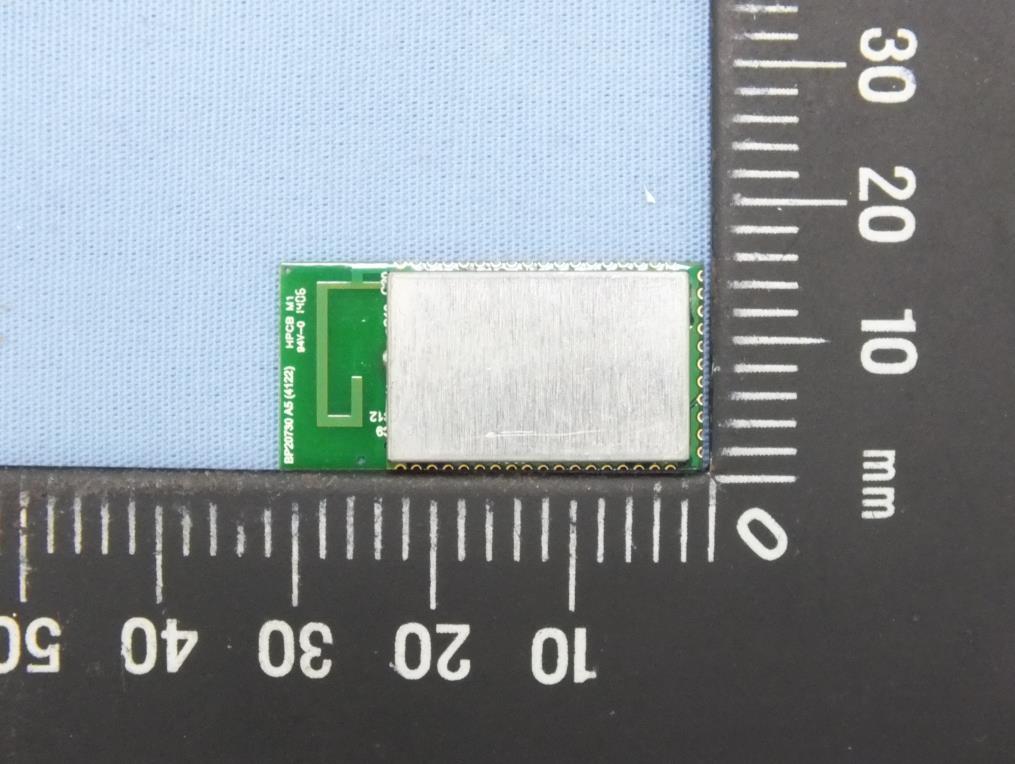

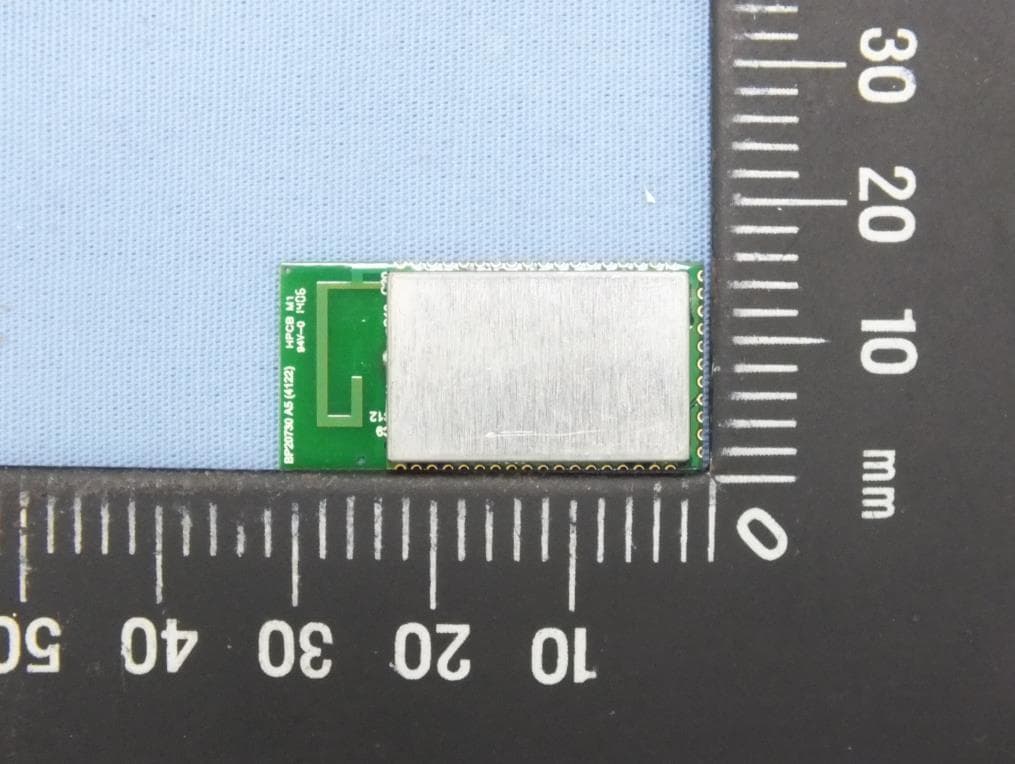

Project No.: EP440903 Page No. : 1 of 2 Photographs of EUT

Project No.: EP440903 Page No. : 2 of 2

Report No.: FA440903 Page : 1 of 7 Report Version: Rev. 01 FCC RF Exposure Report FCC ID : K7T-BPM730CE Equipment : 20730 class 2 Bluetooth Module Model No. : BPM730CE (Please refer to 1.1.1 for more details.) Brand Name : Radicom Applicant : Radicom Research, Inc. Address : 2148 Bering Drive, San Jose, CA 95131 U.S.A Standard : 47 CFR FCC Part 2.1093 Received Date : Apr. 09, 2014 Tested Date : Apr. 09 ~ Apr. 11, 2014 We, International Certification Corp., would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It may be duplicated completely for legal use with the approval of the applicant. It shall not be reproduced except in full without the written approval of our laboratory. Approved & Reviewed by: Gary Chang / Manager Ty: XXX Report No.: FA440903 Page : 2 of 7 Report Version: Rev. 01 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 4 1.1 Information .............................................................................................................................................. 4 2 EXPOSURE EVALUATION OF PORTABLE OR MOBILE DEVICES .................................................. 5 2.1 SAR TEST EXCLUSION THRESHOLD FOR 100MHz to 6GHz and  50mm ................................... 5 2.2 EVALUATION RESULTS ....................................................................................................................... 6 3 TEST LABORATORY INFORMATION ................................................................................................. 7 Report No.: FA440903 Page : 3 of 7 Report Version: Rev. 01 Release Record Report No. Version Description Issued Date FA440903 Rev. 01 Initial issue Apr. 23, 2014 Report No.: FA440903 Page : 4 of 7 Report Version: Rev. 01 1 General Description 1.1 Information 1.1.1 Product Details The following models are provided to this EUT. Brand Name Model Name Product Name Radicom BPM730CE 20730 class 2 Bluetooth Module RB730  All models are electrically identical, different model names are for marketing purpose.  The above models, model BPM730CE was selected as a representative one for the final test and only its data was recorded in this report. 1.1.2 Specification of the Equipment under Test (EUT) RF General Information Frequency Range (MHz) Bluetooth Mode Ch. Frequency (MHz) Channel Number Data Rate 2400-2483.5 BR V3.0 2402-2480 0-78 [79] 1 Mbps Note 1: RF output power specifies that Maximum Peak Conducted Output Power. Note 2: Bluetooth BR uses a GFSK and EDR mode is not supported. 1.1.3 Antenna Details Ant. No. Type Gain (dBi) Connector Remark 1 Inverted-F 1 No connector --- Report No.: FA440903 Page : 5 of 7 Report Version: Rev. 01 2 EXPOSURE EVALUATION OF PORTABLE OR MOBILE DEVICES Human exposure to RF emissions from portable devices (47 CFR §2.1093), as defined by the FCC, must be evaluated with respect to the FCC-adopted limits for SAR. Evaluation of mobile devices, as defined by the FCC, may also be performed with respect to SAR limits, but in such cases it is usually simpler and more cost-effective to evaluate compliance with respect to field strength or power density limits. For certain devices that are designed to be used in both mobile and portable configurations similar to those described in 47 CFR §2.1091(d)(4), such as certain desktop phones and wireless modem modules, compliance for mobile configurations is also satisfied when the same device is evaluated for SAR compliance in portable configurations. 2.1 SAR TEST EXCLUSION THRESHOLD FOR 100MHz to 6GHz and  50mm Frequency (MHz) 5 10 15 20 25 Separation distance (mm) 150 39 77 116 155 194 SAR Test Exclusion Threshold (mW) 300 27 55 82 110 137 450 22 45 67 89 112 835 16 33 49 66 82 900 16 32 47 63 79 1500 12 24 37 49 61 1900 11 22 33 44 54 2450 10 19 29 38 48 3600 8 16 24 32 40 5200 7 13 20 26 33 5400 6 13 19 26 32 5800 6 12 19 25 31 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where •f(GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. Report No.: FA440903 Page : 6 of 7 Report Version: Rev. 01 2.2 EVALUATION RESULTS Frequency (MHz) Maximum Conducted Peak Power (dBm) Maximum Conducted Average Power (dBm) Maximum Conducted Average Power (mW) Antenna Gain (dBi) 2441 ( BT ) -1.26 -1.31 0.74 1 [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] * [√f(GHz)] =0.74 / 5 * √2.441 = 0.231 < 3.0 SAR Test Exclusion Thresholds is < 10mW and 3.0 for separation distance 5mm. Therefore, SAR test is not required. Report No.: FA440903 Page : 7 of 7 Report Version: Rev. 01 3 Test laboratory information Established in 2012, ICC provides foremost EMC & RF Testing and advisory consultation services by our skilled engineers and technicians. Our services employ a wide variety of advanced edge test equipment and one of the widest certification extents in the business. International Certification Corp, it is our definitive objective is to institute long term, trust-based associations with our clients. The expectation we set up with our clients is based on outstanding service, practical expertise and devotion to a certified value structure. Our passion is to grant our cli…

Text truncated - open the document above for the full version.

Report No.: FR440903AD Page : 1 of 37 Report Version: Rev. 01 FCC Test Report FCC ID : K7T-BPM730CE Equipment : 20730 class 2 Bluetooth Module Model No. : BPM730CE (Please refer to 1.1.1 for more details.) Brand Name : Radicom Applicant : Radicom Research, Inc. Address : 2148 Bering Drive, San Jose, CA 95131 U.S.A Standard : 47 CFR FCC Part 15.247 Received Date : Apr. 09, 2014 Tested Date : Apr. 09 ~ Apr. 11, 2014 We, International Certification Corp., would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It may be duplicated completely for legal use with the approval of the applicant. It shall not be reproduced except in full without the written approval of our laboratory. Approved & Reviewed by: Gary Chang / Manager Ty: XXX Report No.: FR440903AD Page : 2 of 37 Report Version: Rev. 01 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information .............................................................................................................................................. 5 1.2 Local Support Equipment List ................................................................................................................ 7 1.3 Test Setup Chart .................................................................................................................................... 7 1.4 The Equipment List ................................................................................................................................ 8 1.5 Test Standards ....................................................................................................................................... 9 1.6 Measurement Uncertainty ...................................................................................................................... 9 2 TEST CONFIGURATION ..................................................................................................................... 10 2.1 Testing Condition ................................................................................................................................. 10 2.2 The Worst Test Modes and Channel Details ....................................................................................... 10 3 TRANSMITTER TEST RESULTS ........................................................................................................ 11 3.1 Conducted Emissions ........................................................................................................................... 11 3.2 Unwanted Emissions into Restricted Frequency Bands ...................................................................... 14 3.3 Unwanted Emissions into Non-Restricted Frequency Bands .............................................................. 24 3.4 Conducted Output Power ..................................................................................................................... 27 3.5 Number of Hopping Frequency ............................................................................................................ 29 3.6 20dB and Occupied Bandwidth ............................................................................................................ 31 3.7 Channel Separation .............................................................................................................................. 33 3.8 Number of Dwell Time .......................................................................................................................... 35 4 TEST LABORATORY INFORMATION ............................................................................................... 37 Report No.: FR440903AD Page : 3 of 37 Report Version: Rev. 01 Release Record Report No. Version Description Issued Date FR440903AD Rev. 01 Initial issue Apr. 23, 2014 Report No.: FR440903AD Page : 4 of 37 Report Version: Rev. 01 Summary of Test Results FCC Rules Test Items Measured Result 15.207 Conducted Emissions [dBuV]: 0.182MHz 55.01 (Margin 9.36dB) - QP Pass 15.247(d) 15.209 Radiated Emissions [dBuV/m at 3m]: 191.99MHz 35.15 (Margin 8.35dB) - PK Pass 15.247(d) Band Edge Meet the requirement of limit Pass 15.247(b)(1) Conducted Output Power Power [dBm]: BR: -1.26 Pass 15.247(a)(1)(iii) Number of Hopping Channels Meet the requirement of limit Pass 15.247(a)(1) Hopping Channel Separation Meet the requirement of limit Pass 15.247(a)(1)(iii) Dwell Time Meet the requirement of limit Pass 15.203 Antenna Requirement Meet the requirement of limit Pass Report No.: FR440903AD Page : 5 of 37 Report Version: Rev. 01 1 General Description 1.1 Information 1.1.1 Product Details The following models are provided to this EUT. Brand Name Model Name Product Name Radicom BPM730CE 20730 class 2 Bluetooth Module RB730  All models are electrically identical, different model names are for marketing purpose.  The above models, model BPM730CE was selected as a representative one for the final test and only its data was recorded in this report. 1.1.2 Specification of the Equipment under Test (EUT) RF General Information Frequency Range (MHz) Bluetooth Mode Ch. Frequency (MHz) Channel Number Data Rate 2400-2483.5 BR V3.0 2402-2480 0-78 [79] 1 Mbps Note 1: RF output power specifies that Maximum Peak Conducted Output Power. Note 2: Bluetooth BR uses a GFSK modulation and EDR mode is not supported. 1.1.3 Antenna Details Ant. No. Type Gain (dBi) Connector Remark 1 Inverted-F 1 No connector --- 1.1.4 Power Supply Type of Equipment under Test (EUT) Power Supply Type 3Vdc from host 1.1.5 Accessories N/A Report No.: FR440903AD Page : 6 of 37 Report Version: Rev. 01 1.1.6 Channel List Frequency band (MHz) 2400~2483.5 Channel Frequency (MHz) Channel Frequency (MHz) Channel Frequency (MHz) Channel Frequency (MHz) 0 2402 20…
