K7T-WIFIHU-AUSB WiFi Module

Radicom Research, Inc. Preliminary Designers Guide for the WiFiHU-NE and WiFiHU USB WiFi Modules RoHS Compliant February 17, 2011 Table of Contents Introduction and Features 3 Ratings and Block Diagram 4 Model and Ordering Information 5 Connecting the WiFiHU or WiFiHU-NE to Your System 6 Mechanical Specification and Pin Orientation for the WiFiHU 7 Mechanical Specification for the WiFiHU USB HUB 8 WiFiHU USB Interface Pins 9 Additional Information on the Interface Signals 10 Important Compliance and User Information 11 Driver Installation Guide For Windows XP/2K 14 Driver Installation Guide For Windows 7 25 Driver Installation Guide For Windows Vista 30 WiFiHU USB Linux Driver Quick Installation Guide 36 Limited Warranty 37 Contacting Radicom Research 39 Introduction 2 Information furnished by Radicom Research is believed to be accurate and reliable. However Radicom Research assumes no responsibility for its use, or any infringement of patents or other rights of third parties that may result from its use. Radicom Research reserves the right to change circuitry at any time without notice. This document is subject to change without notice. Thanks for purchasing Radicom Research’s USB WiFi Module. Radicom is committed to providing quality service and technical support in order to expedite the product development process. The WiFiHU Module requires only a USB (Universal Serial Bus) interface to add state of the art data WiFi wireless operation to any system. It is designed to fully support IEEE802.11n™ Draft 2.0, IEEE802.11e™ and IEEE802.11i™ standards. If further information is required, please contact us and we will provide any additional help needed. Features • Compatible with both USB 1.1 and USB 2.0 host controllers • USB 2.0 Compatible Hot Swappable Interface • IEEE 802.11b/g/n compatible WLAN • 1x2 MIMO technology for extended reception robustness and exceptional throughput • 150Mbps receive PHY rate and 75Mbps transmit PHY rate using 20MHz bandwidth • 300Mbps receive PHY rate and 150Mbps transmit PHY rate using 40MHz bandwidth • 20MHz and 40MHz bandwidth transmission • Operates in 2.4GHz Frequency Range • Compatible with 802.11n draft 2.0 specification • Backward compatible with 802.11b/g devices while operating at 802.11n data rates • Frame aggregation for increased MAC efficiency (A-MSDU, A-MPDU) • Low latency immediate High-Throughput Block Acknowledgement (HT-BA) • Long NAV for media reservation with CF-End for NAV release • PHY-level spoofing to enhance legacy compatibility • MIMO power saving mechanism • Channel management and co-existence • Multiple BSSID feature allows the RTL8191SU-GR to assume multiple MAC identities when used as a wireless bridge • Supports Wake-On-WLAN via Magic Packet and Wake-up frame • Transmit Opportunity (TXOP) Short Inter-Frame Spaces (SIFS) bursting for higher multimedia bandwidth • One Transmit and Two Receive paths (1T2R) • Short Guard Interval (400ns) • DSSS with DBPSK and DQPSK, CCK modulation with long and short preamble • OFDM with BPSK, QPSK, 16QAM, and 64QAM modulation Convolutional Coding Rate: 1/2, 2/3, 3/4, and 5/6 • OFDM receive diversity with MRC using up to 2 receive paths. Switch diversity used for DSSS/CCK • Hardware antenna diversity • Selectable digital transmit and receive FIR filters • Programmable scaling in transmitter and receiver to trade quantization noise against increased probability of clipping • Fast receiver Automatic Gain Control (AGC) • RoHS Compliant and CE Marked 3 Support • IEEE 802.11b/g/n compatible WLAN • IEEE 802.11e QoS Enhancement (WMM) • IEEE 802.11h TPC, Spectrum Measurement • IEEE 802.11i (WPA, WPA2). Open, shared key, and pair-wise key authentication services • Cisco Compatible Extensions (CCX4) Ratings Parameter Min TypicalMax Units Maximum Data Rate 300M bps Operating Temperature HU 0° 70° °C Storage Temperature 0° 125° °C Relative Humidity (non-condensing) 5 % 95 % Current Consumption 152 155 162 mA Transmit & Receive Level -84(Rx) +17 (Tx) dBm Block Diagram 4 USB MAC RF USB Port USB MODULE GND Antenna Model and Ordering Information This versatile WiFiHU USB family of products offers various configuration options to meet the specific system requirements a designer may need to add state of the art WiFi USB operation. The WiFiHU is available as a module, a module with USB Jack and antennae interface, or as a complete external device in an enclosure. The WiFiHU also has three different antennae options. Model Description Comments WiFiHU-a WiFi USB Module with dual on board chip antennae Uses onboard chip antennae. Not for use with External Antenna. Allows designer to determine USB Jack placement. WiFiHU-a-1-NE WiFiHU-a installed in a WiFiHU-CB1 Carrier Board with on board USB Jack. Complete WiFi Module with dual chip antennae with USB Jack interface. WiFiHU-a-1-UE WiFiHU-a and WiFiHU-CB1 installed in enclosure Complete WiFi Standalone model with on board dual chip antenna and USB Jack mounted in enclosure. WiFiHU-c WiFi USB Module with two SMD Connectors for attaching antenna cable and 2.4GHz 2 dBi Omni-directional antenna Allows designer to determine USB Jack and antenna placement. WiFiHU-c-1-NE WiFiHU-c installed in WiFiHU- CB1 Carrier Board with on board USB Jack. Complete WiFi Module with cable and antenna with USB Jack interface. WiFiHU-c-1-UE WiFiHU-c and WiFiHU-CB1 installed in enclosure Complete WiFi Standalone model with cable, antenna and USB Jack mounted in enclosure WiFiHU-c-2-NE WiFiHU-c installed in WiFiHU- CB2 Carrier Board with on board RPSMA antenna Jack and USB Jack Complete WiFi Module with Fixed location antenna and USB Jack. WiFiHU-c-2-UE Complete WiFi module with antenna installed in a case. Complete WiFi USB Model with antenna and USB Jack mounted in enclosure. 5 Connecting the WiFiHU or WiFiHU-NE to Your System The WiFiHU Modules are designed for easy connection to any standard USB Port and wireless network. Connect one end of the USB cable into the USB connector on the WiFiHU-NE …

Text truncated - open the document above for the full version.

Radicom Research, Inc. www.Radi.com 2148 Bering Drive, San Jose, CA 95131 U.S.A. Tel: 408-383-9006 Fax: 408-383-9007 Confidentility Letter (Permanent) Attention: Application Examiner Re: Request for confidentiality Applicant: Radicom Research Inc. FCC ID: K7T-WIFIHU- A To whom it may concern, Request is hereby submitted by Radicom Research Inc. to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential: • Schematics • Detailed Block diagrams • Detailed Operational/Functional Description Rationale for request for confidentiality: Radicom Research Inc. has invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. If you have questions or need further information, please contact the undersigned. Sincerely, Printed name: Roger L. Sheridan Title: Quality Manager Company name: Radicom Research, Inc. Date: 2011-05-31

FCC ID: K7T-WIFIHU-A Date: Jun. 21, 2011 Modular Approval Request Letter Dear Sir, There’s an USB WiFi Module that would like to have your authorization as a modular approval. The specific product as below, USB WiFi Module, with its designed features and specified description, meets special requirements for full modular approval on FCC Public Notice DA 00-1407 by cross-reference list below. Com pany: Radicom Research Inc. Product Name: USB WiFi Module Model Number: WiFiHU-a, WiFiHU-a-1-NE, WiFiHU-c, WiFiHU-c-1-NE FCC ID: K7T-WIFIHU-A Requirement of Part 15.212 Reference to WiFiHU-a, WiFiHU-a-1-NE, WiFiHU-c, WiFiHU-c-1-NE 1. The radio elements of the modular transmitter must have their own shielding. The physical crystal and tuning capacitors may be located internal to the shielded radio elements. The module has its own RF shielding. Please see internal photo.pdf 2. The modular transmitter must have buffered modulation/data inputs. The modular has buffered data inputs, it is integrated in chip RT2880/RT2820. Please see diagram.pdf 3. The modular transmitter must have its own power supply regulation. All power lines derived from the host device are regulated before energizing other circuits internal to the WiFiHU-a, WiFiHU-a-1-NE, WiFiHU-c, WiFiHU-c-1-NE. Please see circuit.pdf 4. The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(c). The WiFiHU-c-2-NE meets the FCC antenna requirements. It has a unique connector. Please see internal photo.pdf 5. The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing. The WiFiHU-a, WiFiHU-a-1-NE, WiFiHU-c, WiFiHU-c-1-NE were tested in a stand-alone configuration via an USB hub PCB (WiFiHU-NE). To remove the WiFiHU carefully remove it from the two 8 pin headers on the WiFiHU- NE USB interface board. Save this interface board. Please see conducted set-up photo.pdf and spurious set-up photo.pdf 6. The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number. The label position of WiFiHU-a, WiFiHU-a-1-NE, WiFiHU-c, WiFiHU-c-1-NE is clearly indicated. Please see the label.pdf 7. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. The WiFiHU-a, WiFiHU-a-1-NE, WiFiHU-c, WiFiHU-c-1-NE is compliant with all applicable FCC rules. Detail instructions are given in the Users Manual. Please see Installation guide.pdf 8. The modular transmitter must comply with any applicable RF exposure requirements. For example, FCC Rules in Sections 2.1091, 2.1093 and specific Sections of Part 15, including 15.319(i), 15.407(f), 15.253(f) and 15.255(g), require that Unlicensed PCS, UNII and millimeter wave devices perform routine environmental evaluation for RF Exposure to demonstrate compliance. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF Exposure compliance in accordance with Section 15.247(b)(4). The WiFiHU-a, WiFiHU-a-1-NE, WiFiHU-c, WiFiHU-c-1-NE comply with applicable RF exposure requirements. Please see RF safety evaluation. pdf Yours sincerely, Jimmy Yang Engineer Intertek Testing Service Taiwan Ltd .

Radicom Research, Inc. www.Radi.com 2148 Bering Drive, San Jose, CA 95131 U.S.A. Tel: 408-383-9006 Fax: 408-383-9007 Attestation for FCC Declaration of Conformity FCC ID: K7T-WIFIHU-A Date: 2011-05-31 Please be notified that we, the undersigned, Radicom Research Inc. declares that the product which bears the above FCC ID is also compliant with the FCC requirements for DoC. The test report number supporting the DoC is TS11050006-EME. Testing in regards to this report was done by Intertek Testing Services Taiwan Ltd., located at 11, Ln. 275, Ko Nan 1st Street, Shiang-Shan District, Hsinchu 300 Taiwan, R.O.C., which has been accredited in accordance to all of the requirements of 47CFR 2.948 (d) and (e) of the FCC rules and KDB349827. Sincerely, Printed name: Roger L. Sheridan Position: Quality Manager Company Name: Radicom Research, Inc. Tel: 408-383-9006 Fax: 408-383-9007 Email: [email protected]

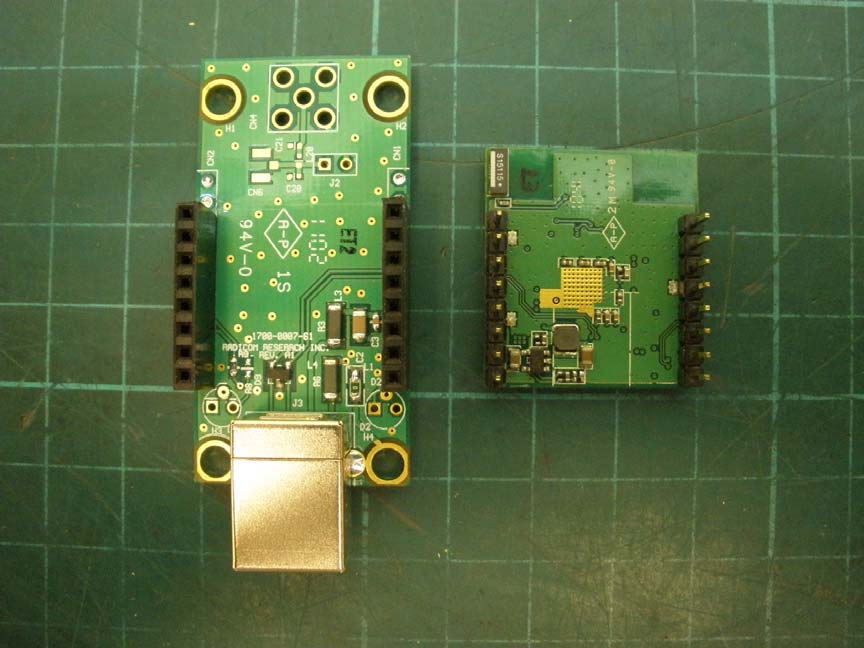

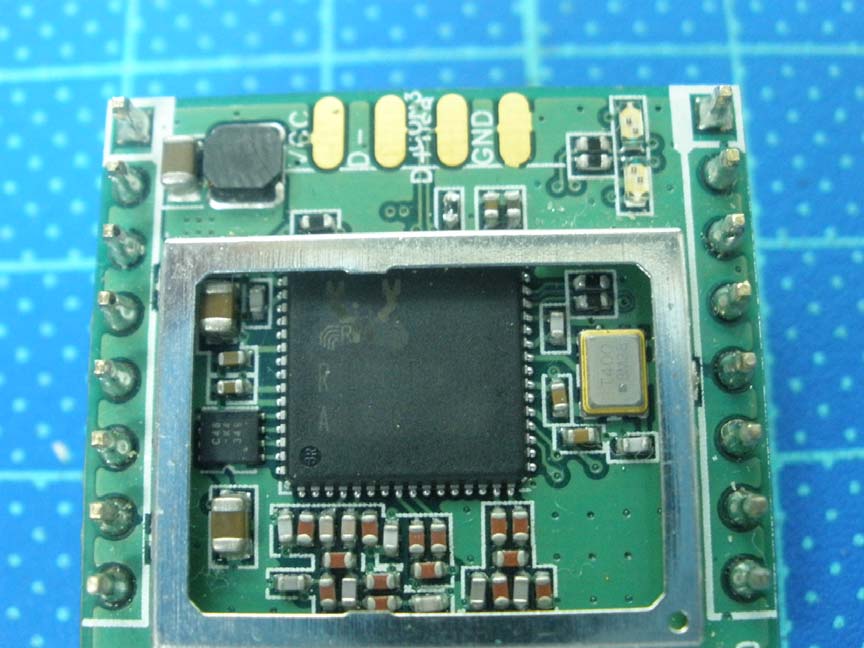

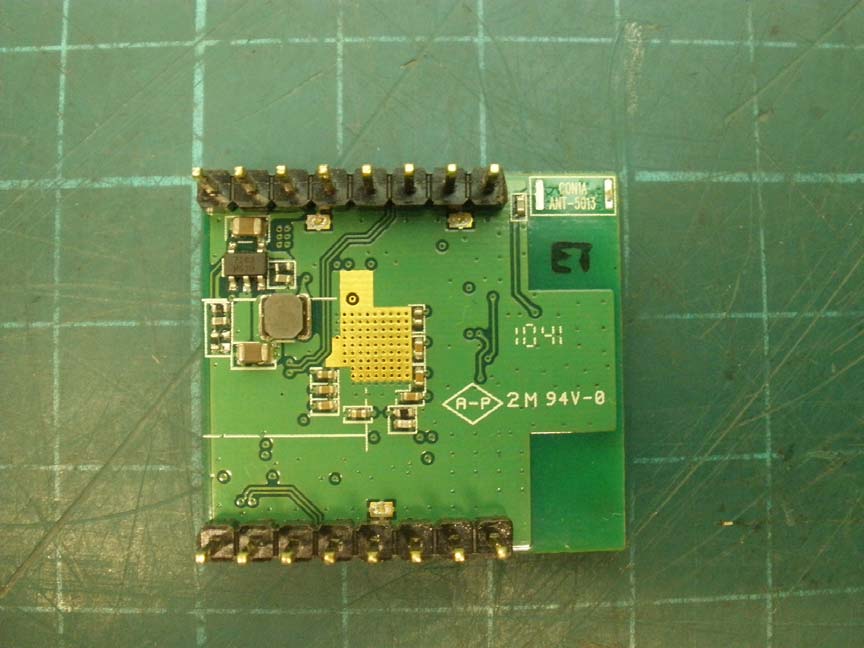

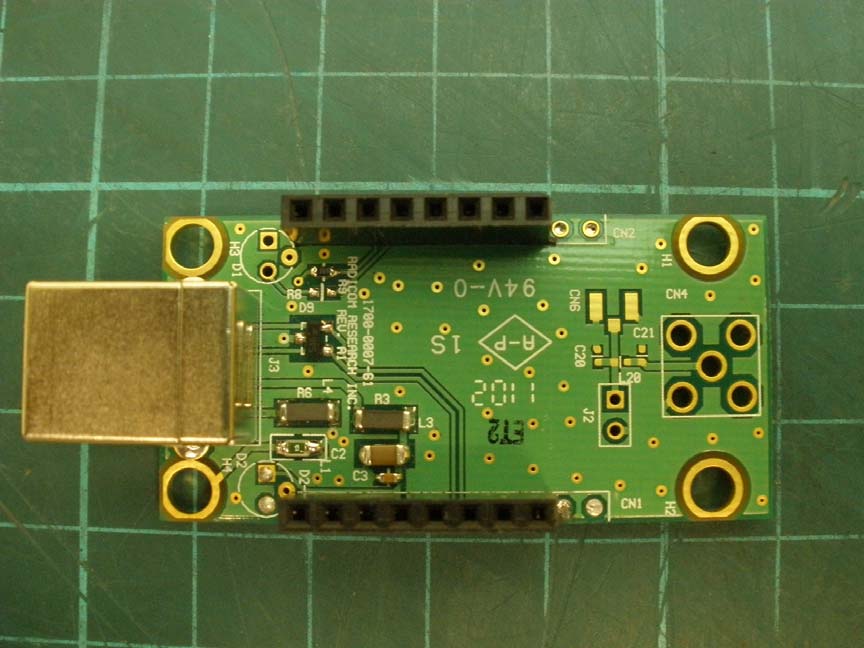

Internal photo of EUT Model: WiFiHU-a-1-NE Model: WiFiHU-a-1-NE Internal photo of EUT Model: WiFiHU-a-1-NE Model: WiFiHU-a-1-NE Internal photo of EUT Model: WiFiHU-a-1-NE Model: WiFiHU-a Internal photo of EUT Model: WiFiHU-a Model: WiFiHU-a Internal photo of EUT Model: WiFiHU-c-1-NE Model: WiFiHU-c-1-NE Internal photo of EUT Model: WiFiHU-c-1-NE Model: WiFiHU-c-1-NE Internal photo of EUT Model: WiFiHU-c-1-NE Model: WiFiHU-c Internal photo of EUT Model: WiFiHU-c Model: WiFiHU-c Internal photo of EUT Antenna Antenna Internal photo of EUT Antenna Antenna

Model: WiFiHU-a FCC ID & IC Label Location Radicom Research Inc. Model: WiFiHU-a FCC ID: K7T-WIFIHU-A IC: 2377A-WIFIHUA Model: WiFiHU-c Radicom Research Inc. Model: WiFiHU-c, FCC ID: K7T-WIFIHU-A IC: 2377A-WIFIHUA FCC ID & IC Label Location Model: WiFiHU-a-1-NE FCC ID & IC Label Location Radicom Research Inc. Model: WiFiHU-a-1-NE FCC ID: K7T-WIFIHU-A IC: 2377A-WIFIHUA Model: WiFiHU-c-1-NE Radicom Research Inc. Model: WiFiHU-c-1-NE FCC ID: K7T-WIFIHU-A IC: 2377A-WIFIHUA FCC ID & IC Label Location

Internal photo of EUT Model: WiFiHU-a-1-NE Model: WiFiHU-a-1-NE Internal photo of EUT Model: WiFiHU-a-1-NE Model: WiFiHU-a-1-NE Internal photo of EUT Model: WiFiHU-a-1-NE Model: WiFiHU-a Internal photo of EUT Model: WiFiHU-a Model: WiFiHU-a Internal photo of EUT Model: WiFiHU-c-1-NE Model: WiFiHU-c-1-NE Internal photo of EUT Model: WiFiHU-c-1-NE Model: WiFiHU-c-1-NE Internal photo of EUT Model: WiFiHU-c-1-NE Model: WiFiHU-c Internal photo of EUT Model: WiFiHU-c Model: WiFiHU-c Internal photo of EUT Antenna Antenna Internal photo of EUT Antenna Antenna

FCC ID. : K7T-WIFIHU-A Report No.: TS11050008-EME Page 1 of 8 Maximum Permissible Exposure (MPE) Evaluation Report Report No. : TS11050008-EME Model No. : WiFiHU-a, WiFiHU-a-1-NE, WiFiHU-c, WiFiHU-c-1-NE Issued Date : Jun. 08, 2011 Applicant: Radicom Research Inc. 2148 Bering Dr., San Jose, CA. 95131, USA Test Method/ Standard: FCC 1.1310 Test By: Intertek Testing Services Taiwan Ltd. No. 11, Lane 275, Ko-Nan 1 Street, Chia-Tung Li, Shiang-Shan District, Hsinchu City, Taiwan It may be duplicated completely for legal use with the allowance of the applicant. It shall not be reproduced except in full, without the written approval of Intertek Laboratory. The test result(s) in this report only applies to the tested sample(s). The test report was prepared by: Sign on File Jill Chen / Assistant These measurements were taken by: Sign on File Terry Hsu / Engineer The test report was reviewed by: Name Jimmy Yang Title Engineer FCC ID. : K7T-WIFIHU-A Report No.: TS11050008-EME Page 2 of 8 Table of Contents Summary of Tests ............................................................................................................. 3 1. Introduction .................................................................................................................. 4 2. RF Exposure Limit ....................................................................................................... 4 3. RF Exposure calculations ............................................................................................. 5 4 Description of EUT ....................................................................................................... 6 5. Test results .................................................................................................................... 8 FCC ID. : K7T-WIFIHU-A Report No.: TS11050008-EME Page 3 of 8 Summary of Tests MPE Evaluation meet FCC OET No. 65: 1997, IEEE C95.1-2005 USB WiFi Module - Model: WiFiHU-a-1-NE, WiFiHU-c-1-NE FCC ID: K7T-WIFIHU-A Test Reference Results MPE Evaluation FCC Guidelines for Human Exposure IEEE C95.1 Complies FCC ID. : K7T-WIFIHU-A Report No.: TS11050008-EME Page 4 of 8 1. Introduction The EUT operates in the 2.4 GHz ISM band. Due to the EUT (include antenna) at its normal operation distance is at least 20 cm from the human body, the EUT was defined as a Mobile Device. The reason to do the MPE Evaluation is to avoid the RF hazard to human body. The maximum output power and gain of the antenna were used to calculate the limited Power density (S) at 20 cm distance away from the product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 and Safety Code 6 are followed. According to 1.1307 (b)(1), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b). Limits for Maximum Permissible Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A) Limits for Occupational / Control Exposures 30-300 61.4 0.163 1.0 6 300-1500 - - F/300 6 1500-100,000 - - 5 6 (B) Limits for General Population / Uncontrolled Exposure 30-300 27.5 0.073 0.2 30 300-1500 - - F/1500 30 1500-100,000 - - 1.0 30 F= Frequency in MHz FCC ID. : K7T-WIFIHU-A Report No.: TS11050008-EME Page 5 of 8 3. RF Exposure calculations From §FCC 1.1310 table 1, the maximum permissible RF exposure for an uncontrolled environment is 1 mW/(cm 2 ) (or 10 W/m 2 )* Power density (S) is calculated by the following formula: S = (P * G)/4πR 2 where, S = Power density (mW/cm 2 ) P = Output power to antenna (mW) R = Distance between radiating structure and observation point (cm) G = Gain of antenna in numeric π = 3.1416 Example: Assume a mobile device operates at 2412MHz and its maximum output power is 50mW, and the maximum gain of antenna is 1 (numeric) /0dBi. then the power density (S) = (50 * 1)/4*π*20 2 = 0.00995 (mW/cm 2 ) (or = 0.0995 W/m 2 ) FCC ID. : K7T-WIFIHU-A Report No.: TS11050008-EME Page 6 of 8 4 Description of EUT The EUT is an USB WiFi Module, and was defined as information technology equipment. For more detail features, please refer to User's manual as file name “Installation guide.pdf” The customer confirmed the models listed as below were series model to model WiFiHU-a-1-NE, WiFiHU-c-1-NE (EUT), the difference between main model and series model are listed as below. Model Number Different WiFiHU-a-1-NE 1. Carrier Boards (without RP-SMA connector) 2. Modules (with on-board antenna) WiFiHU-c-1-NE 1. Carrier Boards (without RP-SMA connector) 2. Modules (with two antenna connectors) WiFiHU-a Modules (with on- board antenna) WiFiHU-c Modules (with two antenna connectors) FCC ID. : K7T-WIFIHU-A Report No.: TS11050008-EME Page 7 of 8 4.1 Antenna description (1) Antenna 1 The EUT uses a permanently connected antenna. Antenna Gain : 0 dBi Antenna Type : Chip antenna Connector Type : N/A (2) Antenna 2 The antenna is affixed to the EUT using a unique connector, which allows for replacement of a broken antenna, but DOES NOT use a standard antenna jack or electrical connector. Antenna Gain : 2 dBi Antenna Type : Dipole antenna Connector Type : IPX FCC ID. : K7T-WIFIHU-A Report No.: TS11050008-EME Page 8 of 8 5. Test results EUT : WiFiHU-a-1-NE Mode Channel Frequency (MHz) Antenna gain (numeric) Output power to antenna (mW) Power density (mW/cm 2 ) Limit of power density (mW/cm 2 ) 2412 1.00 42.95 0.008545356 1.0 2437 1.00 42.07 0.008370090 1.0 802.11b 2462 1.00 25.18 0.005008759 1.0 2412 1.00 49.43 0.009833999 1.0 2437 1.00 48.75 0.009699071 1.0 802.11g 2462 1.00 26.55 0.005281170 1.0 2412 1.00 50.23 0.009993788 1.0 2437 1.00 49.09 0.00…

Text truncated - open the document above for the full version.

FCC ID. : K7T-WIFIHU-A Report No.: TS11050007-EME Page 1 of 87 EMC TEST REPORT Report No. : TS11050007-EME Model No. : WiFiHU-a, WiFiHU-a-1-NE, WiFiHU-c, WiFiHU-c-1-NE Issued Date : Jun. 08, 2011 Applicant: Radicom Research Inc. 2148 Bering Dr., San Jose, CA. 95131, USA Test Method/ Standard: CFR 47 FCC Part 15.247 & ANSI C63.4 2003 Test By: Intertek Testing Services Taiwan Ltd. No. 11, Lane 275, Ko-Nan 1 Street, Chia-Tung Li, Shiang-Shan District, Hsinchu City, Taiwan It may be duplicated completely for legal use with the allowance of the applicant. It shall not be reproduced except in full, without the written approval of Intertek Laboratory. The test result(s) in this report only applies to the tested sample(s). The test report was prepared by: Sign on File Jill Chen / Assistant These measurements were taken by: Sign on File Terry Hsu / Engineer The test report was reviewed by: Name Jimmy Yang Title Engineer FCC ID. : K7T-WIFIHU-A Report No.: TS11050007-EME Page 2 of 87 Table of Contents 1. Summary of Test Data................................................................................................. 3 2. General Information .................................................................................................... 4 3. Maximum 6 dB Bandwidth .......................................................................................... 9 4. 99 % Occupied Bandwidth ........................................................................................ 17 5. Maximum Output Power............................................................................................ 25 6. Power Spectral Density ............................................................................................. 28 7. RF Antenna conducted Spurious............................................................................... 36 8. Radiated Spurious Emission..................................................................................... 43 9. Emission on Band Edge............................................................................................ 59 Appendix A: Test Equipment List................................................................................... 87 FCC ID. : K7T-WIFIHU-A Report No.: TS11050007-EME Page 3 of 87 1. Summary of Test Data Test/Requirement Description Applicable Rule Result Minimum 6 dB Bandwidth 15.247(a)(2) Pass Maximum Output Power 15.247(b) Pass Power Spectral Density 15.247(e) Pass RF Antenna Conducted Spurious 15.247(d) Pass Radiated Spurious Emission 15.247(d), 15.205, 15.209 Pass Emission on the Band Edge 15.247(d) Pass AC Power Line Conducted Emission 15.207 Pass FCC ID. : K7T-WIFIHU-A Report No.: TS11050007-EME Page 4 of 87 2. General Information Identification of the EUT Product: USB WiFi Module Model No.: WiFiHU-a-1-NE, WiFiHU-c-1-NE FCC ID.: K7T-WIFIHU-A Frequency Range: 1. 2412 MHz ~ 2462 MHz for 802.11b, 802.11g, 802.11n HT20 2. 2422 MHz ~ 2452 MHz for 802.11n HT40 Channel Number: 1. 11 channels for 2412 MHz ~ 2462 MHz 2. 7 channels for 2422 MHz ~ 2452 MHz Rated Power: DC 5 V Power Cord: N/A Data Cable: USB shielded cable 0.2 meter × 1 Sample Received: May 02, 2011 Test Date(s): May 04, 2011 ~ Jun 03, 2011 Note 1: This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Note 2: When determining the test conclusion, the Measurement Uncertainty of test has been considered. FCC ID. : K7T-WIFIHU-A Report No.: TS11050007-EME Page 5 of 87 Description of EUT The EUT is an USB WiFi Module, and was defined as information technology equipment. For more detail features, please refer to User's manual as file name “Installation guide.pdf” The customer confirmed the models listed as below were series model to model WiFiHU-a-1-NE, WiFiHU-c-1-NE (EUT), the difference between main model and series model are listed as below. Model Number Different WiFiHU-a-1-NE 1. Carrier Boards (without RP-SMA connector) 2. Modules (with on-board antenna) WiFiHU-c-1-NE 1. Carrier Boards (without RP-SMA connector) 2. Modules (with two antenna connectors) WiFiHU-a Modules (with on- board antenna) WiFiHU-c Modules (with two antenna connectors) FCC ID. : K7T-WIFIHU-A Report No.: TS11050007-EME Page 6 of 87 Antenna description (1) Antenna 1 The EUT uses a permanently connected antenna. Antenna Gain : 0 dBi Antenna Type : Chip antenna Connector Type : N/A (2) Antenna 2 The antenna is affixed to the EUT using a unique connector, which allows for replacement of a broken antenna, but DOES NOT use a standard antenna jack or electrical connector. Antenna Gain : 2 dBi Antenna Type : Dipole antenna Connector Type : IPX Peripherals equipment Peripherals BrandModel No. Serial No. Description of Data Cable Notebook PC DELLLatitude D6102YWZK1S USB shielded cable 0.1 meter × 1 Modem LEMEL MD-56KVT-100 00V230A00078422N/A Printer HP DeskJet 400 TH86I1K30S N/A Mouse IBM MO09BO 23-021287 N/A FCC ID. : K7T-WIFIHU-A Report No.: TS11050007-EME Page 7 of 87 Operation mode The EUT was supplied with 5 Vdc from Notebook PC (Test voltage: 120Vac, 60Hz) and it was run in TX / RX mode that was controlled by “MP819xVC” program. Plug the EUT into Notebook PC via USB interfac…

Text truncated - open the document above for the full version.

Photo 1: Conducted Emission Test Set-up photo (WiFiHU-a-1-NE) Photo 2: Conducted Emission Test Set-up photo (WiFiHU-c-1-NE) Photo 3: Radiated Emission Test set-up photo (WiFiHU-a-1-NE) Photo 4: Radiated Emission Test set-up photo (WiFiHU-c-1-NE)
