KDS-PW2-003Remote Control Transmitter

Owner’s Manual www.PocketWizard.com 2 3 TABLE OF CONTENTS Congratulations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 Key Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 Part Reference (Package Contents) . . . . . . . . . . . . . . . . . . . . . . .4 Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 Setup for Remote Flash Triggering . . . . . . . . . . . . . . . . . . . . . . . .6 Camera Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 Remote Flash Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 Triggering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 Connecting a Flash to the Camera’s Transceiver (Local Flash) . . . . . . . . . . . . . . . . . . .7 Local TTL Flash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 Triggering A Remote Camera . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 Relay Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 Relay Mode Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9 Turning Off Relay Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . .9 Sustaining High Performance . . . . . . . . . . . . . . . . . . . . . . . . . .10 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10 Troubleshooting Chart . . . . . . . . . . . . . . . . . . . . . . . . . . . .11 Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12 Technical Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13 “The FCC Wants You To Know” . . . . . . . . . . . . . . . . . . . . . . . . .14 To find the correct PocketWizard brand cables for your flash and cameras, and to experience other products like the MultiMAX, please visit www.PocketWizard.com. 2 3 Congratulations on your purchase of the new PocketWizard Plus ® II Transceiver, a high performance Digital Wireless Radio Slave and Remote Triggering System. The Plus II features advanced auto-sensing intelligence to automatically send or receive PocketWizard radio signals based simply on how it is connected. PocketWizards are the most technologically advanced microprocessor-controlled radio triggers for flash and cameras. Using carefully engineered filtering and digital signaling technology, PocketWizards reject ambient radio noise and have a wide dynamic range enabling high performance, consistency, and reliability for all types of remote photography. The Plus II Transceiver is compatible with all PocketWizard radio systems. PocketWizard Plus II Key Features Auto-Sensing Transceiver – Automatically transmits or receives based on connections. No Tx/Rx switches. No sorting out Transmitters and Receivers. Simply make connections and start working sooner with near-zero configuration time. Auto-Relay – Easily trigger a remote camera in sync with a distant remote flash. Put a camera where you can’t be and have remote lighting at the same time. Expand your coverage and increase your creativity. Fast FPS – Trigger cameras or flash units up to 12 frames per second. 4 Sixteen-Bit Digitally Coded Channels – Create multiple setups or work exclusively at events with other photographers without interference. 1600 Foot Range – Long PocketWizard range equals increased performance and reliability even when working at average photographic distances. Our enhanced range provides best-in-class remote performance for all types of photography. Fast Sync Speeds – Compatible with most cameras’ fastest X-Sync speeds including: — 1/250 Focal Plane Shutters — 1/500 Leaf Shutters Locking Hot Shoe Mount – Secure mounting. Several other mounting methods included. 4 5 POCKETWIZARD PLUS II PART REFERENCE Lanyard Loop Flash Camera / Flash Status LED On/Off Switch Locking Hot Shoe Mount Battery Door 1 / 4 - 20 Mount Battery Door Latch Flexible Antenna Status LED TRANSMIT MODE Local/Both/Remote AC Power Test Button Channel Selection If you purchased a single Plus II Transceiver then your box contains 1 each of the above items, except where noted. The Plus II Transceiver Kit contains 2 each of the above items, except where noted. This manual and a warranty information card are also included. PC1 Cable For use with a camera’s PC terminal (only 1 included with Kit) AA Batteries (IEC-LR6) Lanyard VELCRO ® Adhesive Hook and Loop Fasteners 4 5 For attaching to flashes, brackets, cameras, etc. See NOTE 2. VELCRO ® For tripods, mounting arms, isolation bars, brackets, etc. 1/4-20 Mount For mounting on a bracket shoe, cold or dead shoe, etc. For hanging from a light stand, flash handle, tripod knob, belt, etc. Lanyard Shoe Mount BATTERIES CAUTION: Turn OFF your equipment (PocketWizard units, electronic flash units, cameras, etc.) before making connections or changing batteries. Install 2 fresh AA (IEC:LR6) batteries into the Plus II Transceiver. Make sure to note proper polarity. Alkaline batteries are recommended. Rechargeable batteries will also work, though operation time may be reduced. When the STATUS LEDs stop blinking, it is time to change the batteries. Battery life is approximately 60 hours under typical use. See NOTE 1 for more battery information. WARNING – To avoid battery leakage, follow these guidelines: • Always remove the batteries when the unit is not in use for extended periods of time, or during shipping or long distance travel. • Never mix old and new batteries. Always use a fresh pair of matched batteries. • Always change batteries promptly at the first indication of low battery operation. • Do not use or leave the unit in extreme temperature or humidity situations. See “Technical Information” for normal operating and storage temperatures. MOUNTING Mount a remote Plus II Transcei…

Text truncated - open the document above for the full version.

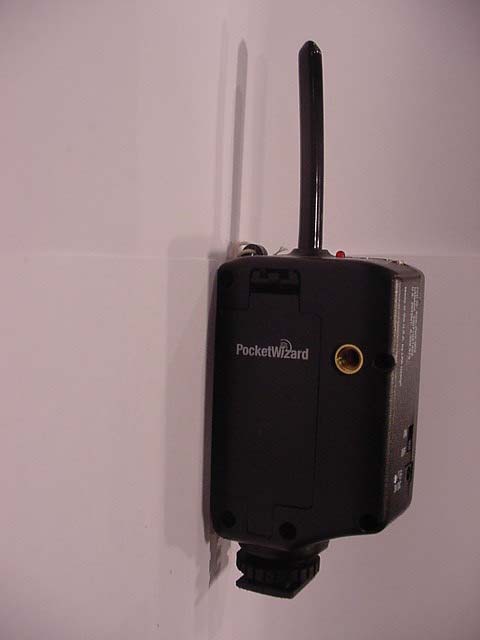

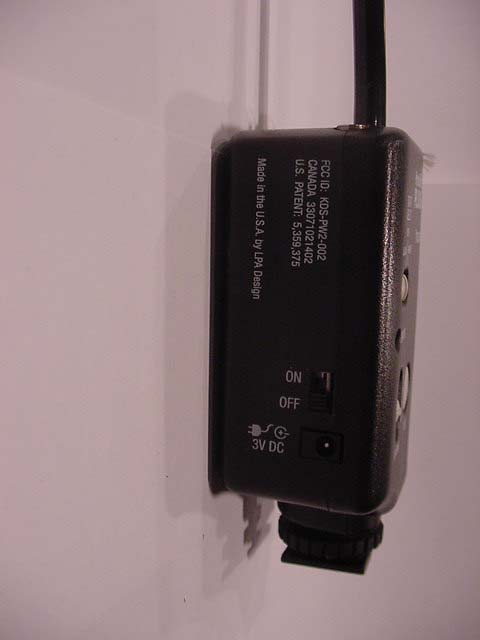

LPF030-1 LPF029-2LPF028-5 CAMERA/ FLASH FLASH 0 . 6 8 " Center line of logo should center on 1/4-20 threads. Center line of logo should center on 1/4-20 threads. Measure from edge of groove to center of artwork. Measure from edge of groove to center of artwork. Created 1/3/2006 by Chris Reilly for charcoal Plus II Updated 1/26/6 Updated 3/2/06 -Canada Number Updated 3/16/06- Registration “Trnsm, LBR” moved .030” to left. 3V DC ON OFF F C C I D : K D S - P W 2 - 0 0 3 C A N A D A I C : 2 1 7 0 A - P W 0 0 3 U . S . P A T E N T : 5 , 3 5 9 , 3 7 5 M a d e i n t h e U . S . A . b y L P A D e s i g n Transceiver T r a n s c e i v e r TEST CHANNEL STATUS LOCAL BOTH REMOTE 1 2 3 4 CAMERA/ FLASH FLASH Transceiver 3V DC ON OFF F C C I D : K D S - P W 2 - 0 0 3 C A N A D A I C : 2 1 7 0 A - P W 0 0 3 U . S . P A T E N T : 5 , 3 5 9 , 3 7 5 M a d e i n t h e U . S . A . b y L P A D e s i g n T r a n s c e i v e r TRANSMIT MODE TEST CHANNEL LOCAL BOTH REMOTE 1 2 3 4 STATUS TRANSMIT MODE Transceiver Transceiver

RETLIF TESTING LABORATORIES TEST REPORT R-4564N-1 April 24, 2006 FCC COMPLIANCE TEST REPORT ON LAB PARTNERS ASSOCIATES, INC. POCKETWIZARD PLUSII FCC ID: KDS-PW2-003 Test Report No. R-4564N-1 FCC ID: KDS-PW2-003 APPLICANT Lab Partners Associates, Inc. 41 IDX Drive, Suite 265 South Burlington, VT 05403 MANUFACTURER SAME TEST SPECIFICATION: FCC Rules and Regulations Part 15, Subpart C, Para. 15.231 TEST PROCEDURE: ANSI C63.4:2003 TEST SAMPLE DESCRIPTION: BRANDNAME: PocketWizard MODEL: PocketWizard Plus II TYPE: Remote Triggering System (Camera Flash Control) POWER REQUIREMENTS: DC via wall mount 120VAC, 60Hz power adapter FREQUENCY BAND OF OPERATION: 344.04MHz to 354.0MHz MODULATION: OOK (On/Off Keying) TYPE OF TRANSMISSION: Control Signal (Pulse Recognition Codes) FREQUENCIES TESTED: 344.05MHz, 354.0MHz FCC ID: KDS-PW2-003 TESTS PERFORMED: 15.231 (b) Spurious Radiated Emissions (30MHz to 3.6GHz) 15.231 (b) Field Strength of Fundamental 15.231 (c) Occupied Bandwidth, 0.25% of Fundamental Frequency 15.207 (a) Conducted Emissions Duty Cycle Determination NOTE: Testing was performed at 2 frequencies (low and high) within the operational band per the requirements of 15.31 (m) for devices operating within a 1 - 10MHz band but not exceeding 10MHz. Test Report No. R-4564N-1 FCC ID: KDS-PW2-003 TEST SAMPLE OPERATION: The EUT is dc powered via an external 120VAC/DC Power Supply. The device is normally manually operated and transmits a control signal for remote triggering of a flashpack. Normal operation of the EUT complies with the parameters required in Part 15, Subpart C, Section 15.231. For testing purposes only the EUT was configured to continuously transmit. TEST SAMPLE / TEST PROGRAM •The transmitter is manually activated and employs a switch that automatically deactivates the transmitter within 5 seconds of being released. CThe transmitter does not perform periodic transmissions at regularly predetermined intervals. CThe device can not be employed for RC purposes involving security. •The device uses an external permanently attached rubber coated copper spring antenna. CThe fundamental field strength at 344.05MHz did not exceed 7250μV/M (Average) at a test distance of 3 meters. The fundamental field strength at 354.0MHz did not exceed 7666μV/M (Average) at a test distance of 3 meters. •The peak value of fundamental emissions did not exceed a peak field strength limit corresponding to 20dB above the maximum permitted average limit. CThe field strength of harmonic and spurious emissions did not exceed 725μV/M or 500μV/M as applicable for a fundamental frequency of 344.05MHz. The field strength of harmonic and spurious emissions did not exceed 766μV/M or 500μV/M as applicable for a fundamental frequency of 354.0MHz. No harmonic or spurious emissions were observed within 20dB of the specified limit at test distances of 1 or 3 meters. CThe device can operate within the range of 344.04 to 354.00MHz. The device was tested at the frequencies of 344.05MHz and 354.0MHz. The bandwidth of emissions did not exceed 0.25% of the operating frequency and was determined as follows: Fundamental Frequency=344.05MHz 0.25% of Center Frequency=0.860MHz 0.860 divided by 2=0.430MHz Bandwidth Range=Fundamental Frequency + and - 0.430MHz 344.05MHz - 0.430MHz=343.62MHz 344.05MHz + 0.430MHz=344.48MHz Bandwidth Range=343.62MHz - 344.48MHz Test Report No. R-4564N-1 FCC ID: KDS-PW2-003 TEST SAMPLE / TEST PROGRAM (continued): (Bandwidth) Fundamental Frequency=354.0MHz 0.25% of Center Frequency=0.885MHz 0.885 divided by 2=0.4425MHz Bandwidth Range=Fundamental Frequency + and - 0.4425MHz 354.0MHz - 0.4425MHz=353.5575MHz 354.0MHz + 0.4425MHz=354.4425MHz Bandwidth Range=353.5575MHz - 354.4425MHz CRadiated Emissions from the EUT were measured in all three axis. The attached Radiated Emissions test data is representative of the worst case orientation. •Conducted Emissions did not exceed the limits specified in 15.207 (a). DETERMINATION OF FIELD STRENGTH LIMITS The field strength limits shown below were calculated as instructed in Section 15.231. Fundamental Frequency: 344.05MHz Where F is the frequency in MHz, the formula for calculating the maximum permitted fundamental field strength for the band 260-470MHz, μV/m at 3 meters is as follows: 41.6667(F) - 7083.3333 =Field Strength Limit (μV/m) 41.6667 x 344.05=14335.428 14335.428 - 7083.3333=7252 Field Strength Limit=7252μV/m = 77.21dBuV/M The maximum permitted unwanted emission level is 20dB below the maximum permitted fundamental level which equals 725μV/m = 57.21dBuV/M. Test Report No. R-4564N-1 FCC ID: KDS-PW2-003 TEST SAMPLE / TEST PROGRAM (continued) Field Strength Limit Calculations continued: Fundamental Frequency: 354.0MHz Where F is the frequency in MHz, the formula for calculating the maximum permitted fundamental field strength for the band 260-470MHz, μV/m at 3 meters is as follows: 41.6667(F) - 7083.3333 =Field Strength Limit (μV/m) 41.6667 x 354.0=14750.012 14750.012 - 7083.3333=7666.678 Field Strength Limit=7666.678μV/m = 77.69dBuV/M The maximum permitted unwanted emission level is 20dB below the maximum permitted fundamental level which equals 766.67μV/m = 57.69dBuV/M DETERMINATION OF DUTY CYCLE The transmitter controls were adjusted to maximize the transmitted duty cycle. The analyzer was set for a frequency span of 0Hz. The sweep time was then adjusted in order to display one full pulse train. The transmitter on time was then summed and compared to the time for one full cycle in order to obtain the duty cycle. As the pulse train exceeded 100msec in duration the worst case duty cycle was determined by measuring/calculating the 100msec period with the greatest on time. The on times were determined as follows: The worst case 100msec period contained 6 pulse bursts. The individual pulses within each burst were measured and summed in order to obtain the total “on time” within 100msec. Fundamental Frequency: 344.0MHz Transmitter On Time=.995 milliseconds Transmitter Cyc…

Text truncated - open the document above for the full version.

Test Method:Customer: Test Sample: Job No: R-4564N-1 Model No: Serial No: Technician: M. Seamans Test Specification: Date: 03/05/2006 Operating Mode:Notes: R-4564N-1 EMISSIONS DATA SHEE T Duty Cycle Plots RETLIF TESTING LABORATORIES Data Sheet 1 of 29 Fundamental Frequency: 344.0501002 MHzTransmitting signal @ 344MHz to 354 MHzFCC Part 15, Subpart CLPA Design, Inc. PocketWizard Plus 2 with Transceiver N/A N/A 15.231( b ) Test Method:Customer: Test Sample: Job No: R-4564N-1 Model No: Serial No: Technician: M. Seamans Test Specification: Date: 03/05/2006 Operating Mode:Notes: R-4564N-1 RETLIF TESTING LABORATORIES EMISSIONS DATA SHEE T Duty Cycle Plots PocketWizard Plus 2 with Transceiver N/A N/A FCC Part 15, Subpart CLPA Design, Inc. 15.231( b ) Transmitting signal @ 344MHz to 354 MHzFundamental Frequency: 344.0501002 MHz Data Sheet 2 of 29 Test Method:Customer: Test Sample: Job No: R-4564N-1 Model No: Serial No: Technician: M. Seamans Test Specification: Date: 03/05/2006 Operating Mode:Notes: R-4564N-1 RETLIF TESTING LABORATORIES EMISSIONS DATA SHEE T Duty Cycle PlotsLPA Design, Inc. PocketWizard Plus 2 with Transceiver N/A N/A FCC Part 15, Subpart C 15.231( b ) Transmitting signal @ 344MHz to 354 MHzFundamental Frequency: 344.0501002 MHz Data Sheet 3 of 29 Test Method:Customer: Test Sample: Job No: R-4564N-1 Model No: Serial No: Technician: M. Seamans Test Specification: Date: 03/05/2006 Operating Mode:Notes: R-4564N-1 RETLIF TESTING LABORATORIES EMISSIONS DATA SHEE T Duty Cycle PlotsLPA Design, Inc. PocketWizard Plus 2 with Transceiver N/A N/A FCC Part 15, Subpart C 15.231( b ) Transmitting signal @ 344MHz to 354 MHz 0.5 & 1.0 Fundamental Frequency: 344.0501002 MHz Data Sheet 4 of 29 Test Method:Customer: Test Sample: Job No: R-4564N-1 Model No: Serial No: Technician: M. Seamans Test Specification: Date: 03/05/2006 Operating Mode:Notes: R-4564N-1 RETLIF TESTING LABORATORIES EMISSIONS DATA SHEE T Duty Cycle PlotsLPA Design, Inc. PocketWizard Plus 2 with Transceiver N/A N/A FCC Part 15, Subpart C 15.231( b ) Transmitting signal @ 344MHz to 354 MHzFundamental Frequency: 344.0501002 MHz Data Sheet 5 of 29 Test Method:Customer: Test Sample: Job No: R-4564N-1 Model No: Serial No: Technician: M. Seamans Test Specification: Date: 03/05/2006 Operating Mode:Notes: R-4564N-1 RETLIF TESTING LABORATORIES EMISSIONS DATA SHEE T Duty Cycle PlotsLPA Design, Inc. PocketWizard Plus 2 with Transceiver N/A N/A FCC Part 15, Subpart C 15.231( b ) Transmitting signal @ 344MHz to 354 MHzFundamental Frequency: 344.0501002 MHz Data Sheet 6 of 29 Test Method:Customer: Test Sample: Job No: R-4564N-1 Model No: Serial No: Technician: M. Seamans Test Specification: Date: 03/05/2006 Operating Mode:Notes: R-4564N-1 RETLIF TESTING LABORATORIES EMISSIONS DATA SHEE T Duty Cycle PlotsFundamental Frequency: 344.0501002 MHz Data Sheet 7 of 29 LPA Design, Inc. PocketWizard Plus 2 with Transceiver N/A N/A FCC Part 15, Subpart C 15.231( b ) Transmitting signal @ 344MHz to 354 MHz Test Method:Customer: Test Sample: Job No: R-4564N-1 Model No: Serial No: Technician: M. Seamans Test Specification: Date: 03/05/2006 Operating Mode:Notes: R-4564N-1 Fundamental Frequency: 344.0501002 MHz Data Sheet 8 of 29 N/A FCC Part 15, Subpart C 15.231( b ) Transmitting signal @ 344MHz to 354 MHz RETLIF TESTING LABORATORIES EMISSIONS DATA SHEE T Duty Cycle PlotsLPA Design, Inc. PocketWizard Plus 2 with Transceiver N/A Test Method:Customer: Test Sample: Job No: R-4564N-1 Model No: Serial No: Technician: M. Seamans Test Specification: Date: 03/05/2006 Operating Mode:Notes: R-4564N-1 Data Sheet 9 of 29 15.231( b ) Transmitting signal @ 344MHz to 354 MHzFundamental Frequency: 344.0501002 MHz RETLIF TESTING LABORATORIES EMISSIONS DATA SHEE T Duty Cycle PlotsLPA Design, Inc. PocketWizard Plus 2 with Transceiver N/A N/A FCC Part 15, Subpart C Test Method:Customer: Test Sample: Job No: R-4564N-1 Model No: Serial No: Technician: M. Seamans Test Specification: Date: 03/05/2006 Operating Mode:Notes: R-4564N-1 Transmitting signal @ 344MHz to 354 MHzFundamental Frequency: 344.0501002 MHz Data Sheet 10 of 29 RETLIF TESTING LABORATORIES EMISSIONS DATA SHEE T Duty Cycle PlotsLPA Design, Inc. PocketWizard Plus 2 with Transceiver N/A N/A FCC Part 15, Subpart C 15.231( b ) Test Method:Customer: Test Sample: Job No: R-4564N-1 Model No: Serial No: Technician: M. Seamans Test Specification: Date: 03/05/2006 Operating Mode:Notes: R-4564N-1 Transmitting signal @ 344MHz to 354 MHzFundamental Frequency: 344.0501002 MHz Data Sheet 11 of 29 N/A N/A FCC Part 15, Subpart C 15.231( b ) RETLIF TESTING LABORATORIES EMISSIONS DATA SHEE T Duty Cycle PlotsLPA Design, Inc. PocketWizard Plus 2 with Transceiver Test Method:Customer: Test Sample: Job No: R-4564N-1 Model No: Serial No: Technician: M. Seamans Test Specification: Date: 03/05/2006 Operating Mode:Notes: R-4564N-1 Transmitting signal @ 344MHz to 354 MHzFundamental Frequency: 344.0501002 MHz Data Sheet 12 of 29 N/A N/A FCC Part 15, Subpart C 15.231( b ) RETLIF TESTING LABORATORIES EMISSIONS DATA SHEE T Duty Cycle PlotsLPA Design, Inc. PocketWizard Plus 2 with Transceiver Test Method:Customer: Test Sample: Job No: R-4564N-1 Model No: Serial No: Technician: M. Seamans Test Specification: Date: 03/05/2006 Operating Mode:Notes: R-4564N-1 Transmitting signal @ 344MHz to 354 MHzFundamental Frequency: 344.0501002 MHz Data Sheet 13 of 29 N/A N/A FCC Part 15, Subpart C 15.231( b ) RETLIF TESTING LABORATORIES EMISSIONS DATA SHEE T Duty Cycle PlotsLPA Design, Inc. PocketWizard Plus 2 with Transceiver Test Method:Customer: Test Sample: Job No: R-4564N-1 Model No: Serial No: Technician: M. Seamans Test Specification: Date: 03/05/2006 Operating Mode:Notes: R-4564N-1 Transmitting signal @ 344MHz to 354 MHzFundamental Frequency: 344.0501002 MHz Data Sheet 14 of 29 N/A N/A FCC Part 15, Subpart C 15.231( b ) RETLIF TESTING LABORATORIES EMISSIONS DATA SHEE T Duty Cycle PlotsLPA Design, Inc. PocketWizard Plus 2 with Transceiver Test Method:Custome…

Text truncated - open the document above for the full version.

Test Report No. R-4564N-1 FCC ID: KDS-PW2-003 RADIATED EMISSIONS SETUP PHOTOGRAPHS Test Report No. R-4564N-1 FCC ID: KDS-PW2-003 OCCUPIED BANDWIDTH & DUTY CYCLE SETUP PHOTOGRAPH CONDUCTED EMISSIONS SETUP PHOTOGRAPH
