KKGB1DIG1DigiRadio

Directional Drilling Locating System Operator’s Manual DIGITAL CONTROL INCORPORATED DCI Headquarters 19625 62nd Ave. S., Suite B-103 Kent, Washington 98032 USA Tel 425 251 0559 / 800 288 3610 Fax 253 395 2800 E- mail [email protected] www.digitrak.com DCI Europe Kurmainzer Strasse 56 D- 97836 Bischbrunn Germany Tel +49(0) 9394 990 990 Fax +49(0) 9394 990 999 [email protected] DCI India DTJ 1023, DLF Tower A Jasola District Center New Delhi 110 044, India Tel +91(0) 11 4507 0444 Fax +91(0) 11 4507 0440 [email protected] DCI China No. 41, Lane 500, Xingle Road Huacao Town, Minhang District Shanghai P.R.C. 201107 Tel +86(0) 21 6432 5186 Fax +86(0) 21 6432 5187 [email protected] DCI Australia 2/9 Frinton Street Southport, Queensland 4215 Australia Tel +61(0) 7 5531 4283 Fax +61(0) 7 5531 2617 [email protected] DCI Russia 420059 Pavlyukhina Street 104, Kazan Russia Tel +7 843 277 52 22 Fax +7 843 277 52 07 [email protected] DIGITAL CONTROL INCORPORATED 2 DigiTrak ® F2 ® Operator’s Manual 3- 2200-00-D © 2009-2010 by Digital Control Incorporated. All rights reserved. April 2010. 68BTrademarks The DCI logo, CableLink ® , DataLog ® , DigiTrak ® , Eclipse ® , F2 ® , MFD ® , SST ® , target-in-the-box ® , Target Steering ® , and TensiTrak ® are U.S. registered trademarks and DucTrak™, F Series™, FSD™, FasTrak™, LT™, LT2™, SE™, SED™, SuperCell™, and TeleLock™ are trademarks of Digital Control Incorporated. 69BPatents The DigiTrak ® F2 ® Locating System is covered by one or more of the following U.S. Patents: 5,337,002; 5,633,589; 5,990,682; 5,990,683; 6,002,258; 6,005,532; 6,008,651; 6,014,026; 6,035,951; 6,047,783; 6,057,687; 6,095,260; 6,160,401; 6,232,780; 6,250,402; 6,396,275; 6,496,008; 6,525,538; 6,593,745; 6,653,837; 6,693,429; 6,756,784; 6,768,307; 6,838,882; 6,924,645; 7,061,244; 7,080,698; 7,154,273; 7,159,672; 7,167,005; 7,176,690; 7,304,479; 7,309,990; 7,345,486. Sale of a DigiTrak ® F2 ® receiver does not convey a license under any patents covering the DigiTrak ® transmitter or underground drill housing. Other patents pending. 70BLimited Warranty All products manufactured and sold by Digital Control Incorporated (DCI) are subject to the terms of a Limited Warranty. A copy of the Limited Warranty is included at the end of this manual; it can also be obtained by contacting DCI Customer Service, 425-251-0559 or 800-288-3610, or by connecting to DCI’s website, www.digitrak.com. 71BImportant Notice All statements, technical information, and recommendations related to the products of DCI are based on information believed to be reliable, but the accuracy or completeness thereof is not warranted. Before utilizing any DCI product, the user should determine the suitability of the product for its intended use. All statements herein refer to DCI products as delivered by DCI and do not apply to any user customizations not authorized by DCI nor to any third-party products. Nothing herein shall constitute any warranty by DCI nor will anything herein be deemed to modify the terms of DCI’s existing Limited Warranty applicable to all DCI products. 72BFCC Compliance Statement This device complies with Part 15 of the Rules of the FCC. Operation is subject to the following two condi- tions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. DCI is responsible for FCC compli- ance in the United States: Digital Control Incorporated, 19625 62 nd Ave. S., Suite B-103, Kent, WA 98032; phone 425-251- 0559 or 800-288-3610. Changes or modifications to the DCI equipment not expressly approved and carried out by DCI will void the user’s Limited Warranty and the FCC’s authorization to operate the equipment. The user is cautioned to maintain a 20 cm (8 inches) spacing from the product to ensure compliance with FCC requirements. DIGITAL CONTROL INCORPORATED DigiTrak ® F2 ® Operator’s Manual 3 Table of Contents SAFETY PRECAUTIONS AND WARNINGS ................................................................................................ 6 DEAR CUSTOMER: ...................................................................................................................................... 8 INTRODUCTION ........................................................................................................................................... 9 RECEIVER .................................................................................................................................................. 11 General Description ................................................................................................................................. 11 Power On/Off ........................................................................................................................................... 12 Installing and Removing the Battery Pack ........................................................................................... 13 Turning On the Receiver ...................................................................................................................... 13 Turning Off the Receiver ...................................................................................................................... 16 Automatic Shutdown ............................................................................................................................ 16 Trigger Switch .......................................................................................................................................... 16 Audible Tones .......................................................................................................................................... 16 Adjusting Screen Contrast ....................................................................................................................... 17 Main Menu .......…

Text truncated - open the document above for the full version.

Northwest EMC TCB Compliance Opinion Rev. 12/08/09 DIGI0140 Information about the Applicant Grantee (Company Name) Digital Control Incorporated FCC Contact Person Bruce E. Kolpack Address 19625 62nd Avenue South, Suite B-103 City, State, Zip Kent, WA 98032 Job Number DIGI0140 Model DigiRadio FCC ID KKGB1DIG1 Agent Rudy Zeller Approval Type Original Equipment Class TNB Licensed Non-Broadcast Base Station Transmitter Rule Part 90I Overview Digital Control Corporation is subnmitting this application for a limited modular approval of radio model DigiRadio, FCC ID: KKGB1DIG1, which operates under Cfr 47 Part 90.217 at 464.5 MHz - 469.55 MHz. The radio module will be used in the Digital Control DigiTrak handheld receivers for the purpose of transmitting and receiving telemetry data during horizontal directional drilling applications. The radio and antenna are installed by the manufacturer and have no user serviceable parts nor adjustment capabilities. Confidentiality requested for allowed files. Request is properly addressed and referenced. A letter listing the applicable modular requirements was submitted. Recommendation All items have been resolved and completed to my satisfaction; therefore I recommend this application for approval. Signature Dave Tolman, TCB Committee 7/5/2011

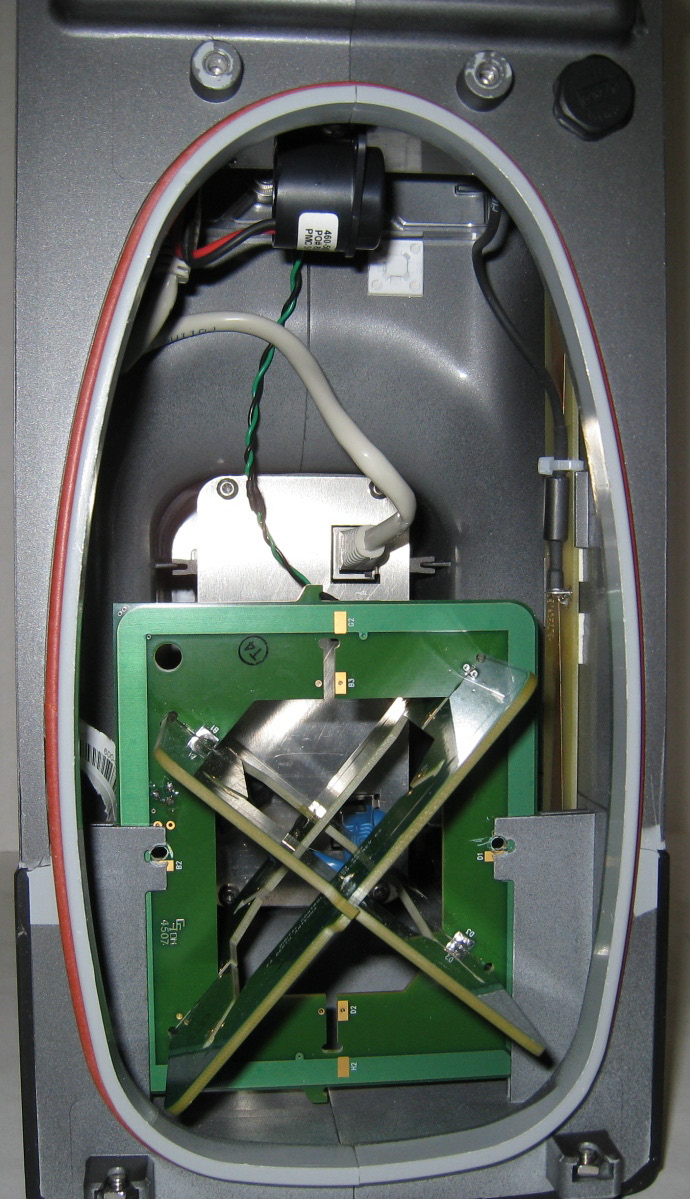

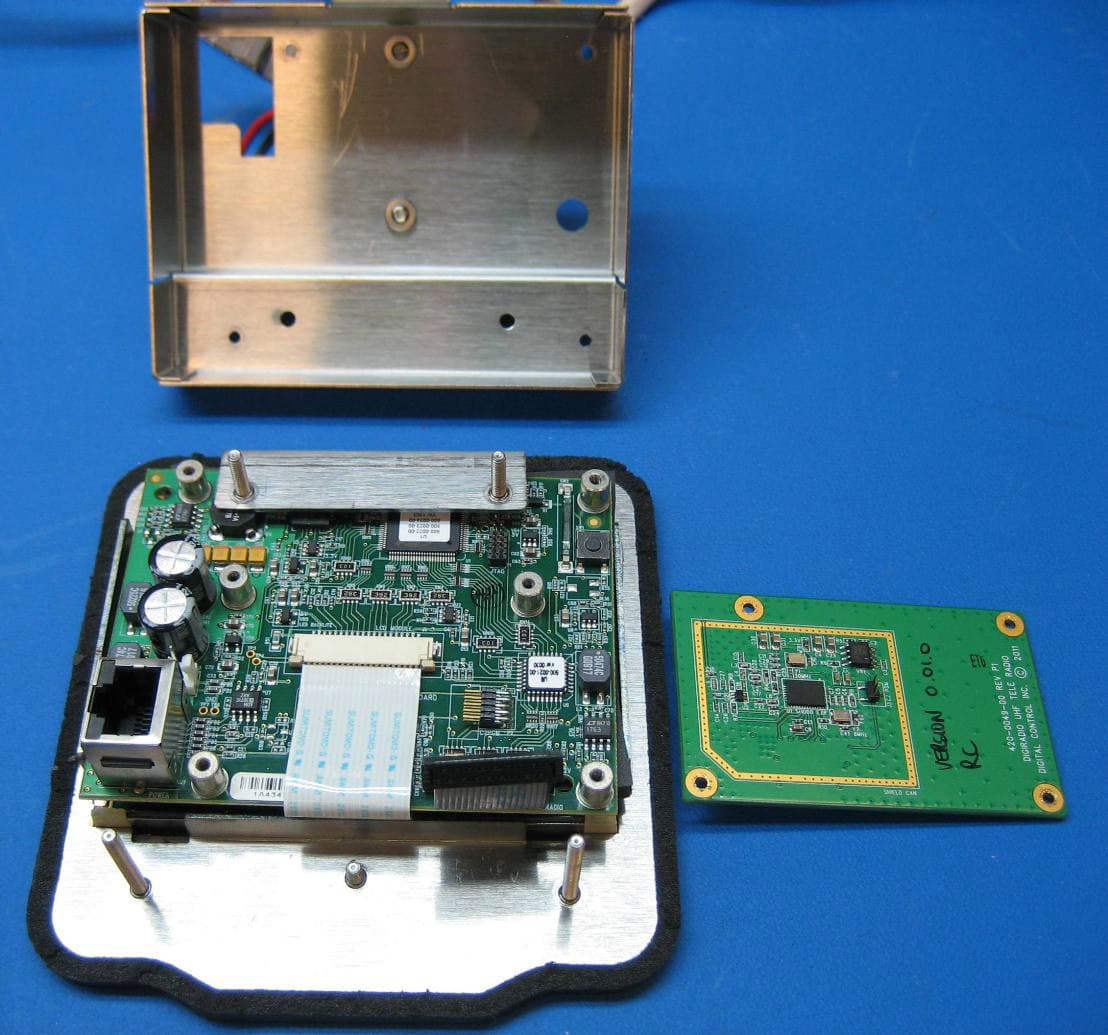

External Photos Shown inside a representative DigiTrak ® unit, DigiTrak ® F2R Front cover of the F2R has been removed to show the DigiRadio module and telemetry antenna placement. Telemetry Antenna used with DigiRadio Placement of DigiRadio module (inside display module) DigiRadio Module shown mounted on host pcb with display module shield can removed Display module show with DigiRadio removed (showing underside) Telemetry Antenna used with DigiRadio connects here

MN BY 04-15-09 DATE APPROVAL APPROVAL DRAFTER ENGINEER AH DESCRIPTION 1 2 3 4 5 DIMENSION MATERIAL ADHESIVE BKGND FLOOD LOGO/TEXT INSTRUCTIONS / NOTES REMOVED FCC LOGO, REVISED FCC ID NUMBER AND INDUSTRY CANADA NUMBER, ADDED IEC NUMBER; LABEL NOW EXCLUSIVE TO F2R.A REV SHEET 1 / 1 REV C DRAWING NO. DIGITRAK F2 RECEIVER S/N LABEL 450-0003-00 1.45" (W) X 1.88" (H); SHARP RADIUS GE: 8B35, LEXAN, 7 MIL THICK, TEXTURED SURFACE 3M: 468 MP, 5 MIL ADHESIVE, APPLY TO BACK SIDE COLOR: BLACK COLOR: SILVER NOTE: LABEL HAS TWO CLEAR WINDOWS TITLE THIS DRAWING IS CONFIDENTIAL AND IS SUPPLIED ON THE UNDERSTANDING THAT IT IS NOT SHOWN TO OTHER PERSONS OR COMPANIES WITHOUT WRITTEN CONSENT OF DIGITAL CONTROL INCORPORATED TOLERANCES (STANDARD UNITS UNLESS OTHERWISE SPECIFIED) DECIMAL .X ±.030 FRACTIONS ±1/32 .XX ±.010 .XXX ±.005 ANGLES ± 1° 19625 62ND AVE SOUTH, SUITE B103 KENT, WA 98032, WWW.DIGITRAK.COM 425-251-0701 · 425-251-0702 FAX MN MN MN TITLEBLOCK: SIZE 8.5X11 (LETTER) MN 06-28-10REMOVED NOTIFYING BODY NUMBER "0981"B CGG 07-01-11CHANGED FCC ID AND IC NUMBERS TO REFLECT DIGIRADIO Frequencies (MHz) S/N ARBN 090 007 962 Contains FCC ID: KKGB1DIG1 IC: 2213A-B1DIG1 Complies with IEC 61010-1

Internal Photos DigiRadio, Top side DigiRadio, Bottom side

Statement from Digital Control Incorporated: The DigiRadio™ module, designed for use in DigiTrak® brand handheld receivers (UHF transmitter) and remote displays (UHF receiver), is installed in the host devices at the manufacturer. The maximum gain antenna that is used with the DigiRadio module is also installed in the UHF transmitter host device at the manufacturer and is not accessible by the user. The antenna drawing is shown below.

NORTHWEST EMC EUT: F2R - UHF Dipole AntennaWork Order: DIGC0048 Serial Number: ADA ADate: Customer: Digital Control, Inc.Temperature: 22 Attendees: noneHumidity: 28% Project: NoneBarometric Pres.: 30.15 Tested by: Rod PeloquinPower: N/ AJob Site: EV01 TEST SPECIFICATIONSTest Method TEST PARAMETERS Antenna Height(s) (m)Test Distance (m) 3 COMMENTS EUT OPERATING MODES DEVIATIONS FROM TEST STANDARD Run # Configuration # Results Signature 0.00 270.00 180.00 90.00 Frequency470.00 Absolute Gain of Reference Antenna (dBi)1.80 Reference Antenna Relative Gain Max (dBuV/m)97.20 AUT Relative Gain Max (dBuV/m)95.50 Difference (Reference Antenna - AUT) (dB)1.70 AUT Setup Loss (dB)0.00 Maximum Absolute Gain of AUT (dBi)0.10 Correction Factor (Convert From Relative to Absolute Gain) (dB)95.40 Measurement Antenna Polarity Horizontal Antenna Under Test (AUT) PolarityY ABSOLUTE GAIN DATA SHEET 14 1 01/30/09 None Transmitting from signal generator Absolute Gain of AUT -40.0 -30.0 -20.0 -10.0 0.0 10.0 0 270 180 90 90° 270° 180° 0° Antenna

Attestation from Digital Control: Currently we do not do any tuning of the DigiRadio module. The DigiRadio relies on the host device to program the specific carrier frequency. We verify it’s functionality by making sure we can pick up the transmitted signal using a receiver tuned to the same frequency. While there are provisions in the Si1000 to adjust the Load Capacitance and Frequency Offset of the Local Oscillator, the DigiRadio uses a high precision Temperature Compensated Crystal Oscillator (TCXO) that does not require fine tuning. Default values are hardcoded into the DigiRadio firmware and cannot be changed by the host device. Basically, the radio either works or it doesn’t.

Digital Control, Inc. DigiRadio Report No. DIGC0139.2 Report Prepared By www.nwemc.com 1-888-EMI-CERT © 2011 Northwest EMC, Inc 22975 NW Evergreen Parkway Suite 400 Hillsboro, Oregon 97124 Certificate of Test Last Date of Test: April 7, 2011 Digital Control, Inc. Model: DigiRadio Emissions Test Description Specification Test Method Pass/Fail Maximum Permissible Exposure FCC 2.1091:2011 OET Bulletin 65, Supplement C Ed 01-01 Pass Modifications made to the product See the Modifications section of this report Test Facility The measurement facility used to collect the data is located at: Northwest EMC, Inc. 22975 NW Evergreen Parkway, Suite 400 Hillsboro, OR 97124 Phone: (503) 844-4066 Fax: 844-3826 This site has been fully described in a report filed with and accepted by the FCC (Federal Communications Commission) and Industry Canada (Site filing #2834D-1). Approved By: Don Facteau, IS Manager NVLAP Lab Code: 200676-0 This report must not be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government of the United States of America. Product compliance is the responsibility of the client, therefore the tests and equipment modes of operation represented in this report were agreed upon by the client, prior to testing. This Report may only be duplicated in its entirety. The results of this test pertain only to the sample(s) tested. The specific description is noted in each of the individual sections of the test report supporting this certificate of test. Northwest EMC Revision History Revision 05/05/03 Revision Number Description Date Page Number 00 None Accreditations and Authorizations FCC Accredited by NVLAP for performance of FCC radio, digital, and ISM device testing. Our Open Area Test Sites, certification chambers, and conducted measurement facilities have been fully described in reports filed with the FCC and accepted by the FCC in letters maintained in our files. Northwest EMC has been accredited by ANSI to ISO / IEC Guide 65 as a product certifier. We have been designated by the FCC as a Telecommunications Certification Body (TCB). This allows Northwest EMC to certify transmitters to FCC specifications in accordance with 47 CFR 2.960 and 2.962. NVLAP Northwest EMC, Inc. is accredited under the United States Department of Commerce, National Institute of Standards and Technology, and National Voluntary Laboratory Accreditation Program for satisfactory compliance with the requirements of ISO/IEC 17025 for Testing Laboratories. The NVLAP accreditation encompasses Electromagnetic Compatibility Testing in accordance with the European Union EMC Directive 2004/108/EC, and ANSI C63.4. Additionally, Northwest EMC is accredited by NVLAP to perform radio testing in accordance with the European Union R&TTE Directive 1999/5/EEC, the requirements of FCC, and the RSS radio standards for Industry Canada. NVLAP LAB CODE 200629-0 NVLAP LAB CODE 200630-0 NVLAP LAB CODE 200676-0 NVLAP LAB CODE 200761-0 NVLAP LAB CODE 200881-0 Industry Canada Accredited by NVLAP for performance of Industry Canada RSS and ICES testing. Our Open Area Test Sites and certification chambers comply with RSS-Gen, Issue 2 and have been filed with Industry Canada and accepted. Northwest EMC has been accredited by ANSI to ISO / IEC Guide 65 as a product certifier. We have been designated by NIST and recognized by Industry Canada as a Certification Body (CB) per the APEC Mutual Recognition Arrangement (MRA). This allows Northwest EMC to certify transmitters to Industry Canada technical requirements. (Site Filing Numbers - Hillsboro: 2834D-1, 2834D-2, Sultan: 2834C-1, Irvine: 2834B-1, 2834B-2, Brooklyn Park: 2834E-1) CAB Designated by NIST and validated by the European Commission as a Conformity Assessment Body (CAB) to conduct tests and approve products to the EMC directive and transmitters to the R&TTE directive, as described in the U.S. - EU Mutual Recognition Agreement. NEMKO Assessed and accredited by NEMKO (Norwegian testing and certification body) for European emissions and immunity testing. As a result of NEMKO's laboratory assessment, they will accept test results from Northwest EMC, Inc. for product certification (Authorization No. ELA 119). Accreditations and Authorizations Australia/New Zealand The National Association of Testing Authorities (NATA), Australia has been appointed by the ACA as an accreditation body to accredit test laboratories and competent bodies for EMC standards. Accredited test reports or assessments by competent bodies must carry the NATA logo. Test reports made by an overseas laboratory that has been accredited for the relevant standards by an overseas accreditation body that has a Mutual Recognition Agreement (MRA) with NATA are also accepted as technical grounds for product conformity. The report should be endorsed with the respective logo of the accreditation body (NVLAP). VCCI Accepted as an Associate Member to the VCCI, Acceptance No. 564. Conducted and radiated measurement facilities have been registered in accordance with Regulations for Voluntary Control Measures, Article 8. (Registration Numbers. - Hillsboro: C-1071, R-1025, G-84, C-2687, T-1658, and R-2318, Irvine: R-1943, G-85, C- 2766, and T-1659, Sultan: R-871, G-83, C-1784, and T-1511, Brooklyn Park: R-3125, G-86, G-141, C-3464, and T-1634). BSMI Northwest EMC has been designated by NIST and validated by C-Taipei (BSMI) as a CAB to conduct tests as described in the APEC Mutual Recognition Agreement (US0017). License No.SL2-IN-E-1017. GOST Northwest EMC, Inc. has been assessed and accredited by the Russian Certification bodies Certinform VNIINMASH, CERTINFO, SAMTES, and Federal CHEC, to perform EMC and Hygienic testing for Information Technology Products. As a result of their laboratory assessment, they will accept test results from Northwest EMC, Inc. for product certification KCC Northwest EMC, Inc is a CAB designated by MRA partners and recognized by Korea. (Assigned Lab Numbers…

Text truncated - open the document above for the full version.

Digital Control, Inc. DigiRadio Report No. DIGC0139 Report Prepared By www.nwemc.com 1-888-EMI-CERT © 2011 Northwest EMC, Inc 22975 NW Evergreen Parkway Suite 400 Hillsboro, Oregon 97124 Certificate of Test Last Date of Test: April 7, 2011 Digital Control, Inc. Model: DigiRadio Emissions Test Description Specification Test Method Pass/Fail Emission Mask FCC 90I:2011 ANSI/TIA/EIA-603-C-2004 Pass Occupied Bandwidth FCC 90I:2011 ANSI/TIA/EIA-603-C-2004 Pass Output Power FCC 90I:2011 ANSI/TIA/EIA-603-C-2004 Pass Frequency Stability FCC 90I:2011 ANSI/TIA/EIA-603-C-2004 Pass Spurious Conducted Emissions FCC 90I:2011 ANSI/TIA/EIA-603-C-2004 Pass Receiver Spurious Emissions FCC 15.109:2011 ANSI C63.4:2003 Pass Transmitter Spurious Emissions FCC 90I:2011 ANSI/TIA/EIA-603-C-2004 Pass Modifications made to the product See the Modifications section of this report Test Facility The measurement facility used to collect the data is located at: Northwest EMC, Inc. 22975 NW Evergreen Parkway, Suite 400 Hillsboro, OR 97124 Phone: (503) 844-4066 Fax: 844-3826 This site has been fully described in a report filed with and accepted by the FCC (Federal Communications Commission) and Industry Canada (Site filing #2834D-1). Approved By: Tim O'Shea, Operations Manager NVLAP Lab Code: 200630-0 This report must not be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government of the United States of America. Product compliance is the responsibility of the client, therefore the tests and equipment modes of operation represented in this report were agreed upon by the client, prior to testing. This Report may only be duplicated in its entirety. The results of this test pertain only to the sample(s) tested. The specific description is noted in each of the individual sections of the test report supporting this certificate of test. Northwest EMC Revision History Revision 06/29/09 Barometric Pressure The recorded barometric pressure has been normalized to sea level. Revision Number Description Date Page Number 00 None Accreditations and Authorizations FCC Accredited by NVLAP for performance of FCC radio, digital, and ISM device testing. Our Open Area Test Sites, certification chambers, and conducted measurement facilities have been fully described in reports filed with the FCC and accepted by the FCC in letters maintained in our files. Northwest EMC has been accredited by ANSI to ISO / IEC Guide 65 as a product certifier. We have been designated by the FCC as a Telecommunications Certification Body (TCB). This allows Northwest EMC to certify transmitters to FCC specifications in accordance with 47 CFR 2.960 and 2.962. NVLAP Northwest EMC, Inc. is accredited under the National Voluntary Laboratory Accreditation Program (NVLAP) for satisfactory compliance with the requirements of ISO/IEC 17025 for Testing Laboratories. NVLAP is administered by the National Institute of Standards and Technology (NIST), an agency of the U.S. Commerce Department. The NVLAP accreditation encompasses Electromagnetic Compatibility Testing in accordance with the European Union EMC Directive 2004/108/EC, and ANSI C63.4. Additionally, Northwest EMC is accredited by NVLAP to perform radio testing in accordance with the European Union R&TTE Directive 1999/5/EEC, the requirements of FCC, and the RSS radio standards for Industry Canada. Industry Canada Accredited by NVLAP for performance of Industry Canada RSS and ICES testing. Our Open Area Test Sites and certification chambers comply with RSS-Gen, Issue 2 and have been filed with Industry Canada and accepted. Northwest EMC has been accredited by ANSI to ISO / IEC Guide 65 as a product certifier. We have been designated by NIST and recognized by Industry Canada as a Certification Body (CB) per the APEC Mutual Recognition Arrangement (MRA). This allows Northwest EMC to certify transmitters to Industry Canada technical requirements. (Site Filing Numbers - Hillsboro: 2834D-1, 2834D-2, Sultan: 2834C-1, Irvine: 2834B-1, 2834B-2, Brooklyn Park: 2834E-1) CAB Designated by NIST and validated by the European Commission as a Conformity Assessment Body (CAB) to conduct tests and approve products to the EMC directive and transmitters to the R&TTE directive, as described in the U.S. - EU Mutual Recognition Agreement. Australia/New Zealand The National Association of Testing Authorities (NATA), Australia has been appointed by the ACA as an accreditation body to accredit test laboratories and competent bodies for EMC standards. Accredited test reports or assessments by competent bodies must carry the NATA logo. Test reports made by an overseas laboratory that has been accredited for the relevant standards by an overseas accreditation body that has a Mutual Recognition Agreement (MRA) with NATA are also accepted as technical grounds for product conformity. The report should be endorsed with the respective logo of the accreditation body (NVLAP). Accreditations and Authorizations VCCI Accepted as an Associate Member to the VCCI, Acceptance No. 564. Conducted and radiated measurement facilities have been registered in accordance with Regulations for Voluntary Control Measures, Article 8. (Registration Numbers. - Hillsboro: C-1071, R-1025, G-84, C-2687, T- 1658, and R-2318, Irvine: R-1943, G-85, C-2766, and T-1659, Sultan: R-871, G-83, C-1784, and T-1511, Brooklyn Park: R-3125, G-86, G-141, C-3464, and T-1634). BSMI Northwest EMC has been designated by NIST and validated by C-Taipei (BSMI) as a CAB to conduct tests as described in the APEC Mutual Recognition Agreement (US0017). GOST Northwest EMC, Inc. has been assessed and accredited by the Russian Certification bodies Certinform VNIINMASH, CERTINFO, SAMTES, and Federal CHEC, to perform EMC and Hygienic testing for Information Technology Products. As a result of their laboratory assessment, they will accept test results from Northwest EMC, Inc. for product certification KCC Northwest EMC, Inc is a CAB designated …

Text truncated - open the document above for the full version.

NORTHWEST EMC EMISSION MASK 001.jpg EMISSION MASK 002.jpg EMISSION MASK XMit 2010.11.03 NORTHWEST EMC OP 001.jpg OP 002.jpg OUTPUT POWER XMit 2010.11.03 NORTHWEST EMC OUTPUT POWER - RADIATED PSA 2008.07.21 NORTHWEST EMC OUTPUT POWER - RADIATED PSA 2008.07.21 NORTHWEST EMC OUTPUT POWER - RADIATED PSA 2008.07.21 NORTHWEST EMC FS 001.jpg FS 002.jpg FREQUENCY STABILITY XMit 2010.11.03 NORTHWEST EMC FS 003.jpg FS 004.jpg FREQUENCY STABILITY XMit 2010.11.03 NORTHWEST EMC OBW 001.jpg OBW 002.jpg OCCUPIED BANDWIDTH XMit 2010.11.03 NORTHWEST EMC scb 001.jpg scb 002.jpg SPURIOUS CONDUCTED EMISSIONS XMit 2010.11.03 NORTHWEST EMC SPURIOUS RADIATED EMISSIONS PSA 2008.07.21 NORTHWEST EMC SPURIOUS RADIATED EMISSIONS PSA 2008.07.21 NORTHWEST EMC SPURIOUS RADIATED EMISSIONS PSA 2008.07.21 NORTHWEST EMC Radiated Emissions PSA 2008.07.21 NORTHWEST EMC Radiated Emissions PSA 2008.07.21 NORTHWEST EMC Radiated Emissions PSA 2008.07.21 NORTHWEST EMC Radiated Emissions PSA 2008.07.21 NORTHWEST EMC Radiated Emissions PSA 2008.07.21
