KKI-F-3088Bluetooth Module

Xin Zhong Xin Technology Co., Ltd. --------------------------------------------------------------------------------------------------------------------------------------------- Company：SHENZHENSHIXINZHONGXIN TECHNOLOGY CO., LTD. Tel ：0755-29179480/1/2，FAX: 0755-84736169 Address：F5, Block C, Zhuangbian Industrial Park, Hangcheng Rd.,Xixiang Town, Bao’an District, Shenzhen City, Guangdong Province, China Website：www.c-chip.com.cn Bluetooth Module F-33088 User Manual 一．Specification: F-3088, independently developed by our company, is an intelligent wireless audio data transmission product. It is a wireless transmission scheme with low cost and high efficiency. Used the CSR BLUECORE5 chip, the module has high quality sound and compatibility, and the overall performance is more optimization. F-3088 bluetooth moudule uses the drive-free mode, users only need to put it access appliction products, electricity,connect the button , then can quickly wirelessly transmit the music and enjoy the fun of it . 二．Application: It is mainly used for short distance transmission , convenient to connect with notebook , mobilphone, PDA and other bluetooth devices. Then realize the wireless transmission for music .※ 蓝牙音响 ※ Bluetooth Stereo headset ※ Hands-free mobilphone ※ Bluetooth wireless transmission audio 三．Performance parameters: Type F-3088 Bluetooth standard Bluetooth V2.1+EDR Modulation Mode GFSK, 1Mbps, 0.5BT Gaussian Voltage Supply Battery voltage VDD:3.3 supply Support Bluetooth Association OPP,OBEX,SPP,A2DP, AVRCP,FTP ,HS/HF,DUN Profiles Working current ≤30mA Standby Current <0.4mA Temperatrue range -40ºC to +80ºC Wireless transmission range 10米 Transmission power CLASS2 4dBm Sensitivity [email protected]%BER Frequency range 2.4GHz-2.480GHz Foreign interface PIO, SPI，Speake，Microphone Audio performance High acoustic fidelity sound Audio S/R ≥75dB Distortion degree ≤0.01% Size 25.01X21.02X1.8MM PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn Xin Zhong Xin Technology Co., Ltd. --------------------------------------------------------------------------------------------------------------------------------------------- Company：SHENZHENSHIXINZHONGXIN TECHNOLOGY CO., LTD. Tel ：0755-29179480/1/2，FAX: 0755-84736169 Address：F5, Block C, Zhuangbian Industrial Park, Hangcheng Rd.,Xixiang Town, Bao’an District, Shenzhen City, Guangdong Province, China Website：www.c-chip.com.cn 四、Module Size： 五、Pin PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn Xin Zhong Xin Technology Co., Ltd. --------------------------------------------------------------------------------------------------------------------------------------------- Company：SHENZHENSHIXINZHONGXIN TECHNOLOGY CO., LTD. Tel ：0755-29179480/1/2，FAX: 0755-84736169 Address：F5, Block C, Zhuangbian Industrial Park, Hangcheng Rd.,Xixiang Town, Bao’an District, Shenzhen City, Guangdong Province, China Website：www.c-chip.com.cn 六、Pin function Pin Symb I/O Description 1 PIO1 Bi-Directional TX EN 2 PIO2 Bi-Directional Speaker output positive (left side) 3 VOL+ Bi-Directional Speaker output negative (right side) 4 VOL- Bi-Directional Speaker output positive (right side) 5 UP Bi-Directional Ground 6 DOWN Bi-directional Programmable input/output line 7 POWER Bi-directional Programmable input/output line 8 +1.8V POWER +1.8V Supply 9 GND Bi-directional Programmable input/output line 10 BAT Battery terminal+ve 3.3-4.2V 11 LED1 CMOS Input Synchronous Data Input 12 LED2 pen drain output Synchronous Data Sync 13 MIC pen drain output Synchronous Data Clock 14 SPBN Analogue output Speaker output L negative 15 SPBP Analogue output Speaker output L positive 16 SPAN Analogue output Speaker output R Nositive 17 SPAP Analogue output Speaker output R Positive 18 GND GND Ground 19 MOSI CMOS input with weak internal pull-down Serial peripheral interface data input 20 CLK CMOS input with weak internal pull-down Serial peripheral interface clock 21 CS# CMOS input with weak internal pull-down Chip select for serial peripheral interface, active low 22 MISO CMOS input with weak internal pull-down Serial peripheral interface data Output 23 RTS CMOSoutput,tri-state,with week pull-up UART request to send active low 24 VDD-CHG Charger input Lithium iion/polymer battery PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn Xin Zhong Xin Technology Co., Ltd. --------------------------------------------------------------------------------------------------------------------------------------------- Company：SHENZHENSHIXINZHONGXIN TECHNOLOGY CO., LTD. Tel ：0755-29179480/1/2，FAX: 0755-84736169 Address：F5, Block C, Zhuangbian Industrial Park, Hangcheng Rd.,Xixiang Town, Bao’an District, Shenzhen City, Guangdong Province, China Website：www.c-chip.com.cn 七．Working mode： 1 Electricity（3.0v--------4.5v） 2 Long press “POWER” to be on, the LED1 flashing once, then to put out . And LED2 kept flashing. Flashing frequency is 5s once ;that means the module can work if connecting the bluetooth device. But no 2s once. 3 The module will automaticly search the previous bluetooth device when power on. It will exit the connection without searching the previous device in 10s. Otherwise, it will connect automaticly. 4 At boot state, long press “POWER” button, the LED1 will flash once then put out to power off . At this moment , two lights don’t bright . 5 At boot state, no finding the previous connection, you must connect again. Long press “POWER” button without let your hands go until the LED fast alternate flashing. Then it go into the match mode. At the match mode, you can connect with your mobile phone, computer and other bluetooth device . The bluetooth name is F-3088 and password is 8888(The name and password can change according to your requirements) . 6 It can transmit music if the module have connected with the bluetooth device. You can control by the button: Previous, Next, Volume +, Volume – , pause and play. 7 If connected with the phone, short press”POWER” button to hang on and hang off when someone calls yo…

Text truncated - open the document above for the full version.

Request for Modular Approval FCC ID: KKI‐F‐3088 Item Requirements EUT 1 Have its own RF shielding Device is equipped with metal shielding to cover RF section. Refer to external and internal photos. 2 Have buffered modulation/data inputs (if such inputs are provided) All inputs to the modules are buffered through logic and microprocessor inputs 3 Have its own power supply regulation Module chipset incorporates voltage regulation to transceiver circuitry 4 Meet the antenna requirements of section 15.203 The device contains a PCB antenna, and the maximum antenna gain is 0dBi. 5 Demonstrate compliance in a stand‐alone configuration Device is tested in a test fixture in a standalone configuration 6 The licensed module must have a FCC ID label on the module itself. That FCC ID label must be visible through a window on the final device or it must be visible when an access panel, door or cover is easily removed. If not, a second label must be placed on the outside of the final device that contains the following text: Contains “FCC ID: KKI‐F‐3088” FCC ID label format will be included in the filling. Host ID label will be displayed on the host system. 7 The module must comply with all specific rules applicable to the transmitter. The grantee must provide comprehensive instructions to explain compliance requirements. Please refer to “User Manual” Exhibit 8 The module must comply with RF exposure requirements. See FCC Rules. Spread Spectrum transmitters must comply with RF exposure limits in 15.247. RF exposureevaluation is exempted because of low output power (EIRP: 3.8mW). Thank you for your attention to this matter. Yours Sincerely,

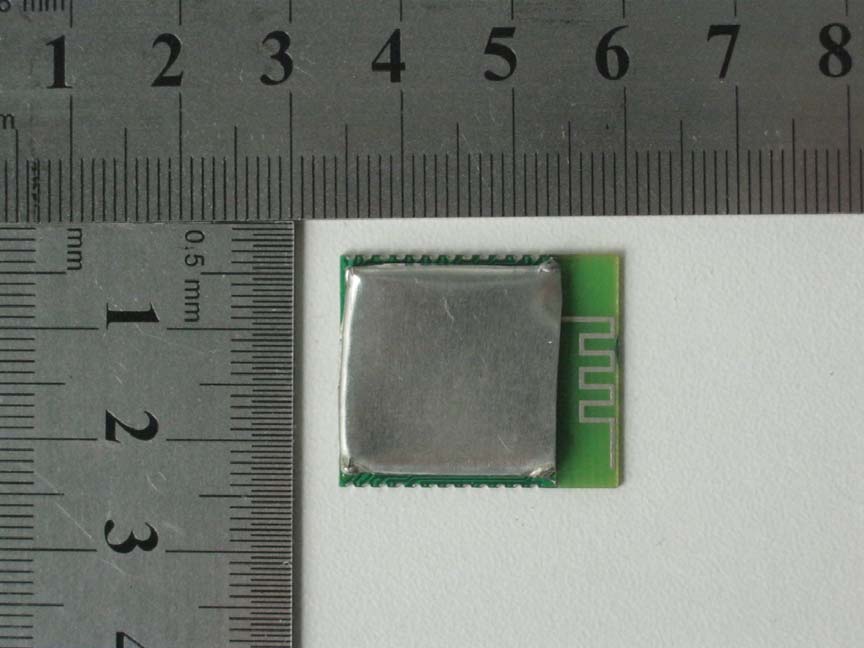

External Photos

Label: Size: 150mm*50mm Label location:

Internal Photos

SZ12040064W01 Page 2 of 67 DIRECTORY 1. GENERAL INFORMATION .................................................................................................... 3 1.1. EUT Description ....................................................................................................................... 3 1.2. Test Standards and Results ........................................................................................................ 4 1.3. Facilities and Accreditations ..................................................................................................... 5 2. 47 CFR PART 15C REQUIREMENTS .................................................................................... 6 2.1. Number of Hopping Frequency ................................................................................................ 6 2.2. Peak Output Power.................................................................................................................... 9 2.3. 20dB Bandwidth ..................................................................................................................... 11 2.4. Carried Frequency Separation ................................................................................................. 18 2.5. Time of Occupancy (Dwell time) ........................................................................................... 20 2.6. Conducted Spurious Emissions ............................................................................................... 27 2.7. Band Edge ............................................................................................................................... 38 2.8. Conducted Emission ............................................................................................................... 47 2.9. Radiated Emission................................................................................................................... 49 Change History Issue Date Reason for change 1.0 May 30, 2012 First edition SZ12040064W01 Page 3 of 67 1. General Information 1.1. EUT Description EUT Type ............................. : Bluetooth Module Serial No. .............................. : (n.a, marked #1 by test site) Hardware Version ................. : V6.0 Software Version .................. : Applicant .............................. : Manufacturer ........................ : V1.0 Shen Zhen Xin Zhong Xin Technology Co.,Ltd 5F,No.C Blv.,Zhuang Bian Industrail Park, Gu Shu Development Area, Xi Xiang Town, Bao'an District, Shen Zhen City, Guang Dong Province, China Shen Zhen Xin Zhong Xin Technology Co.,Ltd 5F,No.C Blv.,Zhuang Bian Industrail Park, Gu Shu Development Area, Xi Xiang Town, Bao'an District, Shen Zhen City, Guang Dong Province, China Frequency Range .................. : The frequency range used is 2402MHz - 2480MHz (79 channels, at intervals of 1MHz); The frequency block is 2400MHz to 2483.5MHz. Modulation Type .................. : Bluetooth: FHSS (GFSK(1Mbps), ∏/4-DQPSK(EDR 2Mbps), 8-DPSK(EDR 3Mbps)) Antenna Type ........................ : PCB Antenna Antenna Gain ........................ : 0dBi Note 1: The EUT is a Bluetooth Module, it contains Bluetooth Module operating at 2.4GHz ISM band; the frequencies allocated for the Bluetooth Module is F(MHz)=2402+1*n (0<=n<=78). The lowest, middle, highest channel numbers of the Bluetooth Module used and tested in this report are separately 0 (2402MHz), 39 (2441MHz) and 78 (2480MHz). Note 2: For a more detailed description, please refer to Specification or User’s Manual supplied by the applicant and/or manufacturer. SZ12040064W01 Page 4 of 67 1.2. Test Standards and Results The objective of the report is to perform testing according to 47 CFR Part 15 Subpart C (Bluetooth, 2.4GHz ISM band radiators) for the EUT FCC ID Certification: No. Identity Document Title 1 47 CFR Part 15 (10-1-09 Edition) Radio Frequency Devices Test detailed items/section required by FCC rules and results are as below: No. Section in CFR 47Description Result 1 15.247(a) Number of Hopping Frequency PASS 2 15.247(b) Peak Output Power PASS 3 15.247(a) 20dB Bandwidth PASS 4 15.247(a) Carrier Frequency Separation PASS 5 15.247(a) Time of Occupancy (Dwell time) PASS 6 15.247(c) Conducted Spurious Emission PASS 7 15.247(c) Band Edge PASS 8 15.207 Conducted Emission N/A 9 15.209 15.247(c) Radiated Emission PASS NOTE: The tests were performed according to the method of measurements prescribed in DA-00-705. SZ12040064W01 Page 5 of 67 1.3. Facilities and Accreditations 1.3.1. Facilities Shenzhen Morlab Communications Technology Co., Ltd. Morlab Laboratory is a testing organization accredited by China National Accreditation Service for Conformity Assessment (CNAS) according to ISO/IEC 17025. The accreditation certificate number is L3572. All measurement facilities used to collect the measurement data are located at 3/F, Electronic Testing Building, Shahe Road, Xili, Nanshan District, Shenzhen, 518055 P. R. China. The test site is constructed in conformance with the requirements of ANSI C63.7, ANSI C63.4 and CISPR Publication 22; the FCC registration number is 741109. 1.3.2. Test Environment Conditions During the measurement, the environmental conditions were within the listed ranges: Temperature (°C): 15 - 35 Relative Humidity (%): 30 -60 Atmospheric Pressure (kPa): 86-106 SZ12040064W01 Page 6 of 67 2. 47 CFR Part 15C Requirements 2.1. Number of Hopping Frequency 2.1.1. Requirement According to FCC §15.247(a)(1)(iii), frequency hopping systems operating in the 2400MHz to 2483.5MHz bands shall use at least 15 hopping frequencies. 2.1.2. Test Description A. Test Setup: The Bluetooth Module of the EUT, which is powered by the Battery, is coupled to the Spectrum Analyzer (SA) and the Bluetooth Service Simulator (SS) with Attenuators through the Power Splitter; the RF load attached to the EUT antenna terminal is 50Ohm; the path loss as the factor is calibrated to correct the reading. During the measurement, the B…

Text truncated - open the document above for the full version.

Test Setup Photos 1. CSE 2. RSE 3. Ancillary Photo
