KKI-F-6088Bluetooth module

Shen Zhen Shi Xin Zhong Xin Technology Co., Ltd. F-6088 -------------------------------------------------------------------------------------------------------------------------------------------- Bluetooth Module F-6088 User Manual Product Overview F-6088 is an intelligent wireless audio data transmission product which developed by our company independently; it is a wireless stereo transmission scheme with low cost and high efficiency. And the module used the BEKEN chip, which provide the high quality sound and compatibility for the module, and make the overall performance more optimization. BK3231 Bluetooth Module use the drive-free mode, users only need to access to application products, electrify it and connect the button, then they can quick transmit the music wirelessly and enjoy the fun of music. Application: It is mainly used for short distance transmission, convenient to connect with notebook, mobile phone, PDA and other digital Bluetooth devices. Then realize the wireless transmission for music. 0 Bluetooth Speaker 0 Bluetooth Stereo Headset 0 Speaker Phones 0 Bluetooth Wireless Transmission Audio . Basic Performance Bluetooth Profiles 0 Bluetooth v2.1 specification support 0 A2DPv1.2 0 AVRCPv1.0 0 HFPv1.5 . Performance parameters: Model Bluetooth standard Working current Support Bluetooth Profile Working current Standby Current Temperature Range Wireless Transmission Range Transmission Power Sensitivity Frequency Range External Interface Audio performance Audio S/R Module Size F-6088 Bluetooth V2.1 2.8-3.6V HFPV1.5, A2DPV1.2,AVRCPV1.0 ≤40mA <500uA -40ºC to +85ºC >10 M Support CLASS1 10 dBm -88dBm<0.1%BER 2.4GHz-2.480GHz I2C, SPI and UART interface Support AAC, MP3, SBC, APTX,STEREO ≥75dB 25X13.5X1.8MM Company SHENZHENSHIXINZHONGXIN TECHNOLOGY CO., LTD. TEL 0755-29179480/1/2. FAX: 0755-84736169 Address: Block 3, Dong Huan Industrial Park, Sha Jing Town, Bao’an District, Shenzhen City, Guangdong, Province, China Web: www.c-chip.com.cn Shen Zhen Shi Xin Zhong Xin Technology Co., Ltd. F-6088 -------------------------------------------------------------------------------------------------------------------------------------------- - Module Size Diagram Module Pin D efinition Diagram Shen Zhen Shi Xin Zhong Xin Technology Co., Ltd. Pin Function F-6088 Pin 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 Symb VBAT SPK_R_N SPK_R_P SPK_L_N SPK_L_P VMIC MIC_N MIC_P GIO13 GIO12 J_MS J_CK J_DO J_DI J_RST GND GND1 GIO11 PIO10 GIO9 GIO8 GIO7 GIO6 3V3_A 3V3_B GIO5 GIO4 LED1 LED2 GIO0 GIO1 ANT I/O Analogue in Analogue out Analogue out Analogue out Analogue out Analogue out Analogue in Analogue in Digital I/O Digital I/O Digital I/O Digital I/O Digital I/O Digital I/O Digital I/O Ground Ground Digital I/O Digital I/O Digital I/O Digital I/O Digital I/O Digital I/O FLASH power supply Power supply pin Digital I/O Digital I/O Digital I/O Digital I/O Digital I/O Digital I/O Bi-directional with weak Description Check battery Right channel audio output negative Right channel audio output positive Left channel audio output negative Left channel audio output positive Bias for reference for audio(MIC)input MIC input negative MIC input positive GPIO13/MUTE GPIO12 JTAG pin JTAG pin JTAG pin JTAG pin JTAG pin Ground connect battery negative Ground connect battery negative GPIO11 GPIO10 GPIO9/TX GPIO8/RX GPIO7 GPIO6 FLASH chip power supply Whole chip power supply GPIO5/NEXT GPIO4/PRE GPIO3/VOL+ GPIO2/VOL- GPIO0/LED1 GPIO1/LED0 Programmable input/output Shen Zhen Shi Xin Zhong Xin Technology Co., Ltd. Attention for connect the circuit F-6088 When BK3231 connect external amplifiers, it must connect differential input amplifier. If not, the module must connect an op-amp to balance two difference levels; otherwise, it will appear the "snapped" impact sound. Statement: A Wireless Bluetooth use environment: the wireless signal is widely influenced by the surrounding environment. Such as the trees and metal can absorb certain wireless signal. Therefore, the transmission distance has been influenced in the application. B The Bluetooth Modules are supporting the existing system, placed in the shell. However, the metal shell can shield the wireless frequency signal. We suggest not to equip-ed it in a metal shell. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications or changes to this equipment. Such modifications or changes could void the user’s authority to operate the equipment. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. This equipment is portable device. The output power of this device is less than 20mW.The SAR test is not required. A certified modular has the option to use a permanently affixed label, or an electronic label. For a permanently affixed label, the module must be labelled with an FCC ID: KKI-F-6088. The OEM manual must provide clear instructions explaining to the OEM the labelling requirements, options and OEM user manual instructions that are required For a host using a this FCC certified modular with a standard fixed …

Text truncated - open the document above for the full version.

Date: Jul 29, 2013 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 To Whom It May Concern: The ShenZhen XinZhongXin Technology Co., Ltd. , the undersigned, hereby authorizes Mrs. Ivy Zhu from Shenzhen Morlab Communications Technology Co., Ltd., to act on the behalf of the ShenZhen XinZhongXin Technology Co., Ltd. solely in matters relating to the application for an FCC equipment authorization for FCC ID:KKI-F-6088 including the signing of documents in connection with this Application. Necessary acts carried out by Shenzhen Morlab Communications Technology Co., Ltd. on our behalf of the ShenZhen XinZhongXin Technology Co., Ltd. in connection with the Application shall have the same effect as acts of the ShenZhen XinZhongXin Technology Co., Ltd.. The ShenZhen XinZhongXin Technology Co., Ltd. also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Thank you for your attention to this matter. Yours Sincerely, Lin Lu Manager

Date: Jul 29, 2013 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 Re: ShenZhen XinZhongXin Technology Co., Ltd. FCC ID: KKI-F-6088 FCC Part 15C Certification Confidentiality Request Gentlemen: This letter is to comply with 47 CFR 0.457 and 0.459 pertaining to confidentiality material. ShenZhen XinZhongXin Technology Co., Ltd. requests that the following documents regarding this submission for FCC ID: KKI-F-6088 be kept confidential: Exhibit Type File Name Block Diagram Block Diagram.pdf Schematics Circuit Diagram.pdf Operational Description Operational Description.pdf Part list BOM.pdf Those documents contain detailed system and equipment description and related information about the product which KKI-F-6088 considers to be confidential proprietary, a custom design and, otherwise, not releasable to the general public. Since this design is a basis form which future technological products will evolve, ShenZhen XinZhongXin Technology Co., Ltd. considers this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Lin Lu Manager

Request for Modular Approval FCC ID: KKI-F-6088 & IC: 11051A-F6088 Item Requirements EUT 1 Have its own RF shielding Device is equipped with metal shielding to cover RF section. Refer to external and photos. 2 Have buffered modulation/data inputs (if such inputs are provided) All inputs to the modules are buffered through logic and microprocessor inputs(BK3221) 3 Have its own power supply regulation Module chipset incorporates voltage regulation to transceiver circuitry 4 Meet the antenna requirements of section 15.203 The device has a fixed PCB antenna. 5 Demonstrate compliance in a stand-alone configuration Device is tested in a test fixture in a standalone configuration 6 The licensed module must have a FCC ID label on the module itself. That FCC ID label must be visible through a window on the final device or it must be visible when an access panel, door or cover is easily removed. If not, a second label must be placed on the outside of the final device that contains the following text: Contains “FCC ID: KKI-F-6088” & “IC: 11051A-F6088” FCC ID & IC label format will be included in the filling. Host ID label will be displayed on the host system. 7 The module must comply with all specific rules applicable to the transmitter. The grantee must provide comprehensive instructions to explain compliance requirements. Please refer to “User Manual” Exhibit 8 The module must comply with RF exposure requirements. See FCC Rules. Spread Spectrum transmitters must comply with RF exposure limits in 15.247. RF exposure evaluation is exempted because of low output power (EIRP: 4.44mW). Thank you for your attention to this matter. Yours Sincerely, Ivy Zhu Certification Manager

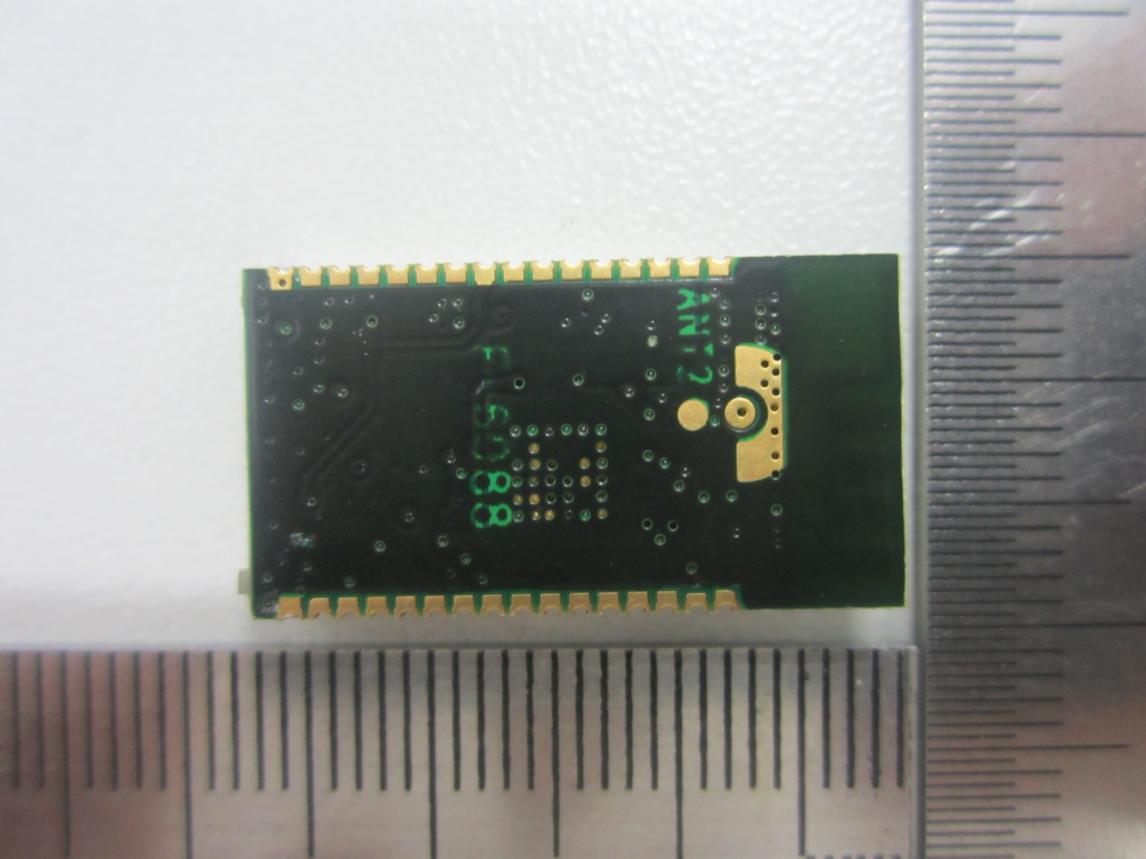

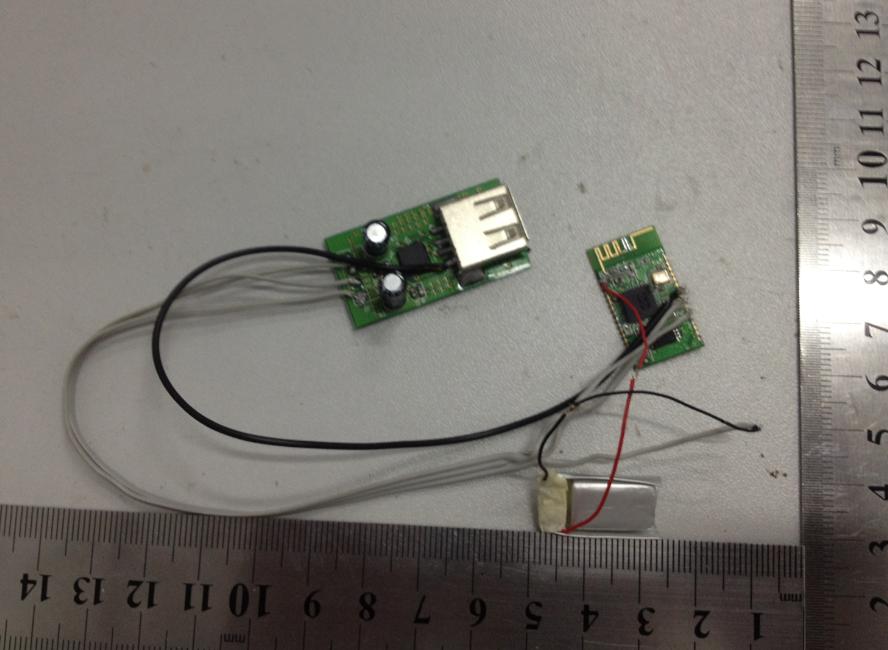

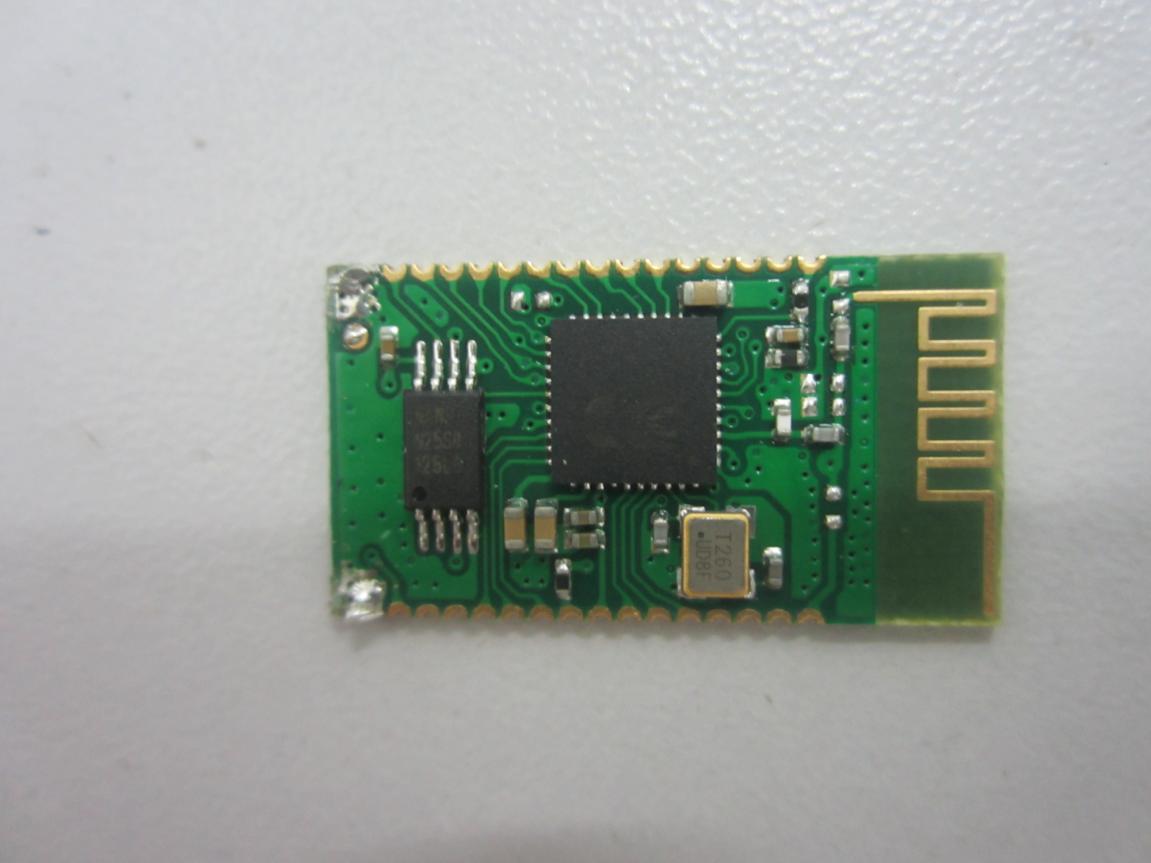

EUT Photos 1. EUT full view with accessories 2. EUT top view with shield 3. EUT bottom view 4. EUT front view without shield 5. EUT left view with shield 6. EUT right view with shield 7. EUT rear view with shield 8. EUT front view with

FCC label and label location 1. Label 2. Label location

EUT Photos 1. EUT full view with accessories 2. EUT top view with shield 3. EUT bottom view 4. EUT front view without shield 5. EUT left view with shield 6. EUT right view with shield 7. EUT rear view with shield 8. EUT front view with

SZ13050167W02 Page 2 of 41 DIRECTORY 1. GENERAL INFORMATION .................................................................................................... 3 1.1. EUT Description ....................................................................................................................... 3 1.2. Test Standards and Results ........................................................................................................ 4 1.3. Facilities and Accreditations ..................................................................................................... 5 2. 47 CFR PART 15C AND RSS-210 REQUIREMENTS ........................................................... 6 2.1. Antenna requirement ................................................................................................................. 6 2.2. Number of Hopping Frequency ................................................................................................ 6 2.3. Peak Output Power.................................................................................................................... 9 2.4. 20dB & 99% Bandwidth ......................................................................................................... 11 2.5. Carried Frequency Separation ................................................................................................. 14 2.6. Time of Occupancy (Dwell time) ........................................................................................... 16 2.7. Conducted Spurious Emissions and Band Edge ..................................................................... 21 2.8. Restricted Frequency Bands.................................................................................................... 26 2.9. Conducted Emission ............................................................................................................... 30 2.10. Radiated Emission................................................................................................................... 32 2.11. RF exposure evaluation ........................................................................................................... 41 Change History Issue Date Reason for change 1.0 July 25, 2013 First edition SZ13050167W02 Page 3 of 41 1. General Information 1.1. EUT Description EUT Type ............................. : Bluetooth module Serial No. .............................. : (n.a, marked #1 by test site) Hardware Version ................. : 1.0 Software Version .................. : Applicant .............................. : Manufacturer ........................ : 1.0 SHENZHEN XINZHONGXIN TECHNOLOGY.CO.,LTD. 5F,No.C Blv.,Zhuan Bian Industrail Park, Gu Shu De Xi Xiang Town, Bao'an District, Guang Dong China SHENZHENSHIXINZHONGXIN TECHNOLOGY.CO.,LTD Shenzhen City manhole town Nanpu road and East Ring Road Interchange Dong Industrial Zone A3 Frequency Range .................. : The frequency range used is 2402MHz - 2480MHz (79 channels, at intervals of 1MHz); The frequency block is 2400MHz to 2483.5MHz. Modulation Type .................. : Bluetooth: FHSS (GFSK(1Mbps) Antenna Type ........................ : PCB Antenna Antenna Gain ........................ : 0dBi Note 1: The EUT is a Bluetooth module, it contains Bluetooth Module operating at 2.4GHz ISM band; the frequencies allocated for the Bluetooth Module is F(MHz)=2402+1*n (0<=n<=78). The lowest, middle, highest channel numbers of the Bluetooth Module used and tested in this report are separately 0 (2402MHz), 39 (2441MHz) and 78 (2480MHz). Note 2: For a more detailed description, please refer to Specification or User’s Manual supplied by the applicant and/or manufacturer. Note 3: a. When power on, the EUT will scan the whole frequency until a Connection command from the other BT devices. b. When receiving the signal from the other BT devices, The EUT transmit a response signal. c. The other devices receive the response signal and recognize it, then send a connection command to establish the connection. d. After the connection establish successfully, the data transmission is beginning. At the same time, the both devices will shift frequencies in synchronization per a same pseudo randomly ordered list of hopping frequencies, the hopping rate is1600 times per second. This device conforms to the criteria in FCC Public Notice DA 00-705. e. The bandwidth of the receiver, which is set to a fixed width by the software. Note 4: Bluetooth signal has 9 packages DH1, DH3, DH5, 3DH1, 3DH3, 3DH5, 5DH1, 5DH3, 5DH5, DH5 package is largest, we are testing DH5 in the document. SZ13050167W02 Page 4 of 41 1.2. Test Standards and Results The objective of the report is to perform testing according to 47 CFR Part 15 Subpart C and RSS-210 (Bluetooth, 2.4GHz ISM band radiators) for the EUT FCC/IC ID Certification: No. Identity Document Title 1 47 CFR Part 15 (10-1-09 Edition) Radio Frequency Devices 2 RSS-GEN:Issue 3, December 2010 General Requirements and Information for the Certification of Radio Apparatus 3 RSS-210: Issue 8 , December 2010 Low-power Licence-exempt Radiocommunication Devices (All Frequency Bands): Category I Equipment Test detailed items/section required by FCC rules and results are as below: No. Section in CFR 47 Section in RSS-GEN , RSS-210 Description Result 1 15.203 7.1.4 Antenna Requirement PASS 2 15.247(a) A8.1 (d) Number of Hopping Frequency PASS 3 15.247(b) A8.4 (2) Peak Output Power PASS 4 15.247(a) A8.1 (a) 20dB Bandwidth PASS 5 15.247(a) A8.1 (b) Carrier Frequency Separation PASS 6 15.247(a) A8.1 (d) Time of Occupancy (Dwell time) PASS 7 15.247(d) A8.1 (d) Conducted Spurious Emission PASS 8 15.247(d) A8.5 Restricted Frequency Bands PASS 9 15.207 7.2.2 Conducted Emission N/A 10 15.209 15.247(c) A8.5 Radiated Emission PASS 11 15.247(i). §1.1307&2.1093 RSS-102 RF exposure evaluation PASS NOTE: The tests were performed according to the method of measurements prescribed in DA-00-705. SZ13050167W02 Page 5 of 41 1.3. Faciliti…
