Application Details

Equipment Class: DSR - Part 15 Remote Control/Security Device Transceiver
Date of Grant: Sep 29, 2002
Application Purpose: Original Equipment
Date of Application: Sep 29, 2002

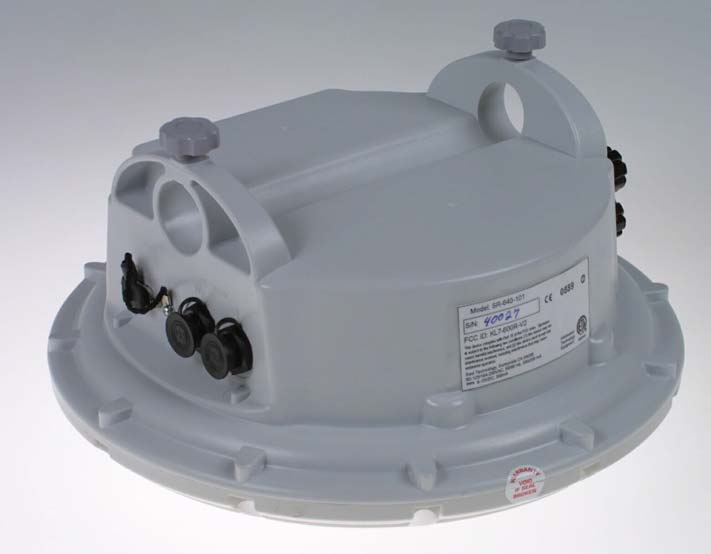

Equipment Note: EchoPoint Reader
Frequency Range: 433.92000000 - 433.92000000
Company: Savi Technology Inc
Country: United States

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

@puQv Srhqr TS%# Dhyyhv Bvqr Wrv vv@puQv Srhqr TS%# Dhyyhv Bvqr First edition (August 2002) Part number 805-04024-001 Rev. A Copyright © 2002 Savi Technology, Inc. All rights reserved. Printed in the United States of America. Information in this manual is subject to change without notice and does not represent a commitment from the vendor. The software and/or databases described in this document are furnished under a license agreement or nondisclosure agreement. The software and/or databases may be used or copied only in accordance with the terms of the agreement. It is against the law to copy the software on any medium except as specifically allowed in the license or nondisclosure agreement. Savi, Batch Collection, and TyTag are registered trademarks and Adaptive Routing, EchoPoint, EchoPoint Signpost, Enhanced Batch Collection, Hand Held Interrogator (HHI), Savi Asset Manager, Savi Fixed Interrogator, Savi GateReader, Savi Mobile Manager, Savi MobileReader, Savi Retriever, Savi SDK, Savi SmartChain, Savi System, Savi Tools, SaviReader, SaviTag, and SealTag are trademarks of Savi Technology, Inc. Other product names mentioned in this guide may be trademarks or registered trademarks of their respective owners and are hereby acknowledged. This manual was produced by the Savi Technology Publications Group. Please address any comments or requests for updates to: Savi Technology, Inc. Publications Manager 615 Tasman Drive Sunnyvale, CA 94089-1707 Phone: 1-408-743-8000 Facsimile1-408-543-8650 Web Site: http://www.savi.com Authors: Marlowe Conde Contributors: Ralph Orton, Eugene Schlindwein, Rod Thorne Layout Design and Production: Marlowe Conde @puQv Srhqr TS%# Dhyyhv Bvqrvvv VT Srtyh 6hy VT Srtyh 6hy @puQv Srhqr TS%# Arqrhy 8vphv 8vv A88 Ivpr The Federal Communications Commission has established technical standards regarding radio frequency energy emitted by computer devices. This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference with radio/TV reception. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. Changes or modifications to this equipment that are not expressly approved by Savi Technology could void the warranty and the authority to operate this equipment. Savi Technology is not responsible for radio/TV interference caused by using unauthorized cable or by making unauthorized changes to this equipment. Qqp Thsr The EchoPoint Reader SR-640-101 is ETL listed (UL 1950). v @puQv Srhqr TS%# Dhyyhv Bvqr VT Srtyh 6hy Irx 6qhr T6%# Arqrhy 8vphv 8vv A88 Ivpr The Federal Communications Commission has established technical standards regarding radio frequency energy emitted by computer devices. This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference with radio/TV reception. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. Changes or modifications to this equipment that are not expressly approved by Savi Technology could void the warranty and the authority to operate this equipment. Savi Technology is not responsible for radio/TV interference caused by using unauthorized cable or by making unauthorized changes to this equipment. @puQv Srhqr TS%# Dhyyhv Bvqr 8rv v uv Bvqr 8rv v uv Bvqr The following table explains guide conventions and typography usage. Bvqr8rv ExampleMeaning and Use Note:Notes call attention to facts or advice that deserve special attention. Caution notices call attention to the possibility of damaging the product, the system, or your work (for example, potential loss of data). Warning notices call attention to the possibility of injury to people. Examples provide a scenario to further explain the preceding direction or procedure. Urvhy GpxrqBold type is used for prompts, field names, and other text as displayed on the screen. 6)cDITU6GGBold type is also used for text you enter exactly as shown. $96U6Monospaced type is used for system messages, examples of data files, program code, and other text where column alignment is important. name.bmp or tag_idItalic type is used for emphasis of a word or phrase that is new or especially important. 8y + aUsed for a keyboard control codes or manual keystrokes. This example tells you to hold the 8y key while you press the a key. E x a m p le Uhiyr s 8r @puQv Srhqr TS%# Dhyyhv Bvqrvv U.S. Regulatory Approvals . . . . . . . . . . . . . . . . . . . . . . . . . . . iii EchoPoint Reader SR-640-101. . . . . . . . . . . . . . . . . . . . . iii Network Adapter SA-640-01 . . . . . . . . . . . . . . . . . . . . . . iv Conventions in this Guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . v Chapter 1:Introduction Savi Series 600 Reader . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2 EchoPoint Reader Description . . . . . . …

Text truncated - open the document above for the full version.

Cover Letter(s)

Page 1 of 2 September 30, 2002 Reference: Response to ATCB Questions on SR-640-101 (KL7-600R-V2) Date: September 30, 2002 From: Rod Thorne, Savi Technology With respect to the issues raised in your recent correspondence, please find our responses inserted after each of your questions. 1) Please explain the purpose of 2 identical transmitters in the unit. The theory of operation does not bring up this issue. Are they ever expected to transmit at the same time? If so, how does this affect the measurements made? Two separate antennas are connected to identical transmitter and receiver circuits. They are both polarized horizontally, but perpendicular to each other in the azimuthal plane to cover a 360-degree arc. They never transmit at the same time. Receiver circuits for both polarizations are enabled continuously, and the unit with the stronger RSSI (Received Signal Strength Indication) is selected for data processing. The transmitter functions are time shared between the two antennas in the following manner: a. For the Wake-up function, transmission is performed on one antenna for less than 2.5 seconds, followed by transmission on the second antenna for less than 2.5 seconds, with a total transmission under 5 seconds, as in 15.231(a). b. Hello and Sleep commands are transmitted alternately on the two antennas, alternating packet by packet. 2) It appears that the data/control signals measured were higher than the wakeup signal. Was this expected since the reports states that the wakeup signals was to meet 15.231(a), while the data/control was to meet 15.231(e)? Although the Wakeup Signal is classified as a command signal with a duration of under 5 seconds per 15.231(a), its peak amplitude is purposely reduced relative to the Hello and Sleep commands to restrict the range of responding tags and ensure that they can be controlled by Hello and Sleep. Further, the Wake-Up signal is not pulsed and so the peak and average levels of this signal are not significantly different. The Hello and Sleep commands are pulsed, with a duty cycle of 10%, so the peak and average levels are significantly different. Although it was not measured, the average value of the Wake-Up signal would be approximately 4-6dB higher than that of the Hello and Sleep commands. It was found that Hello and Sleep have satisfactory range at the lower power levels used for data (per 15.231(e)). The only reason for classifying the Wakeup Signal as 15.231(a) is to permit the use of the longer transmission, which allows the Tag receiver to conserve battery power by sampling less frequently. Page 2 of 2 September 30, 2002 3) The theory of operation provided information with respect to meeting the requirements of 15.231(a) & 15.231(e). In specific please address the following concerns: a) The information is somewhat ambiguous in relation to the hello and sleep transmission. The information supplied shows that this does transmission does not last longer than 5 seconds. However, does this 5 second limitation always exist, no matter how many tags respond (given that only a certain number of responses will occur in the 5 second window? Please explain The Hello & Sleep transactions with responding tags are automatically limited to 5 seconds of transmission. Any tags which are not put to sleep during that time will be flagged in the log of those responding. The operator must initiate a second transaction, also limited to 5 seconds, in order to process such stragglers. Alternatively, an automated command will be initiated over the network. b) Please give an explanation on how long tags usually take to respond given the anti-collision algorithm. Also, what is the anticipated time that the EUT takes between the wake up command and "hello/sleep" transmissions. After receiving the Hello command, tags respond by transmitting their ID in one of up to 255 randomly selected time slots of 57 msec width each. The anti-collision algorithm determines the slot number for each tag based on its ID number and internal clock counter, with a random increment to spread the transaction uniformly over the interval. The average tag response time after receiving a Hello is then half of the interval time. This can range from 28.5 msec up to several seconds. (Note: the duration of the tag ID packet is 9.44 msec.) The duration between the end of the WakeUp transmission and the beginning of the Hello/Sleep transmission is a random delay depending on the anti-collision algorithm. It ranges from about 60 msec to several seconds. c) Earlier versions of the EUT also had an additional type of transmissions in the case that some tags do not respond. Please explain if this device has this and if so, please provide detail on this transmission classification, plots, etc. A previous product stated that an Alarm Condition would be declared under the definition of 15.231(a,4) in the event that not all tags responded. Such a condition would permit EUT transmission to re-try until the alarm was cleared. In practice, this mode was not found essential to operation, and was deleted from the current model.

Cover Letter(s)

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 September 29, 2002 RE: Savi Technology FCC ID: KL7-600R-V2 After a review of the submitted information, I have a few comments on the above referenced Application. 1) Please explain the purpose of 2 identical transmitters in the unit. The theory of operation does not bring up this issue. Are they ever expected to transmit at the same time? If so, how does this affect the measurements made? 2) It appears that the data/control signals measured were higher than the wakeup signal. Was this expected since the reports states that the wakeup signals was to meet 15.231(a), while the data/control was to meet 15.231(e)? 3) The theory of operation provided information with respect to meeting the requirements of 15.231(a) & 15.231(e). In specific please address the following concerns: a) The information is somewhat ambiguous in relation to the hello and sleep transmission. The information supplied shows that this does transmission does not last longer than 5 seconds. However, does this 5 second limitation always exist, no matter how many tags respond (given that only a certain number of responses will occur in the 5 second window? Please explain b) Please give an explanation on how long tags usually take to respond given the anti- collision algorithm. Also, what is the anticipated time that the EUT takes between the wake up command and "hello/sleep" transmissions. c) Earlier versions of the EUT also had an additional type of transmissions in the case that some tags do not respond. Please explain if this device has this and if so, please provide detail on this transmission classification, plots, etc. Timothy R. Johnson Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

External Photos

ID Label/Location Info

T I T L E C O D E S C A L E : N / A S I Z E D R A W I N G N o : S H E E T 1 O F 1 R E V : D A T E A P P L I C A T I O N 8 6 0 - 0 4 0 2 4 - 0 0 1 U S E D O N R E V I S I O N R E C O R D L T R D E S C R I P T I O N D A T E A A P P R O V E D D R A W N C H E C K E D E N G I N E E R P R O D U C T I O N M A T E R I A L S U S T A I N I N G P R O J E C T L E A D E R D A T A C O N T R O L D A T E D A T E D A T E D A T E D A T E D A T E D A T E D A T E F I L E N A M E : 7 3 5 0 4 0 2 4 A . T C W N E X T A S S E M B L Y E P R D R F C C I D : K L 7 - 6 0 0 R - V 2 M o d e l : S R - 6 4 0 - 1 0 1 S / N : 3 . 0 0 1 . 5 0 T . T R A N 0 8 / 0 7 / 0 2 L A B E L , F C C I D / S E R I A L N O . / M O D E L N O . , E P R E A D E R , S R - 6 4 0 - 1 0 1 - X E P R D R 7 3 5 - 0 4 0 2 4 - 0 0 1 R F A # E 2 9 7 3 : P R E - P R O D U C T I O N R E L S a v i T e c h n o l o g y , S u n n y v a l e C A 9 4 0 8 9 9 2 - 1 2 5 / 1 8 4 - 2 5 0 V A C , 5 0 / 6 0 H z , 3 0 0 / 2 0 0 m A 6 - 1 5 V D C , 3 0 0 m A 1 A L I S T E D R 9 8 0 0 5 4 0 I n f o r m a t i o n T e c h n o l o g y E q u i p m e n t 6 1 5 T A S M A N D R I V E S U N N Y V A L E , C A L I F O R N I A 9 4 0 8 9 0 8 8 9 T h i s d e v i c e c o m p l i e s w i t h P a r t 1 5 o f t h e F C C r u l e s . O p e r a t i o n i s s u b j e c t t o t h e f o l l o w i n g t w o c o n d i t i o n s : ( 1 ) t h i s d e v i c e m a y n o t c a u s e h a r m f u l i n t e r f e r e n c e , a n d ( 2 ) t h i s d e v i c e m u s t a c c e p t a n y i n t e r f e r e n c e r e c e i v e d , i n c l u d i n g i n t e r f e r e n c e t h a t m a y c a u s e u n d e s i r e d o p e r a t i o n . N O T E S : ( U N L E S S O T H E R W I S E S P E C I F I E D ) D I M E N S I O N S A R E I N I N C H E S , ± . 0 1 5 L A B E L S H A L L B E M A N U F A C T U R E D B Y A U L A P P R O V E D V E N D O R . V E N D O R S H A L L H A V E A C U R R E N T S I G N E D " P R I N T E R A G R E E M E N T " O N F I L E W I T H U L P E R U L M A R K I N G A N D L A B E L I N G S Y S T E M S A N D S H A L L S U P P L Y E A C H P A C K A G E O R R O L L M A R K E D W I T H C O M P A N Y N A M E A N D L A B E L D E S I G N A T I O N P E R U L M A R K I N G A N D L A B E L I N G S Y S T E M S . 1 . 2 . S P E C I F I C A T I O N S . 0 0 2 M A T T E S I L V E R M Y L A R W I T H V 2 3 A D H E S I V E ( 1 M I L ) B L A C K L E T T E R S O N S I L V E R B A C K G R O U N D A R I A L , A R I A L N A R R O W ( E T L , C E M A R K A N D A L E R T A S S H O W N ) . 0 0 1 C O M P U C A L L A M I N A T I O N 3 . M A T E R I A L C O L O R F O N T L A M I N A T I O N L A B E L D I M E N S I O N S M A Y B E A D J U S T E D T O C L O S E S T S T A N D A R D D I E . 4 . 5 . E T L M A R K , C E M A R K , A N D A L E R T S Y M B O L S A R E I N A C C O R D A N C E W I T H S P E C I F I C A T I O N 7 3 5 - 0 3 9 3 8 - 0 0 1 . 1 A 2 3 19 43 26 30 15 39 30 27 13 4 14 30 7 12 30 8 10 22 21 25 1 38 16 31 26 17 31 32 32 32 31 31 X6 X2 X2 4X 5X 31 32 5X X2 X4 12X 8X 6X X2 { { } } 2X 31 32{ 5X X2 9 3 4 2 5 X2 5 X2 TO ITEM 19 TO ITEM # 7 6 7 9 18 28 5 11 13 3 X2 40 41 2X 5 14 26 32 X2 15 34 12 16 10 10 18 17 23 24 X2 30 X2 33 6 6 35 6 A A 8 6 20 BB VIEW A - A VIEW B - B 19 D C B A A B C D 12345678 8 7 6 5 4 3 21 REVISIONS ZONE DESCRIPTION DATEAPPROVED E F E F REV. SIZE D CODE APL01 DRAWING NO. 860-03610-001 REV. A SHEET 2 OF 4 FILE NAME: 860-03610-001.SLDDRW SCALE 1:2 COMPUTER GENERATED DRAWING DATA BASE MUST BE UPDATED UPDATED: 09/24/01 SEE SHEET ONE

Internal Photos

Internal Photographs Assembly views – top and bottom sections Bottom section – assembly view Top and bottom sides of interrogator board PWB 738-02425-001 Rev B Top and Bottom Views Power Supply Board – Top and Bottom Views Antenna Board – Top and Bottom Internal Photos – 433MHz Transmitter PCB Top of Board with and without shield Bottom of PCB

Test Report

File: R48446 Page 1 of 2 Electromagnetic Emissions Test Report and Application for Grant of Equipment Authorization pursuant to FCC Part 15, Subpart C Specifications for an Intentional Radiator and FCC Part 15, Subpart B Specifications for a Receiver on the Savi Technology, Inc. Model: ECHOPOINT READER, MODEL SR-640-101 FCC ID: KL7-600R-V2 GRANTEE: Savi Technology, Inc. 615 Tasman Drive Sunnyvale, CA 94089-1707 TEST SITE: Elliott Laboratories, Inc. 684 W. Maude Avenue Sunnyvale, CA 94086 REPORT DATE: August 28, 2002 FINAL TEST DATE: July 31, 2002 AUTHORIZED SIGNATORY: ______________________________ Mark Briggs Director of Engineering This report shall not be reproduced, except in its entirety, without the written approval of Elliott Laboratories, Inc. Elliott Laboratories, Inc. -- EMC Department Test Report Report Date: October 16, 2001 File: R48446 Page 2 of 17 Pages TABLE OF CONTENTS COVER PAGE..................................................................................................................................................................................1 TABLE OF CONTENTS...............................................................................................................................................................2 SCOPE.............................................................................................................................................................................................3 OBJECTIVE...................................................................................................................................................................................3 STATEMENT OF COMPLIANCE..............................................................................................................................................4 EMISSION TEST RESULTS.......................................................................................................................................................5 LIMITS OF CONDUCTED INTERFERENCE VOLTAGE....................................................................................................5 LIMITS OF RADIATED FIELD STRENGTH - RECEIVER.................................................................................................5 BANDWIDTH...........................................................................................................................................................................5 DUTY CYCLE CALCULATION..............................................................................................................................................6 PERIOD OF OPERATION........................................................................................................................................................6 LIMITS OF RADIATED FIELD STRENGTH –INTENTIONAL RADIATOR.................................................................7 MEASUREMENT UNCERTAINTIES....................................................................................................................................7 EQUIPMENT UNDER TEST (EUT) DETAILS..........................................................................................................................8 GENERAL...................................................................................................................................................................................8 ENCLOSURE..............................................................................................................................................................................8 SUPPORT EQUIPMENT..........................................................................................................................................................8 EXTERNAL I/O CABLING......................................................................................................................................................9 EUT OPERATION.....................................................................................................................................................................9 TEST SITE....................................................................................................................................................................................10 GENERAL INFORMATION..................................................................................................................................................10 CONDUCTED EMISSIONS CONSIDERATIONS..............................................................................................................10 RADIATED EMISSIONS CONSIDERATIONS..................................................................................................................10 MEASUREMENT INSTRUMENTATION................................................................................................................................11 RECEIVER SYSTEM...............................................................................................................................................................11 INSTRUMENT CONTROL COMPUTER............................................................................................................................11 LINE IMPEDANCE STABILIZATION NETWORK (LISN).............................................................................................11 FILTERS/ATTENUATORS...................................................................................................................................................12 ANTENNAS............................................................................................................................................................................12 ANTENNA MAST AND EQUIPMENT TURNTABLE....................................................................................................12 INSTRUMENT CALIBRATION.................................................................…

Text truncated - open the document above for the full version.

Test Setup Photos

Test Configuration Photos Radiated Emissions Conducted Emissions

Contact Information

Applicant

Rosemary Johnston(Vice President, Operations)

[email protected]571-227-7918Fax: 571-227-7960

Technical Contact

Elliott Laboratories Inc.Mark Briggs

[email protected]408-245-7800

684 W. Maude Ave. · Sunnyvale, California · United States

Non-Technical Contact

Elliott Laboratories Inc.Mark Briggs

[email protected]408-245-7800

Test Firm

Elliott Laboratories LLCDavid Bare

[email protected]408-245-7800Fax: 408-245-3499

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
1	15C	433.92 MHz - 433.92 MHz	-

Confidentiality

Long Term

Grant Notes

Collection Mode of operation meets with the requirements of 15.231(a)(1) & (a)(2). Data Transmission Mode of operation meets with the requirements of 15.231(e) and is permitted with a duration of no more than one second and the silent period between transmissions shall be at least 30 times the duration of the transmission, but in no case less than 10 seconds.
