KL7-650MR-V2Signpost SMR-650P-21X

Savi Mobile Reader SMR-650P-210 and SMR-650P-211 U.S. Regulatory Approvals Compliance Notice 1 Keep This Document Savi P/N 805-04625-001 (Rev. A) Federal Communications Commission (FCC) Notice The Federal Communications Commission has established technical standards regarding radio frequency energy emitted by computer devices. This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference with radio/TV reception. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. Warning: Changes or modifications to this equipment that are not expressly approved by Savi Technology could void the warranty and the authority to operate this equipment. Savi Technology is not responsible for radio/TV interference caused by using unauthorized cable or by making unauthorized changes to this equipment. Product Safety AC adapter: UL approved (UL 1950) Federal Communications Commission (FCC) Label Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following conditions: • This device may not cause harmful interference, and • This device must accept any interference received, including interference that may cause undesired operation. The label statement corresponds to the following devices: Savi Technology, Inc. 615 Tasman Drive Sunnyvale, CA 94089-1707 Phone:(408) 743-8000 Fax:(408) 543-8650 E-mail:[email protected] Web site:www.savi.com Copyright © 2004, Savi Technology, Inc. All rights reserved. Published April 2004. Copyright protection claimed includes all forms and matters of copyrightable material and information, now allowed by statutory or judicial law or hereinafter granted. Information in this guide is subject to change without notice and does not represent a commitment from the vendor. Savi is a registered trademark and MobileReader is a trademark of Savi Technology Incorporated. Other product names mentioned in this guide may be trademarks or registered trademarks of their respective owners and are hereby acknowledged. DeviceModelFCC ID Radio mobile reader SMR-650P-210 and SMR-650P-211 KL7-650MR-V2

Quick Reference Guide Savi Mobile Reader SMR-650P-210 and SMR-650P-211 Version 1.0 Published April 2004 Part number 805-04624-001 Rev A Documentation for Savi Mobile Reader SMR-650P-210 and SMR-650P-211, version 1.0 Copyright © 2004 Savi Technology, Inc. All rights reserved. Information in this manual is subject to change without notice and does not represent a commitment from the vendor. The software and/or databases described in this document are furnished under a license agreement or nondisclosure agreement. The software and/or databases may be used or copied only in accordance with the terms of the agreement. It is against the law to copy the software on any medium except as specifically allowed in the license or nondisclosure agreement. Savi, Savi SmartChain, SmartChain, and Batch Collection are registered trademarks, and EchoPoint, Savi GateReader, Savi MobileReader, Savi Retriever, SaviReader, SaviTag, Savi Technology, SmartSeal, UDAP, and Universal Data Appliance Protocol are trademarks of Savi Technology, Inc. Other product names mentioned in this guide may be trademarks or registered trademarks of their respective owners and are hereby acknowledged. Savi Technology, Inc. 615 Tasman Drive Sunnyvale, CA 94089-1707 Phone: 1-408-743-8000 Facsimile: 1-408-543-8650 www.savi.com Savi Mobile Reader SMR-650P Quick Reference Guide3 Contents 1Welcome In This Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Other Information Resources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Guides to Read . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Contacting Customer Support . . . . . . . . . . . . . . . . . . . . . . . . . . 6 2Savi Mobile Reader SMR-650P and Handheld Device Description SMR-650P-211 Reader Components . . . . . . . . . . . . . . . . . . . . . . . 7 SMR-650P-210 Reader Components . . . . . . . . . . . . . . . . . . . . . . . 7 SMR-650P Reader Specifications . . . . . . . . . . . . . . . . . . . . . . . . . 9 SMR-650P Reader Communication . . . . . . . . . . . . . . . . . . . . . . 12 UHF Mode Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 LF Mode Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Optimizing the SMR-650P Reader Tag Collection Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Operating the SMR-650P Reader with the Symbol Handheld Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Backlight Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Symbol 8100 and 8146 Keypad . . . . . . . . . . . . . . . . . . . . . . . . 18 Keys Unique to the Symbol 8100 and 8146 . . . . . . . . . . . . . . . 19 4 3Connecting the SMR-650P Reader and Charging the Battery Connecting the SMR-650P Reader to the Symbol Handheld Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 Recharging the SMR-650P Reader Battery . . . . . . . . . . . . . . . . 23 Recharging the Handheld Device in the Carrying Case . . . . . . 24 Battery Status Green LED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 Verifying the SMR-650P Reader Connection . . . . . . . . . . . . . . . . 26 Checking the SMR-650P Reader Battery . . . . . . . . . . . . . . . . . . . 27 4Printing Labels Printing with the Infrared Interface (IrDA) . . . . . . . . . . . . . . . . . . 29 IrDA Printing Troubleshooting Tips . . . . . . . . . . . . . . . . . . . . . 34 Printing with the Serial Interface Cable . . . . . . . . . . . . . . . . . . . . 34 CHAPTER 1 Savi Mobile Reader SMR-650P Quick Reference Guide5 Welcome1 The Savi® Mobile Reader SMR-650P is a portable radio frequency identification (RFID) interrogator that communicates with all models of Savi RFID tags. The SMR-650P-211 Reader has a customized Symbol cable and works with a Symbol 8100 or 8146 device to provide you with a standalone handheld reader. The SMR-650P-210 Reader has a DB-9 connector for use with a laptop or desktop PC. In This Guide This guide describes the specifications, features, and use of the SMR-650P Reader. ◆This chapter, “Welcome,” provides an introduction to this guide and lists resources you can turn to for additional information. ◆Chapter 2, “Savi Mobile Reader SMR-650P and Handheld Device Description,” specifies technical information about the SMR-650P Reader. ◆Chapter 3, “Connecting the SMR-650P Reader and Charging the Battery,” tells you how to connect the SMR-650P-211 Reader to the Symbol 8100 or 8146. ◆Chapter 4, “Printing Labels,” explains how to use the Zebra PT47X printer with the SMR-650P Reader. CHAPTER 1 Welcome 6 Other Information Resources Guides to Read Other documentation for the SMR-650P Reader includes: ◆Handheld Reader Setup Procedure guide, available on a CD provided by the Savi Training Department. ◆Savi SmartChain Mobile Manager Pocket Guide and the Savi SmartChain Mobile Manager Administrator Guide, available with the SmartChain Mobile Manager application. ◆For information about the Symbol device, refer to the Symbol Product Reference Guide at www.symbol.com. Contacting Customer Support If you cannot find the information you need in the guides, contact Savi Customer Support. ◆Call 1-888-994-SAVI (North America only) or 1-408-743-8888 between 9 a.m. and 5 p.m. Pacific time. ◆Send email to [email protected]. ◆Check www.savi.com/support for information. When you contact Savi Customer Support by telephone or email, have the following information available: ◆Contact information (company name, your name, email, and phone number) ◆Problem description ◆Product type and location ◆Serial number or license information CHAPTER 2 Savi Mobile Reader SMR-650P Quick Reference Guide7 Savi Mobile Reader SMR-650P and Handheld Device Description2 This chapter provides the Savi Mobile Reade…

Text truncated - open the document above for the full version.

May 17, 2004 Mr. Tim Johnson American Telecommunication Certification Body 6731 Whittier Ave McLean, VA 22101 Subject: Savi Technology FCCID: KL7-650MR-V2 Dear Tim, Thank you for your comments dated May 6, 2004 concerning the certification of the subject product. Please review our responses, which follow your comments as reproduced below. 1) The 433 MHz test photos show the device with the antenna lying down. The antenna should have been positioned in an upright position for the test. Recent interpretations from the FCC have stressed this fact. Note the report mentions all 3 axis. Please confirm this was performed and if so, are additional photos available. We confirm that all three axis were investigated as noted in the test data. No photos were taken of the other axis. 2) The test report justifies the use of previous data for the 123 kHz from a previous model. However, the previous model did not contain the 433 MHz antenna. Additionally, from the schematics both the 433 MHz and 123 MHz antennas in this model are fed from a single feed point without any selective switch for which antenna should be used for a particular TX cycle. The addition of this circuitry changes the loading conditions of the antenna and will likely have an affect on the previous test results at 123 kHz. Due to the changes of loading conditions it would seem that that the validity of the previous test results cannot be assumed. The previous model is identical to the model submitted. The schematics show that the 433.92 MHz transmitter is separate from the 123 kHz transmitter. For this model, instead of using the UHF loop antenna shown on the reader schematics for the 433.92 MHz transmitter, the external antenna is connected to J1, J5 and J22 through L1, L2 and C1 as shown in the antenna schematic. 3) Please explain what is meant on page 2 of 9 when the report states “when operated under 15.209 rules, 433.92 MHz transmission may be continuous. Shouldn’t all 433.92 MHz emissions be classified under 15.231 (a) & (e) and non-continuous in nature? This statement applied to the previous model to which this data applies, since we did not retest the 123 kHz transmitter but needed to include the data for a complete record. However, the –21x models that this application is for do not have 15.209 UHF transmissions. See page 8 of 19 of the report. 4) Page 9 of 19 mentions no modifications necessary, but modifications appear to be listed throughout the report. Please clarify. The modifications referred to in the report pages were performed on the previous model since we included the test data for the previous model for a complete record on the new model with the external UHF antenna. No modifications were made to the –21x model that was tested. 5) Please provide test measurements to show the 24% and 10% duty factors, as well as compliance to the 5 second automatic shut off and 30*/10 second repetition rate requirements of 15.231 See the attached plots that we neglected to provide with this new application. They were part of the original model application and should have been sent. I hope this answers all of your questions. Sincerely, David W. Bare Chief Technical Officer

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 May 6, 2004 RE: Savi Technology FCC ID: KL7-650MR-V2 After a review of the submitted information, I have a few comments on the above referenced Application. Administrative/General: 1) The 433 MHz test photos show the device with the antenna lying down. The antenna should have been positioned in an upright position for the test. Recent interpretations from the FCC have stressed this fact. Note the report mentions all 3 axis. Please confirm this was performed and if so, are additional photos available. 2) The test report justifies the use of previous data for the 123 kHz from a previous model. However, the previous model did not contain the 433 MHz antenna. Additionally, from the schematics both the 433 MHz and 123 MHz antennas in this model are fed from a single feed point without any selective switch for which antenna should be used for a particular TX cycle. The addition of this circuitry changes the loading conditions of the antenna and will likely have an affect on the previous test results at 123 kHz. Due to the changes of loading conditions it would seem that that the validity of the previous test results can not be assumed. 3) Please explain what is meant on page 2 of 9 when the report states “when operated under 15.209 rules, 433.92 MHz transmission may be continuous. Shouldn’t all 433.92 MHz emissions be classified under 15.231 (a) & (e) and non-continuous in nature? 4) Page 9 of 19 mentions no modifications necessary, but modifications appear to be listed throughout the report. Please clarify. 5) Please provide test measurements to show the 24% and 10% duty factors, as well as compliance to the 5 second automatic shut off and 30*/10 second repetition rate requirements of 15.231 Timothy R. Johnson Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

TITLE CODE SCALE: N/A DRAWING No: SHEET 1 OF 2 REV: DATE APPLICATION 860-04435-TAB USED ON REVISION RECORD DESCRIPTION DATE A APPROVED DRAWN CHECKED ENGINEER PRODUCTION MATERIAL SUSTAINING PROJECT LEADER DATA CONTROL DATE DATE DATE DATE DATE DATE DATE DATE FILE NAME: 73504423_02.TCW NEXT ASSEMBLY LABEL, FCC ID / CE MARK 650P READER 735-04423-TAB 01 615 TASMAN DRIVE SUNNYVALE, CALIFORNIA 94089 NOTES: (UNLESS OTHERWISE SPECIFIED) DIMENSIONS ARE IN INCHES, ±.015 LABEL SHALL BE MANUFACTURED BY A UL APPROVED VENDOR. VENDOR SHALL HAVE A CURRENT SIGNED "PRINTER AGREEMENT" ON FILE WITH UL PER UL MARKING AND LABELING SYSTEMS AND SHALL SUPPLY EACH PACKAGE OR ROLL MARKED WITH COMPANY NAME AND LABEL DESIGNATION PER UL MARKING AND LABELING SYSTEMS. 1. 2. SPECIFICATIONS3. MATERIAL COLOR FONT LAMINATION LABEL DIMENSIONS MAY BE ADJUSTED TO CLOSEST STANDARD DIE.4. Add -003 & -004 F. HEIGH10/07/03 BLACK LETTERS ON WHITE BACKGROUND ARIAL, ARIAL BOLD (CE MARK AND ALERT NOT INCLUDED) 1 MIL MATTE CLEAR POLYESTER FLEXMARK PM-200-W (3 MIL.) POLYESTER WITH V-23 ADHESIVE (1 MIL) 5. ETL MARK, CE MARK AND ALERT SYMBOL ARE IN ACCORDANCE WITH SPECIFICATION 735-03938-001. EPHHI LTR EPHHI SIZE 02 02 Add -005, 006. 007 & -008 for external antenna CODE SCALE: SIZE DRAWING No: SHEET 2 OF 2 REV: A EPHHI 735-04423-TAB 02 REVISION RECORD DESCRIPTION DATE APPROVED SEE FIRST PAGE LTR FILE NAME: 73504423_02.TCW TABTEXT -001 KL7-650MR-V1 IC:2404A-650P SMR-650P-110 SMR-650P-111 -002 KL7-650MR-V1 IC:2404A-650P SMR-650P-110 SMR-650P-111 -003 KL7-650MR-V1 IC:2404A-650P SMR-650P-110 SMR-650P-111 -004 KL7-650MR-V1 IC:2404A-650P SMR-650P-110 SMR-650P-111 - Savi Technology Sunnyvale CA 94089 5VDC, 300mA 2.250 0.500 R0.050 0889 FCC ID: KL7-650MR-V1 IC: 2404A-650P -001 2.250 0.500 R0.050 FCC ID: KL7-650MR-V1 IC: 2404A-650P -002 0889 CONFORMS TO STD UL 1604 5VDC, 300mA 9800540 L I S TE D R Savi Technology Sunnyvale CA 94089 5VDC, 300mA 2.250 0.500 R0.050 FCC ID: KL7-650MR-V1 IC: 2404A-650P -003 2.250 0.500 R0.050 FCC ID: KL7-650MR-V1 IC: 2404A-650P -004 CONFORMS TO STD UL 1604 5VDC, 300mA 9800540 L I S TE D R - Savi Technology Sunnyvale CA 94089 5VDC, 300mA 2.250 0.500 R0.050 0889 FCC ID: KL7-650MR-V2 IC: 2404A-650P1 -005 2.250 0.500 R0.050 FCC ID: KL7-650MR-V2 IC: 2404A-650P1 -006 0889 CONFORMS TO STD UL 1604 5VDC, 300mA 9800540 L I S TE D R 2.250 0.500 R0.050 FCC ID: KL7-650MR-V2 IC: 2404A-650P1 -008 CONFORMS TO STD UL 1604 5VDC, 300mA 9800540 L I S TE D R TABTEXT -005 KL7-650MR-V2 IC:2404A-650P1 SMR-650P-210 SMR-650P-211 -006 KL7-650MR-V2 IC:2404A-650P1 SMR-650P-210 SMR-650P-211 -007 KL7-650MR-V2 IC:2404A-650P1 SMR-650P-210 SMR-650P-211 -008 KL7-650MR-V2 IC:2404A-650P1 SMR-650P-210 SMR-650P-211 Savi Technology Sunnyvale CA 94089 5VDC, 300mA 2.250 0.500 R0.050 FCC ID: KL7-650MR-V2 IC: 2404A-650P1 -007 External Antenna MODEL No. Internal Antenna MODEL No.

Built on Savi's EchoPoint technology, the Savi Mobile Reader takes real-time data collection to a new level. The Savi Mobile Reader is an integrated mobile, low profile, lightweight, battery operated interrogator/reader module that is used in conjunction with a desktop PC or laptop for the purpose of commissioning, identifying and configuring Savi RFID tags. Features · Mobile Reader serial DB-9 connnector for commissioning, reading, and configuring Savi and Savi Network compatible RFID tags. · Compatible with all Savi RFID tags, including Savi ST-41x series tags and Savi EchoPoint Series 600 tags. · Short-range, low frequency transmitter for commissioning of EchoPoint RFID tags. · Long-range, two-way UHF receiver/transmitter for tag wakeup, read, and write. · Battery operated RFID reader. · Kit configuration available includng the RFID reader, and Client Tools software bundled in various options for tag commissioning. EchoPoint Technology Savi's EchoPoint technology is a new, innovative and patent pending technology that leverages the best features from several traditional RFID technologies into a single, highly cost-effective solution. Using two operating frequencies, EchoPoint combines long-range communication with precise spot-level locating. Together with worldwide acceptance and low infrastructure costs, EchoPoint is uniquely suited to the demands of today's global supply chains. SaviandSaviSmartChainareregisteredtrademarksofSaviTeTTchnology.TheSavilogo,EchoPoint,UDAP,PandSaviSmartSealare trademarksofSaviTeTTchnology,Inc.Allothertrademarksarethepropertyoftheirrespectiveowners.(012/9/03) TM RF Receiver/Transmitter UHF Frequency: Range: Modulation: Data Rate: Air Protocol: 433.92 MHz Up to 200 Feet typical (61 meters) Line of Sight FSK, deviation +/- 35KHz 27.8 kbps, 50% duty cycle EchoPoint Air Protocol Enhanced Batch Collection System (EBCS) Specifications for Savi Mobile Reader SMR-650P Approx. 6.4 cm. (2.5 in.) x 8.9 cm. (3.5 in.) 2.5 cm x (1 in.) 4.8 ounces (136 grams) Physical Dimensions: Weight: Environmental Temperature: Humidity: Shock: Vibration: Enclosure: -20 to + 50 °C when operating from internal battery 5% to 95% non-condensing at +50 °C (122 °F) Mil-Std-810E; Method 516.4, Category 10 Mil-Std-810E; Method 514.4, Category 10 Sealed to IP42 123 KHz Up to 4 Feet (1.22 meters) ASK On-Off Keying Avg. 1.6 kbps, 50% duty cycle Pulse Code Modulation Low Frequency Transmitter for Tag Commissioning Frequency: Range: Modulation: Data Rate: Data Coding: Power AC Source for RFID Reader: Internal Battery for RFID Reader: AC wall adapter for charging battery 6 ft cable, Input: 110 / 220 VAC, Output: 5V +/-10% regulated, 300 mA Rechargable Li-Ion battery (3.7V @ 420mAh up to approx. 500 recharging cycles @ 80% or more of full battery capacity). Capacity sufficient for 3 to 4 days of continuous operation depending on usage assumption. Battery is non-replaceable by the user. FCC Part 15, ETSI, EN 300 220-1 and EN 300 330 UL 1950, CE EN 60950 Approval Type: AC Adapter: 32K bytes non-volatile for tag data Digital Memory: Network Interface: Protocol: Interface back to network requires handheld to be enabled with wireless or wired docking station UDAP (Universal Data Appliance Protocol) used to communicate with Savi Site Manager Tag Compatibility: All Savi RFID tags ABOUT SAVI Savi is the proven leader in global supply chain security and real-time asset management with over 14 years of logistics infrastructure experience. The company's broad customer base includes the U.S. Department of Defense as well as numerous international ports, terminal operators, carriers, asset owners and third party logistics providers. Founded in 1989, Savi Technology is headquartered in Sunnyvale, California and offices in Johannesburg, London, Singapore, Taipei, and Washington D.C.. Interested in Savi's EchoPoint Technology? Let us show you how Savi's EchoPoint Technology can work for your company. In the United States, call toll-free 800-428-0554, international customers dial 408-743-8000. Contact Savi Asia at 65-2411191 and Savi EMEA at +44 1483 243617 (England), +27 11 469-3144 (S. Africa). Visit www.savi.com or email us at [email protected]. Software Requirements: Client Tools or Savi Mobile Manager software required. Savi Mobile Reader SMR-650P-210

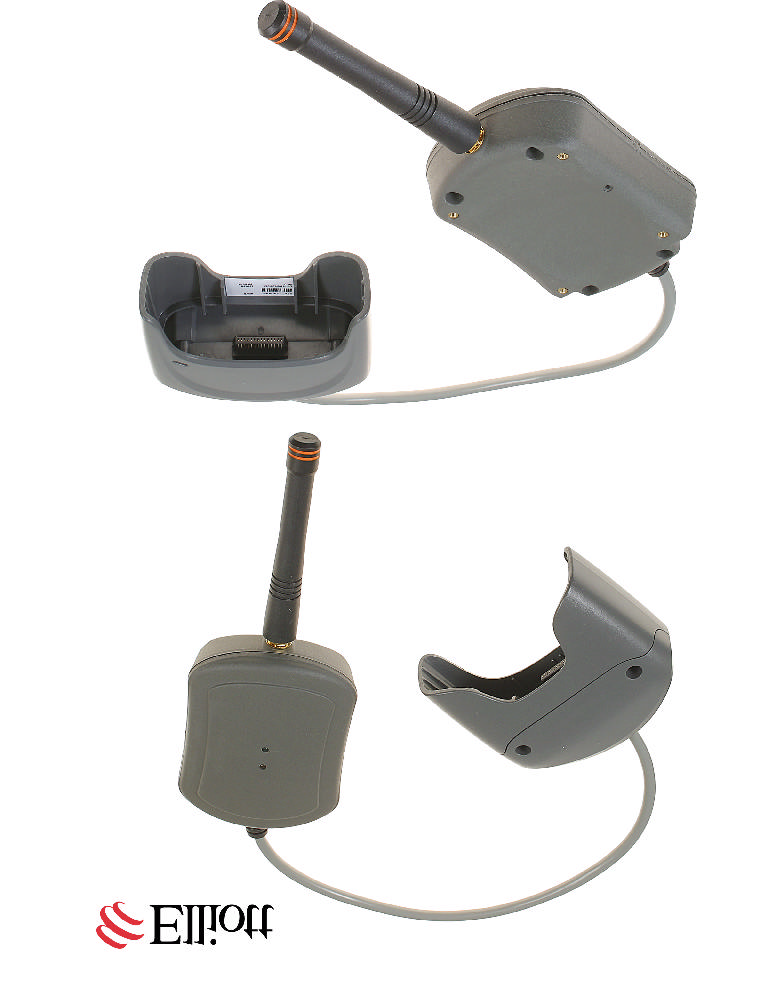

Built on Savi's EchoPoint technology, the Savi Mobile Reader takes real-time data collection to a new level. The Savi Mobile Reader is an integrated mobile, low profile, lightweight, battery operated interrogator/reader module that is used in conjunction with the Symbol Personal Data Terminal (PDT) for the purpose of commissioning, identifying and configuring Savi RFID tags. Features · Mobile integrated PDT with RFID reader for commissioning, reading, and configuring Savi and Savi Network compatible RFID tags. · Compatible with all Savi RFID tags, including Savi ST-41x series tags and Savi EchoPoint Series 600 tags. · Short-range, low frequency transmitter for commissioning of EchoPoint RFID tags. · Long-range, two-way UHF receiver/transmitter for tag wakeup, read, and write. · Battery operated PDT and RFID reader. · Handheld carrying case (model HCC-650P-01) mounts the Savi RFID mobile reader to the Symbol 8100 and 8146 Personal Data Terminal. · Kit configuration available includng the RFID reader, Symbol PDT, Carrying Case, and Savi Mobile Manager software bundled in various options. EchoPoint Technology Savi's EchoPoint technology is a new, innovative and patent pending technology that leverages the best features from several traditional RFID technologies into a single, highly cost-effective solution. Using two operating frequencies, EchoPoint combines long-range communication with precise spot-level locating. Together with worldwide acceptance and low infrastructure costs, EchoPoint is uniquely suited to the demands of today's global supply chains. SaviandSaviSmartChainareregisteredtrademarksofSaviTeTTchnology.TheSavilogo,EchoPoint,UDAP,PandSaviSmartSealare trademarksofSaviTeTTchnology,Inc.Allothertrademarksarethepropertyoftheirrespectiveowners.(012/9/03) Savi Mobile Reader SMR-650P-211 TM RF Receiver/Transmitter UHF Frequency: Range: Modulation: Data Rate: Air Protocol: 433.92 MHz Up to 200 Feet typical (61 meters) Line of Sight FSK, deviation +/- 35KHz 27.8 kbps, 50% duty cycle EchoPoint Air Protocol Enhanced Batch Collection System (EBCS) Specifications for Savi Mobile Reader SMR-650P Approx. 6.4 cm. (2.5 in.) x 8.9 cm. (3.5 in.) 2.5 cm x (1 in.) 4.8 ounces (136 grams) Physical Dimensions: Weight: Environmental Temperature: Humidity: Shock: Vibration: Enclosure: -20 to + 50 °C when operating from internal battery 5% to 95% non-condensing at +50 °C (122 °F) Mil-Std-810E; Method 516.4, Category 10 Mil-Std-810E; Method 514.4, Category 10 Sealed to IP42 123 KHz Up to 4 Feet (1.22 meters) ASK On-Off Keying Avg. 1.6 kbps, 50% duty cycle Pulse Code Modulation Low Frequency Transmitter for Tag Commissioning Frequency: Range: Modulation: Data Rate: Data Coding: Power AC Source for RFID Reader: Internal Battery for RFID Reader: AC wall adapter for charging battery 6 ft cable, Input: 110 / 220 VAC, Output: 5V +/-10% regulated, 300 mA Rechargable Li-Ion battery (3.7V @ 420mAh up to approx. 500 recharging cycles @ 80% or more of full battery capacity). Capacity sufficient for 3 to 4 days of continuous operation depending on usage assumption. Battery is non-replaceable by the user. FCC Part 15, ETSI, EN 300 220-1 and EN 300 330 UL 1950, CE EN 60950 Approval Type: AC Adapter: 32K bytes non-volatile for tag data Digital Memory: PDT Mounting: Handheld carrying case (model HCC-650P-01) mounts the Savi Mobile Reader to the Symbol 8100 and 8146. Network Interface: Protocol: Interface back to network requires handheld to be enabled with wireless or wired docking station UDAP (Universal Data Appliance Protocol) used to communicate with Savi Site Manager Tag Compatibility: All Savi RFID tags ABOUT SAVI Savi is the proven leader in global supply chain security and real-time asset management with over 14 years of logistics infrastructure experience. The company's broad customer base includes the U.S. Department of Defense as well as numerous international ports, terminal operators, carriers, asset owners and third party logistics providers. Founded in 1989, Savi Technology is headquartered in Sunnyvale, California and offices in Johannesburg, London, Singapore, Taipei, and Washington D.C.. Interested in Savi's EchoPoint Technology? Let us show you how Savi's EchoPoint Technology can work for your company. In the United States, call toll-free 800-428-0554, international customers dial 408-743-8000. Contact Savi Asia at 65-2411191 and Savi EMEA at +44 1483 243617 (England), +27 11 469-3144 (S. Africa). Visit www.savi.com or email us at [email protected]. Software Requirements: Savi Mobile Manager software required.

File: R53792 Page 1 of 19 Electromagnetic Emissions Test Report In Accordance With Industry Canada Radio Standards Specification 210 And FCC Part 15 Sections 15.209, 15.231 on the Savi Technology, Inc. Transmitter Model: SMR-650P-21X UPN: 2404A-650P1 FCC ID: KL7-650MR-V2 GRANTEE: Savi Technology, Inc. 615 Tasman Drive Sunnyvale, CA 94089-1707 TEST SITE: Elliott Laboratories, Inc. 684 W. Maude Ave Sunnyvale, CA 94086 REPORT DATE: April 14, 2004 FINAL TEST DATE: December 8, December 9, December 11, 2003 and April 6, 2004 AUTHORIZED SIGNATORY: ______________________________ Juan Martinez Senior EMC Engineer Elliott Laboratories, Inc. is accredited by the A2LA, certificate number 2016-01, to perform the test(s) listed in this report. This report shall not be reproduced, except in its entirety, without the written approval of Elliott Laboratories, Inc. Elliott Laboratories, Inc. -- EMC Department Test Report Report Date: December 16, 2003 File: R53792 Page 2 of 19 pages TABLE OF CONTENTS COVER PAGE...................................................................................................................................................................................1 TABLE OF CONTENTS..............................................................................................................................................................2 SCOPE............................................................................................................................................................................................4 OBJECTIVE...................................................................................................................................................................................4 STATEMENT OF COMPLIANCE..............................................................................................................................................5 TEST RESULTS SUMMARY......................................................................................................................................................6 15.231 / RSS 210 SECTION 6.1.................................................................................................................................................6 15.209 / RSS 210 TABLE 3 – OPERATION AT 123 KHZ.....................................................................................................7 MEASUREMENT UNCERTAINTIES.........................................................................................................................................7 EQUIPMENT UNDER TEST (EUT) DETAILS..........................................................................................................................8 GENERAL...................................................................................................................................................................................8 ENCLOSURE..............................................................................................................................................................................8 MODIFICATIONS.....................................................................................................................................................................9 SUPPORT EQUIPMENT...........................................................................................................................................................9 EUT INTERFACE PORTS........................................................................................................................................................9 EUT OPERATION.....................................................................................................................................................................9 ANTENNA SYSTEM..........................................................…
