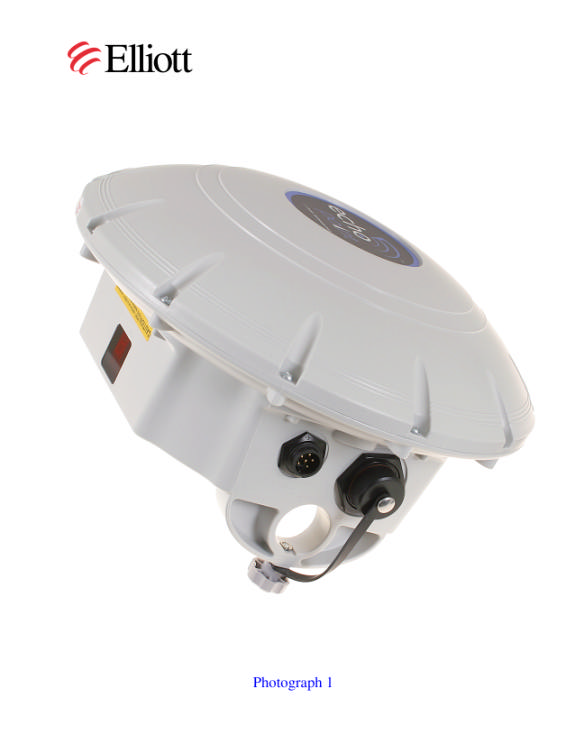

KL7-650R-V1EchoPoint Reader

Savi Fixed Reader SR-650-101 Installation Guide Version 1.0 First edition February 2004 Part number 805-04399-001 Rev A Documentation for Savi Fixed Reader SR-650-101, version 1.0 Copyright © 2004 Savi Technology, Inc. All rights reserved. Information in this manual is subject to change without notice and does not represent a commitment from the vendor. The software and/or databases described in this document are furnished under a license agreement or nondisclosure agreement. The software and/or databases may be used or copied only in accordance with the terms of the agreement. It is against the law to copy the software on any medium except as specifically allowed in the license or nondisclosure agreement. Savi, Savi SmartChain, and Batch Collection are registered trademarks, and EchoPoint, Savi GateReader, Savi MobileReader, Savi Retriever, SaviReader, SaviTag, Savi Technology, SmartChain, SmartSeal, UDAP, and Universal Data Appliance Protocol and are trademarks of Savi Technology, Inc. Other product names mentioned in this guide may be trademarks or registered trademarks of their respective owners and are hereby acknowledged. Savi Technology, Inc. 615 Tasman Drive Sunnyvale, CA 94089-1707 Phone: 1-408-743-8000 Facsimile: 1-408-543-8650 www.savi.com Savi Fixed Reader SR-650 Installation Guide3 Contents 1Introduction Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Reader Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Tag Communication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Models and Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Contacting Customer Support . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 2Savi Fixed Reader SR-650-101 Installation Planning a Site . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Positioning Savi Fixed Readers . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Mounting the Savi Fixed Reader . . . . . . . . . . . . . . . . . . . . . . . . . 15 Connecting Power Cables to the Savi Fixed Reader . . . . . . . . . . 16 Connecting the Network Cables . . . . . . . . . . . . . . . . . . . . . . . . . 17 Ethernet Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Applying Power to the Savi Fixed Reader . . . . . . . . . . . . . . . . . . 19 Setting Up the Savi Fixed Reader SR-650-101 . . . . . . . . . . . . . . 20 Configuring Your PC’s IP Address . . . . . . . . . . . . . . . . . . . . . 20 Pinging the Savi Fixed Reader SR-650-101 . . . . . . . . . . . . . . 24 Configuring the Savi Fixed Reader SR-650-01 Parameters . . 26 Verifying Reader Communication . . . . . . . . . . . . . . . . . . . . . . . . 35 4 3Maintenance Repair and Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37 Technical Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39 CHAPTER 1 Savi Fixed Reader SR-650 Installation Guide5 Introduction1 You can use the Savi® Fixed Reader SR-650-101 to scan, detect, and collect tag information. The SR-650-101 Reader is designed to communicate with all models of SaviTags, and forward the collected data to the SmartChain™ Site Manager or Client Tools host platforms. You can network multiple readers to cover large facilities. Working with Savi Signposts, SR-650-101 Readers provide a complete RFID solution for real-time, end-to-end visibility of goods and critical assets moving through the supply chain. Figure 1-1 Savi Fixed Reader SR-650 CHAPTER 1 Introduction 6 Features ◆Long-range, omnidirectional communication enables effective monitoring of thousands of tagged items over a 100-meter radius—ideal for yards, terminals, and warehouses. ◆Ethernet network connectivity supports wired and wireless installations, allowing multiple readers to be easily networked together. ◆Universal Data Appliance Protocol (UDAP™) network protocol provides interoperability with other data collection devices, including bar code scanners and other RFID readers. ◆Seamless interface to Savi SmartChain® platform and applications through the SmartChain Site Manager. ◆Rugged, weatherproof packaging for indoor and outdoor use. Reader Description The Savi Fixed Reader SR-650-101 has an omnidirectional read pattern with an adjustable range of up to 300 feet (91.44 meters), and can be networked to provide cellular coverage of a nearly unlimited area. Its power source can be 92 to 250 VAC or 12 to 24 VDC. A portable tripod mount, a solar power unit, or a cable for powering the reader from a vehicle are all available for use with the SR-650-101 Reader. The Savi Fixed Reader SR-650-101 operates at 433.92 MHz. Tag Communication The Savi Fixed Reader SR-650-101 can transmit control commands and data over a UHF link to SaviTags. In return, the SaviTags transmit status information, recognition codes, and data over the UHF link to the reader, depending on the commands the tag received. Reader Description Savi Fixed Reader SR-650 Installation Guide7 Specifications The Savi Fixed Reader SR-650-101 can be mounted in permanent or semipermanent sites, as well as in a mobile vehicle. SR-650-101 Readers are designed for indoor or outdoor use. SpecificationDescription Tag compatibilityAll Savi RFID tags UHF transceiver (uplink and downlink) Long-range, omni directional RF communication enables effective monitoring of thousands of tagged items over a 100-meter radius UHF operationUHF receiver for receiving the following information from tags: status information, tag alarm messages, beacons, UHF-initiated collection command responses or Signpost initiated wakeup responses. Capable of receiving recognition codes and data over a UHF link to ST-41x…

Text truncated - open the document above for the full version.

Savi EchoPoint Series SR-650-101 Fixed Reader U.S. Regulatory Approvals Compliance Notice 1 Keep This Document Savi P/N 805-04398-001(Rev B) Federal Communications Commission (FCC) Notice The Federal Communications Commission has established technical standards regarding radio frequency energy emitted by computer devices. This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference with radio/TV reception. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. Warning: Changes or modifications to this equipment that are not expressly approved by Savi Technology could void the warranty and the authority to operate this equipment. Savi Technology is not responsible for radio/TV interference caused by using unauthorized cable or by making unauthorized changes to this equipment. Product Safety The Savi EchoPoint Series SR-650-101 Fixed Reader is ETL listed (UL 1950). Savi Technology, Inc. 615 Tasman Drive Sunnyvale, CA 94089-1707 Phone:(408) 743-8000 Fax:(408) 543-8650 E-mail:[email protected] Web site:www.savi.com Copyright © 2004, Savi Technology Incorporated. All rights reserved. First edition printed January 2004. Copyright protection claimed includes all forms and matters of copyrightable material and information, now allowed by statutory or judicial law or hereinafter granted. Information in this guide is subject to change without notice and does not represent a commitment from the vendor. Savi is a registered trademark and EchoPoint is a trademark of Savi Technology Incorporated. Other product names mentioned in this guide may be trademarks or registered trademarks of their respective owners and are hereby acknowledged.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 January 27, 2004 RE: Savi Technology FCC ID: KL7-650R-V1 I have a few comments on the above referenced Application. EMC Report 1) Please explain the purpose of 2 identical transmitters in the unit. The theory of operation does not bring up this issue. Are they ever expected to transmit at the same time? If so, how does this affect the measurements made? 2) Under the Data mode, it is not certain was is meant by the 30% duty cycle given in the operational description. 3) The users manual (installation page 7 of 40) mentions an adjustable range. Please explain what is meant by this and its affect on the testing performed. 4) The device was tested face down. Has any testing been performed with the device face up vs. face down to ensure there is little difference in the results due to positioning of the unit relative to ground plane orientation, etc? 5) Average readings on page 6 of 12 should have been made by correcting the peak reading by 10.5 dB as specified. However, the delta between peak and average varies from approximately 4 to 15 dB. Note that when pulsed emissions are employed, the accepted methodology is to obtain the average measurement by correction of the peak measurement with an appropriate duty cycle factor. Average measurements are not typically acceptable for pulsed emissions. Please explain. 6) Please provide information regarding the RBW and VBW settings used for various tests. 7) FYI...Proposed Grant Notes: Collection Mode of operation meets with the requirements of 15.231(a)(1) & (a)(2). Data Transmission Mode of operation meets with the requirements of 15.231(e) and is permitted with a duration of no more than one second and he silent period between transmissions shall be at least 30 times the duration of the transmission, but in no case less than 10 seconds. Timothy R. Johnson Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

R54044 January 14, 2004 American TCB 6731 Whittier Ave. Suite C110 McLean VA. 22101 Gentlemen: The enclosed documents constitute a formal submittal and application for a Grant of Equipment Authorization pursuant to Subpart C of Part 15 of FCC Rules (CFR 47) regarding intentional radiators. Data within this report demonstrates that the equipment tested complies with the FCC limits for intentional radiators. Elliott Laboratories, as duly authorized agent prepared this submittal. A copy of the letter of our appointment as agent is enclosed. If there are any questions or if further information is needed, please contact Elliott Laboratories for assistance. Sincerely, Mark Briggs Vice President of Engineering MB/dmg Enclosures: Agent Authorization Letter Emissions Test Report with Exhibits

Page 1 of 3 January 28, 2004 RE: Savi Technology FCC ID: KL7-650R-V1 1) Please explain the purpose of 2 identical transmitters in the unit. The theory of operation does not bring up this issue. Are they ever expected to transmit at the same time? If so, how does this affect the measurements made? Each transmitter connects to a different antennas. The antennas are identical but arranged at 90 degrees to each other. All transmissions are made from one antenna or from the other to achieve an omni-directional pattern. All duty-cycles take into consideration combinations of transmissions from both antennas, that is the combination of any transmissions from transmitter number one followed by transmissions from antenna number 2 meet the requirements for timing as detailed in 15.231. Both transmitters cannot operate simultaneously. These should not affect the measurements made. 2) Under the Data mode, it is not certain what is meant by the 30% duty cycle given in the operational description. The duty-cycle for data signals is limited to a maximum of 30% in any 100ms period and a total transmission time of less than 1 second. The duty cycle plots show a pulse train of data signals with a duty cycle of ~23% for reference. 3) The users manual (installation page 7 of 40) mentions an adjustable range. Please explain what is meant by this and its affect on the testing performed. It is possible for the end user to reduce the output. This is used in in applications where the user would like to collect tags located inside a smaller area. The system was tested operating at the maximum output level, which is hard coded in firmware. It is only possible for the end user to decrease power. 4) The device was tested face down. Has any testing been performed with the device face up vs. face down to ensure there is little difference in the results due to positioning of the unit relative to ground plane orientation, etc? The antennas in the device are horizontal. Flipping the unit over would not change the relative positions of the antennas with respect to the ground plane. Additionally, the device is intended to be installed in this orientation. Page 2 of 3 As previous versions of this product were tested in this orientation without comment, the device was tested in the same fashion. Please note that during ETSI testing, the EUT was in the same orientation but at an elevation of 1.5m above the ground plane. Measurements made with the device in this orientation were 0.1 – 0.2dB lower than with the EUT at a height of 0.8m above the ground plane. 5) Average readings on page 6 of 12 should have been made by correcting the peak reading by 10.5 dB as specified. However, the delta between peak and average varies from approximately 4 to 15 dB. Note that when pulsed emissions are employed, the accepted methodology is to obtain the average measurement by correction of the peak measurement with an appropriate duty cycle factor. Average measurements are not typically acceptable for pulsed emissions. Please explain. The limit was also incorrectly stated as being 52.9 for average measurements. 15.231(e) allows the limit of 15.209 to be used if it allows for higher emissions, so the average limit should be 54dBuV/m. Data and limit have been corrected and have been uploaded in a revised report. 6) Please provide information regarding the RBW and VBW settings used for various tests. Peak readings for radiated emissions were made using RBW=VBW = 120kHz below 1GHz, RBW=VBW=1MHz above 1GHz. When actual average measurements were made (i.e. as opposed to calculated measurements) they were made below 1GHz using the test receiver’s average detector and a 120kHz bandwidth. Above 1GHz the VBW was reduced to 10Hz (refer to page 12 of 20 in the test report) since the device was transmitting continuously and was not operating in a pulsed mode. The test data has been annotated appropriately. 7) FYI...Proposed Grant Notes: Collection Mode of operation meets with the requirements of 15.231(a)(1) & (a)(2). Data Transmission Mode of operation meets with the requirements of 15.231(e) and is permitted with a duration of no more than one second and he silent period between transmissions shall be at least 30 times the duration of the transmission, but in no case less than 10 seconds. This is noted. Page 3 of 3 I hope this answers all of your questions. The revised report “R54044-ATCB revised.pdf” have been uploaded to the ATCB website: Regards Mark Briggs Vice President of Engineering

T I T L E C O D E S C A L E : N / A S I Z E D R A W I N G N o : S H E E T 1 O F 2 R E V : D A T E A P P L I C A T I O N 8 6 0 - 0 4 3 9 9 - 0 0 1 U S E D O N R E V I S I O N R E C O R D L T R D E S C R I P T I O N D A T E A A P P R O V E D D R A W N C H E C K E D E N G I N E E R P R O D U C T I O N M A T E R I A L S U S T A I N I N G P R O J E C T L E A D E R D A T A C O N T R O L D A T E D A T E D A T E D A T E D A T E D A T E D A T E D A T E F I L E N A M E : 7 3 5 0 4 3 9 9 _ R e v _ 0 3 . T C W N E X T A S S E M B L Y E P R D R L A B E L , F C C I D / S E R I A L N O . / M O D E L N O . , E P R E A D E R , S R - 6 5 0 - 1 0 1 - X E P R D R 7 3 5 - 0 4 3 9 9 - T A B 0 3 6 1 5 T A S M A N D R I V E S U N N Y V A L E , C A L I F O R N I A 9 4 0 8 9 N O T E S : ( U N L E S S O T H E R W I S E S P E C I F I E D ) D I M E N S I O N S A R E I N I N C H E S , ± . 0 1 5 L A B E L S H A L L B E M A N U F A C T U R E D B Y A U L A P P R O V E D V E N D O R . V E N D O R S H A L L H A V E A C U R R E N T S I G N E D " P R I N T E R A G R E E M E N T " O N F I L E W I T H U L P E R U L M A R K I N G A N D L A B E L I N G S Y S T E M S A N D S H A L L S U P P L Y E A C H P A C K A G E O R R O L L M A R K E D W I T H C O M P A N Y N A M E A N D L A B E L D E S I G N A T I O N P E R U L M A R K I N G A N D L A B E L I N G S Y S T E M S . 1 . 2 . S P E C I F I C A T I O N S . 0 0 2 M A T T E S I L V E R M Y L A R W I T H V 2 3 A D H E S I V E ( 1 M I L ) B L A C K L E T T E R S O N S I L V E R B A C K G R O U N D A R I A L , A R I A L N A R R O W ( E T L , C E M A R K A N D A L E R T A S S H O W N ) . 0 0 1 C O M P U C A L L A M I N A T I O N 3 . M A T E R I A L C O L O R F O N T L A M I N A T I O N L A B E L D I M E N S I O N S M A Y B E A D J U S T E D T O C L O S E S T S T A N D A R D D I E . 4 . 5 . E T L M A R K , C E M A R K , A N D A L E R T S Y M B O L S A R E I N A C C O R D A N C E W I T H S P E C I F I C A T I O N 7 3 5 - 0 3 9 3 8 - 0 0 1 . F C C I D : K L 7 - 6 5 0 R - V 1 M o d e l : S R - 6 5 0 - 1 0 1 S / N : 3 . 0 0 1 . 5 0 S a v i T e c h n o l o g y , S u n n y v a l e C A 9 4 0 8 9 9 2 - 2 5 0 V A C , 5 0 / 6 0 H z , 3 0 0 m A 1 2 - 2 4 V D C , 5 0 0 m A L I S T E D R 9 8 0 0 5 4 0 I n f o r m a t i o n T e c h n o l o g y E q u i p m e n t T h i s d e v i c e c o m p l i e s w i t h P a r t 1 5 o f t h e F C C r u l e s . O p e r a t i o n i s s u b j e c t t o t h e f o l l o w i n g t w o c o n d i t i o n s : ( 1 ) t h i s d e v i c e m a y n o t c a u s e h a r m f u l i n t e r f e r e n c e , a n d ( 2 ) t h i s d e v i c e m u s t a c c e p t a n y i n t e r f e r e n c e r e c e i v e d , i n c l u d i n g i n t e r f e r e n c e t h a t m a y c a u s e u n d e s i r e d o p e r a t i o n . - 0 0 4 ( W I T H C E M A R K ) A d d e d - 0 0 4 R O 1 / 0 6 / 0 4 0 2 0 3 C h a n g e d V o l t a g e a n d C u r r e n t o n l a b e l R O 1 / 1 2 / 0 4 C O D E S C A L E : N / A S I Z E D R A W I N G N o : S H E E T 2 O F 2 R E V : A F I L E N A M E : 7 3 5 0 4 3 9 9 _ R e v _ 0 3 . T C W F C C I D : K L 7 - 6 5 0 R - V 1 M o d e l : S R - 6 5 0 - 1 0 1 S / N : 3 . 0 0 1 . 5 0 E P R D R 7 3 5 - 0 4 3 9 9 - T A B S a v i T e c h n o l o g y , S u n n y v a l e C A 9 4 0 8 9 9 2 - 2 5 0 V A C , 5 0 / 6 0 H z , 3 0 0 m A 1 2 - 2 4 V D C , 5 0 0 m A 0 3 L I S T E D R 9 8 0 0 5 4 0 I n f o r m a t i o n T e c h n o l o g y E q u i p m e n t T h i s d e v i c e c o m p l i e s w i t h P a r t 1 5 o f t h e F C C r u l e s . O p e r a t i o n i s s u b j e c t t o t h e f o l l o w i n g t w o c o n d i t i o n s : ( 1 ) t h i s d e v i c e m a y n o t c a u s e h a r m f u l i n t e r f e r e n c e , a n d ( 2 ) t h i s d e v i c e m u s t a c c e p t a n y i n t e r f e r e n c e r e c e i v e d , i n c l u d i n g i n t e r f e r e n c e t h a t m a y c a u s e u n d e s i r e d o p e r a t i o n . - 0 0 1 ( W I T H O U T C E M A R K ) F C C I D : K L 7 - 6 5 0 R - V 1 M o d e l : S R - 6 5 0 - 1 0 1 S / N : 3 . 0 0 1 . 5 0 S a v i T e c h n o l o g y , S u n n y v a l e C A 9 4 0 8 9 9 2 - 2 5 0 V A C , 5 0 / 6 0 H z , 3 0 0 m A 1 2 - 2 4 V D C , 5 0 0 m A L I S T E D R 9 8 0 0 5 4 0 I n f o r m a t i o n T e c h n o l o g y E q u i p m e n t 0 8 8 9 T h i s d e v i c e c o m p l i e s w i t h P a r t 1 5 o f t h e F C C r u l e s . O p e r a t i o n i s s u b j e c t t o t h e f o l l o w i n g t w o c o n d i t i o n s : ( 1 ) t h i s d e v i c e m a y n o t c a u s e h a r m f u l i n t e r f e r e n c e , a n d ( 2 ) t h i s d e v i c e m u s t a c c e p t a n y i n t e r f e r e n c e r e c e i v e d , i n c l u d i n g i n t e r f e r e n c e t h a t m a y c a u s e u n d e s i r e d o p e r a t i o n . - 0 0 2 ( W I T H N O T I F I E D B O D Y M A R K ) F C C I D : K L 7 - 6 5 0 R - V 1 M o d e l : S R - 6 5 0 - 1 0 1 S / N : 3 . 0 0 1 . 5 0 L I S T E D R 9 8 0 0 5 4 0 I n f o r m a t i o n T e c h n o l o g y E q u i p m e n t 0 8 8 9 T h i s d e v i c e c o m p l i e s w i t h P a r t 1 5 o f t h e F C C r u l e s . O p e r a t i o n i s s u b j e c t t o t h e f o l l o w i n g t w o c o n d i t i o n s : ( 1 ) t h i s d e v i c e m a y n o t c a u s e h a r m f u l i n t e r f e r e n c e , a n d ( 2 ) t h i s d e v i c e m u s t a c c e p t a n y i n t e r f e r e n c e r e c e i v e d , i n c l u d i n g i n t e r f e r e n c e t h a t m a y c a u s e u n d e s i r e d o p e r a t i o n . - 0 0 3 ( W I T H C E M A R K & C A N A D A A P P R O V A L ) I C : 2 4 0 4 A - 6 5 0 R S a v i T e c h n o l o g y , S u n n y v a l e C A 9 4 0 8 9 9 2 - 2 5 0 V A C , 5 0 / 6 0 H z , 3 0 0 m A 1 2 - 2 4 V D C , 5 0 0 m A

Lid removed, Antennas Antenna Board Removed Interface and rf boards 1 Interface and rf boards 2 Main Board, top and bottom

File: R54044 Page 1 of 20 Electromagnetic Emissions Test Report In Accordance With Industry Canada Radio Standards Specification 210 And FCC Part 15 Sections 15.209, 15.231 on the Savi Technology, Inc. Transmitter Model: EchoPoint Series SR-650-101 Fixed Reader UPN: 2404A-650R FCC ID: KL7-650R-V1 GRANTEE: Savi Technology, Inc. 615 Tasman Drive Sunnyvale, CA. 94089-1707 TEST SITE: Elliott Laboratories, Inc. 684 W. Maude Ave Sunnyvale, CA 94086 REPORT DATE: January 14, 2004 FINAL TEST DATE: January 8, 2004 AUTHORIZED SIGNATORY: ______________________________ Mark Briggs Vice President of Engineering Elliott Laboratories, Inc. is accredited by the A2LA, certificate number 2016-01, to perform the test(s) listed in this report. This report shall not be reproduced, except in its entirety, without the written approval of Elliott Laboratories, Inc. Elliott Laboratories, Inc. -- EMC Department Test Report Report Date: January 14, 2004 File: R54044 Page 2 of 20 pages Equipment Name and Model: Transceiver, EchoPoint Series SR-650-101 Fixed Reader Manufacturer: Savi Technology, Inc. Tested to applicable standard: RSS210, Issue 5, February 1996 Low Power License-Exempt Radio Communication Devices FCC Part 15 Subpart C Test Report Prepared For: Eugene Schlindwein Savi Technology, Inc. 615 Tasman Drive Sunnyvale, CA. 94089-1707 USA Measurement Facility Description Filed With Department of Industry: Departmental Acknowledgement Number: IC2845 SV1, Dated July 3, 1997 Declaration of Compliance I declare that the testing was performed or supervised by me; that the test measurements were made in accordance with the above mentioned departmental standards (through the use of ANSI C63.4 as detailed in section 5.3 of RSS-210, Issue 5); and that the equipment performed in accordance with the data submitted in this report. Signature ______________________________ Name Mark Briggs Title Vice President of Engineering Elliott Laboratories Inc. Address 684 W. Maude Ave Sunnyvale, CA 94086 USA Date: January 14, 2004 Elliott Laboratories, Inc. -- EMC Department Test Report Report Date: January 14, 2004 File: R54044 Page 3 of 20 pages TABLE OF CONTENTS COVER PAGE...................................................................................................................................................................................1 TABLE OF CONTENTS..............................................................................................................................................................3 SCOPE............................................................................................................................................................................................5 OBJECTIVE...................................................................................................................................................................................5 STATEMENT OF COMPLIANCE..............................................................................................................................................6 TEST RESULTS SUMMARY......................................................................................................................................................7 15.231 / RSS 210 SECTION 6.1.................................................................................................................................................7 MEASUREMENT UNCERTAINTIES.........................................................................................................................................8 EQUIPMENT UNDER TEST (EUT) DETAILS..........................................................................................................................9 GENERAL...................................................................................................................................................................................9 ENCLOSURE..............................................................................................................................................................................9 MODIFICATIONS.....................................................................................................................................................................9 SUPPORT EQUIPMENT...........................................................................................................................................................9 EUT INTERFACE PORTS......................................................................................................................................................10 EUT OPERATION...................................................................................................................................................................10 ANTENNA SYSTEM..............................................................................................................................................................10 TEST SITE....................................................................................................................................................................................11 GENERAL INFORMATION...................................................................................................................................................11 CONDUCTED EMISSIONS CONSIDERATIONS...............................................................................................................11 RADIATED EMISSIONS CONSIDERATIONS..................................................................................................................11 MEASUREMENT INSTRUMENTATION................................................................................................................................12 RECEIVER SYSTEM................................................................................................................................................................12 INSTR…

Text truncated - open the document above for the full version.

Radiated Emissions Test Configuration Photographs Radiated Emissions Test Configuration Photographs Conducted Emissions Test Configuration Photographs Conducted Emissions Test Configuration Photographs
