KL7-673T-V1RF ID Tag

Savi SensorTag ST-673 and ST-674 International Regulatory Approvals Compliance Notice 1 Keep This Document Savi P/N 805-05275-002 (Rev. A) Declaration of Conformity Hereby, Savi Technology, Inc., 615 Tasman Drive, Sunnyvale, California 94089-1707 declares that the Savi SensorTag ST-673 and ST-674 are in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. Industry Canada Notice: ST-673 IC: 2404A-673T ST-674 IC: 2404A-674T This Class A digital apparatus complies with Canadian ICES-003 Cet appareil num érique de la classe A est confomé à la norme NMB-003 du Canada. Warning This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. Savi Technology, Inc. 615 Tasman Drive Sunnyvale, CA 94089-1707 Phone:(408) 743-8000 Fax:(408) 543-8650 E-mail:[email protected] Web site:www.savi.com Copyright ©2006, Savi Technology, Inc. All rights reserved. First edition printed March 2006. Copyright protection claimed includes all forms and matters of copyrightable material and information, now allowed by statutory or judicial law or hereinafter granted. Information in this guide is subject to change without notice and does not represent a commitment from the vendor. Savi is a registered trademark and EchoPoint is a trademark of Savi Technology, Inc. Other product names mentioned in this guide may be trademarks or registered trademarks of their respective owners and are hereby acknowledged. Savi SensorTag ST-673 and ST-674 International Compliance CzechSavi Technology, Inc. tímto prohlašuje, že tento Savi SensorTag ST-673 and ST-674 je ve shodě se základními po_adavky a dalšími příslušnými ustanoveními směrnice 1999/5/ES. DanishUndertegnede Savi Technology, Inc. erklærer herved, at følgende udstyr Savi SensorTag ST-673 and ST-674 overholder de væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF. GermanHiermit erklärt Savi Technology, Inc., dass sich das Gerät Savi SensorTag ST-673 and ST-674 in Übereinstimmung mit den grundlegenden Anforderungen und den übrigen einschlägigen Bestimmungen der Richtlinie 1999/5/EG befindet. EstonianKäesolevaga kinnitab Savi Technology, Inc. seadme Savi SensorTag ST-673 and ST-674 vastavust direktiivi 1999/5/EÜ põhinõuetele ja nimetatud direktiivist tulenevatele teistele asjakohastele sätetele. EnglishHereby, Savi Technology, Inc., declares that this Savi SensorTag ST-673 and ST-674 is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. SpanishPor medio de la presente Savi Technology, Inc. declara que el Savi SensorTag ST-673 and ST-674 cumple con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE. GreekΜΕ ΤΗΝ ΠΑΡΟΥΣΑ Savi Technology, Inc. ∆ΗΛΩΝΕΙ ΟΤΙ Savi SensorTag ST-673 and ST-674 ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩ∆ΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ∆ΙΑΤΑΞΕΙΣ ΤΗΣ Ο∆ΗΓΙΑΣ 1999/5/ΕΚ. FrenchPar la présente Savi Technology, Inc. déclare que l'appareil Savi SensorTag ST-673 and ST-674 est conformé aux exigences essentielles et aux autres dispositions pertinentes de la directive 1999/5/CE. ItalianCon la presente Savi Technology, Inc. dichiara che questo Savi SensorTag ST-673 and ST-674 è conforme ai requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva 1999/5/CE. LatvianAr šo Savi Technology, Inc. deklarē, ka Savi SensorTag ST-673 and ST-674 atbilst Direktīvas 1999/5/EK būtiskajām prasībām un citiem ar to saistītajiem noteikumiem. LithuanianŠiuo Savi Technology, Inc. deklaruoja, kad šis Savi SensorTag ST-673 and ST-674 atitinka esminius reikalavimus ir kitas 1999/5/EB Direktyvos nuostatas. DutchHierbij verklaart Savi Technology, Inc. dat het toestel Savi SensorTag ST-673 and ST-674 in overeenstemming is met de essentiële eisen en de andere relevante bepalingen van richtlijn 1999/5/EG. MalteseHawnhekk, Savi Technology, Inc., jiddikjara li dan Savi SensorTag ST-673 and ST-674 jikkonforma mal-htigijiet essenzjali u ma provvedimenti ohrajn relevanti li hemm fid-Dirrettiva 1999/5/EC. HungarianAlulírott, Savi Technology, Inc. nyilatkozom, hogy a Savi SensorTag ST-673 and ST-674 megfelel a vonatkozó alapvetõ követelményeknek és az 1999/5/EC irányelv egyéb elõírásainak PolishNiniejszym Savi Technology, Inc. oświadcza, że Savi SensorTag ST-673 and ST-674 jest zgodny z zasadniczymi wymogami oraz pozostałymi stosownymi postanowieniami Dyrektywy 1999/5/EC. PortugueseSavi Technology, Inc. declara que este Savi SensorTag ST-673 and ST-674 está conforme com os requisitos essenciais e outras disposições da Directiva 1999/5/CE. SlovenianSavi Technology, Inc. izjavlja, da je ta Savi SensorTag ST-673 and ST-674 v skladu z bistvenimi zahtevami in ostalimi relevantnimi določili direktive 1999/5/ES. SlovakSavi Technology, Inc. týmto vyhlasuje, že Savi SensorTag ST-673 and ST-674 spĺňa základné požiadavky a všetky príslušné ustanovenia Smernice 1999/5/ES. Savi SensorTag ST-673 and ST-674 FinnishSavi Technology, Inc. vakuuttaa täten että Savi SensorTag ST-673 and ST-674 tyyppinen laite on direktiivin 1999/5/EY oleellisten vaatimusten ja sitä koskevien direktiivin muiden ehtojen mukainen. SwedishHärmed intygar Savi Technology, Inc. att denna Savi SensorTag ST-673 and ST-674 står I överensstämmelse med de väsentliga egenskapskrav och övriga relevanta bestämmelser som framgår av direktiv 1999/5/EG. IcelandicHér með lýsir Savi Technology, Inc. yfir því að Savi SensorTag ST-673 and ST-674 er í samræmi við grunnkröfur og aðrar kröfur, sem gerðar eru í tilskipun 1999/5/EC. NorwegianSavi Technology, Inc. erklærer herved at utstyret Savi SensorTag ST-673 and ST-674 er i samsvar med de grunnleggende krav og øvrige relevante krav i direktiv 1999/5/EF.

Savi SensorTag ST-673 and ST-674 U.S. Regulatory Approvals Compliance Notice 1 Keep This Document Savi P/N 805-05270-001 (Rev. A) Federal Communications Commission (FCC) Notice The Federal Communications Commission has established technical standards regarding radio frequency energy emitted by computer devices. This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference with radio/TV reception. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. Warning: Changes or modifications to this equipment that are not expressly approved by Savi Technology could void the warranty and the authority to operate this equipment. Savi Technology is not responsible for radio/TV interference caused by using unauthorized cable or by making unauthorized changes to this equipment. Federal Communications Commission (FCC) Label Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following conditions: • This device may not cause harmful interference, and • This device must accept any interference received, including interference that may cause undesired operation. The label statement corresponds to the following devices: Savi Technology, Inc. 615 Tasman Drive Sunnyvale, CA 94089-1707 Phone:(408) 743-8000 Fax:(408) 543-8650 E-mail:[email protected] Web site:www.savi.com Copyright © 2006, Savi Technology Incorporated. All rights reserved. First edition printed March 2006. Copyright protection claimed includes all forms and matters of copyrightable material and information, now allowed by statutory or judicial law or hereinafter granted. Information in this guide is subject to change without notice and does not represent a commitment from the vendor. Savi is a registered trademark and EchoPoint is a trademark of Savi Technology Incorporated. Other product names mentioned in this guide may be trademarks or registered trademarks of their respective owners and are hereby acknowledged. DeviceModelFCC ID Radio TagSavi SensorTag ST-673 and ST-674 KL7-673T-V1 KL7-674T-V1

Installation Guide Savi SensorTag ST-673 Version 1.0 Published March 2006 Part number 805-05033-001 Rev A Documentation for Savi SensorTag ST-673, version 1.0 Copyright © 2006 Savi Technology, Inc. All rights reserved. Information in this manual is subject to change without notice and does not represent a commitment from the vendor. The software and/or databases described in this document are furnished under a license agreement or nondisclosure agreement. The software and/or databases may be used or copied only in accordance with the terms of the agreement. It is against the law to copy the software on any medium except as specifically allowed in the license or nondisclosure agreement. Savi, Savi SmartChain, SmartChain, the Savi logo, EchoPoint, the EchoPoint logo, and UDAP are trademarks or registered trademarks of Savi Technology, Inc. in the United States and other countries. Other product names mentioned in this guide may be trademarks or registered trademarks of their respective owners and are hereby acknowledged. Savi Technology, Inc. 615 Tasman Drive Sunnyvale, CA 94089-1707 Phone: 1-408-743-8000 Facsimile: 1-408-543-8650 www.savi.com Savi SensorTag ST-673 Installation Guide3 Contents 1About the Savi SensorTag ST-673 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Tag Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Environmental Sensors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 RFID Communication Module . . . . . . . . . . . . . . . . . . . . . . . . . 6 For More Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Guides to Read . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Contacting Savi Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 2Installing the Tag Required Tools and Materials . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Removing the Mounting Sleeve . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Commissioning a Tag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Commissioning the Tag with a Tag Write Cable or Tag Write Cable Adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Commissioning the Tag with a Savi Docking Station and Docking Station Adapter . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Replacing the Main Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Tag Placement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 PST Reliability and Durability . . . . . . . . . . . . . . . . . . . . . . . . . 15 Achieving Maximum Communication . . . . . . . . . . . . . . . . . . . 16 Mounting Savi SensorTag ST-673 . . . . . . . . . . . . . . . . . . . . . . . . 17 ASavi SensorTag ST-673 Specifications 4Savi SensorTag ST-673 Installation Guide CHAPTER 1 Savi SensorTag ST-673 Installation Guide5 About the Savi SensorTag ST-673 1 The Savi® SensorTag ST-673 is a high-performance, active RFID tag that tracks assets and monitors and logs the temperature and relative humidity of its surrounding environment, such as inside a jet engine or metallic container. Fully compatible with Savi software and fixed and portable Savi readers, this tag features omnidirectional line-of-sight communication. Battery life, using lithium cells, is typically four years (depending on the type of operation). The Savi SensorTag ST-673 is safe for operation around live ordnance. It is also compatible with the U.S. Department of Defense (DoD) In-transit Visibility (ITV) network and can be detected by existing Savi RFID infrastructure. Features ◆Temperature and humidity sensors provide updated information about the environment that the tag is in ◆433 MHz, active RFID technology with up to 300-foot (91.44 meters) range for monitor, wake-up, and RF write/read ◆123 KHz receiver for slot-level, portal, or chokepoint tag wake-up and short range commissioning (12 feet (3.7 meters) or less) ◆Audible beeper helps locate tag ◆Small form factor design ◆Rugged, weatherproof design ◆Powered by a replaceable lithium battery CHAPTER 1About the Savi SensorTag ST-673 6Savi SensorTag ST-673 Installation Guide Tag Description Environmental Sensors The environmental sensors monitor and record the temperature and humidity of the tag’s surrounding area at user-specified times in an environmental log. You can set maximum and minimum temperature and humidity threshold. If the temperature or humidity should rise above or fall below the threshold, the device writes the time and date of the deviation to an alarm log and sends an RF beacon to surrounding fixed readers. For example, if you are monitoring in an area that needs to be kept at temperatures between x and y degrees to preserve a product, you can set the Savi SensorTag ST-673 to RF beacon mode and record the date and time whenever the temperature deviates from your specified range. RFID Communication Module The communication module operates at 433 MHz, enabling the Savi SensorTag ST-673 to communicate back to the Savi network with excellent RF performance in both metallized and non line-of-sight environments. The temperature sensor inside the tag gauges the surrounding environment’s temperature when air passes through this vent For More Information Savi SensorTag ST-673 Installation Guide7 For More Information Guides to Read For information about using: ◆Signposts, see the Savi Signpost SP-65X Series Installation Guide. ◆Fixed readers, see the Savi Fixed Reader SR-650-101 Installation Guide. ◆Mobile readers, see the Savi Mobile Reader SMR-650 for the Intermec 751G/A Mobile Computer and PC User Guide. ◆Mobile device software, see the Guide to Savi SmartChain for Mobile Devices and Guide to Savi Transportation Security System for Mobile Devices. ◆Desktop software, see the Guide to Savi SmartChain Site Manager and Savi SmartChain for Client Tools User Guide. Contac…

Text truncated - open the document above for the full version.

Tag Placement Savi SensorTag ST-673 Installation Guide15 Tag Placement Savi Technology requires that you mount Savi SensorTag ST-673 by inserting the tag and supplied metal mounting sleeve through the humidity detection orifice on the jet engine container. You use the pressure sensitive tape (PST) to reinforce the tag and sleeve to the engine container. PST Reliability and Durability The only brand of PST that Savi Technology recommends for mounting SaviTags is 3M Corporation’s Automotive Acrylic Plus Attachment Tape. For ease of installation, during manufacturing Savi installs this PST on the back of the mounting sleeve. PST mounting kits are also available for separate purchase. Once a mounting sleeve is fastened to an asset, you can leave it on the asset even after Savi SensorTag ST-673 is removed so it is available for future use with other compatible SaviTags. Prior to re-use, visually inspect the PST-mounted sleeve to make sure it is attached securely. If necessary, reinstall the sleeve using new PST. 3M Corporation has conducted extensive environmental testing on their Automotive Acrylic Plus Attachment Tape. In addition, Savi has conducted its own independent environmental tests of PST. The U.S. Army (Tobyhanna Army Depot) has also tested PST for use on surfaces treated with Chemical Agent Resistant Coating (CARC). All these tests confirm that PST is an appropriate choice for mounting SaviTags. ◆Savi Technology successfully conducted the following tests upon samples of 3M PST: ❖Extreme temperature -40ºC to +158ºF (–40º to +70º Celsius) ❖Step test (200 pounds applied in shear) ❖Shock (140g or 120 lbs.) ❖Vibration (MIL-STD-810E) ❖Salt fog (MIL-STD-810E) ❖Corrosive liquids ❖Peel test (50 pounds of peel force) Savi’s tests confirm the adhesion integrity and reliability of 3M PST. CHAPTER 2Installing the Tag 16Savi SensorTag ST-673 Installation Guide ◆3M Corporation conducted a longevity test of PST. They found no significant degradation in the performance of PST even after five years of service on a test vehicle. As long as the surface is prepared properly, PST will work reliably for five years or longer. ◆3M Corporation compared the peel strength of a new roll of PST versus a roll that had been aged 21 months. In all cases, the aged roll matched performance of the new roll in tests conducted over a 72-hour period. Achieving Maximum Communication Savi SensorTag ST-673 achieves a 300-foot (91.44 meters) read range from SR-410 and SR-650 fixed readers. To achieve the most consistent communications with the tag, the fixed readers must be mounted: ◆To have an unobstructed line of sight to the tag ◆At 20 feet (6 meters) or higher ◆With the reader dome pointed downward The following photos show specific Savi SensorTag ST-673 mounting locations that are based on the location of the humidity detection orifice. Mounting Savi SensorTag ST-673 Savi SensorTag ST-673 Installation Guide17 Figure 2-1 Specific mounting locations on the jet engine container Mounting Savi SensorTag ST-673 The mounting method for Savi SensorTag ST-673 includes using pressure sensitive tape, screws, and a metal mounting sleeve. This method prevents accidental loss of the tag by sudden impact, vibration, or shock during transport. Savi SensorTag ST-673 includes these required mounting fasteners: ◆Stainless steel screws and washers ◆PST ◆Metal mounting sleeve

CHAPTER 2Installing the Tag 18Savi SensorTag ST-673 Installation Guide Note:You receive the Savi SensorTag ST-673 and metal mounting sleeve fully assembled. You can skip step 1 through step 6 to mount the unit to the jet engine container or you can follow the instructions in step 1 through step 6 if you disassembled the tag and mounting sleeve. 1. Remove the front of the mounting sleeve. 2.Slide the tag into the mounting sleeve until the holes on the tag align with the holes on the back of the mounting sleeve. 3.Replace the front of the mounting sleeve. 4.Align the hole on the front of the mounting sleeve with the holes on the tag and back of the mounting sleeve. Mounting Savi SensorTag ST-673 Savi SensorTag ST-673 Installation Guide19 5.To prevent the tag from dislodging from the tag mounting sleeve as a result of sudden impact or extreme shocks, use the supplied stainless steel screws and washers through the sleeve. 6.Ensure that you can see the sensor filter through the hole on the back of the mounting sleeve. 7.Carefully remove the red protective film covering from the PST on the back of the sleeve. Avoid touching the PST adhesive. Use supplied screws to washers to secure the tag to the sleeve CHAPTER 2Installing the Tag 20Savi SensorTag ST-673 Installation Guide 8.Open the jet engine container and locate the humidity detection orifice. 9.Unscrew the nut on the mounting sleeve. Humidity detection orifice Mounting Savi SensorTag ST-673 Savi SensorTag ST-673 Installation Guide21 10.Remove the small rubber gasket washer from the mounting sleeve. 11.To mount the tag, insert the mounting sleeve and tag in the humidity detection orifice. 12.Apply pressure to the tape strips by pushing firmly against the tag. To assure a good bond, apply as much finger pressure as possible and work fingers up and down the area over the tape strips. CHAPTER 2Installing the Tag 22Savi SensorTag ST-673 Installation Guide 13.On the inside of the container, replace the small rubber gasket washer and screw the nut on the mounting sleeve to secure the tag. Close the jet engine container. 14.If the orifice of the container is too large for the tag to be mounted securely, insert a metal shoulder washer before replacing the rubber washer and nut. Ensure that the lip on the metal shoulder washer is inserted through the orifice and is facing the outside of the container. The metal shoulder washer must be ordered separately. Mounted tag APPENDIX A Savi SensorTag ST-673 Installation Guide23 Savi SensorTag ST-673 Specifications A SpecificationDescription Physical characteristicsLength: 6 .25 inches (16 cm) Width: 2.13 inches (5.4 cm) Height: 1.13 inches (2.9 cm) Weight: 3.8 oz. (108 g) EnvironmentTemperature: -40ºF to +158ºF (-40ºC to +70ºC) operating; -40ºF to +185ºF (-40ºC to +85ºC) storage; Tested per MIL-STD-810F Humidity: 100% non-condensing Altitude: Maximum altitude = 40,000 feet (12,192m); Tested per MIL-STD-810F RF receiver/transmitterUltra High Frequency transceiver: Frequency: 433.92 MHz Modulation: FSK, deviation +/- 50KHz Data rate: 27.8Kbps Data coding: Manchester Communication range (unobstructed): Typical range is up to 300 feet (91.44 meters) line-of-sight when mounted onto a container and communicating with a Savi Fixed Reader SR-650-101 or SaviReader 410R. Typical range is 200 feet (61 meters) line-of-sight when communicating with a Savi MobileReader SMR-650 Maximum transmit power: 0.6mW Air protocol: BCS Commands, EBCS Commands (20-bit and 22-bit tag identification supported); Savi EchoPoint Air Protocol 2.1 (32-bit tag identification supported) APPENDIX ASavi SensorTag ST-673 Specifications 24Savi SensorTag ST-673 Installation Guide LF receiver (downlink)Low Frequency Receiver (downlink) Frequency: 123 KHz Modulation: ASK on-off keying Data rate: Average 1.6 Kbps, 50% duty cycle Data coding: Pulse width modulation Communication range: Up to 3.5 feet (1 meter) from Savi Mobile Reader SMR-650. Up to 12 feet (3.66 meters) from Savi Signpost SP-651 and SP-652-211 Air protocol: BCS Commands, EBCS Commands (22-bit tag identification supported); Savi EchoPoint Air Protocol 2.1 (32-bit tag identification supported) and Savi EchoPoint Air Protocol 1.1 NetworkWireless: RF read/write capable MemoryOn board non-volatile 128K user memory for all tags and 32K sensor memory Hardware compatibility ✦Savi Mobile Reader SMR-650P (model SMR-650P-110 and SMR-650P-111) ✦Savi Mobile Reader SMR-650 (models SMR-650-21x) ✦Savi Fixed Reader SR-650-101 ✦Savi Signpost SP 651 and SP-652 ✦Savi Docking Station model SDS-2002 ✦Savi ST-654 Docking Station Adapter SDSA-654-01 ✦Savi Tag Write Cable STA-1030 ✦Savi Tag Write Cable Adapter STA-1031 AntennaInternal UHF: Omni loop antenna Internal LF: Two integrated ferrite core antennas (orthogonally mounted) Shock and vibrationShock: Tested per MIL-STD-810F, 4 feet (1.22 meters) Vibration: Tested per MIL-STD-810F Protection typeSealed to IP 54 ISO 1496 weatherproofing requirements SpecificationDescription Savi SensorTag ST-673 Installation Guide25 PowerBattery type: 3.6 volt primary lithium (Li-SOCI2), A size, user replaceable Battery life: Approximately 4 years depending on usage Power management: UHF sleep mode prevents unwanted collections, enabled/disabled by LF link Diagnostics: Reports low tag battery status Regulatory approvalsRadiated emission (intentional): U.S. emission standards as contained in FCC Part 15 and European Community emission standards as contained in EN 300 220 (433 MHz) Electromagnetic immunity: ESD compliance exposed to 8 kV air discharge or 4 kV contact discharge in accordance with EN 301 489-1 Radiated emission (unintentional): U.S. emissions standards as contained in FCC Part 15 and European Community emission standards as contained in EN 301 489-1 Safety approval: U.S UL 1950; European EN 60950 Ordnance Safety: HERO certification Markings: Savi logo, product model and serial number, EMC compliance (FCC/EN), and Ordnance/HERO Sensors and indicatorsTemperature s…

Text truncated - open the document above for the full version.

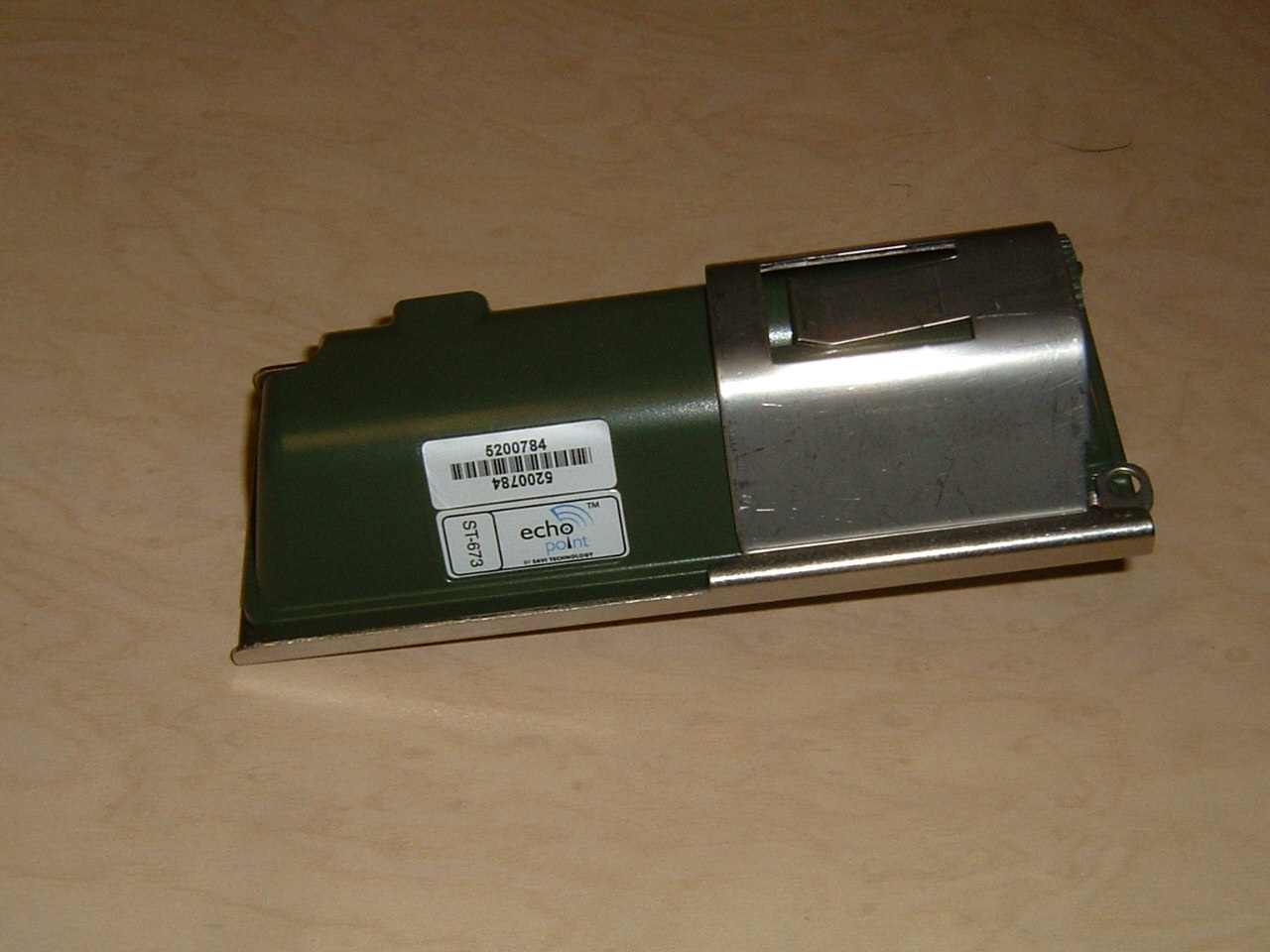

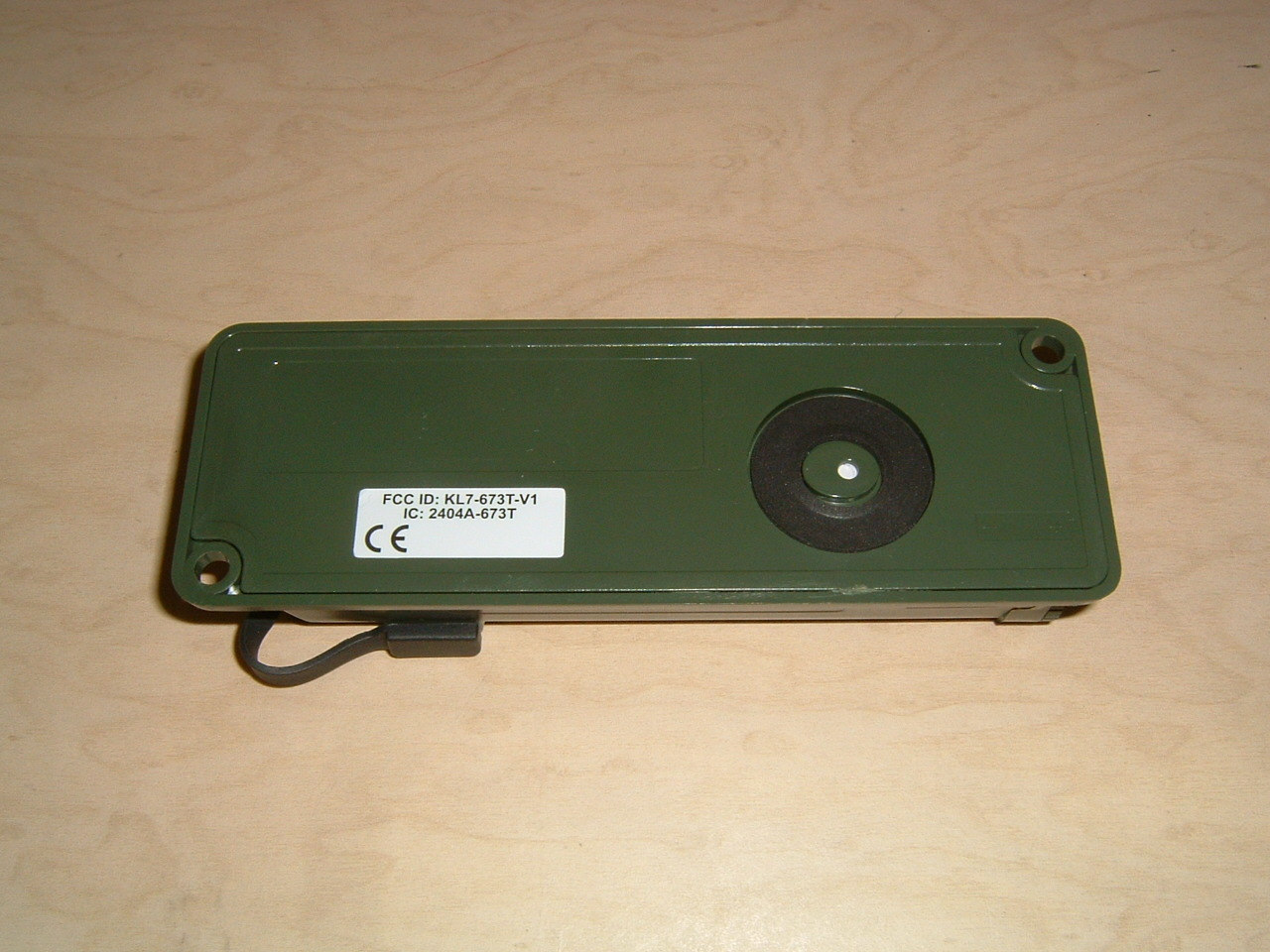

Page 1 of 4 American TCB May 16, 2006 RE: Savi Technology, Inc. FCC ID# KL7-673T-V1 Attention: Tim Johnson Please find our responses to your comments on this Application below: 1) Please provide appropriate internal and external photograph exhibits for this device. Uploaded a pdf file with the photos in them. Apologies for them being omitted from the original upload. Please note that the internal pictures are identical to those for the ST 674 as the internal circuit boards are identical. 2) The device appears larger than 8x10 cm and therefore the FCC 2 part statement (15.19(a)(3)) is expected to be placed on the device. The device actually measures 5cm x 15cm x 3cm and has no surface area larger than 80cm 2 . The variant with the metal bracket (model ST 673) measures slightly larger because a separate metal bracket is attached to the main enclosure, but the bracket is removable and, therefore, not appropriate to place the label on the bracket. Further, previous Savi Tags using the same enclosure have been approved without the need for the FCC 2-part statement being included on the label due to the small size of the product. It is requested that the ST 673 and ST 674 be treated as too small to necessitate the inclusion of the label. 3) Page 7 of the operational description appears to show > 5 sec transmit for the reader for wakeup and hello command (480 + 90 + 10). Please explain as it appears the reader is in excess of 15.231 timing requirements. The timing for the reader’s transmission is 4.8 seconds + 90ms + 10ms = 4.9 seconds (4800 + 90 + 10 = 4900). This meets the 15.231 limit for transmissions under 15.231(a). Page 2 of 4 4) Section 6.3.4.2 of the operational description mentions the pattern repeating up to 6 times (6 * 330 msec), but this would be in excess of the 1 second maximum transmit period. Please explain. The timing of the pulses described is a transmission time of 330ms followed by a silent period of 10 seconds repeated up to 6 times (i.e. the pattern of 3 pulses is not repeated 6 times, the pattern of three pulses followed by a 10 second silent period is repeated up to 6 times). 5) Information regarding 15.240 (a), (e), and (f) do not appear to be provided to the user. Please review. The operation under 15.240 is dictated by the reader and not by the tag. In a previous application it was, therefore, considered that these statements only belong with the readers capable of controlling the tags to operate under 15.240 and not the tags themselves, since use is transparent to the end user. Please advise if you still consider it necessary to include the statements in the manual for the tag. 6) Please explain how the device knows when it is communicating with a 15.240 device vs. a 15.231 device. The tag is controlled by a 15.240 certified Reader located at a Registered Site where the reader is specially configured to enable 15.240 Tag Read commands to be sent to the tag. The commands issued by the15.240 reader are what cause the tag to operate under 15.240. At other sites not Registered for 15.240 operation, Readers are only configured to enable 15.231 Tag Read commands. 7) Is the applicant fully aware of their responsibility under 15.240(f). Please have Savi comment. Savi understand the requirements and their responsibilities for the manufacture of devices that operate under 15.240. This is shown in the operational description, provided by Savi, on page 8, Read/Write Operations Under Section 15.240. As the readers that control the tags are responsible for initiating the tags responses under 15.240 it is suggested that the applicant has to address these issues in full in applications for readers operating under FCC 15.240. Page 3 of 4 8) Please provide further detail/justification of point to point signals being considered under 15.231(a) vs. 15.231(e). The point-to-point signals contain a combination of control and data information as permitted under 15.231(a) and as explained to the FCC in previous communications between Savi and the FCC. 15.231(a) permits transmissions to be initiated by human operation or other non- periodic external events. Point-to-point operations are initiated in two ways: (1.) by operators requesting control and data interaction with the tags, or (2.) through non-periodic events generated through the system control logic which in turn generate a command to the tag. 15.231(a) permits data to be combined with control functions in a single transmission. Point-to-point commands always include several ID fields which control the system response, and also include control bits indicating the state of the devices including battery status, alarm conditions triggered by sensors, and the results of data searches inside the device. These control fields may generate requests for service or maintenance, or in control decisions for the routing of the asset to its final destination. 9) Was the device investigated from 30 – 200 MHz. Test equipment does not necessarily support this. Preliminary scans in an anechoic chamber were performed from 30 MHz to 4GHz. No signals were observed below 300 MHz, therefore all OATS measurements were made between 400 MHz and 4.3 GHz. 10) This device appears to only use a 10% duty factor correction. How about the optional 25% payload? This device would appear to exceed FCC limits with a 25% payload. Also, in the case of duty factors other than 20 dB, both peak and average levels should be shown. The test data and report have been revised to include the calculated average values of the field strength for both 10% and 25% duty cycles. 11) According the theory, 15.240 emissions utilize 25% duty factor. However this device would appear to exceed the limits using this factor. Please review. The test data and report have been revised to include the calculated average values and measured peak values of the field strength for a 25% duty cycle against the limits of 15.240. Page 4 of 4 12) Maximum peak radiated emissions exceed levels of 15.240. Th…

Text truncated - open the document above for the full version.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 June 1, 2006 RE: Savi Technology, Inc. FCC ID: KL7-673T-V1 After a review of the submitted information, I have a few comments on the above referenced Application. 1) FYI....15.240 E…

Text truncated - open the document above for the full version.
