KL7-RELAY-V1

Savi Technology Inc

Click to zoom

Application Details

Equipment Class: DSS - Part 15 Spread Spectrum Transmitter
Date of Grant: Feb 25, 1999
Application Purpose: Original Equipment
Date of Application: Oct 06, 1998
Frequency Range: 2450.00000000 - 2474.00000000
Company: Savi Technology Inc
Country: United States

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Test Report

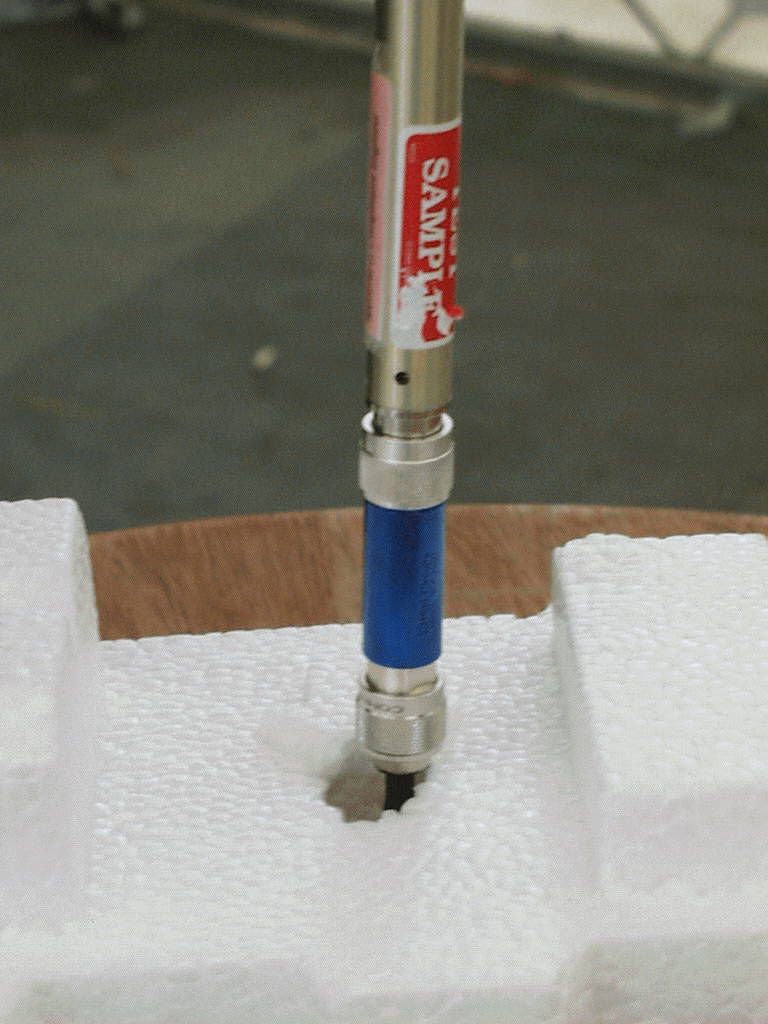

Sheet1 COMPLIANCE ENGINEERING SERVICES, INC. Radiated Emissions 8 Feb 199 15.205 J. MartinezA site (1.5 Meter) Savi TechnologiesFCC ID: K67-RELAY-V1Antenna: MobileMark OD 9 - 2400 9 dBi Omni Antenna Filter: Mini Circuit Model NLP-2950fo = 2450 MHz F(MHz) READING AF CL A MP DIST HPF TOTAL LIMIT MARGIN (dBuV) (dB) (dB) (dB) (dB) (dB) (dBuV/m) (dBuV/m) (dB) Pk A vg Pk A vg Pk A vg Pk A vg 4900 46 37 35 5 -35 -10.5 0.7 41.2 32.2 74 54 -32.8 -21.8 7350 52.5 44 44.1 6.6 -35 -10.5 0.7 58.4 49.9 74 54 -15.6 -4.1 9800 54.6 46.1 39.4 7.26 -35 -10.5 0.7 56.46 47.96 74 54 -17.5 -6.0 12250 52.1 42.3 40.2 8.25 -35 -10.5 0.7 55.75 45.95 74 54 -18.3 -8.1 14700 51.7 38 44.7 9.07 -35 -10.5 0.7 60.67 46.97 74 54 -13.3 -7.0 17150 52.4 39.1 43.9 10.73 -35 -10.5 0.7 62.23 48.93 74 54 -11.8 -5.1 to 10fo no eut emissions detected above noise floor fo = 2456 MHz F(MHz) READING AF CL A MP DIST HPF TOTAL LIMIT MARGIN (dBuV) (dB) (dB) (dB) (dB) (dB) (dBuV/m) (dBuV/m) (dB) Pk A vg Pk A vg Pk A vg Pk A vg 4912 44.4 35.1 35 5 -35 -10.5 0.7 39.6 30.3 74 54 -34.4 -23.7 7368 53.1 43.1 44.1 6.6 -35 -10.5 0.7 59 49 74 54 -15 -5.0 9824 51.8 43.5 39.4 7.26 -35 -10.5 0.7 53.66 45.36 74 54 -20.3 -8.6 12280 51.3 40.6 40.2 8.25 -35 -10.5 0.7 54.95 44.25 74 54 -19.1 -9.7 14736 49.5 38.7 44.7 9.07 -35 -10.5 0.7 58.47 47.67 74 54 -15.5 -6.3 17192 52.7 40.1 43.9 10.73 -35 -10.5 0.7 62.53 49.93 74 54 -11.5 -4.1 to 10fo no eut emissions detected above noise floor Page 1 Sheet1 COMPLIANCE ENGINEERING SERVICES, INC. Radiated Emissions 8 Feb 199 15.205 J. MartinezA site (1.5 Meter) Savi TechnologiesFCC ID: K67-RELAY-V1Antenna: MobileMark OD 9 - 2400 9 dBi Omni Antenna Filter: Mini Circuit Model NLP-2950fo = 2474 MHz F(MHz) READING AF CL A MP DIST HPF TOTAL LIMIT MARGIN (dBuV) (dB) (dB) (dB) (dB) (dB) (dBuV/m) (dBuV/m) (dB) Pk A vg Pk A vg Pk A vg Pk A vg 4947 50.5 44.6 35 5 -35 -10.5 0.7 45.7 39.8 74 54 -28.3 -14.2 7421 49.6 39.7 44.1 6.6 -35 -10.5 0.7 55.5 45.6 74 54 -18.5 -8.4 9895 54.5 48.1 39.4 7.26 -35 -10.5 0.7 56.36 49.96 74 54 -17.6 -4.04 12369 51.08 41.1 40.2 8.25 -35 -10.5 0.7 54.73 44.75 74 54 -19.3 -9.25 14843 50.9 38.4 44.7 9.07 -35 -10.5 0.7 59.87 47.37 74 54 -14.1 -6.63 17317 52.7 39.3 43.9 10.73 -35 -10.5 0.7 62.53 49.13 74 54 -11.5 -4.87 to 10fo no eut emissions detected above noise floor Page 2
