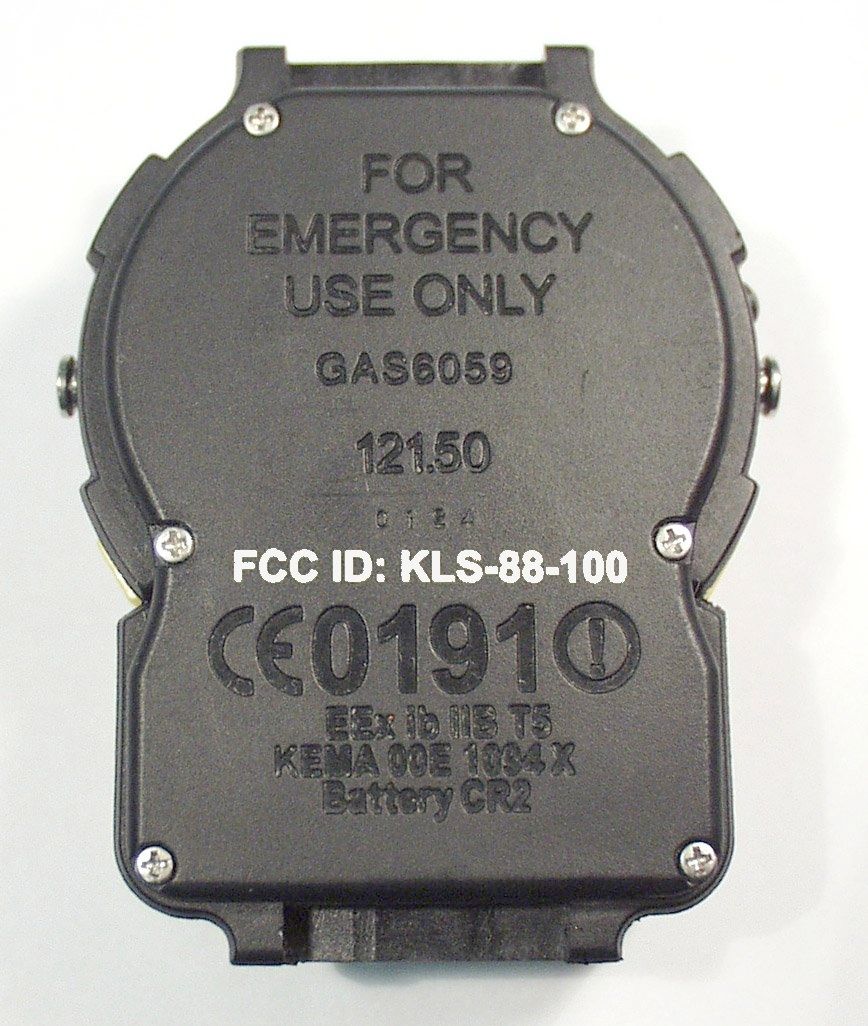

KLS-88-100Manoverboard Beacon 121.5 MHz Wristwatch (Class B

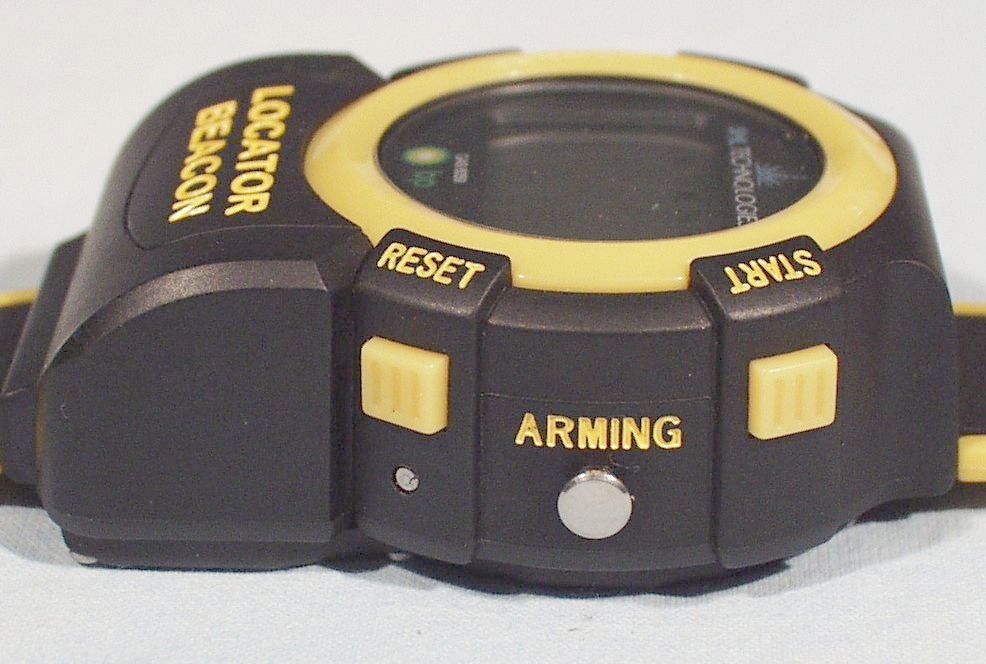

Guardian MOB Beacon Watch 121.5MHz Man Overboard Alarm Watch User Manual 2 WARNINGS Use the beacon function of the Guardian MOB Beacon Watch only in situations of grave and imminent danger. The beacon function can only be used in conjunction with a suitable 121.5MHz receiver. The beacon function is set at the factory to manual activation. For automatic activation, the beacon must be armed by the user. THIS FUNCTION WILL NOT WORK IN FRESH WATER. This product contains a lithium battery. Do not puncture, incinerate or recharge. Dispose of safely. Use of the beacon may require radio licences, depending on the country of use. 3 Contents WARNINGS.......................................................................................................................2 1. Introduction ................................................................................................................. 4 1.1 Man Overboard Operation........................................................................................ 4 1.2 Battery Life ................................................................................................................ 5 2. Beacon controls........................................................................................................... 6 2.1 Transmitter Control.................................................................................................... 7 2.2 ARMING & CONFIRM Button Control....................................................................... 7 2.4 Transmit (Manually) ................................................................................................... 9 2.5 Disable Transmitting.................................................................................................. 9 2.6 Test Function.............................................................................................................9 3. Watch Time Functions .............................................................................................. 10 3.1 Normal Readout...................................................................................................... 10 3.2 Alarm operation....................................................................................................... 10 3.3 Setting Sequence.................................................................................................... 11 3.4 Hourly Chime ........................................................................................................... 12 3.5 Chronograph............................................................................................................ 12 4. Service ....................................................................................................................... 13 4.1 Battery change ........................................................................................................ 13 4.2 Safety ....................................................................................................................... 13 4.3 Spares ...................................................................................................................... 13 5. Training Watch .......................................................................................................... 14 6. Battery reset ..............................................................................................................15 4 1. Introduction The Guardian MOB Beacon Watch is a full function alarm chronograph which incorporates an emergency distress transmitter. The transmitter may be activated automatically if the Watch is immersed in water; it may also be activated manually. This product is designed to be worn in conditions where the user is at risk of falling into water and where it may be difficult to locate the person in the water visually. The beacon is used in conjunction with a receiver to generate an alarm; a direction finder is available to help locate the person in the water. 1.1 Man Overboard Operation Once armed, the beacon will activate automatically when immersed in sea water, and will continue to transmit until disabled. Arming and disabling are detailed in the Features section. In fresh water the beacon must be activated manually. The beacon cannot transmit effectively when underwater, and needs to be as high as possible for best signal range. Ideally, the user should hold up the arm wearing the watch, but this is impractical for long periods. It is recommended that the arm is rested on top of the lifejacket, as shown opposite. 5 1.2 Battery Life The battery is designed to power this product for a period of 1 year. When the battery is running low the LED flashes and the sounder beeps four times, repeating every minute. This warning normally indicates that the battery has reached the minimum level at which performance can be guaranteed; any further deterioration may jeopardise the performance of the beacon in an emergency. Refer to Page 15 for information on testing the beacon to verify the alarm. Refer to the Service section for information on replacing the battery. Beacon transmitting in emergency 6 CONFIRM ARMING LED indicator 2. Beacon controls 7 2.1 Transmitter Control The transmitter can be set into one of two modes: Off Transmitting - Permanently transmitting on full power The activation system can be triggered by one of two methods: Manually Automatically, by immersion in water 2.2 ARMING & CONFIRM Button Control 2.2.1 Status Check To check the armed status of the beacon, press and hold the ARMING button only. ARMEDContinuously repeating ‘beep-beep’ with LED flashes DISARMEDA single beep-beep with an accompanying LED flash 8 2.3.1 ARM (for automatic activation by immersion in water) To set the Watch in ARMED mode: Step 1: Press the CONFIRM button 3 times: A single beep and LED flash confirms this step. Step 2: Press the ARMING button once: The acknowledgement is a double beep and LED flash. Once armed the LED will flash on…

Text truncated - open the document above for the full version.

6711 RITZ WAY • BELTSVILLE, MARYLAND 20705 • (301) 419-0000 www.boatersworld.com October 10, 2001 To whom it may concern, I am writing to express my interest in the Pains Wessex Guardian Man-over- board watch. I understand that this product has been submitted to the FCC for approval. Having read the item’s description and function, I believe that this unique device will significantly increase the safety of marine boaters by providing them with a means of alerting mariners to the loss of persons overboard while at sea. It is small and convenient to wear which will increase the likelihood that sailors will wear the device. In addition, the Guardian Man- over-board watch will provide searchers with the means to rapidly locate and rescue those lost overboard in various sea conditions and visibility. Therefore, because of its potential impact on boating safety, I feel that it should be made available to the public as soon as possible. There is currently no other such product available and I believe that boaters would truly welcome and benefit from this new and innovative product. Sincerely, Jay Jolly Vice President

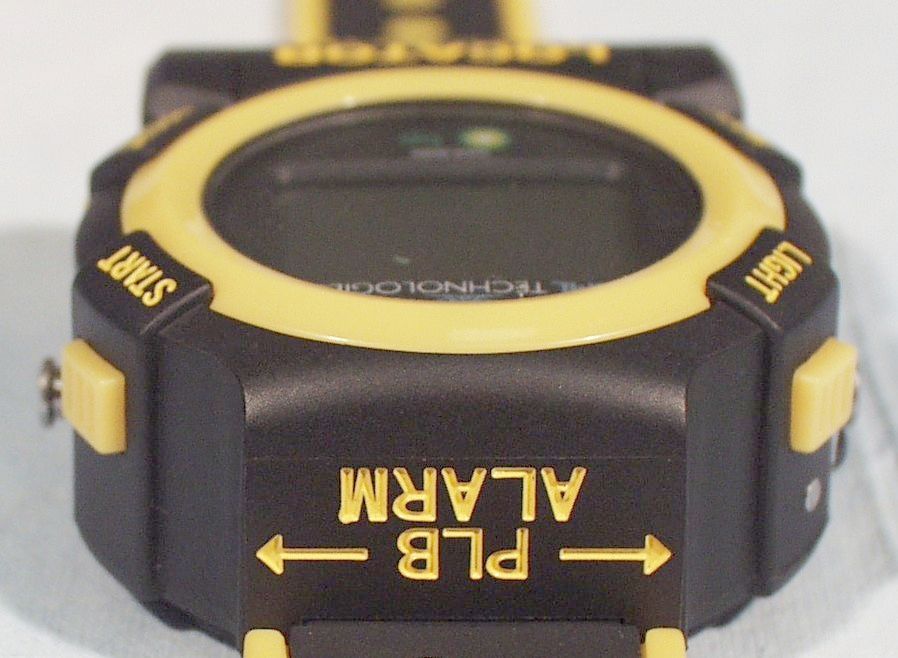

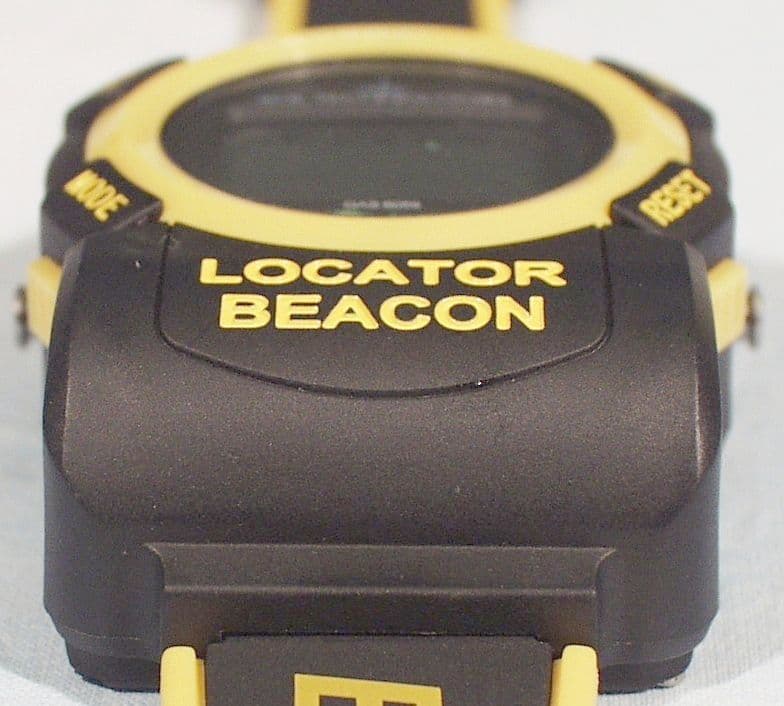

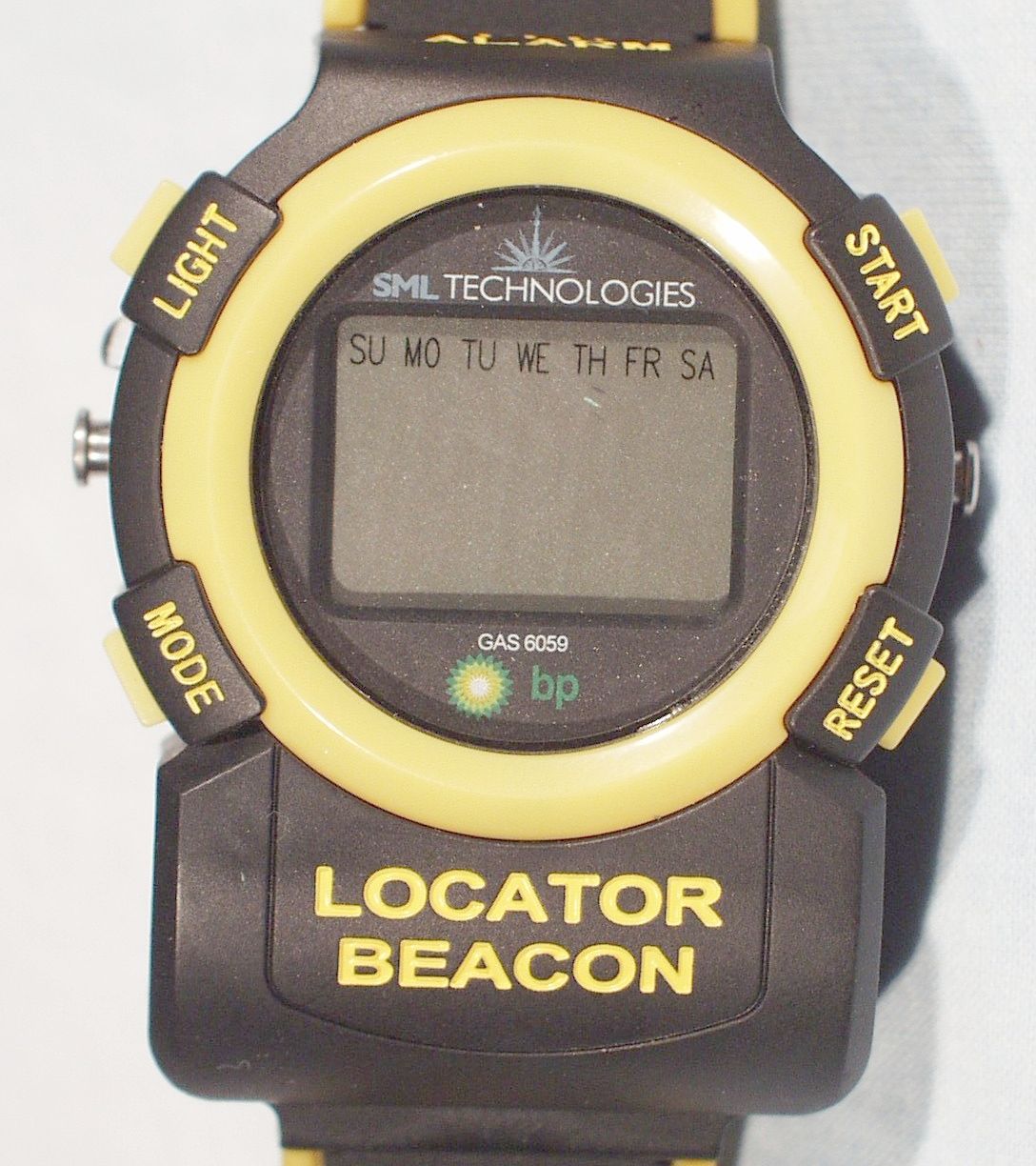

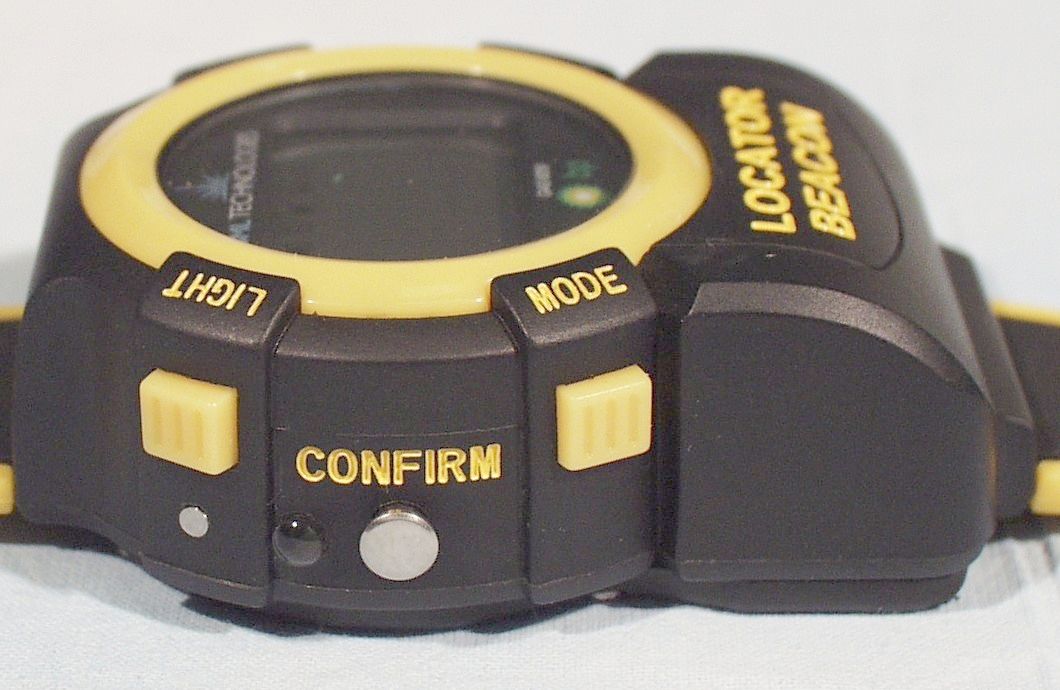

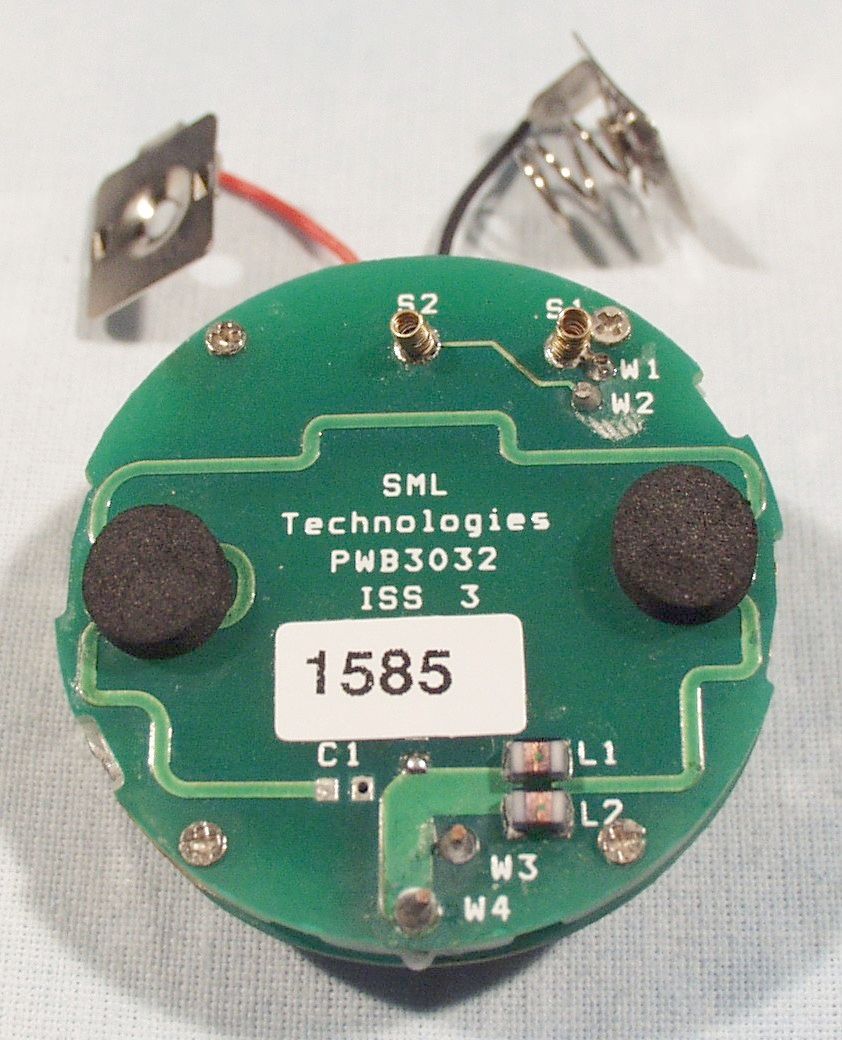

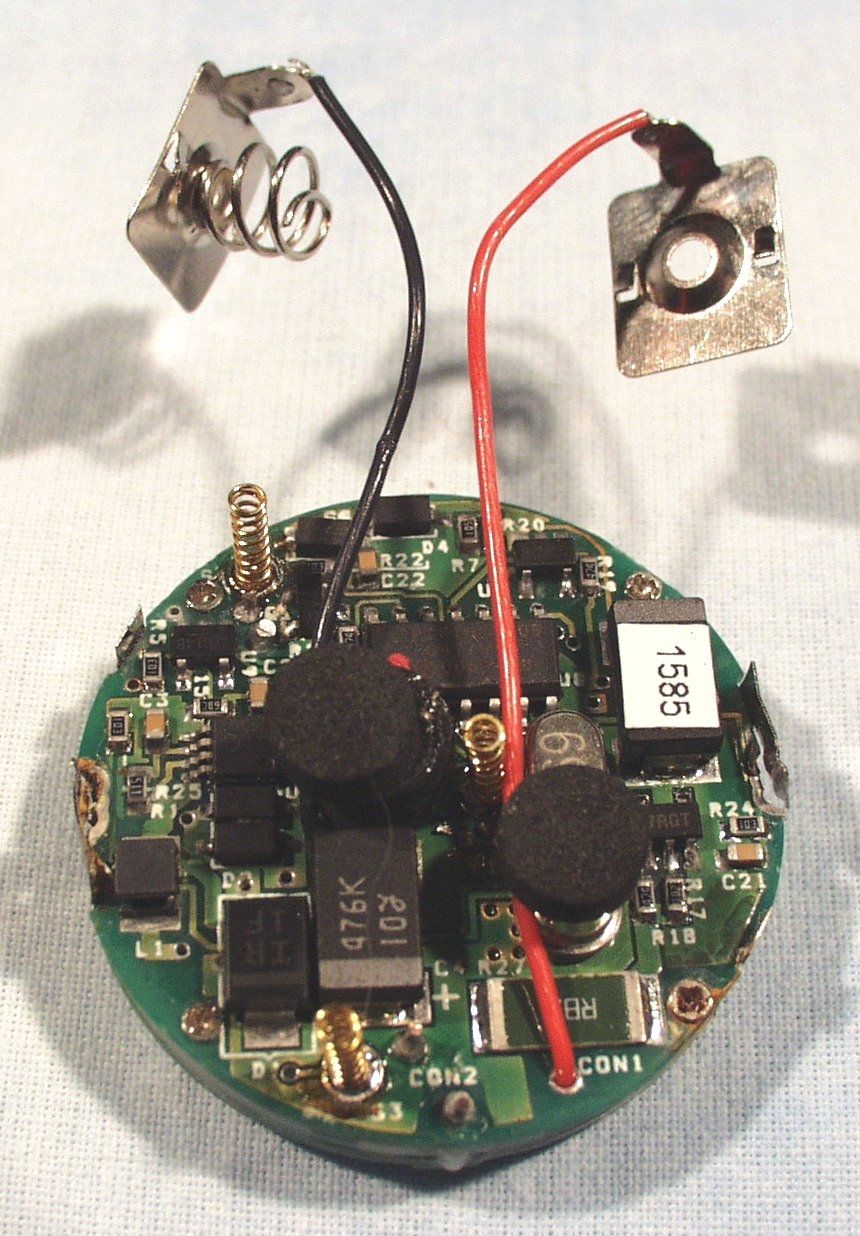

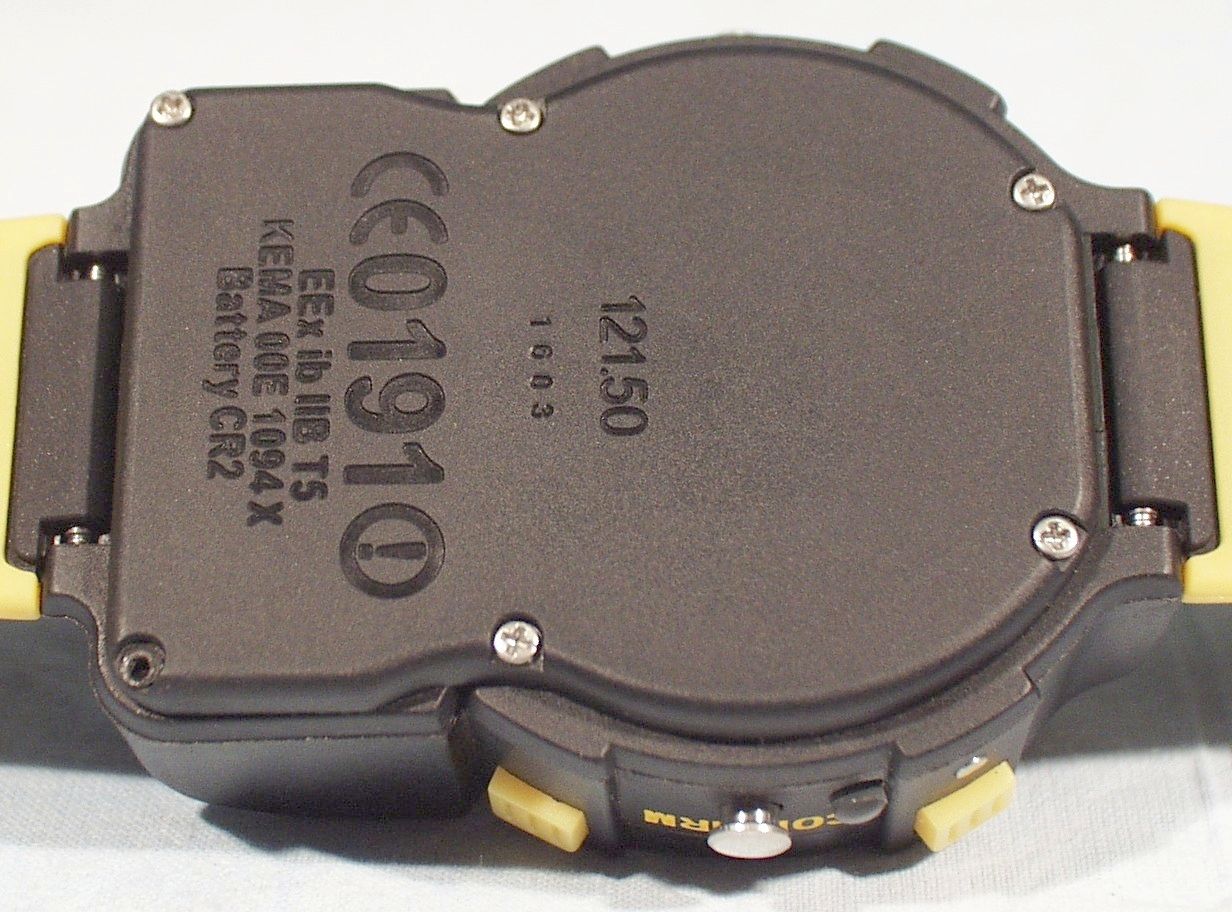

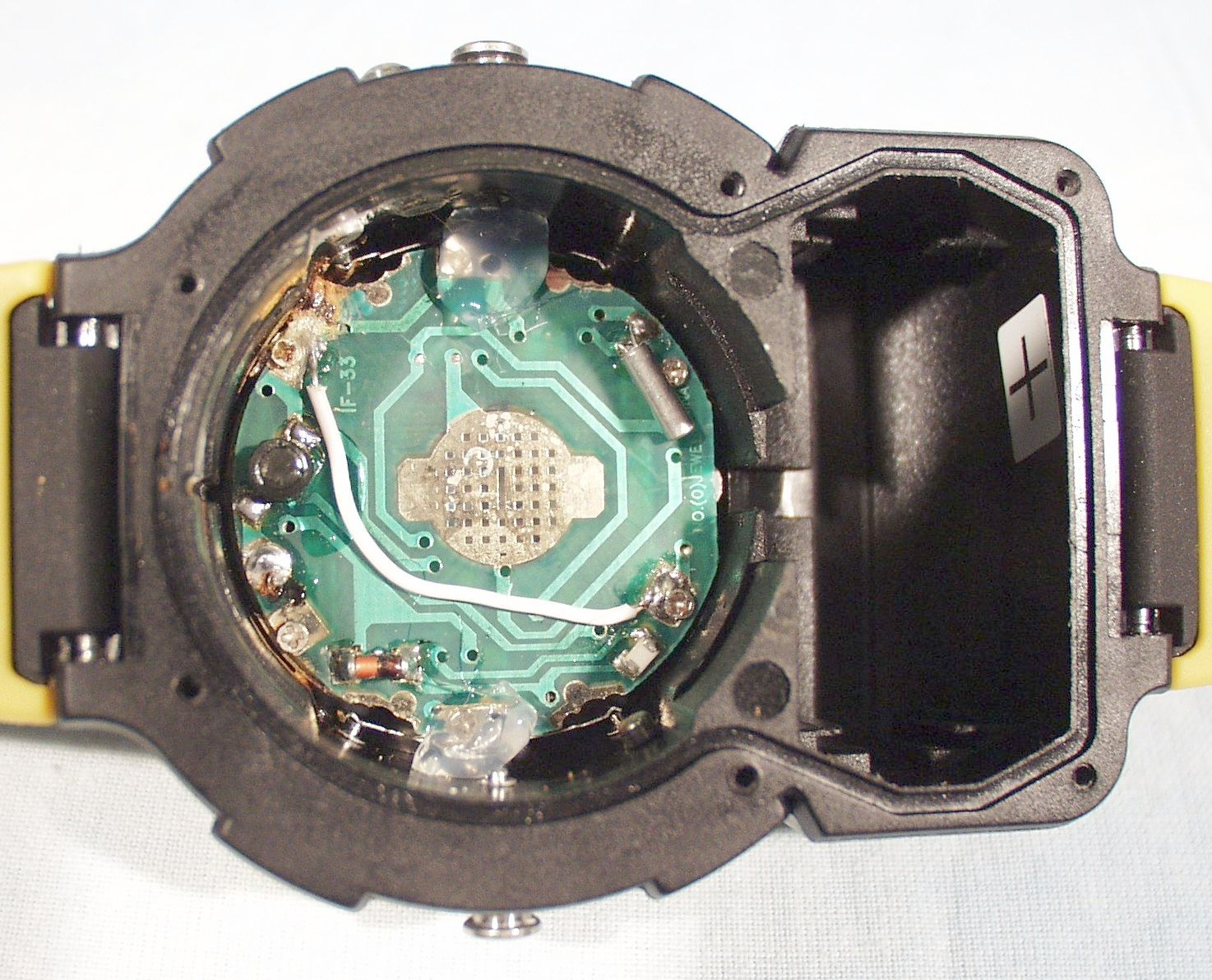

Guardian Manoverboard (MOB) beacon The new Guardian ™ Manoverboard wristwatch represents a major breakthrough in marine safety! For recreational cruising or racing boaters, divers, personal water craft users, commercial or sports fishermen, in fact anyone who spends time on or near the water. This lightweight, easy to wear waterproof, multi-function wristwatch has a built- in radio transmitter which when activated either manually or automatically, immediately transmits a distress tone on the international emergency search and rescue frequency (121.5MHz). The powerful signal transmitted can be detected by a surface rescue vessel or helicopter, which can accurately home in to the watch using direction-finding equipment. Making the Ocean a Safer Place Automatic activation with manual on/off override Hour, minute, second, day of the week, month and date display Chronograph 1/100 second with lap/split control Alarm with chime LCD Backlight Water resistant - tested to a depth of 150 feet Transmission activation audible and visual LED alarms Up to 8 hours transmission time Range to surface vessel up to 1 nautical mile Range to SAR helicopter greater than 5 nautical miles Transmits on 121.5MHz Guardian ™ Wristwatch Manoverboard Beacon The greatest advantages of the Guardian ™ watch over traditional beacons is that the design and construction encourage the user to wear it like a normal wristwatch, 24 hours a day. This dramatically reduces the risk of loss of life on the water should an unexpected event occur! The Guardian ™ watch is ideal for aiding in the recovery of personnel who are in the water either by accident or as part of a coordinated evacuation. Although the Guardian ™ will activate automatically on immersion in water, manual activation is also available at the touch of a button! When activated the watch has a flashing LED and audible warning reassuring the Manoverboard that the watch is transmitting. Once activated the distress signal will trigger an audible alarm on the vessel or fixed platform, such as an oilrig. In addition the location of the signal can immediately be shown on compatible electronic chart systems. To complete the Guardian ™ Manoverboard system either the Emergency Receiver or Direction Finder should be fitted to your vessel. Direction Finder The Emergency Receiver is a high quality Manoverboard surveillance system operating on the international 121.5MHz emergency frequency. Used in conjunction with the Guardian ™ watch this system will give all crew members the confidence of knowing that no one should go overboard undetected. Features:  2 Reception modes (Standard 121.5MHz + Swept tone PLB/EPIRB/ELT code) 8 Level signal strength indicator Built-in alarm Auto squelch on/off Alarm reset function Relay contact output (I.E. GPS or Radar contacts) Continuous self-diagnostic fault indicator 12/24 VDC Power input Specifications Used together with the Guardian ™ watch, Precision ™ EPIRB or FastFind ™ PLB, this direction finder is the latest state-of-the-art unit using the international 121.5MHz emergency frequency or the 121.65MHz training frequency. A bearing relative to the vessels head is displayed along with an incoming signal strength indicator. The visual and audible alarm provides easy-to follow information, allowing the operator to quickly search for and rescue the man overboard. Features 360 Degree incoming signal reception 4 level incoming signal strength indicator Built-in audible alarm Output for external speaker 2 reception modes (Standard 121.5MHz + Swept tone PLB/EPIRB/ELT code) User adjustable squelch 12/24 VDC Power input Guardian MOB Beacon Environmental Operation temperature range:–4°F ~ +158°F Water Pressure Rated: 164.1 feet or 5atm Weight inc. strap:2.84 oz Electrical RF Transmitter Frequency:121.5MHz (121.65MHz Training) Class of Emission:A3X RF Power:-25dBm Frequency error:+/- 3.5kHz Duty cycle:100% Modulation type:Sweep downward from 1.5kHz to 650Hz with sweep repetition of 2Hz Modulation duty-cycle:50% Power Voltage:3.2 Volts max. (CR2 Battery) Current draw:20uAmps Quiescent 110mAmps Transmitting MOB Emergency Receiver Environmental Operation temperature range:–4°F ~ +140°F Water Proof Rating: IP65 Weight inc. strap:12.25 oz RF Receiver Frequency:121.5MHz (121.65MHz Training) Sensitivity:<0.5mV at antenna Modulation type:Sweep downward from 1.6kHz to 300Hz Audio output:8V max. (speaker >8 Ohm) Relay contact (NOC):Floating, carrying cap. 0.5A/10W max. Power Voltage:12/24V DC (± 20%) Current draw:80mAmps Quiescent 400mAmps Receiving alarm + ext. speaker Emergency Receiver Pains-Wessex Safety Systems Inc PMB 163 7040 West Palmetto Park Road # 4 Boca Raton Florida 33433 Phone: 561 394 9113 Toll Free: 800 576 2605 Fax: 561 394 7633 e-mail: [email protected] www.pwss.com AUTHORISED DEALER

REPORT ON EMC Testing of a GA6059 Wrist Watch Personal Locator Beacon Report No OR900741 February 2001 Report No OR900741Page 1 of 16 BABT Product Service Ltd Segensworth Road Fareham, Hampshire United Kingdom PO15 5RH Tel : +44(0)1329 443322 Fax: +44(0)1329 443421 REPORT ONEMC Testing of a GAS6059 Wrist Watch Personal Locator Beacon Report No OR900741 February 2001 PREPARED FORSML Technologies Astro House 16 Brunel Way Segensworth East Fareham Hampshire APPROVED BY J J Adams EMC Manager DATED17 October 2001 DISTRIBUTIONSML TechnologiesCopy 1 BABT Product ServiceCopy 2 Copy No Total No of Pages 16 1377 1377S1 Report No OR900741Page 2 of 16 REPORT CONTENTSPage Number Status Page3 System Configuration During EMC Testing4 EUT Modification Chronology4 Brief Summary of Results5 Emission Testing Instrumentation6 Immunity Testing Instrumentation7 Emissions - Enclosure Port Radiated Emissions, Electric Field, 30MHz to 1000MHz8 Radiated Emissions, Magnetic Field, 150kHz to 30MHz10 Immunity - Enclosure Port Immunity to Radio-frequency Amplitude Modulated Electromagnetic Field, 80MHz to 1000MHz12 Immunity to Electrostatic Discharge13 System Measurement Uncertainty15 Copyright Statement16 Report No OR900741Page 3 of 16 STATUS OBJECTIVETo undertake measurements to determine the Equipment Under Test's (EUT's) compliance with the specifications. MANUFACTURING DESCRIPTIONWrist Watch Personal Locator Beacon MANUFACTURERSML Technologies MANUFACTURERS MODEL NUMBERGA6059 SERIAL NUMBERB17/B18 TEST SPECIFICATION NUMBEREN 60945: 1997 REGISTRATION NUMBERY900741 QUANTITY OF ITEMS TESTEDOne SECURITY CLASSIFICATION OF EUTUnclassified INCOMING RELEASECEPT Application Form SERIAL NUMBERY900741 DATE13 th December 2000 ORDER NUMBER11248 DATE26 th July 2000 START OF TEST20 th January 2001 FINISH OF TEST23 rd January 2001 TEST ENGINEERSA Guy S Carter RELATED DOCUMENTSEN 61000-4-2; March 1995 EN 61000-4-3; September 1996 Report No OR900741Page 4 of 16 SYSTEM CONFIGURATION DURING EMC TESTING The Equipments Under Test (EUT), the GA6059 was a Wrist Watch Personal Locator Beacon, primarily designed to operate as a Maritime Emergency Radio Beacon for initial warning and location of personnel in the water. The EUT was configured as a portable unit powered from a self contained battery. A customer supplied Microprocessor controlled Surveillance Receiver (Crewguard), was set up remotely to monitor for the activation of the EUT. In transmit mode the EUT operated on 121.5MHz, power level. Emissions Testing The EUT together with all associated cabling, was set-up simulating a typical user installation, then tested in accordance with the specification. The EUT was functioning correctly during all testing, and was operating in the Idle mode. Immunity Testing The EUT was functioning correctly prior to each test, and was tested with it operating in both the Transmit and Idle modes. The correct operation of the EUT was monitored throughout each test by viewing the PLB/ELT Code LED, Speaker and Level Indicator on the receiver as follows: Idle Mode. For any unintentional (Alarm) operation of the PLB/ELT LED, audio output from the speaker or any level indications. Transmit Mode. For any interruption in the flashing of the PLB/ELT LED, audio output from the speaker or loss of level indication. EUT MODIFICATION CHRONOLOGY Table 1 below details modifications necessary in order for the EUT to pass the relevant tests applied. Modification State Description of Modification still fitted to EUT Modification Fitted By Date Modification Fitted 0As Supplied by ManufacturerNot ApplicableNot Applicable Table 1 Report No OR900741Page 5 of 16 BRIEF SUMMARY OF RESULTS Table 2 below shows a brief summary of the results obtained. Specification and Section Number Test EUT Modification State Result EN 60945 : 1997 (Table 5; Clause 9.2) Conducted Emissions 10kHz - 30MHz (DC Power Port) 0N/A EN 60945 : 1997 (Table 5; Clause 9.3) Radiated Emissions Electric Field 30MHz - 1000MHz (Enclosure Port) 0Pass EN 60945 : 1997 (Table 5; Clause 9.3) Radiated Emissions Magnetic Field (Enclosure Port) 0Pass EN 60945 : 1997 (Table 6; Clause 10.2) Immunity to Conducted Low frequency Interference 50Hz – 10kHz (AC Power Port) 0 N/A EN 60945 : 1997 (Table 6: Clause 10.2) Immunity to Conducted Low Frequency Interference 50Hz – 10kHz (DC Power Port) 0N/A EN 60945 : 1997 (Table 6; Clause 10.3) Immunity to Conducted Radio frequency Interference 10kHz – 80MHz (AC Power Port) 0N/A EN 60945 : 1997 (Table 6; Clause 10.3) Immunity to Conducted Radio Frequency Interference 10kHz – 80MHz (DC Power Port) 0N/A EN 60945 : 1997 (Table 6; Clause 10.3) Immunity to Conducted Radio Frequency Interference 10kHz –80MHz (Signal & Control) 0N/A EN 60945 : 1997 (Table 6; Clause 10.4) Radiated Interference 80MHz - 1000MHz (Enclosure Port) 0Pass EN 60945 : 1997 (Table 6; Clause 10.5) Immunity to Fast Transients (AC Power Ports) 0N/A EN 60945 : 1997 (Table 6; Clause 10.5) Immunity to Fast Transients (DC Power Ports) 0N/A EN 60945 : 1997 (Table 6; Clause 10.5) Immunity to Fast Transients (Signal & Control Ports) 0N/A EN 60945 : 1997 (Table 6; Clause 10.6) Immunity to Surges AC Power Port 0N/A EN 60945 : 1997 (Table 6; Clause 10.7) Immunity to Power Supply Short Term Variations (AC Power Port) 0N/A EN 60945 : 1997 (Table 6; Clause 10.8) Immunity to Power Supply Failure (AC Power Port) 0N/A EN 60945 : 1997 (Table 6; Clause 10.9) Immunity to Electrostatic Discharge (Enclosure Port) 0Pass Table 2 Report No OR900741Page 6 of 16 EMISSION TESTING Instrumentation used for Emission Testing: InstrumentManufacturerType NoEMC No Spectrum AnalyserHewlett Packard8568B184 Quasi-Peak AdaptorHewlett Packard85650A1302 RF PreselectorHewlett Packard85685A1370 Biconical AntennaAiltech94455-1618 Log Periodic AntennaAmplifier ResearchAT1000956 Auto Turntable & ControllerEmco10601322 Auto Antenna Mast & ControllerEmco10501321 ComputerHewlett Packard310— PrinterHewlett PackardThink Jet— Loop AntennaRohde & SchwarzHFH-Z21311 Test Re…

Text truncated - open the document above for the full version.

REPORT ON Limited Type Approval Testing of the SML Technologies GAS6059 in accordance with ETSI EN 300 152 V1.2.1 (1999-10) Report Number RM900741 January 2001 REPORT NUMBER RM900741PAGE 1 OF 30 BABT Product Service Ltd Segensworth Road Fareham, Hampshire United Kingdom PO15 5RH Tel : +44(0)1329 443322 Fax: +44(0)1329 443421 REPORT ONLimited Type Approval Testing of the SML Technologies GAS6059 in accordance with ETSI EN 300 152 V1.2.1 (1999-10) Report No. RM900741 PREPARED FORSML Technologies 16 Brunel Way Segensworth East Fareham Hampshire PO15 5TX APPROVED BY________________________________ M JENKINS Radio Department Manager DISTRIBUTIONSML TechnologiesMr M MaciasCopy No. 1 SML TechnologiesTechnical Construction File Copy No. 2 BABT Product Service LimitedCopy No. 3 Copy No: 1377 1377S1 REPORT NUMBER RM900741PAGE 2 OF 30 CONTENTS:- Page No. Status Page4 Test House Declaration5 Application Form6 LIST OF CONTENTS. The list of observations and measured parameters called for in ETSI EN 300 152 V1.2.1 (1999-10) is given below. ClausePage number 8.1Transmitter Frequency Error19 8.5Radiation produced by Operation of the Test Facility20 8.6Spurious Emissions21 Test Equipment and Ancillaries used for Tests22 Photographs of Test Sample(s)24 Annex A Correspondence For copyright details see page 30 of 30 REPORT NUMBER RM900741PAGE 3 OF 30 Manufacturer:SML Technologies Type Designation:GAS6059 Serial No.:- Number of Samples Tested:One Test Specification:ETSI EN 300 152 V1.2.1 (1999-10) Date of Receipt of Test Sample:17 th December 2000 Start of Test:18 th December 2000 Finish of Test:10 th January 2001 Test Engineer(s):S BENNETT REPORT NUMBER RM900741PAGE 4 OF 30 TEST HOUSE DECLARATION We, BABT Product Service Limited of Segensworth Road, Fareham, Hampshire PO15 5RH, declare under our sole responsibility that the product : Equipment :Wrist worn Personal Locator Beacon Type/Model :GAS6059 Serial Number : - Quantity : One to which this declaration relates is in conformity with the following standard(s) or other normative document(s) : Limited ETSI EN 300 152 V1.2.1 (1999-10) Clauses 8.1, 8.5 and 8.6 Detailed results are recorded in Report No. RM900741 Place and date of issue : Fareham, January 2001 Signature : M JENKINS Radio Department Manager Date : 26 th January 2001 The equipment fully meets the essential requirements under Article 3.2 of the R & TTE Directive as defined in ETSI EN 300 152-2 V1.1.1 (2000-08) REPORT NUMBER RM900741PAGE 5 OF 30 APPLICANT'S DETAILS CATEGORY OF APPLICANT (please tick relevant box opposite)(a)[ ̧]MANUFACTURER (b)[]IMPORTER If box (b), (c) or (d) is ticked complete details in box below with(c)[]DISTRIBUTOR respect to the manufacturer (d)[]AGENT COMPANY NAME :SML Technologies ADDRESS :16 Brunel Way Segensworth East Fareham Hampshire PO15 5TY NAME FOR CONTACT PURPOSES :Mr M Macias, Glen Cheadle TELEPHONE NO : FAX NO : 01789 557374 EMAIL : MANUFACTURERS DETAILS COMPANY NAME :Same as above. ADDRESS : NAME FOR CONTACT PURPOSES : TELEPHONE NO : FAX NO : EMAIL : REPORT NUMBER RM900741PAGE 6 OF 30 TYPE DESIGNATION (1) The type designation may be either a single alphanumeric code or an alphanumeric/code divided into two parts. lease fill in EITHER : TYPE DESIGNATION AS A SINGLE ALPHANUMERIC CODE / G / A / S / 6 / 0 / 5 / 9 / / / / / / OR : TYPE DESIGNATION IN TWO PARTS : 1. EQUIPMENT SERIES NO. (2) ("MODEL NUMBER") / / / / / / / / / / / / / / / / / / / AND 2. EQUIPMENT SPECIFIC NO. (3) ("IDENTIFICATION NO")/ / / / / / / / / / / / / / / / / / / (1)This is the manufacturer's numeric or alphanumeric code or name that is specific to a particular equipment. It may contain information in coded form on the characteristics of the equipment e.g. frequency, power. The manufacturer is free to choose the form of the type designation. (2)This is the number, code or trade name used by the manufacturer to describe a series or 'family' of equipment of substantially the same mechanical and electrical construction which will include a number of related equipments. This number is often referred to as the "model number". (3)This is the manufacturer's identification number given to a specific equipment in the series or ' family' of equipments. It is often referred to as the "identification number". TECHNICAL VARIANTS IDENTIFICATION COMMENTS GAS6060121.65 MHz version for instructional purposes. REPORT NUMBER RM900741PAGE 7 OF 30 EQUIPMENT CLASSIFICATION []Base Station (Equipment fitted with an antenna socket for use with an external antenna, and intended for use in a fixed location). []Mobile Station (Mobile equipment fitted with an antenna socket, for use with an external antenna, normally used in a vehicle or as a transportable station). []Handportable (fitted with an antenna socket). [] (without an external antenna socket integral antenna equipment, but fitted with a permanent internal or a temporary internal 50 ohm R.F. connector which allows access to the transmitter output and the receiver input). [ ̧]Other Wrist worn personal locator beacon. BASE STATION []Transmitter[]Simplex []Receiver[]Duplex []Transceiver[]Communal Site Use (70 dB Intemod limit) MOBILE STATION []Transmitter []Receiver []Transceiver []Remote Control Head HANDPORTABLE []Transmitter[]Battery Charger []Receiver[]Duplex []Transceiver REPORT NUMBER RM900741PAGE 8 OF 30 TRANSMITTER TECHNICAL CHARACTERISTICS TRANSMITTER FREQUENCY Method of frequency generation []CRYSTAL []SYNTHESIZER [ ̧]OTHER (PLL) Integrated VCO, Phase detector, prescaler and reference oscillator transistor. TRANSMITTER CHANNEL SWITCHING FREQUENCY RANGE 121.5 MHz Single Frequency TRANSMITTER FREQUENCY ALIGNMENT RANGE 121.5 MHz Single Frequency REPORT NUMBER RM900741PAGE 9 OF 30 TRANSMITTER RF POWER CHARACTERISTICS MAXIMUM RATED TRANSMITTER OUTPUT POWER as stated by manufacturer W AT TRANSMITTER RF OUTPUT CONNECTOR (as declared by manufacturer) 3 μW EFFECTIVE RADIATED POWER (FOR EQUIPMENT WITH INTEGRAL ANTENNA) Is transmitter intended for: Continuous duty[ ̧]Ye…
