Fastfind & Fastfind PLus Personal Location Beacon User manual mcmurdo mcmurdomcmurdo mcmurdo ii i Your PLBs unique identification information Notices to Purchasers Personal Location Beacons (PLB) must be registered with the appropriate National Authority. Failure to register your PLB could delay a Search and Rescue (SAR) response and maybe un lawful. WARNING A PLB should only be activated in situations of grave and imminent danger to life. Misuse or false activation is unlawful and could result in a penalty Important PLBs are intended for use within the maritime, aviation and land environments where permitted by national administrations. When activated, the PLB sends an emergency alert to the COSPAS-SARSAT satellite system. The time taken for the alert to be processed is dependant upon the extent of satellite system coverage at that time and any overhead obstruction that could impair the signal path to the satellite. The actual time to rescue in an emergency will be dependant upon the performance of all factors within the SAR (Search and Rescue) system, and as such, is outside the control of McMurdo. Applicability of this manual Fastfind and Fastfind Plus build standard: February 2008 This manual is applicable to both the Fastfind & Fastfind Plus models. The Fastfind Plus has an inbuilt GPS receiver, consequently any references to GPS and the GPS system will only apply to the Fastfind Plus model. Stick copy Programming label here ii Contents Safety notices.......................................................................................1 Quick start checklist..............................................................................2 Emergency operation............................................................................................2 Introduction ..........................................................................................3 Preparing the PLB for use......................................................................3 Handling false alerts..............................................................................4 Emergency Operation...........................................................................5 Switching off an active PLB..................................................................................6 Emergency Operation with GPS (Fastfind Plus)...................................................7 Self-test................................................................................................8 Getting the best from the PLB................................................................9 General use..........................................................................................................9 Get the best from GPS PLBs................................................................................9 Satellite Distress Beacons explained....................................................13 Why GPS PLBs?.................................................................................................13 How does your PLB work?...................................................................14 Registration and Licensing...................................................................15 Radio transmitter Licence requirements.............................................................16 Service and Maintenance....................................................................17 Deactivation........................................................................................18 Battery Pack.......................................................................................18 How to assemble your PLB..................................................................19 Fitting the battery................................................................................................19 Technical Specifications......................................................................20 Usage statement.................................................................................................22 Declaration of Conformity....................................................................23 Product Warranty................................................................................25 End of Life Statement..........................................................................26 Battery Removal.................................................................................................26 Disposal..............................................................................................................26 Annex 1. Registration information.........................................................27 Annex 2. Quick user card detail............................................................30 1 Safety notices Please take time to read this manual fully as it contains important information regarding the correct use and maintenance of your PLB. Important The PLB (Personal Locator Beacon) is an emergency radio beacon; only ever operate it in situations of grave and imminent danger to life. CAUTION: False alerts endanger lives and cause expensive disruption to Search and Rescue services, deliberate misuse of the PLB could result in penalty. CAUTION: The PLB and battery pack contain no user-serviceable parts. Do not dismantle the PLB or the battery pack. CAUTION: The battery pack contains lithium batteries. Do not attempt to recharge the battery under any circumstances. Do not incinerate, puncture, deform, or short-circuit. Dispose of spent battery packs safely and in accordance with local waste disposal regulations. Refer to End of Life Statement. CAUTION: Avoid using chemical solvents to clean the PLB as some solvents can damage the case material. CAUTION: Radio licensing, the PLB is a radio transmitter. Some administrations may require that the user holds a valid radio licence to cover its ownership and use. Radio Frequency Exposure Warning WARNING: The PLB is a radio transmitter which emits radio frequency radiation wh…

Text truncated - open the document above for the full version.

TAC Number: 184 Beacon Model Name: Fastfind Type: FF=Float Free PLB In Production: Yes Manufacturer: Signature Industries Limited TAC Date: 05-Feb-08 TAC Rev Date: TAC Rev History: Battery: Manufacturer (Model, No of Cells) Energiser L91, 7 cells of "AA"type, battery pack manufacturer: All Batteries, P/N: 85-722D Class: 2 Tx Frequencies: 406.037 MHz Tested Life: (24 / 48 hrs) 48 Self Test: Yes Self Test RF: Yes Self Test RF (Short/Long): Short Self Test Format Flag: Short Self Test Consistent with 15 Hex ID: Yes Homer Freq: 121.5 MHz Homer Duty Cycle: Intermittent Homer Power: 100mW Strobe Light: No Strobe Brightness: N/A Strobe Duty Cycle: N/A Nav Device: N/A Nav Device Model: N/A Separable Antenna: No Antenna Model: Integrated antenna, manufacturer: DOIG, P/N 85-710B Additional Functions: Comments General: (1) Beacon was tested in PLB configuration only, corresponding to beacon operation while "on ground" and "above ground". (2) Demonstrated full compliance with C/S Standards: C/S T.001 Issue 3 - Rev.7 (November 2005), C/S T.007 Issue 4 - Rev.1 (October 2006) Protocols Tested: U Database ID: 184-1 Database ID: 184-1 Protocol Notes: U=User; UL=User-Location; SL=Standard Location; NL=National Location Additional Names: FASTFIND MAX

WARNING Lithium Battery SPECIAL DISPOSAL DO NOT INCINERATE RECHARGE OR TAMPER. Batch Number DISPOSAL INFORMATION DISPOSE OF BATTERY PACK IN ACCORDANCE WITH LOCAL WASTE DISPOSAL REGULATIONS 85-732N Iss 1 85-732N Iss 1 21/10/01 2:20 pm Page 1

DESCRIPTION DCN APPROVED DATE ISSUE NUMBER 205/03/07C3629 85-731-024N FastFind Batt ery Outer Label 10 NOTICE PROVIDES 24 HOUR CLASS 2 (-20°C/+55°C, -4°F/+131°F) OPERATION WHEN FITTED WARNING USE ONLY IN SITUATIONS OF GRAVE AND IMMINENT DANGER. IMPROPER USE CARRIES A SEVERE PENALTY NOTICE TO PUBLIC IF FOUND, DO NOT MOVE, REPORT POSITION TO COASTGUARD OR POLICE Compass safe distance 1m Do not paint Do not clean with solvents Conduct self-test in first five minutes of hour Part No. 85-720-004 Battery Expiry Date Manufactured by McMurdo. A division of Signature Industries Ltd, Portsmouth, UK. Black outline represents cutter guide - DO NOT PRINT. 82-731-XXXD

Grey: Pantone 421C NOTES: DO NOT PRINT RED OUTLINE - Use as ref er ence for cutter guide only. Ref er to McMurdo drawing 85-837D for details. This electr onic file is master artwork. Do NOT use a prin ted copy as master . FASTFIND PLB LABEL INNER C372010.01.08185-837N 0191 Manufactured by McMurdo, a division of Signature Industries Ltd, Portsmouth, UK Identity Programmed Owners must register with their National Authority. In UK and USA affix registration decal here. UK REGISTRY ADDRESS: THE EPIRB REGISTRY MCA SOUTHERN REGION (FALMOUTH), PENDENNIS POINT, CASTLE DRIVE, FALMOUTH, CORNWALL, TR11 4ZW US REGISTRY ADDRESS: THE OWNER OF THIS 406MHz PLB MUST REGISTER THE NOAA IDENTIFICATION CODE CONTAINED ON THIS LABEL WITH THE NATIONAL OCEANIC AND ATMOSPHERIC ADMINISTRATION (NOAA): NOAA SARSAT BEACON REGISTRATION NSOF, E/SP3 4231 SUITLAND ROAD SUITLAND, MD 20746 NMJ

Grey: Pantone 421C NOTES: DO NOT PRINT RED OUTLINE - Use as ref er ence for cutter guide only. Ref er to McMurdo drawing 85-837D for details. This electr onic file is master artwork. Do NOT use a prin ted copy as master . FASTFIND PLB LABEL INNER C372010.01.08185-837N 0191 Manufactured by McMurdo, a division of Signature Industries Ltd, Portsmouth, UK Identity Programmed Owners must register with their National Authority. In UK and USA affix registration decal here. UK REGISTRY ADDRESS: THE EPIRB REGISTRY MCA SOUTHERN REGION (FALMOUTH), PENDENNIS POINT, CASTLE DRIVE, FALMOUTH, CORNWALL, TR11 4ZW US REGISTRY ADDRESS: THE OWNER OF THIS 406MHz PLB MUST REGISTER THE NOAA IDENTIFICATION CODE CONTAINED ON THIS LABEL WITH THE NATIONAL OCEANIC AND ATMOSPHERIC ADMINISTRATION (NOAA): NOAA SARSAT BEACON REGISTRATION NSOF, E/SP3 4231 SUITLAND ROAD SUITLAND, MD 20746 NMJ

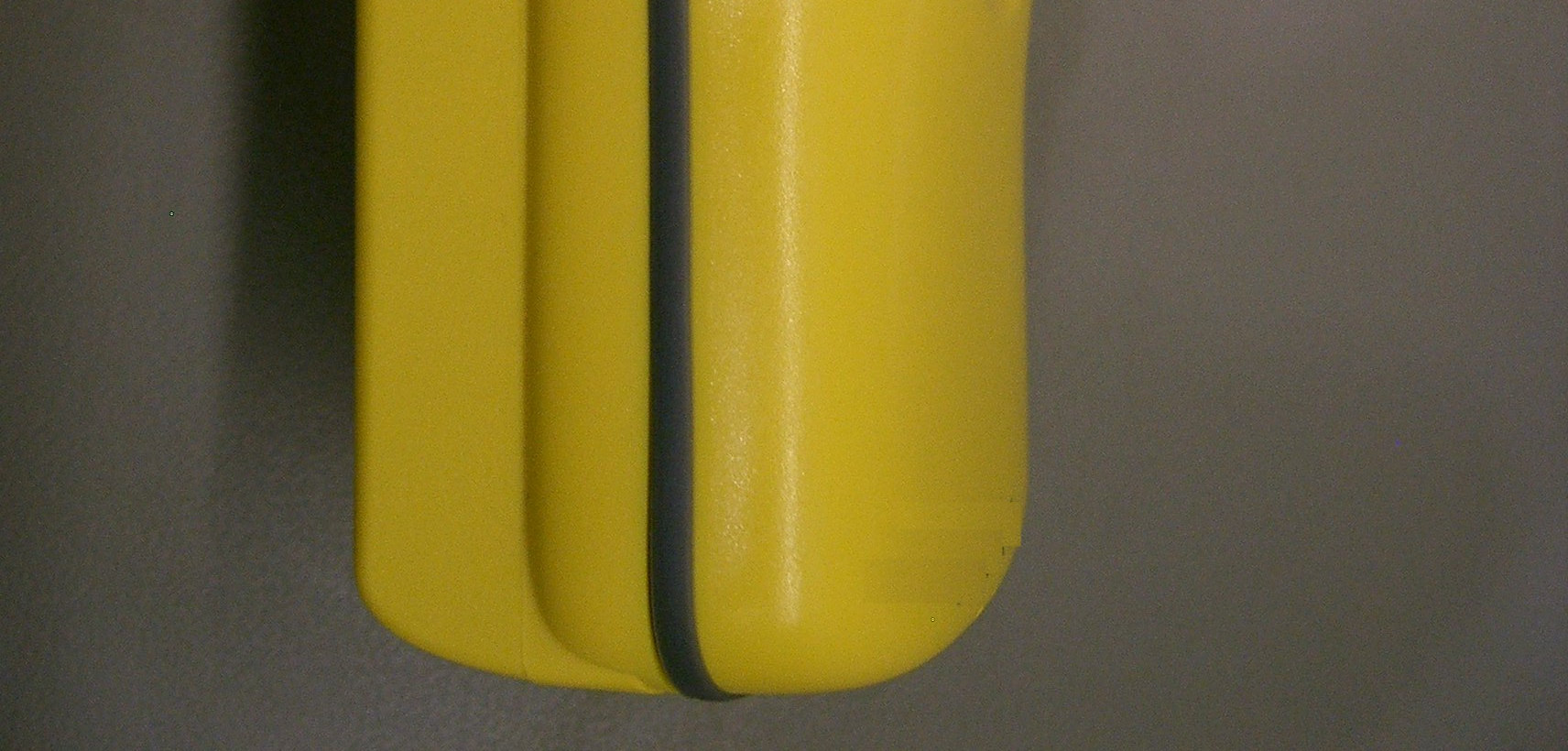

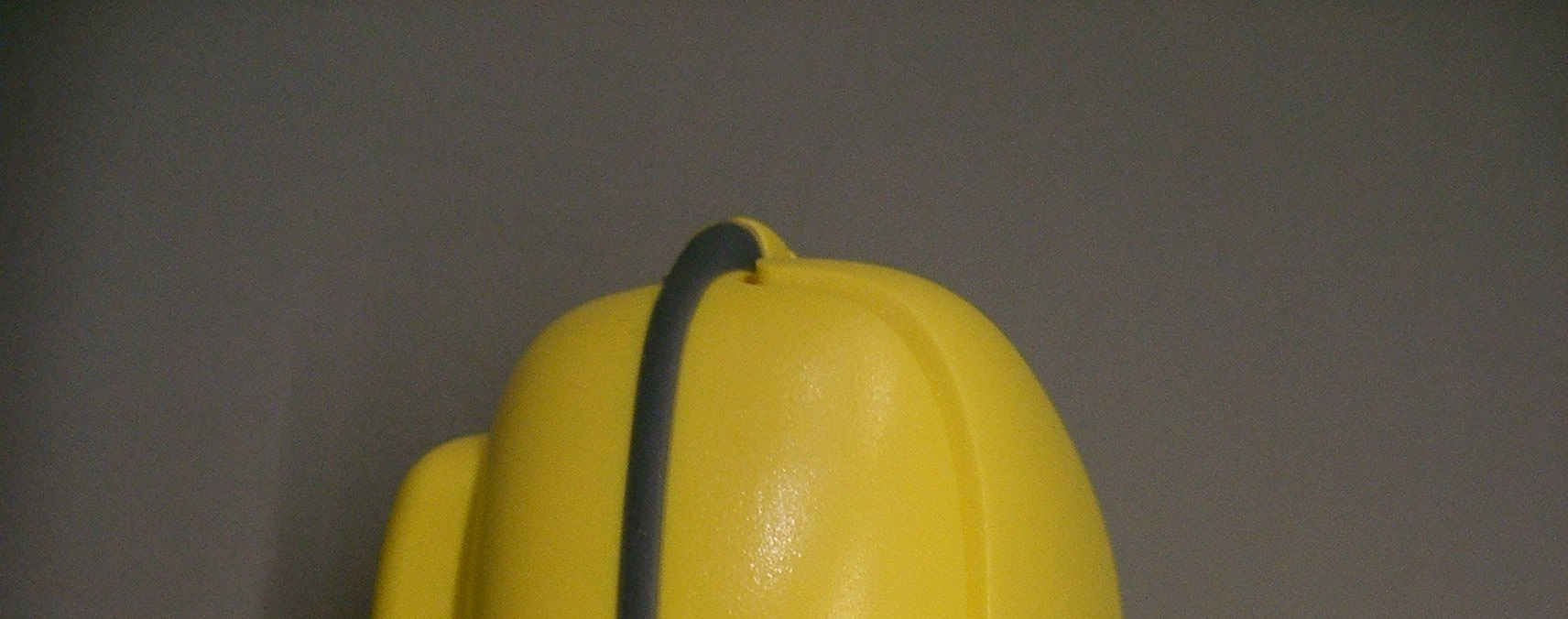

COMMERCIAL in CONFIDENCE COMMERCIAL in CONFIDENCE Fastfind Operational Description Introduction The Fastfind is a 406.037MHz PLB with a built in 121.5MHz homing transmitter. The beacon is used to locate people on land or water who are in distress. When the PLB is activated, a 406.037MHz message is transmitted every 50 seconds, as specified in the Cospas-Sarsat document G005. Doppler shift position calculation is used giving a position accuracy of typically 5km. Beacon Description The Fastfind consists of two separate plastic enclosures. One enclosure contains the PCB and associated switches; and the second contains the battery pack. Both enclosures are made from a Polycarbonate/ABS thermoplastic mix; and are internally sprayed with conductive coating to achieve good EMC performance. The PCB enclosure is held together by six screws. A gasket made from silicone is used to provide a waterproof seal. The battery enclosure is ultrasonically welded together to provide a water-proof seal. The two enclosures are held together by one screw at the base of the product. The battery connection pins are sealed with two ‘o’-rings to prevent water ingress into either enclosure. The PLB has two modes of operation. Distress mode or ‘live’ activation and a Self-Test mode. The ON switch (‘live’ activation) is protected against inadvertent activation use by a plastic cover, which acts as an evident tamper seal. The PLB cannot be activated unless the red tamper cover is removed. The Self-Test mode of the PLB can be activated by holding down the OFF button for 10 seconds. The Fastfind is programmed via an infrared data link. This means that the unique identity number can be programmed into the beacon via a USB interface. This data is then permanently stored in the PLB. This system enables swift and easy programming of the PLB without having to break the watertight seal. Neil Jordan Engineering Manager February 2008

COMPANY CONFIDENTIAL COMPANY CONFIDENTIAL FASTFIND/FASTFIND PLUS radiated power safety issues (A) OCCUPATIONAL LEVELS Reference: UK Health and Safety Manual, Chapter 9B – NON-IONIZING RADIATION. Paragraph 4. c., Electromagnetic/ Microwave Radiation: sic: “Sources not confined in a shielded chamber are to be operated such that exposure intensities to anyone near the apparatus is less than the guidelines listed in the latest edition of the "Threshold Limit Values for Chemical Substances and Physical Agents and Biological Exposure Indices". Table 9-B-1 is an adaptation from the above reference giving exposure guidelines as a function of frequency. The guidelines are based on maintaining a whole body thermal load of 0.4 W/kg or less. Frequency (f) RMS Electric Field Strength (V/m) RMS Magnetic Field Strength (A/m) Equivalent Plane Wave Power Density (mW/cm2) 30kHz-100kHz 614 163 100kHz-3MHz 614 16.3/f 3MHz-30MHz 1842/f 16.3/f 30MHz-100MHz 61.4 16.3/f 100MHz-300MHz 61.4 0.163 1 300MHz-3GHz f/300 3GHz-15GHz 10 15GHz-300GHz 10 For a transmission frequency of 406MHz, this corresponds to a power density of 1.353mW/cm 2 . The Equivalent Plane Wave Power Density is defined as: P = E 2 / 377, (W/m 2 ) where E is the field strength in V/m and 377 refers to the impedance of free space. The equation is only truly valid in the far field. The theoretical maximum radiated power from an EPIRB is 20W. Thus the field strength and Equivalent Plane Wave Power Density is POWER (W) DISTANCE (m) FIELD STRENGTH (V/m) POWER DENSITY (W/m 2 ) POWER DENSITY (mW/cm 2 ) 20 0.1 245 159 15.9 20 0.35 70 12.99 1.3 5 0.1 122.5 39.8 4 However, 1) the equation only applies to far field. The field strength in the near field is very difficult to quantify. COMPANY CONFIDENTIAL COMPANY CONFIDENTIAL 2) The guidelines are for continuous transmission with a 6 minute average exposure. The 406 transmission is 0.52 seconds long every 50 seconds. This equates to 0.624 seconds/minute or 0.0104. It could be argued that this is equivalent to a continuous transmission 20dB lower than the 20W maximum. On this basis, even at a distance of 5cm, the ‘average’ power density is only 0.54mW/cm 2 . For the 121MHz transmission, the allowable limit is 61.4V/m. This equates to a ‘safe’ distance of 3cm. (A) GENERAL PUBLIC LEVELS The HSE document references IEEE/ANSI C95.1. This gives the occupational exposure level as 0.4W/Kg and the general public exposure level as 0.08W/Kg. For a transmission frequency of 406MHz, this corresponds to a power density of 0.27mW/cm 2 = 2.7W/m 2 . This equates to a maximum field strength of 2.7 x 377 = 31.9 V/m For an ERP of 20W, the ‘safe’ distance is 0.78m. For an ERP of 5W, the ‘safe’ distance is 0.39m If we assume that because of the short pulse and duty cycle of the transmission, the average ERP is 20dB less, then the ‘safe’ distance is 8cm. For the 121MHz transmission, the allowable limit is 12.3V/m. This equates to a ‘safe’ distance of 15cm. As the homing signal is 100% amplitude modulated, with a 35% duty cycle, the average heating power is some 4dB less. On this basis, the ‘safe’ distance is 9cm. Neil Jordan Engineering Manager 25-1-08. COMPANY CONFIDENTIAL COMPANY CONFIDENTIAL Appendices 1) SUMMARY OF INTERNATIONAL RF EXPOSURE GUIDELINES AND STANDARDS Internationally, a whole body recommended Specific Absorption Rate limit of 0.08W/kg is in place. Localised SAR limits vary from country to country. The table below summarises the applicable specifications and the SAR levels. Country Document Frequency range Limits Averaging mass Area of application 2W/kg 10g Head and Trunk International a ICNIRP 0.1MHz to 10GHz 4W/kg 10g Limbs 1.6W/kg 1g Body * USA ANSI C95.1 0.1MHz to 6GHz 4W/kg 10g Hands, wrists, feet and ankles 2W/kg 10g Body * Europe ENV 50166-2 10kHz to 300GHz 4W/kg 10g Hands, wrists, feet and ankles Sweden SS-ENV 50166-2 b 2W/kg 10g Head and Trunk Japan MPT 0.1MHz to 10GHz 4W/kg 10g Limbs Australia AS/NZS 2772.1-1998 c 300KHz to 300GHz New Zealand NZA 2772.1 d a: World Health Organisation funded guidelines. (International Commission on Non- Ionizing Radiation Protection). b: Seems to be a Swedish language version of ENV 50166-2 c: Withdrawn in 1999. No standard in place d: Following Australian withdrawal of AS/NZS 2772.1, New Zealand have adopted ICNIRP guidelines. * Except hands, wrists, feet and ankles. COMPANY CONFIDENTIAL COMPANY CONFIDENTIAL 2) Compliance with legislation It is unclear in any of the legislation, as to whether emergency equipment is a special case. It has obviously been largely driven by the huge growth in the mobile phone market. A situation where someone is exposed to levels of RF possibly above the limits for 24/ 48 hours maximum, may well be viewed differently when the prime purpose of the transmission is to save life. A lot of the specifications average out the exposure over a 6 minute period. I have a suspicion this is the average length of a mobile phone call! 3) Estimation of Field strength to comply with legislation As was stated previously, the formula for predicting field strength applies to far field conditions only. To establish the true near field signal strength would require testing an EPIRB/PLB in a SAR measurement equipped test house. SAR = σ x E 2 where σ is specific conductivity (S/m) ρ E is the incident field strength (V/m) and ρ is mass density (kg/m 3 ). For a model of the human head used in SAR measurement laboratories, σ is taken at 400MHz as 0.87 S/m and ρ is taken as 1000kg/ m 3. Hence to achieve a SAR of 0.08W/kg, the maximum field strength allowable is 9.6V/m. To achieve a SAR of 2W/kg, the maximum field strength allowable is 48V/m. Calculations for Canada Occupational exposure = 0.4W/kg General public exposure = 0.08W/Kg 406 duty cycle 1.04% = 41.74(14.93W) = 155mW SAR(W/kg) = 0.87s/m x 7.43² ------------------- 1000 406 Pwr = 0.155W, 21dBm, 36.675V/M, 3.568 W/m², = 1.17W/kg 121Pwr = 71.12mW, 18.52dBm, 7.43V/M, 0.1466W/m² = 0.048W/kg

Document 75901815 Report 02 Issue 1 October 2007 Report On Limited Testing of the McMurdo Fastfind PLB TUV Product Service Ltd, Octagon House, Concorde Way, Segensworth North, Fareham, Hampshire, United Kingdom, PO15 5RL Tel: +44 (0) 1489 558100. Website: www.tuvps.co.uk Document 75901815 Report 02 Issue 1 Page 1 of 30 Emergency Beacons Limited Testing of the McMurdo Fastfind PLB Document 75901815 Report 02 Issue 1 October 2007 REPORT ON PREPARED FOR McMurdo Silver Point Airport Service Road Hilsea Portsmouth PO3 5PB PREPARED BY N Bennett Administrator APPROVED BY M Jenkins Authorised Signatory DATED 16 th October 2007 Document 75901815 Report 02 Issue 1 Page 2 of 30 Section Page No 1 REPORT SUMMARY ..................................................................................................................3 1.1 Introduction .................................................................................................................................. 4 1.2 Application Form.......................................................................................................................... 5 1.3 Product Information ................................................................................................................... 10 1.4 Modifications.............................................................................................................................. 11 1.5 Report Modification Record ....................................................................................................... 11 2 TEST DETAILS ......................................................................................................................... 12 2.1 Digital Message Coding............................................................................................................. 15 2.2 Spurious Emissions ................................................................................................................... 18 2.3 Self-Test .................................................................................................................................... 19 2.4 Satellite Qualitative Tests .......................................................................................................... 20 2.5 Beacon Coding Software ........................................................................................................... 22 3 TEST EQUIPMENT USED ........................................................................................................ 23 3.1 Test Equipment.......................................................................................................................... 24 4 PHOTOGRAPHS....................................................................................................................... 26 4.1 Photographs of Equipment Under Test (EUT) .......................................................................... 27 5 ACCREDITATION, DISCLAIMERS AND COPYRIGHT........................................................... 29 5.1 Accreditation, Disclaimers and Copyright.................................................................................. 30 Document 75901815 Report 02 Issue 1 Page 3 of 30 SECTION 1 REPORT SUMMARY Limited Testing of the McMurdo Fastfind PLB Document 75901815 Report 02 Issue 1 Page 4 of 30 1.1 INTRODUCTION The information contained in this report is intended to show verification of the McMurdo Fastfind PLB to the requirements of T.007 Issue 4 – Rev 1 October 2006. Objective To determine the Equipment Under Test's (EUT’s) compliance with the specification/Test Plan, for the series of tests carried out. Manufacturer McMurdo Model Number(s) Fastfind PLB Serial Number(s) 75901815_02 Fastfind PLB, S/N: 810-000001 Number of Samples Tested One Test Specification/Issue/Date Cospas-Sarsat T.007 Issue 4 – Rev 1 October 2006 Incoming Release Date Application Form 1 st August 2007 Date of Receipt of Test Samples 20 th August 2007 Order Number Date PC0003097 16 th July 2007 Start of Test 24 th August 2007 Finish of Test 19 th September 2007 Name of Engineer(s) R Henley R Hampton Document 75901815 Report 02 Issue 1 Page 5 of 30 1.2 APPLICATION FORM 1.2.1 Beacon Manufacturer and Beacon Model Beacon Manufacturer McMurdo Beacon Model Fastfind PLB/Fastfind PLB Plus 1.2.2 Beacon Type and Operational Configurations Beacon Type Beacon used while: Tick where appropriate EPIRB Floating in water or on deck or in a safety raft PLB On ground and above ground On ground and above ground and floating in water ELT Survival On ground and above ground On ground and above ground and floating in water ELT Auto Fixed Fixed ELT with aircraft external antenna ELT Auto Portable In aircraft with an external antenna On ground, above ground, or in a safety raft with an integrated antenna ELT Auto Deployable Deployable ELT with attached antenna Other (specify) 1.2.3 Beacon Characteristics Characteristic Specification Operating temperature range Tmin = -20°C Tmax = +55°C Operating lifetime 24hrs/48 hours Battery chemistry Lithium ion di-sulphide Battery cell size and number of cells AA x 7cells Battery manufacturer Energizer Battery pack manufacturer and part number Oscillator type (e.g. OCXO, MCXO, TCXO) TCXO Oscillator manufacturer CMAC Oscillator part name and number E4520 Oscillator satisfies long-term frequency stability requirements (Yes or No) Yes Document 75901815 Report 02 Issue 1 Page 6 of 30 Characteristic Specification Antenna type (Integrated or External) Integrated Antenna manufacturer Doig Antenna part name and number Navigation device type (Internal, External or None) Internal Features in beacon that prevent degradation to 406 MHz signal or beacon lifetime resulting from a failure of navigation device or failure to acquire position data (Yes, No, or N/A) Yes Features in beacon that ensures erroneous position data is not encoded into the beacon message (Yes, No or N/A) Yes Navigation device capable of supporting global coverage (Y…

Text truncated - open the document above for the full version.

Document 75901815 Report 03 Issue 3 December 2007 Limited RTCM Report On Emergency Beacon Testing of the McMurdo Fastfind Plus PLB TUV Product Service Ltd, Octagon House, Concorde Way, Segensworth North, Fareham, Hampshire, United Kingdom, PO15 5RL Tel: +44 (0) 1489 558100. Website: www.tuvps.co.uk COMMERCIAL-IN-CONFIDENCE Document 75901815 Report 03 Issue 3 Page 1 of 66 COMMERCIAL-IN-CONFIDENCE This report has been up-issued to Issue 3 with new test data for section 2.4 (Operation Life). Emergency Beacon Testing of the McMurdo Fastfind Plus PLB Document 75901815 Report 03 Issue 3 December 2007 REPORT ON PREPARED FOR McMurdo Silver Point Airport Service Road Hilsea Portsmouth PO3 5PB PREPARED BY N Bennett Administrator APPROVED BY M Jenkins Authorised Signatory DATED 06 December 2007 COMMERCIAL-IN-CONFIDENCE Document 7591815 Report 03 Issue 3 Page 2 of 66 COMMERCIAL-IN-CONFIDENCE CONTENTS Section Page No 1 REPORT SUMMARY ................................................................................................................... 3 1.1 Introduction ................................................................................................................................... 4 1.2 Application Form........................................................................................................................... 5 1.3 Product Information .................................................................................................................... 10 1.4 Deviations From the Standard....................................................................................................11 1.5 Modification Record .................................................................................................................... 11 1.6 Alternative Test Site.................................................................................................................... 11 2 TEST DETAILS .......................................................................................................................... 12 2.1 Morse ‘P’ Implementation ........................................................................................................... 18 2.2 Spurious Emissions Test ............................................................................................................ 27 2.3 Cospas-Sarsat Type Approval....................................................................................................32 2.4 Operation Life ............................................................................................................................. 33 2.5 Self Test...................................................................................................................................... 43 2.6 Auxiliary Radio Locating Device Transmitter Test (Carrier Frequency)..................................... 47 2.7 Auxiliary Radio Locating Device Transmitter Test (Transmitter Duty Cycle) ............................. 48 2.8 Auxiliary Radio Locating Device Transmitter Test (Modulation Frequency and Sweep Rate) .. 49 2.9 Auxiliary Radio Locating Device Transmitter Test (Modulation Duty Cycle).............................. 50 2.10 Auxiliary Radio Locating Device Transmitter Test (Modulation Factor) ..................................... 51 2.11 Auxiliary Radio Locating Device Transmitter Test (Frequency Coherence) .............................. 52 2.12 Auxiliary Radio Locating Device Transmitter Test (PEIRP, Peak Equivalent Isotropic Radiated Power) ........................................................................................................................................ 57 3 TEST EQUIPMENT USED ......................................................................................................... 58 3.1 Test Equipment Used ................................................................................................................. 59 4 PHOTOGRAPHS........................................................................................................................ 63 4.1 Photographs of Equipment Under Test (EUT) ........................................................................... 64 5 ACCREDITATION, DISCLAIMERS AND COPYRIGHT ........................................................... 65 5.1 Accreditation, Disclaimers and Copyright................................................................................... 66 COMMERCIAL-IN-CONFIDENCE Document 7591815 Report 03 Issue 3 Page 3 of 66 COMMERCIAL-IN-CONFIDENCE SECTION 1 REPORT SUMMARY Emergency Beacon Testing of the McMurdo Fastfind Plus PLB COMMERCIAL-IN-CONFIDENCE Document 7591815 Report 03 Issue 3 Page 4 of 66 COMMERCIAL-IN-CONFIDENCE 1.1 INTRODUCTION The information contained in this report is intended to show verification of the Emergency Beacon Testing of the McMurdo Fastfind Plus PLB to the requirements of RTCM 11010.1 (RTCM Paper 76-2002/SC110-STD). Objective To perform Emergency Beacon Testing to determine the Equipment Under Test's (EUT’s) compliance with the Test Specification for the series of tests carried out. Manufacturer Signature Industries Model Number(s) Fastfind Plus PLB Serial Number(s) 800-00001 Number of Samples Tested One Test Specification/Issue/Date RTCM 11010.1 (RTCM Paper 76-2002/SC110-STD) Order Number Date PC0003097 16 th July 2007 Start of Test 21 st August 2007 Finish of Test 05 th December 2007 Name of Engineer(s) R Henley M Hardy S Bennett I Tebby R Bennett Related Document(s) Cospas-Sarsat T.007 Issue 4 – Rev 1 October 2006 COMMERCIAL-IN-CONFIDENCE Document 7591815 Report 03 Issue 3 Page 5 of 66 COMMERCIAL-IN-CONFIDENCE 1.2 APPLICATION FORM 1.2.1 Beacon Manufacturer and Beacon Model Beacon Manufacturer Signature Industries Beacon Model Fastfind/Fastfind Plus 1.2.2 Beacon Type and Operational Configurations Beacon Type Beacon used while: Tick where appropriate EPIRB Floating in water or on deck or in a safety raft PLB On ground and above ground On ground and…

Text truncated - open the document above for the full version.

Document 75901815 Report 04 Issue 1 November 2007 Report On EMC Testing of the McMurdo Fastfind Plus COMMERCIAL-IN-CONFIDENCE TUV Product Service Ltd, Octagon House, Concorde Way, Segensworth North, Fareham, …

Text truncated - open the document above for the full version.
