KLS-S4-1S4 SART

S4 RESCUE SART Search And Rescue Transponder User Manual CONTENTS Warnings ....................................................................................1 General description...................................................................2 SART principle of operation .....................................................2 Installation .................................................................................4 SART General Assembly...........................................................5 Operating instructions ..............................................................6 Self test facility ..........................................................................7 Battery replacement ..................................................................7 Technical description................................................................8 Function chart ...........................................................................8 Dimensions ................................................................................9 Operation of marine radar for SART detection......................10 Radar Range Scale.................................................................................. 10 SART Range Errors.................................................................................. 10 Radar Bandwidth...................................................................................... 10 Radar Side Lobes..................................................................................... 10 Detuning the Radar .................................................................................. 10 Gain......................................................................................................... 10 Anti-Clutter Sea Control............................................................................ 11 Anti-Clutter Rain Control ........................................................................... 11 Technical Specification...........................................................12 Declaration of Conformity.......................................................13 Limited Product Warranty.......................................................15 1 Warnings • This SART is an emergency device for use only in situations of grave and imminent danger. • False alarms cost lives and money. Help to prevent them; understand how to activate and disable your equipment. • Read the complete manual before installing, testing or using the SART. • The SART contains no user servicable parts. Return to your dealer for service. • Dispose of this device safely. Contents include Lithium batteries; do not incinerate, puncture, deform or short- circuit. • This device emits radio frequency radiation when activated. Because of the levels and duty cycles, such radiation is not classed as harmful. However, it is recommended that you do not hold the radome while the SART is activated. • The battery in this device is rated Class 9 for transportation purposes. Ensure compliance with all applicable regulations. 2 General description The SART (Search And Rescue Transponder) is designed for survivor location during search and rescue operations. CARRY-OFF SART Supplied as one integral unit. This is normally mounted in a bulkhead bracket (supplied) which is used to stow the unit on the mother vessel. On abandoning to a survival craft the SART can be carried in one hand off the stricken vessel and mounted through a port in the canopy of the survival craft using the telescopic pole. The main body of the SART is high visibility orange thermoplastic, attached to the sealed replaceable battery pack by stainless steel fastenings. The joint is sealed against water ingress by an O-ring. Operation is by a rotating switch ring providing ON, OFF and TEST functions. The ON position is reached by breaking a security tab. The switch ring is spring loaded so that it returns automatically from the TEST position. The Lithium battery is fitted with internal overload protection and has a five year storage life. Non-reversible electrical connections are provided in the SART body and battery pack to facilitate battery replacement. Each SART carries a unique serial number on the label on the orange body. LIFERAFT SART Supplied with or without mast. Normally is packed as part of the liferaft equipment. The mast version is mounted in the same manner as the carry-off version; the version without the mast is intended to be hung from the highest point inside the liferaft. The SART itself is identical with the carry-off version. SART principle of operation Actuating a SART enables a survival craft to show up on a search vessel's radar display as an easily recognised series of dots. RADAR (radio detection and ranging) is a device carried by most ships which is used to determine the presence and location of an object by measuring the time for the echo of a radio wave to return from it, and the direction from which it returns. A typical ship's radar will transmit a stream of high power pulses on a fixed frequency anywhere between 9.2GHz and 9.5GHz. It will collect the echoes received on the same frequency using a display known as a Plan Position Indicator (PPI), which shows the ship itself at the centre of the screen, with the echoes dotted around it. Echoes further from the centre of the screen are thus further from the ship and the relative or true bearing of each echo can be easily seen. 3 The SART operates by receiving a pulse from the search radar and sending back a series of pulses in response, which the radar will then display as if they were normal echoes. The first return pulse, if it sent back immediately, will appear in the same place on the PPI as a normal echo would have done. Subsequent pulses, being slightly delayed, appear to the radar like echoes from objects further away. A series of dots is therefore shown, leading away from the position of the SART. This distinctive pattern is much easier to spot than a…

Text truncated - open the document above for the full version.

LABEL PROF I LE MEDIA PART No. 20. 50 I" " 23. 00 I.. .. 86- 473 86- 426- 00 I N mcmurd6786- 426- 00SN 0038 VARIANT TABLE PART No. ARTWORK McMURDO 86- 426- 001 86- 426- 00IN SAILOR 86- 426- 005 86- 426- 005N ITHIS DOCUMENTIS MCMURDO LIMI WNED INTELLECTUAL PROPERTY RE STR Icn Y RESERVED THE I HE AGREED PURPOSE UNAUTHOR HIRD PARTY IS NOT PERMITTED TOLERANCES UNLESS OTHERWISE STATED ~CMURDO LIMITED. THIS DOCUMENT WHOLE No +05 ANGULAR DIMS+ INHEN THE AGREED PURPOSE IS FULFILLED I DEC PLACE +0 I 2 DEC PLACE :f0 05 DRILLED HOLES:f USED ON MATERIAL FINISHDIMENSIONS IN 3RD ANGLE PROJECTION B S 8888 THIS DOCUMENT IS UNCONTROLLED , UNLESS OTHERWISE STATED ... B S4 RESCUE SART SERIAL NUMBER 00975318642 McMurdo Limited, Portsmouth, UK SAILOR SART FCC 10 NUMBER 00975318642 Industries NOTE SPRINT USING THERMAL PRINTER WITH LABEL MEDIA 86- 413 LABEL MATERIAL 50 MICRON GLOSS CLEAR POLYESTERADHESIVE PERMANENT ACRYLICTYPICAL MATERIAL 170mm TYP222C or BRADY B- 430 PRINTER RIBBON TDR2000/2500 or BRADY R6008 SERIAL NUMBER TO BE ENTERED IN VARIANT BOX IN CODESOFT SHIPS WHEEL YEAR VARIANT TO BE ENTERED VARIANT BOX IN CODESOFT ISSUE IA/ I 0/1003 BOS DA 1E APPD DATE APPD C 1686 CHG No EOU I PMENT LABEL LIMITED DRAWING HAMPSHIRE - ENGLAND 86- 426- XXXD ~~T ' IA3 tHT I PORTSMOUTH

USED ON LABEL PROFILE MAEDIA PART No, 33, 00 86- 474 (Y)(Y) Li)(Y) NOTES;PRINT USING THERMAL PRINTER WITH LABEL MEDIA 86- 474 LABEL. MATERIAL 50 MICRON METALISED POLYESTERSELF ADHESIVE 2 . PR INTER RIBBON TDR2000/2500 or BRADY R6008 HIS DOCUMENT IS MCMURDO LIMITED COPYRIGHT AND CONTAINS PROPRIETARY OWNED INTELLECTUAL PROPERTY RIGHTS AND CONFIDENTIAL DATA , RIGHTS ARE STRICTLY RESERVED , THE INFORMATION MUST NOT BE USED EXCEPT FOR THE AGREED PURPOSE , UNAUTHOR I SED USE , REPRODUCT I ON , OR I SSUE TO ANY HIRD PARTY IS NOT PERMITTED WITHOUT THE PRIOR WRITTEN AUTHORITY OF MCMURDO LIMITED. THIS rOCUMENT I S TO BE RETURNED TO MCMURDO L I M I TED WHEN THE AGREED PURPOSE IS FULF I LLED TH I S DOCUMENT I S UNCONTROLLED , UNLESS OTHERW I SE STATED MATERIAL :- IDIMENSIONS TITLE' SART 4 POLE BRACKET LABEL McMURDO L TED PORTSMOUTH- HAMPSH IRE- ENGLAND 86- 444N ISSUE CHG No DA TE AP P D FINISH :- mml 3RD ANGLE PROJECT ION B . S 8888 TOLERANCES UNLESS OTHERWISE STATED WHOLE No. iO ANGULAR DIMS I DEC PLACEiO. 2 DEC PLACEiO. 05 DR I LLED HOLES DATE APPD DRAW N U BC APP SOE SOS RELEA UJ J SCA , 000 DRAWING No. 86- 444D ISSUE C2686 24/ I 012003 CHG No BOS A 4

LABEL PROF I LE MEDIA PART No. 20. 20 I" " 23. 00 I.. .. 86- 473 86- 426- 00 I N mcmurd2! 0038 86- 426- 00SN 0038 VARIANT TABLE PART No. ARTWORK McMURDO 86- 426- 001 86- 426- 00IN SAILOR 86- 426- 005 86- 426- 005N ITHIS DOCUMENTIS MCMURDO LIMI WNED INTELLECTUAL PROPERTY RE STR Icn Y RESERVED THE I HE AGREED PURPOSE UNAUTHOR HIRD PARTY IS NOT PERMITTED TOLERANCES UNLESS OTHERWISE STATED ~CMURDO LIMITED. THIS DOCUMENT WHOLE No +05 ANGULAR DIMS+ INHEN THE AGREED PURPOSE IS FULFILLED I DEC PLACE +0 I 2 DEC PLACE :f0 05 DRILLED HOLES:f USED ON MATERIAL FINISHDIMENSIONS IN 3RD ANGLE PROJECTION B S 8888 DRAW ~J!k RELEAS S4 RESCUE SARTFCC 10 KLS- S4- SERIAL NUMBER 00975318642McMurdo Limited. Portsmouth, UK SAilOR SART II FCC 10 KLS- S4- SERIAL NUMBER 00975318642 EuroCom Industries AlS. Denmark NOTE SPRINT USING THERMAL PRINTER WITH LABEL MEDIA 86- 413 LABEL MATERIAL 50 MICRON GLOSS CLEAR POLYESTERADHESIVE PERMANENT ACRYLICTYPICAL MATERIAL 170mm TYP222C or BRADY B. 430 PRINTER RIBBON TDR2000/2500 or BRADY R6008 SERIAL NUMBER TO BE ENTERED IN VARIANT BOX IN CODESOFT SHIPS WHEEL YEAR VARIANT TO BE ENTERED VARIANT BOX IN CODESOFT CHG No APPRO ~b~ ISSUE (1788 C 1686 I ~ / a I / 100 ~ BOS 1~/ I 0/1003 BOS DA 1E APPD DATE APPD CHG No TITLE SCALE 1000 EOU I PMENT LABEL THIS DOCUMENT IS UNCONTROLLED , UNLESS OTHERWISE STATED II1II1j McMURDO LIMITED DRAWING .. BIPORTSMOUTH - HAMPSHIRE - ENGLAND 86- 426- XXXD ~t: :IA3

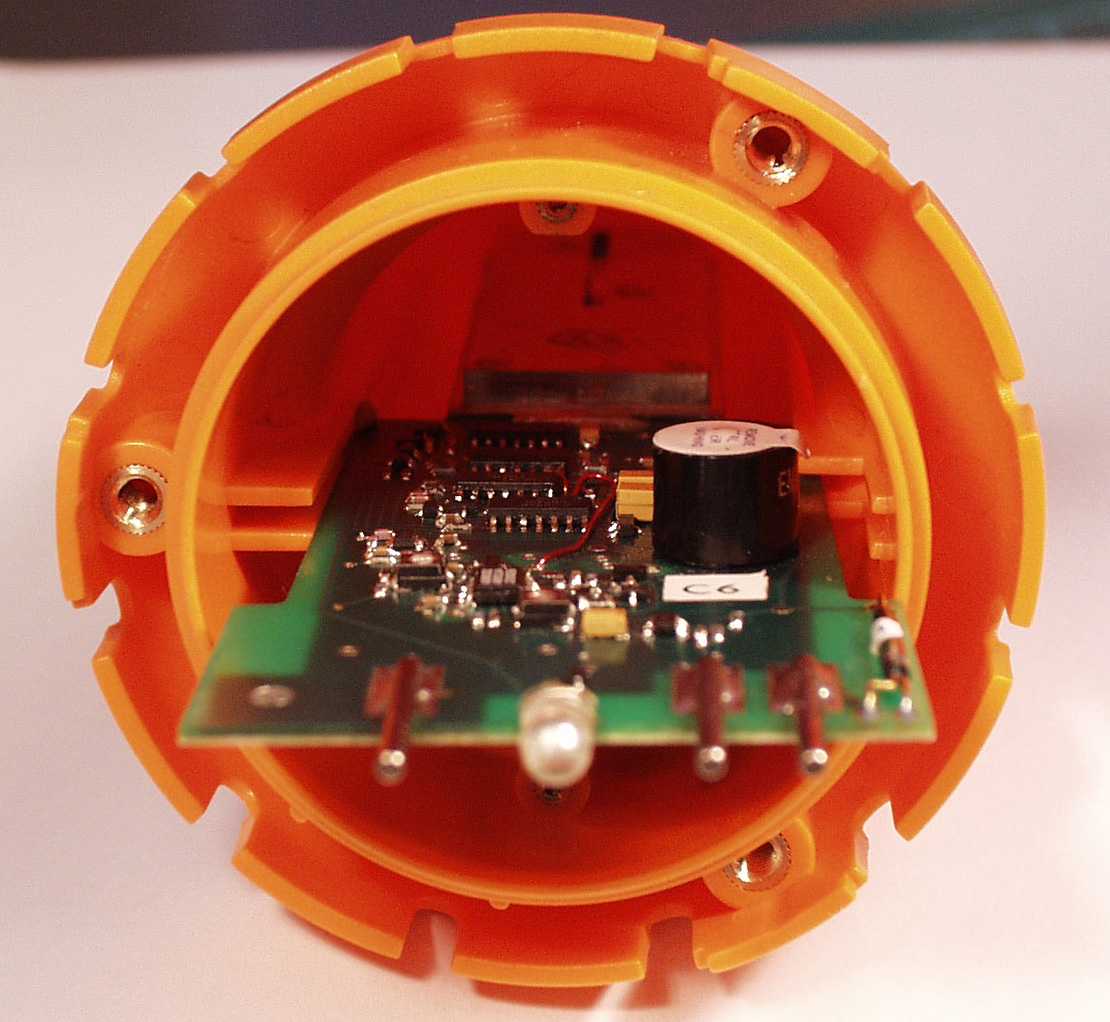

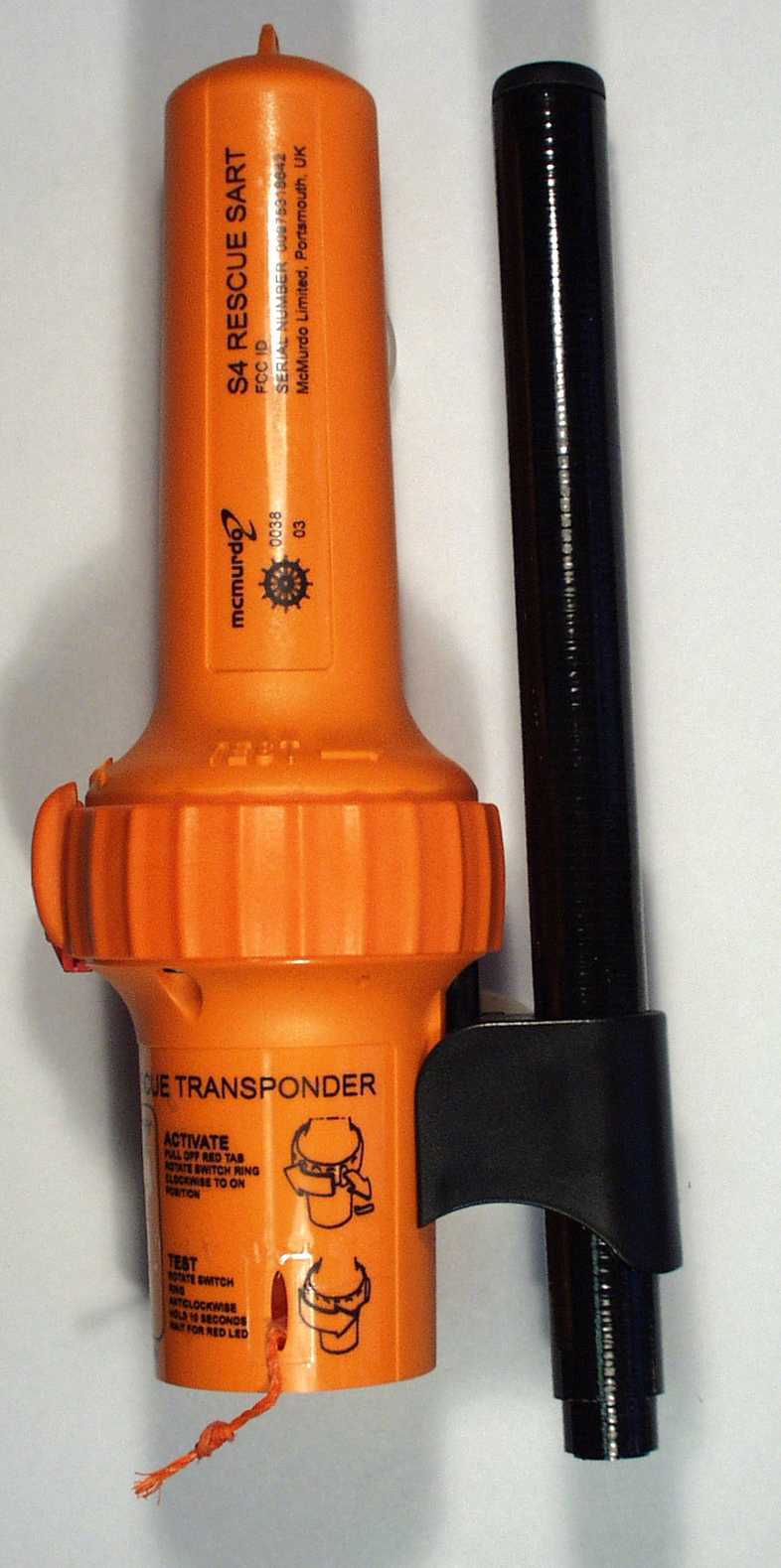

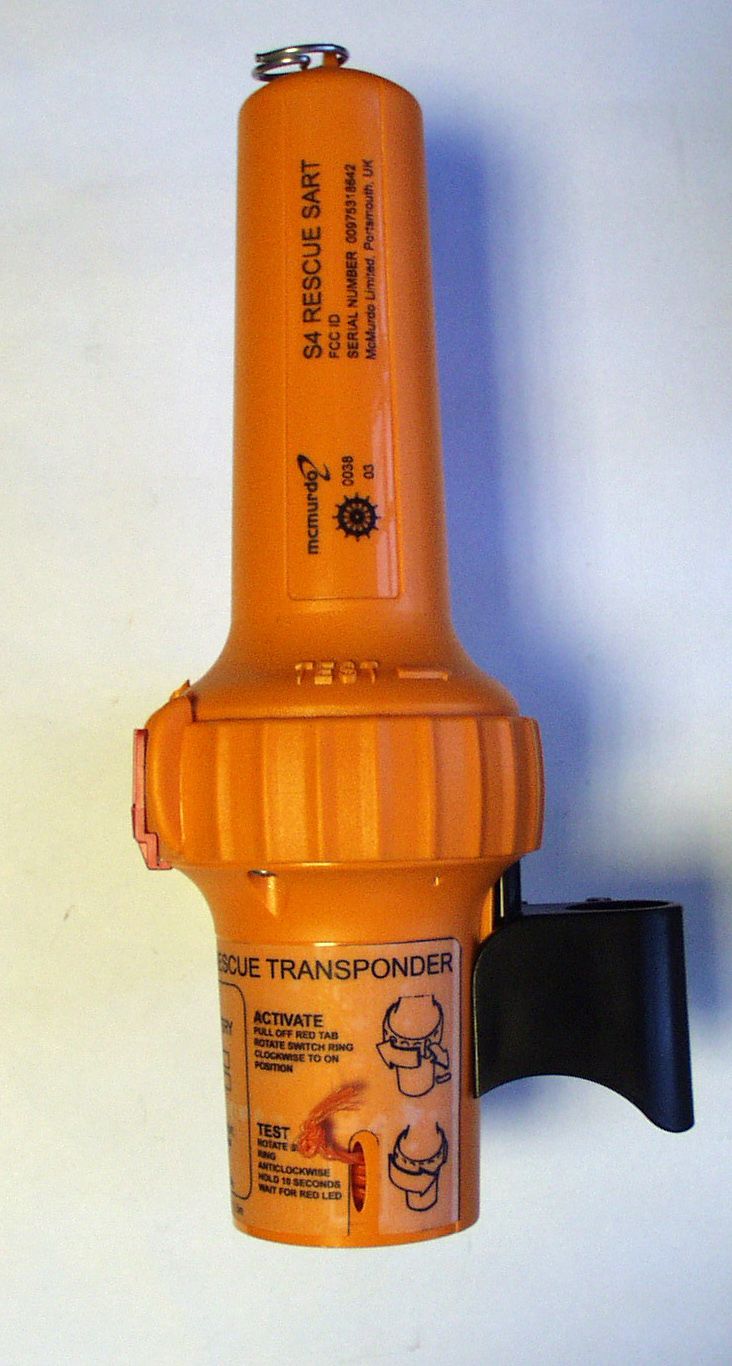

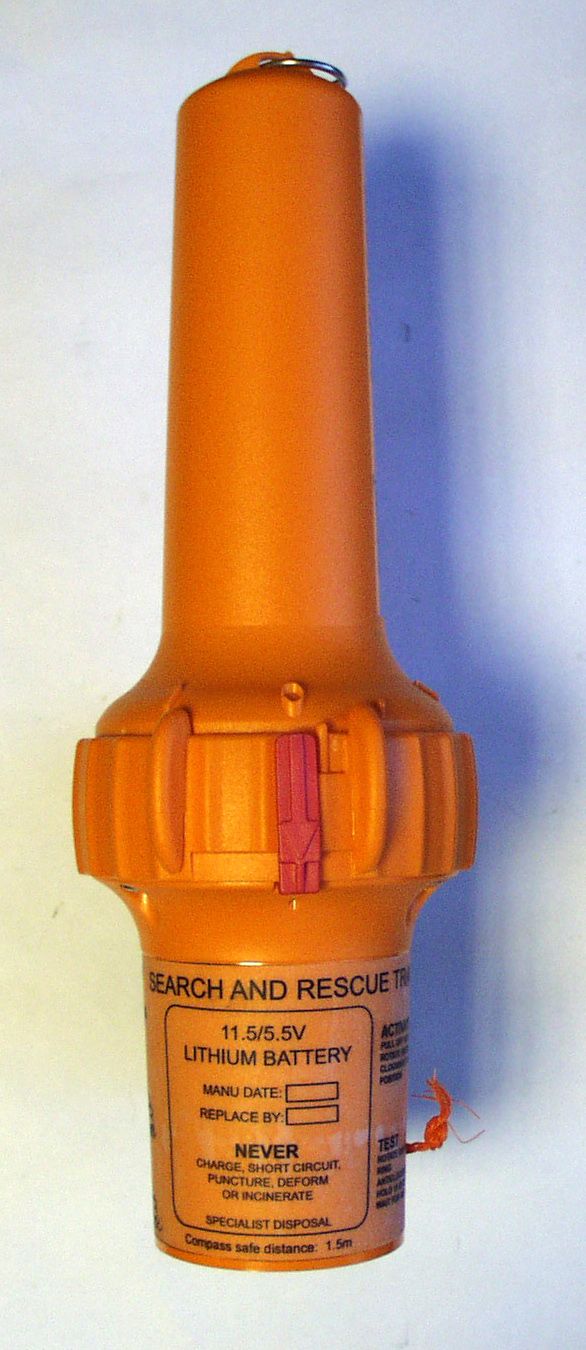

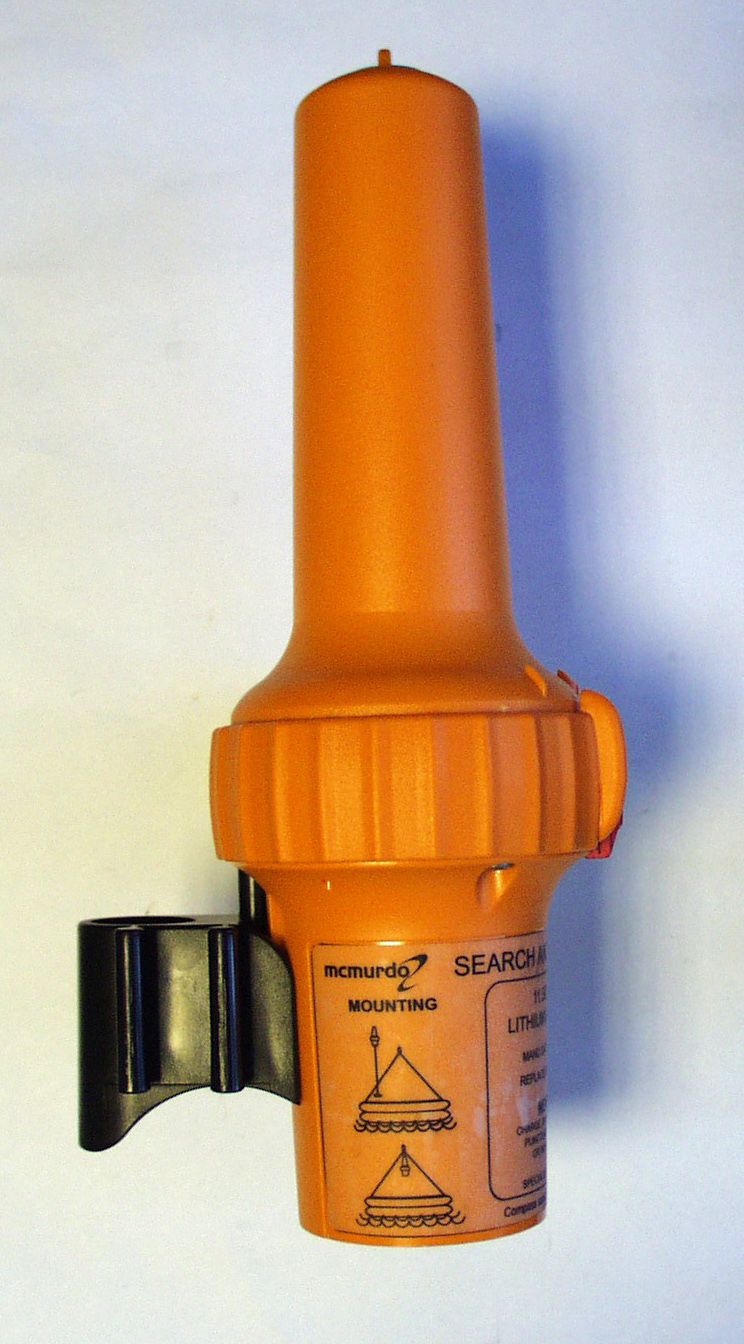

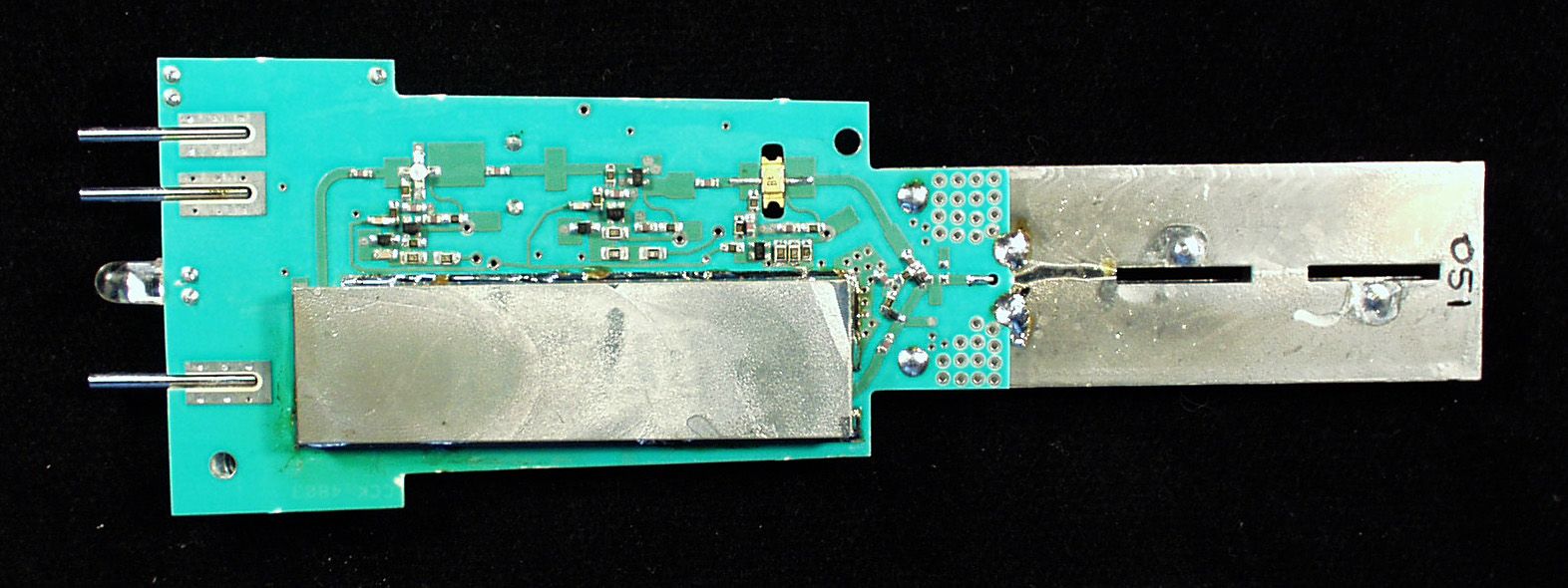

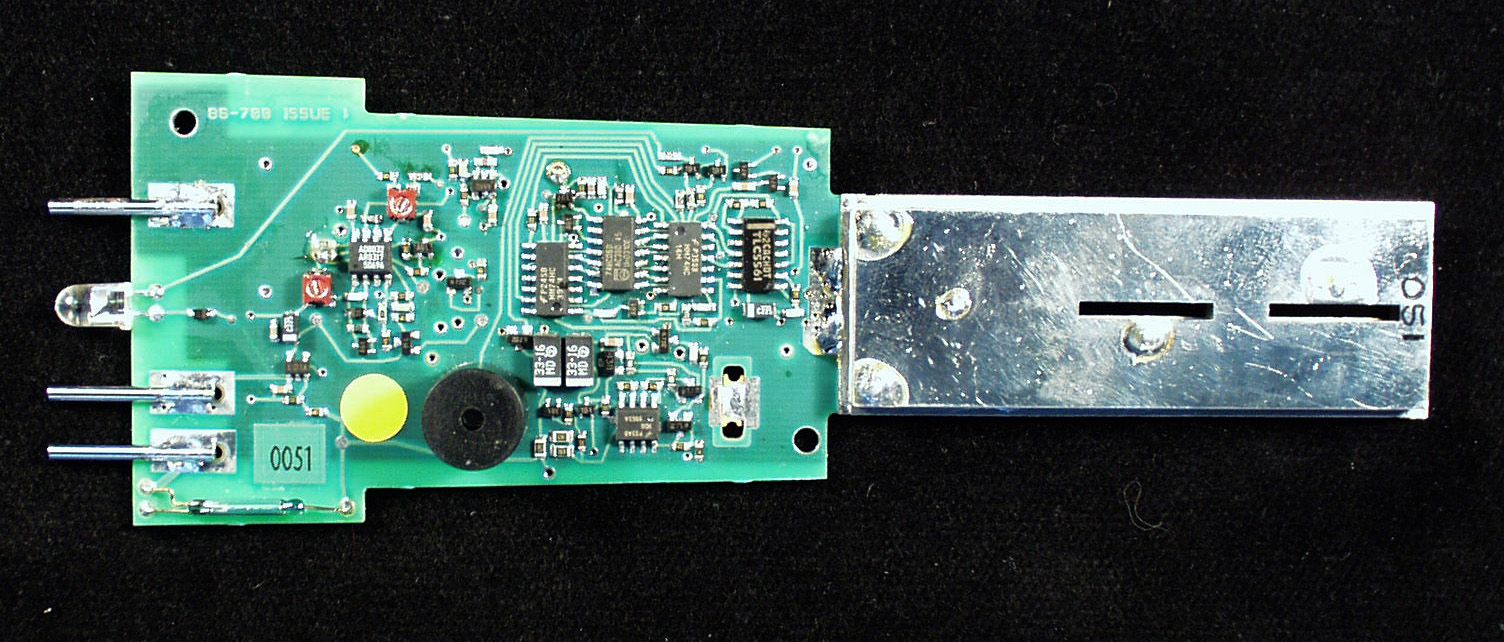

Page 1 mcmurd2! S4 Rescue SART FCC CFR 47 PART 2 1046-1057 COMPLIANCE REPORT COMPILED BYCHECKED BY ENGINEERING APPROVAL JORDANSIMS Page 108/12/03 Page 2 mcmurd2! The compliance matrix below shows compliance for emission designator 300MXON of the S4 Rescue SART transponder. Part 2 compliance matrix section 2.1046 to 2.1057 1046 - Measurements required: RF output power a) The S4 Rescue SART has a waveguide antenna incorporated directly onto the PCB. Hence there are no 50n RF output terminals. Power measurements recorded during the tune-up procedure are made with the SART in an anechoic chamber. The chamber is calibrated to ascertain path loss. Results shown below. Test voltage Current during transmission Output power MinIMax = 11.5V/5. = 40mA =28.9dBm/32.3dBm The S4 Rescue SART complies b) Not applicable c) Radiated output measurements Specification - 400mW (26dBm) E.I.R.P minimum A radar test signal shall be applied to the SART. This signal shall be pulsed carrier with a repetition frequency of 1 KHz. The duration of the pulse shall be 500nS. The SART was placed inside a calibrated anechoic chamber, and rotated. The maximum and minimum received signal levels were recorded. These results were plotted on the calibration chart for the anechoic chamber; and the maximum and minimum E.I. R. P levels were obtained. 1047 - Measurements required: Modulation characteristics a) Not applicable, not voice modulated. b) Not applicable, no modulation limiting. c) Not applicable, no power limiting d) Under the rules there is no modulation requirement for 300MXON. The S4 Rescue SART complies Page 208/12/03 Page 3 mcmurd2! 1049 - Measurements required: Occupied bandwidth a) Not applicable, not a radiotelegraph b) Not applicable, not a keyed transmitter c) Not applicable, not a radio telephone transmitter d) Not applicable, not a radio telephone transmitter e) Not applicable, not used in the radio broadcast service f) Not applicable, no speech channels incorporated into transmitter g) Not applicable, the unit has no independent modulation channels incorporated. h) Not applicable, the transmitter is not digitally modulated. i) Not applicable, the transmitter in not modulated. As stated above the S4 Rescue SART is not applicable to any of the occupied bandwidth tests listed a to g. Figure 1 below shows a plot of the spectral bandwidth. The S4 Rescue SART complies Figure 1 Page 308/12/03 Page 4 mcmurd2! 1051 - Measurements required: Spurious emissions at the antenna terminals As described in 2.1046, the antenna forms an integral part of the PCB and has no antenna terminals. The S4 Rescue SART complies 1053 - Measurements required: Field strength of spurious radiation. a) The unit has its own integral battery power supply. There are no power supply leads to measure spurious emissions. The spurious emissions from the control and intermediate circuitry were measured during type approval to test standard EN 60945. Results can be viewed in the Type Approval Report RM 610860101 pages 35 to 44. The S4 Rescue SART complies 1055 - Measurements required: Frequency stability 1. Not applicable 2. Under the requirements of IEC 1097-1 the unit is required to operate over the temperature range -20o C to +55OC. Upon interrogation by a marine band radar the SART is required to respond with 12 sweeps over the band of 2GHz (+01-60MHz) to 9.5GHz (+601-0MHz). During testing to IEC 1097-1 at type approval the frequency stability of the unit over the temperature range -20o C to +55OC was assessed. Results can be viewed in the Type Approval Report RM 610860101 follows: Ambient temperature data on page 17 & 18 20o C data on page 17 & 18 +55O C data on page 17 & 18 The S4 Rescue SART complies 1057 - Frequency spectrum is to be investigated a) The SART is exempt from spurious radiation measurements as per ITU radio regulation APS 3, Table 2. The S4 Rescue SART complies Page 408/12/03

REPORT ON Type Approval Testing of the McMurdo Ltd S4 Search and Rescue Transponder in accordance with IEC 61097-1 (1992-07) And IEC 60945 (2002-08) COMMERCIAL-IN-CONFIDENCE Report No RM 610860/01 Issue 1 Part 1October 2003 TUV Product Service Ltd. Segensworth Road, Fareham, Hampshire, PO15 5RH, United Kingdom Tel: +44(0)1329 443300 Website: www.tuvps.co.uk REPORT NO: RM 610860/01/Issue 1PAGE 1 of 58 COMMERCIAL-IN-CONFIDENCE REPORT ONType Approval Testing of the McMurdo Ltd S4 Search and Rescue Transponder in accordance with IEC 61097-1 (1992-07) and IEC 60945 (2002-08) Report No. RM610860/01 Issue 1 PREPARED FORMcMurdo Limited Silver Point Airport Service Road Portsmouth PO3 5PB APPROVED BY T J Pither Quality Manager DISTRIBUTIONMcMurdo LtdCopies No. 1 & 2 TUV Product Service Copy No. 3 COMMERCIAL-IN-CONFIDENCE REPORT NO: RM 610860/01/Issue 1PAGE 2 of 58 COMMERCIAL-IN-CONFIDENCE CONTENTS:- Part 1 Status Page3 Test House Declaration4 Application Form5 Section 1 – IEC 61097-1 ClausePage number 3.2Operational requirements 10 6.2.6Drop Test 11 6.2.7Immersion13 6.2.8Thermal Shock14 6.2.9Floatation 15 6.3Battery Capacity 16 6.4.1Dry Heat Cycle18 6.4.2Low Temp Cycle 19 6.7Range Performance20 6.8Labelling21 6.9.3Receiver Sensitivity 22 6.9.4Sweep Characteristics 23 6.9.5Radiated Power 24 6.9.6Antenna Characteristics 26 6.9.7Recovery time following excitation 28 6.9.8Delay 29 6.9.9Receiver front end protection 30 Section 2 – EN 60945 8.3Damp Heat32 8.7 Vibration33 9.3Radiated Emissions35 10.4 Radiated Disturbance38 10.9Electrostatic Discharge43 Test Equipment and Ancillaries used for test45 Photographs of Test Samples48 Part 2 Annex A Radar Related Test InformationA.2 Annex B Manufacturer Supplied InformationB.2 For copyright details see page 58 of 58 COMMERCIAL-IN-CONFIDENCE REPORT NO: RM 610860/01/Issue 1PAGE 3 of 58 COMMERCIAL-IN-CONFIDENCE Manufacturer:McMurdo Ltd Type Designation:S4 Serial No.:S4/03/00001, S4/03/00002, S4/03/00003 Number of Samples Tested:Three Test Specification:IEC 61097-1 (1997-07) IEC 60945 (2002-08) Date of Receipt of Test Sample:20 th May 2003 Start of Test:20 th May 2003 Finish of Test:16 th September 2003 Test Engineer(s):J. Holding A. Guy G. Lawler A. Douglas R. Hampton M. Larkin COMMERCIAL-IN-CONFIDENCE REPORT NO: RM 610860/01/Issue 1PAGE 4 of 58 COMMERCIAL-IN-CONFIDENCE TEST HOUSE DECLARATION We, TUV Product Service of Segensworth Road, Titchfield, Fareham, Hampshire PO15 5RH, declare under our sole responsibility that the product : Equipment :Search and Rescue Transponder Type :McMurdo Ltd Model :S4 Serial Number : S4/03/00001, S4/03/00002, S4/03/00003 Quantity : Three to which this declaration relates is in conformity with the following standard(s) or other normative document(s) : IEC 61097-1 and IEC 60945 Detailed results are recorded in Test Report No. RM 610860/01 Issue 1 Place and date of issue : Fareham, October 2003 Signature : ________________________________________ T J Pither Quality Manager Date : 15 th October 2003 COMMERCIAL-IN-CONFIDENCE REPORT NO: RM 610860/01/Issue 1PAGE 5 of 58 COMMERCIAL-IN-CONFIDENCE APPLICANT'S DETAILS CATEGORY OF APPLICANT(a) [ ✓ ] Manufacturer (Please tick relevant box)(b)[ ]Importer (c)[ ]Distributor (d)[]Agent If box (b),(c) or (d)is ticked complete details in box below with respect to the manufacturer COMPANY NAME : McMurdo Ltd ADDRESS : Silver Point Airport Service Road Portsmouth PO3 5PB United Kingdom NAME FOR CONTACT PURPOSES : Mr C P Hoffman TELEPHONE No.: 023 92 623903FAX No : 023 92 623996 Email : MANUFACTURERS DETAILS COMPANY NAME :As above ADDRESS : NAME FOR CONTACT PURPOSES : TELEPHONE No :FAX No : Email : COMMERCIAL-IN-CONFIDENCE REPORT NO: RM 610860/01/Issue 1PAGE 6 of 58 COMMERCIAL-IN-CONFIDENCE TYPE DESIGNATION (1) The type designation may be either a single alphanumeric code or an alphanumeric/code divided into two parts. Please fill in EITHER : TYPE DESIGNATION AS A SINGLE ALPHANUMERIC CODE / / / / / / / / / / / / / / / / / / / / OR: TYPE DESIGNATION IN TWO PARTS: 1. EQUIPMENT SERIES NO. (2) (“MODEL NUMBER”)/ S / 4 / / / / / / / / / / / / / / / / / / AND 2. EQUIPMENT SPECIFIC NO. (3) (“IDENTIFICATION NO”)/ 8 / 6 / - / 0 / 0 / 0 / 0 / 1 / / / / / / / / / / / / (1) This is the manufacturer’s numeric or alphanumeric code or name that is specific to a particular equipment. (2) This is the number, code or trade name used by the manufacturer to describe a series of ‘family’ of equipment of substantially the same mechanical construction which will include a number of related equipments. This number is often referred to as the “model no.”. (3) This is the manufacturer’s identification number given to a specific equipment in the series or ‘family’ of equipments. It is often referred to as the “identification number”. COMMERCIAL-IN-CONFIDENCE REPORT NO: RM 610860/01/Issue 1PAGE 7 of 58 COMMERCIAL-IN-CONFIDENCE TYPE OF SART []Fixed Installation in lifeboats, life rafts or on board ship. [✓]Portable unit []Installed in a release mechanism and/or combined with a float free EPIRB. BATTERY []Nickel Cadmium[]Lead Acid []Mercury[]Leclanché [] Alkaline[ ✓]Lithium []Other Nominal Voltage11.5 / 5.5VoltsEnd point voltage 10 / 5Volts COMMERCIAL-IN-CONFIDENCE REPORT NO: RM 610860/01/Issue 1PAGE 8 of 58 COMMERCIAL-IN-CONFIDENCE DECLARATIONS Does the equipment comply with the [ ✓]Yes requirements of section 3.2.14 ? []No If no state reasons: Are the equipments submitted[ ✓]Yes representative production models ? []No If not are the equipments pre-production models ?[]Yes []No If pre-production equipments are submitted will the final production equipments be identical in all respects with the equipment tested ? []Yes [ ]No If no supply full details : Will labelling of the equipment comply with the requirements of IEC 61097-1 ?[ ✓]Yes []No If no supply full details: I hereby declare that I am entitled to sign on behalf of the applicant and that the information supplied is correct and complete. Signature: Held on file at TUV Product …

Text truncated - open the document above for the full version.

REPORT ON Type Approval Testing of the McMurdo Ltd S4 Search and Rescue Transponder in accordance with IEC 61097-1 (1992-07) And IEC 60945 (2002-08) COMMERCIAL-IN-CONFIDENCE Report No RM 610860/01 Issue 1 Part 2October 2003 COMMERCIAL-IN-CONFIDENCE REPORT NO RM610860/01/Issue 1PAGE A.1 of A.5 COMMERCIAL-IN-CONFIDENCE ANNEX A Radar Related Test Information COMMERCIAL-IN-CONFIDENCE REPORT NO: RM610860/01/Issue 1PAGE A.2 of A.5 COMMERCIAL-IN-CONFIDENCE . COMMERCIAL-IN-CONFIDENCE REPORT NO: RM610860/01/Issue 1PAGE A.3 of A.5 COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCE REPORT NO: RM610860/01/Issue 1PAGE A.4 of A.5 COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCE REPORT NO: RM610860/01/Issue 1PAGE A.5 of A.5 COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCE REPORT NO RM610860/01/Issue 1PAGE B.1 of B.20 COMMERCIAL-IN-CONFIDENCE Annex B Manufacturer Supplied Information REPORT NO: RM 611145-01PAGE B.2 of B.20 COMMERCIAL-IN-CONFIDENCE SART S4 EMC failure report Test:IEC 60945 Clause 10.4 immunity to radiated radio frequencies Results:SART responding with 12 sweeps between 9.2GHz to 9.5GHz to an electric field of strength 10V/m between the frequencies of 1.445GHz to 1.85GHz. The EUT under test is required to perform to criterion A as described in 10.1 of IEC 60945, which states: - performance criterion A: the EUT shall continue to operate as intended during and after the test. No degradation of performance or loss of function is allowed, as defined in the relevant equipment standard and in the technical specification published by the manufacturer. The SART was placed in a modulated electric field of strength 10V/m swept over the frequency range 80MHz to 2GHz. The modulation applied was 400Hz ± 10% to a depth of 80% ± 10%. Between the frequencies of 1.445GHz to 1.85GHz, the SART responded as if it were being triggered by an X-band radar i.e. with 12 sweeps between 9.2GHz to 9.5GHz. Referring to Figure 1 on page 2, investigations showed that the gate of FET T18 was picking up the interrogating signal. The signal was then fed straight into the video amp via the Drain of T18, causing the SART to respond with 12 sweeps. The solution to this was to solder a SIMID 0805 68nH inductor (L1) to the gate of T18, as shown in Figure 1 page 2 and also Figure 2 page 3. The inductor is self-resonant at 1.550GHz, when the solution was modelled in the software package Rfsimm99 the unwanted signals were reduced by some 30dB, as shown in Figure 3 page 4. A new SART was built to this standard and submitted to TüV for retest. This modification will be incorporated into the PCB (Part No 86-500) build standard for Production. REPORT NO: RM 611145-01PAGE B.3 of B.20 COMMERCIAL-IN-CONFIDENCE Figure 1 REPORT NO: RM 611145-01PAGE B.4 of B.20 COMMERCIAL-IN-CONFIDENCE Figure 2 SIMID 0805 68nH inductor REPORT NO: RM 611145-01PAGE B.5 of B.20 COMMERCIAL-IN-CONFIDENCE Figure 3 Neil Jordan Electronics Engineer 7 th August 2003 Materials Information Freq = 1.546GHz dB = -39dB REPORT NO: RM 611145-01PAGE B.6 of B.20 COMMERCIAL-IN-CONFIDENCE REPORT NO: RM 611145-01PAGE B.7 of B.20 COMMERCIAL-IN-CONFIDENCE REPORT NO: RM 611145-01PAGE B.8 of B.20 COMMERCIAL-IN-CONFIDENCE REPORT NO: RM 611145-01PAGE B.9 of B.20 COMMERCIAL-IN-CONFIDENCE REPORT NO: RM 611145-01PAGE B.10 of B.20 COMMERCIAL-IN-CONFIDENCE REPORT NO: RM 611145-01PAGE B.11 of B.20 COMMERCIAL-IN-CONFIDENCE REPORT NO: RM 611145-01PAGE B.12 of B.20 COMMERCIAL-IN-CONFIDENCE REPORT NO: RM 611145-01PAGE B.13 of B.20 COMMERCIAL-IN-CONFIDENCE REPORT NO: RM 611145-01PAGE B.14 of B.20 COMMERCIAL-IN-CONFIDENCE REPORT NO: RM 611145-01PAGE B.15 of B.20 COMMERCIAL-IN-CONFIDENCE REPORT NO: RM 611145-01PAGE B.16 of B.20 COMMERCIAL-IN-CONFIDENCE REPORT NO: RM 611145-01PAGE B.17 of B.20 COMMERCIAL-IN-CONFIDENCE REPORT NO: RM 611145-01PAGE B.18 of B.20 COMMERCIAL-IN-CONFIDENCE REPORT NO: RM 611145-01PAGE B.19 of B.20 COMMERCIAL-IN-CONFIDENCE REPORT NO: RM 611145-01PAGE B.20 of B.20 COMMERCIAL-IN-CONFIDENCE

Page 1 mcmurd2! S4 Rescue SART FCC CFR 47 PART 2 1046-1057 COMPLIANCE REPORT COMPILED BYCHECKED BY ENGINEERING APPROVAL JORDANSIMS Page 108/12/03 Page 2 mcmurd2! The compliance matrix below shows compliance for emission designator 300MXON of the S4 Rescue SART transponder. Part 2 compliance matrix section 2.1046 to 2.1057 1046 - Measurements required: RF output power a) The S4 Rescue SART has a waveguide antenna incorporated directly onto the PCB. Hence there are no 50n RF output terminals. Power measurements recorded during the tune-up procedure are made with the SART in an anechoic chamber. The chamber is calibrated to ascertain path loss. Results shown below. Test voltage Current during transmission Output power MinIMax = 11.5V/5. = 40mA =28.9dBm/32.3dBm The S4 Rescue SART complies b) Not applicable c) Radiated output measurements Specification - 400mW (26dBm) E.I.R.P minimum A radar test signal shall be applied to the SART. This signal shall be pulsed carrier with a repetition frequency of 1 KHz. The duration of the pulse shall be 500nS. The SART was placed inside a calibrated anechoic chamber, and rotated. The maximum and minimum received signal levels were recorded. These results were plotted on the calibration chart for the anechoic chamber; and the maximum and minimum E.I. R. P levels were obtained. 1047 - Measurements required: Modulation characteristics a) Not applicable, not voice modulated. b) Not applicable, no modulation limiting. c) Not applicable, no power limiting d) Under the rules there is no modulation requirement for 300MXON. The S4 Rescue SART complies Page 208/12/03 Page 3 mcmurd2! 1049 - Measurements required: Occupied bandwidth a) Not applicable, not a radiotelegraph b) Not applicable, not a keyed transmitter c) Not applicable, not a radio telephone transmitter d) Not applicable, not a radio telephone transmitter e) Not applicable, not used in the radio broadcast service f) Not applicable, no speech channels incorporated into transmitter g) Not applicable, the unit has no independent modulation channels incorporated. h) Not applicable, the transmitter is not digitally modulated. i) Not applicable, the transmitter in not modulated. As stated above the S4 Rescue SART is not applicable to any of the occupied bandwidth tests listed a to g. Figure 1 below shows a plot of the spectral bandwidth. The S4 Rescue SART complies Figure 1 Page 308/12/03 Page 4 mcmurd2! 1051 - Measurements required: Spurious emissions at the antenna terminals As described in 2.1046, the antenna forms an integral part of the PCB and has no antenna terminals. The S4 Rescue SART complies 1053 - Measurements required: Field strength of spurious radiation. a) The unit has its own integral battery power supply. There are no power supply leads to measure spurious emissions. The spurious emissions from the control and intermediate circuitry were measured during type approval to test standard EN 60945. Results can be viewed in the Type Approval Report RM 610860101 pages 35 to 44. The S4 Rescue SART complies 1055 - Measurements required: Frequency stability 1. Not applicable 2. Under the requirements of IEC 1097-1 the unit is required to operate over the temperature range -20o C to +55OC. Upon interrogation by a marine band radar the SART is required to respond with 12 sweeps over the band of 2GHz (+01-60MHz) to 9.5GHz (+601-0MHz). During testing to IEC 1097-1 at type approval the frequency stability of the unit over the temperature range -20o C to +55OC was assessed. Results can be viewed in the Type Approval Report RM 610860101 follows: Ambient temperature data on page 17 & 18 20o C data on page 17 & 18 +55O C data on page 17 & 18 The S4 Rescue SART complies 1057 - Frequency spectrum is to be investigated a) The SART is exempt from spurious radiation measurements as per ITU radio regulation APS 3, Table 2. The S4 Rescue SART complies Page 408/12/03

Page 1 mcmurd2! S4 Rescue SART FCC CFR PART 80 80. 1101 COMPLIANCE REPORT COMPILED BYCHECKED BY ENGINEERING APPROVAL JORDANSIMS Page 108/12/03 Page 2 mcmurd2! Part 80.1101 Performance standards ) All equipment specified in this subpart must meet the general requirements for shipboard equipment listed below. ) IMO ResolutionA.694(17)1991 Compliance with IMO Resolution A.694 (17) 1991. General requirements for shipbourne radio equipment forming part of the global maritime distress and safety system (GMDSS) and for electronic navigational aids. Annex Recommendation on general requirements for shipbourne radio equipment forming part of the global maritime distress and safety system (GMDSS) and for electronic navigational aids. 1. Introduction 2. General 3. Operation 1 S4 rescue SART complies, please refer to Type Approval Report RM 610860101 page 11 clause no. 3.1 and 3. 2 S4 rescue SART complies, please refer to Type Approval Report RM 610860101 page 11 clause no. 3.1 and 3.2.4 3 S4 rescue SART complies, please refer to Type Approval Report RM 610860101 page 11 clause no. 3. 3.4 S4 rescue SART complies, please refer to Type Approval Report RM 610860101 page 11 clause no. 3. 5 The S4 rescue SART is a stand-alone unit, and comprises no features to enable connection to other equipment. Unit complies. 6 The S4 rescue SART has no digital panel or alphanumeric keyboard. Unit complies. 4. Power supply S4 rescue SART complies , the unit operates only from its own internal power supply. 5. Durability and resistance to environmental conditions S4 rescue SART complies. Please refer to Compliance matrix for IMO Resolution A.697 (17) on page 3 of this report. Page 208/12/03 Page 3 mcmurd2! 6. Interference 1 S4 rescue SART complies, please refer to Type Approval Report RM 610860101 pages 35 to 44. 2 S4 rescue SART complies, There is no mechanical noise generated by the unit. 3 S4 rescue SART complies, The compass safe distance is clearly labelled on the unit (1.5M). 7 Safety precautions 1 S4 rescue SART complies, there are no exposed voltage sources present. 2 S4 rescue SART complies, there are no exposed metallic parts. 3 S4 rescue SART complies, the unit is supplied with a m-mounting pole. Once extended the unit operates well above the area of use. 7.4 S4 rescue SART complies, the unit does not contain a vacuum tube. 8. Maintenan…

Text truncated - open the document above for the full version.
