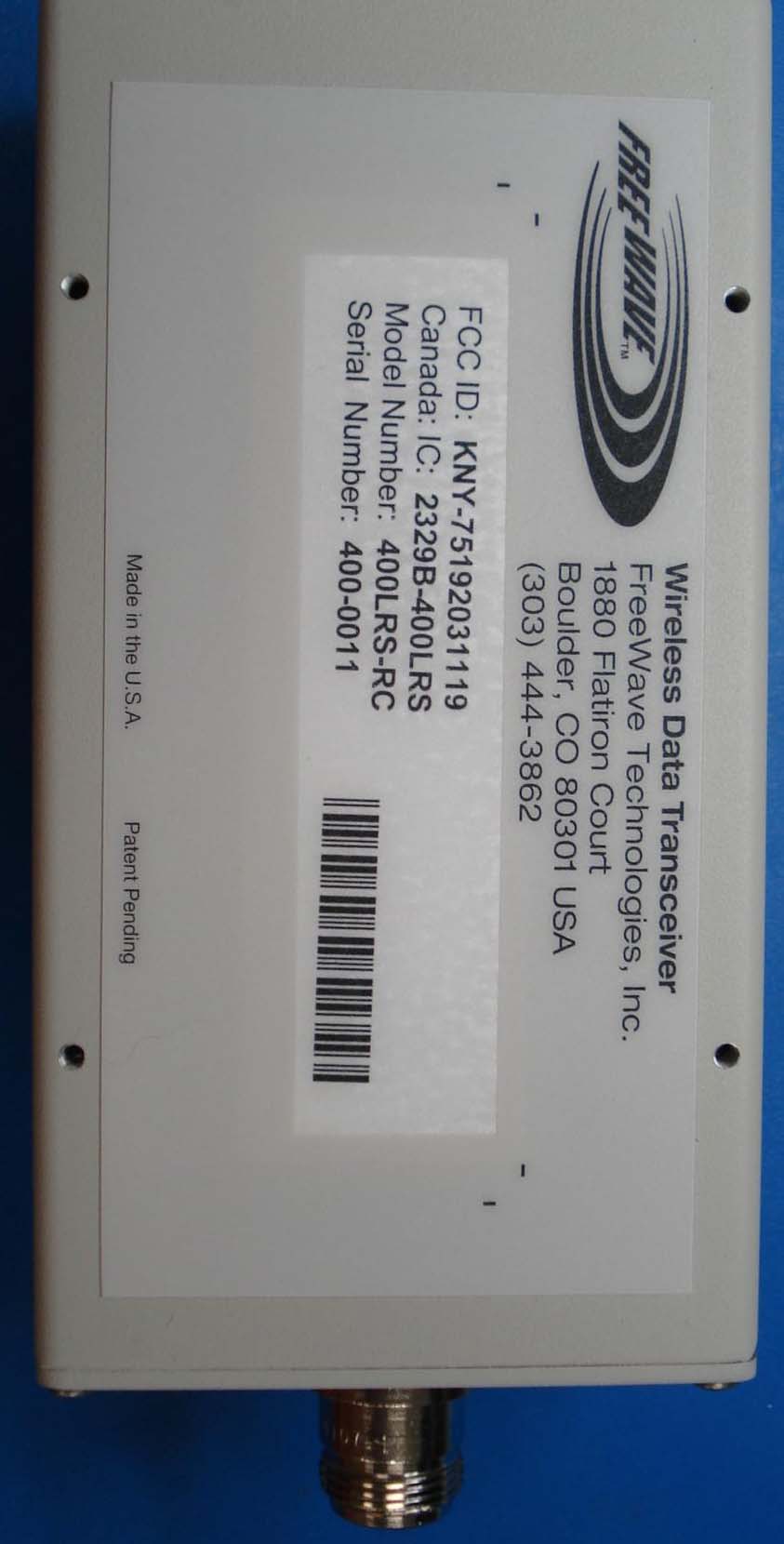

KNY-75192031119Wireless Data Transceiver

Spread Spectrum Wireless Data Transceiver User Manual LUM0002AF Rev D Version 6.3 i Spread Spectrum Wireless Data Transceiver User Manual Version 6.3 FreeWave Technologies, Inc. 1880 South Flatiron Court Boulder, CO 80301 (303) 444-3862 (303) 786-9948 Fax www.FreeWave.com Spread Spectrum Wireless Data Transceiver User Manual LUM0002AF Rev D Version 6.3 ii SPREAD SPECTRUM WIRELESS DATA TRANSCEIVER USER MANUAL Copyright © 1995-2004 by FreeWave Technologies, Inc. All rights reserved. Published 2005. W ARRANTY FreeWave Technologies warrants the FreeWave Wireless Data Transceiver against defects in materials and manufacturing for a period of two years from the date of purchase. In the event of a Product failure due to materials or workmanship, FreeWave will, at its discretion, repair or replace the Product. In no event will FreeWave Technologies Inc., its suppliers, and its licensors be liable for any damages arising from the use of or inability to use this Product. This includes business interruption, loss of business information, or other loss which may arise from the use of this Product. Please be advised that OEM customer’s warranty periods may vary. Warranty Policy may not apply: 1. If Product repair, adjustments or parts replacements is required due to accident, neglect, unusual physical, electrical or electromagnetic stress. 2. If Product is used outside of FreeWave specifications. 3. If Product has been modified, repaired or altered by Customer unless FreeWave specifically authorized such alterations in each instance in writing. This includes the addition of conformal coating. The Warranty period begins from the date of shipment and is defined per the Standard Warranty Policy stated above. Special Rate Replacement Option A special rate replacement option is offered to non-warranty returns or upgrades. The option to purchase the replacement unit at this special rate is only valid for that RMA, (Return Material Authorization). The special replacement rate option expires if not exercised within 30 days of final disposition of RMA. R ESTRICTED RIGHTS Microsoft and Windows are registered trademarks of the Microsoft Corporation. pcANYWHERE is a registered trademark of Symantec Corporation. Other product names mentioned in this manual may be copyrights, trademarks, or registered trademarks of their respective companies and are hereby acknowledged. Information in this document is subject to change without notice. The information contained in this document is proprietary and confidential to FreeWave Technologies, Inc. This manual is for use by purchasers and other authorized users of the FreeWave™ Spread Spectrum Wireless Data Transceiver only. No part of this document may be reproduced or transmitted in any form or by any means, electronic or mechanical, or for any purpose without the express written permission of FreeWave Technologies, Inc. FreeWave’s Spread Spectrum Wireless Data Transceivers are made in the United States of America. Printed in the United States of America. Spread Spectrum Wireless Data Transceiver User Manual LUM0002AF Rev D Version 6.3 iii This product is licensed by The United States. Diversion contrary to U.S. law is prohibited. Shipment or re-export of this product outside of The United States may require authorization by the U.S. Bureau of Export Administration. Please contact FreeWave Technologies for assistance and further information. UL NOTIFICATION Model# FGRO9CSU is suitable for use in Class 1, Division 2, Groups A, B, C, and D or non-hazardous locations only. Input voltage for Model# FGRO9CSU is 6 to 30 volts DC. Model# DGRO9RFS is suitable for use in Class 1, Division 2, Groups A, B, C, and D or non-hazardous locations only. Input voltages for Model# DGRO9RFS are determined by the label on the bottom of the board. If the board has Label A shown below the input voltage is 6 to 14 volts DC. If the board has Label B shown below the input voltage is 6 to 14 volts DC at a maximum baud rate of 57.6 KBaud or 6 to 18 volts DC at a maximum baud rate of 19.2 KBaud, operation mode of MultiPoint Slave or MultiPoint Slave/Repeater only. Spread Spectrum Wireless Data Transceiver User Manual LUM0002AF Rev D Version 6.3 iv FCC NOTIFICATIONS This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference and 2) this device must accept any interference received, including interference that may cause undesired operation. This device must be operated as supplied by FreeWave Technologies, Inc. Any changes or modifications made to the device without the express written approval of FreeWave Technologies may void the user's authority to operate the device. CAUTION: The model number FGR09 has a maximum transmitted output power of 955mW. It is recommended that the transmit antenna be kept at least 23 cm away from nearby persons to satisfy FCC RF exposure requirements. The “I”-series transceiver have maximum transmitted output power of 500mW. It is recommended that the transmit antenna be kept at least 23 cm away from nearby persons to satisfy FCC RF exposure requirements. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, no guarantee shall be made that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. …

Text truncated - open the document above for the full version.

FreeWave Technologies User Manual Addendum 421-512 MHz Transceiver V1.0 LAD0014AA Rev A 1 of 11 FreeWave Technologies Inc. 421-512 MHz User Manual Addendum The FreeWave Technologies LRS Family 421-512 MHz Licensed Radios operate in substantially the same manner as the 900 MHz and 2.4 GHz transceivers. The model numbers; 400LRS-CSU and 400LRS-RC can be used in point to point and multipoint modes, with essentially the same parameter options. UL approval for the 400LRS-CSU is not currently available. Quick Start on a Point-to-Multipoint System The following is a quick start guide for setting up two transceivers in Point-to- Multipoint mode. This mode allows for a Master to communicate with several Slaves simultaneously. In addition to the Quick Start Guide, detailed instructions on how to set up the frequency and min and max packet sizes are also provided. NOTE: The following is a step by step procedure for radio setup through HyperTerminal. NOTE: The device will be capable of programming through EZConfig at a later date. When using EZConfig, please reference the tables in this procedure for proper radio configuration. 1. Connect the transceiver to the serial port of a computer either through a data cable (9 pin serial) or via the diagnostics cable. 2. Open up a HyperTerminal session. • Use the following settings in connecting with HyperTerminal • Connect to COMx (the COM port to which the cable is connected) • Set; Bits per second to 19200, Data bits- 8, Parity- None, Stop bits- 1, Flow control- None. 3. Press the setup button next to the serial port on the radio. If the diagnostics cable is being used, press Shift-U (capital U). • The three LED’s on the radio will turn green, indicating Setup mode. • The main menu will appear on the screen. 4. Press 0 to enter the Operation Mode menu. • Press 2 to set the radio as a point to Multipoint Master. • Press 3 to set the radio as a point to Multipoint Slave. • Press Esc to return to the main menu. 5. Press 1 in the main menu to enter the Baud Rate menu. • The baud rate in setup mode will be defaulted at 19200. FreeWave Technologies User Manual Addendum 421-512 MHz Transceiver V1.0 LAD0014AA Rev A 2 of 11 • The baud rate of the radio must match the baud rate of the device to which the radio is attached. • Press Esc to return to the main menu. 6. Press 3 in the main menu to enter the Radio Characteristics menu. • The following settings must be the same on all radios throughout the network. • FreqKey- This setting is discussed later in this manual. • Max Packet Size-This setting is discussed later in this manual. • Min Packet Size- This setting is discussed later in this manual. • RF Data Rate - The LRS Licensed Radio can be configured to operate at one of two available throughputs. To adjust this setting, press 4, RF Data Rate. (Available settings are 2 or 3.) • For Maximum Throughput of 9.6 Kbps at 2 Level GFSK, RF Data Rate= 3. • For Maximum Throughput of 19.2 Kbps at 4 Level GFSK, RF Data Rate=2. 7. At the Main Menu, press 5. • Number Repeaters should be set to 0. • Set the Network ID value to any value between 1 and 4095, except 255. • Make sure this value is the same on every radio in the network. Operation in Single Frequency Mode Note: It is imperative that all transceivers used in a network are set to identical frequency parameters. Press 3 in the main menu to enter the Radio Characteristics menu as shown below: Fig. 1 FreeWave Technologies User Manual Addendum 421-512 MHz Transceiver V1.0 LAD0014AA Rev A 3 of 11 Editing the Hop Table Enter 0 in the Radio Parameters section of the menu, corresponding to FreqKey. Next, enter F for more options. 1. Enter 0 to edit Hop Table. 2. Choose the Hop Table entry to edit (0-63) and press Enter. The Hop Table entry is the number in the Table for the displayed Channel Number that represents the frequency being edited. 3. Choose the desired frequency from the Frequency Table, and then enter the Channel Number associated with that frequency. NOTE: For a list of available frequencies and channel numbers at 12.5 kHz spacing, see the Frequency Table at the end of the manual. This table shows frequencies at 125kHz spacing. If the frequency needed is not shown, use the following formula to calculate the proper Channel Number: Ftune = Tuning frequency in MHz Channel Number = (Ftune – 390) / .00625 * *For more information, see the Errata sheet at the end of the document. Programming Single Frequency Mode In this example, the radio is programmed to transmit and receive at a Frequency of 421.000MHz This is understood because the Single Channel being used is 0. Channel 0 has a value of 4960. 4960 = 421.000MHz. Fig 2. FreeWave Technologies User Manual Addendum 421-512 MHz Transceiver V1.0 LAD0014AA Rev A 4 of 11 The LRS Series of radios are single frequency devices. Meaning they are designed to operate on only one channel per network. The device default is single frequency mode. This is displayed as seen in Fig. 2. While still in the “More Options” section of the FreqKey menu: 1. Enter 1 to program the transceiver to operate on a single frequency. 2. When prompted enter the number of the frequency to be used: Enter New Frequency Channel (0-63). 3. Once the single frequency has been entered it will appear at the bottom of the table as the Single Channel being used. In addition, the FreqKey in the Radio Parameters menu will now be programmed as Single Channel. Refer to Fig. 2. Min/Max Packet Sizes Min/Max Packet Sizes allow the user to designate the size in bytes of the packets used by the transceiver in its communication link. This may be of particular value when using FreeWave with different communications software packages. In addition, packet sizes should be changed for every network, especially when overlapping or adjacent networks are installed. The combination of Max and Min Packet Size settings determines the allocation of the communication link from the Master to the Slave and vice versa. With a given Max Pa…

Text truncated - open the document above for the full version.





















!"#$
 %&

'()
*
*+,






+

-
 . '
/
-

0.1
2
 3
4,
()
*+,
*

4
+5
5
+
6+)
+6
6+
*
*


)66
*

'()
*
*+,

*

+&

+


66


*5


+5

4
+

+
66,
*
5+
6)4

*5
5
4
)+

)
++

2


)




*)
)
*
)
6+)
+
6

56
6)

6*),
()


*
*+,


'+
75



2
.1
2


8&
% %$%9$ 9
.&
% %$ 9$-9

TUNEUP PROCEDURE The model 400LRS transceiver requires no manual tuning. All parameters are factory set and controlled by a microprocessor.

The RF Exposure calculations are based on manufacturer specification that minimum distance from the antenna to operator (user) is 1m. The RF Exposure can be calculated according to equation from OET Bulletin 65, Edition 97-01: S = PG/4*pi*R 2, Where: S is Limits for Maximum Permissive Exposure (MPE) (mW/cm 2), P is Maximum Peak Power to Antenna (mW), G is Antenna Gain (numerical gain), R is Distance to the antenna radiation center (cm), must be below 20cm (FCC 2.1093) S = (F/1500)mW/cm 2 according to FCC 1.1310, where F (in MHz) from 300 to 1500MHz S = 421/1500 = 0.28 mW/cm 2 P = 37dBm = 5000mW, G = 7.1 dB (numerical gain) R is calculated and = 1m
