PartNumber:LIG0002AC Revision:G LastUpdated:12/06/2013 2.4GHzWirelessDataTransceivers InstallationGuide SafetyInformation Warning!Donotremoveorinsertdiagnosticscablewhilecircuitislive. Warranty FreeWaveTechnologies,Inc.warrantsyourFreeWave®WirelessDataTransceiveragainstdefectsinmaterialsand manufacturingforaperiodoftwoorthreeyears,dependingonmodelfromthedateofshipment,dependingon modelnumber.IntheeventofaProductfailureduetomaterialsorworkmanship,FreeWavewill,atitsdiscretion, repairorreplacetheProduct.ForevaluationofWarrantycoverage,returntheProducttoFreeWaveuponreceiving aReturnMaterialAuthorization (RMA). InnoeventwillFreeWaveTechnologies,Inc.,itssuppliers,oritslicensorsbeliableforanydamagesarisingfrom theuseoforinabilitytousethisProduct.Thisincludesbusinessinterruption,lossofbusinessinformation,orother losswhichmayarisefromtheuseofthisProduct.OEMcustomer’swarrantyperiodscanvary. WarrantyPolicywillnotapplyinthefollowingcircumstances: 1.IfProductrepair,adjustments,orpartsreplacementsarerequiredduetoaccident,neglect,orundue physical,electrical,orelectromagneticstress. 2.IfProductisusedoutsideofFreeWavespecificationsasstatedintheProduct'sdatasheet. 3.IfProducthasbeenmodified,repaired,oralteredbyCustomerunlessFreeWavespecificallyauthorized suchalterationsineachinstanceinwriting.Thisincludestheadditionofconformalcoating. SpecialRateReplacementOption Aspecialratereplacementoptionisofferedtonon-warrantyreturnsorupgrades.Theoptiontopurchasethe replacementunitatthisspecialrateisonlyvalidforthatRMA.Thespecialreplacementrateoptionexpiresifnot exercisedwithin30daysoffinaldispositionofRMA. RestrictedRights Anyproductnamesmentionedinthismanualmaybetrademarksorregisteredtrademarksoftheirrespective companiesandareherebyacknowledged. ThismanualisforusebypurchasersandotherauthorizedusersofFreeWaveproducts. Nopartofthismanualmaybereproducedortransmittedinanyformorbyanymeans,electronicormechanical,or foranypurposewithouttheexpresswrittenpermissionofFreeWaveTechnologies,Inc.FreeWavereservesthe righttomakechangestothismanualwithoutnotice.FreeWaveassumesnoresponsibilityorliabilityfortheuseof thismanualortheinfringementofanycopyrightorotherproprietaryright. FreeWaveproductsaredesignedandmanufacturedintheUnitedStatesofAmerica. FreeWaveTechnologies,Inc. Boulder,CO 303.381.9200 TollFree:1.866.923.6168 PrintedintheUnitedStatesofAmerica.Fax:303.786.9948 Copyright©2013byFreeWaveTechnologies,Inc.Allrightsreserved.www.FreeWave.com LIG0002ACRevGii FreeWaveTechnologies,Inc.productsmaybesubjecttocontrolbytheExportAdministrationRegulations (EAR)and/ortheInternationalTrafficinArmsRegulations(ITAR).Export,re-export,ortransferofthese productswithoutrequiredauthorizationfromtheU.S.DepartmentofCommerce,BureauofIndustryand Security,ortheU.S.DepartmentofState,DirectorateofDefenseTradeControls,asapplicable,isprohibited. Anypartyexporting,re-exporting,ortransferringFreeWaveproductsisresponsibleforobtainingall necessaryU.S.governmentauthorizationsrequiredtoensurecompliancewiththeseandotherapplicable U.S.laws.Consultwithyourlegalcounselforfurtherguidance. ULNotifications ModelsGX-C,GX-CE,andGX-TaresuitableforuseinClass1,Division2,GroupsA,B,C,andDornon-hazardous locationsonly.Donotconnectordisconnectanyconnectorswhilethecircuitislive. Warning!EXPLOSIONHAZARD-SUBSTITUTIONOFCOMPONENTSMAYIMPAIR SUITABILITYFORCLASS1,DIVISION2. Warning!DONOTREMOVEORINSERTTHEDIAGNOSTICSCABLEWHILETHE CIRCUITISLIVE. Inputvoltageforthemodelslistedaboveis+6.0to+30.0VDC. Important:InputpowershallbederivedfromasingleClass2powersource. FCCNotifications Thisdevicecomplieswithpart15oftheFCCrules.Operationissubjecttothefollowingtwoconditions:1)This devicemaynotcauseharmfulinterferenceand2)thisdevicemustacceptanyinterferencereceived,including interferencethatmaycauseundesiredoperation. ThecontentofthisguidecoversFreeWaveTechnologies,Inc.modelssoldunderFCCID:KNY-1521131FFF(I2 series)andKNYAMI0032AT(GXfamily). AllmodelssoldundertheFCCID(s)listedabovemustbeinstalledprofessionallyandareonlyapprovedforuse wheninstalledindevicesproducedbyFreeWaveTechnologiesorthirdpartyOEMswiththeexpresswritten approvalofFreeWaveTechnologies,Inc.Changesormodificationsshouldnotbemadetothedevice. Warning!TheI2seriesandGXfamilytransceivershaveamaximumtransmittedoutput powerof500mW.Itisrecommendedthatthetransmitantennabekeptatleast20cmaway fromnearbypersonstosatisfyFCCexposurerequirements. ThemodelsdescribedinthisguidemustbeinstalledinaNEMAenclosure.WhenanyFreeWaveTechnologies, Inc.moduleisplacedinsideanenclosure,alabelmustbeplacedontheoutsideoftheenclosure.Thelabelmust includethetext"ContainsTransmiiterModulewithFCCID:KNY-1521131FFF(I2series)andKNYAMI0032AT(GX family)." LIG0002ACRevGiii TableOfContents AboutThisInstallation Guide1 Assumptions1 NotationalConventions1 ContactingFreeWaveTechnicalSupport2 DocumentationFeedback2 EquipmentandToolsRequiredforInstallation2 TransceiverInstallationOverview4 ChoosingaLocationfortheTransceiver4 InstallingtheNEMAEnclosure4 MountingtheTransceiverintheNEMAEnclosure4 RuggedizedGannetEnclosureDinRailMountingInstructions (MBRK-DIN-N)5 RuggedizedGannetEnclosureMountingShoeInstructions(MHS-WMS)5 Board-LevelandRuggedizedEnclosureDinRailMountingInstructions(MBRK-DIN-K)6 ProtectiveMountingBracketKitInstructions(PMB-ENCL)8 PoweringtheTransceiver9 ConfiguringtheTransceiver10 ApprovedAntennas11 InstallingtheAntenna11 CableLossandTransmitPowerSettings13 WaterproofingExternalConnections15 Board-LevelandDB9Pinouts16 RFBoardLevelPinout16 RS232PinAssignments(DB-9)17 RS422andRS485FullDuplexPinouts17 RS485HalfDuplexPin-Outs18 LIG0002ACRevGiv 2.4GHzWirelessDataTransceivers LIG0002ACRevG AboutThisInstallation Guide ThisguideprovidesbasicinstallationinformationforFreeWave2.4GHztransceiversinanon-OEM environmentincludingthefollowing: l Theequipmentandtoolsrequiredforinstallation. l Bestpracticesforchoosingalocationforthetransceiversinthenetwork. l Transceivermountinginstructions. l Approvedantennasandgeneralantennainstallationinformation. l Powerconsiderations. l Requiredparamet…

Text truncated - open the document above for the full version.

Spread Spectrum Wireless Data Transceiver User Manual Preliminary GXM Manual Version 0.2 i PRELIMINARY Global Transceiver Module (GXM) Wireless Data Transceiver User Manual Version 0.2 FreeWave Technologies, Inc. 1880 South Flatiron Court Boulder, CO 80301 (303) 444-3862 (303) 786-9948 Fax www.FreeWave.com S PREAD SPECTRUM WIRELESS DATA TRANSCEIVER USER MANUAL Copyright © 1995-2009 by FreeWave Technologies, Inc. All rights reserved. Published 2009. Spread Spectrum Wireless Data Transceiver User Manual Preliminary GXM Manual Version 0.2 ii PRELIMINARY W ARRANTY FreeWave Technologies warrants your FreeWave® Wireless Data Transceiver against defects in materials and manufacturing for a period of two years from the date of shipment. In the event of a Product failure due to materials or workmanship, FreeWave will, at its option, repair or replace the Product. The Product must be returned to FreeWave upon receiving a Return Material Authorization (RMA) for evaluation of Warranty Coverage. In no event will FreeWave Technologies Inc., its suppliers, and its licensors be liable for any damages arising from the use of or inability to use this Product. This includes business interruption, loss of business information, or other loss which may arise from the use of this Product. Please be advised that OEM customer’s warranty periods may vary. Warranty Policy may not apply: 1. If Product repair, adjustments or parts replacements is required due to accident, neglect, unusual physical, electrical or electromagnetic stress. 2. If Product is used outside of FreeWave specifications. 3. If Product has been modified, repaired or altered by Customer unless FreeWave specifically authorized such alterations in each instance in writing. This includes the addition of conformal coating. Special Rate Replacement Option A special rate replacement option is offered to non-warranty returns or upgrades. The option to purchase the replacement unit at this special rate is only valid for that RMA. The special replacement rate option expires if not exercised within 30 days of final disposition of RMA. R ESTRICTED RIGHTS Any product names mentioned in this manual may be trademarks or registered trademarks of their respective companies and are hereby acknowledged. Information in this manual is subject to change without notice and is proprietary and confidential to FreeWave Technologies, Inc. This manual is for use by purchasers and other authorized users of the FreeWave® Wireless Data Transceiver only. No part of this manual may be reproduced or transmitted in any form or by any means, electronic or mechanical, or for any purpose without the express written permission of FreeWave Technologies, Inc. FreeWave Spread Spectrum Wireless Data Transceivers are designed and manufactured in the United States of America. Printed in the United States of America. Spread Spectrum Wireless Data Transceiver User Manual Preliminary GXM Manual Version 0.2 iii PRELIMINARY This product is licensed by The United States. Diversion contrary to U.S. law is prohibited. Shipment or re-export of this product outside of The United States may require authorization by the U.S. Bureau of Export Administration. Please contact FreeWave Technologies for assistance and further information. UL NOTIFICATION Models MM2-GXM-R14, MM2-GXM-R24, MM2-GXM-T14, MM2-GXM-T24 are suitable for use in Class 1, Division 2, Groups A, B, C, and D or non-hazardous locations only. Input voltage for the above models is 3.3 – 5 volts DC. FCC NOTIFICATIONS This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference and 2) this device must accept any interference received, including interference that may cause undesired operation. This device must be operated as supplied by FreeWave Technologies, Inc. Any changes or modifications made to the device without the express written approval of FreeWave Technologies may void the user's authority to operate the device. CAUTION: The GMX transceivers have a maximum transmitted output power of 500mW. It is recommended that the transmit antenna be kept at least 23 cm away from nearby persons to satisfy FCC RF exposure requirements. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, no guarantee shall be made that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help. Note: Whenever any FreeWave Technologies module is placed inside an enclosure a label must be placed on the outside of that enclosure which includes the module's FCC ID. Spread Spectrum Wireless Data Transceiver User Manual Preliminary GXM Manual Version 0.2 iv PRELIMINARY Table of Contents ABOUT FREEWAVE TRANSCEIVERS.................................................................................................................7 CHOOSING POINT-TO-POINT OR POINT-TO-MULTIPOINT OPERATION........................................................................8 QUICK START ON A POINT-TO-MULTIPOINT NETWORK .................................................................…

Text truncated - open the document above for the full version.

WTD 13.4.9 FCC Compliance Opinion FREW0012 Information about the Applicant Grantee (Company Name) FreeWave Technologies, Inc. FCC Contact Person Dean Busch Address 5395 Pearl Parkway, Suite 100 City, State, Zip Boulder, CO 80301 Job Number FREW0012 Model GXM-T14, GXM-T24 FCC ID KNYAMI0032AT Agent Approval Type Original (Family) Equipment Class DSS Part 15, Spread Spectrum Transmitter Rule Part 15.247 Overview FreeWave Technologies, Inc. is seeking limited modular approval for their 2.4 GHz FHSS radio to be used in industrial applications. Limited modular approval is sought because the device must be professionally installed. Confidentiality requested for allowed files. Request is properly addressed and referenced. A letter listing the applicable modular requirements was submitted. Recommendation All items have been resolved and completed to my satisfaction; therefore I recommend this application for approval. Signature Dave Tolman, TCB Committee 12/11/2013

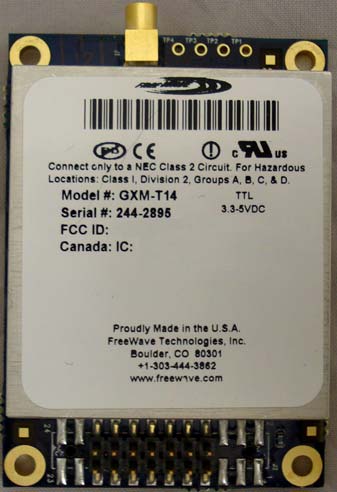

The GX family of products starts with the GXM module with RF Shield removed. The family of the GXM models all consist of a GXM module and an interface as explained here after. GXM-T14 or GXM-T24 Radio These devices are rated at 3.3-5VDC and are aimed at OEM markets. The only difference between these two radios is the interface connector. The GXM-T14 has a 14-pin interface connector, while the GXM-T24 has a 24-pin interface connector. The 14-pin connector provides Power and TTL data connections (in an RS-232 format) to the radio. The 24-pin and adds a diagnostic port and other control lines. GXM-14 Top and Bottom (14-pin interface connector, 3.3-5VDC) GXM-24 Top and Bottom (24-pin interface connector, 3.3-5VDC)

H G F E D C B A 87654321 H G F E D C B A 87654321 This document and t he proprietary trade secret and confidential information it contains are the property of FreeWave Technologies, Inc. Do not copy, distribute, disclose, or use in any manner without prior written consent of FreeWave Technologies, Inc. Label: GX ‐ T14 Label part number: FreeWave Technologies, Inc. 5395 Pearl Parkway, Suite 100 Boulder, CO 80301 SIZE FSCM NO DWG NO REV N/A DWG ‐ LBL ‐ GX ‐ T14 A SCALE 2 : 1 11/4/2013 SHEET 1 OF 1 FCC ID: KNYAMI0032AT Canada: IC: 2329B ‐ AMI0032AT Model #: GXM ‐ T14 1.25 Serial #: 245 ‐ 3041 1.38 Connect only to a NEC Class 2 Circuit. For Hazardous Locations: Class I, Division 2, Groups A, B, C, D. Notes: Unless Otherwise Specified 1. Material: Permanent white polyester with pressure sensitive adhesive. THT ‐ 17 ‐ 422 Brady Label Stock (RFN P/N: 123 ‐ 0680 ‐ 01) or approved FreeWave equivalent 2. Print black permanent ink, using Brady ribbon stock #R6000 or FreeWave approved equivalent Place barcode on the label as shown FreeWave Technologies. Inc. FreeWave.com TTL Input Voltage3.3 ‐ 5 N10252 !

H G F E D C B A 87654321 H G F E D C B A 87654321 This document and t he proprietary trade secret and confidential information it contains are the property of FreeWave Technologies, Inc. Do not copy, distribute, disclose, or use in any manner without prior written consent of FreeWave Technologies, Inc. Label: GX ‐ T24 Label part number: FreeWave Technologies, Inc. 5395 Pearl Parkway, Suite 100 Boulder, CO 80301 SIZE FSCM NO DWG NO REV N/A DWG ‐ LBL ‐ GX ‐ T24 A SCALE 2 : 1 11/4/2013 SHEET 1 OF 1 1.25 1.38 Notes: Unless Otherwise Specified 1. Material: Permanent white polyester with pressure sensitive adhesive. THT ‐ 17 ‐ 422 Brady Label Stock (RFN P/N: 123 ‐ 0680 ‐ 01) or approved FreeWave equivalent 2. Print black permanent ink, using Brady ribbon stock #R6000 or FreeWave approved equivalent Place barcode on the label as shown FCC ID: KNYAMI0032AT Canada: IC: 2329B ‐ AMI0032AT Model #: GXM ‐ T24 Serial #: 245 ‐ 3041 Connect only to a NEC Class 2 Circuit. For Hazardous Locations: Class I, Division 2, Groups A, B, C, D. FreeWave Technologies. Inc. FreeWave.com TTL Input Voltage3.3 ‐ 5 N10252 !

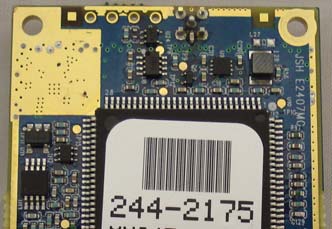

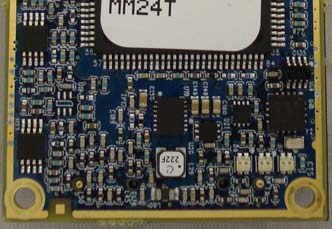

Internal GM‐T14/GXM‐T24 Radio Photo

BMAXC24503 and BMAX24505 97 Permanent Mount - Mobile Series 2.4 GHz ISM Mobile and WLAN Antenna Series These antennas are ideal for vehicles utilizing mobile data terminals. The (B)MAXC models provide wideband performance covering frequencies from 2.2 GHz to 2.9 GHz. They feature a molded polymer base, plated spring- loaded contact pin, and .100" diameter stainless steel whip for long lasting, trouble free service. The MUF24005 (not a wideband model) is a chrome nut antenna with a .062” stainless steel whip. Various mount and connector options provide low-loss mounting for a variety of metal surfaces. General Specifications: 2.4 GHz ISM mobile and WLAN antennas Radiator Material: .100" OD stainless steel; bright (MAXC) or black finish (BMAXC) .062” OD stainless steel; bright finish - MUF model Base: Molded polymer with a plated brass insert ring and a spring-loaded, brass contact pin - (B)MAXC models Brass mount nut with bright chrome finish - MUF model Rod Ferrule: 5/16"-24 thread; bright or black chrome plated brass - (B)MAXC models Nominal Impedance: 50 Ohms Mount Method: 3/4” hole mount Mount Options: Unless otherwise specified, the following mounts include 17’ of ML195 high efficiency, low loss cable. SMML1953/4” hole mount, 1-1/8”-18 thread stainless steel mount. BMML1953/4” hole, 1-1/8”-18 thread brass mount. MAML1953/8” or 3/4” hole, 1-1/8”-18 thread mount for 1/8” thick plates. BMATM3383/8” hole, 1-1/8”-18 thread adjustable brass mount for metal surfaces of 1/32”-1/2” thickness. No cable or connector. MTPM8005/8” hole, 1-1/8”-18 thread thick plate mount. Terminates in an N, female connector. No cable. Order cable assembly separately. MVP5/8” hole, vandal proof mount. No cable or connector. MPM26-NC3/4” hole, 1-1/8-18 thread, 26° pivot mount. Includes 17’ RG58A/U cable. No connector. MPM26DSCP3/4” hole, 1-1/8-18 thread, 26° pivot mount. Includes 17’double shielded cable with PL-259 connector. MMF3/4” hole, 1-1/8”-18 mount for frequencies above 1 GHz. Terminates in an SMA, male connector. No cable. Order cable assembly (SMA, female ending) separately. Features and Benefits: • Molded polymer base ((B)MAXC models). Provides ruggedness and dura- bility in harsh mobile environments. Flexible rod design (MUF24005 model). Less prone to breakage in tough mobile environments. •Compact design. Measuring less than 9” tall, these antennas are ideal for industrial applications where vehicle clearance is a concern. •Wideband performance (BMAXC models only) provide coverage of 2.2 GHz to 2.9 GHz frequencies without any tuning required. BM Mount MPM26 Mount MVP Mount MMF Mount MA Mount SM Mount An ISO-9001 Registered Company MTPM800 Mount Model #Frequency Range Factory Tuned Frequency Coil TypeVSWRMaximum PowerGain (B)MAXC245032.2-2.9 GHz2.45 GHzClosed< 1.5:1100 Watts3 dBi (B)MAXC245052.2-2.9 GHz2.45 GHzClosed< 1.5:1100 Watts5 dBi MUF240052.4-2.48 GHz2.45 GHzOpen< 1.5:1100 Watts5 dBi * Prefix “B” indicates a black finish. Model #Antenna HeightWeight (B)MAXC245035.25” (133.35 mm)0.12 lbs (0.054 kg) (B)MAXC245057.50” (190.50 mm)0.16 lbs (0.073 kg) MUF240058.75” (222.25 mm)0.10 lbs (0.045 kg) * Prefix “B” indicates a black finish. Mechanical Specifications Electrical Specifications ORDER (800) 323-9122 FAX (630) 372-8077 www.maxrad.com Specifications 98

FreeWave Technologies, Inc. GXM-T24 Report No. FREW0012.2 FCC 2.1091:2013 Maximum Permissible Exposure Level Report Prepared By Northwest EMC Inc. NORTHWEST EMC – (888) 364-2378 – www.nwemc.com California – Minnesota – Oregon – New York – Washington 22975 NW Evergreen Parkway Suite 400 Hillsboro, Oregon 97124 Certificate of Evaluation Date of Evaluation: November 25, 2013 FreeWave Technologies, Inc. Model: GXM-T24 Emissions Description of Evaluation Specification Evaluation Method Pass/Fail Maximum Permissible Exposure FCC 2.1091:2013 KDB 447498 D01 General RF Exposure Guidance v05r01 Pass Approved By: Don Facteau, IS Manager NVLAP Lab Code: 200630-0 This report must not be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government of the United States of America. Product compliance is the responsibility of the client, therefore the tests and equipment modes of operation represented in this report were agreed upon by the client, prior to testing. This Report may only be duplicated in its entirety. The results of this test pertain only to the sample(s) tested. The specific description is noted in each of the individual sections of the test report supporting this certificate of test. Report No. FREW0012.22/9 REV 2012.08.02 REVISION HISTORY Revision Number Description Date Page Number 00 None Barometric Pressure The recorded barometric pressure has been normalized to sea level. Report No. FREW0012.23/9 REV 2012.05.24 ACCREDITATIONS AND AUTHORIZATIONS United States FCC - Designated by the FCC as a Telecommunications Certification Body (TCB). Certification chambers, Open Area Test Sites, and conducted measurement facilities are listed with the FCC. A2LA - Accredited by A2LA to ISO / IEC Guide 65 as a product certifier. This allows Northwest EMC to certify transmitters to FCC and IC specifications. NVLAP - Each laboratory is accredited by NVLAP to ISO 17025 Canada IC - Recognized by Industry Canada as a Certification Body (CB). Certification chambers and Open Area Test Sites are filed with IC. European Union European Commission – Validated by the European Commission as a Conformity Assessment Body (CAB) under the EMC directive and as a Notified Body under the R&TTE Directive. Australia/New Zealand ACMA - Recognized by ACMA as a CAB for the acceptance of test data. Korea KCC / RRA - Recognized by KCC’s RRA as a CAB for the acceptance of test data. Japan VCCI - Associate Member of the VCCI. Conducted and radiated measurement facilities are registered. Taiwan BSMI – Recognized by BSMI as a CAB for the acceptance of test data. NCC - Recognized by NCC as a CAB for the acceptance of test data. Singapore IDA – Recognized by IDA as a CAB for the acceptance of test data. Hong Kong OFTA – Recognized by OFTA as a CAB for the acceptance of test data. Vietnam MIC – Recognized by MIC as a CAB for the acceptance of test data. Russia GOST – Accredited by Certinform VNIINMASH, CERTINFO, SAMTES, and Federal CHEC to perform EMC and Hygienic testing for Information Technology products to GOST standards. SCOPE For details on the Scopes of our Accreditations, please visit: http://www.nwemc.com/accreditations/ Report No. FREW0012.24/9 REV 2013.02.26 LOCATIONS Oregon Labs EV01-12 22975 NW Evergreen Pkwy Hillsboro, OR 97124 (503) 844-4066 California Labs OC01-13 41 Tesla Irvine, CA 92618 (949) 861-8918 New York Labs NY01-04 4939 Jordan Rd. Elbridge, NY 13060 (315) 685-0796 Minnesota Labs MN01-08 9349 W Broadway Ave. Brooklyn Park, MN 55445 (763) 425-2281 Washington Labs NC01-05,SU02,SU07 19201 120 th Ave. NE Bothell, WA 98011 (425) 984-6600 VCCI A-0108 A-0029 A-0109 A-0110 Industry Canada 2834D-1, 2834D-2 2834B-1, 2834B-2, 2834B-3 2834E-1 2834C-1 NVLAP NVLAP Lab Code: 200630-0 NVLAP Lab Code: 200676-0 NVLAP Lab Code: 200761-0 NVLAP Lab Code: 200881-0 NVLAP Lab Code: 200629-0 Report No. FREW0012.25/9 Product Description Revision 09/01/11 Client and Equipment Under Test (EUT) Information Company Name: FreeWave Technologies, Inc. Address: 5395 Pearl Parkway, Suite 100 City, State, Zip: Boulder, CO 80301 Test Requested By: Dean Busch Model: GXM-T24 Date of Evaluation: November 5, 2013 Information Provided by the Party Requesting the Test Functional Description of the EUT (Equipment Under Test): 2.4 GHz FHSS industrial radio module Objective: To demonstrate compliance with FCC requirements for RF exposure for 2.1091 mobile devices Report No. FREW0012.26/9 WD.12.29.11 Maximum Permissible Exposure (MPE) OVERVIEW Human exposure to RF emissions from mobile devices (47 CFR §2.1091) may be evaluated based on the MPE limits adopted by the FCC for electric and magnetic field strength and/or power density, as appropriate, since exposures are assumed to occur at distances of 20 cm or more from persons. ANSI C95.1-1992 specifies a minimum separation distance of 20 cm for performing reliable field measurements to determine adherence to MPE limits. If the minimum separation distance between a transmitter and nearby persons is more than 20 cm under normal operating conditions, compliance with MPE limits may be determined at such distance from the transmitter. When applicable, operation instructions and prominent warning labels may be used to alert the exposed persons to maintain a specified distance from the transmitter or to limit their exposure durations and usage conditions to ensure compliance. If the use of warning labels on a transmitter is not effective or desirable, the alternative of performing SAR evaluation with the device at its closest range to persons under normal operating conditions may be used. The field strength and power density limits adopted by the FCC are based on whole-body averaged exposure and the assumption of RF field levels relate most accurately to estimating whole-body averaged SAR. This means some local values of exposures exceeding the stated field strength and power density limits may not necessarily imply non-compliance if the spatial average of…

Text truncated - open the document above for the full version.

FreeWave Technologies, Inc. GXM-T24 FCC 15.247:2013 Report #: FREW0012 Report Prepared By Northwest EMC Inc. NORTHWEST EMC – (888) 364-2378 – www.nwemc.com California – Minnesota – Oregon – New York – Washington WTD 12.5.23 CERTIFICATE OF TEST Last Date of Test: October 30, 2013 FreeWave Technologies, Inc. Model: GXM-T24 Emissions Test Description Specification Test Method Pass/Fail Duty Cycle FCC 15.247:2013 ANSI C63.10:2009 Pass Output Power FCC 15.247:2013 ANSI C63.10:2009 Pass Occupied Bandwidth FCC 15.247:2013 ANSI C63.10:2009 Pass Spurious Conducted Emissions FCC 15.247:2013 ANSI C63.10:2009 Pass Band Edge Compliance FCC 15.247:2013 ANSI C63.10:2009 Pass Band Edge Compliance-Hopping Mode FCC 15.247:2013 ANSI C63.10:2009 Pass Channel Spacing FCC 15.247:2013 ANSI C63.10:2009 Pass Number of Hopping Frequencies FCC 15.247:2013 ANSI C63.10:2009 Pass Dwell Time FCC 15.247:2013 ANSI C63.10:2009 Pass Spurious Radiated Emissions FCC 15.247:2013 ANSI C63.10:2009 Pass AC Powerline Conducted Emissions FCC 15.207:2013 ANSI C63.10:2009 Pass Deviations From Test Standards None Approved By: Rod Munro, Operations Manager NVLAP Lab Code: 200629-0 This report must not be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government of the United States of America. Product compliance is the responsibility of the client, therefore the tests and equipment modes of operation represented in this report were agreed upon by the client, prior to testing. This Report may only be duplicated in its entirety. The results of this test pertain only to the sample(s) tested. The specific description is noted in each of the individual sections of the test report supporting this certificate of test. REV 2012.08.02 REVISION HISTORY Revision Number Description Date Page Number 00 None Barometric Pressure The recorded barometric pressure has been normalized to sea level. REV 2012.05.24 ACCREDITATIONS AND AUTHORIZATIONS United States FCC - Designated by the FCC as a Telecommunications Certification Body (TCB). Certification chambers, Open Area Test Sites, and conducted measurement facilities are listed with the FCC. A2LA - Accredited by A2LA to ISO / IEC Guide 65 as a product certifier. This allows Northwest EMC to certify transmitters to FCC and IC specifications. NVLAP - Each laboratory is accredited by NVLAP to ISO 17025 Canada IC - Recognized by Industry Canada as a Certification Body (CB). Certification chambers and Open Area Test Sites are filed with IC. European Union European Commission – Validated by the European Commission as a Conformity Assessment Body (CAB) under the EMC directive and as a Notified Body under the R&TTE Directive. Australia/New Zealand ACMA - Recognized by ACMA as a CAB for the acceptance of test data. Korea KCC / RRA - Recognized by KCC’s RRA as a CAB for the acceptance of test data. Japan VCCI - Associate Member of the VCCI. Conducted and radiated measurement facilities are registered. Taiwan BSMI – Recognized by BSMI as a CAB for the acceptance of test data. NCC - Recognized by NCC as a CAB for the acceptance of test data. Singapore IDA – Recognized by IDA as a CAB for the acceptance of test data. Hong Kong OFTA – Recognized by OFTA as a CAB for the acceptance of test data. Vietnam MIC – Recognized by MIC as a CAB for the acceptance of test data. Russia GOST – Accredited by Certinform VNIINMASH, CERTINFO, SAMTES, and Federal CHEC to perform EMC and Hygienic testing for Information Technology products to GOST standards. SCOPE For details on the Scopes of our Accreditations, please visit: http://www.nwemc.com/accreditations/ REV 2013.03.8 MEASUREMENT UNCERTAINTY Measurement Uncertainty When a measurement is made, the result will be different from the true or theoretically correct value. The difference is the result of tolerances in the measurement system that cannot be completely eliminated. To the extent that technology allows us, it has been our aim to minimize this error. Measurement uncertainty is a statistical expression of measurement error qualified by a probability distribution. A measurement uncertainty estimation has been performed for each test per our internal quality document WP 342. The estimation is used to compare the measured result with its "true" or theoretically correct value. The expanded measurement uncertainty (K=2) for each test is listed below. Our measurement data meets or exceeds the measurement uncertainty requirements of the applicable specification; therefore, the test data can be compared directly to the specification limit to determine compliance. The calculations for estimating measurement uncertainty are based upon ETSI TR 100 028 (or CISPR 16-4-1 as applicable), and are available upo…

Text truncated - open the document above for the full version.
