KNYASM1101CR802.11bgn PCIe Module

Part Number: LFC0003AA Revision: A Last Updated: 08/20/2013 FreeWave W2400-01 RF Module Guide Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20 cm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. OEM Integration Conditions This device is intended only for OEM integrators under the following conditions: 1. The antenna must be installed such that 20 cm is maintained between the antenna and users, and 2. The transmitter module may not be co-located with any other transmitter or antenna As long as the conditions above are met, further transmitter test will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with the module installed. IMPORTANT! In the event that these conditions cannot be met (for example certain laptop configurations or co-location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID cannot be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization. End Product Labeling This transmitter module is authorized only for use in device where the antenna may be installed such that 20 cm may be maintained between the antenna and users. The final end product must be labeled in a visible area with the following: “Contains FCC ID: KNYASM1101CR”. Manual Information to the End User The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this RF module in the user manual of the end product that integrates this module. The end user manual shall include all required regulatory information/warning as show in this manual. Industry Canada Statement This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: 1. This device may not cause interference, and 2. This device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : 1. l'appareil ne doit pas produire de brouillage, et 2. l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. Radiation Exposure Statement The product comply with the Canada portable RF exposure limit set forth for an uncontrolled environment and are safe for intended operation as described in this manual. The further RF exposure reduction can be achieved if the product can be kept as far as possible from the user body or set the device to lower output power if such function is available. Déclaration d'exposition aux radiations Le produit est conforme aux limites d'exposition pour les appareils portables RF pour les Etats-Unis et le Canada établies pour un environnement non contrôlé. Le produit est sûr pour un fonctionnement tel que décrit dans ce manuel. La réduction aux expositions RF peut être augmentée si l'appareil peut être conservé aussi loin que possible du corps de l'utilisateur ou que le dispositif est réglé sur la puissance de sortie la plus faible si une telle fonction est disponible. OEM Integration Conditions This device is intended only for OEM integrators under the following conditions: 1. The transmitter module may not be co-located with any other transmitter or antenna. As long as 1 condition above are met, further transmitter test will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed. Cet appareil est conçu uniquement pour les intégrateurs OEM dans les conditions suivantes: 1. Le module émetteur peut ne pas être coïmplanté avec un autre émetteur ou antenne. Tant que les 1 condition ci-dessus sont remplies, des essais supplémentaires sur l'émetteur ne seront pas nécessaires. Toutefois, l'intégrateur OEM est toujours responsable des essais sur son produi…

Text truncated - open the document above for the full version.

International Certification Corp. (全球檢測股份有限公司) Te l：886-3-271-8666 Fax : 886-3-318-0155 No.3-1, Lane 6, Wen 33rd Rd., Kwei Shan Hsiang, Tao Yuan Hsein 333, Taiwan (R.O.C.) Subject: Modular approval request FCC ID: KNYASM1101CR Date: August 27, 2013 Dear reviewer: The modular would like to have authorization as a modular approval. The requirements of section 15.212 have been met and shown on the following statements 1) The radio elements of the modular transmitter must have their own shielding The modular has shielding. Please refer to external photo. 2) The modular transmitter must have buffered modulation/da ta inputs The buffer is integrated withAR9590B 3) The modular transmitter must have its own power supply regulation The part No. of regulator is RT8010 4) The modular transmitter must comply with the antenna and transmission system requirements of §§15.203, 15.204(b) and 15.204 (c). No external amplifier is used for this module. 15.203 requirements does not apply to this module since this module is professionally installed. 5) The modular transmitter must be tested in a stand-alone configuration The modular is tested in a stand-alone configuration via an extender. Please refer to test setup photo. 6) The modular transmitter must be equipped with either a permanently affixed label or must be cap able of electronically displaying its FCC identification number. The modular complies with the requirement. Please refer to label location and label sample exhibit. 7) The modular transmitter must comply with any specific rules or operating requirements The modular complies with the requirement. Detail information please refer to user manual 8) The modular transmitter must comply with any applicable RF exposure requirements in its final configuration. The modular complies with the requirement for mobile and fixed installation. Please refer to RF exposure exhibit Please contact me if you have any questions about this l e t t e r. Best regards Gary Chang , Manager Report & Certification department Tel:+886-3-271-8628 Email:[email protected]

August 6, 2013 Federal Communications Commission 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Product Certification Representative Authorization Letter FCC ID: KNYASM1101CR Product name: 802.11 bgn PCIe Module To whom it may concern: We the undersigned, hereby authorize following person to act as our agent in the preparation of an application for equipment authorization of model W2400-01 to the FCC Rules and Regulations. International Certification Corp. Address : No.3-1, Lane 6, Wen San 3rd St. Kwei Shan Hsiang, Tao Yuan Hsein 333, Taiwan (R.O.C.) Name : Gary Chang Job Title : Manager e-mail : [email protected] Webs We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002(b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This appointment also includes the authority to complete FCC Form 731 on our behalf and sign the application as an authorized agent. Sincerely; Dean Busch Sr. Compliance Engineer FreeWave Technologies Inc. Tel: 303 962-7879 E-mail: [email protected]

FCC Test Report Report No. : EP362202 SPORTON International Inc. Page No. : B1 of B17 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Appendix B. Photographs of EUT FCC Test Report Report No. : EP362202 SPORTON International Inc. Page No. : B2 of B17 TEL : 886-3-327-3456 FAX : 886-3-327-0973 FCC Test Report Report No. : EP362202 SPORTON International Inc. Page No. : B3 of B17 TEL : 886-3-327-3456 FAX : 886-3-327-0973 FCC Test Report Report No. : EP362202 SPORTON International Inc. Page No. : B4 of B17 TEL : 886-3-327-3456 FAX : 886-3-327-0973 FCC Test Report Report No. : EP362202 SPORTON International Inc. Page No. : B5 of B17 TEL : 886-3-327-3456 FAX : 886-3-327-0973 FCC Test Report Report No. : EP362202 SPORTON International Inc. Page No. : B6 of B17 TEL : 886-3-327-3456 FAX : 886-3-327-0973 FCC Test Report Report No. : EP362202 SPORTON International Inc. Page No. : B7 of B17 TEL : 886-3-327-3456 FAX : 886-3-327-0973 FCC Test Report Report No. : EP362202 SPORTON International Inc. Page No. : B8 of B17 TEL : 886-3-327-3456 FAX : 886-3-327-0973 FCC Test Report Report No. : EP362202 SPORTON International Inc. Page No. : B9 of B17 TEL : 886-3-327-3456 FAX : 886-3-327-0973 FCC Test Report Report No. : EP362202 SPORTON International Inc. Page No. : B10 of B17 TEL : 886-3-327-3456 FAX : 886-3-327-0973 FCC Test Report Report No. : EP362202 SPORTON International Inc. Page No. : B11 of B17 TEL : 886-3-327-3456 FAX : 886-3-327-0973 FCC Test Report Report No. : EP362202 SPORTON International Inc. Page No. : B12 of B17 TEL : 886-3-327-3456 FAX : 886-3-327-0973 FCC Test Report Report No. : EP362202 SPORTON International Inc. Page No. : B13 of B17 TEL : 886-3-327-3456 FAX : 886-3-327-0973 FCC Test Report Report No. : EP362202 SPORTON International Inc. Page No. : B14 of B17 TEL : 886-3-327-3456 FAX : 886-3-327-0973 FCC Test Report Report No. : EP362202 SPORTON International Inc. Page No. : B15 of B17 TEL : 886-3-327-3456 FAX : 886-3-327-0973

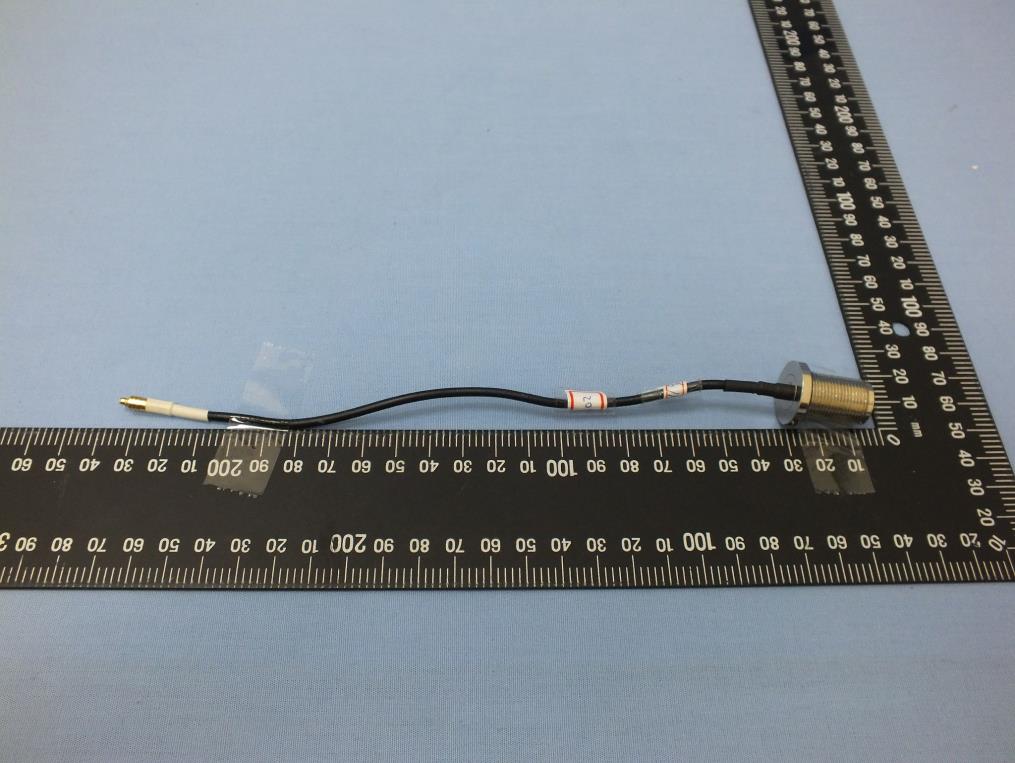

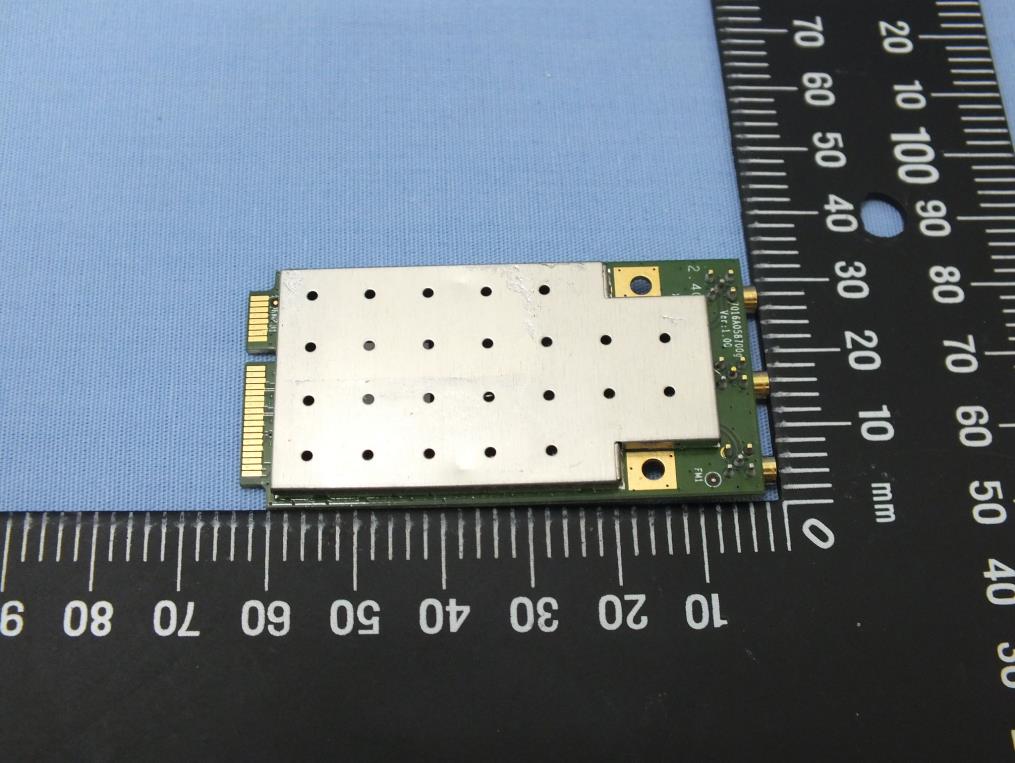

Front side of EUT Label location Antenna connector

FCC Test Report Report No. : EP362202 SPORTON International Inc. Page No. : B16 of B17 TEL : 886-3-327-3456 FAX : 886-3-327-0973 FCC Test Report Report No. : EP362202 SPORTON International Inc. Page No. : B17 of B17 TEL : 886-3-327-3456 FAX : 886-3-327-0973

FCC EMF Test Report Report No. : FA362202 SPORTON INTERNATIONAL INC. Page No. : 1 of 3 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 Human Exposure Assessment 1.1 Maximum Permissible Exposure 1.1.1 Limit of Maximum Permissible Exposure Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 - - F/300 6 1500-100,000 - - 5 6 Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 - - F/1500 30 1500-100,000 - - 1.0 30 Note 1: f = frequency in MHz ; *Plane-wave equivalent power density Note 2: For the applicable limit, see FCC 1.1310 FCC EMF Test Report Report No. : FA362202 SPORTON INTERNATIONAL INC. Page No. : 2 of 3 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 RF Field Strength Limits for Controlled Use Devices (Controlled Environment) Frequency Range (MHz) Electric Field (V/m rms) Magnetic Field (A/m rms) Power Density (W/m2) Averaging Time (minutes) 0.003-1 600 4.9 - 6 1-10 600/ƒ 4.9/ƒ - 6 10-30 60 4.9/ƒ - 6 30-300 60 0.163 10* 6 300-1500 3.54 ƒ 0.5 0.0094 ƒ 0.5 ƒ/30 6 1500-15000 137 0.364 50 6 15000-150000 137 0.364 50 616000/ƒ 1.2 150000-300000 0.354 ƒ 0.5 9.4 x 10-4 ƒ 0.5 3.33 x 10-4 ƒ 616000/ƒ 1.2 RF Field Strength Limits for Devices Used by the General Public (Uncontrolled Environment) Frequency Range (MHz) Electric Field (V/m rms) Magnetic Field (A/m rms) Power Density (W/m2) Averaging Time (minutes) 0.003-1 280 2.19 - 6 1-10 280/ƒ 2.19/ƒ - 6 10-30 28 2.19/ƒ - 6 30-300 28 0.073 2* 6 300-1500 1.585 ƒ 0.5 0.0042 ƒ 0.5 ƒ/150 6 1500-15000 61.4 0.163 10 6 15000-150000 61.4 0.163 10 616000/ƒ 1.2 150000-300000 0.158 ƒ 0.5 4.21 x 10 -4 ƒ 0.5 6.67 x 10 -5 ƒ 616000/ƒ 1.2 Note 1: ƒ is frequency in MHz. Note 2: For the applicable limit, see IC RSS-102 1.1.2 MPE Calculation Method E (V/m) = d GP30 Power Density: Pd (W/m 2 ) = 377 E 2 E = Electric field (V/m) P = RF output power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 d377 GP30   FCC EMF Test Report Report No. : FA362202 SPORTON INTERNATIONAL INC. Page No. : 3 of 3 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1.1.3 Result of Maximum Permissible Exposure Operating mode Frequency Range (MHz) Maximum Conducted Power (dBm) Antenna Gain (dBi) Distance (cm) Power Density (mW/cm 2 ) Limit (mW/cm 2 ) 1 2412~2462 17.25 16 20 0.420 1 2 2412~2462 23.55 12 20 0.714 1 3 2412~2462 21.66 14 20 0.732 1 4 2412~2462 2.02 24 20 0.080 1 5 2412~2462 27.86 5 20 0.384 1

FCC Test Report Report No. : FR362202 SPORTON INTERNATIONAL INC. Page No. : 1 of 213 TEL : 886-3-327-3456 Report Version : Rev. 03 FAX : 886-3-327-0973 FCC Test Report Equipment : 802.11 bgn PCIe Module Brand Name : FreeWave Model No. : W2400-01 FCC ID : KNYASM1101CR Standard : 47 CFR FCC Part 15.247 Operating Band : 2400 MHz – 2483.5 MHz Equipment Class : DTS Applicant : FreeWave Technologies Inc. 5395 Pearl Parkway, Suite 100, Boulder, CO 80301, U.S.A. The product sample received on Jul. 06, 2013 and completely tested on Aug. 08, 2013. We, SPORTON, would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI C63.10-2009 and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Gary Chang / Manager FCC Test Report Report No. : FR362202 SPORTON INTERNATIONAL INC. Page No. : 2 of 213 TEL : 886-3-327-3456 Report Version : Rev. 03 FAX : 886-3-327-0973 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information .............................................................................................................................................. 5 1.2 Accessories and Support Equipment ..................................................................................................... 7 1.3 Testing Applied Standards ..................................................................................................................... 7 1.4 Testing Location Information .................................................................................................................. 7 1.5 Measurement Uncertainty ...................................................................................................................... 8 2 TEST CONFIGURATION OF EUT......................................................................................................... 9 2.1 The Worst Case Modulation Configuration ............................................................................................ 9 2.2 Test Channel Frequencies Configuration ............................................................................................... 9 2.3 The Worst Case Power Setting Parameter ............................................................................................ 9 2.4 The Worst Case Measurement Configuration ...................................................................................... 12 2.5 Test Setup Diagram ............................................................................................................................. 13 3 TRANSMITTER TEST RESULT .......................................................................................................... 14 3.1 AC Power-line Conducted Emissions .................................................................................................. 14 3.2 6dB Bandwidth ..................................................................................................................................... 25 3.3 RF Output Power .................................................................................................................................. 31 3.4 Power Spectral Density ........................................................................................................................ 39 3.5 Emissions in non-restricted frequency bands ...................................................................................... 46 3.6 Transmitter Radiated Unwanted Emissions ......................................................................................... 85 4 TEST EQUIPMENT AND CALIBRATION DATA .............................................................................. 212 APPENDIX A. TEST PHOTOS ............................................................................................................... A1-A20 APPENDIX B. PHOTOGRAPHS OF EUT .............................................................................................. B1-B17 FCC Test Report Report No. : FR362202 SPORTON INTERNATIONAL INC. Page No. : 3 of 213 TEL : 886-3-327-3456 Report Version : Rev. 03 FAX : 886-3-327-0973 Summary of Test Result Conformance Test Specifications Report Clause Ref. Std. Clause Description Measured Limit Result 1.1.2 15.203 Antenna Requirement Antenna connector mechanism complied FCC 15.203 Complied 3.1 15.207 AC Power-line Conducted Emissions [dBuV]: 0.484MHz 36.87 (Margin 9.40dB) - AV 43.25 (Margin 13.02dB) - QP FCC 15.207 Complied 3.2 15.247(a) 6dB Bandwidth 6dB Bandwidth Unit [MHz] 20M: 17.62 / 40M: 36.41 ≥500kHz Complied 3.3 15.247(b) RF Output Power (Maximum Conducted (Average) Output Power) Power [dBm]: 27.86 Power [dBm]: 30 Complied 3.4 15.247(e) Power Spectral Density PSD [dBm/30kHz]: 4.13 PSD [dBm/3kHz]: 4.23 Complied 3.5 15.247(d) Emissions in non-restricted frequency bands Out-of -band emissions are 30dB below the highest power Non-Restricted Bands: > 30 dBc Restricted Bands: FCC 15.209 Complied 3.6 15.247(d) Transmitter Radiated Unwanted Emissions Restricted Bands [dBuV/m at 3m]: 2483.50MHz 52.99 (Margin 1.01dB) - AV Non-Restricted Bands: > 30 dBc Restricted Bands: FCC 15.209 Complied FCC Test Report Report No. : FR362202 SPORTON INTERNATIONAL INC. Page No. : 4 of 213 TEL : 886-3-327-3456 Report Version : Rev. 03 FAX : 886-3-327-0973 Revision History Report No. Version Description Issued Date FR362202 Rev. 01 Initial issue of report Aug. 12, 2013 FR362202 Rev. 02 Added antenna manufacturer and model into report. (Page 5) Sep. 05, 2013 FR362202 Rev. 03 Changed antenna manufacturer of Dipole. (Page 5) Sep. 13, 2013 2500-2690 FCC Test Report Report No. : FR362202 SPORTON INTERNATIONAL INC. Page No. : 5 of 213 TEL : 886-3-…

Text truncated - open the document above for the full version.

FCC Test Report Report No. : FR362202 SPORTON INTERNATIONAL INC. Page No. : 51 of 213 TEL : 886-3-327-3456 Report Version : Rev. 03 FAX : 886-3-327-0973 802.11n HT20 Reference Level TX 2412 MHz / 30MHz~25GHz (down 30dBc) -- --- FCC Test Report Report No. : FR362202 SPORTON INTERNATIONAL INC. Page No. : 52 of 213 TEL : 886-3-327-3456 Report Version : Rev. 03 FAX : 886-3-327-0973 TX 2437 MHz / 30MHz~25GHz (down 30dBc) TX 2462 MHz / 30MHz~25GHz (down 30dBc) FCC Test Report Report No. : FR362202 SPORTON INTERNATIONAL INC. Page No. : 53 of 213 TEL : 886-3-327-3456 Report Version : Rev. 03 FAX : 886-3-327-0973 802.11n HT40 Reference Level Tx 2422MHz / 30MHz~25GHz (down 30dBc) --- --- FCC Test Report Report No. : FR362202 SPORTON INTERNATIONAL INC. Page No. : 54 of 213 TEL : 886-3-327-3456 Report Version : Rev. 03 FAX : 886-3-327-0973 Tx 2437MHz / 30MHz~25GHz (down 30dBc) Tx 2452 / 30MHz~25GHz (down 30dBc) FCC Test Report Report No. : FR362202 SPORTON INTERNATIONAL INC. Page No. : 55 of 213 TEL : 886-3-327-3456 Report Version : Rev. 03 FAX : 886-3-327-0973 Operating mode 2 802.11b Reference Level TX 2412 MHz / 30MHz~25GHz (down 30dBc) --- --- FCC Test Report Report No. : FR362202 SPORTON INTERNATIONAL INC. Page No. : 56 of 213 TEL : 886-3-327-3456 Report Version : Rev. 03 FAX : 886-3-327-0973 TX 2437 MHz / 30MHz~25GHz (down 30dBc) TX 2462 MHz / 30MHz~25GHz (down 30dBc) FCC Test Report Report No. : FR362202 SPORTON INTERNATIONAL INC. Page No. : 57 of 213 TEL : 886-3-327-3456 Report Version : Rev. 03 FAX : 886-3-327-0973 802.11g Reference Level TX 2412 MHz / 30MHz~25GHz (down 30dBc) --- --- FCC Test Report Report No. : FR362202 SPORTON INTERNATIONAL INC. Page No. : 58 of 213 TEL : 886-3-327-3456 Report Version : Rev. 03 FAX : 886-3-327-0973 TX 2437 MHz / 30MHz~25GHz (down 30dBc) TX 2462 MHz / 30MHz~25GHz (down 30dBc) FCC Test Report Report No. : FR362202 SPORTON INTERNATIONAL INC. Page No. : 59 of 213 TEL : 886-3-327-3456 Report Version : Rev. 03 FAX : 886-3-327-0973 802.11n HT20 Reference Level TX 2412 MHz / 30MHz~25GHz (down 30dBc) -- --- FCC Test Report Report No. : FR362202 SPORTON INTERNATIONAL INC. Page No. : 60 of 213 TEL : 886-3-327-3456 Report Version : Rev. 03 FAX : 886-3-327-0973 TX 2437 MHz / 30MHz~25GHz (down 30dBc) TX 2462 MHz / 30MHz~25GHz (down 30dBc)

FCC Test Report Report No. : FR362202 SPORTON INTERNATIONAL INC. Page No. : 61 of 213 TEL : 886-3-327-3456 Report Version : Rev. 03 FAX : 886-3-327-0973 802.11n HT40 Reference Level Tx 2422MHz / 30MHz~25GHz (down 30dBc) --- --- FCC Test Report Report No. : FR362202 SPORTON INTERNATIONAL INC. Page No. : 62 of 213 TEL : 886-3-327-3456 Report Version : Rev. 03 FAX : 886-3-327-0973 Tx 2437MHz / 30MHz~25GHz (down 30dBc) Tx 2452 / 30MHz~25GHz (down 30dBc) FCC Test Report Report No. : FR362202 SPORTON INTERNATIONAL INC. Page No. : 63 of 213 TEL : 886-3-327-3456 Report Version : Rev. 03 FAX : 886-3-327-0973 Operating mode 3 802.11b Reference Level TX 2412 MHz / 30MHz~25GHz (down 30dBc) --- --- FCC Test Report Report No. : FR362202 SPORTON INTERNATIONAL INC. Page No. : 64 of 213 TEL : 886-3-327-3456 Report Version : Rev. 03 FAX : 886-3-327-0973 TX 2437 MHz / 30MHz~25GHz (down 30dBc) TX 2462 MHz / 30MHz~25GHz (down 30dBc) FCC Test Report Report No. : FR362202 SPORTON INTERNATIONAL INC. Page No. : 65 of 213 TEL : 886-3-327-3456 Report Version : Rev. 03 FAX : 886-3-327-0973 802.11g Reference Level TX 2412 MHz / 30MHz~25GHz (down 30dBc) --- --- FCC Test Report Report No. : FR362202 SPORTON INTERNATIONAL INC. Page No. : 66 of 213 TEL : 886-3-327-3456 Report Version : Rev. 03 FAX : 886-3-327-0973 TX 2437 MHz / 30MHz~25GHz (down 30dBc) TX 2462 MHz / 30MHz~25GHz (down 30dBc) FCC Test Report Report No. : FR362202 SPORTON INTERNATIONAL INC. Page No. : 67 of 213 TEL : 886-3-327-3456 Report Version : Rev. 03 FAX : 886-3-327-0973 802.11n HT20 Reference Level TX 2412 MHz / 30MHz~25GHz (down 30dBc) -- --- FCC Test Report Report No. : FR362202 SPORTON INTERNATIONAL INC. Page No. : 68 of 213 TEL : 886-3-327-3456 Report Version : Rev. 03 FAX : 886-3-327-0973 TX 2437 MHz / 30MHz~25GHz (down 30dBc) TX 2462 MHz / 30MHz~25GHz (down 30dBc) FCC Test Report Report No. : FR362202 SPORTON INTERNATIONAL INC. Page No. : 69 of 213 TEL : 886-3-327-3456 Report Version : Rev. 03 FAX : 886-3-327-0973 802.11n HT40 Reference Level Tx 2422MHz / 30MHz~25GHz (down 30dBc) --- --- FCC Test Report Report No. : FR362202 SPORTON INTERNATIONAL INC. Page No. : 70 of 213 TEL : 886-3-327-3456 Report Version : Rev. 03 FAX : 886-3-327-0973 Tx 2437MHz / 30MHz~25GHz (down 30dBc) Tx 2452 / 30MHz~25GHz (down 30dBc) FCC Test Report Report No. : FR362202 SPORTON INTERNATIONAL INC. Page No. : 71 of 213 TEL : 886-3-327-3456 Report Version : Rev. 03 FAX : 886-3-327-0973 Operating mode 4 802.11b Reference Level TX 2412 MHz / 30MHz~25GHz (down 30dBc) --- --- FCC Test Report Report No. : FR362202 SPORTON INTERNATIONAL INC. Page No. : 72 of 213 TEL : 886-3-327-3456 Report Version : Rev. 03 FAX : 886-3-327-0973 TX 2437 MHz / 30MHz~25GHz (down 30dBc) TX 2462 MHz / 30MHz~25GHz (down 30dBc) FCC Test Report Report No. : FR362202 SPORTON INTERNATIONAL INC. Page No. : 73 of 213 TEL : 886-3-327-3456 Report Version : Rev. 03 FAX : 886-3-327-0973 802.11g Reference Level TX 2412 MHz / 30MHz~25GHz (down 30dBc) --- --- FCC Test Report Report No. : FR362202 SPORTON INTERNATIONAL INC. Page No. : 74 of 213 TEL : 886-3-327-3456 Report Version : Rev. 03 FAX : 886-3-327-0973 TX 2437 MHz / 30MHz~25GHz (down 30dBc) TX 2462 MHz / 30MHz~25GHz (down 30dBc) FCC Test Report Report No. : FR362202 SPORTON INTERNATIONAL INC. Page No. : 75 of 213 TEL : 886-3-327-3456 Report Version : Rev. 03 FAX : 886-3-327-0973 802.11n HT20 Reference Level TX 2412 MHz / 30MHz~25GHz (down 30dBc) -- --- FCC Test Report Report No. : FR362202 SPORTON INTERNATIONAL INC. Page No. : 76 of 213 TEL : 886-3-327-3456 Report Version : Rev. 03 FAX : 886-3-327-0973 TX 2437 MHz / 30MHz~25GHz (down 30dBc) TX 2462 MHz / 30MHz~25GHz (down 30dBc)

FCC Test Report Report No. : FR362202 SPORTON INTERNATIONAL INC. Page No. : 77 of 213 TEL : 886-3-327-3456 Report Version : Rev. 03 FAX : 886-3-327-0973 Operating mode 5 802.11b Reference Level TX 2412 MHz / 30MHz~25GHz (down 30dBc) --- --- FCC Test Report Report No. : FR362202 SPORTON INTERNATIONAL INC. Page No. : 78 of 213 TEL : 886-3-327-3456 Report Version : Rev. 03 FAX : 886-3-327-0973 TX 2437 MHz / 30MHz~25GHz (down 30dBc) TX 2462 MHz / 30MHz~25GHz (down 30dBc) FCC Test Report Report No. : FR362202 SPORTON INTERNATIONAL INC. Page No. : 79 of 213 TEL : 886-3-327-3456 Report Version : Rev. 03 FAX : 886-3-327-0973 802.11g Reference Level TX 2412 MHz / 30MHz~25GHz (down 30dBc) --- --- FCC Test Report Report No. : FR362202 SPORTON INTERNATIONAL INC. Page No. : 80 of 213 TEL : 886-3-327-3456 Report Version : Rev. 03 FAX : 886-3-327-0973 TX 2437 MHz / 30MHz~25GHz (down 30dBc) TX 2462 MHz / 30MHz~25GHz (down 30dBc) FCC Test Report Report No. : FR362202 SPORTON INTERNATIONAL INC. Page No. : 81 of 213 TEL : 886-3-327-3456 Report Version : Rev. 03 FAX : 886-3-327-0973 802.11n HT20 Reference Level TX 2412 MHz / 30MHz~25GHz (down 30dBc) -- --- FCC Test Report Report No. : FR362202 SPORTON INTERNATIONAL INC. Page No. : 82 of 213 TEL : 886-3-327-3456 Report Version : Rev. 03 FAX : 886-3-327-0973 TX 2437 MHz / 30MHz~25GHz (down 30dBc) TX 2462 MHz / 30MHz~25GHz (down 30dBc) FCC Test Report Report No. : FR362202 SPORTON INTERNATIONAL INC. Page No. : 83 of 213 TEL : 886-3-327-3456 Report Version : Rev. 03 FAX : 886-3-327-0973 802.11n HT40 Reference Level Tx 2422MHz / 30MHz~25GHz (down 30dBc) --- --- FCC Test Report Report No. : FR362202 SPORTON INTERNATIONAL INC. Page No. : 84 of 213 TEL : 886-3-327-3456 Report Version : Rev. 03 FAX : 886-3-327-0973 Tx 2437MHz / 30MHz~25GHz (down 30dBc) Tx 2452 / 30MHz~25GHz (down 30dBc)

FCC Test Report Report No. : FR362202 SPORTON INTERNATIONAL INC. Page No. : 85 of 213 TEL : 886-3-327-3456 Report Version : Rev. 03 FAX : 886-3-327-0973 3.6 Transmitter Radiated Unwanted Emissions 3.6.1 Transmitter Radiated Unwanted Emissions Limit Restricted Band Emissions Limit Frequency Range (MHz) Field Strength (uV/m) Field Strength (dBuV/m) Measure Distance (m) 0.009~0.490 2400/F(kHz) 48.5 - 13.8 300 0.490~1.705 24000/F(kHz) 33.8 - 23 30 1.705~30.0 30 29 30 30~88 100 40 3 88~216 150 43.5 3 216~960 200 46 3 Above 960 500 54 3 Note 1: Test distance for frequencies at or above 30 MHz, measurements may be performed at a distance other than the limit distance provided they are not performed in the near field and the emissions to be measured can be detected by the measurement equipment. When performing measurements at a distance other than that specified, the results shall be extrapolated to the specified distance using an extrapolation factor of 20 dB/decade (inverse of linear distance for field-strength measurements, inverse of linear distance-squared for power-density measurements). Note 2: Test distance for frequencies at below 30 MHz, measurements may be performed at a distance closer than the EUT limit distance; however, an attempt should be made to avoid making measurements in the near field. When performing measurements below 30 MHz at a closer distance than the limit distance, the results shall be extrapolated to the specified distance by either making measurements at a minimum of two or more distances on at least one radial to determine the proper extrapolation factor or by using the square of an inverse linear distance extrapolation factor (40 …
