KNYPRW1001EC802.11an PCIe Module

Part Number: LFC0003AA Revision: A Last Updated: 08/20/213 FreeWave W5800-01 RF Module Guide Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 26 cm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. OEM Integration Conditions This device is intended only for OEM integrators under the following conditions: 1. The antenna must be installed such that 20 cm is maintained between the antenna and users, and 2. The antenna must be installed such that 26 cm is maintained between the dish antenna and users 3. The transmitter module may not be co-located with any other transmitter or antenna As long as the above are met, further transmitter test will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed IMPORTANT! In the event that these conditions cannot be met (for example certain laptop configurations or co-location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID cannot be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization. Operations in the 5.15-5.25GHz band are restricted to indoor usage only. List of certificated antennas Model Type 5150~5.850MHz MPE Distance Y5815 Yagi 15 dBi 20 cm ZDAQJ5800-12 Omni 12 dBi 20 cm P250-5.8 Panel 14.4 dBi 20 cm ZDAGP5800-24-12 Dish 24 dBi 26 cm 98618UNXX000 Dipole 7 dBi 20 cm End Product Labeling This transmitter module is authorized only for use in device where the antenna may be installed such that 26 cm may be maintained between the antenna and users. The final end product must be labeled in a visible area with the following: “Contains FCC ID: KNYPRW1001EC”. Manual Information to the End User The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this RF module in the user manual of the end product which integrates this module. The end user manual shall include all required regulatory information/warning as show in this manual. Industry Canada Statement This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: 1. This device may not cause interference, and 2. This device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : 1. l'appareil ne doit pas produire de brouillage, et 2. ('utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. Caution: (i) the device for operation in the band 5150-5250 MHz is only for indoor use to reduce the potential for harmful interference to co-channel mobile satellite systems; Avertissement: (i) les dispositifs fonctionnant dans la bande 5150-5250 MHz sont réservés uniquement pour une utilisation à l’intérieur afin de réduire les risques de brouillage préjudiciable aux systèmes de satellites mobiles utilisant les mêmes canaux; Radiation Exposure Statement: This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 26 cm between the radiator & your body. Déclaration d'exposition aux radiations: Cet équipement est conforme aux limites d'exposition aux rayonnements IC établies pour un environnement non contrôlé. Cet équipement doit être installé et utilisé avec un minimum de 26 cm de distance entre la source de rayonnement et votre corps. OEM Integration Conditions This device is intended only for OEM integrators under the following conditions: 1. The transmitter module may not be co-located with any other transmitter or antenna. As long as 1 condition above are met, further transmitter test will not be required. However, the OEM integrator is still responsible for testing their end-product for any additiona…

Text truncated - open the document above for the full version.

International Certification Corp. (全球檢測股份有限公司) Te l：886-3-271-8666 Fax : 886-3-318-0155 No.3-1, Lane 6, Wen 33rd Rd., Kwei Shan Hsiang, Tao Yuan Hsein 333, Taiwan (R.O.C.) Subject: Modular approval request FCC ID: KNYPRW1001EC Date: September 17, 2013 Dear reviewer: The modular would like to have authorization as a modular approval. The requirements of section 15.212 have been met and shown on the following statements 1) The radio elements of the modular transmitter must have their own shielding The modular has shielding. Please refer to external photo. 2) The modular transmitter must have buffered modulation/da ta inputs The buffer is integrated withAR9590B 3) The modular transmitter must have its own power supply regulation The part No. of regulator is RT8010 4) The modular transmitter must comply with the antenna and transmission system requirements of §§15.203, 15.204(b) and 15.204 (c). No external amplifier is used for this module. 15.203 requirements does not apply to this module since this module is professionally installed. 5) The modular transmitter must be tested in a stand-alone configuration The modular is tested in a stand-alone configuration via an extender. Please refer to test setup photo. 6) The modular transmitter must be equipped with either a permanently affixed label or must be cap able of electronically displaying its FCC identification number. The modular complies with the requirement. Please refer to label location and label sample exhibit. 7) The modular transmitter must comply with any specific rules or operating requirements The modular complies with the requirement. Detail information please refer to user manual 8) The modular transmitter must comply with any applicable RF exposure requirements in its final configuration. The modular complies with the requirement for mobile and fixed installation. Please refer to RF exposure exhibit Please contact me if you have any questions about this l e t t e r. Best regards Gary Chang , Manager Report & Certification department Tel:+886-3-271-8628 Email:[email protected]

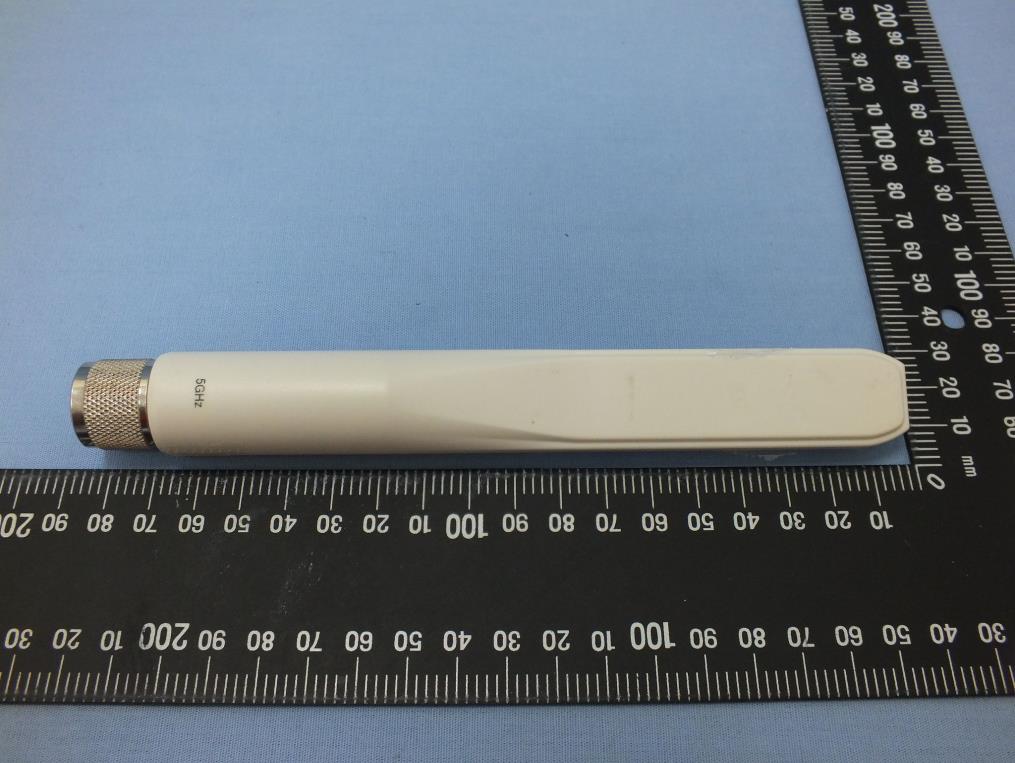

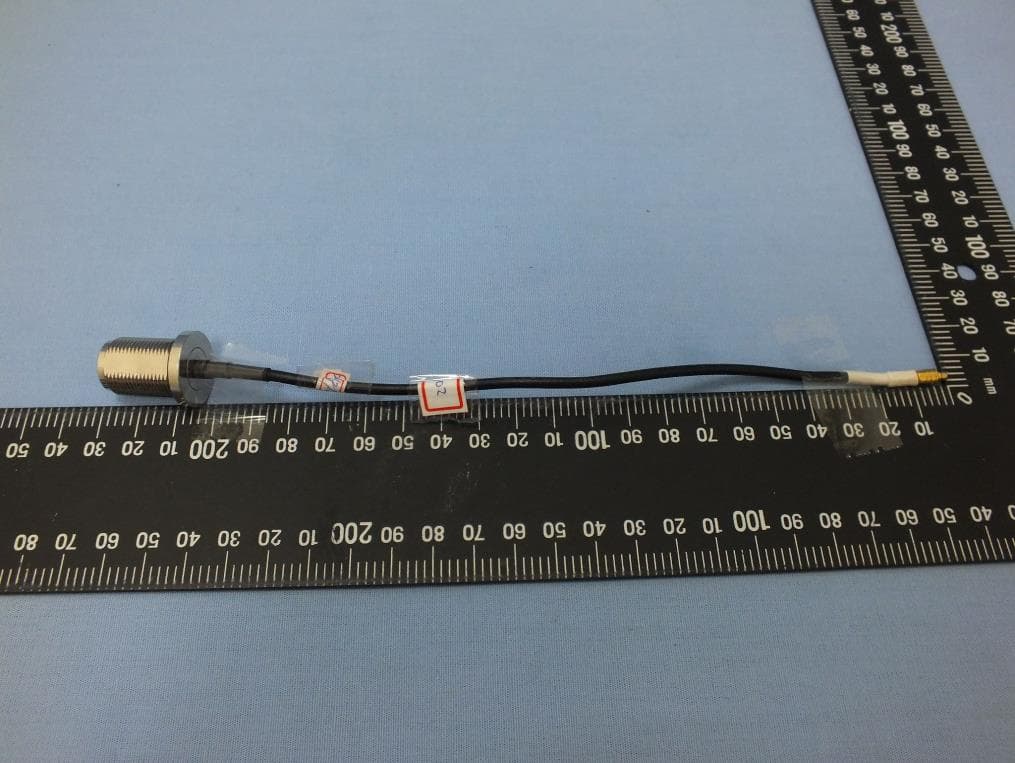

Report No. : EP362203 SPORTON International Inc. Page No. : 1 of 18 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Photographs of EUT Report No. : EP362203 SPORTON International Inc. Page No. : 2 of 18 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP362203 SPORTON International Inc. Page No. : 3 of 18 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP362203 SPORTON International Inc. Page No. : 4 of 18 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP362203 SPORTON International Inc. Page No. : 5 of 18 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP362203 SPORTON International Inc. Page No. : 6 of 18 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP362203 SPORTON International Inc. Page No. : 7 of 18 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP362203 SPORTON International Inc. Page No. : 8 of 18 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP362203 SPORTON International Inc. Page No. : 9 of 18 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP362203 SPORTON International Inc. Page No. : 10 of 18 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP362203 SPORTON International Inc. Page No. : 11 of 18 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP362203 SPORTON International Inc. Page No. : 12 of 18 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP362203 SPORTON International Inc. Page No. : 13 of 18 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP362203 SPORTON International Inc. Page No. : 14 of 18 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP362203 SPORTON International Inc. Page No. : 15 of 18 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP362203 SPORTON International Inc. Page No. : 16 of 18 TEL : 886-3-327-3456 FAX : 886-3-327-0973

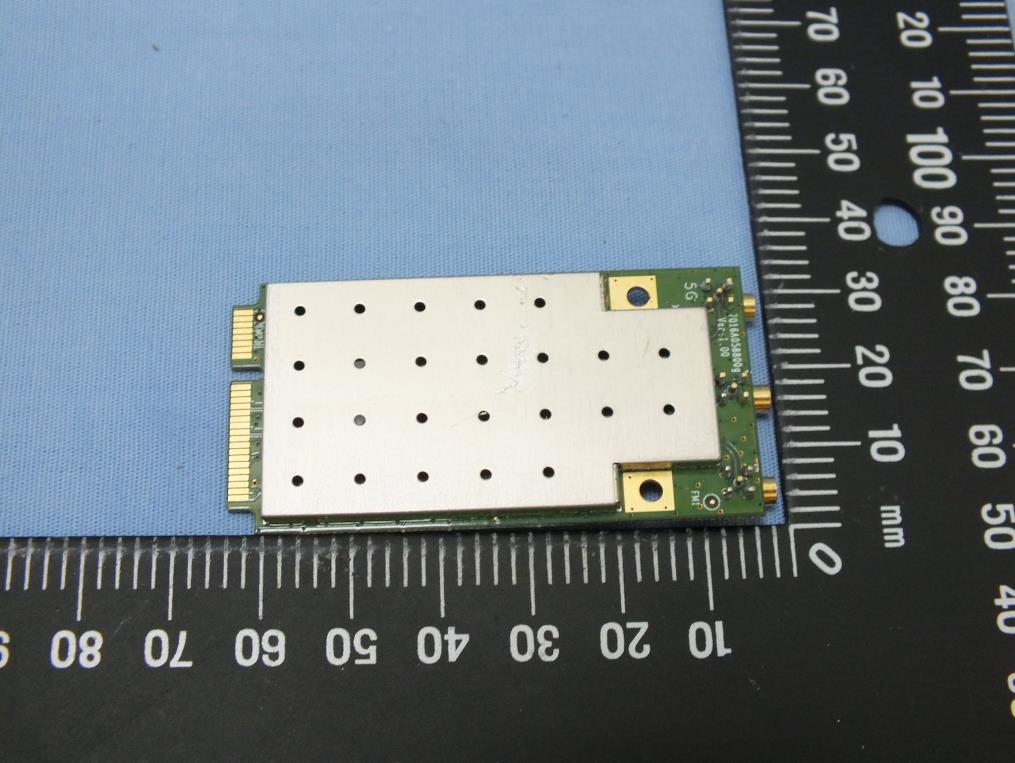

Front side of EUT Label location Antenna connector

Report No. : EP362203 SPORTON International Inc. Page No. : 17 of 18 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No. : EP362203 SPORTON International Inc. Page No. : 18 of 18 TEL : 886-3-327-3456 FAX : 886-3-327-0973

FCC EMF Test Report Report No. : FA362203 SPORTON INTERNATIONAL INC. Page No. : 1 of 3 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 Human Exposure Assessment 1.1 Maximum Permissible Exposure 1.1.1 Limit of Maximum Permissible Exposure Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 - - F/300 6 1500-100,000 - - 5 6 Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 - - F/1500 30 1500-100,000 - - 1.0 30 Note 1: f = frequency in MHz ; *Plane-wave equivalent power density Note 2: For the applicable limit, see FCC 1.1310 FCC EMF Test Report Report No. : FA362203 SPORTON INTERNATIONAL INC. Page No. : 2 of 3 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 RF Field Strength Limits for Controlled Use Devices (Controlled Environment) Frequency Range (MHz) Electric Field (V/m rms) Magnetic Field (A/m rms) Power Density (W/m2) Averaging Time (minutes) 0.003-1 600 4.9 - 6 1-10 600/ƒ 4.9/ƒ - 6 10-30 60 4.9/ƒ - 6 30-300 60 0.163 10* 6 300-1500 3.54 ƒ 0.5 0.0094 ƒ 0.5 ƒ/30 6 1500-15000 137 0.364 50 6 15000-150000 137 0.364 50 616000/ƒ 1.2 150000-300000 0.354 ƒ 0.5 9.4 x 10-4 ƒ 0.5 3.33 x 10-4 ƒ 616000/ƒ 1.2 RF Field Strength Limits for Devices Used by the General Public (Uncontrolled Environment) Frequency Range (MHz) Electric Field (V/m rms) Magnetic Field (A/m rms) Power Density (W/m2) Averaging Time (minutes) 0.003-1 280 2.19 - 6 1-10 280/ƒ 2.19/ƒ - 6 10-30 28 2.19/ƒ - 6 30-300 28 0.073 2* 6 300-1500 1.585 ƒ 0.5 0.0042 ƒ 0.5 ƒ/150 6 1500-15000 61.4 0.163 10 6 15000-150000 61.4 0.163 10 616000/ƒ 1.2 150000-300000 0.158 ƒ 0.5 4.21 x 10 -4 ƒ 0.5 6.67 x 10 -5 ƒ 616000/ƒ 1.2 Note 1: ƒ is frequency in MHz. Note 2: For the applicable limit, see IC RSS-102 1.1.2 MPE Calculation Method E (V/m) = d GP30 Power Density: Pd (W/m 2 ) = 377 E 2 E = Electric field (V/m) P = RF output power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 d377 GP30   FCC EMF Test Report Report No. : FA362203 SPORTON INTERNATIONAL INC. Page No. : 3 of 3 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1.1.3 Result of Maximum Permissible Exposure Antenna type Frequency Range (MHz) Maximum Conducted Power (dBm) Antenna Gain (dBi) Distance (cm) Power Density (mW/cm 2 ) Limit (mW/cm 2 ) Yagi 5150-5250 7.92 15 20 0.039 1 Yagi 5725-5850 20.93 15 20 0.779 1 Omni 5150-5250 10.71 12 20 0.037 1 Omni 5725-5850 23.83 12 20 0.762 1 Panel 5150-5250 8.21 14.4 20 0.036 1 Panel 5725-5850 21.36 14.4 20 0.749 1 Dish 5725-5850 14.98 24 26* 0.931 1 Dipole 5150-5250 13.85 7 20 0.024 1 Dipole 5725-5850 26.79 7 20 0.476 1 Note: Separation distance between dish antenna and human body shall be kept at least 26cm.

FCC Test Report Report No. : FR362203AN SPORTON INTERNATIONAL INC. Page No. : 1 of 126 TEL : 886-3-3273456 Report Version : Rev. 01 FAX : 886-3-3270973 FCC Test Report Equipment : 802.11 an PCIe Module Brand Name : FreeWave Model No. : W5800-01 FCC ID : KNYPRW1001EC Standard : 47 CFR FCC Part 15.407 Operating Band : 5150 MHz – 5250 MHz FCC Classification : NII Applicant : FreeWave Technologies Inc. 5395 Pearl Parkway, Suite 100, Boulder, CO 80301, U.S.A. The product sample received on Jun. 22, 2013 and completely tested on Aug. 16, 2013. We, SPORTON, w ould like to declare that the tested sample has been evaluated in accordance w ith the procedures given in ANSI C63.10-2009 and show n compliance w ith the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approv al of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Rev iewed by: Gary Chang / Manager Tested by: XXXX / Engineer FCC Test Report Report No. : FR362203AN SPORTON INTERNATIONAL INC. Page No. : 2 of 126 TEL : 886-3-3273456 Report Version : Rev. 01 FAX : 886-3-3270973 Table of Contents 1 GENERAL DESCRIPTION .......................................................................................................... 5 1.1 Information.................................................................................................................................. 5 1.2 Support Equipment...................................................................................................................... 7 1.3 T esting Applied Standards ........................................................................................................... 7 1.4 T esting Location Information ........................................................................................................ 7 1.5 Measurement Uncertainty ............................................................................................................ 8 2 TES T CONFIGURATION OF EUT................................................................................................ 9 2.1 T he Worst Case Modulation Configuration .................................................................................... 9 2.2 T he Worst Case Power Setting Parameter .................................................................................... 9 2.3 T he Worst Case Measurement Configuration .............................................................................. 11 2.4 T est Setup Diagram................................................................................................................... 12 3 TRANSMITTER TEST RESUL T................................................................................................. 13 3.1 AC Power-line Conducted Emissions .......................................................................................... 13 3.2 Emission Bandwidth .................................................................................................................. 22 3.3 RF Output Power....................................................................................................................... 28 3.4 Peak Power Spectral Density ..................................................................................................... 34 3.5 Peak Excursion ......................................................................................................................... 40 3.6 T ransmitter Radiated Unwanted Emissions and Band Edge ......................................................... 45 3.7 Frequency Stability .................................................................................................................. 120 4 TES T EQUIPMENT AND CALIBRATION DATA ....................................................................... 125 APPENDIX A. TEST PHOTOS .......................................................................................................A1-A20 FCC Test Report Report No. : FR362203AN SPORTON INTERNATIONAL INC. Page No. : 3 of 126 TEL : 886-3-3273456 Report Version : Rev. 01 FAX : 886-3-3270973 Summary of Test Result Conformance Test Specifications Report Clause Ref. Std. Clause Description Measured Limit Result 1.1.2 15.203 Antenna Requirement Antenna connector mechanism complied FCC 15.203 Complied 3.1 15.207 AC Power-line Conducted Emissions [dBuV]: 0489MHz 40.69 (Margin 5.50dB) - AV 43.32 (Margin 12.87dB) - QP FCC 15.207 Complied 3.2 15.407(a) Emission Bandwidth Bandwidth [MHz] 20M: 24.58 / 40M: 50.44 Information only Complied 3.3 15.407(a) RF Output Power (Maximum Conducted Output Power) Power [dBm] 5150-5250MHz: 13.85 Power [dBm] 5150-5250MHz: 17 Complied 3.4 15.407(a) Peak Power Spectral Density PPSD [dBm/MHz] 5150-5250MHz: -1.80 PPSD [dBm/MHz] 5150-5250MHz: 4 Complied 3.5 15.407(a) Peak Excursion 9.57 dB 13 dB Complied 3.6 15.407(b) T ransmitter Unwanted Emissions and Band Edge Restricted Bands [dBuV/m at 3m]:5150.00MHz 52.82 (Margin 1.18dB) - AV Non-Restricted Bands: ≤ -27dBm (68.3dBuV/m@3m) Restricted Bands: FCC 15.209 Complied 3.7 15.407(g) Frequency Stability 3.6 ppm Signal shall remain in-band Complied FCC Test Report Report No. : FR362203AN SPORTON INTERNATIONAL INC. Page No. : 4 of 126 TEL : 886-3-3273456 Report Version : Rev. 01 FAX : 886-3-3270973 Revision History Report No. Version Description Issued Date FR362203AN Rev. 01 Initial issue of report Aug. 22, 2013 FCC Test Report Report No. : FR362203AN SPORTON INTERNATIONAL INC. Page No. : 5 of 126 TEL : 886-3-3273456 Report Version : Rev. 01 FAX : 886-3-3270973 1 General Description 1.1 Information 1.1.1 RF General Information RF General Information Frequency Range (MHz) IEEE Std. 802.11 Ch. Freq. (MHz) Channel Number Transmit Chains (N TX ) RF Output Pow er (dBm) Co-location 5150-5250 a 5180-5240 36-48 [4] 1 / 3 10.25 N/A 5150-5250 n (HT 20) 5180-5240 36-48 [4] 1 / 3 10.33 N/A 5150-5250 n (HT40) 5190-5230 38-46 [2] 1 / 3 13.85 N/A…

Text truncated - open the document above for the full version.

Test Photos Report No. : FR362203 SPORTON INTERNATIONAL INC. Page No. : A1 of A20 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Appendix A. TEST PHOTOS 1 Photographs of Conducted Emissions Test Configuration- Yagi antenna FRONT VIEW REAR VIEW Test Photos Report No. : FR362203 SPORTON INTERNATIONAL INC. Page No. : A2 of A20 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 CLOSE VIEW CLOSE VIEW Test Photos Report No. : FR362203 SPORTON INTERNATIONAL INC. Page No. : A3 of A20 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Omni antenna FRONT VIEW REAR VIEW Test Photos Report No. : FR362203 SPORTON INTERNATIONAL INC. Page No. : A4 of A20 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 CLOSE VIEW CLOSE VIEW Test Photos Report No. : FR362203 SPORTON INTERNATIONAL INC. Page No. : A5 of A20 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Panel antenna FRONT VIEW REAR VIEW Test Photos Report No. : FR362203 SPORTON INTERNATIONAL INC. Page No. : A6 of A20 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 CLOSE VIEW CLOSE VIEW Test Photos Report No. : FR362203 SPORTON INTERNATIONAL INC. Page No. : A7 of A20 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Dish antenna FRONT VIEW REAR VIEW Test Photos Report No. : FR362203 SPORTON INTERNATIONAL INC. Page No. : A8 of A20 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 CLOSE VIEW CLOSE VIEW Test Photos Report No. : FR362203 SPORTON INTERNATIONAL INC. Page No. : A9 of A20 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Dipole antenna FRONT VIEW REAR VIEW Test Photos Report No. : FR362203 SPORTON INTERNATIONAL INC. Page No. : A10 of A20 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 CLOSE VIEW CLOSE VIEW Test Photos Report No. : FR362203 SPORTON INTERNATIONAL INC. Page No. : A11 of A20 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 2 Photographs of Radiated Emissions Test Configuration - Yagi antenna FRONT VIEW REAR VIEW Test Photos Report No. : FR362203 SPORTON INTERNATIONAL INC. Page No. : A12 of A20 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 CLOSE VIEW CLOSE VIEW Test Photos Report No. : FR362203 SPORTON INTERNATIONAL INC. Page No. : A13 of A20 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Omni antenna FRONT VIEW REAR VIEW Test Photos Report No. : FR362203 SPORTON INTERNATIONAL INC. Page No. : A14 of A20 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 CLOSE VIEW CLOSE VIEW Test Photos Report No. : FR362203 SPORTON INTERNATIONAL INC. Page No. : A15 of A20 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Panel antenna FRONT VIEW REAR VIEW Test Photos Report No. : FR362203 SPORTON INTERNATIONAL INC. Page No. : A16 of A20 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 CLOSE VIEW CLOSE VIEW Test Photos Report No. : FR362203 SPORTON INTERNATIONAL INC. Page No. : A17 of A20 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Dish antenna FRONT VIEW REAR VIEW Test Photos Report No. : FR362203 SPORTON INTERNATIONAL INC. Page No. : A18 of A20 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 CLOSE VIEW CLOSE VIEW Test Photos Report No. : FR362203 SPORTON INTERNATIONAL INC. Page No. : A19 of A20 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Dipole antenna FRONT VIEW REAR VIEW Test Photos Report No. : FR362203 SPORTON INTERNATIONAL INC. Page No. : A20 of A20 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 CLOSE VIEW CLOSE VIEW
