Memory Modules Flash Products DC-DC Converters Communication Products SMART Modular Technologies Mobile Messaging Terminal (MMT-20) is designed to communicate through a Personal Mobile Gateway (PMG) device. This Bluetooth ® enabled client Mobile Messaging Terminal is a low cost, low powered Instant Messaging pocket terminal. With the MMT-20 , you have the ability to be in touch everywhere with your friends and contacts via IM (Instant Messaging), SMS or email. You can enjoy the ability to quickly and easily communicate with multiple peers with addi- tional benefit of a full QWERTY keyboard. The MMT-20 supports all major messaging platforms, including SMS, Email and Instant Messaging (IM) (like AOL AIM, ICQ, MSN, Yahoo & Wireless Village compatible plat- forms) in a package that was created to best-fit mobile users. The User Interface (UI) deploys key area function buttons for quick and intuitive user access to Friends, Messages, Presence and device Settings. Unique 4-way Scroll & List Sort controls combined with separate Select and Type & Send buttons minimize user actions for selecting Friends, sending, receiving and replying to all forms of text messaging. SMART Modular Technologies, Inc. is a wholly owned operating company within Solectron Corporation’s (NYSE: SLR) Technology Solutions Business Unit. SMART, a leading indepen- dent manufacturer of memory and communication sub-systems offers more than 500 products to premier OEMs in the computer, networking and telecommunications industries. Through its relationship to Solectron, SMART offers customers competitive outsourcing advantages, such as access to advanced manufacturing technologies, shortened product time-to-market, reduced total cost of ownership and more effective asset utilization. SMART Modular Technologies Communications Products Division (CPD) has extensive experience & focus upon leading-edge, client-side personal communication sub-systems for wireless and wired Personal Area, Local Area and Wide-Area Networks. MMT-20 Mobile Messaging Terminal TECHNOLOGY PRODUCTS PROFITS Get there faster with SMART. turning technologies into productsturnin g vision into reality www.smartm.com FEATURES • Cross Messaging Platform • Type & Send • Ergonomic Design for Mobility • Message Delivery Preferences • Instant Messaging Chat • Iconic Contact List Display • Designed for PMG Preliminary Preliminary TECHNOLOGY PRODUCTS PROFITS Get there faster with SMART. turning technologies into productsturnin g vision into reality www.smartm.com Specifications Mechanical Properties Weight117 grams Size (L x W x H) Folded 95 x 76 x 23 mm Size (L x W x H) Open 95 x 140 x 12 mm Enclosure Landscape Articulated Audio Speaker Full Range Mono 15 mm round - 8 ohm, 0.5 W Display and Controls DisplayResolution: 240x160 dot B&W/FSTN LCD Landscape View Dot Size/Pitch: 0.22/0.24 mm Backlight: EL Green KeyboardQWERTY Keyboard with Shift Key, Spacebar, Function Keys and Backlighting Cursor/Field Navigation 4-Way (up/down/left/right) Button Array Dual Enter Buttons Type & Send New Message Button Scroll and Select Control Side Action Bi-Directional up/down Rocker Button “Sticky” Scrolling & Selection When in Friends and Messages list and Settings views, the last highlighted position, and selected Sort or function parameter is remembered and highlighted Function Buttons 4 Quick User Select Buttons for Friends, Messages, My Status and Settings Functions Back Button Intuitive user button for reversing through Navigations Visual Indicators LED Visual Indicator for Silent Mode Alerts and Connection Status (when flipped closed). On/OffOn/Off/Quick Settings Button Alert and Indicators Message Alerts User Assignable Animating Alerticons with choreographed Music and Sounds Vibration Mode Alert Physical Vibration Alert Notification Connection Status and Alerts On Screen Graphical Indicator and Audio Alert for Connection Signal Banner AlertsAnimated Banner display of Friend’s Message or Presence Status Action using Alerticon Animation & Sound (Does NOT interfere with user operation) Battery PowerOn Screen Graphical Indicator for MMT-20 and PMG Battery Levels Date and Time On-Screen Date & Time indicator located in Task Bar Specifications continued Messaging Features Small Short Message Service (SMS) Send/Receive SMS with Concatenation (Long SMS) IM Supported Platforms Supports AOL AIM, ICQ, MSN, Yahoo and all Wireless Village compatible platforms EmailSend & Receive POP3 Email (Attachments not Supported) Type & Send Messaging A fast & intuitive GUI that automatically configures messages to a recipient’s format (SMS, IM, Email) Multiple Session AccessAllows user to engage in multiple messaging sessions quickly & effectively Friends List Sorts The Friends List incorporates sort/filtering selections for; All (alpha), Presence, Online, Offline, Blocked, IM, and SMS/Email Messages List Sorts The Messages List incorporates sort/filtering selections for; All (Date/Time), Sender, IM, SMS/Email, and Online Preview Mode User selectable option for previewing and scrolling through messages without the need to select from a list. My Profile User Definable Personal Profile Message BlockingPrevents Selected Friends from Accessing a User’s Terminal or Viewing a User’s IM Presence Status. (Also Blocks SMS & Email Friends) Presence Status Icons, Friends Provides an iconic and text description of a Friend’s Presence Status (Busy, Online, Offline, Be right back, Away, On the phone) User Presence Indication Status Icon Displays User’s Presence Status Selection (In Task Bar) Custom Presence Status User Definable “Custom” Presence Status Text Message Destination Preferences User Selectable Preference for using an alternate address when an Instant Message Friend’s Status is Offline International Character Format User Selectable International Characters and Accents Template Messages, User Definable User Predefined Text Messages that can be Quickly Selected and Inserted in any Message Symbols (Emoticons)…

Text truncated - open the document above for the full version.

Corporate Headquarters: P.O.Box 1757,Fremont,CA 94538,USA •Tel:(510)623-1231 •Fax:(510)623-1434 •Email:[email protected] Asia/Pacific: Plot 18,Lrg Jelawat 4,Kawasan Perindustrian Seberang Jaya 13700,Prai,Penang,Malaysia •Tel:+604-3992909 •Fax:+604-3992903 1 of 1 Attn: Certification Manager Curtis-Straus LLC 527 Great Road Littleton, MA 01460 April 4, 2004 Subject:Confidentiality Request FCC ID:KOC-100106 I would like to request confidentiality for the block diagram and schematics of our neoChat Bluetooth ter- minal, model number NC-10. The reason is we want to protect our IP and investments in this new technology and therefore we don’t want to make the block diagram and schematics freely available to our competitors. Thank you for your understanding. Best regards, Lubos Honzik Regulatory Compliance Engineer

Response to TCB Findings 1. An operational description of the device is required. Supplied. See Operational Description. 2. Has the device complied with the requirements of 15.31(e)? And has it been tested in 3 orthogonal planes? Please clarify. YES. NC-10 neoChat has complied with the requirements of 15.31(e) and has been tested in 3 orthogonal planes. The values in the report are the maximum values that we found over all 3 planes. 3. Please supply plot/plots showing all the hopping frequencies to be able to verify 79 channels and clarify dwell time calculations. For inquiry and paging Bluetooth supports only 32 channels. In data mode it uses all 79 channels. Please see “Hopping Frequencies and Dwell Time” document for details. 4. Please specify the highest frequency generated or used in the unintentional radiator portion of the device. The highest frequency crystal used in the NC-10 product is 16 MHz Y4 crystal. Please see the schematic or block diagram. 5. Please supply photos of the test setups. Supplied. 6. In the user's manual there should be a warning against modifications required by 15.21. Please see revised document. Page 41 (pdf file page 4), Regulatory Information section. 7. The user's manual should also warn the users about the requirement to use the ferrite bead on the CinCon Charger cable. This needs to be added into the manual as well. Please see revised document, Page 36 (pdf file page 9), Standard Terms and Conditions of Use, Care and Maintenance section.

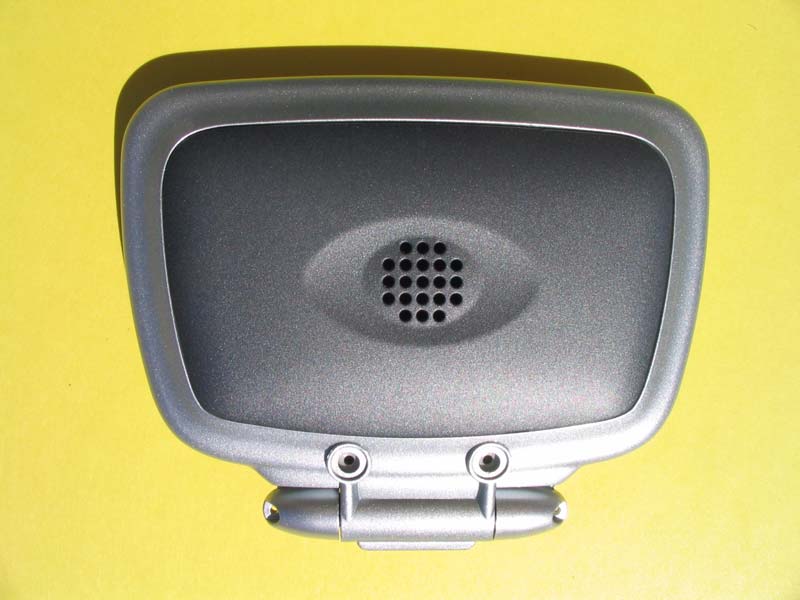

Corporate Headquarters: P.O.Box 1757,Fremont,CA 94538,USA •Tel:(510)623-1231 •Fax:(510)623-1434 •Email:[email protected] Asia/Pacific: Plot 18,Lrg Jelawat 4,Kawasan Perindustrian Seberang Jaya 13700,Prai,Penang,Malaysia •Tel:+604-3992909 •Fax:+604-3992903 neoChat Model NC-10 April 4, 2004 External View - Closed Clamshell Top External View - Closed Clamshell Bottom Corporate Headquarters: P.O.Box 1757,Fremont,CA 94538,USA •Tel:(510)623-1231 •Fax:(510)623-1434 •Email:[email protected] Asia/Pacific: Plot 18,Lrg Jelawat 4,Kawasan Perindustrian Seberang Jaya 13700,Prai,Penang,Malaysia •Tel:+604-3992909 •Fax:+604-3992903 neoChat Model NC-10 April 4, 2004 Open Clamshell Open Clamshell Without Keyboard and LCD Covers

Corporate Headquarters: P.O.Box 1757,Fremont,CA 94538,USA •Tel:(510)623-1231 •Fax:(510)623-1434 •Email:[email protected] Asia/Pacific: Plot 18,Lrg Jelawat 4,Kawasan Perindustrian Seberang Jaya 13700,Prai,Penang,Malaysia •Tel:+604-3992909 •Fax:+604-3992903 neoChat Model NC-10 April 8, 2004 Product Labeling 95 mm 65 mm

Corporate Headquarters: P.O.Box 1757,Fremont,CA 94538,USA •Tel:(510)623-1231 •Fax:(510)623-1434 •Email:[email protected] Asia/Pacific: Plot 18,Lrg Jelawat 4,Kawasan Perindustrian Seberang Jaya 13700,Prai,Penang,Malaysia •Tel:+604-3992909 •Fax:+604-3992903 neoChat Model NC-10 April 4, 2004 Empty Clamshell Corporate Headquarters: P.O.Box 1757,Fremont,CA 94538,USA •Tel:(510)623-1231 •Fax:(510)623-1434 •Email:[email protected] Asia/Pacific: Plot 18,Lrg Jelawat 4,Kawasan Perindustrian Seberang Jaya 13700,Prai,Penang,Malaysia •Tel:+604-3992909 •Fax:+604-3992903 neoChat Model NC-10 April 4, 2004 l Keyboard Top View Keyboard Bottom View Corporate Headquarters: P.O.Box 1757,Fremont,CA 94538,USA •Tel:(510)623-1231 •Fax:(510)623-1434 •Email:[email protected] Asia/Pacific: Plot 18,Lrg Jelawat 4,Kawasan Perindustrian Seberang Jaya 13700,Prai,Penang,Malaysia •Tel:+604-3992909 •Fax:+604-3992903 neoChat Model NC-10 April 4, 2004 Mainboard PC80165 Component View Mainboard PC80165 Bottom View Corporate Headquarters: P.O.Box 1757,Fremont,CA 94538,USA •Tel:(510)623-1231 •Fax:(510)623-1434 •Email:[email protected] Asia/Pacific: Plot 18,Lrg Jelawat 4,Kawasan Perindustrian Seberang Jaya 13700,Prai,Penang,Malaysia •Tel:+604-3992909 •Fax:+604-3992903 neoChat Model NC-10 April 4, 2004 LCD Assembly Top View LCD Assembly Bottom View Corporate Headquarters: P.O.Box 1757,Fremont,CA 94538,USA •Tel:(510)623-1231 •Fax:(510)623-1434 •Email:[email protected] Asia/Pacific: Plot 18,Lrg Jelawat 4,Kawasan Perindustrian Seberang Jaya 13700,Prai,Penang,Malaysia •Tel:+604-3992909 •Fax:+604-3992903 neoChat Model NC-10 April 4, 2004 LCD Board PC80169 Component View LCD Board PC80169 Bottom View

Corporate Headquarters: P.O.Box 1757,Fremont,CA 94538,USA •Tel:(510)623-1231 •Fax:(510)623-1434 •Email:[email protected] Asia/Pacific: Plot 18,Lrg Jelawat 4,Kawasan Perindustrian Seberang Jaya 13700,Prai,Penang,Malaysia •Tel:+604-3992909 •Fax:+604-3992903 neoChat NC-10 Estimate of RF Field Maximum Exposure OET Bulletin 65, Edition 97-1, August 1997 Calculations can be made to predict RF power density levels around typical RF sources. For example, in the case of a single radiating antenna, a prediction for power density in the far-field of the antenna can be made by use of the equation below. This equation is generally accurate in the far-field of an antenna but will over-predict power density in the near field, where it could be used for making a "worst case" or conservative prediction.: where: S = power density (in appropriate units, e.g. mW/cm 2 ) R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) EIRP = equivalent (or effective) isotropically radiated power (in appropriate units, e.g., mW) Power Density Calculations Using EIRP Value From 7-Layers Test Report 4_SMART_IRV_0104_ERF_FCCa The Bluetooth neoChat mini terminal, model NC-10, can classified as a Portable Device. As per 47 CFR §2.1091 Portable Devices have their radiating elements operating 20 cm or less from the body of the user or of a nearby person. FCC power density limit for MPE for General Population/ Uncontrolled Exposure is S max = 1.0 mW/cm 2 (OET Bulletin 65 Supplement C, Edition 97-01). The maximum EIRP of a transmitter Class 2 is 2.5 mW. The power density at the distance of r = 2.5 cm from the antenna is: The power density of the Bluetooth neoChat transmitter at 2.5 cm distance is still more than an order of magnitude below the FCC exposure limit for General Population. The maximum power density of 10 W/m 2 would theoretically be exceeded at a distance of less than 4.5 mm: S EIRP 4πR 2 -------------- = W EIRP 4πr 2 -------------- 2.510 3– × 4π0.025 2 × ---------------------------- 0.32Wm 2 ⁄[]=== r EIRP 4πW -------------- 2.510 3– × 4π10× ------------------------4 . 5 3– ×10m[]===
