KOC-901773Bluetooth UART SPP Module

ASY90177-3 User Guide 0.5 © Copyright SMART Modular Technologies 2004 Page 1 of 5 OEM User’s Manual ASY90177-3 UART SPP Module Bluetooth Class 2 Device Version: 0.5 ASY90177-3 User Guide 0.5 © Copyright SMART Modular Technologies 2004 Page 2 of 5 Introduction The SMART Modular ASY90177-3 is a UART module with a customized SPP profile. The module interfaces are listed in table 1.0 Table 1.0 Interface definitions Pin #NameTypeNote 1 of J1VinExternal input+ 3.3 VDC 2 of J1GNDGNDGround 3 of J1USB_D+I/OUSB Data Plus – not used 4 of J1USB_D-I/OUSB Data Minus – not used 5 of J1UART_RXI/OUART Receive 6 of J1UART_TXI/OUART Transmit 7 of J1UART_CTSI/OUART clear to send 8 of J1UART_RTSI/OUART Request to send UART Interface The Universal Asynchronous Receiver Transmitter (UART) interface provides a mechanism for communicating with other serial devices using the RS232 standard. When the module is connected to another digital device, UART_RX and UART_TX transfer data between the two devices. The other two signals, UART_CTS and UART_RTS, can be used to implement RS232 hardware flow control where both are active low indicators. Figure 1 shows the parts location including UART connector J1 and antenna ANT1. Fig 1 Mechanical drawing ASY90177-3 User Guide 0.5 © Copyright SMART Modular Technologies 2004 Page 3 of 5 General Bluetooth Specifications Qualified Output Power:= +2 dBm typical @ 25 o C Receive sensitivity typical= -82 dBm with 0.1% BER Range: up to 30 meters Power Requirements Input Voltage Requirements: 3.3 VDC +/-10% Power Consumption at 3.3 VDC: 53 mA typical 7 mA standby 300uA sleep mode Antenna Characteristics The antenna is a surface mount component on the printed circuit board with a gain of 0 dBi. Storage and Operating Environment Storage: Temperature -20 o C to +85 o C Humidity 5% to 95% non-condensing Operational:Temperature -20 o C to 70 o C Humidity 5% to 95% non-condensing ASY90177-3 User Guide 0.5 © Copyright SMART Modular Technologies 2004 Page 4 of 5 Regulatory Statements Exposure to Radio Frequency Radiation The radiated output power of the ASY90177-3 Bluetooth UART SPP Module transmitter is far below the FCC, Industry Canada and European Union radio frequency exposure limits. Nevertheless, the wireless radio shall be used in such a manner that the potential for human contact during normal operation is minimized. The internal wireless radio operates within guidelines found in radio frequency safety standards and recommendations, which reflect the consensus of the scientific community. The level of emitted energy emitted is far less than the electromagnetic energy emitted by wireless devices such as mobile phones. However, the use of wireless radios may be restricted in some situations or environments, such as aboard airplanes. If you are unsure of restrictions, you are encouraged to ask for authorization before turning on the wireless radio. The FCC, Industry Canada and European Union have set a general guideline of 20 cm (8 inches) from the body when wireless devices are on. European Radio Approval Information The ASY90177-3 Bluetooth UART SPP Module is a low power, wireless communication devices, operating in the 2.4 GHz band, intended for home or office use. The power output of this device is well below the RF exposure limits as set by the European Commission through the R&TTE directive. The ASY90177-3 module can be operated in the following European Union and European Free Trade Association countries: Austria, Belgium Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Liechtenstein, Lithuania, Luxembourg, Malta, the Netherlands, Norway, Poland, Portugal, Slovakia, Slovenia, Spain, Sweden, Switzerland and the United Kingdom. FCC Part 15 Radio Frequency Interference Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference. (2)This device must accept any interference received, including interference that may cause undesired operation. Note This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and the receiver. - Connect the equipment into an outlet that is on a circuit different from the receiver. - Consult the dealer or an experienced radio/TV technician for help. Caution Pursuant to Part 15.21 of the FCC Rules for intentional or unintentional radiators, any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. Industry Canada ICES-003 Emission Compliance Statement This Class B digital apparatus meets the requirement of the Canadian Interference-Causing Equipment Regulations. Cet appareil numérique de la classe B respecte toutes les exigences du règlement sur le matériel brouiller du Canada. ASY90177-3 User Guide 0.5 © Copyright SMART Modular Technologies 2004 Page 5 of 5 Modular FCC and Industry Canada Certification Notice The ASY90177-3 module has been tested and received FCC and Industry Canada certifications as a modular transceiver product. No further testing of the module is necessary. The FCC and Industr…

Text truncated - open the document above for the full version.

Corporate Headquarters: P.O.Box 1757,Fremont,CA 94538,USA •Tel:(510)623-1231 •Fax:(510)623-1434 •Email:[email protected] Asia/Pacific: Plot 18,Lrg Jelawat 4,Kawasan Perindustrian Seberang Jaya 13700,Prai,Penang,Malaysia •Tel:+604-3992909 •Fax:+604-3992903 1 of 1 Attn.: Ms. Chvi-Chen Chai Product Certification Assistant PHOENIX TESTLAB GmbH Koenigswinkel 10 D-32825 Blomberg July 28, 2004 Subject:Confidentiality Request FCC ID:KOC-901773 I would like to request confidentiality for the block diagram, schematic and operational description of our Bluetooth UART SPP Module, model ASY90177-3. The reason is we want to protect our IP and investments in this new technology and therefore we don’t want to make the schematic freely available to our competitors. Thank you for your understanding. Best regards, Lubos Honzik Regulatory Compliance Engineer

Corporate Headquarters: P.O.Box 1757,Fremont,CA 94538,USA •Tel:(510)623-1231 •Fax:(510)623-1434 •Email:[email protected] Asia/Pacific: Plot 18,Lrg Jelawat 4,Kawasan Perindustrian Seberang Jaya 13700,Prai,Penang,Malaysia •Tel:+604-3992909 •Fax:+604-3992903 PHOENIX TESTLAB GmbH Koenigswinkel 10 D-32825 Blomberg July 28, 2004 I would like to apply for an FCC modular approval of the following product: Product: Bluetooth UART SPP Module Model number: ASY90177-3 Certification number: FCC: KOC-901773 Test site FCC number: 96716 SMART Mod. TIN number: 77-0200166 SMART Mod. FRN number: 0007066095 The radio section of the Bluetooth UART SPP Module consists of a Power Class 2 (2.5 mW max.) Bluetooth transmitter with an internal antenna. It is fully compliant with the FCC Part 15 standard, FCC Public Notice DA 00-1407 (Modular Transmitter Approval), and Bluetooth 1.1 specifications. The following documents in PDF format (version 5.0) have been emailed to Phoenix Testlabs: ASY90177-3.Phoenix.Cover.letter.doc” (this letter with hyperlinks to uploaded documents) FCC 731 Form Phoenix Application Form Product Labeling External and Internal Photos Test Set-up Photos Test Report Operational Description and Compliance with FCC Public Notice DA 00-1407 Block Diagram Schematic PCB Assembly User’ Manual (Regulatory Statements – pages 4 and 5) RF Exposure Calculations Confidentiality Request Please do contact me should you have any questions or need additional documentation. Best regards, Lubos Honzik Regulatory Compliance Engineer SMART Modular Technologies, Inc. 130 Katherine Court #4 San Antonio, TX 78209, USA Tel: +1-210-824-4873 Fax: +1-210-822-1095 Email: [email protected]

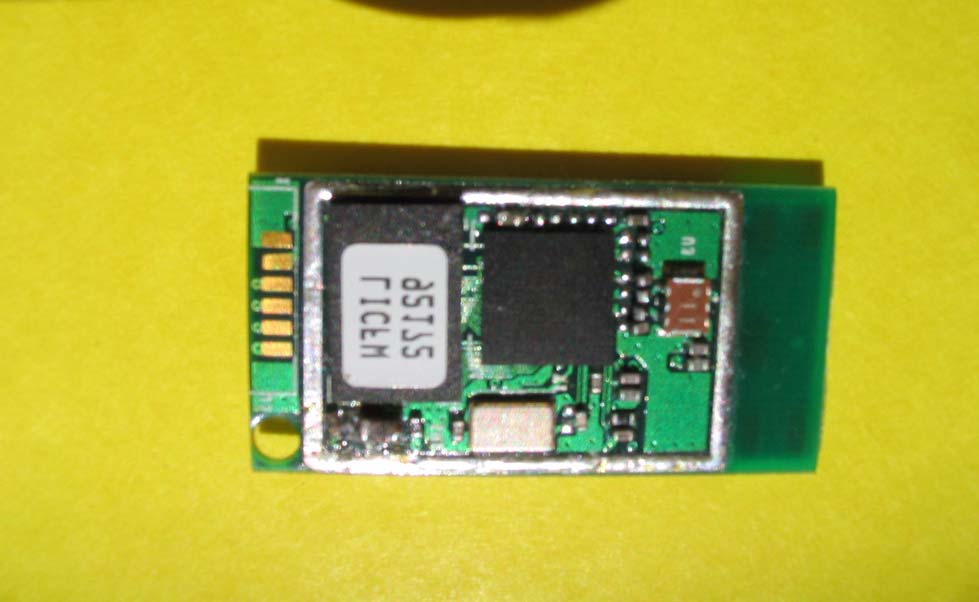

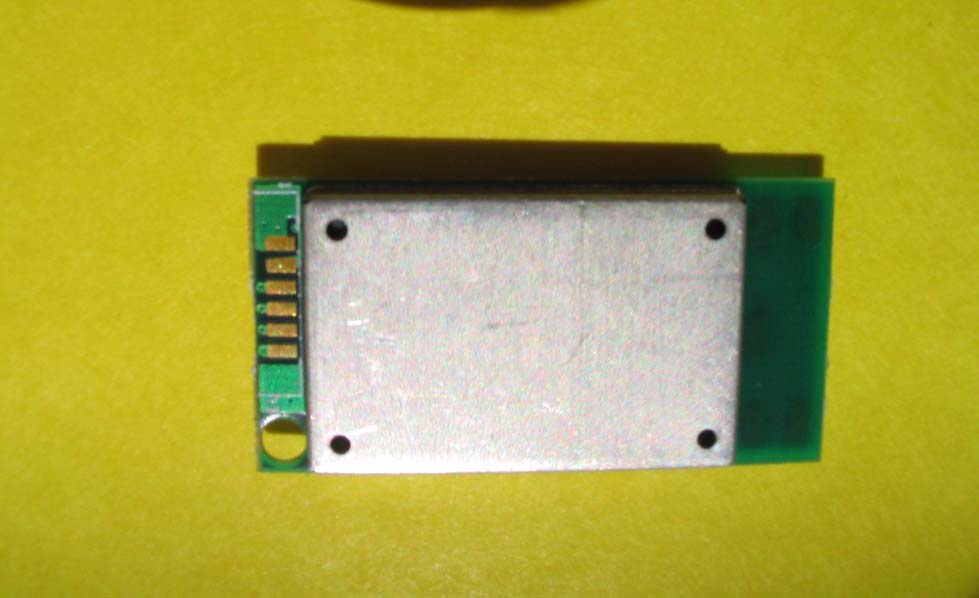

Corporate Headquarters: P.O.Box 1757,Fremont,CA 94538,USA •Tel:(510)623-1231 •Fax:(510)623-1434 •Email:[email protected] Asia/Pacific: Plot 18,Lrg Jelawat 4,Kawasan Perindustrian Seberang Jaya 13700,Prai,Penang,Malaysia •Tel:+604-3992909 •Fax:+604-3992903 Bluetooth UART SPP Module Model ASY90177-3 July 10, 2004 External View - Top (without product label) Internal View - Top (shield removed) Corporate Headquarters: P.O.Box 1757,Fremont,CA 94538,USA •Tel:(510)623-1231 •Fax:(510)623-1434 •Email:[email protected] Asia/Pacific: Plot 18,Lrg Jelawat 4,Kawasan Perindustrian Seberang Jaya 13700,Prai,Penang,Malaysia •Tel:+604-3992909 •Fax:+604-3992903 Bluetooth UART SPP Module Model ASY90177-3 July 10, 2004 External View - Bottom

Corporate Headquarters: P.O.Box 1757,Fremont,CA 94538,USA •Tel:(510)623-1231 •Fax:(510)623-1434 •Email:[email protected] Asia/Pacific: Plot 18,Lrg Jelawat 4,Kawasan Perindustrian Seberang Jaya 13700,Prai,Penang,Malaysia •Tel:+604-3992909 •Fax:+604-3992903 Bluetooth UART SPP Module Model ASY90177-3 July 6, 2004 Product Labeling Top View - Bluetooth UART SPP Module, Model ASY90177-3 Label Material Manufacturer:Brady Worldwide Material:Bradybondz B-423 Polyester Regulatory Approval: UL MH17154 and CSA 041833 SMART Modular Technologies Model # ASY90177-3 Made in USA FCC ID KOC-901773 IC: 1961C-901773 19 mm 12 mm 27.3 mm 14.0 mm

Corporate Headquarters: P.O.Box 1757,Fremont,CA 94538,USA •Tel:(510)623-1231 •Fax:(510)623-1434 •Email:[email protected] Asia/Pacific: Plot 18,Lrg Jelawat 4,Kawasan Perindustrian Seberang Jaya 13700,Prai,Penang,Malaysia •Tel:+604-3992909 •Fax:+604-3992903 Bluetooth UART SPP Module Model ASY90177-3 July 10, 2004 External View - Top (without product label) Internal View - Top (shield removed) Corporate Headquarters: P.O.Box 1757,Fremont,CA 94538,USA •Tel:(510)623-1231 •Fax:(510)623-1434 •Email:[email protected] Asia/Pacific: Plot 18,Lrg Jelawat 4,Kawasan Perindustrian Seberang Jaya 13700,Prai,Penang,Malaysia •Tel:+604-3992909 •Fax:+604-3992903 Bluetooth UART SPP Module Model ASY90177-3 July 10, 2004 External View - Bottom

Corporate Headquarters: P.O.Box 1757,Fremont,CA 94538,USA •Tel:(510)623-1231 •Fax:(510)623-1434 •Email:[email protected] Asia/Pacific: Plot 18,Lrg Jelawat 4,Kawasan Perindustrian Seberang Jaya 13700,Prai,Penang,Malaysia •Tel:+604-3992909 •Fax:+604-3992903 Bluetooth UART SPP Module Model ASY90177-3 July 21, 2004 Estimate of RF Field Maximum Exposure OET Bulletin 65, Edition 97-1, August 1997 Calculations can be made to predict RF power density levels around typical RF sources. For example, in the case of a single radiating antenna, a prediction for power density in the far-field of the antenna can be made by use of the equation below. This equation is generally accurate in the far-field of an antenna but will over-predict power density in the near field, where it could be used for making a "worst case" or conservative prediction.: where: S = power density (in appropriate units, e.g. mW/cm 2 ) R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) EIRP = equivalent (or effective) isotropically radiated power (in appropriate units, e.g., mW) Power Density Calculations Using EIRP Value From 7-Layers Test Report Depending on the final application, the Bluetooth UART SPP Module, model ASY90177-3 can be classified as a Mobile or Portable Device. As per 47 CFR §2.1091 Portable Devices have their radiating elements operating 20 cm or less from the body of the user or of a nearby person. FCC power density limit for MPE for General Population/Uncontrolled Exposure is S max = 1.0 mW/ cm 2 (OET Bulletin 65 Supplement C, Edition 97-01). The maximum EIRP of a Bluetooth transmitter Class 2 is 2.5 mW. The power density at the dis- tance of r = 2.5 cm from the antenna is: The power density of the Bluetooth ASY90177-3 transmitter at 2.5 cm distance is still more than an order of magnitude below the FCC exposure limit for General Population. The maximum power density of 10 W/m 2 would theoretically be exceeded at a distance of less than 4.5 mm: S EIRP 4πR 2 -------------- = W EIRP 4πr 2 -------------- 2.510 3– × 4π0.025 2 × ---------------------------- 0.32Wm 2 ⁄[]=== r EIRP 4πW -------------- 2.510 3– × 4π10× ------------------------4 . 5 3– ×10m[]===

EMC Measurement/Technical Report on 4_SMART_IRV_0604_ERF_FCCa 7 Layers AG Borsigstr. 11 40880 Ratingen Germany Note: The following test results relate only to the devices specified in this document. This report shall not be reproduced in parts without the written approval of the testing laboratory. Bluetooth® Transceiver ASY90177-3 7 layers AG, Borsigstrasse 11 40880 Ratingen, Germany Phone: +49 (0) 2102 749 0 Fax: +49 (0) 2102 749 350 http://www.7Layers.com Aufsichtsratsvorsitzende Chairman of the Supervisory Board: Dr. Sabine Grobecker Vorstand - Board of Directors: Dr. Hans-Jürgen Meckelburg Registergericht - registered in: Düsseldorf, HRB 44096 USt-IdNr VAT Nr: DE 203159652 Report Reference: TTI-P-G 178/99 Test Laboratory (Headquarter): Interlab is a registered trademark of 7 layers AG Table of Contents 0. Summary 0.1 Technical Report Summary 0.2 Measurement Summary 1. Administrative Data 1.1 Testing Laboratory 1.2 Project Data 1.3 Applicant Data 1.4 Manufacturer Data 3. Testobject Data 3.1 General EUT Description 3.2 EUT Main Components 3.3 Ancillary Equipment 3.4 EUT Setups 3.5 Operating Modes 4. Test Results Conducted Emissions Occupied Bandwidth Peak Power Output Spurious RF Conducted Emissions 5. Testequipment 6. Foto Report 7. Setup Drawings 3 3 4 6 6 6 6 6 8 8 9 9 9 10 11 11 14 17 28 31 34 36 Spurious RF Radiated Emissions 19 2. Product Labeling 2.1 FCC ID Label 2.2 Location of Label on the EUT 7 7 7 Dwell Time Power Density Channel Separation 23 25 27 - 4.1 4.2 4.3 4.4 4.5 4.6 4.7 8. Annex measurement plots25 Pages Page 2 of 60 Testreport Reference: 4_SMART_IRV_0604_ERF_FCCa 0 Summary 0.1 Technical Report Summary Type of Authorization Certification for an Intentional Radiator (Frequency Hopping Spread Spectrum) Applicable FCC Rules: Prepared in accordance with the requirements of FCC Rules and Regulations as listed in 47 CFR Ch.1 Parts 0 to 19 (10-1-98 Edition). The following subparts are applicable to the results in this test report. Part 2, Subpart J - Equipment Authorization Procedures, Certification Sections Part 15, Subpart C - Intentional Radiators § 15.201 Equipment authorization requirement § 15.207 Conducted limits § 15.209 Radiated emission limits; general requirements § 15.247 Operation within the bands 902-928 MHz, 2400-2483,5 MHZ and 5725-5850 MHz Summary Test Results: The EUT complied with all performed tests as listed in chapter 0.2 Measurement Summary. Note: The tests were selected and performed with reference to the FCC Public Notice DA 00- 705, released March 30, 2000 Page 3 of 60 Testreport Reference: 4_SMART_IRV_0604_ERF_FCCa 0.2 Measurement Summary § 15.247 (a) (1) (ii)FCC Part 15, Subpart C ANSI C63.41992 The measurement was performed according to Occupied Bandwidth OP-ModeSetupPortFinal Result 4Ts80f01op-mode 1temp. antenna connectorpassed 4Ts80f01op-mode 2temp. antenna connectorpassed 4Ts80f01op-mode 3temp. antenna connectorpassed 4Ts80f01op-mode 4temp. antenna connectorpassed 4Ts80f01op-mode 5temp. antenna connectorpassed § 15.247 (b) (1)FCC Part 15, Subpart C FCC §15.3110-1-1998 The measurement was performed according to Peak Power Output OP-ModeSetupPortFinal Result 4Ts80f01op-mode 1temp. antenna connectorpassed 4Ts80f01op-mode 2temp. antenna connectorpassed 4Ts80f01op-mode 3temp. antenna connectorpassed 4Ts80f01op-mode 4temp. antenna connectorpassed 4Ts80f01op-mode 5temp. antenna connectorpassed § 15.247 (c)FCC Part 15, Subpart C FCC §15.3110-1-1998 The measurement was performed according to Spurious RF Conducted Emissions OP-ModeSetupPortFinal Result 4Ts80f01op-mode 1temp. antenna connectorpassed 4Ts80f01op-mode 2temp. antenna connectorpassed 4Ts80f01op-mode 3temp. antenna connectorpassed § 15.247 (c), §15.35 (b), § 15.209FCC Part 15, Subpart C ANSI C63.41992 The measurement was performed according to Spurious Radiated Emissions OP-ModeSetupPortFinal Result 4Ts80i01op-mode 1Enclosurepassed 4Ts80i01op-mode 2Enclosurepassed 4Ts80i01op-mode 3Enclosurepassed § 15.247(f)FCC Part 15, Subpart C FCC §15.3110-1-1998 The measurement was performed according to Dwell Time OP-ModeSetupPortFinal Result 4Ts80f01op-mode 4temp. antenna connectorpassed 4Ts80f01op-mode 5temp. antenna connectorpassed Page 4 of 60Testreport Reference: 4_SMART_IRV_0604_ERF_FCCa § 15.247 (d)FCC Part 15, Subpart C FCC §15.3110-1-1998 The measurement was performed according to Power Density OP-ModeSetupPortFinal Result 4Ts80f01op-mode 4temp. antenna connectorpassed 4Ts80f01op-mode 5temp. antenna connectorpassed § 15.247 (a) (1)FCC Part 15, Subpart C FCC §15.3110-1-1998 The measurement was performed according to Channel Separation OP-ModeSetupPortFinal Result 4Ts80f01op-mode 6temp. antenna connectorpassed Responsible for Accreditation Scope: Responsible for Test Report: Page 5 of 60Testreport Reference: 4_SMART_IRV_0604_ERF_FCCa 1. Administrative Data 1.1 Testing Laboratory Company Name: Address: The test facility is also accredited by the following accreditation organisation: Responsible for Accreditation Scope: 7 Layers AG Borsigstr. 11 40880 Ratingen Germany DAR-Registration no. TTI-P-G 178/99 Dipl.-Ing Bernhard Retka Dipl.-Ing Arndt Stöcker Dipl.-Ing Thomas Hoell This facility has been fully described in a report submitted to the FCC and accepted under the registration number 96716. - Deutscher Akkreditierungs Rat 12.07.2004 Dipl.-Ing. Robert Machulec 26.07.2004 12.07.2004 - 19.07.2004 Responsible for testing and report: Receipt of EUT: Date of Test(s): Date of Report: 1.2 Project Data SMART Modular Technologies, Inc. Lubos Honzik 4211 Starboard Drive Fremont, CA 94538 USA please see Applicant data 1.4 Manufacturer Data Company Name: Address: Contact Person: Company Name: Address: Contact Person: 1.3 Applicant Data Page 6 of 60 Testreport Reference: 4_SMART_IRV_0604_ERF_FCCa 2.0 Product Labeling 2.1 FCC ID Label: At the time of the report there was no FCC label available. 2.2 Location of Label on the EUT: see above Page 7 of 60Testreport Reference: 4_SMART_IRV_0604_ERF_FCCa 3. Testobje…

Text truncated - open the document above for the full version.

Annex Annex to the report: 4_SMART_IRV_0604_ERF_FCCa Bluetooth ® module ASY90177-3 with AC-charger P/N 722-0004 (S/N 9751S1) Photo 1: Setup for the test Conducted Emissions (115V AC) 17.08.04 13:35 Smart0604_30 Photo 2: AC charger (top view) Photo 3: AC charger (bottom view) No emission in the range 20 dB below the limit found. AC MAINS CONDUCTED Diagram No.: 1.01 EUT: ASY 90 177-3 (4Ts80i01) Manufacturer: Smart Operating Condition: Tx on 2402 MHz, loopback mode Test Site: 7 layers Ratingen Operator: Groe Test Specification: ANSI C63.4; FCC 15.107 / 15.207 Start of Test: 17.08.04 / 13:26:50 SCAN TABLE: "FCC Voltage" Short Description: FCC Voltage Start Stop Step Detector Meas. IF Transducer Frequency Frequency Width Time Bandw. 150.0 kHz 30.0 MHz 5.0 kHz MaxPeak 20.0 ms 9 kHz ESH3-Z5 Average 0 10 20 30 40 50 60 70 80 Level [dBμV] 150k300k500k1M2M3M5M7M10M30M Frequency [Hz] MES Smart0604_30_pre PK MES Smart0604_30_pre AV LIM FCC ClassB V QP new FCC ClassB, voltage LIM FCC ClassB V AV new FCC ClassB, voltage

Registergerichth registered in:Vorstandh Board of Directors:7 layers AG, Borsigstrasse 11 Ratingen HRB 3264Dr. Wolfgang Dahm40880 Ratingen, Germany AufsichtsratsvorsitzendehDr. Hans-Jürgen MeckelburgPhone: +49 (0) 2102 749 0 Chairman of the Supervisory Board:Fax: +49 (0) 2102 749 350 Dr. Sabine Grobeckerwww.7layers.com Annex Additional declaration part according FCC 15.247 for Bluetooth TM Devices Version: 2002-06-01 Annex - Additional declaration part according FCC 15.247 for Bluetooth devices Page 2 of 5 pages 1 Output power and channel separation of a Bluetooth device in the different operating modes: The different operating modes (data-mode, acquisition-mode) of a Bluetooth device don’t influence the output power and the channel spacing. There is only one transmitter which is driven by identical input parameters concerning these two parameters. Only a different hopping sequence will be used. For this reason the check of these RF parameters in one op-mode is sufficient. 2 Frequency range of a Bluetooth device: Hereby we declare that the maximum frequency of this device is: 2402 – 2480 MHz. This is according the Bluetooth Core Specification (+ critical errata) for devices which will be operated in the USA. This was checked during the Bluetooth Qualification tests (Test Case: TRM/CA/04-E). Other frequency ranges ( e.g. for Spain, France, Japan) which are allowed according the Core Specification are not supported by this device. 3 Co-ordination of the hopping sequence in data mode to avoid simultaneous occupancy by multiple transmitters: Bluetooth units which want to communicate with other units must be organised in a structure called piconet. This piconet consist of max. 8 Bluetooth units. One unit is the master the other seven are the slaves. The master co-ordinates frequency occupation in this piconet for all units. As the master hop sequence is derived from its BD address which is unique for each Bluetooth device, additional masters intending to establish new piconets will always use different hop sequences. 4 Example of a hopping sequence in data mode: Example of a 79 hopping sequence in data mode: 40, 21, 44, 23, 42, 53, 46, 55, 48, 33, 52, 35, 50, 65, 54, 67, 56, 37, 60, 39, 58, 69, 62, 71, 64, 25, 68, 27, 66, 57, 70, 59, 72, 29, 76, 31, 74, 61, 78, 63, 01, 41, 05, 43, 03, 73, 07, 75, 09, 45, 13, 47, 11, 77, 15, 00, 64, 49, 66, 53, 68, 02, 70, 06, 01, 51, 03, 55, 05, 04 Annex - Additional declaration part according FCC 15.247 for Bluetooth devices Page 3 of 5 pages 5 Equally average use of frequencies in data mode and behaviour for short transmissions: The generation of the hopping sequence in connection mode depends essentially on two input values: 1. LAP/UAP of the master of the connection 2. Internal master clock The LAP (lower address part) are the 24 LSB’s of the 48 BD_ADDRESS. The BD_ADDRESS is an unambiguous number of every Bluetooth unit. The UAP (upper address part) are the 24 MSB’s of the 48 BD_ADDRESS. The internal clock of a Bluetooth unit is derived from a free running clock which is never adjusted and is never turned off. For synchronisation with other units only offset are used. It has no relation to the time of the day. Its resolution is at least half the RX/TX slot length of 312.5 μs. The clock has a cycle of about one day (23h30). In most case it is implemented as 28 bit counter. For the deriving of the hopping sequence the entire LAP (24 bits), 4 LSB’s (4 bits) (Input 1) and the 27 MSB’s of the clock (Input 2) are used. With this input values different mathematical procedures (permutations, additions, XOR- operations) are performed to generate the sequence. This will be done at the beginning of every new transmission. Regarding short transmissions the Bluetooth system has the following behaviour: The first connection between the two devices is established, a hopping sequence was generated. For transmitting the wanted data the complete hopping sequence was not used. The connection ended. The second connection will be established. A new hopping sequence is generated. Due to the fact that the Bluetooth clock has a different value, because the period between the two transmission is longer (and it cannot be shorter) than the minimum resolution of the clock (312.5 μs). The hopping sequence will always differ from the first one. 6 Receiver input bandwidth and behaviour for repeated single or multiple packets: The input bandwidth of the receiver is 1 MHz. In every connection one Bluetooth device is the master and the other one is the slave. The master determines the hopping sequence (see chapter 5). The slave follows this sequence. Both devices shift between RX and TX time slot according to the clock of the master. Additionally the type of connection (e.g. single or multislot packet) is set up at the beginning of the connection. The master adapts its hopping frequency and its TX/RX timing according to the packet type of the connection. Also the slave of the connection will use these settings. Repeating of a packet has no influence on the hopping sequence. The hopping sequence generated by the master of the connection will be followed in any case. That means, a repeated packet will not be send on the same frequency, it is send on the next frequency of the hopping sequence. Annex - Additional declaration part according FCC 15.247 for Bluetooth devices Page 4 of 5 pages 7 Dwell time in data mode The dwell time of 0.3797s within a 30 second period in data mode is independent from the packet type (packet length). The calculation for a 30 second period is a follows: Dwell time = time slot length * hop rate / number of hopping channels *30s Example for a DH1 packet (with a maximum length of one time slot) Dwell time = 625 μs * 1600 1/s / 79 * 30s = 0.3797s (in a 30s period) For multislot packet the hopping is reduced according to the length of the packet. Example for a DH5 packet (with a maximum length of five time slots) Dwell time = 5 * 625 μs * 1600 * 1/5 *1/s / 79 * 30s = …

Text truncated - open the document above for the full version.

6. Foto Report Picture1Setup for radiated emission test: Picture2EUT for radiated test: Page 31 of 60Testreport Reference: 4_SMART_IRV_0604_ERF_FCCa Picture3EUT for conducted test: Picture4EUT bottom side: Page 32 of 60Testreport Reference: 4_SMART_IRV_0604_ERF_FCCa Picture5Connection board with conected EUT: Page 33 of 60Testreport Reference: 4_SMART_IRV_0604_ERF_FCCa
