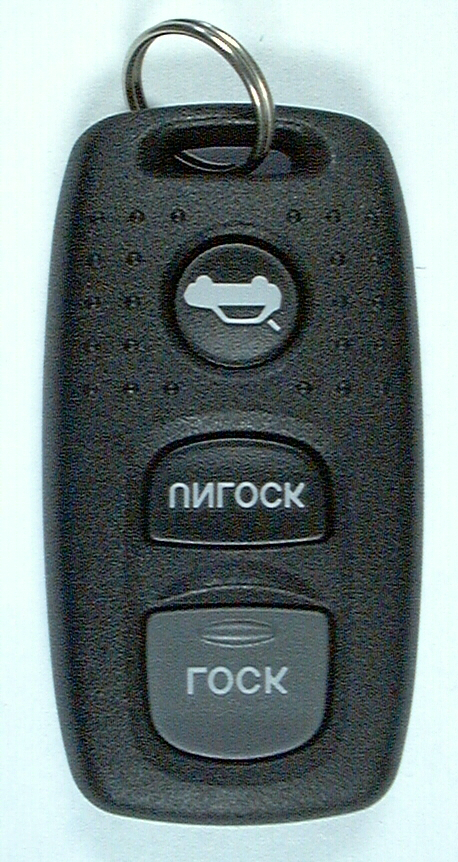

KPU41704Transmitter for Keyless Entry System

ATTESTATION STATEMENT FCC ID: KPU41704 Transmitter for keyless entry system TX 41704 SUMMARY: All tests according to FCC Part Subpart C Paragraph 15.231 ! - Performed The equipment under test ! - Fulfills the general approval requirements of FCC Part Subpart C Paragraph 15.231 - MIKES BABT PRODUCT SERVICE GmbH - Responsible Engineer _____________________________ Martin Stern Dipl.-Ing.(FH)

FCC ID: KPU41704 Attachment E 1 TX 41704 File-No. T 17850-02 SM MIKES BABT PRODUCT SERVICE GmbH Š Ohmstrasse 2-4 Š D-94342 Strasskirchen Š Tel.:+49 94 24 94 07-0 Š Fax:+49 94 24 94 07-60 Rev.Nr. 8.5 FCC ID: KPU41704 Attachment E 2 TX 41704 File-No. T 17850-02 SM MIKES BABT PRODUCT SERVICE GmbH Š Ohmstrasse 2-4 Š D-94342 Strasskirchen Š Tel.:+49 94 24 94 07-0 Š Fax:+49 94 24 94 07-60 Rev.Nr. 8.5

FCC ID: KPU41704 Attachment E 3 TX 41704 File-No. T 17850-02 SM MIKES BABT PRODUCT SERVICE GmbH Š Ohmstrasse 2-4 Š D-94342 Strasskirchen Š Tel.:+49 94 24 94 07-0 Š Fax:+49 94 24 94 07-60 Rev.Nr. 8.5 FCC ID: KPU41704 Attachment E 4 TX 41704 File-No. T 17850-02 SM MIKES BABT PRODUCT SERVICE GmbH Š Ohmstrasse 2-4 Š D-94342 Strasskirchen Š Tel.:+49 94 24 94 07-0 Š Fax:+49 94 24 94 07-60 Rev.Nr. 8.5 FCC ID: KPU41704 Attachment E 5 TX 41704 File-No. T 17850-02 SM MIKES BABT PRODUCT SERVICE GmbH Š Ohmstrasse 2-4 Š D-94342 Strasskirchen Š Tel.:+49 94 24 94 07-0 Š Fax:+49 94 24 94 07-60 Rev.Nr. 8.5

FCC ID: KPU41704 Page A3 of A6 Pages MIKES BABT PRODUCT SERVICE GmbH 94340 Strasskirchen Tel.: +49 9424/94070 Fax: +49 9424/940760 Duty cycle: Data type: Tw2 Tw1 Data Format: Pri.header (150bit) Frame1 (45bit) Frame2 (45bit) Stop (1bit) Frame format: header (1bit) Function code (4bit) ID code (24bit) Counter (16bit) Data time: Tw1 Tw2 Pri.header pulse 0.6 msec 1.2 msec Header pulse 0.6 msec 3.24 msec 1 pulse 0.6 msec 2.0 msec 0 pulse 0.6 msec 1.2 msec Stop pulse 0.6 msec 0.6 msec Calculation of the duty factor: Pulse on time = Priheader + Frame1 + Frame2 + Stop = Priheader + 2* (Header + Function code + ID code + Counter) + Stop =150 * 0.6 msec + 2 * (0.6 msec +4 * 0.6 msec. + 24 * 0.6 msec +16 * 0.6 msec) + 0.6 msec = 144.6 msec The pulse time will be the shortest, when the 0 pulse will be transmitted. Data length = Priheader + Frame1 + Frame2 + Stop = Priheader + 2* (Header + Function code + ID code + Counter) + Stop = 150 * 1.2msec + 2 (3.24 msec + 4* 1.2 msec + 24 * 1.2 msec + 16 * 1.2 msec)+0.6 msec = 292.68 msec Duty factor = 20 log (pulse on time / data length) = 20 log (144.6 msec / 292.68 msec) = -6.12

FCC ID: KPU41704 TTI - P-G 009 / 98-00 TTI - P-G 089 / 94-50 File No. T17850-1-02 SM , Page 1 of 19 MIKES BABT PRODUCT SERVICE GmbH Ohmstrasse 2-4 94342 Strasskirchen Tel:+9424-9407-0 Fax:+9424-9407-60 Rev.No. 8.0 E M I S S I O N -- T E S T R E P O R T Testreport file no. :T17850-1-02 SM ______________ Date : May 02, 2000 of issue _________________ Model : Tx 41704 ______________________________________________ Type : Transmitter for Keyless Entry System ______________________________________________ Applicant : Naldec Corporation ______________________________________________ Manufacturer : Naldec Corporation ______________________________________________ Licence holder : Naldec Corporation ______________________________________________ Address : 3-1 Shinchi Fuchu-cho Aki-gun ______________________________________________ Hiroshima 735-0028 Japan ______________________________________________ Test result accrdg. to the regulation(s) at page 3 : POSITIV This testreport with appendix consists of 37 pages. The testresult only responds to the tested sample. It is not allowed to copy this report even partly without the allowance of the testlaboratory. FCC ID: KPU41704 File No. T17850-1-02 SM , Page 2 of 19 MIKES BABT PRODUCT SERVICE GmbH Ohmstrasse 2-4 94342 Strasskirchen Tel:+9424-9407-0 Fax:+9424-9407-60 Rev.No. 8.0 D I R E C T O R Y Page A) Documentation Directory2 ________ Testregulations3 ________ General information4-5 ________ Equipment under Test17 ________ Summary19 ________ B) Testdata Conducted emissions10/150 kHz - 30 MHz 6 ________ Spurious emissions (magnetic field) 10 kHz - 30 MHz 7-8 ________ Spurious emissions (electric field) 30 MHz - 1000 MHz 8-9 ________ Spurious emissions (electric field) 1 GHz - 18 GHz 9-10 ________ Radiated field strength of fundamental 11-12 ________ Modulation limiting data 13-14 ________ Frequency error15-16 ________ Keeping the requirements of the emission mask 17-18 ________ Attachment A) TestdataA1-A6 ________ B) List of Test Equipment B1-B2 ________ C) Photos of the test setup C1-C2 ________ D) Technical description of the test sample (e.g. CDF, Declaration) D1-D3 ________ E) Photos of the EuTE1-E5 ________ FCC ID: KPU41704 File No. T17850-1-02 SM , Page 3 of 19 MIKES BABT PRODUCT SERVICE GmbH Ohmstrasse 2-4 94342 Strasskirchen Tel:+9424-9407-0 Fax:+9424-9407-60 Rev.No. 8.0 T E S T R E G U L A T I O N S The tests were performed according to following regulations : o - EN 50081-1 / 2.1991 o - EN 50081-2 / 7.1993 -------------------------------------------------------------------------------- o - EN 55011 / 3.1991 o - Group 1 o - Group 2 o - class A o - class B o - EN 55014 / 4.1993 o - Household appliances and similar o - tools o - Semiconductor devices o - EN 55014 / A2:1990 o - EN 55104 / 5.1995 Category: o - EN 55015 / A1:1990 o - EN 55015 / 12.1993 o - EN 55022 / 5.1995 o - class A o - class B o - prEN 55103-1/ 3.1995 o - prEN 50121-3-2 / 3.1995 o - EN 60601-1-2 / 4.1994 o - VCCI o - class 1 o - class 2 „ - 47 CFR Part 15 Subpart C (15.231) FCC ID: KPU41704 File No. T17850-1-02 SM , Page 4 of 19 MIKES BABT PRODUCT SERVICE GmbH Ohmstrasse 2-4 94342 Strasskirchen Tel:+9424-9407-0 Fax:+9424-9407-60 Rev.No. 8.0 A D D R E S S O F T H E T E S T L A B O R A T O R Y „ - MIKES BABT PRODUCT SERVICE GmbH Ohmstrasse 2-4 D - 94342 Strasskirchen o - ______________________________________ ______________________________________ ______________________________________ E N V I R O N M E N T A L C O N D I T I O N S Temperature: 15-35 ° C ______ Humidity 45-60 % ______ Atmospheric pressure 860-1060 mbar _________ POWER SUPPLY SYSTEM UTILIZED Power supply system : Internal batteries DC 3.0 V STATEMENT OF MEASUREMENT UNCERTAINTY The data and results referenced in this document are true and accurate. The reader is cautioned that there may be errors within the calibration limits of the equipment and facilities that can account for a nominal measurement error of ± 4dB. Furthermore, component and process variability of devices similar to that tested may result in additional deviation. The manufacturer has the sole responsibility of continued compliance of the device. SHORT DESCRIPTION OF THE EQUIPMENT UNDER TEST (EuT) The EuT is a transmitter for a keyless entry system. Number of received/tested samples: 1 / 1 DEFINITIONS FOR SYMBOLS USED IN THIS TEST REPORT „ - Black box indicates that the listed condition, standard or equipment is applicable for this Report. o - Blank box indicates that the listed condition, standard or equipment was not applicable for this Report. FCC ID: KPU41704 File No. T17850-1-02 SM , Page 5 of 19 MIKES BABT PRODUCT SERVICE GmbH Ohmstrasse 2-4 94342 Strasskirchen Tel:+9424-9407-0 Fax:+9424-9407-60 Rev.No. 8.0 M E A S U R E M E N T P R O T O C O L F O R F C C , V C C I A N D A U S T E L Test Methodology Conducted and radiated emission testing is performed according to the procedures in International Special Committee on Radio Interference (CISPR) Publication 22 (1993), European Standard EN 55022 and Australian Standard AS 3548 (which are based on CISPR 22). The Japanese standard, "Voluntary Control Council for Interference (VCCI) by Data Processing Equipment and Electronic Office Machines, Technical Requirements" is technically equivalent to CISPR 22 (1993). For official compliance, a conformance report must be sent to and accepted by the VCCI. In compliance with FCC Docket 92-152, "Harmonization of Rules for Digital Devices Incorporate International Standards", testing for FCC compliance may be done following the ANSI C63.4-1992 procedures and using the FCC limits or the CISPR 22 Limits. Measurement Error The test system for conducted emissions is defined as the LISN, tuned receiver and coaxial cable. The test system for spurious emissions is defined as the antenna, the pre-amplifier, the tuned receiver and the coaxial cable. These test systems have an expected error of ±3 dB. The equipment comprising the test systems are calibrated on an annua…

Text truncated - open the document above for the full version.

FCC ID: KPU41704 Attachment C1 of C2: Photos of the test setup File No. T 17850-1-02 SM MIKES BABT PRODUCT SERVICE GmbH Ohmstrasse 2-4 94342 Strasskirchen Tel.:+49-9424-9407-0 Fax:+49-9424-9407-60 Rev.No. 8.2 Test-Setup: Radiated emission: 30 MHz - 1000 MHz FCC ID: KPU41704 Attachment C2 of C2: Photos of the test setup File No. T 17850-1-02 SM MIKES BABT PRODUCT SERVICE GmbH Ohmstrasse 2-4 94342 Strasskirchen Tel.:+49-9424-9407-0 Fax:+49-9424-9407-60 Rev.No. 8.2 Test-Setup: Radiated emission: 1 GHz – 4 GHz
