Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Re: Compliance Statement in Car Manual / FCC ID: KPU41777 Dear Sirs, Our client’s products with the above FCC ID code are low frequency transmitters. The products will be installed in cars before they will be placed into the market. Hereby our client assures that the following caution statement as per CFR 47, Part 15, § 15.21 will be included in the owner’s manual of the cars: The title “CAUTION TO USERS” or “FCC Warning:” “NOTE:” or relevant title and “Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.” In addition our client also assures that the following statement will be included in the manual as per CFR 47, Part 15, § 15.19 (a) (3). This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Strasskirchen, 13.12.2007 Sincerely, Thomas Ring Manager Certification mikes-testingpartners gmbh Ohmstrasse 2-4 94342 Strasskirchen, Germany Phone: ++49 9424 9481 0 Fax: ++49 9424 9481 240

Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Re: Request of Confidentiality Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying as outlined below for the following FCC ID: KPU41777 1. Schematics 2. Parts List 3. Operating Description 4. Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this Application. Strasskirchen, 13.12.2007 Sincerely, Thomas Ring Manager Certification mikes-testingpartners gmbh Ohmstrasse 2-4 94342 Strasskirchen, Germany Phone: ++49 9424 9481 0 Fax: ++49 9424 9481 240

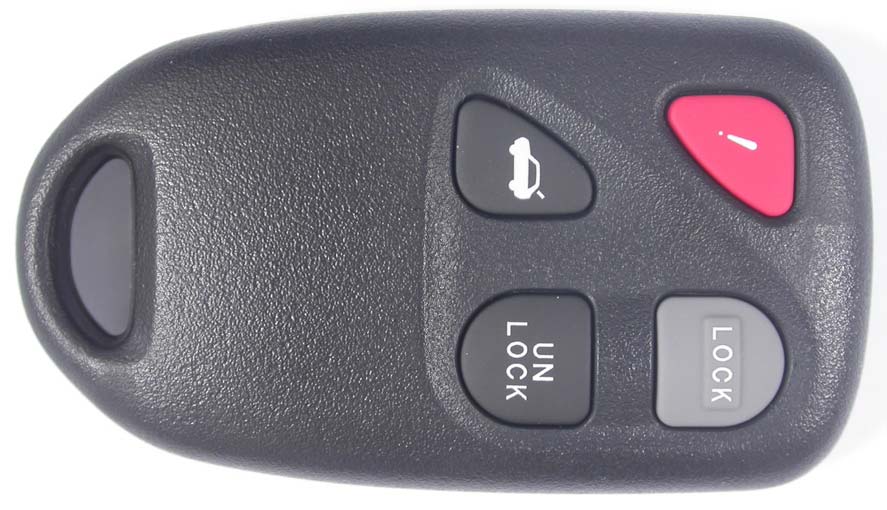

FCC ID:KPU41777 mikes-testingpartners gmbh File No. T32177-00-00HU, page 5 of 30 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 3 EQUIPMENT UNDER TEST 3.1 Photo documentation of the EuT External Photo Top view External Photo Rear view

FCC ID: KPU41777 SHT 5／16 Visteon Japan, Ltd. 3-3. Label Art-Work The following countries will be delivered. USA Puerto Rico Guam Saipan Visteon Model No.41777 FCC ID: KPU41777 28.2 17.7

FCC ID:KPU41777 mikes-testingpartners gmbh File No. T32177-00-00HU, page 5 of 30 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 3 EQUIPMENT UNDER TEST 3.1 Photo documentation of the EuT External Photo Top view External Photo Rear view

FCC ID:KPU41777 mikes-testingpartners gmbh File No. T32177-00-00HU, page 6 of 30 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 Internal Photo Open cover FCC ID:KPU41777 mikes-testingpartners gmbh File No. T32177-00-00HU, page 7 of 30 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 Internal Photo Rear view of PCB Internal Photo Front view of PCB

FCC ID:KPU41777 mikes-testingpartners gmbh File No. T32177-00-00HU, page 1 of 30 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 EMI -- T E S T R E P O R T Test Report No. : T32177-00-00HU 12. December 2007 ______________________________________________________________________________________________ Date of issue Type / Model Name : 41777 Product Description : Transmitter Applicant : Visteon Japan, Ltd. Address : Hiroshima Sangyo Bunka Center 9F 16-35, Hijiyama-honmachi, Minami-ku, Hiroshima 732-0816, Japan Manufacturer : Yang Feng Visteon Automotive Electronics Co. Ltd. Address : 300 Minolta Road, Saonjiang country Shanghai China 201600 Licence holder : Visteon Japan, Ltd. Address : Hiroshima Sangyo Bunka Center 9F 16-35, Hijiyama-honmachi, Minami-ku, Hiroshima 732-0816, Japan Test Result according to the standards listed in clause 1 test standards: POSITIVE The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test results without the written permission of the test DAT-P-207/05-00 laboratory. FCC ID:KPU41777 mikes-testingpartners gmbh File No. T32177-00-00HU, page 2 of 30 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 Contents 1 TEST STANDARDS 3 2 SUMMARY 4 3 EQUIPMENT UNDER TEST 5 3.1 PHOTO DOCUMENTATION OF THE EUT 5 3.2 POWER SUPPLY SYSTEM UTILISED 8 3.3 SHORT DESCRIPTION OF THE EQUIPMENT UNDER TEST (EUT) 8 4 TEST ENVIRONMENT 9 4.1 ADDRESS OF THE TEST LABORATORY 9 4.2 ENVIRONMENTAL CONDITIONS 9 4.3 STATEMENT OF THE MEASUREMENT UNCERTAINTY 9 4.4 MEASUREMENT PROTOCOL 9 5 TEST CONDITIONS AND RESULTS 11 5.1 CONDUCTED EMISSIONS 11 5.2 RADIATED POWER OF THE FUNDAMENTAL WAVE 12 5.3 SPURIOUS EMISSIONS (MAGNECTIC FIELD) 9 KHZ – 30 MHZ 14 5.4 RADIATED EMISSIONS (ELECTRIC FIELD) 30 MHZ – 18 GHZ 16 5.5 CORRECTION FOR PULSE OPERATION (DUTY CYCLE) 20 5.6 EMISSION BANDWIDTH 25 5.7 SIGNAL DEACTIVATION 27 6 USED TEST EQUIPMENT AND ACCESSORIES 29 FCC ID:KPU41777 mikes-testingpartners gmbh File No. T32177-00-00HU, page 3 of 30 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 1 TEST STANDARDS The tests were performed according to following standards: FCC Rules and Regulations Part 15 Subpart C - Intentional Radiators (May, 2007) Part 15, Subpart C, Section 15.231 Periodic operation in the band 40.66-40.70 MHz and above 70 MHz §15.231(a) Signal deactivation §15.231(b) Radiated emissions, Fundamental & Harmonics §15.231(c) Emission Bandwidth Part 15, Subpart C, Section 15.35(c) Correction for Pulse Operation (Duty Cycle) Part 15, Subpart C, Section 15.207(a) AC Line conducted emissions Part 15, Subpart C, Section 15.209(a) Radiated emissions, general requirements FCC ID:KPU41777 mikes-testingpartners gmbh File No. T32177-00-00HU, page 4 of 30 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 2 SUMMARY GENERAL REMARKS: None FINAL ASSESSMENT: The equipment under test fulfills the EMI requirements cited in clause 1 test standards. Date of receipt of test sample : acc. to storage records Testing commenced on : 04. December 2007 Testing concluded on : 12. December 2007 Checked by: Tested by: Klaus Gegenfurtner Dipl.-Ing.(FH) Manager: Radio Group Markus Huber FCC ID:KPU41777 mikes-testingpartners gmbh File No. T32177-00-00HU, page 5 of 30 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 3 EQUIPMENT UNDER TEST 3.1 Photo documentation of the EuT External Photo Top view External Photo Rear view FCC ID:KPU41777 mikes-testingpartners gmbh File No. T32177-00-00HU, page 6 of 30 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 Internal Photo Open cover FCC ID:KPU41777 mikes-testingpartners gmbh File No. T32177-00-00HU, page 7 of 30 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 Internal Photo Rear view of PCB Internal Photo Front view of PCB FCC ID:KPU41777 mikes-testingpartners gmbh File No. T32177-00-00HU, page 8 of 30 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 3.2 Power supply system utilised Power supply voltage : 3 V / DC 3.3 Short description of the Equipment under Test (EuT) The EuT is a wireless handheld transmitter of a keyless entry system for vehicles. Number of tested samples: 1 Serial number: see Photo documentation of the EuT under Point 3 / Equipment Under Test EuT operation mode: The equipment under test was operated during the measurement under the following conditions: - Tx mode at 315 MHz - - EuT configuration: (The CDF filled by the applicant can be viewed at the test laboratory.) The following peripheral devices and interface cables were connected during the measurements: - Model : - Model : - Model : - Model : - Model : - Model : FCC ID:KPU41777 mikes-testingpartners gmbh File No. T32177-00-00HU, page 9 of 30 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 4 TEST ENVIRONMENT 4.1 Address of the test laboratory mikes-testingpartners gmbh Ohmstrasse 2-4 94342 Strasskirchen Germany 4.2 Environmental conditions During the measurement the environmental conditions were within the listed ranges: Temperature: 15-35 ° C Humidity: 30-60 % Atmospheric pressure: 86-106 kPa 4.3 Statement of the measurement uncertainty The data and results referenced in this document are true and accurate. The reader is cautioned that there may be errors within the calibration limits of the equipment and facilities. The measurement uncertainty was calculated for all measurements listed in this test report acc. to CISPR 16-4-2 /11.2003 „Uncertainties, statistics and limit modelling – Uncertainty in EMC measurements“ and is documented in the quality system acc. to DIN EN ISO/IEC 17025. Furthermore, component and process variability of devices simila…

Text truncated - open the document above for the full version.

FCC ID:KPU41777 mikes-testingpartners gmbh File No. T32177-00-00HU, page 12 of 30 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 5.2 Radiated power of the fundamental wave For test instruments and accessories used see section 6 Part CPR 2. 5.2.1 Description of the test location Test location: OATS1 Test distance: 3 metres 5.2.2 Photo documentation of the test set-up FCC ID:KPU41777 mikes-testingpartners gmbh File No. T32177-00-00HU, page 14 of 30 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 5.3 Spurious emissions (Magnectic field) 9 kHz – 30 MHz For test instruments and accessories used see section 6 Part SER 1. 5.3.1 Description of the test location Test location: OATS1 Test distance: 3 metres 5.3.2 Photo documentation of the test set-up 5.3.3 Description of Measurement The spurious emissions from the EuT will be measured on an open area test site in the frequency range of 9 kHz to 30 MHz using a tuned receiver and a shielded loop antenna. The antenna was positioned 3, 10 or 30 meters horizontally from the EuT. Measurements have been made in all three orthogonal axes and the shielded loop antenna was rotated to locate the maximum of the emissions. In the case where larger measuring distances are required the results will extrapolated based on the values measured on the closer distances according to Section 15.31 (f) (2) [2]. The final measurement will be performed with an EMI Receiver set to Quasi Peak detector except for the frequency bands 9 kHz to 90 kHz and 110 to 490 kHz where an average detector will be used according to Section 15.209 (d) [2]. The final level, expressed in dBμV/m, is arrived at by taking the reading from the EMI receiver (Level dBμV) and adding the antenna correction factor and cable loss factor (Factor dB) to it. This result then has to be compared with the relevant FCC limit. The resolution bandwidth during the measurement is as follows: 9 kHz – 150 kHz: ResBW: 200 Hz 150 kHz – 30 MHz: ResBW: 9 kHz Example: Frequency Level + Factor = Level Limit = Delta (MHz) (dBμV) (dB) (dBμV/m) (dBμV/m) (dB) 1.705 5 + 20 = 25 30 = 5 FCC ID:KPU41777 mikes-testingpartners gmbh File No. T32177-00-00HU, page 16 of 30 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 5.4 Radiated emissions (electric field) 30 MHz – 18 GHz For test instruments and accessories used see section 6 Part SER 2, SER 3. 5.4.1 Description of the test location Test location: OATS1 Test location: Anechoic Chamber A2 Test distance: 3 metres 5.4.2 Photo documentation of the test set-up
