KPU41805Transmitter

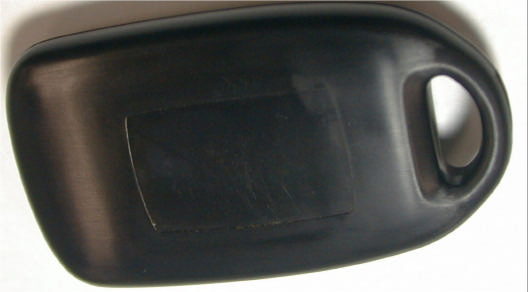

BOTTOM TOP BOTTOM TOP

FCC ID: KPU41805 . 28.2 17.7 Visteon Model No.41805 Certification Label Certification label will be put on the part of TX. Label will fit the offset. FCC ID: KPU41805

SIDE WITH HOLDER BOTTOM SIDE WITH HOLDER

PRODUCT SERVICE TEST RESULT SUMMARY FCC PART 15 Subpart C Section 15.231( c ) MANUFACTURER'S NAMEVisteon Asia Pacific, Inc. NAME OF EQUIPMENTKeyless Entry Transmitter MODEL NUMBER 41805 MANUFACTURER'S ADDRESSHiroshima Sangyo Bunka Center 9F 16-35 Hijiyama-honmachi, Minami-ku, Hiroshima 732-0816 Japan TEST REPORT NUMBERNC107912 TEST DATE10 & 12 December 2001 According to testing performed at TÜV Product Service Inc, the above-mentioned unit is in compliance with the electromagnetic compatibility requirements defined in FCC Part 15 Subpart C Section 15.231. It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical characteristics. Any modifications necessary for compliance made during testing on the above mentioned date(s) must be implemented in all production units for compliance to be maintained. TÜV Product Service Inc, as an independent testing laboratory, declares that the equipment tested as specified above conforms to the requirements of FCC Part 15 Subpart C Section 15.231. Date:18 December 2001 Location:Taylors Falls MNG. S. JakubowskiJ. T. Schneider USATest EngineerChief Engineer Not Transferable File No. NC107912, Page 1 of 12 TÜV PRODUCT SERVICE INC19333 Wild Mountain RoadTaylors Falls MN 55084-1758Tel: 651 638 0297Fax: 651 638 0298Rev.No 1.0 PRODUCT SERVICE EMC EMISSION - T E S T R E P O R T Test Report File No.: NC107912 Date of issue: 18 December 2001 Model / Serial No.: 41805 Product Type: Keyless Entry Transmitter Applicant: Visteon Asia Pacific, Inc. Manufacturer: Visteon Asia Pacific, Inc. License holder: Visteon Asia Pacific, Inc. Address: Hiroshima Sangyo Bunka Center 9F : 16-35 Hijiyama-honmachi, Minami-ku, Hiroshima 732-0816 Japan Test Result: nn Positiveoo Negative Test Project Number: Reference(s) NC107912 Total pages including Appendices 50 TÜV Product Service Inc is a subcontractor to TÜV Product Service, GmbH according to the principles outlined in ISO/IEC Guide 25 and EN 45001. TÜV Product Service Inc reports apply only to the specific samples tested under stated test conditions. It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. TÜV Product Service Inc shall have no liability for any deductions, inferences or generalizations drawn by the client or others from TÜV Product Service Inc issued reports. This report is the confidential property of the client. As a mutual protection to our clients, the public and ourselves, extracts from the test report shall not be reproduced except in full without our written approval. This report shall not be used by the client to claim product endorsement by NVLAP or any agency of the US government. TÜV Product Service Inc and its professional staff hold government and professional organization certifications and are members of AAMI, ACIL, AEA, ANSI, IEEE, NVLAP, and VCCI File No. NC107912, Page 2 of 12 TÜV PRODUCT SERVICE INC19333 Wild Mountain RoadTaylors Falls MN 55084-1758Tel: 651 638 0297Fax: 651 638 0298Rev.No 1.0 PRODUCT SERVICE D I R E C T O R Y - EMISSIONS Page(s) A)Documentation Test report1 - 10 Directory2 Test Regulations3 Deviation from standard / Summary10 Test-setups (Photos)11 - 12 Test-setup (drawing)Appendix A B)Test data Conducted emissions10/150 kHz - 30 MHz5, 9 Radiated emissions10 kHz - 30 MHz5, 9 Radiated emissions30 MHz - 1000 MHz6, 9 Interference power30 MHz - 300 MHz6, 9 Equivalent Radiated emissions1 GHz - 18 GHz7, 9 C)Appendix A Test Data Sheets and Test Setup Drawing(s) A2 – A8 D)Appendix B Constructional Data Form / Product Information B2 – B28 E)Appendix C Measurement ProtocolC1 - C2 File No. NC107912, Page 3 of 12 TÜV PRODUCT SERVICE INC19333 Wild Mountain RoadTaylors Falls MN 55084-1758Tel: 651 638 0297Fax: 651 638 0298Rev.No 1.0 PRODUCT SERVICE EMISSIONS TEST REGULATIONS : The emissions tests were performed according to following regulations: -------------------------------------------------------------------------------- o - EN 50081-1 / 1991 o - EN 55011 / 1991o - Group 1o - Group 2 o - Class Ao - Class B o - EN 55013 / 1990 o - EN 55014 / 1987o - Household appliances and similar o - Portable tools o - Semiconductor devices o - EN 55014 / A2:1990 o - EN 55014 / 1993o - Household appliances and similar o - Portable tools o - Semiconductor devices o - EN 55015 / 1987 o - EN 55015 / A1:1990 o - EN 55015 / 1993 o - EN 55022 / 1987o - Class Ao - Class B o - EN 55022 / 1994o - Class Ao - Class B o - BS o - VCCIo - Class Ao - Class B n - FCC Part 15 Subpart C Section 15.231 o - AS 3548 (1992)o - Class Ao - Class B o - CISPR 11 (1990) o - Group 1o - Group 2 o - Class Ao - Class B o - CISPR 22 (1993) o - Class Ao - Class B n - RSS-210 Issue 2 Rev. 1 Section 6.1.1 & 7.0 File No. NC107912, Page 4 of 12 TÜV PRODUCT SERVICE INC19333 Wild Mountain RoadTaylors Falls MN 55084-1758Tel: 651 638 0297Fax: 651 638 0298Rev.No 1.0 PRODUCT SERVICE Environmental conditions in the lab: Actual Temperature: 23 °C Relative Humidity: 25 % Atmospheric pressure: 98.1 kPa Power supply system: Battery Sign Explanations: o - not applicable n - applicable File No. NC107912, Page 5 of 12 TÜV PRODUCT SERVICE INC19333 Wild Mountain RoadTaylors Falls MN 55084-1758Tel: 651 638 0297Fax: 651 638 0298Rev.No 1.0 PRODUCT SERVICE Emissions Test Conditions: CONDUCTED EMISSIONS (Interference Voltage) The CONDUCTED EMISSIONS (INTERFERENCE VOLTAGE) measurements were performed at the following test location: n - Test not applicable o - Wild River Lab Large Test Site (Open Area Test Site) o - Wild River Lab Small Test Site (Open Area Test Site) o - Oakwood Lab (Open Area Test Site) o - Wild River Lab Screen Room o - New Brighton Lab Shielded Room Emissions Test Conditions: RADIATED EMISSIONS (Magnetic Field) The RADIATED EMISSIONS (MAGNETIC FIELD) measurements were performed at the following test location: n - Test not applicable o - Wil…
