KUT2NV9Garage Door Controller Mini Nova Hub

Rm. 03, 13/F., Block. B, Veristrong Ind. Centre, 34-36 Au Pui Wan Street, Fo Tan, N.T., Hong Kong. Tel: (852) 2602 1318 Fax: (852) 2602 4684 Email : [email protected] Date: Oct 22, 2019 To: SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia United States From: Capital Prospect Ltd. Rm.03, 13/F., Block B, Veristrong Ind. Centre, 34-36 Au Pui Wan Street, Fo Tan, N.T., Hong Kong Regarding: Confidentiality Request regarding application for FCC ID: KUT2NV9 LONG TERM CONFIDENTIALITY Pursuant to 47 CFR Section 0.459 and 0.457 of the commission’s rules, the applicant hereby request confidential treatment of the documents listed below, associated with the certification application referenced above. Schematic(s) Block Diagrams Operational Descriptions The documents above contain proprietary information not released to the public. Public disclosure of this information may prove harmful to the business of the applicant. Sincerely, Printed Name: Joe Ng Title: Project Manager Company Name: Capital Prospect Ltd.

Rm. 03, 13/F., Block. B, Veristrong Ind. Centre, 34-36 Au Pui Wan Street, Fo Tan, N.T., Hong Kong. Tel: (852) 2602 1318 Fax: (852) 2602 4684 Email : [email protected] Date: Oct. 22, 2019 TO: Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 Regarding: FCC ID: KUT2NV9 To whom it may concern: We, the undersigned, hereby authorize CMA Industrial Development Foundation Limited/Andrew Wong to act on our behalf in all manners relating to application for equipment authorization with respect to the FCC ID above, including signing of all documents relating to these matters. Any and all acts carried out by the agent on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Where our agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for Certification, as specified by SGS North America, Inc., still resides with Capital Prospect Ltd. This authorization is valid until further written notice from the applicant. Name (Printed): Joe Ng Title: Project Manager Signature: On behalf of Company: Capital Prospect Ltd. Telephone: +852-26021318

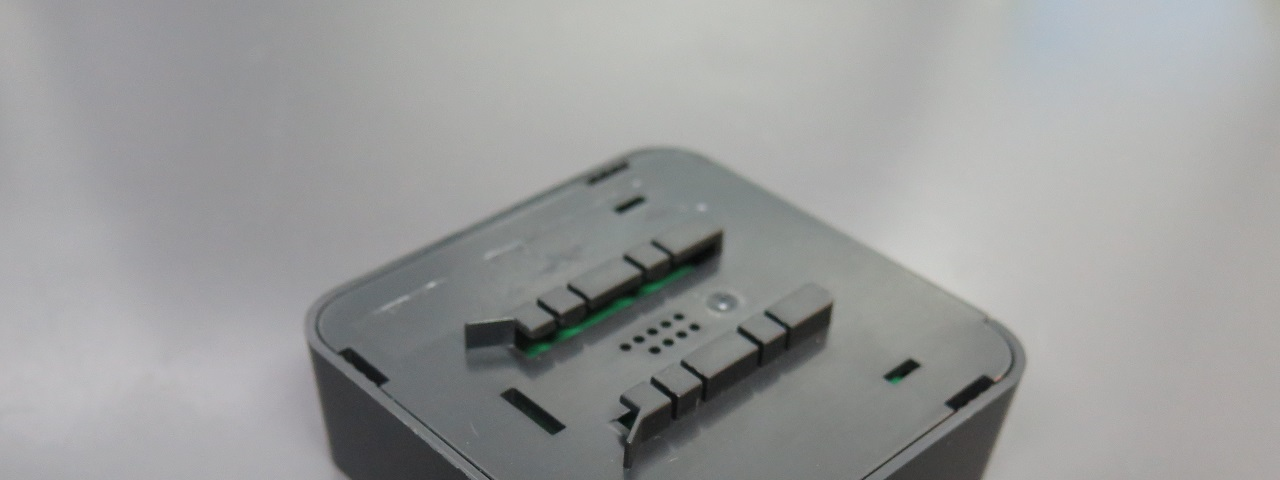

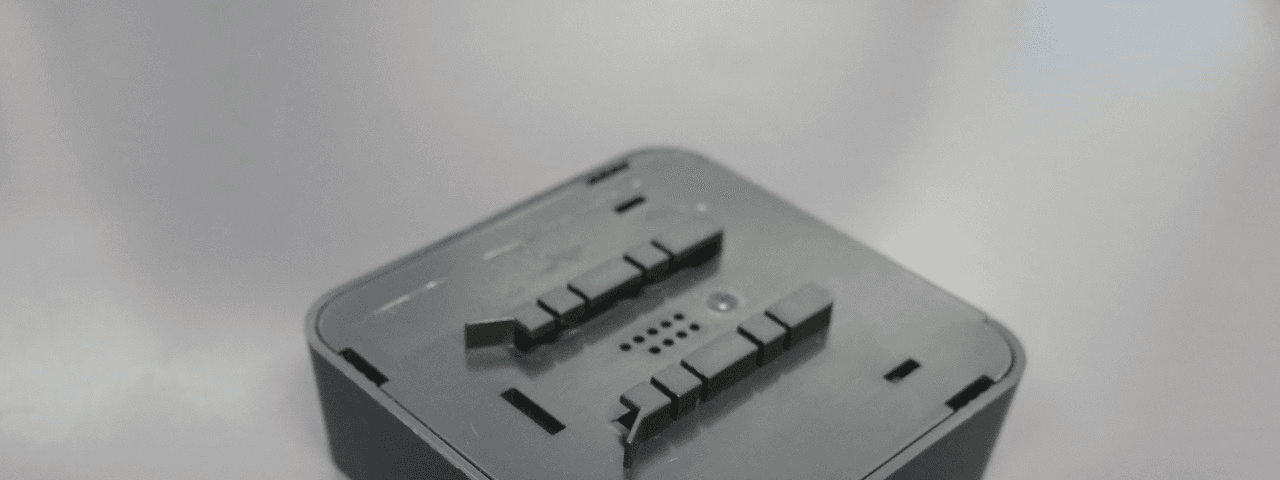

FCC ID: KUT2NV9 IC: 4454A-2NV9 External Photo FCC ID: KUT2NV9 IC: 4454A-2NV9 FCC ID: KUT2NV9 IC: 4454A-2NV9

MODEL : 2NV9 LABELING DIAGRAM DATE : 24 JULY, 2019 PAGE : 1 OF 1 2NV9_Label_Diagram.CDR PROPRIETARY INFORMATI ON Label size : 40 x 20mm Model/Modèle: 2NV9 REV: X.X FCC ID: KUT2NV9 IC: 4454A-2NV9 Contains FCC ID: 2ASEO-HM-WF8266A Contains IC: 24999-WF8266A 7.5VDC 0.5A CAN ICES-005(B)/MB-005 B Made in Vietnam/ Fabriqué au Vietnam 2:1 Skylink Group MMGYY UID: XXXX XXXX 2:1 Model/Modèle: 2NV9 REV: X.X FCC ID: KUT2NV9 IC: 4454A-2NV9 Contains FCC ID: 2ASEO-HM-WF8266A Contains IC: 24999-WF8266A 7.5VDC 0.5A CAN ICES-005(B)/ MB-005B Made in Viet nam/ Fabriqué au Vietnam Skylink Group MMGYY UID: XXXX XXXX SKYLINK GROUP This device complie s with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference Label s iz e: 67 X 1 2mm

FCC ID: KUT2NV9 IC: 4454A-2NV9 Internal Photo FCC ID: KUT2NV9 IC: 4454A-2NV9 FCC ID: KUT2NV9 IC: 4454A-2NV9 FCC ID: KUT2NV9 IC: 4454A-2NV9

RF EXPOSURE EVALUATION Report No. : AY00559772(8) Date: Feb 13, 2020 For and on behalf of CMA Industrial Development Foundation Limited Authorized Signature : Page 1 of 1 Document name: FCC RF exposure - Document Ref No: RT-EL-EMC-008 - Issue Date: 01 Dec 2017 - Edition: 1 Application No. : LY023332(2) Applicant : CAPITAL PROSPECT LTD ROOM 1303, BLOCK B, VERISTRONG IND. CENTRE, 34-36 AU PUI WAN STREET, FOTAN, SHATIN, N.T., HONGKONG Sample Description : Two(2) items of submitted sample stated to be Product Descriptin : Garage Door Controller Mini Nova Hub Model : 2NV9 Sample registration No. : RY037224-003(0) and RY037224-005(1) Radio Frequency : 910 – 918MHz and 2412-2462MHz Supply voltage : DC 7.5V (EUT) AC 100 – 240V (AC Adapter) No. of submitted sample : 2 FCC ID : KUT2NV9 Date Received : Oct 2, 2019 Evaluation Period : Oct 3, 2019 – Oct 30, 2019 Evaluation Method : 447498 D01 General RF Exposure Guidance v06 - RF Exposure Procedure and Equipment Authorization Policies for Mobile and Portable Devices Conclusion : The maximum simultaneous power of WiFi and 900MHz operation were satisfied RF exposure requirements. RF EXPOSURE EVALUATION Report No. : AY00559772(8) Date: Feb 13, 2020 Page 2 of 2 Document name: FCC RF exposure - Document Ref No: RT-EL-EMC-008 - Issue Date: 01 Dec 2017 - Edition: 1 S imultaneous power The device can operate the 900MHz and WiFi IEEE 802.11b/g/n transmitter simultaneously. Therefore the simultandous power shall be evaluated for the RF exposure compliance of FCC rule. RF Exposure Evaluation Calculation 1) WiFi transmitter (FCC ID: 2ASEO-HM-WF8266A) According to the RF exposure report of the FCC application with FCC ID: 2AESO-HM-WF8266A, - The worst case total power density @ 20cm : 0.003mW/cm 2 - Limit : 1.0mW/cm 2 - Result : PASS 2) 900MHz transmitter According to the test result from the FCC test report AY0059771(7), - Measured field strength @ 3m : 90.8dBμV/m - Calculated e.i.r.p. : 0.363mW (-4.4dBm) - Calculated Power density @ 20cm : 0.00007mW/cm 2 - Limit : 0.60667mW/cm 2 - Result : PASS 3) Simultaneous transmission According to above calculation, - Weighted Power Density @ 20cm to limit (WiFi) : 0.00300 - Weighted Power Density @ 20cm to limit (900MHz transmitter) : 0.00012 - Total weighted power density @ 20cm : 0.00312 - Limit : 1.0 - Result : PASS Conclusion Based on above calculation, the MPEs of two transmitters individually and simultaneously meet the requirement of OET Bulletin 65 and KDB447498 D01 v06. ***** End of Evaluation *****

TEST REPORT Report No. : AY0059771(7) Date : Feb 13, 2020 For and on behalf of CMA Industrial Development Foundation Limited Authorized Signature : Page 1 of 19 FCC ID: KUT2NV9 IC: 4454A-2NV9 Document name: FCC/ISED for LPD - Document Ref No: RT-EL-EMC-047 - Issue Date: 13 Mar 2019 - Edition: 2 Application No. : LY023332(2) Applicant : CAPITAL PROSPECT LIMITED ROOM 1303, BLOCK B, VERISTRONG IND CENTRE 34-36 AU PUI WAN STREET FOTAN, SHATIN, N.T. HONG KONG Sample Description : One(1) item of submitted sample stated to be: Sample Description Model No. Garage Door Controller Mini Nova Hub 2NV9 Radio Frequency : 910 – 918 MHz and 2412 – 2462MHz Rating : DC7.5V (EUT) and AC 100-240V (AC/DC Adapter) Sample registration No. : RY037224-003(0) and RY037224-005(1) PMN : 2NV9 HVIN : 2NV9 Date Received : Oct 2, 2019. Test Period : Oct 3, 2019 to Oct 30, 2019 Test Requested : FCC 47CFR Part 15 Certification ISED Certification for License-exempt Device Test Method : 47 CFR Part 15 (10-1-18 Edition) ANSI C63.10 – 2013 ANSI C63.4 – 2014 RSS-210 Issue 9 RSS-Gen Issue 5 Test Result : See attached sheet(s) from page 2 to 19. Conclusion : The submitted sample was found to comply with requirement of FCC 47CFR Part 15 Subpart C, section 15.249 and ISED Canada Radio Standard Specification RSS-210. Remark : This report is only for the measurement of 900MHz transmitter. The authorization of the WiFi module has been certified by FCC and ISED and the 900MHz receiver is under another sDoC report. TEST REPORT Report No. : AY0059771(7) Date : Feb 13, 2020 Page 2 of 19 FCC ID: KUT2NV9 IC: 4454A-2NV9 Document name: FCC/ISED for LPD - Document Ref No: RT-EL-EMC-047 - Issue Date: 13 Mar 2019 - Edition: 2 Table of Contents 1 General Information ................................................................................................................................... 3 1.1 General Description ............................................................................................................................ 3 1.2 Location of the test site ....................................................................................................................... 4 1.3 List of measuring equipment............................................................................................................... 5 1.4 Measurement Uncertainty ................................................................................................................... 6 1.5 Test Summary ..................................................................................................................................... 6 1.6 External Photo, Internal Photo and Test ConfigurationPhoto ............................................................. 6 2 Description of the radiated emission test ................................................................................................... 7 2.1 Test Procedure .................................................................................................................................... 7 2.2 Test Setup ........................................................................................................................................... 8 2.3 Test Result ........................................................................................................................................ 10 3 Description of the Line-conducted Test ................................................................................................... 13 3.1 Test Procedure .................................................................................................................................. 13 3.2 Test Result ........................................................................................................................................ 13 3.3 Test Setup ......................................................................................................................................... 13 3.4 Graph and Table of Conducted Emission Measurement Data .......................................................... 14 4 Bandwidth ................................................................................................................................................ 16 5 Appendices ............................................................................................................................................... 17 TEST REPORT Report No. : AY0059771(7) Date : Feb 13, 2020 Page 3 of 19 FCC ID: KUT2NV9 IC: 4454A-2NV9 Document name: FCC/ISED for LPD - Document Ref No: RT-EL-EMC-047 - Issue Date: 13 Mar 2019 - Edition: 2 1 General Information 1.1 General Description The EUT is a Garage Door Controller Mini Nova Hub, model: 2NV9. It is used to control and monitor the garage door with smartphone and other security sensor. It is equipped with a 900MHz transceiver and WiFitransceiverto make the communication with the smartphone and the other security sensor. The WiFi function is mainly to connect with smartphone and local router for smartphone controlling the garage door with “Orbit Home” mobile App. The 900MHz transceiver is connected with other 900MHz security control and other 900MHz Siren for security purpose. The voltage input of the 2NV9 is DC 7.5V and supplied by an AC adapter with AC 100 – 240V input and DC 7.5V output. The 900MHz transceiver is operating in frequency band from 910 – 918MHz and operated by the RF IC, CMT2380 with 26MHz oscillator. GFSK modulation is used. The RF signal is transmitted with a PCB antenna, 0.0dBi antenna gain. The WiFi transceiver is operating with IEEE 802.11b/g/n(HT20) and in frequency band 2412 – 2462MHz. The WiFi transceiver is operated by WiFi Module, model: HM-WF8266A. The WiFi module has been certified by FCC and ISED under WiFI module with FCC ID:2ASEO-HM- WF8266Aand IC: 24999-WF8266A respectively. Brief Circuit Description is listed below U1 : RF IC of 900MHz Transceiver, CMT2380 Y1 : 26MHz clock for 900MHz RF IC U2 : RF amplifier L1, …

Text truncated - open the document above for the full version.

FCC ID: KUT2NV9 IC: 4454A-2NV9 Worst case configuration photo FCC ID: KUT2NV9 IC: 4454A-2NV9 Test setup photo FCC ID: KUT2NV9 IC: 4454A-2NV9 FCC ID: KUT2NV9 IC: 4454A-2NV9
