KUWINCELL1900InCell 1900 Repeater

I I n n C C e e l l l l ™ ™ F F i i b b e e r r O O p p t t i i c c D D i i s s t t r r i i b b u u t t e e d d A A n n t t e e n n n n a a S S y y s s t t e e m m Installation and Users Guide Copyright Andrew Corporation Version 1.1 October 2000 Andrew InCell™ Fiber Optic Distributed Antenna System Users Guide - ii - Proprietary Information This document is the property of Andrew Corporation. The information contained herein is proprietary to Andrew, and no part of this document may be reproduced or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the express written permission of Andrew. Disclaimer Andrew reserves the right to make changes, without notice, to the specifications and materials contained herein. While we have worked diligently to insure every element presented is correct, we shall not be responsible for errors. For the latest product information and technical specifications, please see the contact information below.  Copyright Andrew Corporation, October 2000, Printed in USA, All rights reserved. FCC Notice This equipment complies with Part 24 of the FCC rules. Any changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment. Warning In order to comply with FCC rules for rf exposure, the following must be observed: 1. The antenna for this device must have a gain of no more than 21 dBi. 2. The antenna must be installed such that a minimum separation distance of 20 cm. is maintained between the antenna and any persons. Trademarks InCell™ is a trademark of Andrew Corporation. All other trademarks belong to their respective owner. Contact Information For more information about Andrew’s capabilities to extend RF signals coverage into structures, including office buildings, shopping complexes, warehouses, tunnels, and mines, please contact us using the information below: Andrew Corporation 2601 Telecom Parkway Richardson, Texas 75082 Attention: Mr. Matt Melester E-mail:[email protected] Fax:(972) 952-0018 Voice:(972) 952-9745 Table of Contents Andrew Corporation.................................................................................................................1 Andrew In-Building Wireless Experience................................................................................1 InCell™ Fiber Optic Distributed Antenna System Description..............................................1 Central Distribution Unit (CDU)...........................................................................................1 CDU FRONT PANEL .........................1 Remote Antenna Unit (RAU)................................................................................................2 CDU to RAU Interface Cables..............................................................................................4 Composite Fiber Optic & Power Cables................................................................................4 Standard Duplex Fiber Optic Cables......................................................................................4 Indoor Antennas....................................................................................................................5 In-Building Implementations Using the Andrew InCell™ System.........................................7 Scalable System Architecture................................................................................................7 The Signal Distribution Unit............................................................................................8 The Interconnecting Cable...................................................................................................11 The Installation Parameters...........................................................................................13 Sample Implementation.......................................................................................................16 InCell™ Specifications............................................................................................................17 Technical Performance........................................................................................................17 Interface Specifications.......................................................................................................18 Electrical Specifications......................................................................................................19 Environmental and Mechanical Specifications.....................................................................20 MTBF...........................................................................................................................20 MTTR...........................................................................................................................20 Andrew InCell™ Fiber Optic Distributed Antenna System Users Guide - ii - InCell™ Network Monitoring System...................................................................................21 Pilot Tone Generation.........................................................................................................21 RAU Indicators...................................................................................................................21 CDU Front Panel Indicators................................................................................................21 Alarm Functions..................................................................................................................22 Remote Monitoring Functions.............................................................................................22 InCell™ Operation, Maintenance and Support....................................................................24 Operation............................................................................................................................24 Regular Maintenance..............................…

Text truncated - open the document above for the full version.

REQUEST FOR CONFIDENTIALITY Andrew Corporation requests confidentiality with regard to the following documents in the filing for equipment approval identified by FCC ID. No. KUWINCELL1900. (1) Schematic diagrams contained in electronic file identified as: Sch-Amps_RAU.pdf Sch-Amps_CDU.pdf Sch-Amps_PDU.pdf Sch-Amps_CDU_Top Level.pdf Block-Amps_CDU.pdf Block-Amps_PDU.pdf Block-Amps_rau.pdf Block-Amps_System.pdf It is the opinion of Andrew Corporation disclosure of this information would result in significant loss of revenue. This information should be kept confidential for 25 years. Authorized Signature ____________________________ Don Stone, Sr. RF Engineer Company Name : Andrew Corporation 2601 Telecom Parkway Richardson, Texas 75082 Distributed Communications System 2601 Telecom Parkway Richardson, Texas 75082

Response to TCB questions FCC ID: KUWINCELL1900 -----Original Message----- From: Certification Manager [SMTP:[email protected] ] Sent: Friday, March 09, 2001 3:35 PM To: Tom Tidwell; Davida Hanson Subject: KUWINCELL1900 Dear Tom and Davida, We have the following issues to resolve to grant this application: 1. Please tell me the frequency range for the modulation type NADC. This information is missing from the 731. Answer by Tom Tidwell: The frequency range is 1930.03 - 1989.970 MHz. 2. Please provide a block diagram for the unit. Also, the files represented in the confidentiality letter as Block-Amps...pdf have not been submitted. Is this on purpose? Answer by Tom Tidwell: The block diagrams attached here are for the AMPS Cellular version of the unit. The manufacturer does not have the diagrams for PCS. The diagrams are exactly the same except that they are labeled as AMPS instead of PCS and they reference the 800 MHz band. The AMPS and PCS versions of these units are identical except for the SAW filter. If you think it is necessary to change these, I can get the manufacturer to send updated ones as soon as they are available. <<Block-AMPS_System.pdf<<Block-Amps_CDU.pdf <<Block-Amps_rau.pdf<<Block-Amps_PDU.pdf Best regards Barry C. Quinlan Certification & Telecom Manager Curtis-Straus LLC

R.12 MAX CORNERS PERMITTED SERNO.: FCC ID: UL FILE NO.: PART NO.: ________________________________ InCell MODEL: CDU-1900 2000-1100-001 KUWINCELL1900 U L CUS LISTED R 2 3 2 E209365 1.00 2.00

FCC label location FCC label location

FCC ID: KUWINCELL1900 Internal photos

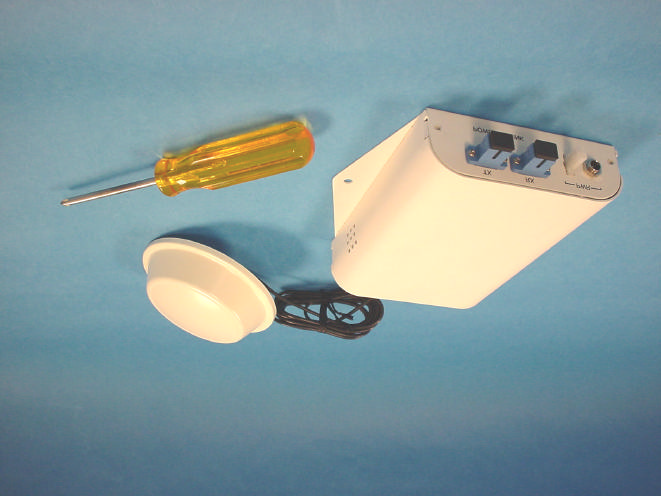

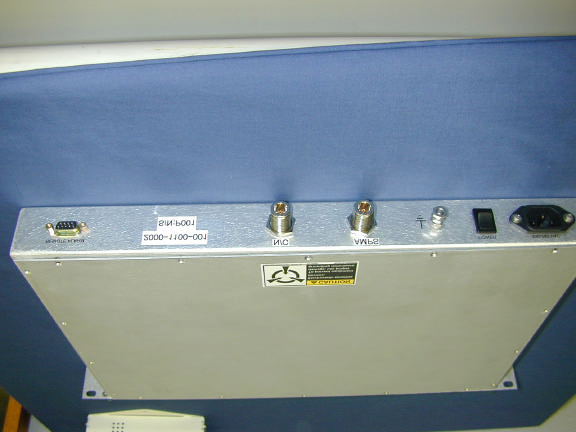

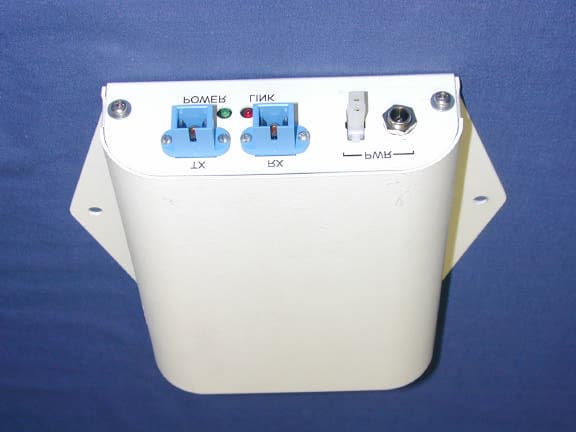

Circuit Description Central Distribution Unit (CDU) The CDU is connected to a Repeater, BDA, or BTS via coaxial cable. The Downlink (Base-to- Mobile) transmit path is distributed to Remote Antenna Units (RAU). PDU card - The rf input signal is distributed to individual CDU cards (up to six per unit) via the Power Distribution (PDU) Board, which consists of simple passive power dividers. Also located on the PDU card is a pilot oscillator that simply generates a pilot tone that is filtered in the Remote Antenna Unit (RAU) and used to verify the rf link. This pilot tone is never transmitted wirelessly. CDU card - In the Downlink direction the CDU card consists of a SAW filter and rf to laser conversion module. Once the rf signal has been converted to light, it is distributed to a Remote Antenna Unit (RAU) via fiber cable. In the Uplink direction, the CDU card simply performs the opposite function. The optic signal fed from the RAU uplink output is converted to rf, amplified, filtered, and finally passed to the PDU card where it will be sent to the external repeater, BDA, or BTS equipment via coaxial cable. Remote Antenna Unit (RAU) In the Downlink direction, the RAU receives the optic signal from the CDU and converts it to rf. At this stage a Low Pass filter sends the pilot tone to a Pilot Detection Circuit, The intended transmit signal is sent through a two-stage amplifier/filter circuit. The resulting signal is fed through a passive duplexer and finally sent to an external antenna via coaxial cable. The external antenna gain is typically 12 dB maximum. In the Uplink direction, the RAU receives an rf signal from the mobile via the external antenna. The rf signal is processed through a filter/gain control circuit through to a rf-to-optic conversion circuit. The optic signal is the sent to the CDU via fiber optic cable.

Tuning Procedure The InCell is not frequency tunable by the user. The frequency band of operation is determined at the factory by the selection of SAW filter components. The rf power output is set upon installation by the use of a power meter. The rf input/output to the InCell CDU is connected directly to the output of a repeater or base station. The output level of these devices is controlled by automatic gain circuitry. The RAU also uses AGC to control the rf output level to the antenna. This level is set upon installation so that it will never exceed +16 dBm.

Given the above information, the manufacturer recommends a minimum separation distance of 20 cm. and maximum antenna gain of 21 dBi. Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 where:S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenn Maximum peak output power at antenna input terminal:16.00(dBm) Maximum peak output power at antenna input terminal:39.81072(mW) Maximum antenna gain:12(dBi) Maximum antenna gain:15.84893(numeric) Prediction distance:20(cm) Prediction frequency:1900(MHz) MPE limit for uncontrolled exposure at prediction frequency:1(mW/cm^2) Power density at prediction frequency:0.125525(mW/cm^2) Maximum allowable antenna gain:21.0127(dBi) 2 4R PG S π =

KTL Test Report No.: 0L0296RUS3 Applicant: Andrew Corporation Equipment Under Test: InCell Fiber Optic Distributed Antenna System Model: InCell-1900 FCC ID: KUWINCELL1900 In Accordance With:FCC Part 24, Subpart E Broadband PCS Repeaters Tested By: KTL Dallas Inc. 802 N. Kealy Lewisville, Texas 75057-3136 Authorized By: Tom Tidwell, RF Group Manager Date: February, 2001 Total Number of Pages: 49 KTL Dallas FCC PART 24, SUBPART E BROADBAND PCS REPEATERS EQUIPMENT:InCell-1900 FCC ID:KUWINCELL1900PROJECT NO.:0L0296RUS3 Page 2 of 49 Table of Contents Section 1. Summary of Test Results.......................................................................3 Section 2. General Equipment Specification...........................................................5 Section 3. RF Power Output...................................................................................7 Section 4. Occupied Bandwidth.............................................................................8 Section 5. Spurious Emissions at Antenna Terminals............................................17 Section 6. Field Strength of Spurious....................................................................36 Section 7. Test Equipment List.............................................................................39 Annex A - Test Details..........................................................................................40 Annex B - Test Diagrams......................................................................................46 KTL Dallas FCC PART 24, SUBPART E BROADBAND PCS REPEATERS EQUIPMENT:InCell-1900 FCC ID:KUWINCELL1900PROJECT NO.:0L0296RUS3 Page 3 of 49 Section 1.Summary of Test Results Manufacturer:Andrew Corporation Model No.:InCell 1900 Serial No.:S02 General:All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with FCC Part 24, Subpart E. New SubmissionProduction Unit Class II Permissive ChangePre-Production Unit THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. See “ Summary of Test Data”. NVLAP LAB CODE: 100426-0 KTL Dallas Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. KTL Dallas Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. KTL Dallas FCC PART 24, SUBPART E BROADBAND PCS REPEATERS EQUIPMENT:InCell-1900 FCC ID:KUWINCELL1900PROJECT NO.:0L0296RUS3 Page 4 of 49 Summary Of Test Data NAME OF TEST PARA. NO.SPEC.MEAS.RESULT RF Power Output (CDMA)24.232100W0.011WComplies RF Power Output (GSM)24.232100W0.032WComplies RF Power Output (NADC)24.232100W0.039Complies Occupied Bandwidth (CDMA)24.238Input/OutputPlotComplies Occupied Bandwidth (GSM)24.238Input/OutputPlotComplies Occupied Bandwidth (NADC)24.238Input/OutputPlotComplies Spurious Emissions at Antenna Terminals 24.238(a)-13 dBm< -13 dBmComplies Field Strength of Spurious Emissions 24.238(a) -13 dBm E.I.R.P. <-13 dBmComplies Frequency Stability24.235N/AN/AN/A Footnotes: (1) Modulation characteristics were not tested since the E.U.T. simply re-transmits a modulated waveform but does not generate this waveform. Measurement uncertainty for each test configuration is expressed to 95% probability. KTL Dallas FCC PART 24, SUBPART E BROADBAND PCS REPEATERS EQUIPMENT:InCell-1900 FCC ID:KUWINCELL1900PROJECT NO.:0L0296RUS3 Page 5 of 49 Section 2.General Equipment Specification Supply Voltage Input(CDU): 120 VAC via power mains Supply Voltage Input(RAU): 24 VDC from CDU Frequency Bands:Downlink: Block A : 1930 – 1945 MHz Block D : 1945 – 1950 MHz Block B : 1950 – 1965 MHz Block E : 1965 – 1970 MHz Block F : 1970 – 1975 MHz Block C : 1975 – 1990 MHz Frequency Bands:Uplink: Block A : 1850 – 1865 MHz Block B : 1865 – 1870 MHz Block C : 1870 – 1885 MHz Block D : 1885 – 1890 MHz Block E : 1890 – 1895 MHz Block F : 1895 – 1910 MHz CDMAGSMNADC (F9W)(GXW)(DXW) Type of Modulation and Designator: System Gain: 15 dB Output Impedance: 50 ohms Max Input: +0dBm CDMA.011W RF Output (Rated):Downlink GSM.032W NADC.040W F1-F1F1-F2N/A Frequency Translation: SoftwareDuplexerFullband Band Selection: KTL Dallas FCC PART 24, SUBPART E BROADBAND PCS REPEATERS EQUIPMENT:InCell-1900 FCC ID:KUWINCELL1900PROJECT NO.:0L0296RUS3 Page 6 of 49 Description of Operation System Diagram The EUT is a PCS band repeater system that uses fiber optic to distribute modulated rf signals from a base station or repeater to locations throughout a building. The system operates with a direct connection in the uplink direction. The system is made up of two components: 1) CDU (Central Distribution Unit) - This unit is typically located in a wiring closet. Each CDU can interface to six RAU (Remote Antenna Units). The CDU collects and distributes voice and data signals through fiber cable pairs. The CDU connects to the output of a repeater unit. The Uplink direction is a directly wired connection and cannot connect directly to an antenna. The transmit signals from the repeater are converted from rf to optical and distributed via the fiber cables to a RAU. 1) RAU (Remote Antenna Unit) - This unit converts the signal received from the CDU back to rf and transmits the rf to subscriber units within its coverage range. Conversely it receives the rf signals transmitted by the subscriber units, converts the rf to an optical signal and sends it to the CDU via fiber. The overall rf gain of the system in the downlink direction is nominally 15 dB. RAU Patch Antenna CDU Repeater KTL Dallas FCC PART 24, SUBPART E BROADBAND PCS REPEATERS …

Text truncated - open the document above for the full version.

KTL Test Report No.: 0L0296RUS3 Applicant: Andrew Corporation Equipment Under Test: InCell Fiber Optic Distributed Antenna System Model: InCell-1900 FCC ID: KUWINCELL1900 In Accordance With:FCC Part 24, Subpart E Broadband PCS Repeaters Tested By: KTL Dallas Inc. 802 N. Kealy Lewisville, Texas 75057-3136 Authorized By: Tom Tidwell, RF Group Manager Date: February, 2001 Total Number of Pages: 49 KTL Dallas FCC PART 24, SUBPART E BROADBAND PCS REPEATERS EQUIPMENT:InCell-1900 FCC ID:KUWINCELL1900PROJECT NO.:0L0296RUS3 Page 2 of 49 Table of Contents Section 1. Summary of Test Results.......................................................................3 Section 2. General Equipment Specification...........................................................5 Section 3. RF Power Output...................................................................................7 Section 4. Occupied Bandwidth.............................................................................8 Section 5. Spurious Emissions at Antenna Terminals............................................17 Section 6. Field Strength of Spurious....................................................................36 Section 7. Test Equipment List.............................................................................39 Annex A - Test Details..........................................................................................40 Annex B - Test Diagrams......................................................................................46 KTL Dallas FCC PART 24, SUBPART E BROADBAND PCS REPEATERS EQUIPMENT:InCell-1900 FCC ID:KUWINCELL1900PROJECT NO.:0L0296RUS3 Page 3 of 49 Section 1.Summary of Test Results Manufacturer:Andrew Corporation Model No.:InCell 1900 Serial No.:S02 General:All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with FCC Part 24, Subpart E. New SubmissionProduction Unit Class II Permissive ChangePre-Production Unit THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. See “ Summary of Test Data”. NVLAP LAB CODE: 100426-0 KTL Dallas Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. KTL Dallas Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. KTL Dallas FCC PART 24, SUBPART E BROADBAND PCS REPEATERS EQUIPMENT:InCell-1900 FCC ID:KUWINCELL1900PROJECT NO.:0L0296RUS3 Page 4 of 49 Summary Of Test Data NAME OF TEST PARA. NO.SPEC.MEAS.RESULT RF Power Output (CDMA)24.232100W0.011WComplies RF Power Output (GSM)24.232100W0.032WComplies RF Power Output (NADC)24.232100W0.039Complies Occupied Bandwidth (CDMA)24.238Input/OutputPlotComplies Occupied Bandwidth (GSM)24.238Input/OutputPlotComplies Occupied Bandwidth (NADC)24.238Input/OutputPlotComplies Spurious Emissions at Antenna Terminals 24.238(a)-13 dBm< -13 dBmComplies Field Strength of Spurious Emissions 24.238(a) -13 dBm E.I.R.P. <-13 dBmComplies Frequency Stability24.235N/AN/AN/A Footnotes: (1) Modulation characteristics were not tested since the E.U.T. simply re-transmits a modulated waveform but does not generate this waveform. Measurement uncertainty for each test configuration is expressed to 95% probability. KTL Dallas FCC PART 24, SUBPART E BROADBAND PCS REPEATERS EQUIPMENT:InCell-1900 FCC ID:KUWINCELL1900PROJECT NO.:0L0296RUS3 Page 5 of 49 Section 2.General Equipment Specification Supply Voltage Input(CDU): 120 VAC via power mains Supply Voltage Input(RAU): 24 VDC from CDU Frequency Bands:Downlink: Block A : 1930 – 1945 MHz Block D : 1945 – 1950 MHz Block B : 1950 – 1965 MHz Block E : 1965 – 1970 MHz Block F : 1970 – 1975 MHz Block C : 1975 – 1990 MHz Frequency Bands:Uplink: Block A : 1850 – 1865 MHz Block B : 1865 – 1870 MHz Block C : 1870 – 1885 MHz Block D : 1885 – 1890 MHz Block E : 1890 – 1895 MHz Block F : 1895 – 1910 MHz CDMAGSMNADC (F9W)(GXW)(DXW) Type of Modulation and Designator: System Gain: 15 dB Output Impedance: 50 ohms Max Input: +0dBm CDMA.011W RF Output (Rated):Downlink GSM.032W NADC.040W F1-F1F1-F2N/A Frequency Translation: SoftwareDuplexerFullband Band Selection: KTL Dallas FCC PART 24, SUBPART E BROADBAND PCS REPEATERS EQUIPMENT:InCell-1900 FCC ID:KUWINCELL1900PROJECT NO.:0L0296RUS3 Page 6 of 49 Description of Operation System Diagram The EUT is a PCS band repeater system that uses fiber optic to distribute modulated rf signals from a base station or repeater to locations throughout a building. The system operates with a direct connection in the uplink direction. The system is made up of two components: 1) CDU (Central Distribution Unit) - This unit is typically located in a wiring closet. Each CDU can interface to six RAU (Remote Antenna Units). The CDU collects and distributes voice and data signals through fiber cable pairs. The CDU connects to the output of a repeater unit. The Uplink direction is a directly wired connection and cannot connect directly to an antenna. The transmit signals from the repeater are converted from rf to optical and distributed via the fiber cables to a RAU. 1) RAU (Remote Antenna Unit) - This unit converts the signal received from the CDU back to rf and transmits the rf to subscriber units within its coverage range. Conversely it receives the rf signals transmitted by the subscriber units, converts the rf to an optical signal and sends it to the CDU via fiber. The overall rf gain of the system in the downlink direction is nominally 15 dB. RAU Patch Antenna CDU Repeater KTL Dallas FCC PART 24, SUBPART E BROADBAND PCS REPEATERS …

Text truncated - open the document above for the full version.

DC Voltages and Current in PA Power amplifier is a Stanford Microdevices SXA-289. It uses +5Vdc@115 mA.

KTL Dallas FCC PART 24, SUBPART E BROADBAND PCS REPEATERS EQUIPMENT:InCell-1900 FCC ID:KUWINCELL1900PROJECT NO.:0L0296RUS3 Page 38 of 49 Photographs of Test Setup FRONT VIEW REAR VIEW
