KUWMAAISBi-Directional Amplifier

Channelized Amplifier Installation Instruction 1. INTRODUCTION This document provides installation instructions for the Midway Airport Air Interface System (MAAIS). This system shall be used as an air interface for the new Midway Airport Terminal Development Program, Passive Radio Support System. 2. EQUIPMENT 2.1 Channelize Amplifier Racks The engineers/technicians must read the RF Radiation Hazard section before they proceed any installation work. Install both channelize amplifier racks in the MDF room of area 10–153. Each equipment rack has been pre-assembled the internal cabling among all the modules and there are four interconnect RF cables between these two racks and Figure 1, 2, 3 and 4 have indicated. The interconnections are listed in the following: a. The first cable is from the bottom of rack #1’s combiner (VHF Downlink Port) to rack #2’s VHF D/L Combiner (Downlink Port). b. The second cable is from the bottom of rack #1’s combiner (VHF Uplink Port) to rack #2’s VHF U/L Splitter (Uplink Port). c. The third cable is from the rack #1’s UHF Duplexer/CBC (Downlink Port) to rack #2’s UHF D/L Combiner (Downlink Port). d. The fourth cable is from rack #1’s UHF Duplexer/CBC (Uplink Port) to rack #2’s UHF U/L Splitter (Uplink Port). The bottom floor panel of raise floor beneath the rack will need to be removed for routing the six (6) antenna feeder cables. The cable connecting ports are shown in Figure 1, 2, 3 and 4. The cable connections between the antenna and equipment racks are listed in the following: a. The UHF 1 antenna’s downlink cable will connect between the UHF 1 D/L outdoor antenna and rack #1’s UHF D/L Splitter. b. The UHF 1 antenna’s uplink cable will connect between the UHF 1 U/L outdoor antenna and rack #1’s UHF U/L Combiner. c. The UHF 2 antenna’s downlink cable will connect between the UHF 2 D/L outdoor antenna and rack #2’s UHF D/L Splitter. d. The UHF 2 antenna’s uplink cable will connect between the UHF 2 U/L outdoor antenna and rack #2’s UHF U/L Combiner. e. The VHF antenna’s downlink cable will connect between the VHF D/L outdoor antenna and rack #2’s VHF D/L splitter. f. The VHF antenna’s uplink cable will connect between the VHF U/L outdoor antenna and rack #2’s VHF U/L Combiner. The existing passive combiners currently in place shall be relocated into the channelize amplifier equipment rack so all cable feeding these units shall also be relocated to the new equipment rack. Note, there will not be access to the equipment rack from above so all cable will need to enter the rack from below. 2.2 Transmission and Jumper Cable Installation Install six (6) cable runs; one for each antenna to the MAAIS channelized amplifier equipment racks. At the output of each antenna install a 3 ft. ½” jumper. From each jumper, install 7/8 “ Heliax cable from the antenna to the MDF room in area 10-153. The 7/8 “ Heliax shall not exceed a bend radius of 10 inches. If the bend radius need to exceeded 10 inches, install a 3 ft. of ½” jumper. The first transmission line interconnection, after entering the building shall be at the Ground Bar Assembly housing the surge arrestors. At the junction install a 3 ft. of ½” jumper between each run of 7/8” Heliax and surge arrestor. At the output of each surge arrestors install a 3 ft. ½” jumpers. From the jumper route the transmission line from the over to the channelized amplifier equipment racks. Reference Figure 3 and 4 for cable installation. 2.3 RF Radiation Hazard RF radiation, (especially at UHF frequencies) arising from transmitter outputs connected to AFL’s equipment, must be considered a safety hazard. This condition might only occur in the event of cable disconnection, or because a ‘spare’ output has been left unterminated. Either of these conditions would impair the system’s efficiency. No investigation should be carried out until all RF power sources have been removed. This would always be a wise precaution, despite the severe mismatch between the impedance of an N type connector at 50?, and that of free space at 377?, which would severely mitigate against the efficient radiation of RF power. Radio frequency burns could also be a hazard, if any RF power carrying components were to be carelessly touched! Antenna positions should be chosen to comply with requirements (both local & statutory) regarding exposure of personnel to RF radiation. When connected to an antenna, the unit is capable of producing RF field strengths, which may exceed guideline safe values especially if used with antennas having appreciable gain. In this regard the use of directional antennas with backscreens and a strict site rule that personnel must remain behind the screen while the RF power is on, is strongly recommended. The minimum distance between the antennas and nearby personnel requirement is 2meters. “This equipment complies with part 90 of the fcc rules. Any changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment.” Where the equipment is used near power lines, or in association with temporary masts not having lightning protection, the use of a safety earth connected to the case-earthing bolt is strongly advised. 05 02 03 04 01 10 06 07 08 09 12 13 14 15 11 36 26 17 16 18 19 20 22 23 24 25 21 31 27 28 29 30 32 33 34 35 40 37 38 39 42 41 43 UHF DUPLEXER/CBC 50-030509 50-030509 UHF DUPLEXER/CBC 50-030511 UHF U/L SPLITTER 50-030508 UHF D/L COMBINER 50-030512 UHF DUPLEX CM 50-030512 UHF DUPLEX CM 50-030512 UHF DUPLEX CM 50-030512 UHF DUPLEX CM 50-030512 UHF DUPLEX CM 50-030512 UHF DUPLEX CM 50-030507 UHF D/L SPLITTER 50-030510 UHF U/L COMBINER A B C D E F G H J K L M 460/477MHz 466/480MHz 479-481MHz 476-478MHz 477.6375MHz 477.4125MHz 477.0875MHz 476.7875MHz 476.5625MHz 476.3125MHz 476.2-477.8MHz 479.2-480.8MHz Figure 1 – Rack #1 Layout 05 02 03 04 01 10 06 07 08 09 12 13 14 15 11 36 26 17 16 18 19 20 22 23 24 25 21 31 27 28 29 30 32 33 34 35 40 37 38 39 42 41 43 VHF U/L SPLITTER 50-030504 5…

Text truncated - open the document above for the full version.

THI RD ANGLE PROJECTI ON 1 23 4 A B C D E FF E D C B A 4 3 2 1 NoDESCRIPTION ISSUE DAT EBY BY AERIAL FACILITIES LTD. TWO DE CIM A L PLA CE S ± 0.1mm ONE DECIMAL PLACE ± 0.3mm NO DECIMAL PLACE ± 1m m PERM ISSIBLE ONLY IF EXPRESSLY AUT HORISED IN WRIT ING RE P RODUCT ION OR US E OF T HIS DE S IGN B Y OTHE RS IS THIS IS A PROPRIETARY DESIGN OF AERIAL FACILITIES LTD. T OLERANCES DRAWNDATEAPPD CHKD m m UNLESS OT HERWISE ALL DIMENSIONS ARE IN STATED SCALE T el : 01494 777000 Fax : 01494 777002 Aerial Facilities Limited CUSTOMER TITLE DRAWING No A 4 UHF 2/VHF RACK LAYOUT MIDWAY AIRPORT Q105106 50-030550 1A 1: 10TAS1/2/02 05 02 03 04 01 10 06 07 08 09 12 13 14 15 11 36 26 17 16 18 19 20 22 23 24 25 21 31 27 28 29 30 32 33 34 35 40 37 38 39 PRODUCTION ISSUE 1/2/02 TAS 42 41 43 GD SS VHF U/L SPLITTER 50-030504 50-030503 VHF D/L COM BINER 50-030505 VHF DUPLEX CM 50-030505 VHF DUPLEX CM 50-030505 VHF DUPLEX CM 50-030506 VHF SIMPLEX CM 50-030506 VHF SIMPLEX CM VHF U/L COM BINER 50-030503 VHF D/L SPLITTER 50-030502 UHF U/L SPLIT T ER 50-030511 UHF D/L COM BINER 50-030508 UHF DUPLEX CM 50-030512 50-030512 UHF DUPLEX CM 50-030512 UHF DUPLEX CM 50-030512 UHF DUPLEX CM 50-030512 UHF DUPLEX CM 50-030507 UHF D/L SPLIT T ER UHF U/L COM BINER 50-030510 153.5-154.5MHz A B 153.5-154.5MHz C 154.295MHz D 154.130MHz E 154.010MHz F 154.385MHz G 154.220MHz H 153.5-154.5MHz J 153.5-154.5MHz K 465-468MHz L 460-463MHz M 462.975MHz N 462.950MHz P 460.625MHz Q 460.600MHz R 460.400MHz S 460.4-463.0MHz T 465.4-468.0MHz THI RD ANGLE PROJECTI ON 1 23 4 A B C D E FF E D C B A 4 3 2 1 NoDESCRIPT ION ISSUE DAT EBY BY AERIAL FACILITIES LTD. T WO DE CIM A L P LA CE S ± 0.1mm ONE DECIMAL PLACE ± 0.3mm NO DECIM AL PLACE ± 1m m PERMISSIBLE ONLY IF EXPRESSLY AUTHORISED IN WRITING REPRODUCTION OR USE OF T HIS DESIGN BY OT HERS IS THIS IS A PROPRIETARY DESIGN OF AERIAL FACILITIES LTD. T OLERANCES DRAWNDATEAPPD CHKD m m UNLESS OT HERWISE ALL DIM ENSIONS ARE IN STATED SCALE T el : 01494 777000 F ax : 01494 777002 Aerial Facilities Limited CUST OM ER TITLE DRAWING No A 4 UHF 2/VHF EQUIPM ENT INT ERCONNECTION M IDWAY AIRPORT Q105106 50-030552 1A 1: 10TA S1/2/02 05 02 03 04 01 10 06 07 08 09 12 13 14 15 11 36 26 17 16 18 19 20 22 23 24 25 21 31 27 28 29 30 32 33 34 35 40 37 38 39 PRODUCTION ISSUE 1/2/02 TAS 42 41 43 GD SS V U/ LD/ L V U/ L U1 D/ L U1 U/ L UHF2 D/ L UHF2 D/ L VHF U/ L VHF 2AINT ERCONNECTIONS REVISED 19/ 7/ 02 MRB THI RD ANGLE PROJECTI ON 1 23 4 A B C D E FF E D C B A 4 3 2 1 NoDESCRIPT ION ISSUE DAT EBY BY AERIAL FACILITIES LTD. T WO DE CIM A L P LA CE S ± 0.1mm ONE DECIMAL PLACE ± 0.3mm NO DECIM AL PLACE ± 1m m PERMISSIBLE ONLY IF EXPRESSLY AUTHORISED IN WRITING REPRODUCTION OR USE OF T HIS DESIGN BY OT HERS IS THIS IS A PROPRIETARY DESIGN OF AERIAL FACILITIES LTD. T OLERANCES DRAWNDATEAPPD CHKD m m UNLESS OT HERWISE ALL DIM ENSIONS ARE IN STATED SCALE T el : 01494 777000 F ax : 01494 777002 Aerial Facilities Limited CUST OM ER TITLE DRAWING No A 4 UHF 1 RACK LAYOUT M IDWAY AIRPORT Q105106 50-030551 1A 1: 10TA S1/2/02 05 02 03 04 01 10 06 07 08 09 12 13 14 15 11 36 26 17 16 18 19 20 22 23 24 25 21 31 27 28 29 30 32 33 34 35 40 37 38 39 PRODUCTION ISSUE 25/ 01/ 02 TAS 42 41 43 GD SS UHF DUPLEXER/CBC 50-030509 50-030509 UHF DUPLEXER/CBC 50-030511 UHF U/L SPLIT T ER 50-030508 UHF D/L COM BINER 50-030512 UHF DUPLEX CM 50-030512 UHF DUPLEX CM 50-030512 UHF DUPLEX CM 50-030512 UHF DUPLEX CM 50-030512 UHF DUPLEX CM 50-030512 UHF DUPLEX CM 50-030507 UHF D/L SPLIT T ER 50-030510 UHF U/L COM BINER A B C D E F G H J K L M 460/477MHz 466/480MHz 479-481MHz 476-478MHz 477.6375MHz 477.4125MHz 477.0875MHz 476.7875MHz 476.5625MHz 476.3125MHz 476.2-477.8MHz 479.2-480.8MHz THI RD ANGLE PROJECTI ON 1 23 4 A B C D E FF E D C B A 4 3 2 1 NoDESCRIPT ION ISSUE DAT EBY BY AERIAL FACILITIES LTD. T WO DE CIM A L P LA CE S ± 0.1mm ONE DECIMAL PLACE ± 0.3mm NO DECIM AL PLACE ± 1m m PERMISSIBLE ONLY IF EXPRESSLY AUTHORISED IN WRITING REPRODUCTION OR USE OF T HIS DESIGN BY OT HERS IS THIS IS A PROPRIETARY DESIGN OF AERIAL FACILITIES LTD. T OLERANCES DRAWNDATEAPPD CHKD m m UNLESS OT HERWISE ALL DIM ENSIONS ARE IN STATED SCALE T el : 01494 777000 F ax : 01494 777002 Aerial Facilities Limited CUST OM ER TITLE DRAWING No A 4 UHF 1 EQUIPM ENT INT ERCONNECTION M IDWAY AIRPORT Q105106 50-030553 1A 1: 10TA S1/2/02 05 02 03 04 01 10 06 07 08 09 12 13 14 15 11 36 26 17 16 18 19 20 22 23 24 25 21 31 27 28 29 30 32 33 34 35 40 37 38 39 PRODUCTION ISSUE 1/2/02 TAS 42 41 43 GD SS D/ L U2 U/ L U2 U/ L UHF1 D/ L UHF1 LCX LCX VHF D/ L VHF U/ L DNUP 2AINTERCONNECTIONS REVISED 19/7/ 02MRB U H F SY ST EM 2 VH F C C E SYST E M M I D W A Y A I R P O R T Q 105 106 S Y S T E M D I A G R A M 50- 0 30580 AA N. T . S MN R 11/ 12/ 01 LO A D H F D S P L I T T ER / C O M BI N E R GEC CO M B I N E R HY B R I D 15 3. 5- 154. 5M H z BAN D PASS F I L T ER TO V H F D O W N L I N K S P L I T T ER / C O M BI N E R LO A D CE G CO M B I N E R D FH CO M B I N E R HY B R I D 153. 5- 154. 5M H z BAN D PASS F I L T ER A CO M B I N E R 40 dB 40dB 40 dB C R Y ST AL F I L T ER 153. 5- 154. 5M H z BAN D PASS F I L T ER A C R Y ST AL F I L T ER C R Y ST AL F I L T ER C R Y ST AL F I L T ER C R Y ST AL F I L T ER LP A CB LP A LP A G LO A D FE SP L I T T E R D G F EDC I S OL A T OR D 40dB HP A A 0- 30dB A TTE N U A TO R B/ W = 3 0 k H z CH A NNE L M O DUL E A T T E NUA T O R 22dB LN A 0- 30dB B 60dB HP A I S O L A T O R C CHA NNE L M O DUL E dB dB IS O L A T O R D A A TTE N U A TO R 0- 30dB 40dBHP A A T TE N U A TO R B / W = 30k H z dB 22dBLN A 0 - 30dB AT T E N U AT O R 60dBHP A I S OL A T OR B C B / W = 30k H z CHA NNE L M O DUL E B / W = 30k H z CHA NNE L M O DUL E B / W = 30k H z CHA NNE L M O DUL E IS O L A T O R 0- 30dB A TTE N U A TO R dB D A 40dBHP A A T TE N U A TO R dB dB AT T E N U AT O R 0 - 30dB 22dBLN A 60dBHP A B I S OL A T OR C CHA NNE L M O DUL E B / W = 30k H z CHA NNE L M O DUL E B / W = 30k H z IS O L A T O R D HP A 40dB dB A TTE N U A TO R 0- 30dB A dB A T TE N U A TO R 0 - 30dB AT …

Text truncated - open the document above for the full version.

Distributed Communications System 2601 Telecom Parkway Richardson, Texas 75082 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Authority to Act as Agent to the Federal Communications Commission On our behalf, I appoint Nemko Dallas, Inc. to act as agent in the preparation of this application for equipment authorization to the Federal Communications Commission. I certify that submitted Exhibits properly describe the device or system for which equipment authorization is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Commission's regulations will have affixed to it a label identical to that submitted for approval with this application. APPLICANT ANTI-DRUG ABUSE CERTIFICATION: In signing this letter, Applicant certifies that, in the case of an individual applicant, he or she is not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a), or, in the case of a non-individual applicant (e.g. corporation, partnership or other unincorporated association), no party to the application is subject to a denial of federal benefits, that includes FCC benefits, pursuant to that section. For the definition of a "party" for these purposes, see 47 CFR 1.2002(b). Dated this 19th Day of July 2002 Agency agreement expiration date: 19 July, 2003 By: Dana Collins Title: Senior Program Manager Telephone: 972-952-0002 Applicant: Andrew Corporation

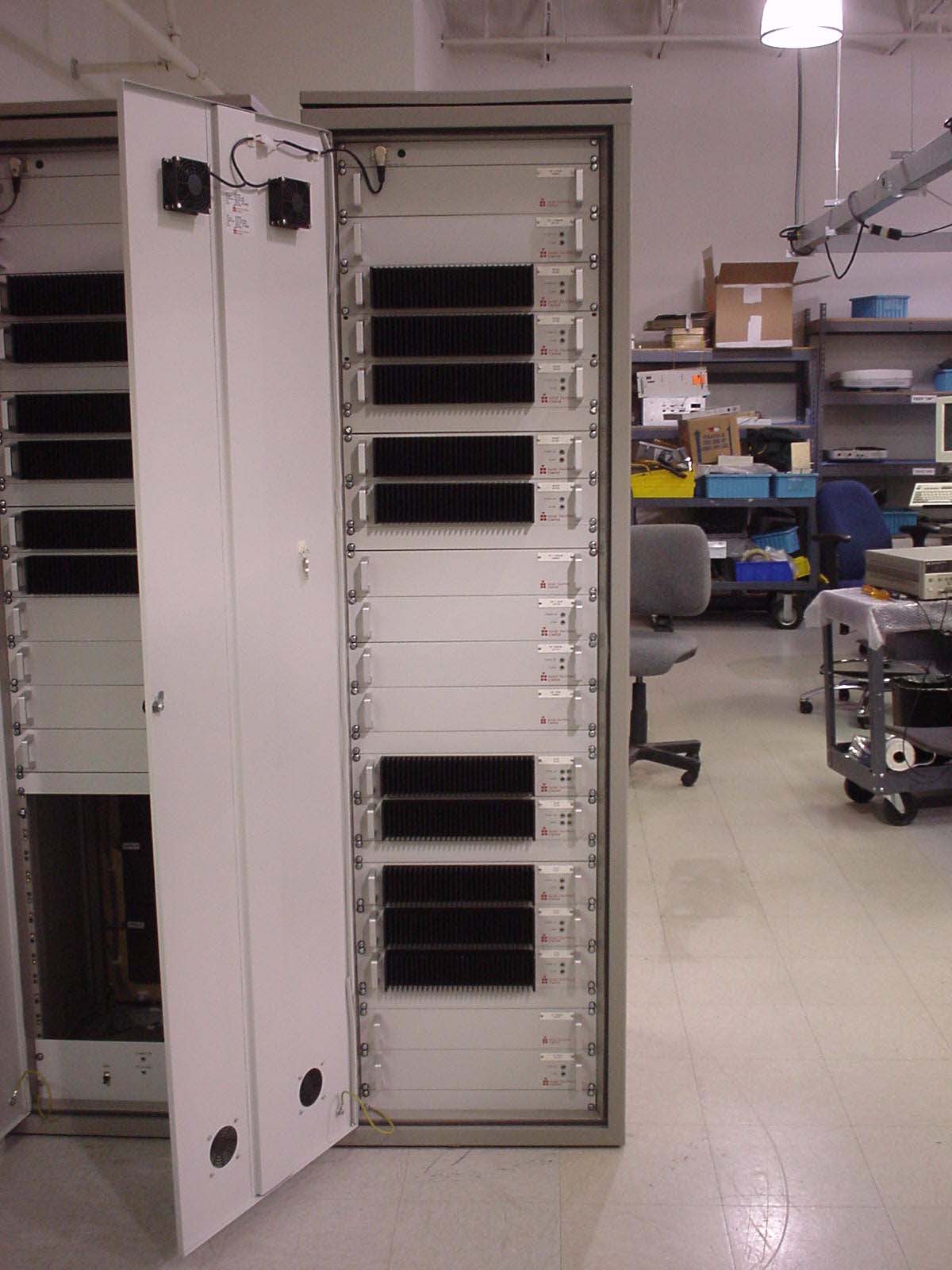

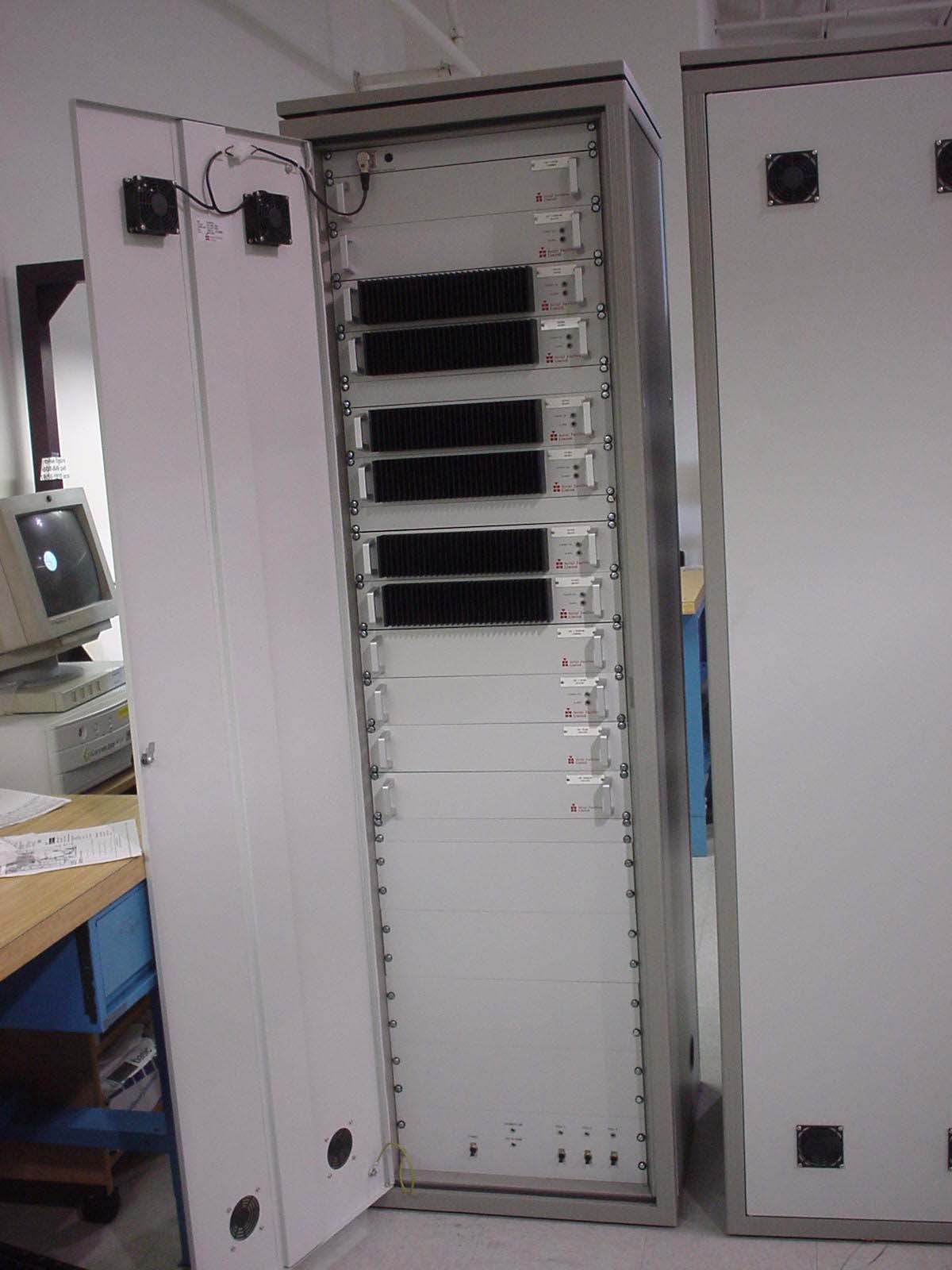

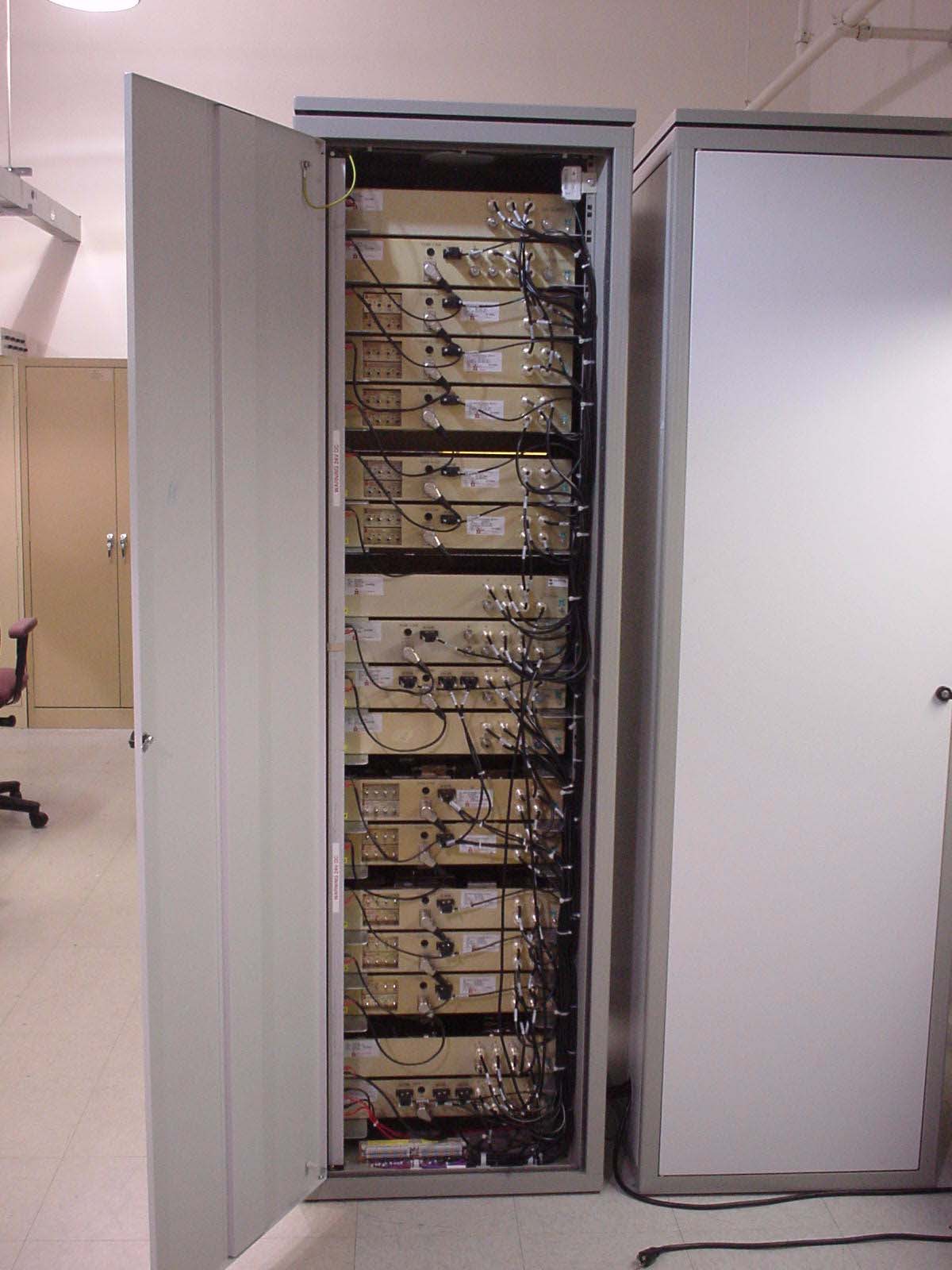

Two Racks Front View (with door closed) One Rack Front View (with door open) One Rack Front View (with door open) Two Racks Rear View (with door closed) One Rack Rear View (with door open) One Rack Rear View (with door open)

FC C I D : PAR T NO. : _ ____ _____ ____ _____ ____ _ ________ MOD E L NO.: MAAIS AE04 J -A0851 KU WMAA IS

UHF Channilzed Module UHF Combiner UHF Duplexer UHF Splitter VHF Channelized Module (Simplex) VHF Channelized Module (Duplex) VHF Splitter VHF Combiner

Distributed Communications Systems Midway Air Interface Specification Midway Airport Terminal Development Program VHF / UHF Air Interface Technical Specification Prepared by: Andrew Corporation Distributed Communications Systems 2601 Telecom Parkway Richardson, Texas 75082 Distributed Communications Systems Midway Air Interface Specification This document contains Andrew Corporation Proprietary Information. This information shall not be used or released for any other purpose but for the evaluation of this Proposal without prior written consent. Pg 2 Rev. 3 Dec. 17, 2001 RECORD OF AMENDMENTS Revision Level Date Pages Changed Rev. 0 November 20, 2001 Initial Release Rev. 1 December 12, 2001 All Sections Updated Rev. 2 December 14, 2001 Updated: Sections 2.1 and 2.2 Tables 2-1 and 2-2 Tables 2-3 and 2-5 Rev.3 December 17, 2001 Section 2.1 and 2.2 Tables 2-3, 2-4, 2-5 and 2-6 Rev. 4 June 15, 2002 Section 2.1 Table 2.3, 2.4, 2.5 and 2.6 Distributed Communications Systems Midway Air Interface Specification This document contains Andrew Corporation Proprietary Information. This information shall not be used or released for any other purpose but for the evaluation of this Proposal without prior written consent. Pg 3 Rev. 3 Dec. 17, 2001 Table of Contents 1. INTRODUCTION..............................................................................................................................4 2. SPECIFICATIONS.............................................................................................................................4 2.1 Electrical.....................................................................................................................................4 2.2 Mechanical................................................................................................................................10 2.3 Environmental.............................................................................................11 3. TEST DATA REQUIREMENTS.....................................................................................................11 List of Tables Table 2-1: MAAIS UHF Frequency List....................................................................................................5 Table 2-2: MAAIS VHF Frequency List...................................................................................................6 Table 2-3: MAAIS UHF Downlink Electrical Specifications...................................................................6 Table 2-4: MAAIS UHF Uplink Electrical Specifications........................................................................7 Table 2-5: MAAIS VHF Downlink Electrical Specifications...................................................................8 Table 2-6: MAAIS VHF Uplink Electrical Specifications....................................................................... 9 Table 2-7: MAAIS Mechanical Specification.........................................................................................10 Table 2-8: MAAIS Environmental Specifications...................................................................................11 Distributed Communications Systems Midway Air Interface Specification This document contains Andrew Corporation Proprietary Information. This information shall not be used or released for any other purpose but for the evaluation of this Proposal without prior written consent. Pg 4 Rev. 3 Dec. 17, 2001 1. INTRODUCTION 1.1 Scope This document provides the detailed performance specifications and production test requirements for Midway Airport VHF/UHF Air Interface System. This system shall be used in the Midway Airport Terminal Development Program, Passive Radio Support System. 1.2 Overview The Midway Airport Air Interface System (MAAIS) shall operate as a on channel repeater, transmitting downlink and uplink signals into and out of the new Midway Airport Terminal. The MAAIS shall feed off-air signals into an existing Passive Radio Distribution system constructed of RADIAX cable and antennas. The MAAIS shall operate as the only active assembly within the entire system. Reference the Appendix for the UHF and VHF system block diagram. 2. SPECIFICATIONS 2.1 Electrical The MAAIS shall operate on eleven (11) UHF uplink and downlink channels and five (5) VHF uplink and downlink channels within the 400 MHz band and 150 MHz band, respectively. Two (2) channels in the VHF band shall operate as simplex channels. Reference Table 2-1 and 2-2 below for exact downlink and uplink frequencies. The MAAIS shall operate as a on channel repeater. Off-air signals received in the downlink path shall be amplified for an output of a +29 dBm per channel and a +27dBm per channel respectively for both the UHF and VHF bands. These signals shall be fed into the Midway Airport Passive Radio Support System for distributing RF signals throughout the new Midway terminal. RF signals received in the uplink path from the Passive Radio Support System shall be fed into the MAAIS, and then amplified for an output of a +19 dBm per channel for both the UHF and VHF bands. These signals shall then be transmitted to the various donor sites in and around the new airport terminal. Note that the MAAIS shall be equipped with an a AGC for high uplink receive signals. The MAAIS shall be equipped to operate with six (6) separate antenna ports for accommodating off-air signals and two (2) ports shall be provided for routing signals into and out of the passive radio support system. The MAAIS shall operate from 120 Volts, singel phase AC source. All required AC electrical cords shall be equipped with US male plugs. An internal On/Off switch for powering the MAAIS shall be provided. An LED shall indicate when power is applied to a given amplifier. Additionally, each amplifier shall be equipped with an LED function alarm showing the operating condition of the amplifier module. The MAAIS equipment cabinet shall be equipped with a temperature alarm for monitoring …

Text truncated - open the document above for the full version.

1. System consists of the following: AFL Part Nō. Description Qty. Section 50-030502 VHF DOWNLINK SPLITTER 1 5.1 50-030503 VHF 6CH COMBINER 2 5.2 50-030504 VHF UPLINK SPLITTER 1 5.3 50-030505 VHF DUPLEX CHANNEL MODULE 3 5.4 50-030506 VHF SIMPLEX CHANNEL MODULE 2 5.5 50-030507 UHF DOWNLINK SPLITTER 2 5.6 50-030508 UHF DOWNLINK COMBINER 2 5.7 50-030509 UHF DUPLEXER CBC 2 5.8 50-030510 UHF UPLINK COMBINER 2 5.9 50-030511 UHF UPLINK SPLITTER 2 5.10 50-030512 UHF DUPLEX CHANNEL MODULE 11 5.11 50-030513 PSU SYSTEM 1 5.12 1.1 VHF Downlink Splitter 50-030502 parts list 01-002503 FILTER VHF H/B 6SMAS100W 1 06-000501 4 WAY HYBRID RECEIVER UNIT BNC LEAD 1 12-002201 3 STAGE AMPLIFIER ALARM BOARD 3 12-004901 POWER AMP. VHF 1W 38dB GAIN 3 80-024701 LOAD TERMINATION,0.25W,N-TYPE 1 93-980069 154.010MHz CRYSTAL FILTER 1 93-980070 154.130MHz CRYSTAL FILTER 1 93-980071 154.220MHz CRYSTAL FILTER 1 93-980072 154.295MHz CRYSTAL FILTER 1 93-980073 154.385MHz CRYSTAL FILTER 1 96-110013 T 3.15 A ANTI SURGE FUSE 20mm 1 1.2 VHF 6 Channel Combiner 50-030503 parts list 01-002503 FILTER VHF H/B 6 SMA S 100W 1 05-000103 Tx HYBRID COUPLER 3 PORT NO HEATSINK 1 05-001405 3 CH.WILK.COM.VHF H/B 2 1.3 VHF Uplink Splitter Shelf 50-030504 parts list AFL Part Nō. Description Qty. 01-002503 FILTER VHF H/B 6 SMA S 100W 1 06-000501 4 WAY HYBRID RECEIVER UNIT BNC LEAD 1 12-002201 3 STAGE AMPLIFIER ALARM BOARD 3 12-004901 POWER AMP. VHF 1W 38dB GAIN 3 80-024701 LOAD TERMINATION,0.25W,N-TYPE 1 93-980071 154.220MHz CRYSTAL FILTER 1 93-980073 154.385MHz CRYSTAL FILTER 1 93-980076 153.770MHz CRYSTAL FILTER 1 93-980077 153.950MHz CRYSTAL FILTER 1 93-980078 153.830MHz CRYSTAL FILTER 1 96-110006 T 1.25A A SURGE FUSE 20mm 1 1.4 VHF Duplex Channel Module 50-030505 parts list 08-930002 2 PORT ISOLATOR SMA 1 10-000701 1/4W0-30dB SWITCHED ATTENUATOR 2 11-001202 10/600MHz LNA 24v SMA Alarm 2 12-002201 3 STAGE AMPLIFIER ALARM BOARD 2 12-002801 SINGLE CHANNEL ALARM BOARD 1 12-004901 POWER AMP. VHF 1W 38dB GAIN 1 12-005301 VHF 60dB 10W CLASS AB AMPLIFIER 1 13-001803 DUAL DC/DC CONVTR 24V-12V 1A 1 17-003006 CHAN MOD, 160MHz, 30KHz B/W 2 20-001602 24V RELAY BOARD 1 96-110013 T 3.15 A ANTI SURGE FUSE 20mm 1 1.5 VHF Simplex Channel Module 50-030506 parts list 08-930002 2 PORT ISOLATOR SMA 1 10-000701 1/4W0-30dB SWITCHED ATTENUATOR 2 11-001202 10/600MHz LNA 24v SMA 2 12-002201 3 STAGE AMPLIFIER ALARM BOARD 2 12-002801 SINGLE CHANNEL ALARM BOARD 1 12-004901 POWER AMP. VHF 1W 38dB GAIN 1 12-005301 VHF 60dB 10W CLASS AB AMPLIFIER 1 13-001803 DUAL DC/DC CONVTR 24V-12V 1A 1 13-002811 SIMPLEX CONTROLLER PCB ASSEMBLY 1 17-001201 C/E AGC UNIT ATTENUATOR ASSEMBLY 1 17-002802 SIMPLEX C.E Rx/SQUELCH & AF (SMD) 2 17-003006 CHAN MOD, 160MHz, 30kHz B/W 2 20-001602 24V RELAY BOARD 1 96-110013 T 3.15 A ANTI SURGE FUSE 20mm 1 1.6 UHF Downlink Splitter 50-030507 parts list AFL Part Nō. Description Qty. 02-010201 6P C/L SDF 400MHz SMA 1 06-000601 8 WAY HYBRID RECEIVER UNIT 1 11-001202 10/600MHz LNA 24v SMA 1 12-002801 SINGLE CHANNEL ALARM BOARD 1 80-024701 LOAD TERMINATION,0.25W,N-TYPE 3 96-110006 T 1.25A A.SURGE FUSE 20mm 1 1.7 UHF Downlink Combiner 50-030508 parts list 05-000103 TX HYBRID COUPLER 3 PORT NO HEATSINK 1 05-001406 3 CH. WILK. COMBINER LOW PWR UHF 2 09-001201 5W HEATSINK DUMMY LOAD ASSEMBLY 1 1.8 UHF Duplexer Cross-Band Coupler 50-030509 parts list 02-010201 6P C/L SDF 400MHz SMA 2 07-005705 CROSSBAND CPLR XC 250/380 SMA 1 1.9 UHF Uplink Combiner 50-030510 parts list 02-010201 6P C/L SDF 400MHz SMA 1 05-000103 TX HYBRID COUPLER 3 PORT NO HEATSINK 1 05-001406 3 CH.WILK.COMBINER LOW PWR. UHF 2 09-001201 5W HEATSINK DUMMY LOAD ASSEMBLY 1 1.10 UHF Uplink Splitter 50-030511 parts list AFL Part Nō. Description Qty 06-000601 8 WAY HYBRID RECEIVER UNIT BNC LEAD 1 12-002201 3 STAGE AMPLIFIER ALARM BOARD 1 12-002408 450MHz 0.5W 34dB LPA, 24V 1 80-024701 LOAD TERMINATION,0.25W,N-TYPE 3 96-110006 T 1.25A A.SURGE FUSE 20mm 1 1.11 UHF Duplex Channel Module 50-030512 parts list 08-930003 2 PORT ISOLATOR SMA 1 10-000701 1/4W 0-30dB SWITCHED ATTENUATOR 2 11-001202 10/600MHz LNA 24v SMA 4 11-003905 TETRA LNA 30dB GAIN 1 12-001806 400MHz 10W CLASS AB POWER AMPLIFIER 1 12-002201 3 STAGE AMPLIFIER ALARM BOARD 2 12-002401 450MHz 1w LPA 24v 1 12-002801 SINGLE CHANNEL ALARM BOARD 4 12-004901 POWER AMP. VHF 1W 38dB GAIN 1 13-001803 DUAL DC/DC CONVTR 24V-12V 1A 1 17-003007 CHAN MOD 450MHz, 30kHz B/W 2 20-001601 12V RELAY BOARD 1 20-001602 24V RELAY BOARD 1 96-110013 T 3.15 A ANTI SURGE FUSE 20mm 1 1.12 Power Supply System 50-030513 parts list 13-002104 PSU ALARM BOARD (3 INPUT 24V) 1 20-001602 24V RELAY BOARD 2 94-100004 STPS12045TV 60A DUAL DIODE 2 96-300013 24 V 600 W FLATPACK PWR SUPPLY 3 96-900024 70A SPNO 12V DC RELAY (Omron G8JE) 1 CIRC. DESCRIPTIONAFL STOCK REF. REF. USED ON CHANGE NoCHANGE NoCHANGE NoCHANGE NoDAT EDAT E DAT E DAT EISSUEISSUEISSUE ISSUE Aerial Facilities Limited DRAWNDAT ECHKD APPD CUSTOMER TITLE COMPONENT LIST FORISS VHF/UHF LOW NOISE AM PLIFIER (12V VERSION) CIRCUIT DIAGRAM 11-001270C16A MRB 28/ 09/ 90 L193- 910001FX4008 MULLARD FERRI TE CORE + 3 TURNS 90-500011 ( See 11-001202) L2 L3 L490- 50000720 SWG TINNED COPPER WIRE 1/2 TURN (See 11-001202) L590- 50000720 SWG TINNED COPPER WIRE 3 1/2 TURNS (See 11-001202) L690- 50000720 SWG TINNED COPPER WIRE 3 1/2 TURNS (See 11-001202) L7 1 28/ 9/ 90 Pr od. Iss. 25/4/91CR0268 3 21/ 1/ 93CR0411 4 16/8/93CR0502 5 23/5/94CR0521 14/4/006ACR1679 C193-10004910nF 100V CERAMIC CAP C293- 1400011uF 35V TANTALUM CAP 93- 200010C310pF CERAMIC CAP 10% C493- 200007100pF CERAMIC CAP 10% C593- 1400033.3uF 35V TANTALUM CAP C693- 200007100pF CERAMIC CAP 10% C793- 200007100pF CERAMIC CAP 10% C893-10004910nF 100V CERAMIC CAP C993-10004910nF 100V CERAMIC CAP C1093-2000161nF CERAMIC CAP 10% C1193-2000161nF CERAMIC CAP 10% C1293-2000161nF CERAMIC CAP 10% C1393-10004910nF 100V CERAMIC CAP 93- 910001 FX4008 MULLARD FERRI TE CORE + 3 TURNS 90-500011 ( See 11-001202) 93- 910001 FX4008 MULLARD FERRI TE CORE + 3 TURNS 90-500011 ( See 11-001202) 9…

Text truncated - open the document above for the full version.

Tune Up or Gain Adjustment Procedure This is the procedure to show how to adjust the gain for each channel from each individual module. The frequency and filter has been set and tuned from the manufacturer when it was built. Any frequency or bandwidth change will need to send back to the manufacturer to adjust it. There are two sets of 1 dB step of attenuator with total 30 dB range adjustment in the back of each channel module. The attenuator can adjust the output level for each individual channel module to choose a level to combine with other channels. The two sets of attenuator and each set have four identical switches, the first switch is indicated 1 dB, the second switch is indicated 2 dB, the third switch is indicated 4 dB and the fourth switch is indicated 8 dB. When the switch is toggled up, the attenuation will increase according to the indicated value. For example, the 1 dB switch is up and the attenuation is 1 dB so the output level will decrease 1 dB. When 1 dB and 2 dB switches both are up, the attenuation is 3 dB so the output level will decrease 3 dB. These four switches can make the combination from 1 dB to 15 dB. When combines all 8 switches together, it will get 1 dB to 30 dB ranges.

BY DA T E DE S CRI P T I O N No IS S U E 1 2 34 5 6 7 8 9 ABCDE F 12 3 4 5 6 7 8 9 ABCD EF F a x : 01 494 77 70 02 T e l : 01 494 77 70 00 A e ri a l F a c ilit ies Lim i t e d T H I S I S A P R O P R I ET AR Y D E S I G N O F AER I AL F A C I L I T I ES L T D . R E P R O D UC T I O N O R US E O F T H IS D E S I G N B Y O T H E R S IS PER M I SSI BL E O N L Y I F EXPR ESSL Y AU T H O R I S ED I N W R I T I N G BY A E R I AL F A C I L I T I ES L T D . NO DE CI M A L P L A C E ± 1 m m O N E D E C I M A L P L A C E ± 0. 3m m T W O D E C I M A L P L A C E S ± 0. 1m m AL L D I M E N S I O N S AR E I N m m U N L E SS O T H E R W I SE ST AT ED CH K D D R A W N A PPD DA T E T O L E RA NCE S SC AL E En gl an d C U S T O M E R DR A W ING . N o TI TL E 3A V H F DO W N L I NK S P L I T T E R SY ST EM D I AG R A M 50 -03 0 5 8 2 AA N. T. S MN R 10 / 12/01 DEFGBC 3C H A L A R M S + C O NT RO L A B A N D PA SS F I L T ER 0 1 - 0 0250 3 153 . 5 - 1 54. 5 M H z C R Y S TA L FI L T E R 93 - 980 069 C R Y S TA L FI L T E R 93 - 980 070 C R Y S TA L FI L T E R 93 - 980 072 C R Y S TA L FI L T E R 93 - 980 071 C R Y S TA L FI L T E R 93 - 980 073 LP A 12 - 0 0 4901 12 - 0 0 4901 LP A 12 - 0 0 4901 LP A AL AR M B O AR D (3 OF F ) 12 - 0 0 2201 SP L I T T ER 06 - 000 501 PR O T O T YP E I S SU E 10 / 1 2 / 01 MN R LO A D 80 - 0 24 7 0 1 40 dB 40 dB 40 dB 15 4. 0 1 0 15 4. 1 3 0 15 4. 2 9 5 15 4. 2 2 0 15 4. 3 8 5 E CN2 4 5 2 M N R 06 / 0 2 / 02 BA GD S S BY DA T E DE S CRI P T I O N No IS S U E 1 2 34 5 6 7 8 9 ABCDE F 12 3 4 5 6 7 8 9 ABCD EF F a x : 01 494 77 70 02 T e l : 01 494 77 70 00 A e ri a l F a c ilit ies Lim i t e d T H I S I S A P R O P R I ET AR Y D E S I G N O F AER I AL F A C I L I T I ES L T D . R E P R O D UC T I O N O R US E O F T H IS D E S I G N B Y O T H E R S IS PER M I SSI BL E O N L Y I F EXPR ESSL Y AU T H O R I S ED I N W R I T I N G BY A E R I AL F A C I L I T I ES L T D . NO DE CI M A L P L A C E ± 1 m m O N E D E C I M A L P L A C E ± 0. 3m m T W O D E C I M A L P L A C E S ± 0. 1m m AL L D I M E N S I O N S AR E I N m m U N L E SS O T H E R W I SE ST AT ED CH K D D R A W N A PPD DA T E T O L E RA NCE S SC AL E En gl an d C U S T O M E R DR A W ING . N o TI TL E 3A V H F U P L I N K /D O W N L IN K C O M B IN E R SY ST EM D I AG R A M 50 -03 0 5 8 3 AA N. T. S MN R 10 / 12/01 CEGD F H LO A D 0 9 - 0 0120 1 SP L I T T ER / C O M BI N E R 05- 0 014 05 05- 0 014 05 SP L I T T ER / C O M BI N E R HY B R I D SP L I T T E R / CO M B I N E R 05 - 0 00 1 0 3 B A N D PA SS F I L T ER 0 1 - 0 0250 3 153 . 5 - 1 54. 5 M H z A PR O T O T YP E I S SU E 10 / 1 2 / 01 MN R GD S S VH F U P LI N K SP LI T T E R SY ST EM D I AG R A M 5 0 - 0 30 584 AA N. T. S M N R 10/ 12/ 0 1 BY DA T E DE S CRI P T I O N No I SSU E 1 2 3 4 5 678 9 ABCDE F 1 2 3 4 5 …
