I I n n C C e e l l l l ™ ™ F F i i b b e e r r O O p p t t i i c c D D i i s s t t r r i i b b u u t t e e d d A A n n t t e e n n n n a a S S y y s s t t e e m m Installation and Users Guide Copyright Andrew Corporation Version 1.1 October 2000 Andrew InCell™ Fiber Optic Distributed Antenna System Users Guide - ii - Proprietary Information This document is the property of Andrew Corporation. The information contained herein is proprietary to Andrew, and no part of this document may be reproduced or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the express written permission of Andrew. Disclaimer Andrew reserves the right to make changes, without notice, to the specifications and materials contained herein. While we have worked diligently to insure every element presented is correct, we shall not be responsible for errors. For the latest product information and technical specifications, please see the contact information below.  Copyright Andrew Corporation, October 2000, Printed in USA, All rights reserved. FCC Notice This equipment complies with Part 90 of the FCC rules. Any changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment. Warning In order to comply with FCC rules for rf exposure, the following must be observed: 1. The antenna for this device must have a gain of no more than 14.6 dBi. 2. The antenna must be installed such that a minimum separation distance of 20 cm. is maintained between the antenna and any persons. Trademarks InCell™ is a trademark of Andrew Corporation. All other trademarks belong to their respective owner. Contact Information For more information about Andrew’s capabilities to extend RF signals coverage into structures, including office buildings, shopping complexes, warehouses, tunnels, and mines, please contact us using the information below: Andrew Corporation 2601 Telecom Parkway Richardson, Texas 75082 Attention: Mr. Matt Melester E-mail:[email protected] Fax:(972) 952-0018 Voice:(972) 952-9745 Table of Contents Andrew Corporation.................................................................................................................1 Andrew In-Building Wireless Experience................................................................................1 InCell™ Fiber Optic Distributed Antenna System Description..............................................1 Central Distribution Unit (CDU)...........................................................................................1 CDU FRONT PANEL .........................1 Remote Antenna Unit (RAU)................................................................................................2 CDU to RAU Interface Cables..............................................................................................4 Composite Fiber Optic & Power Cables................................................................................4 Standard Duplex Fiber Optic Cables......................................................................................4 Indoor Antennas....................................................................................................................5 In-Building Implementations Using the Andrew InCell™ System.........................................7 Scalable System Architecture................................................................................................7 The Signal Distribution Unit............................................................................................8 The Interconnecting Cable...................................................................................................11 The Installation Parameters...........................................................................................13 Sample Implementation.......................................................................................................16 InCell™ Specifications............................................................................................................17 Technical Performance........................................................................................................17 Interface Specifications.......................................................................................................18 Electrical Specifications......................................................................................................19 Environmental and Mechanical Specifications.....................................................................20 MTBF...........................................................................................................................20 MTTR...........................................................................................................................20 Andrew InCell™ Fiber Optic Distributed Antenna System Users Guide - ii - InCell™ Network Monitoring System...................................................................................21 Pilot Tone Generation.........................................................................................................21 RAU Indicators...................................................................................................................21 CDU Front Panel Indicators................................................................................................21 Alarm Functions..................................................................................................................22 Remote Monitoring Functions.............................................................................................22 InCell™ Operation, Maintenance and Support....................................................................24 Operation............................................................................................................................24 Regular Maintenance............................…

Text truncated - open the document above for the full version.

REQUEST FOR CONFIDENTIALITY Andrew Corporation requests confidentiality with regard to the following documents in the filing for equipment approval identified by FCC ID. No. KUWINCELLSMR. (1) Schematic diagrams contained in electronic file identified as: Sch-Amps_RAU.pdf Sch-Amps_CDU.pdf Sch-Amps_PDU.pdf Sch-Amps_CDU_Top Level.pdf Block-Amps_CDU.pdf Block-Amps_PDU.pdf Block-Amps_rau.pdf Block-Amps_System.pdf It is the opinion of Andrew Corporation disclosure of this information would result in significant loss of revenue. This information should be kept confidential for 25 years. Authorized Signature ____________________________ Don Stone, Sr. RF Engineer Company Name:Andrew Corporation 2601 Telecom Parkway Richardson, Texas 75082 Distributed Communications System 2601 Telecom Parkway Richardson, Texas 75082

TCB QUESTIONS -----Original Message----- From: Certification Manager [SMTP:[email protected] ] Sent: Wednesday, March 07, 2001 1:36 PM To: Tom Tidwell Subject: KUWINCELLSMR Hi Tom, I thought this one was going to be one I was able to grant straight off, but I got tripped up at the last moment by the following item. Please help me clear this up so I can issue the grant. Thanks! 1. Section 90.691(a) (1) requires 50+10 log(P) attenuation for frequencies removed up to 37.5KHz from the assigned channel band. This is kind of unusual because it is only 43 + 10 log(P) further out. That seems to translate into a -20dBm limit for some of the spurious emissions. This product has some that are -17dBm from the IM test. It would seem that it might be possible to pick channels which might have this high spur show up in the 37.5kHz next to the assigned channel. Please comment on how this device complies with 90.691 (a) (1) or tell me why you think it is not applicable. [Tom Tidwell] The attached file contains three plots. The first plot demonstrates the intermodulation with voice modulated carriers. The total composite power output is actually +9.87 dBm + 10Log(3) = +14.6 dBm. This is the power output that whould be listed on the grant for voice and analogue data modulation. The second plot shows the intermodulation products using 3 iDEN signals. The highest out-of-band intermodulation product is -29 dBm. There are also some products created in the signal generator as a result of the iDEN signals being created with an arbitrary waveform modulation generator (R&S AMIQ). Plot 3 shows the input (output of the signal generator). We are working with our local R&S technical support guy to filter these out. They are apparently a product of the baseband clock in the modulation generator. <<IntermodPlots.pdf> Cheers, Tom Best regards Barry C. Quinlan Certification & Telecom Manager Curtis-Straus LLC

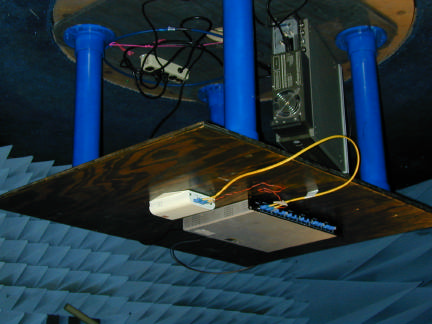

Nemko Dallas, Inc FCC PART 90, SUBPART I PRIVATE LAND MOBILE REPEATER EQUIPMENT: InCell SMR Repeater PROJECT NO.: 1L0025RUS1 Page 22 of 34 Photographs of Test Setup FRONT VIEW REAR VIEW

R.12 MAX CORNERS PERMITTED SERNO.: FCC ID: UL FILE NO.: PART NO.: ________________________________ InCell MODEL: CDU-SMR 2000-1100-001 KUWINCELLSMR U L CUS LISTED R 2 3 2 E209365 1.00 2.00

FCC label location FCC label location

Photo 1 - RAU board, component side Photo 2 - RAU board, trace side Photo 3 - CDU, PDU board component side Photo 4 - CDU, PDU board trace side Photo 5 - CDU, RF board compnent side Photo 6 - CDU, rf board trace side

Circuit Description Central Distribution Unit (CDU) The CDU is connected to a Repeater, BDA, or BTS via coaxial cable. The Downlink (Base-to- Mobile) transmit path is distributed to Remote Antenna Units (RAU). PDU card - The rf input signal is distributed to individual CDU cards (up to six per unit) via the Power Distribution (PDU) Board, which consists of simple passive power dividers. Also located on the PDU card is a pilot oscillator that simply generates a pilot tone that is filtered in the Remote Antenna Unit (RAU) and used to verify the rf link. This pilot tone is never transmitted wirelessly. CDU card - In the Downlink direction the CDU card consists of a SAW filter and rf to laser conversion module. Once the rf signal has been converted to light, it is distributed to a Remote Antenna Unit (RAU) via fiber cable. In the Uplink direction, the CDU card simply performs the opposite function. The optic signal fed from the RAU uplink output is converted to rf, amplified, filtered, and finally passed to the PDU card where it will be sent to the external repeater, BDA, or BTS equipment via coaxial cable. Remote Antenna Unit (RAU) In the Downlink direction, the RAU receives the optic signal from the CDU and converts it to rf. At this stage a Low Pass filter sends the pilot tone to a Pilot Detection Circuit, The intended transmit signal is sent through a two-stage amplifier/filter circuit. The resulting signal is fed through a passive duplexer and finally sent to an external antenna via coaxial cable. The external antenna gain is typically 12 dB maximum. In the Uplink direction, the RAU receives an rf signal from the mobile via the external antenna. The rf signal is processed through a filter/gain control circuit through to a rf-to-optic conversion circuit. The optic signal is the sent to the CDU via fiber optic cable.

Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 where:S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal:20.00(dBm) Maximum peak output power at antenna input terminal:100(mW) Antenna gain(typical):12(dBi) Maximum antenna gain:15.84893(numeric) Prediction distance:20(cm) Prediction frequency:869(MHz) MPE limit for uncontrolled exposure at prediction frequency:0.579333(mW/cm^2) Power density at prediction frequency:0.315304(mW/cm^2) Maximum allowable antenna gain:14.64198(dBi) 2 4R PG S π =

Nemko Test Report:1L0025RUS1 Applicant:Andrew Corporation Equipment Under Test:InCell Fiber Optic Distributed Antenna System Model: SMR Repeater FCC ID:KUWINCELLSMR In Accordance With:FCC Part 90, Subpart I Private Land Mobile Repeater Tested By:Nemko Dallas Inc. 802 N. Kealy Lewisville, TX 75057-3136 Authorized By: Tom Tidwell, Wireless Group Manager Date:February, 2001 Total Number of Pages:34 Nemko Dallas, Inc FCC PART 90, SUBPART I PRIVATE LAND MOBILE REPEATER EQUIPMENT: InCell SMR Repeater PROJECT NO.: 1L0025RUS1 Page 2 of 34 Table of Contents Section 1. Summary of Test Results...................................................................................................3 Section 2. General Equipment Specification........................................................................................5 Section 3. RF Power Output...............................................................................................................7 Section 4. Occupied Bandwidth..........................................................................................................8 Section 5. Spurious Emissions at Antenna Terminals..........................................................................9 Section 6. Field Strength of Spurious Emissions................................................................................14 Section 7.Frequency Stability...........................................................................................................23 Section 8. Test Equipment List.........................................................................................................24 ANNEX A - TEST METHODOLOGIES..............................................................................................25 ANNEX B - TEST DIAGRAMS...........................................................................................................31 Nemko Dallas, Inc FCC PART 90, SUBPART I PRIVATE LAND MOBILE REPEATER EQUIPMENT: InCell SMR Repeater PROJECT NO.: 1L0025RUS1 Page 3 of 34 Section 1.Summary of Test Results Manufacturer:Andrew Corporation Model No.:Incell SMR Repeater Serial No.: General:All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with FCC Part 90, Subpart I. New SubmissionProduction Unit Class II Permissive ChangePre-Production Unit AMPEquipment Code THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. See “ Summary of Test Data”. NVLAP LAB CODE: 100426-0 NEMKO Dallas Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. NEMKO Dallas Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. Nemko Dallas, Inc FCC PART 90, SUBPART I PRIVATE LAND MOBILE REPEATER EQUIPMENT: InCell SMR Repeater PROJECT NO.: 1L0025RUS1 Page 4 of 34 Summary Of Test Data NAME OF TESTPARA. NO.SPEC.MEAS.RESULT RF Power Output90.20519.7 dBmComplies Audio Frequency ResponseTIA EIA-603.3.2.6N/AN/AN/A Audio Low-Pass Filter ResponseTIA EIA-603.3.2.6N/AN/AN/A Modulation LimitingTIA EIA-603.3.2.6N/AN/AN/A Occupied Bandwidth90.210PlotsPlotsComplies Spurious Emissions at Antenna Terminals 90.210PlotsPlotsComplies Field Strength of Spurious Emissions 90.210-13 dBm> -13 dBmComplies Frequency Stability90.213N/AN/AN/A Transient Frequency Behavior90.214N/AN/AN/A Footnotes For N/A’s: (1) Since the E.U.T. does not contain modulation circuitry modulation testing was not performed. (2) Since the E.U.T. is not a keyed carrier system, Transient Frequency Behavior was not performed. . Nemko Dallas, Inc FCC PART 90, SUBPART I PRIVATE LAND MOBILE REPEATER EQUIPMENT: InCell SMR Repeater PROJECT NO.: 1L0025RUS1 Page 5 of 34 Section 2.General Equipment Specification Transmitter Supply Voltage Input: CDU120 VAC via power mains RAU24 Vdc via CDU Frequency Range: 851-869 MHz Tunable Bands: 851-869 MHz Type(s) of Modulation: F3E (Voice) F1DF2DD7W (QAM) D7W (IDEN) Gain: 15 dB Maximum Input: 0 dBm Output Impedance: 50 Ohms RF Power Output (rated):Voice: +14 dBm (.024 W) iDEN: +20 dBm (.100 W) Operator Selection of Operating Frequency: Not selectable Power Output Adjustment Capability: Not adjustable by user Frequency Translation: F1-F1F1-F2N/A Band Selection: SoftwareDuplexer Change Fullband Coverage Nemko Dallas, Inc FCC PART 90, SUBPART I PRIVATE LAND MOBILE REPEATER EQUIPMENT: InCell SMR Repeater PROJECT NO.: 1L0025RUS1 Page 6 of 34 Modifications Made During Testing None System Description System Diagram The EUT is a SMR band repeater system that uses fiber optic to distribute modulated rf signals from a base station or repeater to locations throughout a building. The system operates with a direct connection in the uplink direction. The system is made up of two components: 1) CDU (Central Distribution Unit) - This unit is typically located in a wiring closet. Each CDU can interface to six RAU (Remote Antenna Units). The CDU collects and distributes voice and data signals through fiber cable pairs. The CDU connects to the output of a repeater unit. The Uplink direction is a directly wired connection and cannot connect directly to an antenna. The transmit signals from the repeater are converted from rf to optical and distributed via the fiber cables to a RAU. 2) RAU (Remote Antenna Unit) - This unit converts the signal received from the CDU back to rf and transmits the rf to subscriber units within its coverage range. Conversely it receives the rf signals transmitted by the subscriber units, converts the rf to an optical signal and sends it t…

Text truncated - open the document above for the full version.

Dallas Headquarters: 802 N. Kealy Lewisville, TX 75057 Tel: (972) 436-9600 Fax: (972) 436-2667 Nemko Dallas, Inc. Data Plot Page 1 of3 CompleteX Job No.:1L0025RDate:3/12/01Preliminary Specification:Part 90Temperature(°C):23 Tested By:Chinda PoyRelative Humidity(%)31 E.U.T.: Configuration: Sample Number:SO2 Location:Lab 1RBW:30 kHz Detector Type:PeakVBW:30 kHz Test Equipment Used Antenna: Directional Coupler: Pre-Amp: Cable #1:1046 Filter: Cable #2: Receiver:1464Cable #3: Attenuator #11475Cable #4: Attenuator #2: Mixer: Additional equipment used: Measurement Uncertainty:+/-1.06 dB Notes: Intermodulation Characteristics Composite power = 14.6 dBm Power input = 3.4 dBm Voice Modulation InCell SMR Repeater TX 3 Signals Full Power Dallas Headquarters: 802 N. Kealy Lewisville, TX 75057 Tel: (972) 436-9600 Fax: (972) 436-2667 Nemko Dallas, Inc. Data Plot Page 2 of 3 Job No.:1L0025RDate:3/12/01 Specification: Part 90 Temperature(°C):23 Tested By: Chinda Poy Relative Humidity(%)31 E.U.T.: Configuration: Notes: Intermodulation Characteristics Composite power = 8.2 dBm Power input = -4.1 dBm iDEN Modulation InCell SMR Repeater TX 3 Signals Full Power Dallas Headquarters: 802 N. Kealy Lewisville, TX 75057 Tel: (972) 436-9600 Fax: (972) 436-2667 Nemko Dallas, Inc. Data Plot Page 3 of 3 Job No.:1L0025RDate:3/12/01 Specification:Part 90Temperature(°C):23 Tested By:Chinda PoyRelative Humidity(%)31 E.U.T.: Configuration: Notes: iDEN input signal from IQ modulation generator Intermodulation Characteristics InCell SMR Repeater TX 3 Signals Full Power

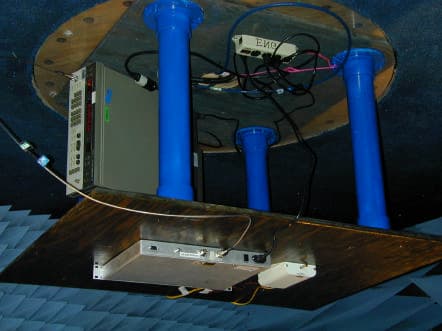

Nemko Dallas, Inc FCC PART 90, SUBPART I PRIVATE LAND MOBILE REPEATER EQUIPMENT: InCell SMR Repeater PROJECT NO.: 1L0025RUS1 Page 22 of 34 Photographs of Test Setup FRONT VIEW REAR VIEW
