L2V-CM1MMT Configuration Tool

WIRELESS DATA SOLUTIONS THAT WORK ® Axonn LLC AXTracker Users Guide – Document # 9100-0159-01 Ver 2.0 1/23 Configuration Module Users Manual Part Number: 9100-0159-01 Revision 2.0 Date: March 26, 2007 ® Prepared by: Axonn LLC 19349 N 12 th Street Covington, LA 70433 PH: (985) 893-1048 WIRELESS DATA SOLUTIONS THAT WORK ® Axonn LLC AXTracker Users Guide – Document # 9100-0159-01 Ver 2.0 2/23 INDEX CONFIGURATION MODULE USERS MANUAL..........................................................................................................................1 1 CONFIGURATION TOOL HARDWARE...............................................................................................................................3 1.1 USB CONNECTION...................................................................................................................................................................3 2 TRACKER SETUP SOFTWARE...............................................................................................................................................3 2.1 PC SOFTWARE CONNECTION..................................................................................................................................................3 2.2 PC SOFTWARE LAYOUT...........................................................................................................................................................4 2.2.1 Status Pane.......................................................................................................................4 2.2.1.1 SLEEP Button...............................................................................................................4 2.2.1.2 PROGRAM Button.......................................................................................................4 2.2.1.3 RUN Button..................................................................................................................4 2.2.1.4 DEFAULT Button........................................................................................................5 2.2.1.5 ESN Display.................................................................................................................5 2.2.1.6 BATT/$$$/MSG Display..............................................................................................5 2.2.2 User Data Entry Pane......................................................................................................6 2.2.2.1 EZSetup Tab.................................................................................................................6 2.2.2.2 Interval Tab...................................................................................................................9 2.2.2.3 Interval-Intervals Tab...................................................................................................9 2.2.2.4 Interval-Override Tab.................................................................................................10 2.2.2.5 Interval-Stats Tab........................................................................................................11 2.2.2.6 Interval-Advanced Tab...............................................................................................11 2.2.2.7 Alarms Tab.................................................................................................................12 2.2.2.8 Options Tab................................................................................................................15 2.2.2.9 Options-Xmitter Tab...................................................................................................15 2.2.2.10 Options-Messages Tab............................................................................................17 2.2.2.11 Options-Sensors Tab...............................................................................................18 2.2.2.12 Options-Batt Tab....................................................................................................18 2.2.2.13 Options-$ Tab.........................................................................................................19 2.2.3 File Functions.................................................................................................................19 2.2.3.1 Profile Functions.........................................................................................................19 2.2.3.2 COM Functions..........................................................................................................21 3 REGULATORY APPROVALS................................................................................................................................................22 WIRELESS DATA SOLUTIONS THAT WORK ® Axonn LLC AXTracker Users Guide – Document # 9100-0159-01 Ver 2.0 3/23 1 Configuration Tool Hardware The MMT Configuration Tool hardware is a self-contained device that allows for wireless communication with the AXTracker MMT. This is accomplished by a USB serial interface from a PC into the Tool. From there, an Axonn 2.4 GHz Stamp radio relays information between the Tool and an MMT. This allows for non-contact programming and configuration of the MMT as well as maintaining the waterproof nature of the MMT product. The Configuration Tool is powered by the USB cable when connected to a PC. The center Green LED blinks when there is communication using the 2.4 GHz Stamp radio to and from the MMT. 1.1 USB Connection The Configuration Tool has a USB port on the end of the enclosure. A standard USB 1.0 (or higher) version cable can be connected between the Tool and a PC running Tracker Setup. When connected, the Configuration Tool should show up as a new serial port on the computer. To verify installation, the user can go to the Device Manager under Ports and should see an FTDI brand USB to Serial Interface COM x with x being the number of the serial port. If there are errors, please contact Axonn Customer Service for …

Text truncated - open the document above for the full version.

Tuesday, May 08, 2007 Mr. Tim Johnson ATCB RE: Axonn LLC. FCC ID: L2V-CM1 Mr. Johnson, Thank you for your comments in your letter of 5/5/2007. Below is my response to your comments on this application. I have included your original comments in my response. 1) Please provide internal photographs of the bottom of the whole board (main board). Uploaded. 2) Labeling exhibits must also show label placement. Please add this information. Uploaded. 3) Please provide a users manual exhibit for this application (which should include 15.19, 15.21,15.105, 2.1077 info, etc. Uploaded. 4) Section 1.2 of the report does not appear to mention DoC authorization. Please note that this device appears to contain a USB connector and also is labeled with a DoC mark. Additionally, DoC authorizations requires a minimum test configuration as specified in ANSI C63.4. Please comment/review. Testing repeated with DOC Test Configuration. Data confirmed and Uploaded. 5) Test report appears to mention 1992 for ANSI C63.4. This is not correct as Part 15 only cites the 2003 edition now. Please review. Corrected and Uploaded. 6) Test photos do not include conducted emissions....Please correct. Uploaded. 7) Please have the manufacturer confirm the nominal lowest and highest frequency of the device. Manufacturer confirms nominal lowest and highest frequency of the device is “2401 and 2480 MHz.” Theory of Operation revised. Please contact me with any further questions. Sincerely, Louis A. Feudi Vice President of Operations and Engineering 3505 Francis Circle Alpharetta, GA 30004 PH: 770-740-0717 Fax: 770-740-1508 www.ustech-lab.com

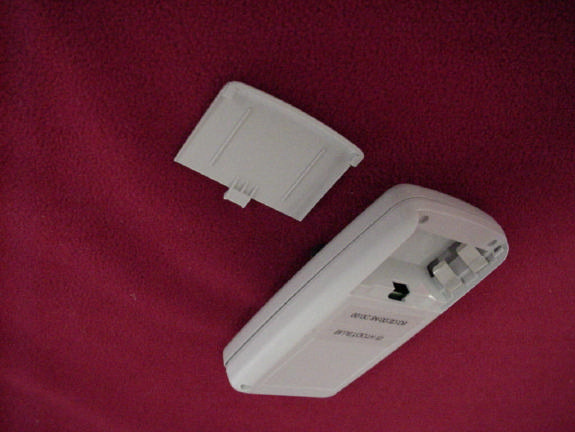

FCC ID: L2V-STAMP SECTION 5 EXTERNAL PHOTOGRAPHS FCC ID: L2V-STAMP PHOTOS OF THE TESTED EUT The following photos are attached: Photo 1. Top View of EUT Photo 2. Bottom View of EUT FCC ID: L2V-STAMP Photo 1. Top View of EUT FCC ID: L2V-STAMP Photo 2. Bottom View of EUT

FCC ID: L2V-CM1 LABEL LOCATION FCC ID: L2V-CM1

FCC ID: L2V-CM1 SECTION 5 INTERNAL PHOTOGRAPHS FCC ID: L2V-CM1 PHOTOS OF THE TESTED EUT The following photos are attached: Photo 3. Close up View of transmitter mounted on EUT Board Photo 4. Solder Side of Transmitter Photo 5. Component Side of Transmitter Photo 6. Solder Side of Main Board FCC ID: L2V-CM1 Photo 3. Close up View of Transmitter mounted on EUT Board FCC ID: L2V-CM1 Photo 4. Solder Side of Transmitter FCC ID: L2V-CM1 Photo 5. Component Side Transmitter FCC ID: L2V-CM1 Photo 6. Solder Side of Main Board

Axonn LLC FCC Part 15, Certification Application CM1 Frequency Hopping Transceiver UST Project: 07-0057 Issue Date: April 5, 2007 3505 Francis Circle Alpharetta, GA 30004 PH: 770-740-0717 Fax: 770-740-1508 www.ustech-lab.com I certify that I am authorized to sign for the manufacturer and that all of the statements in this report and in the Exhibits attached hereto are true and correct to the best of my knowledge and belief: UNITED STATES TECHNOLOGIES, INC. (AGENT RESPONSIBLE FOR TEST): By: Name: Louis A. Feudi __________ Title: VP / Operations & Engineering Date: April 5, 2007 _ Axonn LLC 19349 N. 12 th Street Covington, LA 70433 By: Name: Title: Date: This report shall not be reproduced except in full. This report may be copied in part only with the prior written approval of U.S. Technologies. The results contained in this report are subject to the adequacy and representative character of the sample provided. 3505 Francis Circle Alpharetta, GA 30004 PH: 770-740-0717 Fax: 770-740-1508 www.ustech-lab.com FCC ID: L2V-CM1 MEASUREMENT/TECHNICAL REPORT COMPANY NAME: Axonn LLC MODEL: CM1 FCC ID: L2V-CM1 DATE: April 5, 2007 This report concerns (check one): Original grant X Class II change_____ Equipment type: Low Power 2.4 GHz Frequency Hopping Transceiver Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? yes_____ No X If yes, defer until:_________________ date N.A. agrees to notify the Commission by N.A. date of the intended date of announcement of the product so that the grant can be issued on that date. Report prepared by: United States Technologies, Inc. 3505 Francis Circle Alpharetta, GA 30004 Phone Number: (770) 740-0717 Fax Number: (770) 740-1508 FCC ID: L2V-CM1 TABLE OF CONTENTS SECTION 1 GENERAL INFORMATION 1.1 Product Description 1.2 Related Submittal(s) SECTION 2 TESTS AND MEASUREMENTS 2.1 Configuration of Tested EUT 2.2 Test Facility 2.3 Test Equipment 2.4 Modifications 2.5 Antenna Description 2.6 Fundamental, Peak, and Average Radiated Spurious Emissions 2.7 Bandedge Requirements (Conducted and Radiated) 2.8 Minimum 20 dB Bandwidth 2.9 Power Line Conducted Emissions for Transmitter 2.10 Radiated Emissions for Digital Device & Receiver 2.11 Power Line Conducted for Digital Device & Receiver SECTION 3 LABELING INFORMATION SECTION 4 BLOCK DIAGRAM(S)/ SCHEMATIC(S) SECTION 5 PHOTOGRAPHS SECTION 6 THEORY OF OPERATION SECTION 7 USER'S MANUAL FCC ID: L2V-CM1 LIST OF FIGURES AND TABLES FIGURES 1) Test Configuration 2) Photograph(s) for Spurious and Conducted Emissions 3) Peak Radiated Spurious Emissions 4) Bandedge Compliance Antenna Conducted 5) 20 dB Bandwidth TABLES 1) EUT and Peripherals 2) Test Instruments 3) Peak Radiated Spurious Emissions 4) 20 dB Bandwidth 5) Conducted Emissions 6) Radiated Emissions for Digital Device and Receiver FCC ID: L2V-CM1 SECTION 1 GENERAL INFORMATION FCC ID: L2V-CM1 GENERAL INFORMATION 1.1 Product Description The Equipment Under Test (EUT) is an Axonn LLC, Model CM1 Frequency Hopping Transceiver. The EUT is a 2.4 GHz Frequency Hopping Transceiver configuration module which is intended for use as an interface to wireless sensor networks. The unit is being submitted as a low power device. FCC ID: L2V-CM1 1.2 Related Submittal(s)/Grant(s) The EUT will be used to send/receive data. The Frequency Hopping Transceiver presented in this report will be used with other like Frequency Hopping Transceivers: The EUT is subject to the following authorizations: a) Certification as a low power Frequency Hopping Transceiver under 15.249 b) DOC as a digital device The information contained in this report is presented for the certification & DOC authorization(s) for the EUT. FCC ID: L2V-CM1 SECTION 2 TESTS AND MEASUREMENTS FCC ID: L2V-CM1 TEST AND MEASUREMENTS 2.1 Configuration of Tested System The sample was tested per ANSI C63.4, Methods of Measurement from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz (2003). Conducted and radiated emissions data were taken with the test receiver or spectrum analyzer's resolution bandwidth adjusted to 9 kHz and 120 kHz, respectively. All measurements are peak unless stated otherwise. The video filter associated with the spectrum analyzer was off throughout the evaluation process. Block diagrams of the tested systems are shown in Figures 1. Test configuration photographs for spurious and fundamental emissions are shown in Figure 2a -g. The sample used for testing was received by U.S. Technologies on March 23, 2007 in good condition. 2.2 Test Facility Testing was performed at US Tech's measurement facility at 3505 Francis Circle, Alpharetta, GA. This site has been fully described and submitted to the FCC, and accepted in their letter marked 31040/SIT. Additionally this site has also been fully described and submitted to Industry Canada (IC), and has been approved under file number IC2982. 2.3 Test Equipment Table 2 describes test equipment used to evaluate this product. 2.4 Modifications No modifications were made by US Tech to bring the EUT into compliance with FCC Part 15, Class B Limits for the transmitter portion of the EUT or the Class B Digital Device Requirements. FCC ID: L2V-CM1 FIGURE 1 TEST CONFIGURATION 6’ U Laptop Computer EUT 6’ S AC Adapter 120VAC / 60 HZ 6’ U FCC ID: L2V-CM1 TABLE 1 Test Date: March 23-27, 2007 UST Project: 07-0057 Customer: Axonn LLC Model: CM1 EUT and Peripherals PERIPHERAL MANU. MODEL NUMBER SERIAL NUMBER FCC ID: CABLES P/D Axonn LLC (EUT) CM1 None None 6’ S USB Cable Laptop Computer Compaq Corp Armada 7400 7908BXL20326 None None AC Adapter Compaq Corp 341809-101 00015059 None 6’ U dc output 6’ U 120VAC / 60 Hz FCC ID: L2V-CM1 TABLE 2 TEST INSTRUMENTS EQUIPMENT MODEL NUMBER MANUFACTURER SERIAL NUMBER DATE OF LAST CALIBRATION SPECTRUM ANALYZER 8558B HEWLETT-PACKARD 2332A10055 3/28/07 SPECTRUM ANALYZER 8593E HEWLETT-PACKARD 3205A00124 7/3/06 SIGNAL GENERATOR 8648B HEWLETT-PACKARD 3642U01679 10/13/06 RF PREAMP 8447D HEWLETT-PACKARD 2944A06291 5/24/06 BICONICAL ANTENNA 31…

Text truncated - open the document above for the full version.

FCC ID: L2V-CM1 . Table 3d. PEAK RADIATED SPURIOUS EMISSIONS (High) Radiated Emissions Client: Axonn L.F. Project: 07-0057 Class: B Model: CM1 Frequency Test Data AF Test Data AF+CA- AMP Results Limits Distance / Margin PK = n (MHz) (dBm) Table (dBuV) (dB) (uV/m) (uV/m) Polarity (dB) / QP 4959.91 -46.6 1hn3mv 60.4 5.7 2020.1 5000.0 3m./VERT 7.9 PK 7439.42 -65.0 * 1hn3mv 42.1 10.2 408.8 5000.0 3m./VERT 21.7 PK Data corrected by 0.1 dB for loss of high pass filter, except to fundamental * Conversion from 1 meter to 3 meters = -9.54 dB SAMPLE CALCULATION: RESULTS (uV/m @ 3m) = Antilog ((-46.6 + 5.7 + 107)/20) = 2020.1 CONVERSION FROM dBm TO dBuV = 107 dB Tester Signature: Name: Louis A. Feudi FCC ID: L2V-CM1 . Figure 3d – 1 Peak Radiated Spurious Emission 15.247(c) High FCC ID: L2V-CM1 . Figure 3d – 2 Peak Radiated Spurious Emission 15.247(c) High FCC ID: L2V-CM1 . Table 3e. AVERAGE FUNDAMENTAL EMISSIONS Radiated Emissions Client: Axonn Project: 07-0057 Class: Model: CM1 Frequency Test Data AF Test Data AF+CA- AMP Results Limits Distance / Margin PK = n (MHz) (dBm) Table (dBuV) (dB) (uV/m) (uV/m) Polarity (dB) / QP 2400.88 -97.2 1HN3mV 9.8 31.9 121.9 50000.0 3m./VERT 52.3 AVG 2439.89 -93.2 1HN3mV 13.8 32.0 193.8 50000.0 3m./VERT 48.2 AVG 2480.01 -95.3 1HN3mV 11.7 32.0 154.5 50000.0 3m./VERT 50.2 AVG SAMPLE CALCULATION: RESULTS (uV/m @ 3m) = Antilog ((-97.2 + 31.9 + 107)/20) = 121.9 CONVERSION FROM dBm TO dBuV = 107 Db Duty Cycle Correction Factor = -44.7 dBm Tester Signature: Name: Louis A Feudi FCC ID: L2V-CM1 . Table 3d. AVERAGE RADIATED SPURIOUS EMISSIONS (Low) Radiated Emissions Client: Axonn L.F. Project: 07-0057 Class: Model: CM1 Frequency Test Data AF Test Data AF+CA- AMP Results Limits Distance / Margin PK = n (MHz) (dBm) Table (dBuV) (dB) (uV/m) (uV/m) Polarity (dB) / QP 4801.90 -92.7 1HN3mV 14.3 5.2 9.5 500.0 3m./VERT 34.4 AVG 7203 -108.0 1HN3mV -1.0 9.6 2.7 500.0 3m./VERT 45.4 AVG * Conversion from 1 meter to 3 meters = -9.54 dB SAMPLE CALCULATION: RESULTS (uV/m @ 3m) = Antilog ((-92.7 + 5.2 + 107)/20) = 9.5 CONVERSION FROM dBm TO dBuV = 107 dB Duty Cycle Correction Factor = -44.7 dBm Tester Signature: Name: Louis A. Feudi FCC ID: L2V-CM1 . Table 3e. AVERAGE RADIATED SPURIOUS EMISSIONS (Mid) Radiated Emissions Client: Axonn L.F. Project: 07-0057 Class: Model: CM1 Frequency Test Data AF Test Data AF+CA- AMP Results Limits Distance / Margin PK = n (MHz) (dBm) Table (dBuV) (dB) (uV/m) (uV/m) Polarity (dB) / QP 4879.96 -96.5 1hn3mh 10.5 5.7 6.4 500.0 3m./HORZ 37.8 AVG 2480.01 -95.3 1HN3mV 11.7 -2.5 2.9 500.0 3m./VERT 44.7 AVG 7319.93 -108.2 1hn3mh -1.2 10.2 2.8 500.0 3m./HORZ 45.0 AVG 9759.77 -114.5 1hn3mh -7.5 13.5 2.0 500.0 3m./HORZ 48.0 AVG * Conversion from 1 meter to 3 meters = -9.54 dB SAMPLE CALCULATION: RESULTS (uV/m @ 3m) = Antilog ((-96.5 + 5.7 + 107)/20) = 6.4 CONVERSION FROM dBm TO dBuV = 107 dB Duty Cycle Correction Factor = -44.7 dBm Tester Signature: Name: Louis A. Feudi FCC ID: L2V-CM1 . Table 3f. AVERAGE RADIATED SPURIOUS EMISSIONS (High) Radiated Emissions Client:Axonn L.F. Project: 07-0057 Class: Model: CM1 Frequency Test Data AF Test Data AF+CA- AMP Results Limits Distance / Margin PK = n (MHz) (dBm) Table (dBuV) (dB) (uV/m) (uV/m) Polarity (dB) / QP 4959.91 -91.3 1hn3mv 15.7 5.7 11.8 500.0 3m./VERT 32.6 AVG 7439.42 -109.7 1hn3mv -2.6 10.2 2.4 500.0 3m./VERT 46.4 AVG * Conversion from 1 meter to 3 meters = -9.54 dB SAMPLE CALCULATION: RESULTS (uV/m @ 3m) = Antilog ((-91.3 + 5.7 + 107)/20) = 11.8 CONVERSION FROM dBm TO dBuV = 107 dB Duty Cycle Correction Factor = -44.7 dBm Tester Signature: Name: Louis A. Feudi FCC ID: L2V-CM1 . 2.7 Band Edge Measurements Band Edge measurements were made at a Low Channel and High Channel peak at highest EUT related emission outside the occupied bandwidth. A peak measurement was made of the fundamental, and the emission was measured using a peak setting. A Resolution Bandwidth of > 1% of the emission bandwidth was used. This procedure was repeated for the high channel. The plots shown were verified using a 17 foot, Flexco cable and Horn Antenna. No preamp was used. The limits were derived as follows: High Bandedge 5000 uV/m = 73.98 dBuV/m limit Fundamental measured at High Channel from Table 3a: 56.4+32.0 (Antenna + Cable) = 88.4 dBuV/m Delta from conducted measurement of band edge from fundamental peak to highest spur outside band edge: -42.54 dB 88.4 – 42.54 = 45.86 dBuV/m Low Bandedge 5000 uV/m = 73.98 dBuV/m limit Fundamental measured at Low Channel from Table 3a: 54.5+31.9 = 86.4 dBuV/m Delta from conducted measurement of band edge from fundamental peak to highest spur 10 MHz outside band edge: -32.44 dB 86.4 – 32.44 = 53.96 dBuV/m FCC ID: L2V-CM1 . Figure 4a. Band Edge Compliance Antenna Conducted, Low Channel FCC ID: L2V-CM1 . Figure 4b. Band Edge Compliance Antenna Conducted, High Channel FCC ID: L2V-CM1 . 2.8 20 dB Bandwidth per FCC Section 15.247(a)(1)(ii) The antenna port was connected to a spectrum analyzer that was set for a 50 Ω impedance with the RBW > approximately 1/100 of the manufacturers claimed RBW & VBW > RBW. The results of this test are given in Table 4 and Figure 5. FCC ID: L2V-CM1 . TABLE 4 20 dB Bandwidth Test Date: March 29, 2007 UST Project: 07-0057 Customer: Axonn LLC Model: CM1 Frequency (GHz) 20 dB Bandwidth (MHz) MAXIMUM FCC LIMIT (MHz) 2.40103 0.350 1.0 2.44003 0.350 1.0 2.48003 0.350 1.0 . Tester Signature: Name: Louis A. Feudi FCC ID: L2V-CM1 . Figure 5a. 20 dB Bandwidth per FCC Section 15.247(a)(1)(ii) Low FCC ID: L2V-CM1 . Figure 5b. 20 dB Bandwidth per FCC Section 15.247(a)(1)(ii) Mid FCC ID: L2V-CM1 . Figure 5c. 20 dB Bandwidth per FCC Section 15.247(a)(1)(ii) High FCC ID: L2V-CM1 . 2.9 Power Line Conducted Emissions for Transmitter FCC Section 15.207 The conducted voltage measurements have been carried out in accordance with FCC Section 15.207, with a spectrum analyzer connected to a LISN and the EUT placed into a continuous mode of transmit. The results are given in Tables 5a-5b. FCC ID: L2V…

Text truncated - open the document above for the full version.

UST Project: 07-0057 Customer: Axonn Model: CM1 FIGURE 2a Photograph(s) for Spurious Emissions (Front) UST Project: 06-0204 Customer: Axonn Model: STAMP FIGURE 2b Photograph(s) for Spurious Emissions (Back) UST Project: 06-0204 Customer: Axonn Model: STAMP FIGURE 2c Photograph(s) for Digital Emissions (Front) UST Project: 06-0204 Customer: Axonn Model: STAMP FIGURE 2d Photograph(s) for Digital Emissions (Back) UST Project: 06-0204 Customer: Axonn Model: STAMP FIGURE 2e Photograph(s) for Conducted Emissions
