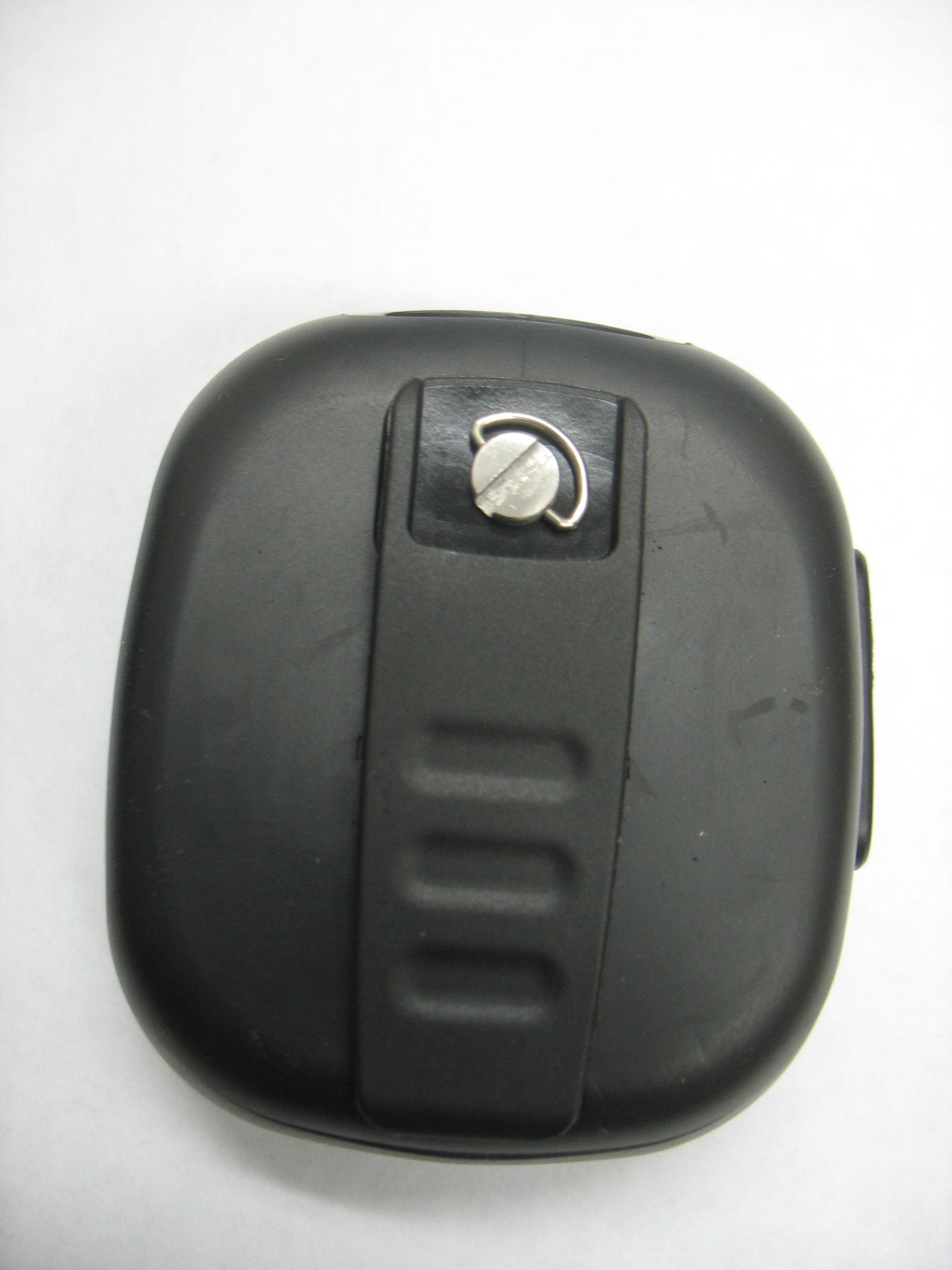

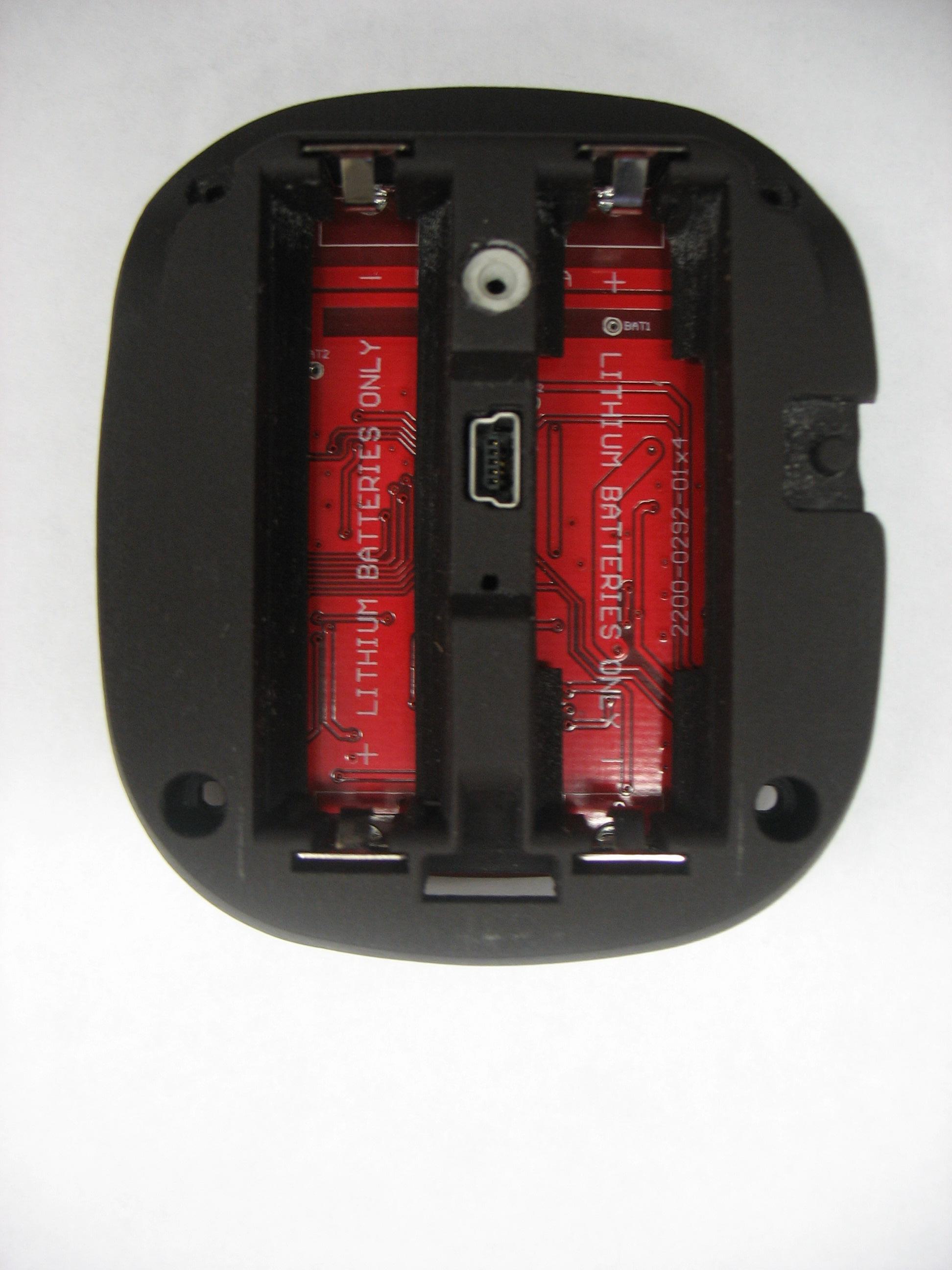

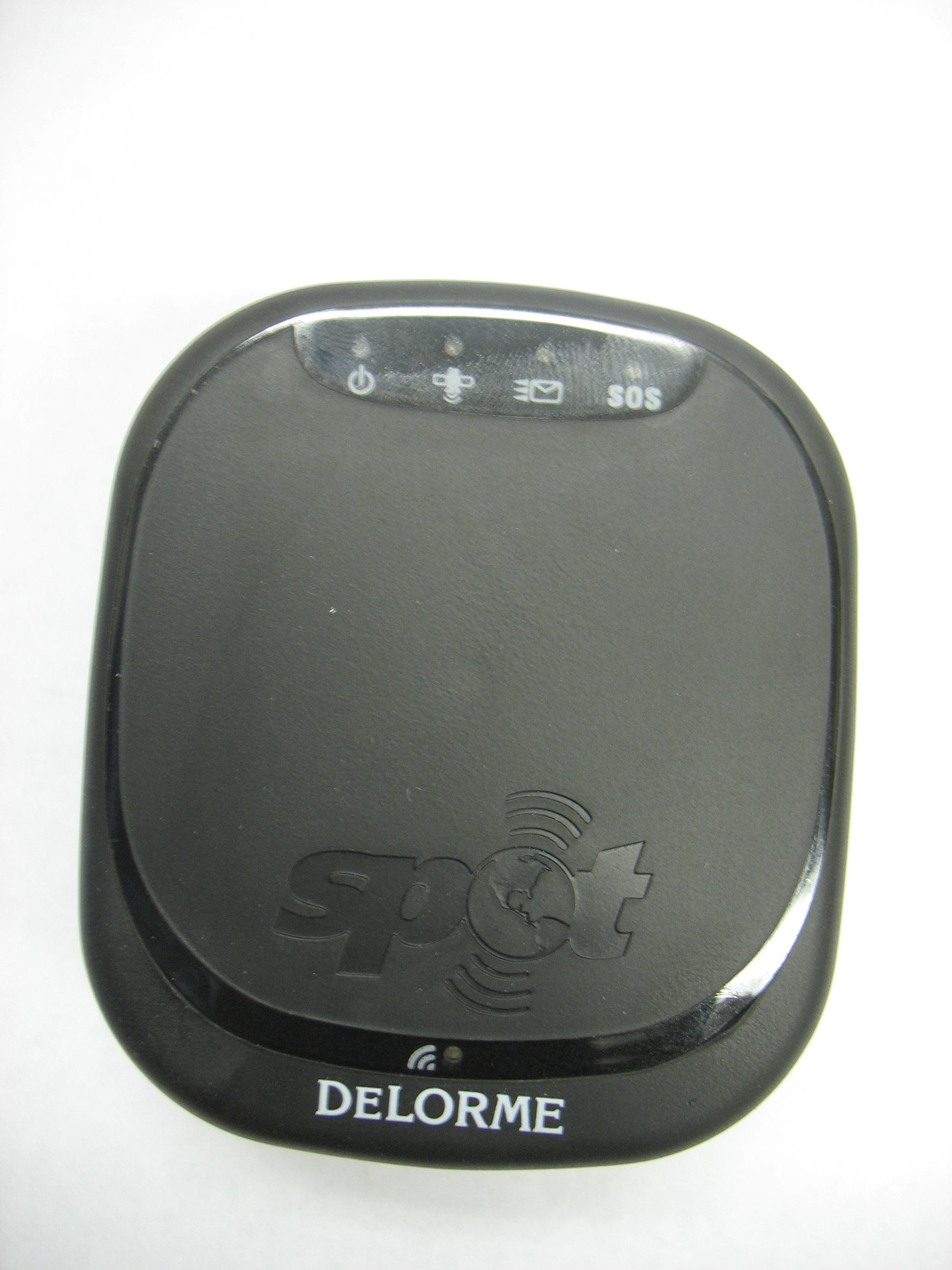

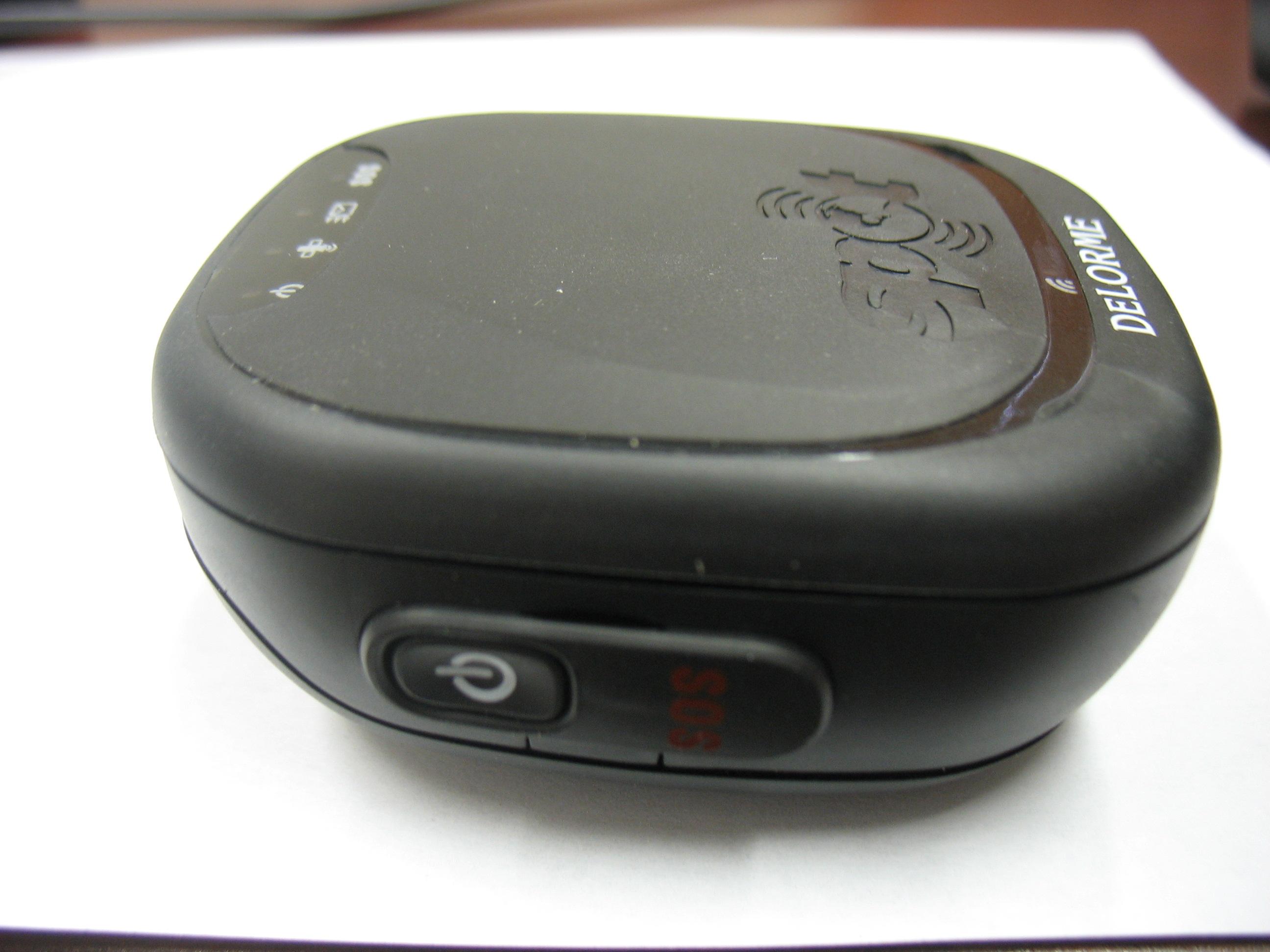

L2V-COMM1.6/2.4 Transmitter

Table of Contents Introduction ............................................................................................................4 Using the PN-60 ....................................................................................................6 Using the SPOT Communicator ...........................................................................13 The Home Page ...................................................................................................16 The Activities Page ..............................................................................................17 The Satellites Page ..............................................................................................18 The Map Page .....................................................................................................21 The Compass Page ..............................................................................................32 The Trip Info Page ................................................................................................35 The SPOT Communicator Page ...........................................................................37 The Find Page ......................................................................................................44 The Waypoints Page ............................................................................................48 The Geocaches Page ...........................................................................................53 The Routes Page .................................................................................................61 The Tracks Page ...................................................................................................66 The Profile Page ...................................................................................................71 The Sun/Moon Page ............................................................................................74 The Tides Page ....................................................................................................76 The Hunt/Fish Page .............................................................................................78 The Settings Page ................................................................................................79 Additional Information ..........................................................................................85 Info Fields Table ...................................................................................................95 Index ..................................................................................................................101 4 Introduction This manual is for use with DeLorme Earthmate ® PN-60/PN-60w GPS and SPOT Satellite Communicator devices. Note References to "PN-60" include both devices unless otherwise indicated. Welcome The Earthmate PN-60/60w is a complete out-of-the-box handheld GPS solution for all your outdoor activities. Navigate worry-free with included topo maps of the U.S. and Canada. Add high-resolution aerial imagery for a unique GPS experience. Enjoy next-generation GPS features and performance. If you purchased a PN-60w, the addition of a SPOT Communicator gives you and your loved ones peace of mind. Notify the GEOS International Emergency Rescue Coordination Center of your GPS location. Send for assistance in time of need—around the world. Be completely independent of mobile phone or other land-based radio coverage. Getting Started See the Quick Start Guide for detailed information on setting up your PN-60 and, if included, your SPOT Communicator. How to Use the Manual When the manual instructs you to do something, use these actions on the PN-60: To select an item on the screen, such as a field, check box, button, drop-down list, menu item, or search result—use the arrow keypad to move/scroll to the item to highlight it and press ENTER. »To edit alphanumeric fields, use the on-screen keyboard. See Using the Keyboard on page 10. »To edit numeric fields, use the up/down arrows on the arrow keypad to increase/decrease numbers and change other information. Use the left/right arrows to move the selection. To clear a selected check box, highlight it and press ENTER. When you make a selection or finish editing information, press ENTER to complete the action. Introduction 5 Introduction To exit a page or screen, press QUIT. To complete a series of steps—an arrow ( > ) indicates the sequence. Note that the sequences do not include ENTER and QUIT button presses described above. Visit the DeLorme Wiki at wiki.delorme.com for more information. The latest version of the User Manual is always available for download. 6 Using the PN-60 For information on setting up your device for the first time, see the Quick Start Guide. Batteries and SD Card Use two AA batteries (Lithium is recommended; you can also use NiMH or alkaline) or a DeLorme rechargeable Lithium-ion (Li-ion) battery. When the PN-60 is using battery power, the battery indicator on the Home Page displays a lightning bolt. Remove the batteries when storing the PN-60 for a month or longer. A slot for an SD card (not included) is underneath the batteries inside the battery compartment. SD/SDHC/MMC cards up to 32GB are supported. To install batteries and the SD card 1. Unscrew the D-rings on the back of the device until you can remove the battery cover. 2. Optional. To insert an SD card, gently press down the SD card latch, insert the card in the slot, and press down the slot to close the latch. Note Do not lift the SD card latch as this could cause damage. 3. Insert the batteries according to the polarity symbols inside the battery compartment. 4. Replace the back cover and screw in the D-rings. To check the battery type After you install the batteries, go to Settings > System > Battery Type and make sure the correct battery type is selected; this ensures that the battery indicator displays the …

Text truncated - open the document above for the full version.

19349 N. 12th St. Covington, LA 70433 Phone: 985-893-1048 May 7, 2010 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 Gentlemen: This letter will authorize the appointment of Compliance Testing, LLC to act as our Agent in all FCC matters. This appointment is affective until otherwise notified by us. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. The Applicant is not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 USC 862, and no party to the application is subject to a denial of federal benefits pursuant to that section. Spot, LLC Christopher Robinson

19349 N. 12th St. Covington, LA 70433 Phone: 985-893-1048 May 7, 2010 Federal Communications Commission, EQUIPMENT APPROVAL SERVICES, P. O. Box 358315 Pittsburgh, PA 15251-5315 ATTN: Authorization & Evaluation Division PER: 47 CFR 0.457 and 0.459 RE: L2V-COMM Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission's Rules, the Applicant hereby requests confidential treatment of some of the information accompanying this Application as listed below, i.e. COMM BLOCK DIAGRAM (8520-0259-01) COMM PCB PARTS LIST (PL-2300-0291-01) COMM PCB PARTS LIST (PL-2300-0292-01) COMM SCHEMATIC (8525-0291-01) COMM SCHEMATIC (8525-0292-01) COMM THEORY OF OPERATION (8520-0258-01) COMM LIST OF ACTIVE DEVICES These materials contain trade secrets and proprietary information not customarily released to the public and the public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii) disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this Application. Sincerely, Spot, LLC Christopher Robinson Associate Design Engineer

Compliance Testing 3356 N. San Marcos Place, Suite 107 Chandler, Arizona 85225-7176 (866) 311-3268 phone, (480) 926-3598 fax p1040007, d1050012 Rev 1.0 Test Report For FCC ID: L2V-COMM Model: COMM to Federal Communications Commission Rule Part(s) 25 Date of report: May 12, 2010 At the Request of: Spot LLC 19349 N. 12th Street Covington, LA 70433 Attention of: Christopher Robinson Ph: (985) 893-1048 Fax: 985-893-1858 Email: [email protected] Supervised by: John Erhard: Engineering Manager Compliance Testing 3356 N. San Marcos Place, Suite 107 Chandler, Arizona 85225-7176 (866) 311-3268 phone, (480) 926-3598 fax p1040007, d1050012 Rev 1.0 Test Report Revision History Revision Date Revised By Reason for revision 1.0 May 12, 2010 J. Erhard Original Document Compliance Testing 3356 N. San Marcos Place, Suite 107 Chandler, Arizona 85225-7176 (866) 311-3268 phone, (480) 926-3598 fax p1040007, d1050012 Rev 1.0 Testimonial And Statement Of Verification This is to certify that: 1. That the application was prepared either by, or under the direct supervision of, the undersigned. 2. That the technical data supplied with the application was taken under my direction and supervision. 3. That the data was obtained on representative units, randomly selected. 4. That, to the best of my knowledge and belief, the facts set forth in the application and accompanying technical data is true and correct. Certifying Engineer: John Erhard: Engineering Manager Compliance Testing 3356 N. San Marcos Place, Suite 107 Chandler, Arizona 85225-7176 (866) 311-3268 phone, (480) 926-3598 fax p1040007, d1050012 Rev 1.0 Table of Contents Rule Description Page Test Report 2 Standard Test Conditions and Engineering Practices 3 List of General Technical Information 4 25.204 Power limits 5 25.202(c)(f) 25.216(f)(g)(i) Emissions Limitations for Mobile Earth Stations 6 Occupied Bandwidth 13 25.202(f) Emission Masks 15 25.202(d) Frequency Tolerance (Temperature Variation) 18 25.202(d) Frequency Tolerance (Voltage Variation) 19 Test Equipment Utilized 20 Compliance Testing 3356 N. San Marcos Place, Suite 107 Chandler, Arizona 85225-7176 Page 2 of 20 (866) 311-3268 phone, (480) 926-3598 fax p1040007, d1050012 Rev 1.0 Required information per ISO 17025-2005, paragraph 5.10.2: a) Test Report b) Laboratory: (FCC:933597) (Canada: IC 2044-A) Compliance Testing 3356 N. San Marcos Place, Suite 107 Chandler, AZ 85225 c) Report Number: d1050012 d) Client: Spot LLC 19349 N. 12th Street Covington, LA 70433 e) Identification: COMM FCC ID: L2V-COMM EUT Description: Portable Satellite Transmitter f) EUT Condition: Not required unless specified in individual tests. g) Report Date: May 12, 2010 h, j, k): As indicated in individual tests. i) Sampling method: No sampling procedure used. l) Uncertainty: In accordance with Compliance Testing internal quality manual. m) Supervised by: John Erhard: Engineering Manager n) Results: The results presented in this report relate only to the item tested. o) Reproduction: This report must not be reproduced, except in full, without written permission from this laboratory. Accessories used during testing: Type Quantity Manufacturer Model Serial No. FCC ID Compliance Testing 3356 N. San Marcos Place, Suite 107 Chandler, Arizona 85225-7176 Page 3 of 20 (866) 311-3268 phone, (480) 926-3598 fax p1040007, d1050012 Rev 1.0 Standard Test Conditions and Engineering Practices Except as noted herein, the following conditions and procedures were observed during the testing: In accordance with ANSI C63.4-2009, section 6.1.9, and unless otherwise indicated in the specific measurement results, the ambient temperature of the actual EUT was maintained within the range of 10 to 40C (50 to 104 F) unless the particular equipment requirements specify testing over a different temperature range. Also, unless otherwise indicated, the humidity levels were in the range of 10% to 90% relative humidity. Prior to testing, the EUT was tuned up in accordance with the manufacturer's alignment procedures. All external gain controls were maintained at the position of maximum and/or optimum gain throughout the testing. Measurement results, unless otherwise noted, are worst-case measurements. Test and Measurement Data All tests and measurement data shown were performed in accordance with FCC Rules and Regulations, Volume II; Part 2 and the following individual Parts: FCC Part 25 Satellite Communications A2LA “A2LA has accredited Compliance Testing in Chandler, AZ for technical competence in the field of Electrical testing. The accreditation covers the specific tests and types of tests listed on the agreed scope of accreditation. This laboratory meets the requirements of ISO 17025:2005 ‘General Requirements for the Competence of Testing and Calibration Laboratories’ and any additional program requirements in the identified field of testing.” Please refer to www.a2la.org for current scope of accreditation. Certificate number: 2152.01 Industry Canada OATS Number 2011A-1 FCC OATS Reg. Number 933597 Compliance Testing 3356 N. San Marcos Place, Suite 107 Chandler, Arizona 85225-7176 Page 4 of 20 (866) 311-3268 phone, (480) 926-3598 fax p1040007, d1050012 Rev 1.0 List of General Technical Information In Accordance with FCC Rules and Regulations Volume II, Part 2 and to Part 25 Name and Address of Applicant: Spot LLC 19349 N. 12th Street Covington, LA 70433 Manufacturer: Spot LLC 19349 N. 12th Street Covington, LA 70433 Model Number: COMM (c)(3): Instruction Manual(s): Please see attached exhibits (c)(4): Type of Emission: BPSK (c)(5): Frequency Range, MHz: 1611.25 – 1618.75 (c)(6): Power Rating, Watts: 0.295 Switchable Variable X N/A Compliance Testing 3356 N. San Marcos Place, Suite 107 Chandler, Arizona 85225-7176 Page 5 of 20 (866) 311-3268 phone, (480) 926-3598 fax p1040007, d1050012 Rev 1.0 Name Of Test: Power Limits Specification: 25.204 Engineer: J. Erhard Test Equipment Utilized: i00008, i00320, i00331 Test Date: 4/30/2010 Test Procedure The …

Text truncated - open the document above for the full version.

Compliance Testing 3356 N. San Marcos Place, Suite 107 Chandler, Arizona 85225-7176 (866) 311-3268 phone, (480) 926-3598 fax p1040007, d1050013 Rev 1.0 Date: May 12, 2010 Applicant: Spot LLC 19349 N. 12th Street Covington, LA 70433 Attention of: Christopher Robinson Ph: (985) 893-1048 Fax: 985-893-1858 Email: [email protected] Equipment: COMM FCC ID: L2V-COMM FCC Rules: Radio Frequency Radiation Exposure Limits 47 CFR 1.1307 RF Exposure Statement 1. Standard Applicable According to 1.1307 (b)(1), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. This is a portable device 2. Measurement Result: 1611.25 MHz Satellite Transmitter Threshold = 60/ f GHz 60/1.61125 = 47.38 mW This is a portable device and the peak output power is 24.7 dBm (295 mW). The device operates with a worst-case duty cycle of 0.1195%. The source time based power is 0.352 mW, which is below the threshold. The SAR/MPE measurement is not necessary. 2405 MHz Wi-Fi Transmitter Threshold = 60/ f GHz 60/1.61125 = 24.94 mW This is a portable device and the peak output power is 2.308 dBm (1.7 mW). The device operates with a worst-case duty cycle of 0.1195%. The source time based power is 0.002 mW, which is below the threshold. The SAR/MPE measurement is not necessary.

Page 1 of 2 Test Setup Photos Spot, LLC: Spot COMM Conducted Testing #1 Conducted Testing #2 Page 2 of 2 Radiated Testing #1 Radiated Testing #2
