L2V-HUGKEY2.4 GHz Transmitter

USER MANUAL GPS Security SyStem 100% Satellite technoloGy PoWereD By SPot Functionality SPOT HUG USER MANUAL 2 Welcome ..............................................................3 Key Terminology ...................................................4 How HUG works ...................................................5 Getting Started ...................................................6 Initial System Setup/Test ...................................12 Installation of Tracker and Keypad ....................15 Using SPOT HUG ................................................18 How the LEDs Blink ............................................23 Keypad Functions ..............................................26 Care, Support and Specifications ......................27 Warranty and FCC/IC Notice ..............................29 Table of Contents GPS Security SyStem 100% satellite technology WELCOME 3 SPOT HUG (HUG) is comprised of three (3) hardware components to provide an indispensible asset protection security system. The core Tracker unit contains the satellite transmitter unit, an internal GPS chip set, wireless transceiver at 2.4 GHz and a vibration sensor chip. • The Tracker can be powered by batteries (4 AA Energizer Lithium (L91) batteries included) or line power. The Keypad wirelessly connects to the Tracker for arming/disarming the unit when the Key FOB is not present and additional settings management. A keychain size Key FOB permits the user to remotely transmit various messages to the Tracker device within a range of 60 feet and acts as a beacon for the Tracker to automatically verify authorized/un-authorized movement of the property. SPOT HUG is a low-cost, easy to install satellite-based GPS asset monitoring, security and messaging system. It provides the asset owner with peace of mind when they are away from their asset via state-of-the-art asset tracking and sensor monitoring functionalities. When on the boat and in range of the Tracker, HUG also provides the owner with the ability to send messages and request help in an emergency. HUG works via satellite and provides coverage around the world in places where cellular coverage and VHF radio is lacking. HUG uses GPS technology and Globalstar’s Simplex satellite network to relay location information and messages to the end users and 3rd party service providers. HUG utilizes an onboard GPS chip to determine a highly accurate GPS location of the asset and sends the location information to Globalstar satellites. The satellites transmit the message to various Gateway Appliqués around the world and a global network routes the message to the appropriate network. The location and the message are delivered via email and text message according to the profile information provided by the customer during registration at findmeSPOT.com. Sensor Alert monitoring notifications are delivered to contact information in the customer’s profile. Emergency notifications are sent to the GEOS IERCC and Unauthorized Movement notifications are delivered to the Asset Monitoring Center. GEOS will coordinate with the local authority to begin a search and rescue effort or a theft recovery effort (where available). SPOT HUG USER MANUAL Key Terminology 4 Help Help sends a request for assistance to your designated contacts for non- life-threatening emergencies. CHeCk-in/Ok Check-in/OK sends a pre-defined message with your GPS location to your designated contacts. TraCk prOgress Track Progress automatically updates your location on Google Maps™ allowing your contacts to track a virtual breadcrumb trail of your progress in near real-time. predefined Message A predefined Message is a message that has been created and saved in the user’s account and can be sent with a variety of message modes. These messages are included with the Basic Service. geOs searCH & resCue insuranCe GEOS provide the SOS/911 monitoring included in your Basic Service. You can upgrade to the GEOS Member Benefit for reimbursement of up to $100K in Search and Rescue (SAR) expenses - even coordinating a private SAR contractor if needed to get you to safety. spOT assisT MariTiMe SPOT Assist Maritime provides satellite-based notification to third party professional service providers to help ensure your safety on the water - at the push of a button. spOT link To link a SPOT Assist Maritime Membership, we require a linkage fee to link the SPOT device to that service. This linkage fee allows the service provider access to receive direct location-based messages from your HELP button. Message priOriTy The message modes in the SPOT HUG system are assigned to different priorities and some message modes will override others. Message modes are classified as Critical, Urgent and Casual. • Critical – SOS and Unauthorized Movement In general, Casual modes will be overridden by Urgent modes; which in turn will be overridden by Critical modes except when stated otherwise. • Urgent – Help and Sensor Alert • Casual – Check-in/OK, Track Progress, Daily Status and Power Source Switching unauTHOrized MOveMenT If the asset moves more than 500 meters without the user’s authority and the key FOB is not present, unauthorized movement is detected and an alert is sent to a third party Asset Monitoring Center. daily sTaTus Daily Status Message that includes Tracker ESN, power source status, Unauthorized Movement status, Vibration sensitivity, Tracker battery status, Sensor Alert status, GPS location, date and time and a link to Google Maps to see where your boat is located. sensOr alerT Notification from SPOT HUG wired connections for monitoring various additional accessory sensors on board the vessel. There are 4 (2 open and 2 closed) external contacts for sensor monitoring. sensOr alerT Bundle Provides 50 event messages for a bundled price for alarms delivered through the “dry contacts”. A la carte “events“ will be charged on a per event basis. spOT Hug BasiC serviCe Includes: Unauthorized Movement monitoring, Daily Status messa…

Text truncated - open the document above for the full version.

Spot, LLC Proprietary Information This document is intended solely for use by Spot, LLC and Globalstar, Inc. employees HUG User’s Manual Amendment Version 1.0 By Christopher Robinson Associate Design Engineer Spot, LLC Technical Memorandum December 10, 2010 1 Spot, LLC Proprietary Information This document is intended solely for use by Spot, LLC and Globalstar, Inc. employees 1. Overview This document tells the changes being made to the current HUG User’s Manual. 2. User Manual Changes 1. Addition of FCC 15.19(a) Statement • This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. 2. Modification of FCC RF Radiation Exposure Statement Title • It will now say ‘FCC RF RADIATION EXPOSURE STATEMENT (HUG TRACKER ONLY)’

300 Holiday Square Blvd. Covington, LA 70433 Phone: 985-335-1500 November 23, 2010 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 Gentlemen: This letter will authorize the appointment of Compliance Testing, LLC to act as our Agent in all FCC matters. This appointment is affective until otherwise notified by us. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. The Applicant is not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 USC 862, and no party to the application is subject to a denial of federal benefits pursuant to that section. Spot, LLC Christopher Robinson

300 Holiday Square Blvd. Covington, LA 70433 Phone: 985-335-1500 Nov. 23, 2010 Federal Communications Commission, EQUIPMENT APPROVAL SERVICES, P. O. Box 358315 Pittsburgh, PA 15251-5315 ATTN: Authorization & Evaluation Division PER: 47 CFR 0.457 and 0.459 RE: L2V-HUGKEY Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission's Rules, the Applicant hereby requests confidential treatment of some of the information accompanying this Application as listed below, i.e. HUGKEY BLOCK DIAGRAM (8520-0264-01) HUGKEY PCB PARTS LIST (PL-2300-0302-01) HUGKEY TRACKER SCHEMATIC (8525-0302-01) HUGKEY THEORY OF OPERATION (8520-0265-01) HUGKEY LIST OF ACTIVE DEVICES These materials contain trade secrets and proprietary information not customarily released to the public and the public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii) disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this Application. Sincerely, Spot, LLC Christopher Robinson Associate Design Engineer

Page 1 of 2 External Photos: Spot, LLC TCB-p1090011 FCC ID: L2V-HUGKEY IC: 3989A-HUGKEY Front/Top View Back/Bottom View Page 2 of 2 Side View

CONFIDENTIAL / SurfaceInk/ 2010 / Page 1 R280 HUG REGULATORY MARKINGS12.1.2010v1Your Vision. Delivered. CONFIDENTIAL / SurfaceInk/ 2010 / Page 3 HUG KEYPAD

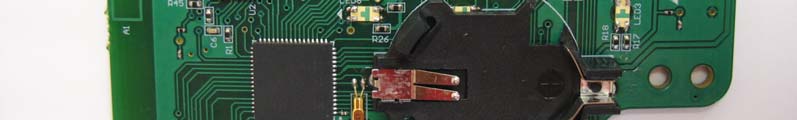

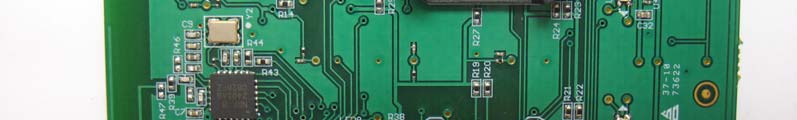

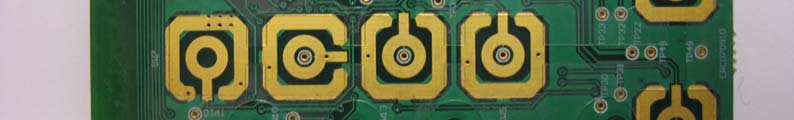

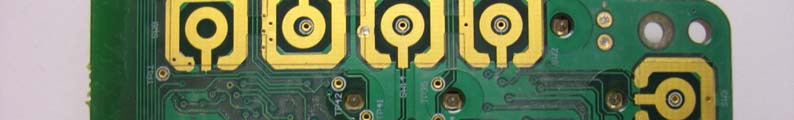

Page 1 of 3 Internal Photos: Spot, LLC TCB-p1090011 FCC ID: L2V-HUGKEY IC: 3989A-HUGKEY Page 2 of 3 Page 3 of 3

CLICK ICON TO ACTIVATE3D PDF OF CURRENT ASSEMBLY DAVE PETTIT ROGER CASTRO 08/26/10 08/26/10 INITIAL RELEASE ECN #660 SCOTT HOJEMSCOTT HOJEM 09/14/10 D C B A AB C D B REV 3 2 DATE: SIZE 985-355-1514 DWG. NO. DOC REL: 1 ENGR 2: A ENGR 1: UNLESS OTHERWISE SPECIFIED: B ROGER CASTRO SCOTT HOJEM LOUIE XU 08/26/10 08/26/10 08/26/10 ASSEMBLY, PCB 2300-0302 Sheet of AXONN, LLC. ANY REPRODUCTION IN THREE PLACE DECIMAL DRAWING IS THE SOLE PROPERTY OFIS PROHIBITED. CONFIDENTIAL: MATERIAL 11/02/10 FINISH Drawn By: REV: Proj Engr: Date: TITLE: B 4 5 6 7 8 8 7 65 4 3 2 1 THE INFORMATION CONTAINED IN THISPART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF AXONN, LLC 13 Prod Ctrl: Engr 2: Engr 1: Doc Ctrl: Date: Date: Date: Date: Date: DESCRIPTION / ECN #: DIMENSIONS ARE IN INCHESTOLERANCES:FRACTIONALANGULAR: MACH BEND TWO PLACE DECIMAL 300 HOLIDAY SQUARE BLVD Covington, LA 70433 HUG KEYPAD Sheet of D C B A AB C D 1 2 3 4 5 6 7 8 8 7 65 4 3 2 1 TITLE: SIZE DWG. NO. REV B ASSEMBLY, PCB 2300-0302 Sheet of 2 985-335-1514 3 D C B A AB C D 1 2 3 4 5 6 7 8 8 7 65 4 3 2 1 TITLE: SIZE B DWG. NO. REV 300 HOLIDAY SQUARE BLVD Covington, LA 70433 HUG KEYPAD GP2 GP1GP1 GP1 0 1 1 1 1 1 3 1 2 2 1 3 11 1 1 1 1 1 11 1 1 1 1 11 1 1 1 11 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 00 00 0 0 00 1 Sheet of D C B A AB C D 1 2 3 4 5 6 7 8 8 7 65 4 3 2 1 TITLE: SIZE DWG. NO. REV B ASSEMBLY, PCB 2300-0302 Sheet of 3 985-335-1514 3 D C B A AB C D 1 2 3 4 5 6 7 8 8 7 65 4 3 2 1 TITLE: SIZE B DWG. NO. REV 300 HOLIDAY SQUARE BLVD Covington, LA 70433 HUG KEYPAD CONTACTS THIS SIDE ONLY CONTACTS THIS SIDE ONLY.SOLDER ALL BATTERY SOLDER ALL BATTERY OBSERVE LED ORIENTATION INSERT ALL LEDLENS INTO HOLEON PCB .064", TRIM BATTERY HOLDER LEAD LENGTH AS SHOWN.

300 Holiday Square Blvd. Covington, LA 70433 Phone: 985-335-1500 Manufacture’s Tune Up or Alignment Procedures There is no tune up or alignment procedures for the Spot Model: HUGKEY product due to the fact that there is no way to change the frequency or parameters of the unit.

Compliance Testing 3356 N. San Marcos Place, Suite 107 Chandler, Arizona 85225-7176 (866) 311-3268 phone, (480) 926-3598 fax p1090011, d10b0018 Rev 1.0 Date: November 9, 2010 Applicant: Spot, LLC 300 Holiday Square Blvd Covington, LA 70433 Attention of: Christopher Robinson, Design Engineer Ph: (985) 335-1530 Fax: (985) 335-1730 Email: [email protected] Equipment: HUGKEY FCC ID: L2V-HUGKEY FCC Rules: Radio Frequency Radiation Exposure Limits 47 CFR 1.1307 RF Exposure Statement 1. Standard Applicable According to 1.1307 (b)(1), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. This is a portable device. 2. Measurement Result 2402 - 2480 MHz Wi-Fi Transmitter Threshold = 60/ f GHz 60/2.480 = 24.19 mW The peak output power is -1.491 (0.71 mW). The peak output power is below the threshold, for d<2.5 cm general population category. The SAR/MPE measurement is not necessary.

p1090011, d10b0017 Rev 2.0 Page 1 of 23 Test Report for FCC ID: L2V-HUGKEY Model: HUGKEY to Federal Communications Commission Rule Part(s) 15.247 Date of Report: November 9, 2010 On the Behalf of the Applicant: Spot, LLC 300 Holiday Square Blvd Covington, LA 70433 Attention of: Christopher Robinson, Design Engineer Ph: (985) 335-1530 Fax: (985) 335-1730 Email: [email protected] By Compliance Testing, LLC 3356 N. San Marcos Place, Suite 107 Chandler, Arizona 85225-7176 (866) 311-3268 phone, (480) 926-3598 fax p1090011, d10b0017 Rev 1.0 Page 2 of 23 Test Report Revision History Revision Date Revised By Reason for revision 1.0 November 9, 2010 J. Erhard Original Document 2.0 December 9, 2010 J. Erhard Add RSS-GEN Receiver Spurious Test info p1090011, d10b0017 Rev 1.0 Page 3 of 23 The applicant has been cautioned as to the following: 15.21 Information to User The user’s manual or instruction manual for an intentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 15.27(a) Special Accessories Equipment marketed to a consumer must be capable of complying with the necessary regulations in the configuration in which the equipment is marketed. Where special accessories, such as shielded cables and/or special connectors are required to enable an unintentional or intentional radiator to comply with the emission limits in this part, the equipment must be marketed with, i.e. shipped and sold with, those special accessories. However, in lieu of shipping or packaging the special accessories with the unintentional or intentional radiator, the responsible party may employ other methods of ensuring that the special accessories are provided to the consumer, without additional charge. Information detailing any alternative method used to supply the special accessories for a grant of equipment authorization or retained in the verification records, as appropriate. The party responsible for the equipment, as detailed in § 2.909 of this chapter, shall ensure that these special accessories are provided with the equipment. The instruction manual for such devices shall include appropriate instructions on the first page of text concerned with the installation of the device that these special accessories must be used with the device. It is the responsibility of the user to use the needed special accessories supplied with the equipment. p1090011, d10b0017 Rev 1.0 Page 4 of 23 Testimonial And Statement Of Certification This is to certify that: 1. That the application was prepared either by, or under the direct supervision of, the undersigned. 2. That the technical data supplied with the application was taken under my direction and supervision. 3. That the data was obtained on representative units, randomly selected. 4. That, to the best of my knowledge and belief, the facts set forth in the application and accompanying technical data is true and correct. Certifying Engineer: John Erhard: Engineering Manager p1090011, d10b0017 Rev 1.0 Page 5 of 23 Table of Contents Rule Description Page 2.1033(b) General Information Required 6 . Standard Test Conditions and Engineering Practices 7 Test Results Summary 8 15.247(b). Peak Output Power 9 15.247(d) Conducted Spurious Emissions 10 15.247(d) Radiated Spurious Emissions 13 15.247(d) Emissions At Band Edges 14 15.247(a)(2). Occupied Bandwidth 18 15.247(e). Transmitter Power Spectral Density (PSD) 20 RSS-GEN 6(b). Receiver Spurious Emissions 22 . Test Equipment Utilized 24 p1090011, d10b0017 Rev 2.0 Page 6 of 24 List of General Information Required For Certification In Accordance with FCC Rules and Regulations, Volume II, Part 2 and to 15.247 Sub-Part 2.1033 (b)(1): Name and Address of Applicant: Spot, LLC (b)(2): FCC ID: L2V-HUGKEY Model Number: HUGKEY (b)(3): Instruction Manual(s): (b)(4): Theory of Operation: Please See Exhibits Please See Exhibits (b)(5): Block Diagram: Please See Exhibits (b)(6): Test Report: Contained Herein (b)(7): Test Setup Photos Please See Exhibits Type of Emission: DTS FREQUENCY RANGE, MHz: 2402 - 2410 Power Rating, W: 0.0007 Switchable Variable X N/A Maximum Power Rating, W: 1W 15.203: Antenna Requirement: X The antenna is permanently attached to the EUT The antenna uses a unique coupling The EUT must be professionally installed The antenna requirement does not apply p1090011, d10b0017 Rev 2.0 Page 7 of 24 Sub-part 2.1033(b): Test and Measurement Data All tests and measurement data shown were performed in accordance with FCC Rules and Regulations, Volume II; Part 2 and the following individual Parts: 15.247, Operation within bands 902-928, 2400-2483.5, 5725- 5850 MHz Standard Test Conditions and Engineering Practices Except as noted herein, the following conditions and procedures were observed during the testing: In accordance with ANSI C63.10-2009 and unless otherwise indicated in the specific measurement results, the ambient temperature of the actual EUT was maintained within the range of 10 to 40C (50 to 104 F) unless the particular equipment requirements specify testing over a different temperature range. Also, unless otherwise indicated, the humidity levels were in the range of 10% to 90% relative humidity. Measurement results, unless otherwise noted, are worst-case measurements. A2LA “A2LA has accredited Compliance Testing, LLC, in Chandler, AZ for technical competence in the field of Electrical testing. The accreditation covers the specific tests and types of tests listed on the agreed scope of accreditation. This laboratory meets the requirements of ISO 17025:2005 ‘General Requirements for the Competence of Testing and Calibration Laboratories’ and any additional program requirements in the identified field of testing.” Please refer to www.a2la.org for current scope of accreditation. Certificate number: 2152.01 FCC OATS Reg. #933597 IC O.A.T.S. Number: 2044A-1 p1090011, d10b0017 Rev 2.0 Page 8…

Text truncated - open the document above for the full version.

Page 1 of 3 Test Setup Photos: Spot, LLC HUGKEY Conducted Radiated Measurements above 1GHz #1 Page 2 of 3 Radiated Measurements above 1GHz #2 Radiated Measurements below 1GHz #1 Page 3 of 3 Radiated Measurements below 1GHz #2
