L2V-PT1Satellite Personal Tracker

4105
5)&
803-% μ 4
'*345
4"5&--*5&
.&44&/(&3 64&3 μ 4
(6*%& visit findmespot.com to activate section 1: welcome The great outdoors can be a big, uncertain place. But you’ve just purchased the most peace of mind available for the active outdoor adventurer or smartly-prepared individual. SPOT is the world’s first satellite messenger, using the GPS satellite system to determine your location and communications satellites to transmit that information to the chosen recipient. SPOT gives you and your loved ones peace of mind by allowing you to notify them or a GEOS International 9-1-1 Emergency Response Center of your exact location via Google Maps ™ , and to send for assistance in time of need around the world, completely independent of cellular phone or other land-based radio coverage. To begin using SPOT, visit findmespot.com to select a service plan and activate. S P O T M E S S E N G E R A N T E N N A S G P S S A T E L L I T E S Y S T E M C O M M E R C I A L S A T E L L I T E S Y S T E M I N T E R N E T ( E M A I L ) C E L L P H O N E S ( S M S ) 911HELP TEST ON OFF 1 3 2 4 5 Satellite Personal Tracker E M E R G E N C Y R E S P O N S E C E N T E R how spot works GPS satellites provide coordinates. SPOT messenger’s onboard GPS chip determines your exact coordinates and sends your location and message to the SPOT satellite system. SPOT commercial satellites relay your message to specific satellite antennas around the world. Satellite antennas and supporting equipment route your message and location to the appropriate network. Your message is delivered according to your instructions via text message, email or emergency notification via the response center. Powered by Google Maps ™ When SPOT sends a text or email message to one of your contacts or to a GEOS International 9-1-1 Emergency Response Center, it includes your exact coordinates and a web link to view your location using Google Maps ™ . 1 2 3 4 5 section 2: GettinG started What You Need To Get Started Your SPOT comes with: • SPOT Satellite Messenger • 2 AA Lithium Batteries • User’s Guide You will need to log on to www.findmespot.com to register your SPOT messenger and activate service. To do so, you need to have the following available: • Personal information • Credit card information • SPOT unit serial number and 8-digit authentication code located inside battery compartment aUthentication code back of unit inside battery compartment serial nUmber ESN 001000000 Auth 84810156 aUthentication code back of unit inside battery compartment serial nUmber ESN 001000000 Auth 84810156 Installing Batteries Improper installation of batteries could result in damage to the unit. Use only lithium batteries with SPOT. 1) Using a screwdriver or built-in rings, loosen screw in belt clip and swing to the side. 2) Loosen 2 screws holding battery cover in place. 3) Install AA lithium batteries as shown. 4) Replace cover and clip, then tighten screws. Creating Your Account Log on to www.findmespot.com. Follow the instructions online to choose your subscription plan and register your SPOT unit. Once complete, you can set up your personal account information, activate your emergency 9-1-1 services, and create your SPOTteam – the friends and family members you wish to receive your SPOT messages via cellular short messaging service (SMS) and/or email. For questions or additional support, visit www.findmespot.com or call 1-866-OK1-SPOT (1-866-651-7768). (NOTE: SPOTteam members can be changed at any time simply by logging into your account. For worldwide phone contacts or for support outside the U.S., visit www.findmespot.com.) Additional Services At www.findmespot.com you can also purchase additional service options, like SPOTcasting tracking service, which allows you to use waypoints to mark your progress in real time as you travel, and GEOS rescue service, which provides a global private Search and Rescue Benefit. To learn more about GEOS Alliance services, visit www.geosalliance.com.
Request help from friends and family at your exact location.
Let contacts know where you are and that you’re okay.
Send and save your location and allow contacts to track your progress using Google Maps ™ .
Dispatch emergency responders to your exact location.ô &.&3(&/$:
"44*45"/$&
8)&3&
&.&3(&/$*&4
)"11&/
The SPOT Satellite Messenger gives you a line of communication with friends and family when and where you want it, and emergency assistance when and where you need it. For the low cost of a service subscription, SPOT works around the world, even where cell phones don't. 911 ASK FOR HELP CHECK IN TRACK PROGRESS ALERT 9-1-1 108&3&%
#:
(00(-&
."14 Š section 3: UsinG spot power SPOT has a separate power button to ensure long battery life and to help avoid sending messages accidentally. To turn SPOT on, press the ON/OFF button. You must then wait an additional 2 seconds before activating any SPOT function. When power is on, the indicator light will blink once every 3 seconds. This is also helpful for making SPOT more visible in the dark. To turn SPOT off, press and hold the ON/OFF button for 3 seconds. alert 9-1-1 Use this option in the event of a life-threatening or other critical emergency. The Emergency Response Center notifies the appropriate emergency responders based on your location and personal information – which may include local police, highway patrol, the Coast Guard, your country’s embassy or consulate, or other emergency response or search & rescue teams – as well as notifying your emergency contact person(s) about the receipt of a distress signal. Even if SPOT cannot acquire its location from the GPS network, it will still attempt to send a distress signal – without exact location – to the Emergency Response Center. to activate: Press and hold the 9-1-1 button for at least 2 seconds. A distress signal and your exact location will be sent to an Emergency Response Center every 5 minutes until cancelled. Once activated, the indicator light will blink gree…

Text truncated - open the document above for the full version.

WIRELESS DATA SOLUTIONS THAT WORK ® Axonn LLC SPT Notices Appendix D: Regulatory Notices NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a residential environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. WARNING: Changes or modifications not expressly approved by Axonn may render the device non-compliant to FCC and other regulatory body standards for operation and may void the user’s authority to operate the equipment. Accessory items that can be readily obtained from multiple retail outlets are not considered to be special accessories and are not to be marketed with the equipment. Only those accessory items provided by Axonn have been tested to ensure operation consistent with the regulatory standards that the device is required to perform. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired o peration. WIRELESS DATA SOLUTIONS THAT WORK ® Axonn LLC SPT Notices FCC ID: L2V-PT1 ICES-003/A IC:3989A-PT1 R&TTE: TBR41 Complies with FCC standards. FOR HOME OR OFFICE USE This device and the technology herein is protected under U.S. Patents numbers 4,977,577; 5,987,058; 6,317,029; 6,396,819. Other patents are pending. This device will operate in accordance to the standards set forth by the CE Mark Directives and standards R&TTE: (TBR41 v1.1.1 May 2000, EN 301 441), RFI: (EN61000-4-3:1996 + A1:1998 + A2:2000 ), ESD: (EN61000-4-2: 1995 + A1:1998) This Class B digital apparatus complies with Canadian ICES-003.

Axonn, L.L.C. • 19349 N. 12 th St.• Covington, LA 70433 • (985) 893-1048 • FAX (985) 893-1858 WIRELESS DATA SOLUTIONS THAT WORK ® October 22, 2007 Mr. Louis A. Feudi U.S. Technologies 3505 Francis Circle Alpharetta, GA 30004 Dear Mr. Feudi: Per our discussion, the following statement will be incorporated in the PTS users manual. Users of this technology are also required to comply with the satellite service providers integration guidelines which stipulate the correct use of the radio frequency spectrum. RAS Site avoidance This device complies with the requirements for radio astronomy site avoidance as specified by CFR 25.213. Additionally, this device also complies with the requirements for use as specified by the Globalstar integration manual. Globalstar has provided instruction for frequency use in regions of the world as well as compliance to CFR 25.213. The paragraph above will be incorporated into the appropriate documentation immediately. Best regards, David Pettit Design Engineer Axonn, LLC 19349 N. 12 th St. Suite B Covington, LA 70433

CONFIDENTIALITY REQUEST 10/1/2007 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: Axonn, LLC respectfully requests confidentiality of certain materials provided with the submission of the STP under FCC ID: L2V-PT1, in accordance with FCC Regulations 0.459. The confidentiality request applies to the following: Parts List, Operational Descriptions, Schematics, Tune Up Procedures and Block Diagram These items are considered as Trade Secrets and therefore public access to the proprietary material could possible result in duplication of equipment that could severely damage the company's business advantage. I appreciate your assistance in this matter. Sincerely, Name: Louis A. Feudi Signature: Title: VP Operations and Engineering Date: October 1, 2007

FCC ID: L2V2100-0149 Report Number:04-0017 FCC Part 25, Certification Customer: Axonn, L.L.C. Model: STU 4

Jon Hughes From: Generic Office of Engineering Technology [[email protected]] Sent: Thursday, September 13, 2007 12:53 PM To: [email protected] Subject: Response to Inquiry to FCC (Tracking Number 508330) Page 1 of 1 9/13/2007 Inquiry: ---Reply from Customer on 09/11/2007--- Response from client as follows: The modulation is Direct Sequence Spread Spectrum. The transmission duration is 1.33 seconds. The average transmission interval is 5 minutes min. Other modes have transmission intervals of 10 minutes and single (triple redundant) transmission only. Please refer to the attached theory of operation exhibit for more detailed information. Response: FCC has not established general exemptions for devices subject to 2.1093 RF exposure routine evaluation. If device supports it, testing at 100% duty-factor for highest output channel should be sufficient. Do not reply to this message. Please select the Reply to an Inquiry Response link from the OET Inquiry System to add any additional information pertaining to this inquiry. Jon Hughes From: Generic Office of Engineering Technology [[email protected]] Sent: Monday, August 27, 2007 5:49 AM To: [email protected] Subject: Response to Inquiry to FCC (Tracking Number 508330) Page 1 of 1 10/25/2007 Inquiry: Device is a body-worn personal locator which transmits its location back to the satellite. Frequency range is 1611.25-1618.75 MHz. Modulation is CDMA and the maximum source- based time-averaged duty cycle is 0.5%. Maximum peak power is 22 dBm conducted, therefore the maximum source-based time-averaged conducted power would be -1 dBm (fyi, the antenna gain is 4 dBi). Crest Factor for the SAR evaluations would need to be set at 200, which would make the SAR evaluation extremely difficult, if not impossible. Questions: 1. Is there any exemption to SAR testing for this device? It is understood that Part 25 falls under 2.1093. 2. If no to the above, do we test the device in continuous transmit mode of operation / 100% duty cycle? Response: please provide other info and op desc about device operations and modulation and how duty factor is established Do not reply to this message. Please select the Reply to an Inquiry Response link from the OET Inquiry System to add any additional information pertaining to this inquiry.

3505 Francis Circle Alpharetta, GA 30004 PH: 770-740-0717 Fax: 770-740-1508 www.ustech-lab.com 10/31/2007 Mr. Doug Noble ATCB RE: Axon, LLC FCC ID: L2V-PT1 Mr. Noble, Thank you for your comments in your letter of October 30, 2007. Below is my response to your comments on this application. I have included your original comments in my response. I have a few comments on this Application. 1. FYI - DoC is not required for these unless this can connect to a computer. Acknowledged 2. The FCC ID is incorrect in the STP notices of the user manual. Please revise. Revised and Uploaded 3. The IC label is missing the model number. Please correct this and upload photos. Model Number (SPT) is located on the front of the EUT. The model number contains the global symbol, but is intended to be the SPT for Satellite Personal Tracker. 4. IC limit on page 52 of the test report appears to be for "off test". Please clarify. Corrected to represent carrier off limits only, and Uploaded. 5. IC test report section 2.12 plots seem to be located in the wrong place in the test report. Please revise and put section 2.12 plots with section 2.12. Revised and Uploaded 6. Page 53 and 54 are the same in the test report. Please revise. Corrected and Uploaded Please contact me with any further questions. Sincerely, Louis A. Feudi Vice President of Operations and Engineering

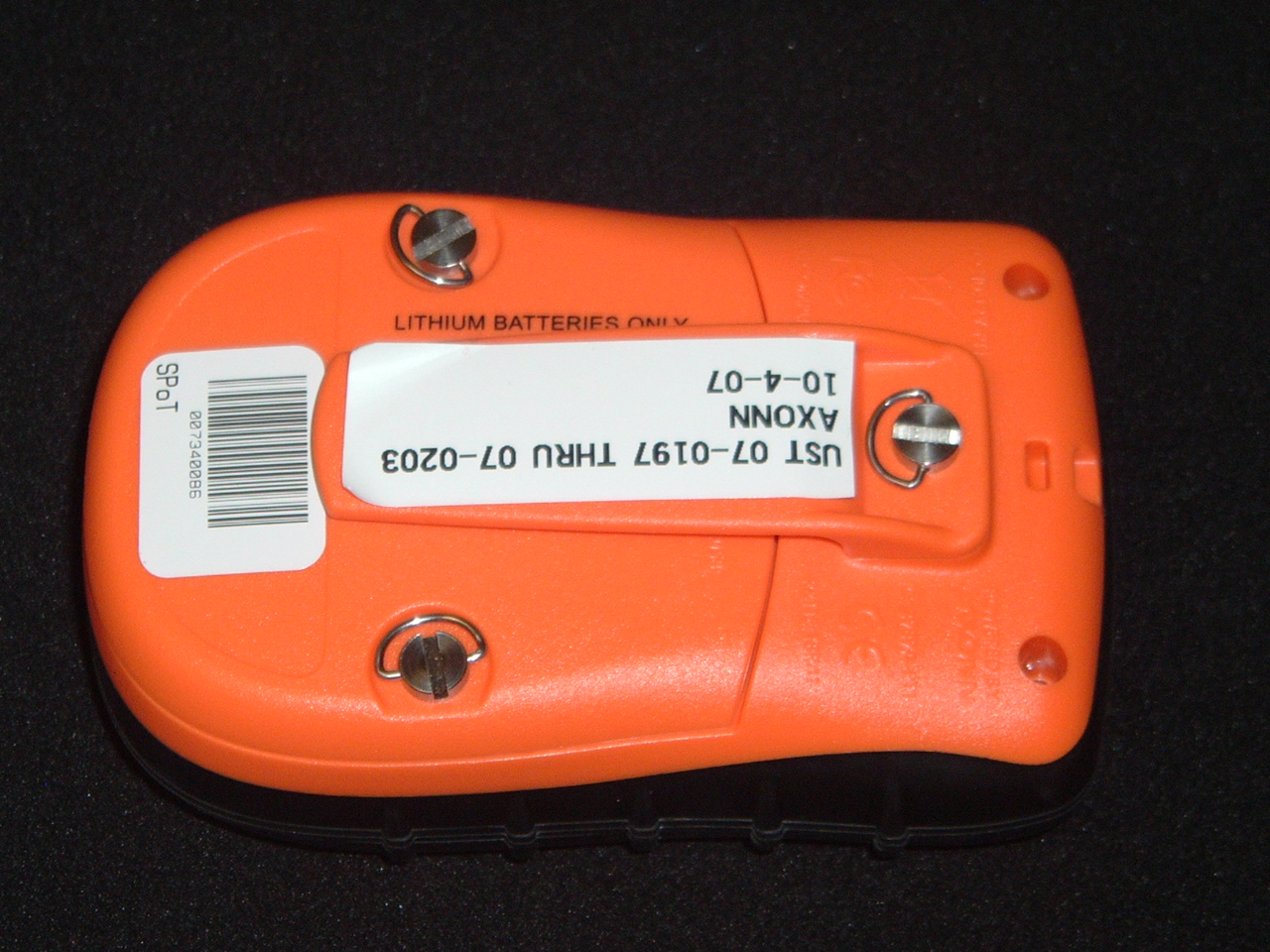

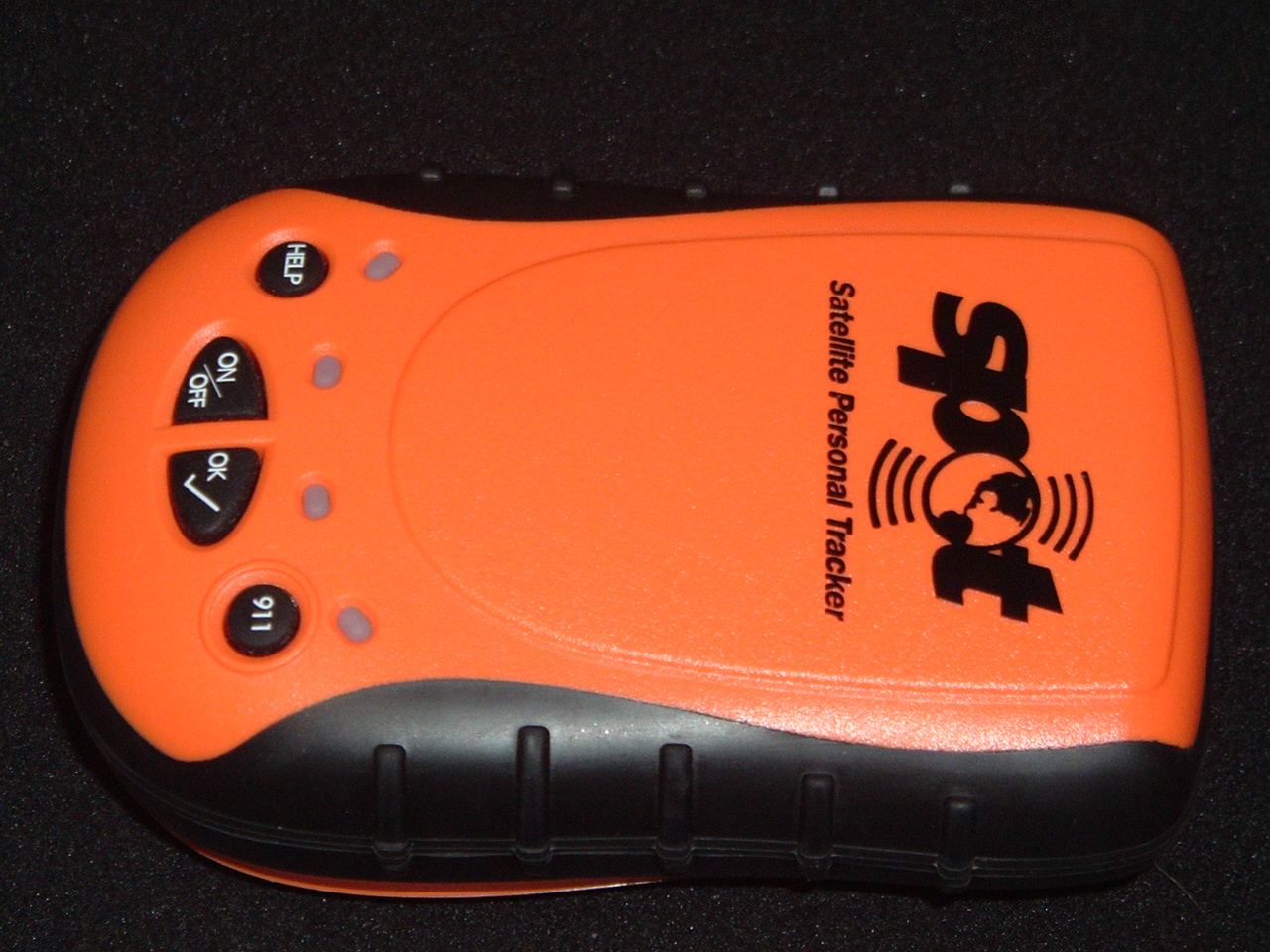

EXTERNAL PHOTOGRAPHS PHOTOS OF THE TESTED EUT The following photos are attached: Photo 1 EUT Top Photo 2 EUT Bottom Photo 3 EUT Bottom, Belt Clip and Battery Cover Removed Photo 1. EUT Top Photo 2. EUT Bottom Photo 3 EUT Bottom, Belt Clip and Battery Cover Removed

Label and Location Example of Labeling

SECTION 3 PHOTOGRAPHS PHOTOS OF THE TESTED EUT The following photos are attached: Photo 1. Transmitter Board Top Photo 2. Transmitter Board Bottom Photo 3. Transmitter Board Top, RF Shields Removed Photo 1. Transmitter Board Top 1611-1618 Transmitter Portion GPS Receiver Portion Photo 2. Transmitter Board, Bottom Photo 3. Transmitter Board RF Shields Removed

Company: Axonn, LLC FCC ID: L2V-PT1 IC ID: 3989A-PT1 Freq.: 1611.25 - 1618.75 MHz Model(s): Satellite Personal Tracker (SPT) DUT: Body-worn Portable Personal Tracking Device 2007 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc.Page 35 of 36 Date(s) of Evaluation October 10, 2007 Test Report Serial No. 092707L2V-T855-S25S Test Report Revision No. Revision 1.0 Test Report Issue Date October 23, 2007 Description of Test(s) Specific Absorption Rate RF Exposure Category General Population Certificate No. 2470.01 APPENDIX F - PROBE CALIBRATION

Company: Axonn, LLC FCC ID: L2V-PT1 IC ID: 3989A-PT1 Freq.: 1611.25 - 1618.75 MHz Model(s): Satellite Personal Tracker (SPT) DUT: Body-worn Portable Personal Tracking Device 2007 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc.Page 1 of 36 Date(s) of Evaluation October 10, 2007 Test Report Serial No. 092707L2V-T855-S25S Test Report Revision No. Revision 1.1 Test Report Issue Date October 26, 2007 Description of Test(s) Specific Absorption Rate RF Exposure Category General Population Certificate No. 2470.01 SAR TEST REPORT R R F F E E X X P P O O S S U U R R E E E E V V A A L L U U A A T T I I O O N N S S P P E E C C I I F F I I C C A A B B S S O O R R P P T T I I O O N N R R A A T T E E APPLICANT AXONN, LLC PRODUCT BODY-WORN PERSONAL TRACKING DEVICE MODEL NAME SATELLITE PERSONAL TRACKER MODELNUMBER SPT IDENTIFIER(S) FCC ID: L2V-PT1 IC: 3989A-PT1 APPLICATION TYPE Certification FCC 47 CFR §2.1093 STANDARD(S) APPLIED Health Canada Safety Code 6 FCC OET Bulletin 65, Supplement C (01-01) FCC OET Application Note - SAR Probe Calibration and System Verification Considerations for Measurements at 150MHz-3GHz (01-07) PROCEDURE(S) APPLIED Industry Canada RSS-102 Issue 2 FCC DEVICE CLASSIFICATION Licensed Non-Broadcast Transmitter Worn on Body (TNT) 47 CFR §25 IC DEVICE CLASSIFICATION Hand-Held Satellite Mobile Earth Station (MES) RSS-170 RF EXPOSURE CATEGORY General Population / Uncontrolled RF EXPOSURE EVALUATION(S) Body-Worn TEST REPORT SERIAL NO. 092707L2V-T855-S25S 1. Corrected Data on Page 7 Revision 1.1 2. Corrected Data on Page 21 October 26, 2007 TEST REPORT REVISION NO.S Revision 1.0 Initial ReleaseOctober 23, 2007 TEST REPORT ISSUE DATE October 23, 2007 Testing ByTest Report ByReviewed By TEST REPORT SIGNATORIES Sean Johnston Celltech Labs Inc. Cheri Frangiadakis Celltech Labs Inc. Jonathan Hughes Celltech Labs Inc. Celltech Compliance Testing and Engineering Lab TEST LAB AND LOCATION 21-364 Lougheed Road, Kelowna, B.C. V1X 7R8 Canada Tel.: 250-765-7650 Fax: 250-765-7645 TEST LAB CONTACT INFO. [email protected] www.celltechlabs.com TEST LAB ACCREDITATION(S) Certificate No. 2470.01 Company: Axonn, LLC FCC ID: L2V-PT1 IC ID: 3989A-PT1 Freq.: 1611.25 - 1618.75 MHz Model(s): Satellite Personal Tracker (SPT) DUT: Body-worn Portable Personal Tracking Device 2007 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc.Page 2 of 36 Date(s) of Evaluation October 10, 2007 Test Report Serial No. 092707L2V-T855-S25S Test Report Revision No. Revision 1.1 Test Report Issue Date October 26, 2007 Description of Test(s) Specific Absorption Rate RF Exposure Category General Population Certificate No. 2470.01 DECLARATION OF COMPLIANCE SAR RF EXPOSURE EVALUATION Name CELLTECH LABS INC. Test Lab Information Address 21-364 Lougheed Road, Kelowna, B.C. V1X 7R8 Canada Name AXONN, LLC Applicant Information Address 19349 North 12 th Street, Covington, LA 70433 United States FCC 47 CFR §2.1093 Standard(s) Applied IC Health Canada Safety Code 6 OET Bulletin 65, Supplement C (01-01) FCC OET Application Note - SAR Probe Calibration and System Verification Considerations for Measurements at 150 MHz - 3 GHz (01-07) Procedure(s) Applied IC RSS-102 Issue 2 FCC Licensed Non-Broadcast Transmitter W orn on Body (TNT) 47 CFR §25 Device Classification(s) IC Satellite Mobile Earth Stations (MES) RSS-170 Issue 1 Device RF Exposure Category Portable General Population / Uncontrolled Environment FCC ID: L2V-PT1 IC: 3989A-PT1 Model Name Satellite Personal Tracker Model No. SPT Device Identifier(s) Serial No. 007340046 (Production Unit) Device Description Body-worn Personal Tracking Device Modulation Type(s) CDMA (DSSS) Transmit Frequency Range(s) 1611.25 - 1618.75 MHz (Globalstar Satellite Band) Max. RF Output Power Tested 12.2 dBm 16.6 mW EIRP Channel B 1613.75 MHz Antenna Type(s) Tested Integral Battery Type(s) Tested Energizer Lithium-ion 1.5V, 3000mAh AA (x2) Body-Worn Accessories Tested Belt-Clip Plastic with Metal Screw P/N: None Audio Accessories Tested None Device does not support audio operations Max. SAR Level(s) Evaluated Body-worn 0.016 W/kg 1g average Front Side of DUT with Lanyard Accessory ANSI/IEEE Safety Limit (C95.1) Body-worn 1.6 W /kg 1g average General Population / Uncontrolled Exposure Celltech Labs Inc. declares under its sole responsibility that this wireless device was compliant with the Specific Absorption Rate (SAR) RF exposure requirements specified in FCC 47 CFR §2.1093 and Health Canada’s Safety Code 6 for the General Population / Uncontrolled Exposure environment. The device was tested in accordance with the measurement procedures specified in FCC OET Bulletin 65, Supplement C (01-01), FCC OET Application Note - SAR Probe Calibration and System Verification Considerations for Measurements at 150 MHz - 3 GHz (01-07) and Industry Canada RSS-102 Issue 2. All measurements were performed in accordance with the SAR system manufacturer recommendations. I attest to the accuracy of data. All measurements were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. This test report shall not be reproduced partially, or in full, without the prior written approval of Celltech Labs Inc. The results and statements contained in this report pertain only to the device(s) evaluated. Test Report Approved By Sean JohnstonCelltech Labs Inc. Company: Axonn, LLC FCC ID: L2V-PT1 IC ID: 3989A-PT1 Freq.: 1611.25 - 1618.75 MHz Model(s): Satellite Personal Tracker (SPT) DUT: Body-worn Portable Personal Tracking Device 2007 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the prior written permission of Celltech Labs Inc.Page 3 of 36 Date(s) of Ev…

Text truncated - open the document above for the full version.

FCC Part 25, Certification Application of the Axonn, LLC Satellite Personal Tracker Model: SPT Issue Date: September 21, 2007 UST Project No: 07-0197 3505 Francis Circle Alpharetta, GA 30004 PH: 770-740-0717 Fax: 770-740-1508 www.ustech-lab.com I certify that I am authorized to sign for the manufacturer and that all of the statements in this report and in the Exhibits attached hereto are true and correct to the best of my knowledge and belief: UNITED STATES TECHNOLOGIES, INC. (AGENT RESPONSIBLE FOR TEST): By: Name: Louis A Feudi Title: VP Operations & Engineering Date: September 21, 2007 Axonn LLC 19349 North 12 th Street Covington, LA 70433 By: Name: Title: Date: This report shall not be reproduced except in full. This report may be copied in part only with the prior written approval of U.S. Technologies. The results contained in this report are subject to the adequacy and representative character of the sample provided. 3505 Francis Circle Alpharetta, GA 30004 PH: 770-740-0717 Fax: 770-740-1508 www.ustech-lab.com FCC ID: L2V-PT1 U.S. Technologies, Inc. FCC Part 25 Certification Report Number: 07-0197 Issue Date: September 21, 2007 Customer: Axonn LLC Model: Satellite Personal Tracker Model: SPT MEASUREMENT/TECHNICAL REPORT This report concerns (check one): Original grant X Class II change_____ Equipment type: SatelliteTransciever Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? yes_____ No X If yes, defer until:_________________ date N.A. agrees to notify the Commission by N.A. date of the intended date of announcement of the product so that the grant can be issued on that date. Report prepared by: United States Technologies, Inc. 3505 Francis Circle Alpharetta, GA 30004 Phone Number: (770) 740-0717 Fax Number: (770) 740-1508 FCC ID: L2V-PT1 U.S. Technologies, Inc. FCC Part 25 Certification Report Number: 07-0197 Issue Date: September 21, 2007 Customer: Axonn LLC Model: Satellite Personal Tracker Model: SPT TABLE OF CONTENTS AGENCY AGREEMENT LETTER OF CONFIDENTIALITY SECTION 1 GENERAL INFORMATION 1.1 Product Description 1.2 Related Submittal(s) SECTION 2 TESTS AND MEASUREMENTS 2.1 Configuration of Tested EUT 2.2 Test Facility 2.3 Test Equipment 2.4 Modifications 2.5 Antenna Description 2.6 RF Power Output 2.7 Modulation Characteristics 2.8 Occupied Bandwidth 2.9 Spurious Emissions at Antenna Terminals 2.10 Field Strength of Spurious Radiation 2.11 Frequency Stability 2.12 Emissions from Mobile Earth Stations for Protection of Aeronautical Radionavigation- Satellite Service SECTION 3 PHOTOGRAPHS SECTION 4 RF EXPOSURE INFORMATION SECTION 5 LABELING INFORMATION SECTION 6 BLOCK DIAGRAMS/SCHEMATICS SECTION 7 USER’S MANUAL FCC ID: L2V-PT1 U.S. Technologies, Inc. FCC Part 25 Certification Report Number: 07-0197 Issue Date: September 21, 2007 Customer: Axonn LLC Model: Satellite Personal Tracker Model: SPT LIST OF FIGURES AND TABLES FIGURES 1) Test Configuration 2) Photograph(s) for Spurious Emissions 3) RF Power Output 4) Modulation Characteristics 5) Occupied Bandwidth 6) Spurious Emissions at Antenna Terminals 7) Field Strength of Spurious Emission 8) Emissions from Mobile Earth Stations for Protection of Aeronautical Radionavigation-Satellite Service TABLES 1) EUT and Peripherals 2) Test Instruments 3) RF Power Output 4) Field Strength of Spurious Emissions 5) Frequency Stability 6) Radiated Emissions (Digital Device & Receiver) FCC ID: L2V-PT1 U.S. Technologies, Inc. FCC Part 25 Certification Report Number: 07-0197 Issue Date: September 21, 2007 Customer: Axonn LLC Model: Satellite Personal Tracker Model: SPT SECTION 1 GENERAL INFORMATION FCC ID: L2V-PT1 U.S. Technologies, Inc. FCC Part 25 Certification Report Number: 07-0197 Issue Date: September 21, 2007 Customer: Axonn LLC Model: Satellite Personal Tracker Model: SPT GENERAL INFORMATION 1.1 Product Description The Equipment Under Test (EUT) is the Axonn LLC, Satellite Personal Tracker. The EUT is a personal tracking device providing for the location of a person in routine and emergency situations. The device receives location information via the GPS satellite constellation and transmits the information to the Globalstar satellite constellation for relay to the end user or their designated recipient. The Unit operates at the following 4 transmit frequencies: 1611.25, 1613.75, 1616.26 and 1618.25 MHz. Once service is established with Globalstar, SPT sends information to Globalstar satellites which relay the information to ground stations. The processed information is then available. The device is delivered complete and ready-to-go with no need for an external antenna or power source. The EUT was configured to operate at 1611.25, 1613.75 and 1618.25 MHz, 255 Symbols, BPSK Demod on continuous transmit mode. For the purpose of this test the EUT was placed into a (+20 dBm) constant TX mode of operation. FCC ID: L2V-PT1 U.S. Technologies, Inc. FCC Part 25 Certification Report Number: 07-0197 Issue Date: September 21, 2007 Customer: Axonn LLC Model: Satellite Personal Tracker Model: SPT 1.2 Related Submittal(s)/Grant(s) The EUT is subject to the following authorizations: a) Certification as a transceiver as specified by Part 25. The information contained in this report is presented for the Part 25 Certification authorization(s) for the EUT. FCC ID: L2V-PT1 U.S. Technologies, Inc. FCC Part 25 Certification Report Number: 07-0197 Issue Date: September 21, 2007 Customer: Axonn LLC Model: Satellite Personal Tracker Model: SPT SECTION 2 TEST AND MEASUREMENTS FCC ID: L2V-PT1 U.S. Technologies, Inc. FCC Part 25 Certification Report Number: 07-0197 Issue Date: September 21, 2007 Customer: Axonn LLC Model: Satellite Personal Tracker Model: SPT TEST AND MEASUREMENTS 2.1 Configuration of Tested System Prepared in accordance with the requirements of the FCC Rules and Regulations Part 2 & 25. All measurements are peak unless stated otherwise. The video filter associated with the spectrum analyzer was off throughout the evaluation process. Interconnecti…
