L2V-SMTPH2.4 GHz Bluetooth Transceiver, GPS RX, and 1.6 GHz Simplex TX

Spot LLC
2.4 GHz Bluetooth Transceiver, GPS RX, and  1.6 GHz Simplex TX - FCC ID L2V-SMTPH - Spot LLC
Click to zoom

Application Details

Equipment Class
TNT - Licensed Non-Broadcast Transmitter Worn on Body
Date of Grant
Jan 06, 2011
Application Purpose
Original Equipment
Date of Application
Jan 04, 2011
Equipment Note
2.4 GHz Bluetooth Transceiver, GPS RX, and 1.6 GHz Simplex TX
Frequency Range
1611.25000000 - 1618.75000000
Company
Spot LLC
Country
United States

Documents & Files

Select a file to view

Users Manual

↗
↗

Cover Letter(s)

↗
↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗
↗
↗

Parts List/Tune Up Info

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Globalstar Spot Connect User’s Guide DECLARATION OF CONFORMITY FOR EUROPEAN CUSTOMERS Hereby, Globalstar Europe Satellite Services Ltd., declares that this SPOT Satellite GPS Messenger, is in compliance with the essential requirements and other relevant provisions of Directive 1995/5/EC. The declaration of conformity may be consulted at www.findmeSPOT.com. © 2010, SPOT, LLC. For more information visit www.findmeSPOT.com. The official language of this User’s Guide is English. The translations are provided for your convenience only. In the case of any contradiction between a translation and the English, the English version shall take precedence. USERG-ENG-10V1 HOW SPOT CONNECT WORKS 1. GPS satellites provide signals. 2.The SPOT CONNECT on board GPS chip determines your GPS location and works with a native smart phone application to send your location and custom or predefined message through the SPOT CONNECT device. 3.Communication satellites relay your message to specific satellite antennas around the world. 4. Satellite antennas and a global network route your location and message to the appropriate network. 5. Your location and messages are delivered according to your instructions via email, text message, or emergency notification to the GEOS Rescue Coordination Center. Google™ Powered by Google Maps™ When SPOT CONNECT sends a text or email message to one of your contacts or to the GEOS Rescue Coordination Center, it includes your GPS coordinates and a web link (email only) to view your location using Google Maps™. 23 SECTION 2: GETTING STARTED Before you start, here are a few important things to remember to get maximum reliability from SPOT CONNECT: 1. SPOT CONNECT needs a clear view of the sky to obtain a GPS signal and provide the most accurate location information. It is not reliable indoors, in a cave, or in very dense woods. 2. Orienting SPOT so that the SPOT logo is facing up toward the sky will improve performance as the antenna is located under the logo. 3. Be sure the SPOT CONNECT device is within several feet of your mobile device. This is necessary to maintain a consistent Bluetooth connection. SECTION 1: WELCOME Life is full of adventures. Now you have a way to share yours and be prepared wherever you roam. You have just purchased the best peace of mind available for the active outdoor adventurer or smartly-prepared individual. SPOT CONNECT is the world’s first satellite messenger built to work the latest smart phone handsets. SPOT CONNECT works with your smart phone and uses the GPS satellite system to determine your location and global communication satellites to transmit that information to your chosen contacts. SPOT gives you and your loved ones peace of mind by allowing you to: • Notify them or the GEOS International Emergency Rescue Coordination Center of your GPS location. • Send for assistance in time of need around the world. • ROAM outside typical mobile phone coverage areas, but maintain a means to communicate with you mobile device 45 INITIAL SYSTEM TEST Perform an initial system test to evaluate your entire messaging system, from the operational condition of the SPOT to the readiness of those you’ve chosen to receive your messages. 1) Go outside to where SPOT has a clear view of the sky in all directions. 2) Press and hold the ON/OFF button until the function light blinks green. 3) Press and hold the Check-In/OK button until the function light blinks green. 4) Leave SPOT outdoors. The GPS indicator light blinks green as SPOT acquires a GPS fix. Once SPOT acquires your GPS location, the Message Sending light and GPS light will blink green in unison for ~15 seconds to notify you that your message is being transmitted with GPS location. The Message Sending light will continue to blink green over the remainder of the 20 minute message cycle and for one (1) hour after the end of the message cycle (this is to provide you with additional time to check if your most recent message was transmitted). The Check-In/OK function light will turn off once the message cycle is complete. 5) Verify that the message was received in the email or SMS account(s) that you set up during activation in your Check-In/OK contact list. 6) You can also view your messages in your account at findmeSPOT.com If the GPS light blinks red, SPOT does not have a clear view of the GPS satellites and you must move to an area with a clearer view of the sky for proper operation. Then repeat steps 2 through 5. You can update the names and contact information anytime via your account on the SPOT website. Leave your personal contact information as one of the contacts for future system testing and GPS Acquisition before each trip. SERVICE ACTIVATION SPOT activation requires a combination of hardware and online steps, outlined below. Complete all steps in each row before moving on. 67 THE SPOT CONNECT DEVICE POWER To turn SPOT CONNECT on simply press and hold the ON/OFF button until the button blinks green. SPOT CONNECT performs a self-diagnostic test. When power is ON, the button will blink green every 3 seconds. This is helpful for making SPOT CONNECT more visible in the dark. To turn SPOT CONNECT off, press and hold the ON/OFF button until the light stops blinking. SOS To manually activate the SOS mode, press and hold the button on the side of the device for 5 seconds. Upon activation, the device will flash the SOS light indicator until it is cancelled manually, or the device battery runs out. LIGHT INDICATORS SPOT CONNECT uses lights to tell you what it’s doing. Take a moment to become familiar with these lights. IMAGE OF SPOT CONNECT DEVICE 89 GPS LIGHT The GPS light notifies you whether SPOT is able to see the GPS satellites and obtain your GPS location. Green – The GPS light blinks green while SPOT sees the GPS satellites and is looking for a GPS location. Once the GPS location is obtained, the GPS light and Message Sending light blink green approximately 15 seconds to notify you that your message was se…

Text truncated - open the document above for the full version.

Users Manual

Connect User Guide 1.0 Welcome/Intro/Overview 2.0 Setup – for individual pieces, not system level 2.1 App 2.2 Connect 2.3 MySpot account & services 3.0 System Setup & Test 3.1 Pairing 3.2 Testing 4.0 Operation 4.1 Starting your Adventure 4.2 Tracking 4.3 Help modes 5.0 Appendix 5.1 Troubleshooting/FAQ 5.2 Maintenance 5.3 Cautions and Warnings 5.3.1 Any changes or modifications not expressly approved by the grantee of this device could void the user’s authority to operate the equipment. 5.3.2 Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended. Dispose of used batteries according to the manufacturer’s instructions. 5.3.3 Do not damage the rechargeable Lithium-ion battery. A damaged battery can cause an explosion or fire, and can result in personal injury and/or property damage. 5.4 Warranty Information 5.4.1 Your SPOT has a Limited Warranty for 12 months (24 months for European Customers) from the date of purchase against defects in materials and workmanship only. For full details regarding the Limited Warranty and warranty claim procedures, visit www.spotwarranty.com or www.findmeSPOT.com. EXCEPT AS PROVIDED ABOVE, THE PRODUCT IS SOLD “AS IS” WITHOUT ANY EXPRESS OR IMPLIED WARRANTIES FOR THE PRODUCT WHATSOEVER, INCLUDING, WITHOUT LIMITATION, ANY IMPLIED WARRANTIES REGARDING THE CONDITION, DESIGN, SPECIFICATIONS, WORKMANSHIP, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE OF THE PRODUCT, OR ANY WARRANTIES THAT THE PRODUCT IS FREE FROM LATENT DEFECTS OR DEFICIENCIES, OR THAT THE PRODUCT IS FREE FROM INFRINGEMENT OF ANY PATENT, TRADEMARK, COPYRIGHT OR PROPRIETARY RIGHT OF ANY THIRD PARTY AND SUCH WARRANTIES ARE HEREBY EXPRESSLY DISCLAIMED. THIS LIMITED WARRANTY PROVIDES THE SOLE AND EXCLUSIVE REMEDY FOR ANY DEFECTS IN THE PRODUCT. IN NO EVENT SHALL WE BE LIABLE FOR ANY INDIRECT, CONSEQUENTIAL, SPECIAL, INCIDENTAL OR PUNITIVE DAMAGES, WHETHER IN CONTRACT, TORT, NEGLIGENCE, STRICT LIABILITY OR OTHERWISE. OUR LIABILITY IS LIMITED TO THE AMOUNT YOU PAID FOR THE PRODUCT THAT IS THE SUBJECT OF A CLAIM. THE APPLICABILITY OF THE ABOVE LIMITATIONS AND EXCLUSIONS MAY VARY FROM STATE TO STATE, OR COUNTRY TO COUNTRY. 5.5 Model number: SMTPH 5.6 FCC Certification - This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: 5.6.1 Reorient or relocate the receiving antenna. 5.6.2 Increase the separation between the equipment and the receiver. 5.6.3 Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. 5.6.4 Consult the dealer or an experienced radio/TV technician for help. 5.7 FCC RF Radiation Exposure Statement - This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 cm between the radiator and your body. 5.8 FCC/IC Notice - This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device complies with the requirements for radio astronomy site avoidance as specified by the Globalstar National Science Foundation agreement of 2001. It is compliant with CFR 25.213. This device automatically adjusts to transmission frequency according to its location and is compliant with international regulatory requirements. This Class B digital apparatus complies with Canadian ICES-003. 5.9 Certifications 5.9.1 ROHS and WEEE compliant 5.9.2 Certified to FCC and CE emissions, immunity, and safety regulations. 5.9.3 Meets FCC part 25 regulations, Canada type approval, CISPR Publication 22 (1985 1st edition), RTTE Directive (1999/EC), and IEC 60950 safety standard.

Cover Letter(s)

300 Holiday Square Blvd. Covington, LA 70433 Phone: 985-335-1500 August 31, 2010 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 Gentlemen: This letter will authorize the appointment of Compliance Testing, LLC to act as our Agent in all FCC matters. This appointment is affective until otherwise notified by us. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. The Applicant is not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 USC 862, and no party to the application is subject to a denial of federal benefits pursuant to that section. Spot, LLC Christopher Robinson

Cover Letter(s)

300 Holiday Square Blvd. Covington, LA 70433 Phone: 985-335-1500 Aug 31, 2010 Federal Communications Commission, EQUIPMENT APPROVAL SERVICES, P. O. Box 358315 Pittsburgh, PA 15251-5315 ATTN: Authorization & Evaluation Division PER: 47 CFR 0.457 and 0.459 RE: L2V-SMTPH Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission's Rules, the Applicant hereby requests confidential treatment of some of the information accompanying this Application as listed below, i.e. SMTPH BLOCK DIAGRAM (8520-0261-01) SMTPH PCB PARTS LIST (PL-2300-0304-01) SMTPH PCB PARTS LIST (PL-2300-0305-01) SMTPH SCHEMATIC (8525-0304-01) SMTPH SCHEMATIC (8525-0305-01) SMTPH THEORY OF OPERATION (8520-0260-01) SMTPH LIST OF ACTIVE DEVICES These materials contain trade secrets and proprietary information not customarily released to the public and the public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii) disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this Application. Sincerely, Spot, LLC Christopher Robinson Associate Design Engineer

External Photos

Page 1 of 2 Spot, Inc. External Photos: Model – SMTPH FCC ID: L2V-SMTPH IC: 3989A-SMTPH Page 2 of 2

Internal Photos

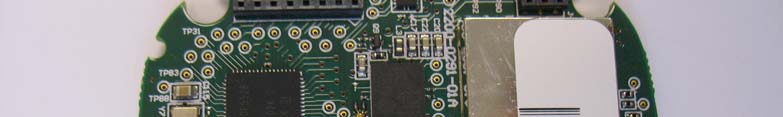

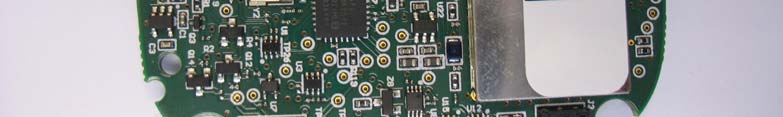

Page 1 of 6 Spot, Inc. Internal Photos: Model – SMTPH FCC ID: L2V-SMTPH IC: 3989A-SMTPH Page 2 of 6 Page 3 of 6 Page 4 of 6 Page 5 of 6 Page 6 of 6

Internal Photos

D C B A A B C D 1 2 3 4 5 6 7 8 8 7 6 5 4 3 2 1 THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF AXONN, LLC. ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF AXONN, LLC IS PROHIBITED. CONFIDENTIAL: DIMENSIONS ARE IN INCHES TOLERANCES: FRACTIONAL ANGULAR: MACH BEND TWO PLACE DECIMAL THREE PLACE DECIMAL MATERIAL FINISH Drawn By: REV: Proj Engr: Date: TITLE: SIZE B DWG. NO. REV UNLESS OTHERWISE SPECIFIED: A ROGER CASTRO SCOTT HOJEM C. MacKENZIE 08/16/10 08/16/10 08/16/10 ASSY, PCB, SMARTPHONE 1 2300-0304 Sheet of 300 HOLIDAY SQUARE BLVD Covington, LA 70433 985-355-1514 2 Prod Ctrl: Engr 2: Engr 1: Doc Ctrl: Date: Date: Date: Date: Date: DESCRIPTION / ECN #:ENGR 1:ENGR 2:DOC REL:DATE: A ERIC BLANCHARD RUSSELL FALETTI 08/16/10 08/16/10 INITIAL RELEASE SCOTT HOJEM 08/16/10 D C B A A B C D 1 2 3 4 5 6 7 8 8 7 6 5 4 3 2 1 TITLE: SIZE DWG. NO. REV A ASSY, PCB, SMARTPHONE 2300-0304 Sheet of 300 HOLIDAY SQUARE BLVD Covington, LA 70433 985-335-1514 2 D C B A A B C D 1 2 3 4 5 6 7 8 8 7 6 5 4 3 2 1 TITLE: SIZE B DWG. NO. REV 2 Sheet of

Internal Photos

D C B A A B C D 1 2 3 4 5 6 7 8 8 7 6 5 4 3 2 1 THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF AXONN, LLC. ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF AXONN, LLC IS PROHIBITED. CONFIDENTIAL: DIMENSIONS ARE IN INCHES TOLERANCES: FRACTIONAL ANGULAR: MACH BEND TWO PLACE DECIMAL THREE PLACE DECIMAL MATERIAL FINISH Drawn By: REV: Proj Engr: Date: TITLE: SIZE B DWG. NO. REV UNLESS OTHERWISE SPECIFIED: A ROGER CASTRO SCOTT HOJEM C. MacKENZIE 08/16/10 08/16/10 08/16/10 ASSY, PCB, PWR SUPPLY 1 2300-0305 Sheet of 300 HOLIDAY SQUARE BLVD Covington, LA 70433 985-355-1514 2 Prod Ctrl: Engr 2: Engr 1: Doc Ctrl: Date: Date: Date: Date: Date: DESCRIPTION / ECN #:ENGR 1:ENGR 2:DOC REL:DATE: A ERIC BLANCHARD RUSSELL FALETTI 08/16/10 08/16/10 INITIAL RELEASE SCOTT HOJEM 08/16/10 SMARTPHONE D C B A A B C D 1 2 3 4 5 6 7 8 8 7 6 5 4 3 2 1 TITLE: SIZE DWG. NO. REV A ASSY, PCB, PWR SUPPLY 2300-0305 Sheet of 300 HOLIDAY SQUARE BLVD Covington, LA 70433 985-335-1514 2 D C B A A B C D 1 2 3 4 5 6 7 8 8 7 6 5 4 3 2 1 TITLE: SIZE B DWG. NO. REV 2 Sheet of SMARTPHONE

Parts List/Tune Up Info

300 Holiday Square Blvd. Covington, LA 70433 Phone: 985-335-1500 Manufacture’s Tune Up or Alignment Procedures There is no tune up or alignment procedures for the Spot SMTPH product due to the fact that there is no way to change the frequency or parameters of the unit.

RF Exposure Info

Compliance Testing 3356 N. San Marcos Place, Suite 107 Chandler, Arizona 85225-7176 Page 1 of 5 (866) 311-3268 phone, (480) 926-3598 fax p1080003, d1090004 Rev 2.0 Date: September 2, 2010 Applicant: Spot, LLC 300 Holiday Square Blvd Covington, LA 70433 Attention of: Christopher Robinson, Design Engineer Ph: (985) 335-1530 Fax: (985) 335-1730 Email: [email protected] Equipment: SMTPH FCC ID: L2V-SMTPH FCC Rules: Radio Frequency Radiation Exposure Limits 47 CFR 1.1307 SAR Analysis Report without SAR measurements. The SMTPH is a standalone device that connects wirelessly via Bluetooth to other SmartPhones (iPhone, Droid, Blackberry, etc) to facilitate sending SPOT message packets over the Globalstar simplex network. It processes signals from the GPS satellites to determine your location and time in ordinary and emergency situations. The messages contain various data and are transmitted over the Globalstar satellite network to the Globalstar Simplex Remote Telemetry BackOffice where the data is forwarded to the end user or their designated recipient(s). Compliance Testing 3356 N. San Marcos Place, Suite 107 Chandler, Arizona 85225-7176 Page 2 of 5 (866) 311-3268 phone, (480) 926-3598 fax p1080003, d1090004 Rev 2.0 Satellite Transmitter Duty Cycle As a standalone device, the satellite transmitter’s worst case duty-cycle is in SOS mode. There is a 1.4 second pulse train and there are 300 seconds between transmissions. This gives the unit a duty-cycle of 0.46% (D.C. = 1.4 sec pulse train / 301.4 sec between transmissions). When the SMTPH is synced up with a SmartPhone, the worst-case would be an 8.64 sec pulse train / 308.64 sec between transmissions, for a duty-cycle of 2.8%. The following diagram illustrates this. Source Time Based Power calculation for 1611.25 – 1618.75 MHz Satellite Transmitter Threshold = 60/ f GHz 60/1.61875 = 37.06 mW Source time based power = average output power * duty cycle This is a portable device Satellite Frequency Average Power Duty Cycle Source time based power Limit GHz mW 2.88% mW mW 1.61125 169.824 0.0288 4.755072 37.06 1.61375 165.959 0.0288 4.646852 37.06 1.61625 162.181 0.0288 4.541068 37.06 1.61875 154.882 0.0288 4.336696 37.06 Compliance Testing 3356 N. San Marcos Place, Suite 107 Chandler, Arizona 85225-7176 Page 3 of 5 (866) 311-3268 phone, (480) 926-3598 fax p1080003, d1090004 Rev 2.0 Bluetooth Transmitter Duty Cycle For Bluetooth operation, the worst case duty cycle is during ‘Page and Inquiry’ scan. There is a 21 milli-second pulse train and 1.3 sec between pings, giving it a duty-cycle of 1.6%. (D.C = 21 mS pulse train / 1.321 sec between pings). The following diagram illustrates this. Source Time Based Power calculation for 2402 - 2480 MHz Wi-Fi Transmitter Threshold = 60/ f GHz 60/2.480 = 24.19 mW Source time based power = average output power * duty cycle This is a portable device Bluetooth Frequency Average Power Duty Cycle Source time based power Limit GHz mW 1.60% mW mW 2.401 0.000098 0.016 0.000001568 24.19 2.441 0.000093 0.016 0.000001488 24.19 2.840 0.000032 0.016 0.000000512 24.19 Compliance Testing 3356 N. San Marcos Place, Suite 107 Chandler, Arizona 85225-7176 Page 4 of 5 (866) 311-3268 phone, (480) 926-3598 fax p1080003, d1090004 Rev 2.0 Photo of Satellite Transmitter antenna w/ unit dimensions Compliance Testing 3356 N. San Marcos Place, Suite 107 Chandler, Arizona 85225-7176 Page 5 of 5 (866) 311-3268 phone, (480) 926-3598 fax p1080003, d1090004 Rev 2.0 Photo of Bluetooth antenna location with unit dimensions

Test Report

p1080003, d1080013 Rev 1.0 Date: August 27, 2010 Applicant: Spot, LLC 300 Holiday Square Blvd Covington, LA 70433 Attention of: Christopher Robinson, Design Engineer Ph: (985) 335-1530 Fax: (985) 335-1730 Email: [email protected] Equipment: SMTPH FCC ID: L2V-SMTPH FCC Rules: Part 25 Enclosed please find your copy of the Engineering Test Report for which you are subject to the restrictions as listed on the attached summary. This report may not be reproduced, except in full, without written permission from Compliance Testing, LLC. Please retain a copy in your records for archival purposes. Once a Telecommunication Certification Body (TCB) issues a Grant the Federal Communication Commission (FCC) has 30 days to review the application and request added information. It is your decision whether or not to market the equipment subject to a possible recall before the end of the 30 days. If your equipment is still retained by us, it will be returned to you 30 days after approval is achieved. Our invoice for services has been directed to your Accounts Payable Department. For any additional information please contact us. Sincerely, Compliance Testing p1080003, d1080013 Rev 1.0 Page 1 of 15 Test Report For FCC ID: L2V-SMTPH Model: SMTPH Description: 2.4 GHz Bluetooth Transceiver, GPS Receiver, and 1.6 GHz Simplex Transmitter to Federal Communications Commission Rule Part(s) 25 Date of report: August 27, 2010 At the Request of: Spot, LLC 300 Holiday Square Blvd Covington, LA 70433 Attention of: Christopher Robinson, Design Engineer Ph: (985) 335-1530 Fax: (985) 335-1730 Email: [email protected] by Compliance Testing, LLC 3356 N. San Marcos Place, Suite 107 Chandler, Arizona 85225-7176 (866) 311-3268 phone, (480) 926-3598 fax p1080003, d1080013 Rev 1.0 Page 2 of 26 Test Report Revision History Revision Date Revised By Reason for revision 1.0 August 27, 2010 G. Corbin Original Document p1080003, d1080013 Rev 1.0 Page 3 of 26 Testimonial and Statement of Verification This is to certify that: 1. That the application was prepared either by, or under the direct supervision of, the undersigned. 2. That the technical data supplied with the application was taken under my direction and supervision. 3. That the data was obtained on representative units, randomly selected. 4. That, the facts set forth in the application and accompanying technical data are true and correct to the best of my knowledge and belief. Certifying Engineer: Greg Corbin p1080003, d1080013 Rev 1.0 Page 4 of 26 Table of Contents Rule Description Page Standard Test Conditions and Engineering Practices 5 List of General Technical Information 7 Test Results Summary 8 25.204 Power limits 9 25.202(f) Emissions Limitations for Mobile Earth Stations 10 Occupied Bandwidth 16 25.202(f) Emission Masks 19 25.216(h) Emissions Limits for Mobile Earth Stations 22 25.202(d) Frequency Tolerance (Temperature Variation) 24 25.202(d) Frequency Tolerance (Voltage Variation) 25 Test Equipment Utilized 26 p1080003, d1080013 Rev 1.0 Page 5 of 26 Standard Test Conditions and Engineering Practices Except as noted herein, the following conditions and procedures were observed during the testing: In accordance with ANSI C63.4-2009, section 6.1.9, and unless otherwise indicated in the specific measurement results, the ambient temperature of the actual EUT was maintained within the range of 10 to 40C (50 to 104 F) unless the particular equipment requirements specify testing over a different temperature range. Also, unless otherwise indicated, the humidity levels were in the range of 10% to 90% relative humidity. Environmental Conditions Temperature Humidity 24.3 – 31.5 deg C 38 – 39.1% Prior to testing, the EUT was tuned up in accordance with the manufacturer's alignment procedures. All external gain controls were maintained at the position of maximum and/or optimum gain throughout the testing. Measurement results, unless otherwise noted, are worst-case measurements. Test and Measurement Data All tests and measurement data shown were performed in accordance with FCC Rules and Regulations, Volume II; Part 2 and the following individual Parts: FCC Part 25 Satellite Communications p1080003, d1080013 Rev 1.0 Page 6 of 26 A2LA “A2LA has accredited Compliance Testing, LLC in Chandler, AZ for technical competence in the field of Electrical testing. The accreditation covers the specific tests and types of tests listed on the agreed scope of accreditation. This laboratory meets the requirements of ISO 17025:2005 ‘General Requirements for the Competence of Testing and Calibration Laboratories’ and any additional program requirements in the identified field of testing.” Please refer to www.a2la.org for current scope of accreditation. Certificate number: 2152.01 FCC OATS Reg. Number 933597 Industry Canada OATS Number 2011A-1 p1080003, d1080013 Rev 1.0 Page 7 of 26 List of General Technical Information In Accordance with FCC Rules and Regulations Volume II, Part 2 and to Part 25 Name and Address of Applicant: Spot, LLC 300 Holiday Square Blvd Covington, LA 70433 Manufacturer: Spot, LLC 300 Holiday Square Blvd Covington, LA 70433 Model Number: SMTPH (c)(3): Instruction Manual(s): Please see attached exhibits (c)(4): Type of Emission: BPSK (c)(5): Frequency Range, MHz: 1611.25 – 1618.75 (c)(6): Power Rating, Watts: .181 Switchable Variable X N/A EUT Description The EUT is a transmitter module containing a 2.4 GHz Bluetooth Transmitter, a Class 1 GPS receiver, and a 1.6 GHz Simplex Transmitter. The EUT is powered by 2 “AA” Lithuim batteries during normal operation. The EUT connects to a PC USB port for firmware updates only. The transmitters are disabled when the EUT is connected to a USB port. Accessories used during testing: Type Quantity Manufacturer Model Serial No. FCC ID None None NoneNoneNone None p1080003, d1080013 Rev 1.0 Page 8 of 26 Test Results Summary Specification Test Name Pass, Fail, N/A Comments 25.204 Power Limits Pass 25.202(f) Emissions Li…

Text truncated - open the document above for the full version.

Test Setup Photos

Page 1 of 3 Test Setup Photos Spot - Smartphone FCC ID: L2V-SMTPH IC ID: 3989A-SMTPH Conducted Emissions Conducted RF Test Page 2 of 3 Radiated Emissions #1 Radiated Emissions #2 Page 3 of 3 Radiated Power and Spurious

Contact Information

Applicant

Matthew Kapral(Senior Quality Engineer)
[email protected](985)335-1649Fax: (985)335-1903

Technical Specifications

#Rule PartsFrequency RangePower OutputEmissionTolerance
1251.61 GHz - 1.62 GHz181.00 mW1M90G1D0.0010000000 %
Confidentiality
Long Term
Grant Notes
Output Power listed is conducted. The transmitter must not be co-located or operated with another transmitter except in accordance with FCC multi-transmitter policy or as documented in this filing. Users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.
