L2V-STAMPDTS Developer Board

Axonn LLC Stamp User’s Guide-Document #9100-0160-01 Ver 1.0 1/7 Part Number 9100-0160-01 Revision 1.0 Date: October 4, 2006 2.4 GHz Stamp User’s Manual Axonn LLC Stamp User’s Guide-Document #9100-0160-01 Ver 1.0 2/7 Table of Contents 1. 2.4 GHz Stamp Product Description................................................ 2. Typical Integration..................................................................... 3. Product Specifications.................................................................. 3.1 Specifications........................................................................ 3.2 Pin Diagram.......................................................................... 3.3 Pin Descriptions...................................................................... 4. Air Interface............................................................................... 4.1 Frequency............................................................................... 4.2 Power.................................................................................. 4.3 Timing................................................................................. 5. Serial User Interface................................................................... 5.1 Message Protocol..................................................................... 5.2 Tips........................................................................................... 5.3 Timing....................................................................................... 5.4 Digital I/O................................................................................ 6. Mounting Guidelines................................................................... 7. Power Supply Requirements.......................................................... 8. Environmental Specifications......................................................... 9. Regulatory Approvals.................................................................. Axonn LLC Stamp User’s Guide-Document #9100-0160-01 Ver 1.0 3/7 1. 2.4 GHz Stamp Product Description To be completed 2. Typical Integration Below is a block diagram of how a normal system using a 2.4 GHz Stamp would be designed. 3. Product Specifications 3.1 Specifications TBC Axonn LLC Stamp User’s Guide-Document #9100-0160-01 Ver 1.0 4/7 3.2 Pin Diagram 3.3 Pin Descriptions Pin Pin Name Electrical Spec Note 1 GND Tie directly to host ground plane. 2 Reset DO NOT CONNECT For use with serial programming 3 VRF 3.3V +/-5% Powers the 2.4 GHz transceiver 4 GND 5 VDIG 3.3V +/-5% Powers digital circuitry 6 RF RX 3.3V TTL Output Logic 0: <0.6V Logic 1: >0.8*Vdig Data Input To be transmitted over 2.4 GHz radio 2400 baud 7 Test In DO NOT CONNECT For use with serial programming 8 NC 9 GND 10 NC 11 NC 12 RF TX 3.3V TTL Input Logic 0: <0.6V Logic 1: >0.8*Vdig Data output Information received over 2.4 GHz radio 2400 Baud 13 GND 14 GND Axonn LLC Stamp User’s Guide-Document #9100-0160-01 Ver 1.0 5/7 Approximate Current Consumption (through Vdig and Vrf combined): Maximum: 25mA Sleep mode: 1-2μA 4. Air Interface TBC 4.1 Frequency TBC 4.2 Power TBC 4.3 Timing TBC 5. Serial User Interface TBC 5.1 Message Protocol TBC 5.2 Tips TBC 5.3 Timing TBC 5.4 Digital I/O TBC Axonn LLC Stamp User’s Guide-Document #9100-0160-01 Ver 1.0 6/7 6. Mounting Guidelines The figure below shows the recommended footprint for mounting the Stamp on its host board. 7. Power Supply Requirements TBC 8. Environmental Specifications TBC Axonn LLC Stamp User’s Guide-Document #9100-0160-01 Ver 1.0 7/7 9. Regulatory Approvals FCC ID: L2V-STAMP IC:3989A-STAMP THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS. (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION . The FCC requires the following notification for the device in compliance with 47CFR 15.105 for this Class B digital device. Full product test reports are available from Axonn upon request. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a residential environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. WARNING: Changes or modifications not expressly approved by Axonn may render the device non-compliant to FCC and other regulatory body standards for operation and may void the user’s authority to operate the equipment. Accessory items that can be readily obtained from multiple retail outlets are not considered to be special accessories and are not to be marketed with the equipment. Only those accessory items provided by Axonn have been tested to ensure operation consistent with the regulatory standards that the device is required to perform. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause u…

Text truncated - open the document above for the full version.

Doc # 8511-0112-01 19349 N. 12th Street Covington, LA 70433 Phone: 985-893-1048 www.axonn.com To: FCC This notice is in regard to the Stamp transceiver module which operates in the 2.4GHz range on channels that fall between 2407-2477 MHz. During FCC testing, test firmware was used where the low and high frequencies were 2401 and 2480 MHz respectively in order to test over the entire band. In real operating units, no software will be provided to a customer that will operate outside of 2407-2477 MHz and no software will be provided that will give the customer the opportunity or capability to change the frequencies below 2407 MHz or above 2477 MHz. The restricted range will remain in effect at all times. We regret the fact that the unit was tested at 2401 to 2480. At the time, we thought the unit needed to be tested over the full 2.4 GHz spectrum, not the actual operating channels that are used on the device which fall within those boundaries. If there are any comments or issues, please contact Axonn for more information.

CONFIDENTIALITY REQUEST Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Date: November 11, 2006 Gentlemen: Axonn LLC, Inc respectfully requests confidentiality of certain materials provided with the submission of the STAMP Developer Board under FCC ID: L2V-STAMP in accordance with FCC Regulations 0.459. The confidentiality request applies to the schematics, block diagram and Theory of Operation. The STAMP Develop has been developed at considerable effort and expense by Axonn LLC These items are considered as Trade Secrets and therefore public access to the proprietary material could possible result in duplication of equipment that could severely damage the company's business advantage. I appreciate your assistance in this matter. Sincerely, Louis A. Feudi, Date: November 11, 2006 VP / Operations & Engineering 3505 Francis Circle Alpharetta, GA 30004 PH: 770-740-0717 Fax: 770-740-1508 www.ustech-lab.com

3/13/2007 Mr. Doug Noble ATCB RE: Axonn FCC ID:L2V-STAMP Mr.Noble, Thank you for your comments in your letter of 2/8/2007. Below is my response to your comments on this application. I have included your original comments in my response. 1. Please revise label it needs the manufacturer and model number for Industry Canada. As in previous application responses, Axonn does not print the Company Name and model number on the drawing print, but includes it in the label order request. This confirms that the Label will contain the words “Axonn Corporation” and the “Model STAMP” 2. Please upload Test Setup Photos exhibit. Uploaded. 3. Frequencies on the Form 731 and the test report do not match please explain and/or correct. The original Form 731 contained the projected theoretical High and Low frequencies from the Design engineer. The revised Form 731 contains the actual as measured during Fundamental emissions. Corrected Form 731 Uploaded. Please contact me with any further questions. Sincerely, Louis A. Feudi Vice President of Operations and Engineering 3505 Francis Circle Alpharetta, GA 30004 PH: 770-740-0717 Fax: 770-740-1508 www.ustech-lab.com

October 2, 2007 Mr. Doug Noble ATCB RE: Axonn FCC ID:L2V-STAMP Mr.Noble, Thank you for your comments in your letter of 3/14/2007. Below is my response to your comments on this application. I have included your original comments in my response. I have a few comments on this Application. 1. After reviewing the label exhibit there seems to be enough space on the board to place the label. Please show label drawing with IC number, manufacturer and model number. Also show where the label will be placed on the PC board. Size limitation prohibits any label from being placed upon the board. Canada, in particular, requires too much information. Below is a photo of the board next to a ruler. This is the actual unit. The red PCB is a test board for application purpose only. 2. Please upload the correct operational description. The frequencies on the exhibit we now have do not correspond with this filing. Please see “Operational Spec Page from MMT Spec”. This is the Operational information from Axonn specific to the STAMP, which was originally conceived as part of the MMT Unit. This info has been uploaded. 3. Please get an attestation from the manufacturer of the highest and lowest frequencies and upload as channel attestation exhibit. Uploaded is a copy of an email confirming the lowest and highest frequency of the CM1 unit. This unit incorporates a STAMP Module and has been Certified to 15.249 under L2V-CM1. This email applies to the STAMP as well. From: Eric Blanchard [mailto:[email protected]] Sent: Tuesday, May 08, 2007 12:17 PM To: 'Louis A. Feudi'; 'Walter Debus' Cc: 'Sandi'; 'Alan Ghasiani' Subject: RE: Config Tool Hi Lou, The lowest and highest frequencies actually used in the normal operation of the configuration module are 2407 and 2477MHz. Also, our software engineer is still trying to get to the revamped version of the Sender/Receiver software which automatically recovers from ESD shock. I will send it to you as soon as I receive it and verify that it works. Thanks AXONN, L.L.C. Wireless Data Solutions That Work Eric Blanchard Design Engineer 19349 N. 12th Street Covington, LA 70433 P-985-893-1048, ext 318 [email protected] 4. Bandedge plots are for 15.247 restricted bands not for 15.249 Bandedge. Lower Bandedge is not shown. Please revise Bandedge plots to show compliance with 15.249. Please revise test report to include new Bandedge plots. Revised and Uploaded 5. Test report states the EUT is battery operated. Please show battery connections in test setup photos. Please see attachment. Battery Attachment is shown in Radiated Emissions Photo. There is no conducted emissions photo due to Battery powered application. Refer to Original Operational Description for illustration of battery connection within MMT. Please contact me with any further questions. Sincerely, Louis A. Feudi Vice President of Operations and Engineering 3505 Francis Circle Alpharetta, GA 30004 PH: 770-740-0717 Fax: 770-740-1508 www.ustech-lab.com

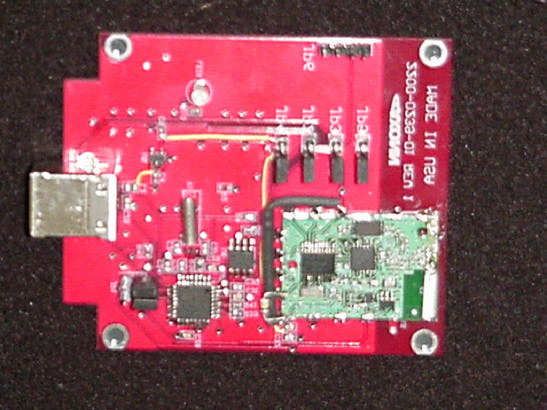

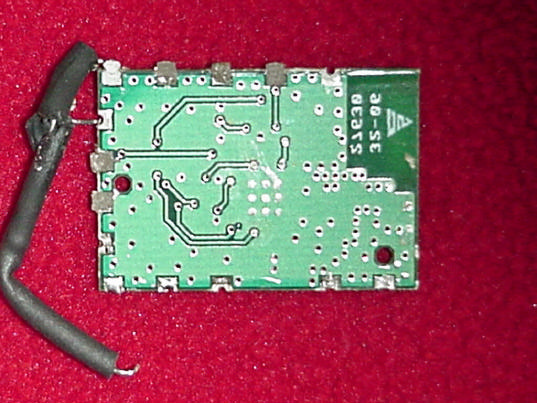

FCC ID: L2V-STAMP SECTION 5 PHOTOGRAPHS FCC ID: L2V-STAMP PHOTOS OF THE TESTED EUT The following photos are attached: Photo 1. Top View of Test Board Photo 2. Bottom View of Test Board Photo 3. Close up View of EUT mounted on Test Board Photo 4. Solder Side of EUT Photo 5. Component Side EUT FCC ID: L2V-STAMP Photo 1. Top View of Test Board FCC ID: L2V-STAMP Photo 2. Bottom View of Test Board FCC ID: L2V-STAMP Photo 3. Close up View of EUT mounted on Test Board FCC ID: L2V-STAMP Photo 4. Solder Side of EUT FCC ID: L2V-STAMP Photo 5. Component Side EUT

FCC ID: L2V-STAMP SECTION 5 PHOTOGRAPHS FCC ID: L2V-STAMP PHOTOS OF THE TESTED EUT The following photos are attached: Photo 1. Top View of Test Board Photo 2. Bottom View of Test Board Photo 3. Close up View of EUT mounted on Test Board Photo 4. Solder Side of EUT Photo 5. Component Side EUT FCC ID: L2V-STAMP Photo 1. Top View of Test Board FCC ID: L2V-STAMP Photo 2. Bottom View of Test Board FCC ID: L2V-STAMP Photo 3. Close up View of EUT mounted on Test Board FCC ID: L2V-STAMP Photo 4. Solder Side of EUT FCC ID: L2V-STAMP Photo 5. Component Side EUT

Axonn LLC FCC Part 15, Certification Application STAMP Modular Frequency Hopping Transceiver Developer Board UST Project: 06-0204 Issue Date: October 31, 2006 3505 Francis Circle Alpharetta, GA 30004 PH: 770-740-0717 Fax: 770-740-1508 www.ustech-lab.com I certify that I am authorized to sign for the manufacturer and that all of the statements in this report and in the Exhibits attached hereto are true and correct to the best of my knowledge and belief: UNITED STATES TECHNOLOGIES, INC. (AGENT RESPONSIBLE FOR TEST): By: Name: Louis A. Feudi __________ Title: VP Operations & Engineering Date: October 31, 2006 _ Axonn LLC 19349 N. 12 th Street Covington, LA 70433 By: Name: Title: Date: This report shall not be reproduced except in full. This report may be copied in part only with the prior written approval of U.S. Technologies. The results contained in this report are subject to the adequacy and representative character of the sample provided. 3505 Francis Circle Alpharetta, GA 30004 PH: 770-740-0717 Fax: 770-740-1508 www.ustech-lab.com FCC ID: L2V-STAMP MEASUREMENT/TECHNICAL REPORT COMPANY NAME: Axonn LLC MODEL: STAMP FCC ID: L2V-STAMP DATE: October 31, 2006 This report concerns (check one): Original grant X Class II change_____ Equipment type: Low Power 2.4 GHz Frequency Hopping Transceiver Developer Board Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? yes_____ No X If yes, defer until:_________________ date N.A. agrees to notify the Commission by N.A. date of the intended date of announcement of the product so that the grant can be issued on that date. Report prepared by: United States Technologies, Inc. 3505 Francis Circle Alpharetta, GA 30004 Phone Number: (770) 740-0717 Fax Number: (770) 740-1508 FCC ID: L2V-STAMP TABLE OF CONTENTS SECTION 1 GENERAL INFORMATION 1.1 Product Description 1.2 Related Submittal(s) SECTION 2 TESTS AND MEASUREMENTS 2.1 Configuration of Tested EUT 2.2 Test Facility 2.3 Test Equipment 2.4 Modifications 2.5 Antenna Description 2.6 Fundamental, Peak, and Average Radiated Spurious Emissions 2.7 Bandedge Requirements (Conducted and Radiated) 2.8 Minimum 20 dB Bandwidth 2.9 Power Line Conducted Emissions for Transmitter 2.10 Radiated Emissions for Digital Device & Receiver 2.11 Power Line Conducted for Digital Device & Receiver SECTION 3 LABELING INFORMATION SECTION 4 BLOCK DIAGRAM(S)/ SCHEMATIC(S) SECTION 5 PHOTOGRAPHS SECTION 6 THEORY OF OPERATION SECTION 7 USER'S MANUAL FCC ID: L2V-STAMP LIST OF FIGURES AND TABLES FIGURES 1) Test Configuration 2) Photograph(s) for Spurious and Conducted Emissions 3) Peak Radiated Spurious Emissions 4) Bandedge Compliance Antenna Conducted 5) 20 dB Bandwidth TABLES 1) EUT and Peripherals 2) Test Instruments 3) Peak Radiated Spurious Emissions 4) 20 dB Bandwidth 5) Conducted Emissions 6) Radiated Emissions for Digital Device and Receiver FCC ID: L2V-STAMP SECTION 1 GENERAL INFORMATION FCC ID: L2V-STAMP GENERAL INFORMATION 1.1 Product Description The Equipment Under Test (EUT) is an Axonn LLC, Model STAMP modular Frequency Hopping Transceiver. The EUT is a 2.4 GHz Frequency Hopping Transceiver module which is intended for use as an interface to wireless sensor networks. The unit is being submitted as a Developer Board, with no shielding. FCC ID: L2V-STAMP 1.2 Related Submittal(s)/Grant(s) The EUT will be used to send/receive data. The Frequency Hopping Transceiver presented in this report will be used with other like Frequency Hopping Transceivers: The EUT is subject to the following authorizations: a) Certification as a low power Frequency Hopping Transceiver Developer Board under 15.249 b) Verification as a digital device The information contained in this report is presented for the certification & verification authorization(s) for the EUT. FCC ID: L2V-STAMP SECTION 2 TESTS AND MEASUREMENTS FCC ID: L2V-STAMP TEST AND MEASUREMENTS 2.1 Configuration of Tested System The sample was tested per ANSI C63.4, Methods of Measurement from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz (1992). Conducted and radiated emissions data were taken with the test receiver or spectrum analyzer's resolution bandwidth adjusted to 9 kHz and 120 kHz, respectively. All measurements are peak unless stated otherwise. The video filter associated with the spectrum analyzer was off throughout the evaluation process. Block diagrams of the tested systems are shown in Figures 1. Test configuration photographs for spurious and fundamental emissions are shown in Figure 2a -g. The sample used for testing was received by U.S. Technologies on October 18, 2006 in good condition. 2.2 Test Facility Testing was performed at US Tech's measurement facility at 3505 Francis Circle, Alpharetta, GA. This site has been fully described and submitted to the FCC, and accepted in their letter marked 31040/SIT. Additionally this site has also been fully described and submitted to Industry Canada (IC), and has been approved under file number IC2982. 2.3 Test Equipment Table 2 describes test equipment used to evaluate this product. 2.4 Modifications No modifications were made by US Tech to bring the EUT into compliance with FCC Part 15, Class B Limits for the transmitter portion of the EUT or the Class B Digital Device Requirements. FCC ID: L2V-STAMP FIGURE 1 TEST CONFIGURATION 6’ U Test jig board Transmitter Portion (EUT) DC Power Supply 120VAC / 60 HZ 6’ U FCC ID: L2V-STAMP TABLE 1 Test Date: October 17 & 18, 2006 UST Project: 06-0204 Customer: Axonn LLC Model: STAMP EUT and Peripherals PERIPHERAL MANU. MODEL NUMBER SERIAL NUMBER FCC ID: CABLES P/D Axonn LLC (EUT) STAMP None None None Hewlett Packard DC Power Supply E3610A GE13499 None 6’ U 3.6 Vdc 6’U 120VAC / 60 Hz FCC ID: L2V-STAMP TABLE 2 TEST INSTRUMENTS EQUIPMENT MODEL NUMBER MANUFACTURER SERIAL NUMBER DATE OF LAST CALIBRATION SPECTRUM ANALYZER 8558B HEWLETT-PACKARD 2332A10055 3/21/06 SPECTRUM ANALYZER 8593E HEWLETT-PACKARD 3205A00124 7/3/06 SIGNAL GENERATOR 8648B HEWLETT-PACKARD 3642U0167…

Text truncated - open the document above for the full version.

FCC ID: L2V-STAMP TABLE 5b. CONDUCTED EMISSIONS DATA CLASS B Test Date: March 28, 2007 UST Project: 06-0204 Customer: Axonn LLC Model: STAMP (AVG vs Average Limits) Conducted Emissions Test By: Test: FCC Part 15B Client:Axonn LAF Project: 06-0204 Class: B Model: STAMP Frequency Test Data AF Test Data AF+CA- AMP Results Limits Margin PK = n (MHz) (dBm) Table (dBuV) (dB) (dBuV) (dBuV) (dB) / QP 0.18 -64.8 LISNP 42.2 -0.2 42.0 54.7 12.7 AVE 0.264 -73.2 LISNP 33.8 -0.2 33.6 51.3 17.7 AVE 0.356 -66.5 LISNP 40.5 -0.1 40.4 48.6 8.2 AVE 0.528 -73.4 LISNP 33.6 -0.1 33.5 46.0 12.5 AVE 0.618 -68.7 LISNP 38.3 -0.1 38.2 46.0 7.8 AVE 12.0 -74.0 LISNP 33.0 0.0 33.0 50.0 17.0 AVE 22.75 -73.5 LISNP 33.5 0.0 33.5 50.0 16.5 AVE 0.18 -65.2 LISNN 41.8 -0.2 41.6 54.7 13.1 AVE 0.264 -69.5 LISNN 37.5 -0.2 37.3 51.3 14.0 AVE 0.356 -63.7 LISNN 43.3 -0.1 43.2 48.6 5.4 AVE 0.528 -76.4 LISNN 30.6 -0.1 30.5 46.0 15.5 AVE 0.618 -73.4 LISNN 33.6 -0.1 33.5 46.0 12.5 AVE 12.0 -69.7 LISNN 37.3 0.0 37.3 50.0 12.7 AVE 22.75 -71.5 LISNN 35.5 0.0 35.5 50.0 14.5 AVE . Tester Signature: Name: Louis A. Feudi **NOTE: Conducted Emissions Data is from the STAMP module on the CM1 Board, which is certified under FCC ID: L2V-CM1 FCC ID: L2V-STAMP TABLE 5b. CONDUCTED EMISSIONS DATA Test Date: 3/28/2007 UST Project: 07-0057 Customer: Axonn LLC Model: CM1 Worse Case Mode of Operaton (TX – Low channel) (Peak/QP vs QP Limits) Conducted Emissions Test By: Test:FCC Part 15B Client: Axonn LAF Project: 07-0057 Class: B Model: CM1 Frequency Test Data AF Test Data AF+CA- AMP Results Limits Margin PK = n (MHz) (dBm) Table (dBuV) (dB) (dBuV) (dBuV) (dB) / QP 0.18 -53.6 LISNP 53.4 -0.2 53.2 64.7 11.5 QP 0.264 -63.0 LISNP 44.0 -0.2 43.8 61.3 17.5 QP 0.356 -61.1 LISNP 45.9 -0.1 45.8 58.6 12.8 QP 0.528 -70.1 LISNP 36.9 -0.1 36.8 56.0 19.2 QP 0.618 -66.6 LISNP 40.4 -0.1 40.3 56.0 15.7 QP 12.0 -70.4 LISNP 36.6 0.0 36.6 60.0 23.4 QP 22.75 -69.9 LISNP 37.1 0.0 37.1 60.0 22.9 QP 0.18 -51.0 LISNN 56.0 -0.2 55.8 64.7 8.9 QP 0.264 -61.6 LISNN 45.4 -0.2 45.3 61.3 16.0 QP 0.356 -57.9 LISNN 49.1 -0.1 49.0 58.6 9.6 QP 0.528 -68.9 LISNN 38.1 -0.1 38.0 56.0 18.0 QP 0.618 -68.4 LISNN 38.6 -0.1 38.5 56.0 17.5 QP 12.0 -66.0 LISNN 41.0 0.0 41.0 60.0 19.0 QP 22.75 -69.0 LISNN 38.0 0.0 38.0 60.0 22.0 QP Tester Signature: Name: Louis A. Feudi **NOTE: Conducted Emissions Data is from the STAMP module on the CM1 Board, which is certified under FCC ID: L2V-CM1 FCC ID: L2V-STAMP **NOTE: Conducted Emissions Data is from the STAMP module on the CM1 Board, which is certified under FCC ID: L2V-CM1

UST Project: 06-0204 Customer: Axonn Model: STAMP FIGURE 2a Photograph(s) for Spurious Emissions (Front) UST Project: 06-0204 Customer: Axonn Model: STAMP FIGURE 2b Photograph(s) for Spurious Emissions (Back)
