L2V-STX2-1Satellite Transmitter Module

WIRELESS DATA SOLUTIONS THAT WORK ® Axonn LLC STX2 Notices Appendix D: Regulatory Notices NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a residential environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. WARNING: Changes or modifications not expressly approved by Axonn may render the device non-compliant to FCC and other regulatory body standards for operation and may void the user’s authority to operate the equipment. Accessory items that can be readily obtained from multiple retail outlets are not considered to be special accessories and are not to be marketed with the equipment. Only those accessory items provided by Axonn have been tested to ensure operation consistent with the regulatory standards that the device is required to perform. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. WIRELESS DATA SOLUTIONS THAT WORK ® Axonn LLC STX2 Notices FCC ID: L2V-STX2-1 ICES-003/(A/B) IC:3989A-STX2-1 R&TTE: TBR41 Complies with FCC standards. FOR HOME OR OFFICE USE This device and the technology herein is protected under U.S. Patents numbers 4,977,577; 5,987,058; 6,317,029; 6,396,819. Other patents are pending. This device will operate in accordance to the standards set forth by the CE Mark Directives and standards R&TTE: (TBR41 v1.1.1 May 2000, EN 301 441), RFI: (EN61000-4-3:1996 + A1:1998 + A2:2000), ESD: (EN61000-4-2: 1995 + A1:1998) This ClassA/ClassB digital apparatus complies with Canadian ICES-003. NOTICE: This equipment complies with the FCC RF Exposure Limits. A minimum of 20 centimeters (8 inches) separation between the device and the user and all other persons should be maintained.

Axonn, L.L.C. • 19349 N. 12 th St. Suite B • Covington, LA 70433 • (985) 893-1048 • FAX (985) 893-1858 WIRELESS DATA SOLUTIONS THAT WORK ® October 25, 2005 Mr. Louis A. Feudi U.S. Technologies 3505 Francis Circle Alpharetta, GA 30004 Dear Mr. Feudi: Per our discussion, the following statement will be incorporated in the STX2 users and integration manual. Users of this technology are also required to comply with the satellite service providers integration guidelines which stipulate the correct use of the radio frequency spectrum. RAS Site avoidance Devices containing the STX2 must comply with the requirements for radio astronomy site avoidance as specified by CFR 25.213. Additionally, integrators must comply with the requirements for use as specified by Globalstar integration manual. Globalstar will provide instruction for frequency use in regions of the world as well as compliance to CFR 25.213. The paragraph above will be incorporated into the appropriate documentation immediately. Best regards, Gary Naden VP Business Development and Engineering Axonn, LLC 19349 N. 12 th St. Suite B Covington, LA 70433

FCC ID: L2V2100-0149 Report Number:04-0017 FCC Part 25, Certification Customer: Axonn, L.L.C. Model: STU 4

ATCB Mr. Tim Johnson RE:L2V-STX2-1 Response to Comments 1) Please explain the use of the DoC information in the manual. It appears this device would not be subjected to DoC authorizations. Please adjust if necessary. Axonn has provided this statement in the past. Since it actually provides more detail than the required statement, they will keep this statement for use in the manual. 2) The 3 rd paragraph of the Product description reports some odd frequencies. Please review. Corrected. 3) Part 2.1091 requires routine evaluation (measurements) for RF exposure unless the device meets the exemption requirements specified in this subpart. Therefore, this information (measurements or how you meet the exemption) should also be presented in your RF exposure information. Currently you cite 349 mW EIRP (=213 mW ERP). Corrected. 4)Given 5a and 5b, compliance is very close. Additionally, recent interpretations have cited that the bandwidth must be >= 4 kHz. To fully ensure compliance, this test should either require to be done at 10 kHz, or an alternative method showing compliance at 4 kHz should be provided. It may be best to discuss this in detail. Please give me a call. US tech has repeated the test with a 10kHz RBW. Corrected and uploaded. 5) Please explain the meaning of “the following plots show that all emissions were at least 25.01 dB below the fundamental.” in section 2.9.This appears above the limits, but doesn’t match the plots. This statement has been removed. 6) Section 2.9 shows a limit of 35.9 and 36.1 dBc. However this is not shown correctly on the plots provided. This limit would equate to a -13 dBm level. Please correct. The resolution bandwidth used actually shows a fundamental lower than the actual mean power. The limit line was imposed based upon this amplitude, thereby showing that the conducted spurious emissions meet a more stringent limit than is required. 7) The note on plot 6i appears erroneous. Please review. Corrected. 8) Section 2.10 doesn’t contain enough information to support how the test was done. Additionally, the information in the plot can not be cross referenced to the table. Please add additional information to the table in effort to show compliance. Call to discuss if necessary. Testing was conducted using the substitution method of TIA-603. This datum has been added to the report. Cable loss and antenna gain have been accounted for under “Corrected Substitution level relative to Dipole” based upon the signal generator output. 9) Your calculation program for % of temp. stability appears off. 10 ppm = .001%. Please adjust. Corrected. 10) Please explain compliance to the requirements of 25.213. Given this is a module, it is uncertain how the device can ensure compliance with this. The instruction manual should provide specific OEM instructions regarding this. This type of transmitter can only be operated on a Globalstar Network. Globalstar requires that all products licensed to operate on the Globalstar network must switch to channel C within a 100 mile radius of a Radio Astronomy Site (RAS). In addition, all VAR products licensed must have a GPS locator internal to the product with a list of restricted latitude/longitude values stored in a look-up table. VAR products must contain the logic to look up current location, compare it to the table and switch to channel C upon entering the RAS zone. Globalstar license precludes the operation of channel A and B in an RAS zone. This information is listed in Globalstar operational requirements, a copy of which can be provided under confidentiality to the FCC upon demand, and with the permission of Globalstar. A letter stating that integrators must comply with subsection 25.213 has been uploaded, confirming addition to the installation instructions. 11) Please explain where compliance to 25.216(i) may be found. This information has been added to the report and uploaded. 12) Figure 8b. If the limit is -44 dBm, why is the limit line at -42 dBm? The test was repeated with corrected limit lines. 13) Compliance with the -80 dBw 700 Hz requirements of 25.216(c) do not appear to be provided. The test was conducted and added to the report. The part 2 plot was taken over the original span of 1.559 to 1.605 GHz. Upon review of the data, a spur was noted. US Tech zoomed in on the plot and the spur was proven to be an overload condition of the Spectrum Analyzer. The plot provided is the correct value, and represents the maximum value in the frequency range required. 14) For section 2.12, has cable loss for measurements setup been factored in? Additionally, VBW should generally be > RBW. Corrected and added to the report. 14) Compliance with the -80 dBw 700 Hz requirements of 25.216(g) do not appear to be provided. Corrected and added to the report. Please contact me with any additional questions. Sincerely, Louis A. Feudi Operations and Engineering Manager

CONFIDENTIALITY REQUEST 7/18/05 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: Axonn, LLC respectfully requests confidentiality of certain materials provided with the submission of the STX2 under FCC ID: L2V-STX2-1 in accordance with FCC Regulations 0.459. The confidentiality request applies to the following: Parts List, Operational Descriptions, Schematics and Tune Up Procedures These items are considered as Trade Secrets and therefore public access to the proprietary material could possible result in duplication of equipment that could severely damage the company's business advantage. I appreciate your assistance in this matter. Sincerely, Name: Louis A. Feudi Signature: Title: Operations Manager Date: July 18, 2005

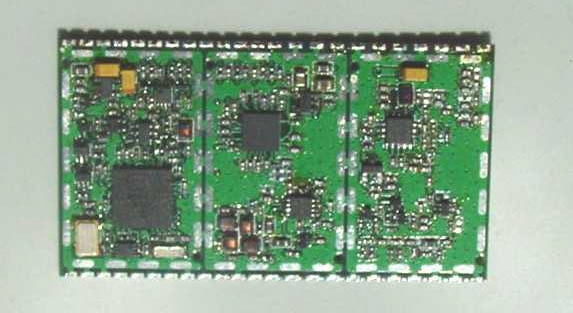

SECTION 3 PHOTOGRAPHS PHOTOS OF THE TESTED EUT The following photos are attached: Photo 1.Transmitter Board Top, Mounted on Test Board Photo 2.Transmitter Board Top, RF Shields On Photo 3.Transmitter Board Bottom Photo 4.Transmitter Board Top, RF Shields Removed Photo 1.Transmitter Board Top, Mounted on Test Board Photo 2.Transmitter Board, RF Shields On Photo 3.Transmitter Board Bottom Photo 4.Transmitter Board Top, RF Shields Removed

SECTION 5 LABELING INFORMATION

SECTION 3 PHOTOGRAPHS PHOTOS OF THE TESTED EUT The following photos are attached: Photo 1.Transmitter Board Top, Mounted on Test Board Photo 2.Transmitter Board Top, RF Shields On Photo 3.Transmitter Board Bottom Photo 4.Transmitter Board Top, RF Shields Removed Photo 1.Transmitter Board Top, Mounted on Test Board Photo 2.Transmitter Board, RF Shields On Photo 3.Transmitter Board Bottom Photo 4.Transmitter Board Top, RF Shields Removed

SECTION 4 RF EXPOSURE INFORMATION 4.1 RF Safety Requirements to 2.1091 for Mobile Transmitters Power Output The EUT’s maximum expected output power as shown in section 2.6 is Frequency of Fundamental (MHz) Measurement (dBm) Measurement (Watt) 1611.8821.430.139 Source Based Time Averaging This information has not been included and the MPE calculations specified below do not take into consideration any duty cycle correction. The module specifies a +4 dBi antenna. Added to the conducted power output, our result is 25.43 dBm. This yields a power output of 0.349 W. ERP = Antilog ((25.43-2.14)/10) =213mW. Since this value is below the 3W required under 2.1091 for greater than 1.5 GHz, routine evaluation is not necessary. MPE Calculations The limits for this unit (uncontrolled exposure) is 1.0 mW/cm 2 . Taking the RF Density Field Equation: S = (EIRP in mW)/(4πR 2 ) S = (349 mW)/ 4*3.14159*20 2 ) S = 349/5026.6 S = 0.07 mW/cm 2 This value is well below the maximum limit of 1.0 mW/cm 2 .

FCC Part 25, Certification Application of the Axonn, Corporation LLC Modular Satellite Transmitter Unit STX2 Issue Date: July 12, 2005 UST Project No: 05-0141 I certify that I am authorized to sign for the manufacturer and that all of the statements in this report and in the Exhibits attached hereto are true and correct to the best of my knowledge and belief: UNITED STATES TECHNOLOGIES, INC. (AGENT RESPONSIBLE FOR TEST): By: Name: Louis A Feudi Title: Operations Manager Date: July 12, 2005 Axonn Corporation LLC 2021 Lakeshore Drive, Suite 533 New Orleans, LA 70122 By: Name: Title: Date: This report shall not be reproduced except in full. This report may be copied in part only with the prior written approval of U.S. Technologies. The results contained in this report are subject to the adequacy and representative character of the sample provided. FCC ID: L2V-STX2-1 U.S. Technologies, Inc.FCC Part 25 Certification Report Number:05-0141Issue Date: July 12, 2005 Customer: Axonn Corporation Model: GENSTXII MEASUREMENT/TECHNICAL REPORT This report concerns (check one): Original grant X Class II change_____ Equipment type: Modular Transmitter Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? yes_____ No X If yes, defer until:_________________ date N.A. agrees to notify the Commission by N.A. date of the intended date of announcement of the product so that the grant can be issued on that date. Report prepared by: United States Technologies, Inc. 3505 Francis Circle Alpharetta, GA 30004 Phone Number: (770) 740-0717 Fax Number: (770) 740-1508 FCC ID: L2V-STX2-1 U.S. Technologies, Inc.FCC Part 25 Certification Report Number:05-0141Issue Date: July 12, 2005 Customer: Axonn Corporation Model: GENSTXII TABLE OF CONTENTS AGENCY AGREEMENT LETTER OF CONFIDENTIALITY SECTION 1 GENERAL INFORMATION 1.1Product Description 1.2Related Submittal(s) SECTION 2 TESTS AND MEASUREMENTS 2.1Configuration of Tested EUT 2.2Test Facility 2.3Test Equipment 2.4Modifications 2.5Antenna Description 2.6RF Power Output 2.7Modulation Characteristics 2.8Occupied Bandwidth 2.9Spurious Emissions at Antenna Terminals 2.10Field Strength of Spurious Radiation 2.11 Frequency Stability 2.12 Emissions from Mobile Earth Stations for Protection of Aeronautical Radionavigation- Satellite Service SECTION 3 PHOTOGRAPHS SECTION 4 RF EXPOSURE INFORMATION SECTION 5 LABELING INFORMATION SECTION 6 BLOCK DIAGRAMS/SCHEMATICS SECTION 7 USER’S MANUAL FCC ID: L2V-STX2-1 U.S. Technologies, Inc.FCC Part 25 Certification Report Number:05-0141Issue Date: July 12, 2005 Customer: Axonn Corporation Model: GENSTXII LIST OF FIGURES AND TABLES FIGURES 1)Test Configuration 2) Photograph(s) for Spurious Emissions 3) RF Power Output 4) Modulation Characteristics 5) Occupied Bandwidth 6) Spurious Emissions at Antenna Terminals 7) Field Strength of Spurious Emission 8) Emissions from Mobile Earth Stations for Protection of Aeronautical Radionavigation-Satellite Service TABLES 1)EUT and Peripherals 2) Test Instruments 3) RF Power Output 4) Field Strength of Spurious Emissions 5) Frequency Stability FCC ID: L2V-STX2-1 U.S. Technologies, Inc.FCC Part 25 Certification Report Number:05-0141Issue Date: July 12, 2005 Customer: Axonn Corporation Model: GENSTXII SECTION 1 GENERAL INFORMATION FCC ID: L2V-STX2-1 U.S. Technologies, Inc.FCC Part 25 Certification Report Number:05-0141Issue Date: July 12, 2005 Customer: Axonn Corporation Model: GENSTXII GENERAL INFORMATION 1.1Product Description The Equipment Under Test (EUT) is the Axonn Corporation, L.L.C. Model STX2. The STX2 is a battery operated, modular telemetry device designed to communicate with the Globalstar satellite constellation and provide cost-efficient and reliable asset tracking and fleet management. The STX2 can be installed in a compact rugged enclosure designed to attach easily, with either screws or auto-body grade adhesive, to the top of a cargo container, railcar or trailer. The Unit operates at the following 4 transmit frequencies: 1611.25, 1613.75, 1616.26 and 1618.25 MHz. Once service is established with Globalstar, STX2 sends information to Globalstar satellites which relay the information to ground stations. The processed information is then available to the user via the internet. The device is delivered complete and ready-to-go with no need for an external antenna or power source. The EUT was configured to operate at 1611.25 and 1618.25 MHz, 255 Symbols, BPSK Demod on continuous transmit mode. For the purpose of this test the EUT was placed into a (+20 dBm) constant TX mode of operation. FCC ID: L2V-STX2-1 U.S. Technologies, Inc.FCC Part 25 Certification Report Number:05-0141Issue Date: July 12, 2005 Customer: Axonn Corporation Model: GENSTXII 1.2Related Submittal(s)/Grant(s) The EUT is subject to the following authorizations: a)Certification as a modular transmitter as specified by Part 25. The information contained in this report is presented for the Part 25 Certification authorization(s) for the EUT. FCC ID: L2V-STX2-1 U.S. Technologies, Inc.FCC Part 25 Certification Report Number:05-0141Issue Date: July 12, 2005 Customer: Axonn Corporation Model: GENSTXII SECTION 2 TEST AND MEASUREMENTS FCC ID: L2V-STX2-1 U.S. Technologies, Inc.FCC Part 25 Certification Report Number:05-0141Issue Date: July 12, 2005 Customer: Axonn Corporation Model: GENSTXII TEST AND MEASUREMENTS 2.1 Configuration of Tested System Prepared in accordance with the requirements of the FCC Rules and Regulations Part 2 & 25. All measurements are peak unless stated otherwise. The video filter associated with the spectrum analyzer was off throughout the evaluation process. Interconnecting cables were manipulated as necessary to maximize emissions. A block diagram of the tested system is shown in Figure 1. Test configuration photographs for spurious emissions are shown in Figure 2. 2.2 Test Facility Testing was performed at US Tech's measurement facility at 3505 Francis Circle, Alpharetta, GA. This site has been fully described and regi…

Text truncated - open the document above for the full version.

FCC ID: L2V-STX2-1 U.S. Technologies, Inc.FCC Part 25 Certification Report Number:05-0141Issue Date: July 12, 2005 Customer: Axonn Corporation Model: GENSTXII 2.12 Emissions from Mobile Earth Stations for Protection of Aeronautical Radionavigation-Satellite Service. (FCC Section 25.216) 25.216c(1) Emissions from the EUT were evaluated from 1559 MHz – 1605 MHz and did not exceed the limit at -70dBW/MHz, averaged over 20 milliseconds. 25.216c(2) Emissions from the EUT were evaluated from 1559 MHz – 1605 MHz and did not exceed the limit at -80dBW/MHz, averaged over 20 milliseconds. 25.216g(1) Emissions from the EUT were evaluated from 1605 MHz – 1610 MHz and did not exceed the limits ranging from –70 dBW/MHz at 1605 MHz to –10dBW/MHz at 1610 MHz, averaged over 2 milliseconds. 25.216g(2) Emissions from the EUT were evaluated from 1605 MHz – 1610 MHz and did not exceed the limits ranging from -80 dBW/MHz at 1605 MHz to –20dBW/MHz at 1610 MHz, averaged over 2 milliseconds. 25.216(i ) Emissions from the EUT were evaluated from 1559 MHz – 1605 MHz and did not exceed –80 dBW/MHz over any 2 millisecond active transmission interval. (carrier off) Emissions were measured with a spectrum analyzer by connecting the spectrum analyzer directly via a short cable to the antenna output terminal with the Resolution Bandwidth set to 1 MHz. Results are shown on Figures 8a -8c. FCC ID: L2V-STX2-1 U.S. Technologies, Inc.FCC Part 25 Certification Report Number:05-0141Issue Date: July 12, 2005 Customer: Axonn Corporation Model: GENSTXII Figure 8a. Emissions from Mobile Earth Stations for Protection of Aeronautical Radionavigation-Satellite Service (25.216(c)(1)) Limit = - 70 dBW/MHz + 4 dBi (-44 dBm) Measured Value = -45.56 + 0.25 = -45.31 FCC ID: L2V-STX2-1 U.S. Technologies, Inc.FCC Part 25 Certification Report Number:05-0141Issue Date: July 12, 2005 Customer: Axonn Corporation Model: GENSTXII Figure 8b. Emissions from Mobile Earth Stations for Protection of Aeronautical Radionavigation-Satellite Service( 25.216(c)(2)) Limit = -80 dBW + 4 dBi = -54dBm Measured Value is –66.47 + 0.25 (cable loss) = -66.22 FCC ID: L2V-STX2-1 U.S. Technologies, Inc.FCC Part 25 Certification Report Number:05-0141Issue Date: July 12, 2005 Customer: Axonn Corporation Model: GENSTXII Figure 8c. Emissions from Mobile Earth Stations for Protection of Aeronautical Radionavigation-Satellite Service( 25.216(g)(1)) Limit = -70 dBW/MHz at 1605 MHz to –10 dBW/MHz at 1610 (-44 dBm to 16 dBm) Measured Value is –48.03 + 0.25 (cable loss) = -47.78 FCC ID: L2V-STX2-1 U.S. Technologies, Inc.FCC Part 25 Certification Report Number:05-0141Issue Date: July 12, 2005 Customer: Axonn Corporation Model: GENSTXII Figure 8d. Emissions from Mobile Earth Stations for Protection of Aeronautical Radionavigation-Satellite Service( 25.216(g)(2)) Limit = -80 dBW/MHz at 1605 MHz to –20 dBW/MHz at 1610 (-54 dBm to 6 dBm) Measured Value is –65.79 + 0.25 (cable loss) = -65.54 dBm FCC ID: L2V-STX2-1 U.S. Technologies, Inc.FCC Part 25 Certification Report Number:05-0141Issue Date: July 12, 2005 Customer: Axonn Corporation Model: GENSTXII Figure 8e. Emissions from Mobile Earth Stations for Protection of Aeronautical Radionavigation-Satellite Service( 25.216(i) (carrier off) Limit = -80 dBW/MHz + 4 dBi (-54 dBm) Measured Value is –71.01 + 0.25 (cable loss) = -70.76 dBm

FCC ID: U.S. Technologies, Inc.FCC Part 25 Certification Report Number:05-0141Issue Date: June 16, 2005 Customer: Axonn Corporation Model: GEN STX FIGURE 2a Photograph(s) for Spurious Emissions FCC ID: U.S. Technologies, Inc.FCC Part 25 Certification Report Number:05-0141Issue Date: June 16, 2005 Customer: Axonn Corporation Model: GEN STX FIGURE 2b Photograph(s) for Spurious Emissions (Cont.)
