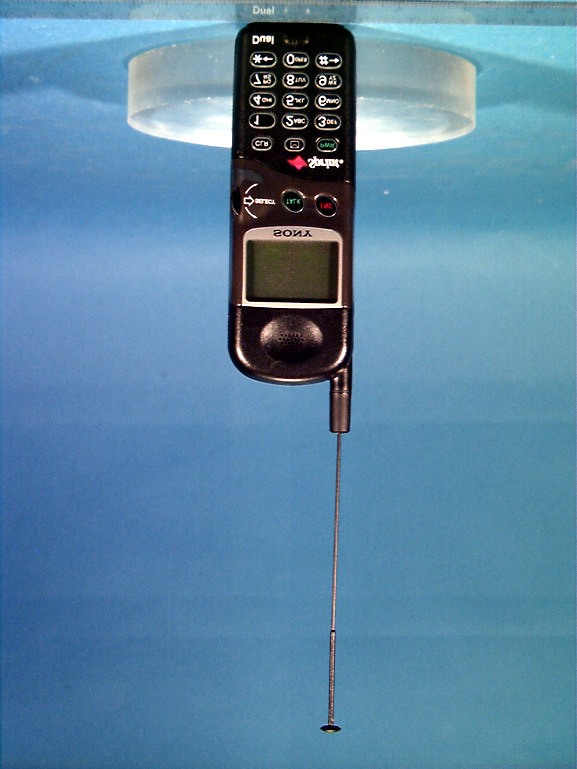

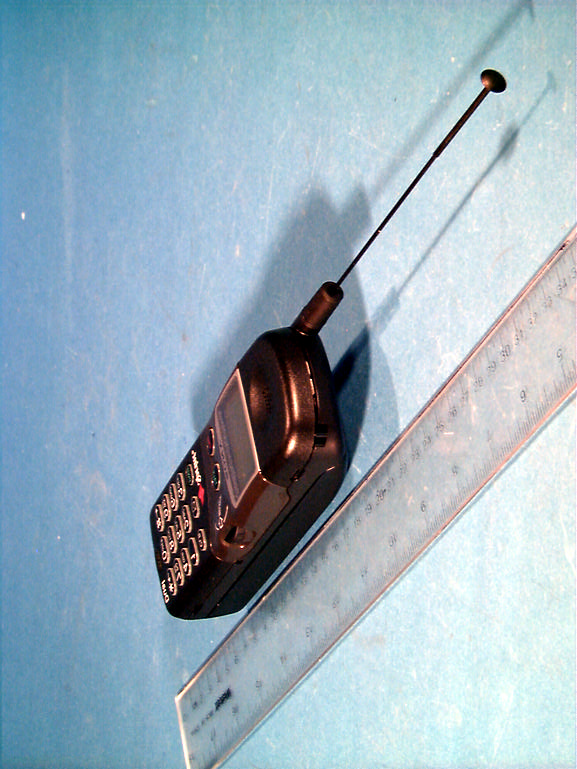

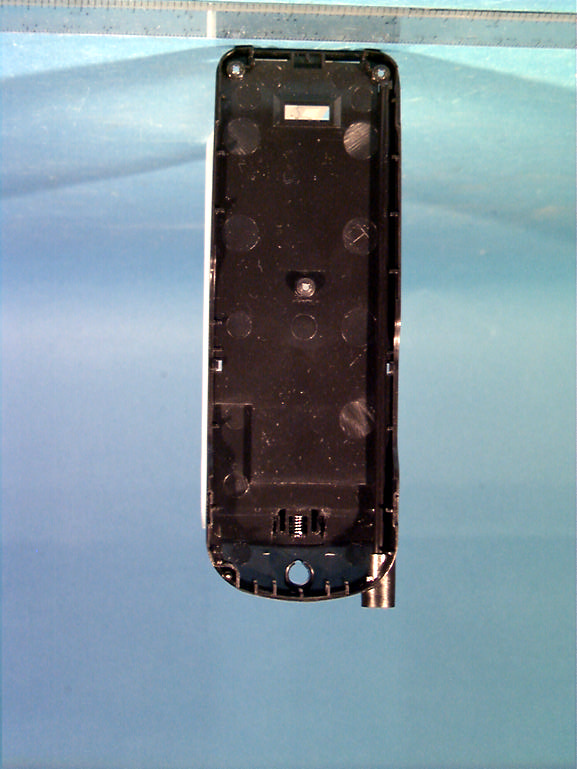

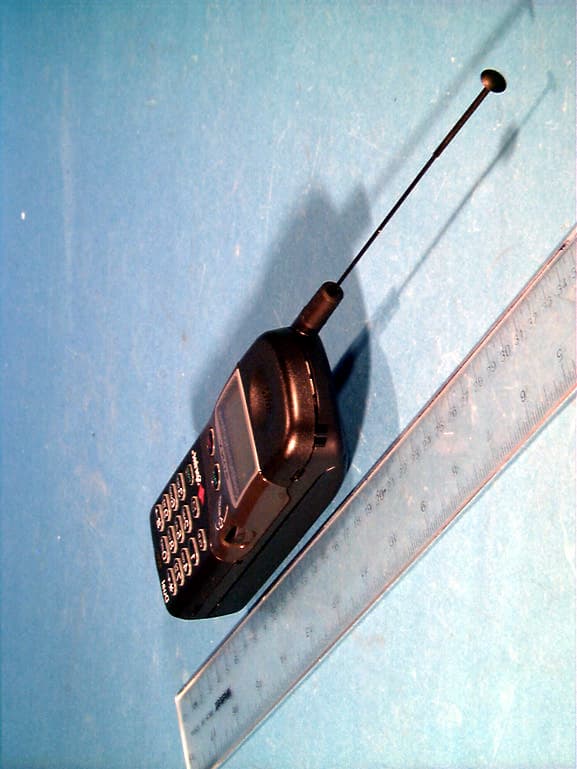

L5ACMSB2Single-Band PCS CDMA Phone

Frequency range Dimensions Mass (weight) RF power output Operational temperature Supplied Accessories -4 Optional Accessories Transmit: 1851.25 to 1908.75 MHz Receive: 1931.25 to 1988.75 MHz 5.7 x 2.0 x 1.5 inches (h/w/d) (not including antenna) (146 x 50 x 37 mm) Approx. 7.2 oz (203 g) (including battery) 0.01 uW to 420 mW -22OF to +14O”F (-30°c to +6O”C) (exduding battery pack) QN-OO3BPLH Hi-Cap Li-Ion Battery Pack (1) QN-OOIAC AC Adapter (1) Hand strap (1) QN-OO2BCD Dual Slot Battery Charger QN-OO3BPLH Hi-Cap Li-Ion Battery Pack QN-OO4BPLS Slim L&Ion Battery Pack QN-OOSBPNM Ni-MH Battery Pack QN-OO6BPNC Ni-Cd Battery Pack QN-OO7HFK Hands-Free Car Kit QN-OO8CLA Rapid Charging Cigarette Lighter Adapter QN-OO9TA Travel Adapter QN-OlOLC Canying Case QN-OllPH Hands-Free Privacy Phone QN-Ol2DA Data Cable QN-OUHC Auto Holding Cradle QN-Ol6SKT Starter Kit (Carrying Case, Single Slot Charging Stand, Rapid Charging Cigarette Lighter Adapter) Design and specifications are subject to change without notice. 77 n @ 7fzsln7.322 PM

Sony Electronics Inc., Personal & Mobile Communications of America 16450 West Bernardo Drive, San Diego, California 92127-1804 Telephone (619) 487-8500 Federal Communications CommissionOctober 23, 1998 Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In Re:Sony Electronics, Inc. FCC ID: L5ACMSB2 Single-Band PCS CDMA Phone Request for Confidentiality Gentlemen: In accordance with 0.459 of CFR 47, SONY ELECTRONICS, Inc. requests confidentiality of the Block Diagram, Schematics, and Parts List for the attached test report. These documents contain detailed system and equipment description and related information about the product which SONY ELECTRONICS, Inc. considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, SONY ELECTRONICS, Inc. feels that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. Sincerely, Glen A. Seebruch Regulatory Engineer Sony PMC America

October 23, 1998 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT:SONY Electronics Inc. FCC ID: L5ACMSB2 Part 24 Certification Gentlemen: Attached herewith, on behalf of SONY Electronics Inc., is an application for Part 24 Certification of the following Single-Band PCS CDMA Phone: FCC ID:L5ACMSB2 TRADE / MODEL(s):SONY CM-S1100, CM-S2100, CM-S3100 EUT TYPE:Single-Band PCS CDMA Phone Tx Freq. Range:1851.25 – 1908.75 MHz Max. Output Power:0.42 Watts (EIRP) Attached is the applicant’s Letter of Authorization, Confidentiality Request, measurement report data and plots, RF Exposure measurement report, FCC ID label and location, test setup photographs, internal and external photographs, block diagrams (confidential), schematic diagrams (confidential), operational description, parts list (Confidential) & tune-up procedure, and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc:Mr. Glen Seebruch, Regulatory Engineer SONY Personal & Mobile Communications of America

Test Report S/N: 24.980914641.L5AFCC Part 24 Test Date(s): October 12-16, 1998Certification © 1998 PCTEST LabFCC ID: L5ACMSB2 NVLAP Lab Code: 100431-0 SONY Electronics, Inc. Test Report S/N: 24.980914641.L5AFCC Part 24 Test Date(s): October 12-16, 1998Certification © 1998 PCTEST LabFCC ID: L5ACMSB2 NVLAP Lab Code: 100431-0 SONY Electronics, Inc. Test Report S/N: 24.980914641.L5AFCC Part 24 Test Date(s): October 12-16, 1998Certification © 1998 PCTEST LabFCC ID: L5ACMSB2 NVLAP Lab Code: 100431-0 SONY Electronics, Inc. Test Report S/N: 24.980914641.L5AFCC Part 24 Test Date(s): October 12-16, 1998Certification © 1998 PCTEST LabFCC ID: L5ACMSB2 NVLAP Lab Code: 100431-0 SONY Electronics, Inc. Test Report S/N: 24.980914641.L5AFCC Part 24 Test Date(s): October 12-16, 1998Certification © 1998 PCTEST LabFCC ID: L5ACMSB2 NVLAP Lab Code: 100431-0 SONY Electronics, Inc. Test Report S/N: 24.980914641.L5AFCC Part 24 Test Date(s): October 12-16, 1998Certification © 1998 PCTEST LabFCC ID: L5ACMSB2 NVLAP Lab Code: 100431-0 SONY Electronics, Inc. Test Report S/N: 24.980914641.L5AFCC Part 24 Test Date(s): October 12-16, 1998Certification © 1998 PCTEST LabFCC ID: L5ACMSB2 NVLAP Lab Code: 100431-0 SONY Electronics, Inc.

© 1998 PCTEST Lab FCC ID SAMPLE LABEL LOCATION LABELLING REQUIREMENTS PER §§ 2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. Fig 12. Sample label (SEE NEXT PAGE)

Test Report S/N: 24.980914641.L5AFCC Part 24 Test Date(s): October 12-16, 1998Certification © 1998 PCTEST LabFCC ID: L5ACMSB2 NVLAP Lab Code: 100431-0 SONY Electronics, Inc. Test Report S/N: 24.980914641.L5AFCC Part 24 Test Date(s): October 12-16, 1998Certification © 1998 PCTEST LabFCC ID: L5ACMSB2 NVLAP Lab Code: 100431-0 SONY Electronics, Inc. Test Report S/N: 24.980914641.L5AFCC Part 24 Test Date(s): October 12-16, 1998Certification © 1998 PCTEST LabFCC ID: L5ACMSB2 NVLAP Lab Code: 100431-0 SONY Electronics, Inc.

© 1998 PCTEST Engineering Lab., Inc. PCTEST Engineering Laboratory, Inc. 6660-B 6660-B DobbinDobbin Road Road •• Columbia, MD 21045 Columbia, MD 21045 •• U.S.A. U.S.A. TEL (410) 290-6652 TEL (410) 290-6652 •• FAX (410) 290-6654 FAX (410) 290-6654 http://www.pctestlab.comhttp://www.pctestlab.com CERTIFICATE OF COMPLIANCE (SAR EVALUATION) SONY ELECTRONICS INC.Dates of Tests: October 12-16, 1998 Personal & Mobile Communications of AmericaTest Report S/N: SAR.980914642.L5A 16450 West Bernardo DriveTest Site: PCTEST Lab, Columbia MD Attention: Mr. Glen Seebruch, Regulatory Engineer FCC ID L5ACMSB2 APPLICANT SONY ELECTRONICS INC. EUT Type:Single-Band PCS CDMA Phone Tx Frequency:1851.25 – 1908.75 MHz Rx Frequency:1931.25 – 1988.75 MHz Max Output Power:0.32 W (Conducted) Trade Name:SONY Model(s):CM-S1100, CM-S2100, CM-S3100 FCC Classification:Licensed Portable Transmitter Held to Ear (PCE) Application Type:Certification Serial Number:n/a (pre production) FCC Rule Part(s):2.1093; ET Docket 96.326; 24(E) This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in ANSI/IEEE Std. C95.3-1992. (See Test Report). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. NVLAP accreditation does not constitute any product endorsement by NVLAP or any agency of the United States Government. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a) 980914642.L5A SAR Measurement ReportFCC Part 24 Certification © 1998 PCTEST Labi Table of Contents SCOPE .............................................................................1 INTRODUCTION / SAR DEFINITION ......................................2 SAR MEASUREMENT SET-UP .............................................3 E-FIELD PROBE SYSTEM ...................................................4 PHANTOM & BRAIN EQUIVALENT MATERIAL ......................7 SYSTEM SPECIFICATIONS ................................................. 8 MEASUREMENT PROCESS ................................................9 TEST POSITION OF THE PHONE .........................................10 ANSI/IEEE C95.1 RF EXPOSURE LIMITS ..............................11 MEASUREMENT UNCERTAINTIES ......................................12 TEST DATA SUMMARY ...................................................... 13 SAR TEST EQUIPMENT LIST .............................................. 14 CONCLUSION / REFERENCES ...........................................15 Test Report S/N: SAR.980914642.L5ASAR Measurement Report Test Dates: October 12-16, 1998FCC Part 24 Certification FCC ID: L5ACMSB2 (Tx 1851.25 – 1908.75 MHz) © 1998 PCTEST LabSONY Single-Band PCS CDMA Phone1 SAR MEASUREMENT REPORT Scope - Environmental evaluation measurements of specific absorption rate 1 (SAR) distributions in simulated human head tissues exposed to radiofrequency (RF) radiation from wireless portable devices for compliance with the rules and regulations of the U.S. Federal Communications Commission (FCC). 2 Company Name:SONY ELECTRONICS INC. ADDRESS :16450 West Bernardo Drive San Diego, CA 92127-1804 Attention :Glen Seebruch, Regulatory Engineer • EUT Type:Single-Band PCS CDMA Phone • FCC IDENTIFIER:L5ACMSB2 • Trade Name:SONY • Model:CM-S1100, CM-S2100, CM-S3100 • S/N:Pre-production • Tx Frequency Range:1851.25 – 1908.75 MHz • Rx Frequency Range:1931.25 – 1988.75 MHz • Application Type: Certification • FCC Classification:Licensed Portable Transmitter Held to Ear (PCE) • FCC Rule Part(s):§ 24(E); § 2.1093, Docket 96-326 • Max. Output Power:0.32 W (Conducted) • Modulation :CDMA • Antenna:Helical (λ/2) • Antenna Dimensions:14.6 cm. (Length) • Dates of Test(s):October 12-16, 1998 • Place of Test(s):PCTEST Engineering Lab. Columbia, MD, U.S.A. • Report Serial No.:SAR.980914642.L5A 1 Specific Absorption Rate (SAR) is a measure of the rate of energy absorption due to exposure to an RF transmitting source (wireless portable device). 2 IEEE/ANSI Std. C95.1-1992 limits are used to determine compliance with FCC ET-Docket 93-62. Lab Code 100431-0 Figure 1. SAR Test Set-up Test Report S/N: SAR.980914642.L5ASAR Measurement Report Test Dates: October 12-16, 1998FCC Part 24 Certification FCC ID: L5ACMSB2 (Tx 1851.25 – 1908.75 MHz) © 1998 PCTEST LabSONY Single-Band PCS CDMA Phone2 1.1 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radiofrequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. (c) 1992 by the Institute of Electrical and Electronics Engineers, Inc., New York, New York 10017.[2] The measurement procedure described in IEEE/ANSI C95.3-1992 Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields - RF and Microwave[3] is used for guidance in measuring SAR due to the RF radiation exposure from the Equipment Under Test (EUT). These criteria for SAR evaluation are similar to those recommended by the National Council on Radiation Protection and Measurements (NCRP) in Biological Effects and Exposure Criteria for Radiofrequency Electr…

Text truncated - open the document above for the full version.

File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/98101603_ZOOM.VLT Start : 16-Oct-98 04:47:09 pm End : 16-Oct-98 04:58:18 pm Radio Type : Sony Model Number : L5ACMSB2 Serial Number : 2123 Frequency : 1851.25 MHz Peak Trans. Pwr : 0.320 W Start Trans. Pwr: 0.320 W Antenna Type : Helical Antenna Posn. : In Phantom Type : Head Phantom Posn. : Left Ear Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 42.900 Mixture Conductivity = 1.650 Comment : CHAN 0025 MODE SONY SINGLE BAND PHONE PCTEST ENGINEERING LABORATORY Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 1.200 PCTEST Amplifier Channel Settings : 0.250 0.233 0.225 Diode Coefficients: Channel 1 An=-52.065 Bn=113.200 Cn=39.840 Dn=0.001 Mn=0.024 Yn=0.000 Channel 2 An=0.000 Bn=0.000 Cn=0.000 Dn=0.000 Mn=0.000 Yn=0.000 Channel 3 An=0.000 Bn=0.000 Cn=0.000 Dn=0.000 Mn=0.000 Yn=0.000 Max Location : X = 1.250, Y = -0.250, Z = 0.000 (cm) Value = 11.438 Measured Values (volts) = 1.082E-002 7.288E-003 2.924E-003 7.182E-004 2.400E-005 2.400E-005 2.400E-005 2.400E-005 2.400E-005 2.400E-005 2.400E-005 Calc. Voltage @ Surface (Vs) = 0.0128 Voltage @ 1.00 cm (Vt) = 0.0082 Ave. Voltage (Vs+Vt)/2 = 0.0105 Ave. SAR over 1 g (mW/g) = 1.1678 -0.2 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 mW/g 012345678910 Z centimeters SAR Scan File : 98101603_ZOOM Start : 16-Oct-98 04:47:09 pm End : 16-Oct-98 04:58:18 pm Sony/L5ACMSB2/2123;1851.25MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/42.900/1.650 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/98101604_ZOOM.VLT Start : 16-Oct-98 05:06:26 pm End : 16-Oct-98 05:12:58 pm Radio Type : Sony Model Number : L5ACMSB2 Serial Number : 2123 Frequency : 1851.25 MHz Peak Trans. Pwr : 0.320 W Start Trans. Pwr: 0.320 W Antenna Type : Helical Antenna Posn. : Out Phantom Type : Head Phantom Posn. : Left Ear Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 42.900 Mixture Conductivity = 1.650 Comment : CHAN 0025 MODE SONY SINGLE BAND PHONE PCTEST ENGINEERING LABORATORY Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 1.200 PCTEST Amplifier Channel Settings : 0.250 0.233 0.225 Diode Coefficients: Channel 1 An=-52.065 Bn=113.200 Cn=39.840 Dn=0.001 Mn=0.024 Yn=0.000 Channel 2 An=0.000 Bn=0.000 Cn=0.000 Dn=0.000 Mn=0.000 Yn=0.000 Channel 3 An=0.000 Bn=0.000 Cn=0.000 Dn=0.000 Mn=0.000 Yn=0.000 Max Location : X = 1.250, Y = -0.250, Z = 0.000 (cm) Value = 5.253 Measured Values (volts) = 6.374E-003 4.304E-003 1.440E-003 2.400E-005 2.400E-005 2.400E-005 2.400E-005 2.400E-005 2.400E-005 2.400E-005 2.400E-005 Calc. Voltage @ Surface (Vs) = 0.0078 Voltage @ 1.00 cm (Vt) = 0.0048 Ave. Voltage (Vs+Vt)/2 = 0.0063 Ave. SAR over 1 g (mW/g) = 0.7008 -0.1 0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 mW/g 012345678910 Z centimeters SAR Scan File : 98101604_ZOOM Start : 16-Oct-98 05:06:26 pm End : 16-Oct-98 05:12:58 pm Sony/L5ACMSB2/2123;1851.25MHz;W;Helical/Out; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/42.900/1.650 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/98101703_ZOOM.VLT Start : 17-Oct-98 11:38:10 am End : 17-Oct-98 11:49:05 am Radio Type : Sony Model Number : L5ACMSB2 Serial Number : 2123 Frequency : 1880 MHz Peak Trans. Pwr : 0.320 W Start Trans. Pwr: 0.320 W Antenna Type : Helical Antenna Posn. : In Phantom Type : Head Phantom Posn. : Left Ear Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 42.900 Mixture Conductivity = 1.650 Comment : CHAN 0600 MODE SONY SINGLE BAND PHONE PCTEST ENGINEERING LABORATORY Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 1.200 PCTEST Amplifier Channel Settings : 0.250 0.233 0.225 Diode Coefficients: Channel 1 An=-52.065 Bn=113.200 Cn=39.840 Dn=0.001 Mn=0.024 Yn=0.000 Channel 2 An=0.000 Bn=0.000 Cn=0.000 Dn=0.000 Mn=0.000 Yn=0.000 Channel 3 An=0.000 Bn=0.000 Cn=0.000 Dn=0.000 Mn=0.000 Yn=0.000 Max Location : X = 2.250, Y = -0.500, Z = 0.000 (cm) Value = 11.900 Measured Values (volts) = 1.141E-002 8.128E-003 3.506E-003 1.633E-003 1.263E-003 3.378E-004 3.079E-004 2.400E-005 6.710E-004 2.400E-005 2.400E-005 Calc. Voltage @ Surface (Vs) = 0.0133 Voltage @ 1.00 cm (Vt) = 0.0089 Ave. Voltage (Vs+Vt)/2 = 0.0111 Ave. SAR over 1 g (mW/g) = 1.2375 -0.2 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 mW/g 012345678910 Z centimeters SAR Scan File : 98101703_ZOOM Start : 17-Oct-98 11:38:10 am End : 17-Oct-98 11:49:05 am Sony/L5ACMSB2/2123;1880MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/42.900/1.650 File : 98101703_ZOOM Start : 17-Oct-98 11:38:10 am End : 17-Oct-98 11:49:05 am Sony/L5ACMSB2/2123;1880MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/42.900/1.650 1.322 1.245 1.168 1.091 1.014 0.937 0.860 0.783 0.706 0.629 File : 98101703_ZOOM Start : 17-Oct-98 11:38:10 am End : 17-Oct-98 11:49:05 am Sony/L5ACMSB2/2123;1880MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/42.900/1.650 1.322 1.245 1.168 1.091 1.014 0.937 0.860 0.783 0.706 0.629 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/98101606_ZOOM.VLT Start : 16-Oct-98 05:37:06 pm End : 16-Oct-98 05:43:59 pm Radio Type : Sony Model Number : L5ACMSB2 Serial Number : 2123 Frequency : 1880 MHz Peak Trans. Pwr : 0.320 W Start Trans. Pwr: 0.320 W Antenna Type : Helical Antenna Posn. : Out Phantom Type : Head Phantom Posn. : Left Ear Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 42.900 Mixture Conductivity = 1.650 Comment : CHAN 0600 MODE SONY SINGLE BAND PHONE PCTEST ENGINEERING LABORATORY Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 1.200 PCTEST Amplifier Channel Settings : 0.250 0.233 0.225 Diode Coefficients: Channel 1 An=-52.065 Bn=11…

Text truncated - open the document above for the full version.

Test Report S/N: SAR.980914626.L5ASAR Measurement Report Test Date(s): September 14-18, 1998FCC Part 24 Certification © 1998 PCTEST LabFCC ID: L5ACMZ100SB2 NVLAP Lab Code: 100431-0 SONY Electronics, Inc. Test Report S/N: SAR.980914626.L5ASAR Measurement Report Test Date(s): September 14-18, 1998FCC Part 24 Certification © 1998 PCTEST LabFCC ID: L5ACMZ100SB2 NVLAP Lab Code: 100431-0 SONY Electronics, Inc. Test Report S/N: SAR.980914626.L5ASAR Measurement Report Test Date(s): September 14-18, 1998FCC Part 24 Certification © 1998 PCTEST LabFCC ID: L5ACMZ100SB2 NVLAP Lab Code: 100431-0 SONY Electronics, Inc. Test Report S/N: SAR.980914626.L5ASAR Measurement Report Test Date(s): September 14-18, 1998FCC Part 24 Certification © 1998 PCTEST LabFCC ID: L5ACMZ100SB2 NVLAP Lab Code: 100431-0 SONY Electronics, Inc. Test Report S/N: SAR.980914626.L5ASAR Measurement Report Test Date(s): September 14-18, 1998FCC Part 24 Certification © 1998 PCTEST LabFCC ID: L5ACMZ100SB2 NVLAP Lab Code: 100431-0 SONY Electronics, Inc.

Test Report S/N: SAR.980914642.L5ASAR Measurement Report Test Dates: October 12-16, 1998FCC Part 24 Certification Amendment FCC ID: L5ACMSB2 (Tx 1851.25 – 1908.75 MHz) © 1998 PCTEST LabSONY Single-Band PCS CDMA Phone13 11.1 TEST DATA SUMMARY Ambient TEMPERATURE (°C) 23.5 Relative HUMIDITY (%) 55.0 Atmospheric PRESSURE (kPa) 95.0 Mixture Type: Brain Dielectric Constant: 42.9 Conductivity: 1.65 S/m Closest Distance (between E-Probe & Phone Antenna): 1.6 cm Measurement Results FREQUENCYModulationPOWEREARAntennaSAR MHzCh.(W)PositionPosition (W/kg) 1880.00600CDMA0.32LeftIN1.2388 1880.00600CDMA0.32LeftOUT0.6588 ANSI / IEEE C95.1 1992 - SAFETY LIMIT Spatial Peak (Brain) Uncontrolled Exposure/General Population 1.6 W/kg (mW/g) NOTES: 1. The test data reported are the worst-case SAR value with the antenna-head position set in a typical configuration. All modes of operation were investigated and the worst-case are reported. 2. Battery condition is fully charged for all readings. 3. Power measured:x Conducted o EIRP o ERP PCTEST SEAL

File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/98121003_ZOOM.VLT Start : 10-Dec-98 09:41:11 am End : 10-Dec-98 09:49:44 am Radio Type : SONY Model Number : L5ACMSB2 Serial Number : 2123 Frequency : 1880 MHz Peak Trans. Pwr : 0.320 W Start Trans. Pwr: 0.320 W Antenna Type : Helical Antenna Posn. : In Phantom Type : Head Phantom Posn. : Left Ear Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 42.900 Mixture Conductivity = 1.650 Comment : SONY PCS PHONE CHAN 600 CDMA MODE PCTEST Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 1.200 PCTEST Amplifier Channel Settings : 0.250 0.233 0.225 Max Location : X = 2.250, Y = 0.500, Z = 0.000 (cm) Value = 13.749 Measured Values (volts) = 1.275E-002 1.002E-002 7.485E-003 5.659E-003 4.302E-003 3.273E-003 2.581E-003 1.948E-003 1.535E-003 1.260E-003 1.017E-003 7.730E-004 6.255E-004 5.290E-004 4.287E-004 4.331E-004 4.234E-004 3.426E-004 2.704E-004 2.380E-004 2.181E-004 Calc. Voltage @ Surface (Vs) = 0.0166 Voltage @ 1.00 cm (Vt) = 0.0057 Ave. Voltage (Vs+Vt)/2 = 0.0111 Ave. SAR over 1 g (mW/g) = 1.2388 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0 mW/g -1012345 Z centimeters SAR Scan File : 98121003_ZOOM Start : 10-Dec-98 09:41:11 am End : 10-Dec-98 09:49:44 am SONY/L5ACMSB2/2123;1880MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/42.900/1.650 File : 98121003_ZOOM Start : 10-Dec-98 09:41:11 am End : 10-Dec-98 09:49:44 am SONY/L5ACMSB2/2123;1880MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/42.900/1.650 1.528 1.454 1.379 1.305 1.231 1.157 1.083 1.009 0.935 0.861 File : 98121003_ZOOM Start : 10-Dec-98 09:41:11 am End : 10-Dec-98 09:49:44 am SONY/L5ACMSB2/2123;1880MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/42.900/1.650 1.528 1.454 1.379 1.305 1.231 1.157 1.083 1.009 0.935 0.861 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/98121004_ZOOM.VLT Start : 10-Dec-98 09:51:07 am End : 10-Dec-98 10:00:49 am Radio Type : SONY Model Number : L5ACMSB2 Serial Number : 2123 Frequency : 1880 MHz Peak Trans. Pwr : 0.320 W Start Trans. Pwr: 0.320 W Antenna Type : Helical Antenna Posn. : Out Phantom Type : Head Phantom Posn. : Left Ear Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 42.900 Mixture Conductivity = 1.650 Comment : SONY PCS PHONE CHAN 600 CDMA MODE PCTEST Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 1.200 PCTEST Amplifier Channel Settings : 0.250 0.233 0.225 Max Location : X = 2.250, Y = 0.500, Z = 0.000 (cm) Value = 6.893 Measured Values (volts) = 6.800E-003 5.397E-003 4.087E-003 3.083E-003 2.395E-003 1.899E-003 1.491E-003 1.145E-003 9.414E-004 7.715E-004 6.628E-004 5.430E-004 4.410E-004 3.570E-004 3.263E-004 2.935E-004 3.072E-004 2.766E-004 2.298E-004 2.016E-004 2.129E-004 Calc. Voltage @ Surface (Vs) = 0.0088 Voltage @ 1.00 cm (Vt) = 0.0031 Ave. Voltage (Vs+Vt)/2 = 0.0059 Ave. SAR over 1 g (mW/g) = 0.6588 0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0 mW/g -1012345 Z centimeters SAR Scan File : 98121004_ZOOM Start : 10-Dec-98 09:51:07 am End : 10-Dec-98 10:00:49 am SONY/L5ACMSB2/2123;1880MHz;W;Helical/Out; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/42.900/1.650 File : 98121004_ZOOM Start : 10-Dec-98 09:51:07 am End : 10-Dec-98 10:00:49 am SONY/L5ACMSB2/2123;1880MHz;W;Helical/Out; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/42.900/1.650 0.766 0.711 0.656 0.602 0.547 0.492 0.437 0.383 0.328 0.273 File : 98121004_ZOOM Start : 10-Dec-98 09:51:07 am End : 10-Dec-98 10:00:49 am SONY/L5ACMSB2/2123;1880MHz;W;Helical/Out; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/42.900/1.650 0.766 0.711 0.656 0.602 0.547 0.492 0.437 0.383 0.328 0.273

© 1998 PCTEST Engineering Lab., Inc. PCTEST Engineering Laboratory, Inc. 6660-B 6660-B DobbinDobbin Road Road •• Columbia, MD 21045 Columbia, MD 21045 •• U.S.A. U.S.A. TEL (410) 290-6652 TEL (410) 290-6652 •• FAX (410) 290-6654 FAX (410) 290-6654 http://www.pctestlab.comhttp://www.pctestlab.com CERTIFICATE OF COMPLIANCE (Part 24 Certification) SONY ELECTRONICS INC.Dates of Tests: October 12-16, 1998 Personal & Mobile Communications of AmericaTest Report S/N: 24.980914641.L5A 16450 West Bernardo DriveTest Site: PCTEST Lab, Columbia MD U.S.A. San Diego, CA 92127-1804 Attn: Mr. Glen Seebruch, Regulatory Engineer FCC ID L5ACMSB2 APPLICANT SONY ELECTRONICS INC. Classification:Licensed Portable Transmitter Held to Ear (PCE) FCC Rule Part(s):§§§§24(E), 2.983, 2.987 EUT Type:Single Band PCS CDMA Phone Trade Name(s):SONY Model(s):CM-S1100, CM-S2100, CM-S3100 Frequency Range:Tx: 1851.25 – 1908.75MHz Rx: 1931.25 – 1988.75MHz Max Output Power:0.42 Watts (EIRP) Frequency Tolerance:0.00025% (2.5 ppm) This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947 with the following remarks (Note Codes): * (BC) The output power is continuously variable from the value listed in this entry to 5%-10% of the value listed. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a) 980914641.L5A Certification © 1998PCTEST Engineering Laboratory, Inc.FCC Part 24 TABLE OF CONTENTS ATTACHMENT A: COVER LETTER(S) ATTACHMENT B: ATTESTATION STATEMENT(S) ATTACHMENT C: TEST REPORT SCOPE 1 INTRODUCTION (SITE DESCRIPTION) 2 INSERTS PER §2.983 3 DESCRIPTION OF TESTS 4-6 TEST DATA (RADIATED) 7-9 TEST DATA (FREQUENCY STABILITY) 10-11 PLOTS OF EMISSIONS 12 LIST OF TEST EQUIPMENT 13 SAMPLE CALCULATIONS 14 RECOMMENDATION / CONCLUSION 15 ATTACHMENT D: TEST PLOTS ATTACHMENT E: FCC ID LABEL / LOCATION ATTACHMENT F: TEST SETUP PHOTOGRAPHS ATTACHMENT G: EXTERNAL PHOTOGRAPHS ATTACHMENT H: INTERNAL PHOTOGRAPHS ATTACHMENT I: BLOCK DIAGRAM(S) ATTACHMENT J: SCHEMATIC DIAGRAM(S) ATTACHMENT K: PARTS LIST/TUNE UP PROCEDURE ATTACHMENT L:OPERATIONAL DESCRIPTION ATTACHMENT M:USER’S MANUAL ATTACHMENT N:SAR MEASUREMENT REPORT ATTACHMENT O: SAR TEST DATA ATTACHMENT P:SAR TEST SETUP PHOTOGRAPHS Test Report S/N: 24.980914641.L5AFCC Part 24 Dates of Tests: October 12-16, 1998Certification © 1998 PCTEST LabFCC ID: L5ACMSB2 (Tx 1851.25 – 1908.75 MHz)1 SONY Single-Band PCS CDMA Phone MEASUREMENT REPORT Scope – Product Evaluation and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission. §2983(a) General Information Applicant Name:SONY ELECTRONICS INC. Address:16450 West Bernardo Drive San Diego, CA 92127-1804 Attention:Glen Seebruch, Regulatory Engineer • §2983(b) FCC ID:L5ACMSB2 • Trade Name(s):SONY • Model(s):CM-S1100, CM-S2100, CM-S3100 • §2983(c) Quantity:Quantity production is planned • §2.983(d) Emission Designator:1M25F9W • §2.983(d) Maximum Power Rating:0.42 W (EIRP) • §2.983(d) D.C. Voltage into Final RF Amplifier:7.2 VDC • §2.983(d) D.C. Current into Final RF Amplifier:550 mA • Power Supply Battery:7.2 VDC mAh Li-Ion • FCC Classification:Licensed Portable Tx Held to Ear (PCE) • Equipment (EUT) Type:Single-Band PCS CDMA Phone • FCC Rule Part(s):§§§ 24(E), 2.983, 2.987 • Application Type:Certification • Modulation:CDMA • Tx Frequency Range: 1851.25 – 1908.75 MHz • Rx Frequency Range:1931.25 – 1988.75 MHz • Frequency Tolerance:± 2.5 ppm • Dates of Tests:October 12-16, 1998 • Place of Tests:PCTEST Lab, Colubmia, MD U.S.A. 980914641.L5A Test Report S/N: 24.980914641.L5AFCC Part 24 Dates of Tests: October 12-16, 1998Certification © 1998 PCTEST LabFCC ID: L5ACMSB2 (Tx 1851.25 – 1908.75 MHz)2 SONY Single-Band PCS CDMA Phone 1.1 INTRODUCTION These measurement tests were conducted at PCTEST Engineering Laboratory, Inc. facility in New Concept Business Park, Guilford Industrial Park, Columbia, Maryland. The site address is 6660-B Dobbin Road, Columbia, MD 21045. The test site is one of the highest points in the Columbia area with an elevation of 390 feet above mean sea level. The site coordinates are 39° 11'15" N latitude and 76° 49'38" W longitude. The facility is 1.5 miles North of the FCC laboratory, and the ambient signal and ambient signal strength are approximately equal to those of the FCC laboratory. There are no FM or TV transmitters within 15 miles of the site. The detailed description of the measurement facility was found to be in compliance with the requirements of § 2.948 according to ANSI C63.4 on October 19, 1992. PCTEST Lab is recognized under the National Voluntary Laboratory Accreditation Program for satisfactory compliance with criteria established in Title 15, Part 285 Code of Federal Regulations. These criteria encompass the requirements of ISO/IEC Guide 25 and the relevant requirements of ISO 9002 (ANSI/ASQC Q92-1987) as suppliers of calibration or test results. The Scope of PCTEST Accreditation are for Electromagnetic Compatibility and Telecommunications and FCC. 1.2 PCTEST Location The map at right shows the location of the PCTEST Lab, its proximity to the FCC Lab, the Columbia vicinity area, the Baltimore- Washington International (BWI) airport, and the city of Baltimore, and the Washington, D.C. area. (see Figure1). Figure 1. Map of the Greater Baltimore and Metropolitan Washington, D.C. area. Test …

Text truncated - open the document above for the full version.

Test Report S/N: 24.980914641.L5AFCC Part 24 Test Date(s): October 12-16, 1998Certification © 1998 PCTEST LabFCC ID: L5ACMSB2 NVLAP Lab Code: 100431-0 SONY Electronics, Inc. Test Report S/N: 24.980914641.L5AFCC Part 24 Test Date(s): October 12-16, 1998Certification © 1998 PCTEST LabFCC ID: L5ACMSB2 NVLAP Lab Code: 100431-0 SONY Electronics, Inc. Test Report S/N: 24.980914641.L5AFCC Part 24 Test Date(s): October 12-16, 1998Certification © 1998 PCTEST LabFCC ID: L5ACMSB2 NVLAP Lab Code: 100431-0 SONY Electronics, Inc. Test Report S/N: 24.980914641.L5AFCC Part 24 Test Date(s): October 12-16, 1998Certification © 1998 PCTEST LabFCC ID: L5ACMSB2 NVLAP Lab Code: 100431-0 SONY Electronics, Inc.
