L5ACMZ200DM2DUAL MODE PORTABLE CELLULAR PHONE (AMPS/CDMA)

Operating Instructions Digital Portable Cellular Telephone 3-864-804-11 (1) CM-Z200 1_CM_Z2006/8/98, 9:26 AM1 1.2 FEATURES •Message -Voice* -New Text* -Old Text* -Erase Old* •Sounds -Ringer Volume -Mute/Unmute -Keybeep Volume -Earpiece Volume -Ringer Type -Key Sound -Beep Length •Timers -All Calls* -Recent Calls* -Roam Calls* -Minute Alert -Auto-Off •Directory -My Number -Save -Erase -Edit -Find Name -Phone Book -Calls List •Extras -Key Guard -Touch Dial -Auto-Retry -Auto-Answer -Scratch Pad •Security -Lock Phone -New Code -Restrict # -Restrict All -Master Reset -Erase Book -Erase Calls -Emergency # •Options -Send -Prefix -Duration -Time/Date -View Number -Number Tone -Save •Options -Send -Prefix -Edit -Restriction -View Number -Number Tone -Erase It's a Sony! 12:34P 12/25 :Saved #s :Features Enter digits Standby displaySaved #s display •Options -Send -Save -Hard Pause -Time Pause -Enter Link -Enter Hyphen -Find Number Short Features Menu •Message -Voice -New Text -Old Text -Erase Old •Ringer Volume •My Number •Saved #s •Lock Phone •Long Menu SAVED #S :Calls List :Phone Book :Find Name Find name in Phone Book List 10 most recent calls List up to 99 saved numbers in Phone Book + + – – •Display -Banner* -Backlight -Auto-hyphen -Sort Book -Language* -Menu Length -Msg. Format* •Network -Roam Alert* -Drop Alert* -Priv. Alert* -Auto-N.A.M.* -Set-N.A.M.* -Set System* -Force Call* or *) These features may be available with some networks and service providers. Welcome to the CM-Z200 Menu map 1_CM_Z2006/8/98, 9:26 AM2 1.3 Easy dialing You can easily make a call using a number from the Phone Book or the Calls List. First, turn the Jog Dial either up or down one time to search phone numbers. Then scroll down to view saved numbers in the Phone Bookor scroll up to view your most recently called numbers in the Calls List. Simply open the arm microphone to call the number you choose. Easy menu access You can easily access your phone’s settings through the Features menu. Press the Jog Dial again to view the options of each menu item. 2 1 0 ABC 4 GHI 8 TUV 7 PQRS 9 W XYZ 5 JKL 6 MNO 3 DEF MENU CLR 2 1 0 ABC 4 GHI 8 TUV 7 PQRS 9 W XYZ 5 JKL 6 MNO 3 DEF MENU CLR 2 1 0 ABC 4 GHI 8 TUV 7 PQRS 9 W XYZ 5 JKL 6 MNO 3 DEF MENU CLR 2 1 0 ABC 4 GHI 8 TUV 7 PQRS 9 W XYZ 5 JKL 6 MNO 3 DEF MENU CLR 2 1 0 ABC 4 GHI 8 TUV 7 PQRS 9 W XYZ 5 JKL 6 MNO 3 DEF MENU CLR No.1 SONY 1234567890123456 2 1 0 ABC 4 GHI 8 TUV 7 PQRS 9 WXYZ 5 JKL 6 MNO 3 DEF MENU CLR 2 1 0 ABC 4 GHI 8 TUV 7 PQRS 9 WXYZ 5 JKL 6 MNO 3 DEF MENU CLR 2 1 0 ABC 4 GHI 8 TUV 7 PQRS 9 WXYZ 5 JKL 6 MNO 3 DEF MENU CLR 2 1 0 ABC 4 GHI 8 TUV 7 PQRS 9 WXYZ 5 JKL 6 MNO 3 DEF MENU CLR MENU MENU Clock Alarm Sleep Wake Up Display Clock Alarm Sleep Wake Up Display 1_CM_Z2006/8/98, 9:26 AM3 1.4 WARNING To prevent fire or shock hazard, do not expose the unit to rain or moisture. To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only. FCC CAUTION STATEMENT You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment. Owner’s record The model number, regulatory number, and serial number are located on a nameplate inside the battery compartment. Record the serial number in the space provided below. Refer to these numbers whenever you call your dealer regarding this product. Model No.: CM-Z200Serial No.: ________________________ DISPOSAL OF LITHIUM ION BATTERY LITHIUM ION BATTERY. DISPOSE OF PROPERLY. You can return your unwanted lithium ion batteries to your nearest Sony Service Center or Factory Service Center. Note:In some areas the disposal of lithium ion batteries in household or business trash may be prohibited. For the Sony Service Center nearest you call 1-800-222-SONY (United States only). For the Sony Factory Service Center nearest you call 416-499-SONY (Canada only). Before operating the CM-Z200 portable cellular/PCS telephone, please read this manual thoroughly and retain it for future reference. If your usage includes in- vehicle operation, it is recommended that you refer to the Installation/Connections/ Operation manual for the optional accessory kits. 1_CM_Z2006/8/98, 9:26 AM4 1.5 Rules and regulations ....................................................................................................... 1.6 Safety precautions .............................................................................................................1.7 Getting Started Unpacking your phone ..................................................................................................... 2.1 Looking at your phone ..................................................................................................... 2.2 Charging the battery pack ................................................................................................ 2.4 Basic Calling Operations Turning the phone on ........................................................................................................ 3.1 Making calls ....................................................................................................................... 3.2 Receiving calls .................................................................................................................... 3.3 Advanced Calling Operations Storing phone numbers in the Phone Book ....................................................................... 4.1 Calling from the Phone Book ........................................................................................... 4.6 Searching the Phone Book ................................................................................................ 4.8 Calling from the Calls List .............................................................................................. 4.10 Sending DTMF signals from the Phone Book .........................................................................4.11 Features Menu About the Features menu ...........................…

Text truncated - open the document above for the full version.

Sony Electronics Inc., Personal & Mobile Communications of America 16450 West Bernardo Drive, San Diego, California 92127-1804 Telephone (619) 487-8500 Federal Communications CommissionFebruary 1, 1999 Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: We the undersigned, hereby authorize PCTEST Engineering Laboratory, Inc. to act on our behalf in all matters relating to applications for equipment authorizations, including the signing of all documents relating to these matters. Any and all acts carried out by PCTEST Engineering Laboratory, Inc. on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefit, pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 U.S.C. 853(a). This authorization expires one year from the current date. Sincerely, Glen A. Seebruch Regulatory Engineer Sony PMC America

Sony Electronics Inc., Personal & Mobile Communications of America 16450 West Bernardo Drive, San Diego, California 92127-1804 Telephone (619) 487-8500 Federal Communications Commission February 1, 1999 Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In Re: Sony Electronics, Inc. FCC ID: L5ACMZ200DM2 Dual-Mode Cellular Phone (AMPS/CDMA) Request for Confidentiality Gentlemen: In accordance with 0.459 of CFR 47, SONY ELECTRONICS, Inc. request confidentiality of the Block Diagram, Schematics, Parts List, and Antenna Specifications for the attached test report. These documents contain detailed system and equipment description and related information about the product which SONY ELECTRONICS, Inc. considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, SONY ELECTRONICS, Inc. feels that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. Sincerely, Glen A. Seebruch Regulatory Engineer Sony PMC America

Sony Electronics Inc., Personal & Mobile Communications of America 16450 West Bernardo Drive, San Diego, California 92127-1804 Telephone (619) 487-8500 February 1, 1999 AFFIDAVIT FOR ESN PROTECTION OF CELLULAR MOBILE TELEPHONES We hereby certify that the Handheld Portable Cellular Telephone, FCC ID: _ L5ACMZ200DM2__ is so designed that it complies with all the requirements for ESN protection specified in Section 22.919 CFR 47. Sec. 22.919 Electronic serial numbers. The Electronic Serial Number (ESN) is a 32 bit binary number that uniquely identifies a cellular mobile transmitter to any cellular system. (a) Each mobile transmitter in service must have a unique ESN. (b) The ESN host component must be permanently attached to a main circuit board of the mobile transmitter and the integrity of the unit's operating software must not be alterable. The ESN must be isolated from fraudulent contact and tampering. If the ESN host component does not contain other information, that component must not be removable, and its electrical connections must not be accessible. If the ESN host component contains other information, the ESN must be encoded using one or more of the following techniques: (1) Multiplication or division by a polynomial; (2) Cyclic coding; (3) The spreading of ESN bits over various non-sequential memory locations. (c) The ESN must be factory set and must not be alterable, transferable, removable or otherwise able to be manipulated. Cellular mobile equipment must be designed such that any attempt to remove, tamper with, or change the ESN chip, its logic system, or firmware originally programmed by the manufacturer will render the mobile transmitter inoperative. Sincerely, Glen A. Seebruch Regulatory Engineer Sony PMC America

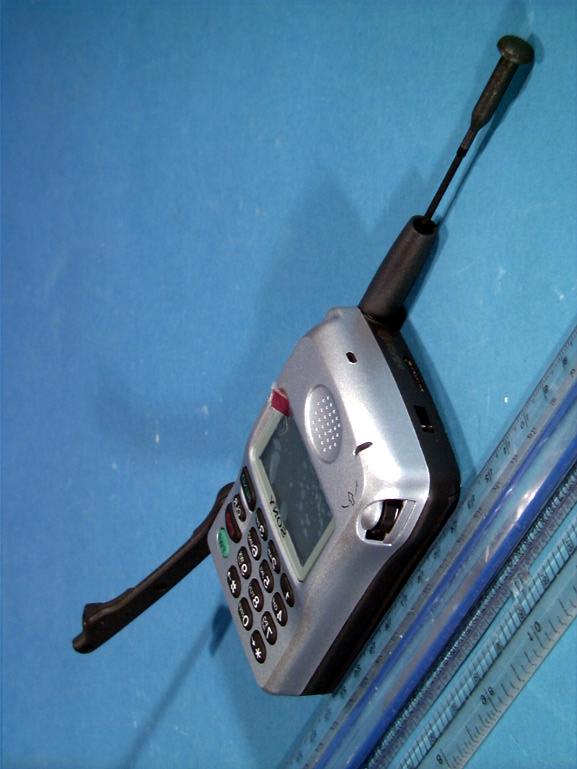

February 11, 1999 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT:SONY Electronics Inc. FCC ID: L5ACMZ200DM2 Part 22 Certification Gentlemen: Attached herewith, on behalf of SONY Electronics Inc., is an application for Part 22 Certification of the following dual mode cellular phone: FCC ID:L5ACMZ200DM2 TRADE / MODEL(s):SONY CM-Z200 EUT TYPE:Dual Mode (AMPS/CDMA) Cellular Phone (TNE) Tx Freq. Range:824.02 – 824.98 MHz Max. Output Power:0.6 Watts (AMPS) / 0.5 Watts (CDMA) Attached is the applicant’s Letter of Authorization, Confidentiality Request, ESN Affidavit, measurement report data and plots, RF Exposure measurement report, FCC ID label and location, test setup photographs, internal and external photographs, block diagrams (confidential), schematic diagrams (confidential), operational description (confidential), parts list & tune-up procedure (confidential), and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc:Mr. Glen Seebruch Regulatory Engineer SONY Personal & Mobile Communications of America

Test Report S/N: 22.990120038.L5AFCC Part 22 Test Date(s): February 01-05, 1999Certification © 1999 PCTEST LabFCC ID: L5ACMZ200DM2 NVLAP Lab Code: 100431-0 SONY Electronics Inc. Test Report S/N: 22.990120038.L5AFCC Part 22 Test Date(s): February 01-05, 1999Certification © 1999 PCTEST LabFCC ID: L5ACMZ200DM2 NVLAP Lab Code: 100431-0 SONY Electronics Inc. Test Report S/N: 22.990120038.L5AFCC Part 22 Test Date(s): February 01-05, 1999Certification © 1999 PCTEST LabFCC ID: L5ACMZ200DM2 NVLAP Lab Code: 100431-0 SONY Electronics Inc. Test Report S/N: 22.990120038.L5AFCC Part 22 Test Date(s): February 01-05, 1999Certification © 1999 PCTEST LabFCC ID: L5ACMZ200DM2 NVLAP Lab Code: 100431-0 SONY Electronics Inc. Test Report S/N: 22.990120038.L5AFCC Part 22 Test Date(s): February 01-05, 1999Certification © 1999 PCTEST LabFCC ID: L5ACMZ200DM2 NVLAP Lab Code: 100431-0 SONY Electronics Inc.

© 1998 PCTEST Lab FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §§ 2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. Fig 12. Sample label (SEE NEXT PAGE) Sony Electronics Inc., Personal & Mobile Communications of America 16450 West Bernardo Drive, San Diego, California 92127-1804 Telephone (619) 487-8500 2 CANADA:

Test Report S/N: 22.990120038.L5AFCC Part 22 Test Date(s): February 01-05, 1999Certification © 1999 PCTEST LabFCC ID: L5ACMZ200DM2 NVLAP Lab Code: 100431-0 SONY Electronics Inc. Test Report S/N: 22.990120038.L5AFCC Part 22 Test Date(s): February 01-05, 1999Certification © 1999 PCTEST LabFCC ID: L5ACMZ200DM2 NVLAP Lab Code: 100431-0 SONY Electronics Inc. Test Report S/N: 22.990120038.L5AFCC Part 22 Test Date(s): February 01-05, 1999Certification © 1999 PCTEST LabFCC ID: L5ACMZ200DM2 NVLAP Lab Code: 100431-0 SONY Electronics Inc. Test Report S/N: 22.990120038.L5AFCC Part 22 Test Date(s): February 01-05, 1999Certification © 1999 PCTEST LabFCC ID: L5ACMZ200DM2 NVLAP Lab Code: 100431-0 SONY Electronics Inc. Test Report S/N: 22.990120038.L5AFCC Part 22 Test Date(s): February 01-05, 1999Certification © 1999 PCTEST LabFCC ID: L5ACMZ200DM2 NVLAP Lab Code: 100431-0 SONY Electronics Inc.

CM-Z200 FCC Type Acceptance Document I. 2. 3. Confidentiality Request Sony PMCA requests confidentiality of the following items: Block Diagram Schematics Active Parts List Antenna Specifications Antenna Specifications (See Attached Antenna Spec) Technical Overview (2.983) CM-Z200 is a dual-mode portable cellular phone which supports both analog Advanced Mobile Phone System (AMPS) FM mode and digital Code Division Multiple Access (CDMA) mode. The cellular phone is designed to meet the requirements of OST Bulletin 53, TIA/EIA IS-95-A Mobile Station-Base Station Compatibility Standard for Dual-Mode Wideband Spread Spectrum Cellular System, TIA/EIA IS-98-A Recommended Minimum Performance Standards for Dual-Mode Wideband Spread Spectrum Cellular Mobile Stations. The cellular phone operates under Cellular Radiotelephone Service specified in FCC CFR 47, Part 22. Transmitter Frequency Range: 824 - 849 MHz Receiver Frequency Range: 869 - 894 MHz Maximum Transmitter Output Power: 600 mW (FM mode) 500 mW (CDMA mode) Battery Voltage: 7.2 V The input audio signal is sampled and processed digitally for necessary filtering, amplitude limiting, and compression and expansion. The device fully supports the AMPS and CDMA standards. All necessary signaling tones are digitally generated. The transmit power level is constantly monitored by a detector circuit and a microprocessor. A method of look-up table, frequency offset correction table, and temperature compensation is used to tightly control the transmit power levels. All spurious and harmonic signals from the transmitter and receiver circuits are suppressed by filters and mechanical shields, and the device fully complies with the standards.

© 1999 PCTEST Engineering Lab., Inc. PCTEST Engineering Laboratory, Inc. 6660-B 6660-B DobbinDobbin Road Road •• Columbia, MD 21045 Columbia, MD 21045 •• U.S.A. U.S.A. TEL (410) 290-6652 TEL (410) 290-6652 •• FAX (410) 290-6654 FAX (410) 290-6654 http://www.pctestlab.comhttp://www.pctestlab.com CERTIFICATE OF COMPLIANCE (SAR EVALUATION) SONY Personal & Mobile Communications of AmericaDates of Tests: February 01-05, 1999 16450 West Bernardo DriveTest Report S/N: SAR.990120040.L5A San Diego, CA 92127-1804Test Site: PCTEST Lab, Columbia MD Attention: Glen Seebruch, Regulatory Engineer FCC ID L5ACMZ200DM2 APPLICANT SONY ELECTRONICS INC. EUT Type:Dual Mode Cellular Phone (AMPS/CDMA) Tx Frequency:824.04 – 848.97 MHz Rx. Frequency:869.04 – 893.97 MHz Max Output Power:0.6 W ERP (AMPS) / 0.5 W ERP (CDMA) Trade Name/Model(s):SONY CM-Z200 FCC Classification:Non-Broadcast Transmitter Held to Ear (TNE) Application Type:Certification Serial Number:n/a (pre production) FCC Rule Part(s):2.1093; ET Docket 96.326; 22(H) This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in ANSI/IEEE Std. C95.3-1992. (See Test Report). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. NVLAP accreditation does not constitute any product endorsement by NVLAP or any agency of the United States Government. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a) 990120040.L5A SAR Measurement ReportFCC Part 22 Certification © 1999 PCTEST Labi Table of Contents SCOPE .............................................................................1 INTRODUCTION / SAR DEFINITION ......................................2 SAR MEASUREMENT SET-UP .............................................3 E-FIELD PROBE SYSTEM ...................................................4 PHANTOM & BRAIN EQUIVALENT MATERIAL ......................7 SYSTEM SPECIFICATIONS ................................................. 8 MEASUREMENT PROCESS ................................................9 TEST POSITION OF THE PHONE .........................................10 ANSI/IEEE C95.1 RF EXPOSURE LIMITS ..............................11 MEASUREMENT UNCERTAINTIES ......................................12 TEST DATA SUMMARY ...................................................... 13 SAR TEST EQUIPMENT LIST .............................................. 14 CONCLUSION / REFERENCES ...........................................15 Test Report S/N: SAR.990120040.L5ASAR Measurement Report Test Dates: February 01-05, 1999FCC Part 22 Certification SONY Dual Mode Cellular Phone (AMPS/CDMA) © 1999 PCTEST LabFCC ID: L5ACMZ200DM2 (Tx 824-849 MHz)1 SAR MEASUREMENT REPORT Scope - Environmental evaluation measurements of specific absorption rate 1 (SAR) distributions in simulated human head tissues exposed to radiofrequency (RF) radiation from wireless portable devices for compliance with the rules and regulations of the U.S. Federal Communications Commission (FCC). 2 Company Name:SONY Personal & Mobile Communications of America ADDRESS:16450 West Bernardo Drive San Diego, CA 92127-1804 U.S.A. Attention:Glen Seebruch, Regulatory Engineer • EUT Type:Dual Mode Cellular Phone (AMPS/CDMA) • Trade Name:SONY • FCC IDENTIFIER:L5ACMZ200DM2 • Model:CM-Z200 • S/N:Pre-production • Tx Frequency:824.04 – 848.97 MHz • Rx Frequency:869.04 – 893.97 MHz • Application Type: Certification • FCC Classification:Non-Broadcast Transmitter Held to Ear (TNE) • FCC Rule Part(s):§ 2.1093, Docket 96-326; § 22(H) • Max. Output Power:0.6W ERP (AMPS) / 0.5W ERP (CDMA) • Modulation :AMPS / CDMA • Antenna:Helical (λ/2) • Antenna Dimensions:14.5 cm. (Length) • Date of Test(s):February 01-05, 1999 • Place of Test(s):PCTEST Engineering Lab. Columbia, MD, U.S.A. • Report Serial No.:SAR.990120040.L5A 1 Specific Absorption Rate (SAR) is a measure of the rate of energy absorption due to exposure to an RF transmitting source (wireless portable device). 2 IEEE/ANSI Std. C95.1-1992 limits are used to determine compliance with FCC ET-Docket 93-62. Lab Code 100431-0 Fig. 1. SAR Test Setup Test Report S/N: SAR.990120040.L5ASAR Measurement Report Test Dates: February 01-05, 1999FCC Part 22 Certification SONY Dual Mode Cellular Phone (AMPS/CDMA) © 1999 PCTEST LabFCC ID: L5ACMZ200DM2 (Tx 824-849 MHz)2 1.1 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radiofrequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. (c) 1992 by the Institute of Electrical and Electronics Engineers, Inc., New York, New York 10017.[2] The measurement procedure described in IEEE/ANSI C95.3-1992 Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields - RF and Microwave[3] is used for guidance in measuring SAR due to the RF radiation exposure from the Equipment Under Test (EUT). These criteria for SAR evaluation are similar to those recommended by the National Council on Radiation Protection and Measurements (NCRP) in Biological Effects and E…

Text truncated - open the document above for the full version.

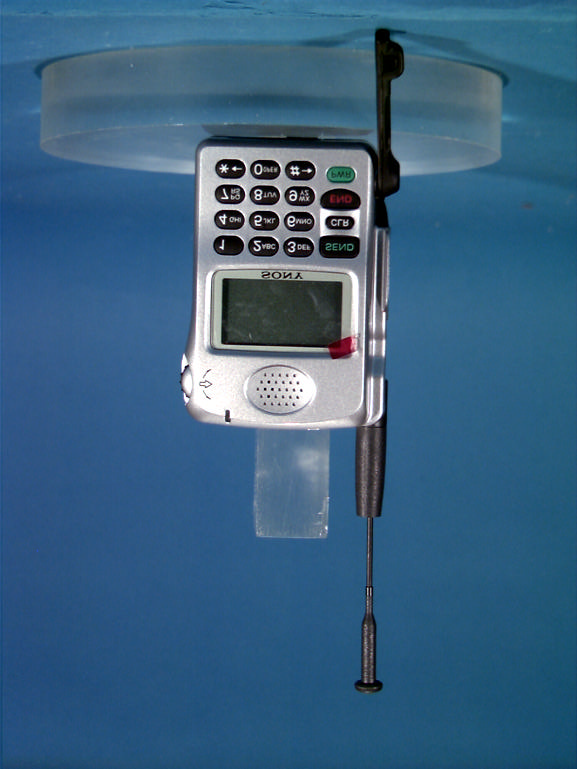

File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/99020914_ZOOM.VLT Start : 9-Feb-99 02:33:27 pm End : 9-Feb-99 02:46:47 pm Radio Type : SONY Model Number : L5ACMZ200DM2 Serial Number : A006 Frequency : 824.04 MHz Peak Trans. Pwr : 0.600 W Start Trans. Pwr: 0.600 W Antenna Type : Helical Antenna Posn. : In Phantom Type : Head Phantom Posn. : Left Ear Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 43.400 Mixture Conductivity = 0.900 Comment : SONY DUAL MODE PHONE CHANNEL 991 FM MODE PCTEST Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 0.790 PCTEST Amplifier Channel Settings : 0.168 0.136 0.132 Max Location : X = 2.500, Y = -2.500, Z = 0.000 (cm) Value = 14.540 Measured Values (volts) = 1.443E-002 1.259E-002 1.040E-002 8.584E-003 7.171E-003 6.154E-003 5.315E-003 4.626E-003 4.099E-003 3.569E-003 3.102E-003 2.641E-003 2.172E-003 1.735E-003 1.287E-003 9.460E-004 7.085E-004 5.952E-004 5.333E-004 6.408E-004 7.205E-004 Calc. Voltage @ Surface (Vs) = 0.0170 Voltage @ 1.00 cm (Vt) = 0.0086 Ave. Voltage (Vs+Vt)/2 = 0.0128 Ave. SAR over 1 g (mW/g) = 0.9358 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 mW/g -1012345 Z centimeters SAR Scan File : 99020914_ZOOM Start : 9-Feb-99 02:33:27 pm End : 9-Feb-99 02:46:47 pm SONY/L5ACMZ200DM2/A006;824.04MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/43.400/0.900 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/99020905_ZOOM.VLT Start : 9-Feb-99 10:55:48 am End : 9-Feb-99 11:08:36 am Radio Type : SONY Model Number : L5ACMZ200DM2 Serial Number : A006 Frequency : 824.04 MHz Peak Trans. Pwr : 0.600 W Start Trans. Pwr: 0.600 W Antenna Type : Helical Antenna Posn. : Out Phantom Type : Head Phantom Posn. : Left Ear Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 43.400 Mixture Conductivity = 0.900 Comment : SONY DUAL MODE PHONE CHANNEL 991 FM MODE PCTEST Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 0.790 PCTEST Amplifier Channel Settings : 0.168 0.136 0.132 Max Location : X = 1.750, Y = 0.750, Z = 0.000 (cm) Value = 7.617 Measured Values (volts) = 7.764E-003 6.221E-003 5.144E-003 4.216E-003 3.421E-003 2.769E-003 2.240E-003 1.803E-003 1.514E-003 1.340E-003 1.258E-003 1.196E-003 1.129E-003 1.073E-003 9.519E-004 7.758E-004 5.478E-004 3.619E-004 2.051E-004 9.880E-005 6.443E-005 Calc. Voltage @ Surface (Vs) = 0.0095 Voltage @ 1.00 cm (Vt) = 0.0042 Ave. Voltage (Vs+Vt)/2 = 0.0069 Ave. SAR over 1 g (mW/g) = 0.5031 0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 mW/g -1012345 Z centimeters SAR Scan File : 99020905_ZOOM Start : 9-Feb-99 10:55:48 am End : 9-Feb-99 11:08:36 am SONY/L5ACMZ200DM2/A006;824.04MHz;W;Helical/Out; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/43.400/0.900 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/99020913_ZOOM.VLT Start : 9-Feb-99 02:09:55 pm End : 9-Feb-99 02:22:22 pm Radio Type : SONY Model Number : L5ACMZ200DM2 Serial Number : A006 Frequency : 836.49 MHz Peak Trans. Pwr : 0.600 W Start Trans. Pwr: 0.600 W Antenna Type : Helical Antenna Posn. : In Phantom Type : Head Phantom Posn. : Left Ear Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 43.400 Mixture Conductivity = 0.900 Comment : SONY DUAL MODE PHONE CHANNEL 383 FM MODE PCTEST Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 0.790 PCTEST Amplifier Channel Settings : 0.168 0.136 0.132 Max Location : X = 2.500, Y = -3.000, Z = 0.000 (cm) Value = 14.841 Measured Values (volts) = 1.412E-002 1.161E-002 9.795E-003 8.273E-003 7.120E-003 6.173E-003 5.396E-003 4.792E-003 4.245E-003 3.729E-003 3.273E-003 2.763E-003 2.279E-003 1.828E-003 1.451E-003 1.124E-003 9.485E-004 9.051E-004 9.106E-004 9.759E-004 1.049E-003 Calc. Voltage @ Surface (Vs) = 0.0170 Voltage @ 1.00 cm (Vt) = 0.0083 Ave. Voltage (Vs+Vt)/2 = 0.0126 Ave. SAR over 1 g (mW/g) = 0.9227 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 mW/g -1012345 Z centimeters SAR Scan File : 99020913_ZOOM Start : 9-Feb-99 02:09:55 pm End : 9-Feb-99 02:22:22 pm SONY/L5ACMZ200DM2/A006;836.49MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/43.400/0.900 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/99020903_ZOOM.VLT Start : 9-Feb-99 10:17:17 am End : 9-Feb-99 10:25:04 am Radio Type : SONY Model Number : L5ACMZ200DM2 Serial Number : A006 Frequency : 836.49 MHz Peak Trans. Pwr : 0.600 W Start Trans. Pwr: 0.600 W Antenna Type : Helical Antenna Posn. : Out Phantom Type : Head Phantom Posn. : Left Ear Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 43.400 Mixture Conductivity = 0.900 Comment : SONY DUAL MODE PHONE CHANNEL 383 FM MODE PCTEST Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 0.790 PCTEST Amplifier Channel Settings : 0.168 0.136 0.132 Max Location : X = 1.750, Y = 1.250, Z = 0.000 (cm) Value = 7.557 Measured Values (volts) = 7.605E-003 6.270E-003 5.259E-003 4.312E-003 3.560E-003 2.922E-003 2.370E-003 1.969E-003 1.749E-003 1.470E-003 1.384E-003 1.310E-003 1.261E-003 1.205E-003 1.107E-003 9.475E-004 7.505E-004 5.687E-004 3.431E-004 2.641E-004 2.142E-004 Calc. Voltage @ Surface (Vs) = 0.0091 Voltage @ 1.00 cm (Vt) = 0.0043 Ave. Voltage (Vs+Vt)/2 = 0.0067 Ave. SAR over 1 g (mW/g) = 0.4922 0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 mW/g -1012345 Z centimeters SAR Scan File : 99020903_ZOOM Start : 9-Feb-99 10:17:17 am End : 9-Feb-99 10:25:04 am SONY/L5ACMZ200DM2/A006;836.49MHz;W;Helical/Out; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/43.400/0.900 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/99020911_ZOOM.VLT Start : 9-Feb-99 12:52:03 pm End : 9-Feb-99 01:04:10 pm Radio Type : SONY Model Number : L5ACMZ200DM2 Serial Number : A006 Frequency : 848.97 MHz Peak Trans. Pwr : 0.600 W Start Trans. Pw…

Text truncated - open the document above for the full version.

Test Report S/N: SAR.990120040.L5ASAR Measurement Report Test Date(s): February 01-05, 1999FCC Part 22 Certification © 1999 PCTEST LabFCC ID: L5ACMZ200DM2 NVLAP Lab Code: 100431-0 SONY Electronics, Inc. 1 Test Report S/N: SAR.990120040.L5ASAR Measurement Report Test Date(s): February 01-05, 1999FCC Part 22 Certification © 1999 PCTEST LabFCC ID: L5ACMZ200DM2 NVLAP Lab Code: 100431-0 SONY Electronics, Inc. Test Report S/N: SAR.990120040.L5ASAR Measurement Report Test Date(s): February 01-05, 1999FCC Part 22 Certification © 1999 PCTEST LabFCC ID: L5ACMZ200DM2 NVLAP Lab Code: 100431-0 SONY Electronics, Inc. Test Report S/N: SAR.990120040.L5ASAR Measurement Report Test Date(s): February 01-05, 1999FCC Part 22 Certification © 1999 PCTEST LabFCC ID: L5ACMZ200DM2 NVLAP Lab Code: 100431-0 SONY Electronics, Inc. Test Report S/N: SAR.990120040.L5ASAR Measurement Report Test Date(s): February 01-05, 1999FCC Part 22 Certification © 1999 PCTEST LabFCC ID: L5ACMZ200DM2 NVLAP Lab Code: 100431-0 SONY Electronics, Inc. Test Report S/N: SAR.990120040.L5ASAR Measurement Report Test Date(s): February 01-05, 1999FCC Part 22 Certification © 1999 PCTEST LabFCC ID: L5ACMZ200DM2 NVLAP Lab Code: 100431-0 SONY Electronics, Inc. 1 1 Peak SAR Value at the surface of the phantom @ Z = 0 (not averaged over 1-gram of tissue). This is a computer simulation of the hot spot(s) of the phone.

Test Report S/N: SAR.990120040.L5ASAR Measurement Report Test Date(s): February 01-05, 1999FCC Part 22 Certification © 1999 PCTEST LabFCC ID: L5ACMZ200DM2 NVLAP Lab Code: 100431-0 SONY Electronics, Inc. Test Report S/N: SAR.990120040.L5ASAR Measurement Report Test Date(s): February 01-05, 1999FCC Part 22 Certification © 1999 PCTEST LabFCC ID: L5ACMZ200DM2 NVLAP Lab Code: 100431-0 SONY Electronics, Inc. Test Report S/N: SAR.990120040.L5ASAR Measurement Report Test Date(s): February 01-05, 1999FCC Part 22 Certification © 1999 PCTEST LabFCC ID: L5ACMZ200DM2 NVLAP Lab Code: 100431-0 SONY Electronics, Inc. Test Report S/N: SAR.990120040.L5ASAR Measurement Report Test Date(s): February 01-05, 1999FCC Part 22 Certification © 1999 PCTEST LabFCC ID: L5ACMZ200DM2 NVLAP Lab Code: 100431-0 SONY Electronics, Inc. Test Report S/N: SAR.990120040.L5ASAR Measurement Report Test Date(s): February 01-05, 1999FCC Part 22 Certification © 1999 PCTEST LabFCC ID: L5ACMZ200DM2 NVLAP Lab Code: 100431-0 SONY Electronics, Inc.

© 1999 PCTEST Engineering Lab., Inc. PCTEST Engineering Laboratory, Inc. 6660-B 6660-B DobbinDobbin Road Road •• Columbia, MD 21045 Columbia, MD 21045 •• U.S.A. U.S.A. TEL (410) 290-6652 TEL (410) 290-6652 •• FAX (410) 290-6654 FAX (410) 290-6654 http://www.pctestlab.comhttp://www.pctestlab.com CERTIFICATE OF COMPLIANCE (Part 22 Certification) SONY Personal & Mobile Communications of AmericaDates of Tests: February 01-05, 1999 16450 West Bernardo DriveTest Report S/N: 22.990120038.L5A San Diego, CA 92127-1804Test Site: PCTEST Lab, Colu…

Text truncated - open the document above for the full version.
