L5ACMSB200Dual-Band (Analog/PCS) Phone (AMPS/CDMA)

Sony Electronics Inc., Digital Telecommunications Company of America 16450 West Bernardo Drive, San Diego, California 92127-1804 Telephone (619) 487-8500 June 2, 1999 AFFIDAVIT FOR ESN PROTECTION OF CELLULAR MOBILE TELEPHONES We hereby certify that the Handheld Portable Cellular Telephone, FCC ID: _ L5ACMSB200__ is so designed that it complies with all the requirements for ESN protection specified in Section 22.919 CFR 47. Sec. 22.919 Electronic serial numbers. The Electronic Serial Number (ESN) is a 32 bit binary number that uniquely identifies a cellular mobile transmitter to any cellular system. (a) Each mobile transmitter in service must have a unique ESN. (b) The ESN host component must be permanently attached to a main circuit board of the mobile transmitter and the integrity of the unit's operating software must not be alterable. The ESN must be isolated from fraudulent contact and tampering. If the ESN host component does not contain other information, that component must not be removable, and its electrical connections must not be accessible. If the ESN host component contains other information, the ESN must be encoded using one or more of the following techniques: (1) Multiplication or division by a polynomial; (2) Cyclic coding; (3) The spreading of ESN bits over various non-sequential memory locations. (c) The ESN must be factory set and must not be alterable, transferable, removable or otherwise able to be manipulated. Cellular mobile equipment must be designed such that any attempt to remove, tamper with, or change the ESN chip, its logic system, or firmware originally programmed by the manufacturer will render the mobile transmitter inoperative. Sincerely, Glen A. Seebruch Regulatory Engineer Sony PMC America

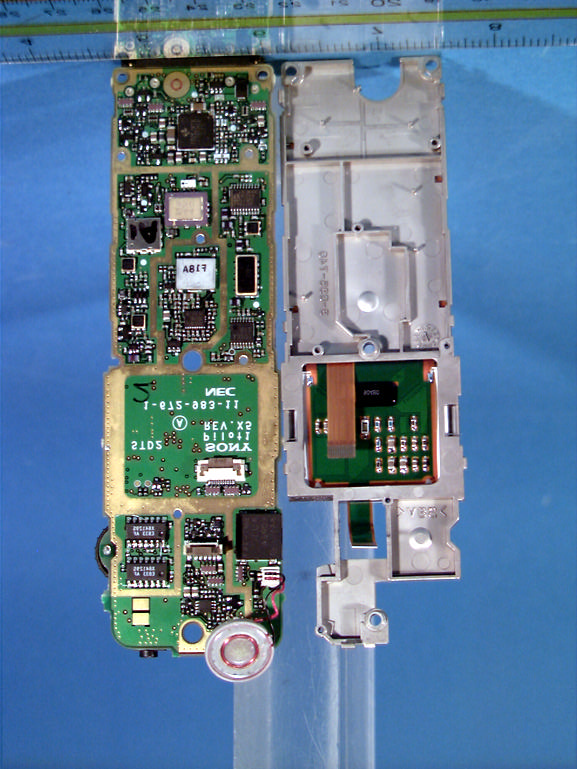

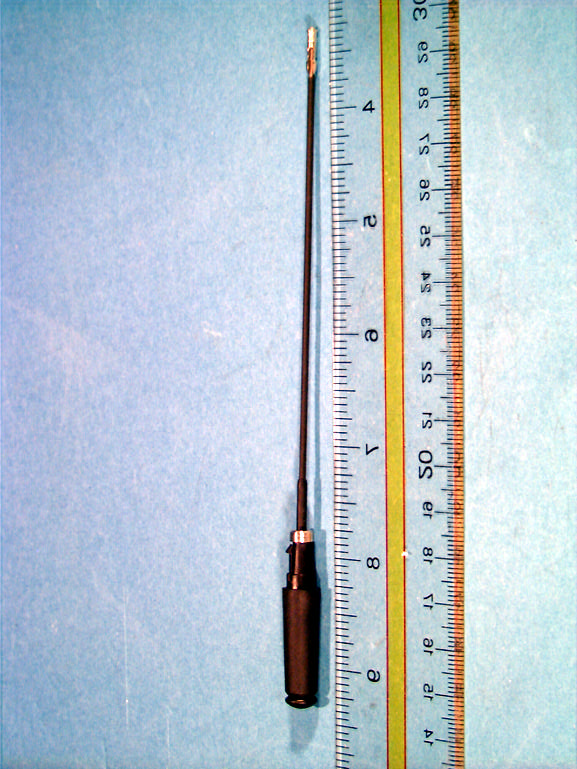

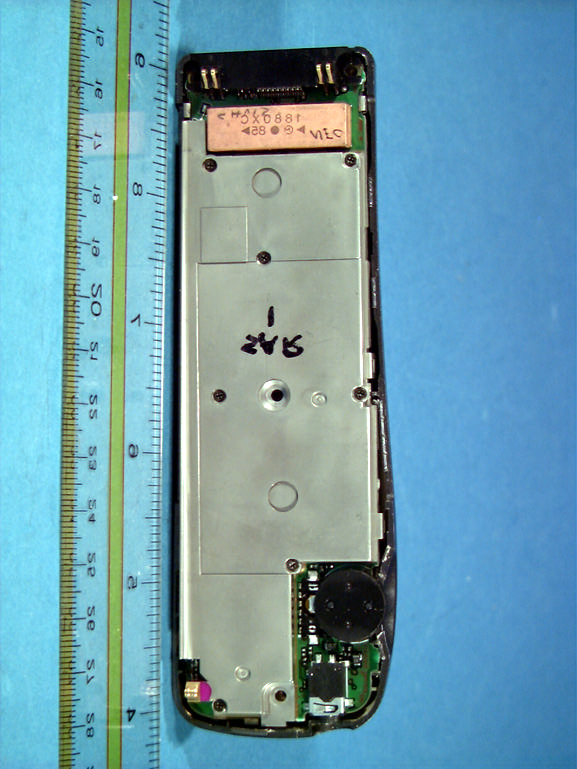

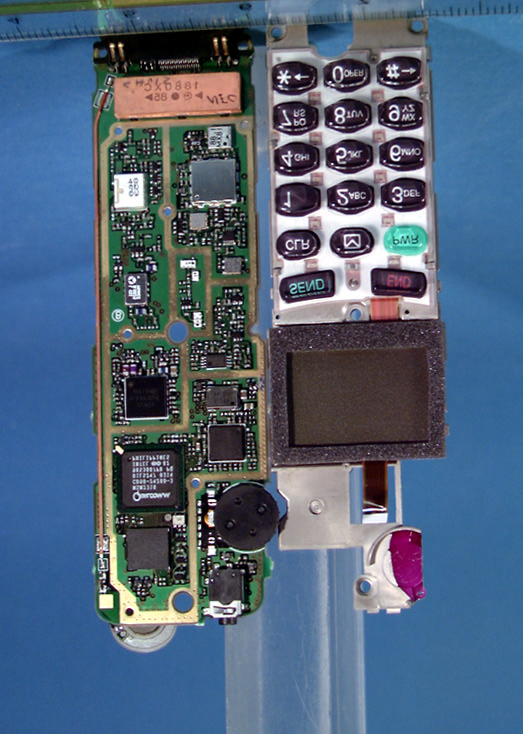

June 02, 1999 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT:SONY ELECTRONICS, INC. FCC ID: L5ACMSB200 Part 24/22 Certification Gentlemen: Attached herewith, on behalf of SONY ELECTRONICS, INC., is an application for Part 24/22 Certification of the following dual band Analog/PCS phone: FCC ID:L5ACMSB200 TRADE / MODEL(s):SONY CM-SB200 EUT TYPE:Dual Band Analog/PCS Phone (AMPS/CDMA) Tx Freq. Range:1851.25 – 1908.75 MHz (CDMA) 824.04 – 849.97 MHz (AMPS) Max. Output Power:0.6 Watts ERP (AMPS) / 0.55 Watts EIRP (CDMA) Attached is the applicant’s Letter of Authorization, Confidentiality Request, ESN Affidavit, measurement report data and plots, RF Exposure measurement report and data, FCC ID label and location, test setup photographs, internal and external photographs, block diagram (confidential), schematic diagrams (confidential), operational description, parts list & tune-up procedure, and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc:Glen Seebruch Regulatory Engineer SONY Personal & Mobile Communications of America

Sony Electronics Inc., Digital Telecommunications Company of America 16450 West Bernardo Drive, San Diego, California 92127-1804 Telephone (619) 487-8500 Federal Communications Commission June 2, 1999 Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: We the undersigned, hereby authorize PCTEST Engineering Laboratory, Inc. to act on our behalf in all matters relating to applications for equipment authorizations, including the signing of all documents relating to these matters. Any and all acts carried out by PCTEST Engineering Laboratory, Inc. on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefit, pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 U.S.C. 853(a). This authorization expires one year from the current date. Sincerely, Glen A. Seebruch Regulatory Engineer Sony PMC America

Sony Electronics Inc., Digital Telecommunications Company of America 16450 West Bernardo Drive, San Diego, California 92127-1804 Telephone (619) 487-8500 Federal Communications Commission June 2, 1999 Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In Re:Sony Electronics, Inc. FCC ID: L5ACMSB200 Dual-Band Phone (Analog/PCS) Request for Confidentiality Gentlemen: In accordance with 0.459 of CFR 47, SONY ELECTRONICS, Inc. requests confidentiality of the Block Diagram, and Schematics for the attached test report. These documents contain detailed system and equipment description and related information about the product which SONY ELECTRONICS, Inc. considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, SONY ELECTRONICS, Inc. feels that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. Sincerely, Glen A. Seebruch Regulatory Engineer Sony PMC America

Item 12 . EQUIPMENT SPECIFICATIONS: (See instructions) Frequency range in MHzRated RF power output in watts Frequency toleranceEmission designator (See 47 CFR § 2.201 and § 2.202) Microprocessor Model Number Item 13. Is the equipment in this application: * (a) a composite device subject to an additional equipment authorization? * (b) part of a system that operates with, or is marketed with, another device that requires an equipment authorization? If either of the above questions is answered "Yes" complete section 13(c). Yes No Yes No (c) The related application: has been filed at same time as this application under the FCC ID listed to the right has been granted under the FCC ID listed to the right is in the process of being filed under the FCC ID listed to the right is pending with the FCC under the FCC ID listed to the right FCC ID Item 14. Name of test firm and contact person on file with the FCC, if different from applicant or contact person: Firm Name: First Name: Last Name: Telephone: Ext: Fax No: E-mail: Read each certification carefully before answering and signing this application WILLFUL FALSE STATEMENTS MADE ON THIS FORM ARE PUNISHABLE BY FINE AND IMPRISONMENT (U.S. CODE, TITLE 18, SECTION 1001), AND/OR REVOCATION OF ANY STATION LICENSE OR CONSTITUTION PERMIT (U.S. CODE, TITLE 47, SECTION 312(a)(1)), AND/OR FORFEITURE (U.S. CODE, TITLE 47, SECTION 503). Item 15. SECTION 5301 (ANTI-DRUG ABUSE) CERTIFICATION: 824.04848.970.55 2.5 ppm 1M25F9WMSM2310 824.04848.970.6 2.5 ppm 40K0F8WMSM2310 824.04848.970.6 2.5 ppm 40K0F1D PCTEST Engineering Laboratory, Inc. - RandyOrtanez [email protected] 3 of 46/29/99 4:36 PM FCC Form 731https://gullfoss.fcc.gov/cgi-bin/ws.exe/prod/oet/forms/731/731_Form.hts?mode=print&application_id=94319

© 1999 PCTEST Lab FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §§ 2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE)

Test Report S/N: 22/24.990514304.L5AFCC Parts 24 & 22 Test Date(s): May 24-28, 1999Certification © 1999 PCTEST LabSONY FCC ID: L5ACMSB200 (Model: CM-SB200) NVLAP Lab Code: 100431-0 Dual-Band Analog/PCS Phone (AMPS/CDMA) Test Report S/N: 22/24.990514304.L5AFCC Parts 24 & 22 Test Date(s): May 24-28, 1999Certification © 1999 PCTEST LabSONY FCC ID: L5ACMSB200 (Model: CM-SB200) NVLAP Lab Code: 100431-0 Dual-Band Analog/PCS Phone (AMPS/CDMA) Test Report S/N: 22/24.990514304.L5AFCC Parts 24 & 22 Test Date(s): May 24-28, 1999Certification © 1999 PCTEST LabSONY FCC ID: L5ACMSB200 (Model: CM-SB200) NVLAP Lab Code: 100431-0 Dual-Band Analog/PCS Phone (AMPS/CDMA) Test Report S/N: 22/24.990514304.L5AFCC Parts 24 & 22 Test Date(s): May 24-28, 1999Certification © 1999 PCTEST LabSONY FCC ID: L5ACMSB200 (Model: CM-SB200) NVLAP Lab Code: 100431-0 Dual-Band Analog/PCS Phone (AMPS/CDMA) Test Report S/N: 22/24.990514304.L5AFCC Parts 24 & 22 Test Date(s): May 24-28, 1999Certification © 1999 PCTEST LabSONY FCC ID: L5ACMSB200 (Model: CM-SB200) NVLAP Lab Code: 100431-0 Dual-Band Analog/PCS Phone (AMPS/CDMA) Test Report S/N: 22/24.990514304.L5AFCC Parts 24 & 22 Test Date(s): May 24-28, 1999Certification © 1999 PCTEST LabSONY FCC ID: L5ACMSB200 (Model: CM-SB200) NVLAP Lab Code: 100431-0 Dual-Band Analog/PCS Phone (AMPS/CDMA) Test Report S/N: 22/24.990514304.L5AFCC Parts 24 & 22 Test Date(s): May 24-28, 1999Certification © 1999 PCTEST LabSONY FCC ID: L5ACMSB200 (Model: CM-SB200) NVLAP Lab Code: 100431-0 Dual-Band Analog/PCS Phone (AMPS/CDMA)

7. Technical Overview L5ACMSB200 is a dual-band portable cellular phone, which supports both analog Advanced Mobile Phone System (AMPS) FM mode and digital Code Division Multiple Access (CDMA) mode. The cellular phone is designed to meet the requirements of the AMPS portion of TIA/EIA IS-95-A Mobile Station-Base Station Compatibility Standard for Dual-Mode Wideband Spread Spectrum Cellular System, J-STD-008 Personal Station-Base Station Compatibility Requirements for 1.8 to 2.0 GHz Code Division Multiple Access (CDMA) Personal Communications Systems, the AMPS portion of TIA/EIA IS-98-A Recommended Minimum Performance Standards for Dual-Mode Wideband Spread Spectrum Cellular Mobile Stations and J-STD-018 Recommended Minimum Performance Requirements for 1.8 to 2.0 GHz Code Division Multiple Access (CDMA) Personal Stations. The cellular phone operates under Cellular Radiotelephone Service specified in FCC CFR 47, Part 22 and Part 24. Transmitter Frequency Range AMPS mode:824-849 MHz PCS CDMA mode:1850-1910 MHz Receiver Frequency Range AMPS mode:869-894 MHz PCS CDMA mode:1930-1990 MHz Maximum Transmitter Output Power AMPS mode:600 mW PCS CDMA mode:550 mW Battery Voltage:3.6 V The input audio signal is sampled and processed digitally for necessary filtering, amplitude limiting, and compression and expansion. The device fully supports the AMPS and CDMA PCS standards. All necessary signaling tones are digitally generated. The transmit power level is constantly monitored by a detector circuit and microprocessor. A method of look-up table, frequency offset correction table, and temperature compensation is used to tightly control the transmit power levels. All spurious and harmonic signals from the transmitter and receiver circuits are suppressed by filters and mechanical shields, and the device fully complies with the standards. 14. Frequency Stabilization and Suppression Circuits 14.1 Frequency Stabilization A voltage-controlled temperature-compensated crystal oscillator (VCTCXO) is employed as a frequency reference for all the transmitter and receiver local oscillators. The frequency tolerance of the VCTCXO is specified to remain within +-2.5 ppm over operating temperature range and operating voltage range. The VCTCXO frequency is locked to the base station transmit frequency during the operation in both FM and PCS CDMA modes. The lock indicator signals of all frequency synthesizers are monitored and an out-of-lock condition will inhibit transmission. 14.2 Description of Suppression Circuits Spurious and harmonic suppression is obtained by design through a proper use of filters and shielding materials. Factory assembly instructions, board level and unit level factory testing, and quality acceptance procedures ensure that such compliance is maintained for all manufactured units. In CDMA PCS operation, its chiprate for PN sequence is 1.228 Mcps (per J-STD- 018 standard), and its 3 dB bandwidth is approximately 1.25 MHz. Channel spacing for PCS CDMA channels is therefore normally set at 1.25 MHz. The baseband design is in compliance with the filtering requirements described in J- STD–018 for I and Q transmitter signals (within 1.5 dB ripple up to 590 kHz, and more than 40 dB suppression above 740 kHz ). These I and Q baseband signals are combined at 90 degree phase to form the transmitter output signal. Page 1 of 2 file://C:\WINDOWS\TEMP\L5ACMSB200_antenna_dwg (2).jpg5/21/99

Part Number: A-0843-304-0 Description: MAIN PWB MOUNT, STD2.0, PILOT_1 Item #SONY Part NumberSB Number Original Model DescriptionSizeToleranceVendor Name Vendor Part Number QtyU/M 11-125-777-81C47010.1U/B/10V40210%M23 21-164-844-81C47014.0P/CH/16V402 +/-0.25PM2 31-164-840-81C47011.0P/CK/16V402 +/-0.25P105-04020-0010M3 41-119-988-21L96221.5P/COG/50V402 +/-0.25PMURATA105-04020-01R5M5 51-164-943-81C470110000P/B/16V40210%105-04017-0103M34 61-164-937-81C47011000P/B/16V40210%105-04013-0102M46 71-164-874-81C4701100P/CH/16V4025%105-04012-0101M18 81-164-850-81C470110P/CH/16V4025%105-04012-0100M1 91-164-852-81C470112P/CH/16V4025%M2 101-164-878-81C4701150P/CH/16V4025%105-04012-0151M1 111-164-854-81C470115P/CH/16V4025%105-04012-0150M11 121-164-856-81C470118P/CH/16V4025%105-04012-0180M1 131-164-842-81C47012.0P/CK/16V402 +/-0.25P105-04020-0020M6 141-107-819-81C470122000P/B/16V40210%M4 151-164-858-81C470122P/CH/16V4025%105-04012-0220M33 161-164-843-81C47013.0P/CJ/16V402 +/-0.25P105-04020-0030M1 171-127-772-81C470133000P/B/16V40210%105-10153-0333M6 181-164-940-81C47013300P/B/16V40210%105-04013-0332M2 191-164-934-81C4701330P/B/16V40210%105-04013-0331M1 201-164-862-81C470133P/CH/16V4025%105-04012-0330M6 211-164-935-81C4701470P/B/16V40210%105-04013-0471M2 221-119-980-21L962547P/CH/25V4025%TDK105-04012-0470M6 231-164-941-81C47014700P/B/16V40210%105-04013-0472M2 241-164-846-81C47016.0P/CH/16V402 +/-0.5P105-04019-0060M4 251-164-870-81C470168P/CH/16V4025%105-04012-0680M1 261-115-540-21L96227.0P/COG/50V402 +/-0.5PMURATA105-04019-0070M2 Sony Corp. Confidentialbom (3)Page 1 Part Number: A-0843-304-0 Description: MAIN PWB MOUNT, STD2.0, PILOT_1 Item #SONY Part NumberSB Number Original Model DescriptionSizeToleranceVendor Name Vendor Part Number QtyU/M 271-164-872-81C470182P/CH/16V4025%105-04012-0820M1 28 291-162-916-91A545912P/CH/50V6035%M1 301-119-998-21L96240.047U/x7R/50V60310%MURATA105-04079-6473M1 311-125-837-91A54591.0U/B/6.3V60310%TaiyoYudenM9 321-115-467-91A54590.22UB/10V60310%105-10069-0224M3 331-125-760-914.7U80510%TaiyoYudenM3 341-165-321-91734440.68U/B/16V/T=1.15mm80510%TaiyoYudenM1 105-01247-4684Alt 351-125-838-91734442.2U/B/6.3V/T=1.25mm80510%TaiyoYudenM9 361-125-817-917344410U/B/6.3V/T=1.6mm120610%TaiyoYudenM2 37 381-125-998-21470PArrayx410%M3 391-127-565-2147PArrayx410%M5 401-117-919-91D029310UP-Case20%/6.3VNECM7 411-785-690-21PTX-26852892-1117Key I/F11-PinMOLEXM1 421-785-851-21CM-ZS300CARKIT_CONNECTORCarkit JAEM1 431-785-691-21J6491PTX-268FH12-10S-0.5SVLCD I/F10-PinHIROSEM1 448-719-988-61T20201SS355TE-17 ROAMM1 458-719-076-061SS381(TPH3) TOSHIBAM2 46 478-719-069-28CM-Z1001SS400TE61 M7 488-719-073-94PTX-1191SV281 M4 498-719-989-01T4555DA221-TL ROAM140-08280-0221M2 508-719-989-04T4556DAN222-TL ROAM140-08280-0222M1 518-719-067-87V2432CM-Z100HSMS-2825 HP140-06323-0017M1 520-524-602-00PTX-268LT1ED67A M1 538-719-066-98V2457RB051L-40TE25 ROAMM1 541-234-031-21L9395CM-Z100DYK1R88C1R96HHC Duplexer M1 551-234-184-21PTX-268FAR-D5CC-881M50-D1A2 M1 561-767-969-21STD1.5DMSAFC881.5MC92T-TC11 M1 571-767-951-21CM-Z100B4207 M1 581-767-807-21L9387CM-Z100KFF6468A CERA FIL CV90-39518-1M1 591-781-519-21PTX-268MSFB27-85-030K1 M1 601-767-967-21CM-Z200SAFC836.5MC92T-TC11 M2 611-781-143-21PTX-266B39192-B4689-Z610 M1 621-781-228-21PTX-268TMXL011 M1 638-759-593-44PTX-268MB84VD21092A-85PLS FujitsuM1 648-752-089-44CXA3201AN-T4 SONY SCM1 658-759-499-89V2321CM-Z100CMY-210E6327MIXER SIMENSCV90-39918-1M1 668-752-090-91CXA3303GA SONY SCM1 Sony Corp. Confidentialbom (3)Page 2 Part Number: A-0843-304-0 Description: MAIN PWB MOUNT, STD2.0, PILOT_1 Item #SONY Part NumberSB Number Original Model DescriptionSizeToleranceVendor Name Vendor Part Number QtyU/M 678-752-084-05CXA3222N SONY SCM1 688-759-586-53STD2.0GN01067B01SO M1 698-749-014-79V4832TH281(J)LM2664M6X Natio-SemiM1 708-759-570-02STD2LMX2331LSLB M1 718-759-577-12STD2MGA-72543 M1 728-759-538-86CM-DS1MSM2310-196PBGA-MT QualcomM1 738-759-542-76V3854MS-60S(J)NJM2135R-TE2 JRCM1 (8-759-548-82)Alt 748-759-548-29CM-ZS300GN01102B01SO M1 758-759-589-27STD2SA611 285-10005-0000M1 768-759-593-79PTX-268SI3455DV M1 778-759-577-98LMV321M5X M1 788-759-588-46STD2.0TC75S54FU TOSHIBAM1 798-759-564-61CM-Z200NC7SZ00P5X M1 808-759-543-64DM-2100NC7SZ08P5X M2 818-759-287-59U2109TC7SH04FU-TE85L TOSHIBAM1 (220-04646-0004)Alt 828-759-573-37STD2TWL2203GGV TIM1 838-759-577-97PTX-470TWL1101GGV TIM1 848-759-497-61V2429CM-Z100UPC2746TB-E3 NECM1 858-719-073-63PTX-268UPC8106TB NECM1 868-759-585-39UPC8163TB-E3 NECM1 878-759-562-89TGP1.5X84129514I-2.5 M2 881-793-102-21PTX-268FKLGK1503-0301RJACK SMKM1 891-784-342-21L9665BM02B-SRSS-TBSP-CN ASRM1 901-469-038-21L9704CM-Z1001.5NH402 +/-0.3NHM1 911-469-039-21L9704CM-Z1001.8NH402 +/-0.3NHM1 921-469-048-21L9704CM-Z10010NH4025%M4 931-469-049-21L9704CM-Z10012NH4025%M3 941-469-050-21L9704CM-Z10015NH4025%M1 951-469-040-21L9704CM-Z1002.2NH402 +/-0.3NHM3 961-469-041-21L9704CM-Z1002.7NH402 +/-0.3NHM1 971-469-052-21L9704CM-Z10022NH4025%M8 981-469-053-21L9704CM-Z10027NH4025%M1 991-469-042-21L9704CM-Z1003.3NH402 +/-0.3NHM6 1001-469-054-21L9704CM-Z10033NH4025%M2 1011-469-055-21L9704CM-Z10039NH4025%M2 1021-469-044-21L9704CM-Z1004.7NH402 +/-0.3NHM2 103 1041-469-046-21L9704CM-Z1006.8NH402 +/-0.5NHM5 1051-469-043-21L9704CM-Z1003.9NH402 +/-0.3NHM1 Sony Corp. Confidentialbom (3)Page 3 Part Number: A-0843-304-0 Description: MAIN PWB MOUNT, STD2.0, PILOT_1 Item #SONY Part NumberSB Number Original Model DescriptionSizeToleranceVendor Name Vendor Part Number QtyU/M 1061-469-083-21L9974CM-Z110BK1005HS601402 TaiyoYudenM12 1071-412-984-41C57512.7U60310%M2 1081-414-385-21D4904BK1608LM182B603 TaiyoYuden112-10041-0182M3 1091-469-369-21PTX-22822N8052%M1 1101-469-375-21PTX-268330N8052%M1 1111-469-217-21CM-ZS30033N8052%M2 1121-469-376-21PTX-268390N8052%M3 1131-469-219-2147N8052%M1 1141-469-221-2168N8055%110-08310-1680M1 1151-469-223-21100N8052%M1 1161-500-514-21L9619CM-Z100FBM2125HS420805 TDK112-14026-0420M1 1178-729-928-17T65512SA1774TL-Q ROAM160-04194-0000M5 1188-729-927-97T45542SC4617TL-Q ROAM160-04193…

Text truncated - open the document above for the full version.

Sony Electronics Inc., Digital Telecommunications Company of America 16450 West Bernardo Drive, San Diego, California 92127-1804 Telephone (619) 487-8500 June 2, 1999 Re: Alignment Procedure To Whom It May Concern: The CM-SB200 cellular phone requires no adjustment or tuning. The reference frequency is set at the factory, and there are no field-adjustable components within this product. Sincerely, Glen A. Seebruch Regulatory Engineer Sony PMC America
