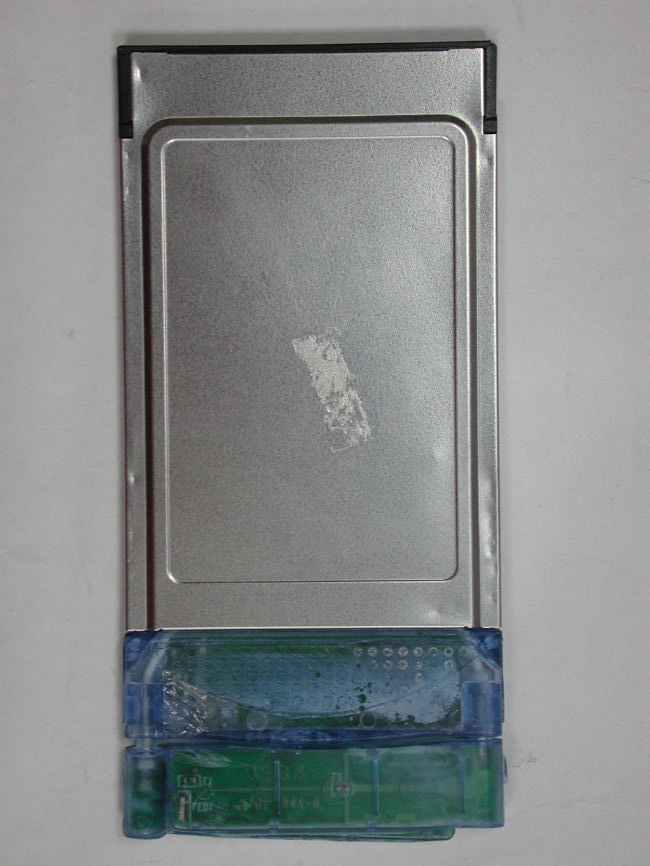

L8G8800001PCMCIA Radio Card with Integrated Antenna

WLAN PCMCIA Card Regulatory notes and statements Wireless LAN, Health and Authorization for use Radio frequency electromagnetic energy is emitted from Wireless LAN devices. The energy levels of these emissions however are far much less than the electromagnetic energy emissions from wireless devices like for example mobile phones. Wireless LAN devices are safe for use frequency safety standards and recommendations. The use of Wireless LAN devices may be restricted in some situations or environments for example: · On board of airplanes, or · In an explosive environment, or · In case the interference risk to other devices or services is perceived or identified as harmful In case the policy regarding the use of Wireless LAN devices in specific organizations or environments (e.g. airports, hospitals, chemical/oil/gas industrial plants, private buildings etc.) is not clear, please ask for authorization to use these devices prior to operating the equipment. Regulatory Information/disclaimers Installation and use of this Wireless LAN device must be in strict accordance with the instructions included in the user documentation provided with the product. Any changes or modifications made to this device that are not expressly approved by the manufacturer may void the user’s authority to operate the equipment. The Manufacturer is not responsible for any radio or television interference caused by unauthorized modification of this device, of the substitution or attachment. Manufacturer and its authorized resellers or distributors will assume no liability for any damage or violation of government regulations arising from failing to comply with these guidelines. USA-FCC (Federal Communications Commission) statement This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause interference, and 2. This device must accept any interference, including interference that may cause undesired operation of this device. FCC Radio Frequency Exposure statement This Wireless LAN radio device has been evaluated under FCC Bulletin OET 64C and found compliant to the requirements as set forth in CFR 47 Sections 2.1091, 2.1093, and 15.247 (b) (4) addressing RF Exposure from radio frequency devices. The radiated output power of this Wireless LAN device is far below the FCC radio frequency exposure limits. Nevertheless, this device shall be used in such a manner that the potential for human contact during normal operation is minimized. When nearby persons has to be kept to ensure RF exposure compliance. In order to comply with RF exposure limits established in the ANSI C95.1 standards, the distance between the antennas and the user should not be less than 2.5 cm. FCC Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy. If not installed and used in accordance with the instructions, it may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try and correct the interference by one or more of the following measures: 1. Reorient or relocate the receiving antenna. 2. Increase the distance between the equipment and the receiver. 3. Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. 4. Consult the dealer or an experienced radio/TV technician for help. Export restrictions This product or software contains encryption code which may not be exported or transferred from the US of Canada without an approved US Department of Commerce export license. Safety Statements Federal Communications Commission Statement This device complies with FCC Rules Part 15. Operation is subject to the following two conditions: · This device may not cause harmful interference, and · This device must accept any interference received, including interference that may cause undesired operation. SAFETY INFORMATION Your device contains a low power transmitter. When device is transmitted it sends out radiofrequency (RF) signal. CAUTION: To maintain compliance with FCC’s RF exposure guidelines, this equipment should be installed and operated with minimum distance 2.5cm between the radiator and your body. Use on the supplied antenna. Unauthorized antenna, modification, or attachments could damage the transmitter and may violate FCC regulations. This device must not be co-located or operating in conjunction with any other antenna or transmitter. Table of Contents Introduction Step by Step Installation Guide Application Troubleshooting 1 1 Introduction PCMCIA (Provides a high-speed link for external devices to connect to a PC, and it has better Plug-and-Play support). With a WLAN(Wireless LAN) (IEEE 802.11b/Bluetooth) PCMCIA Card, a desktop or laptop computer can communicate with another computer in a wireless way. Besides, through a wireless access point or a wireless Internet router, the computer can access resources on an Ethernet LAN or on the Internet. Easy-to-use utilities are bundled with WLAN PCMCIA Card for configuration, monitoring, and diagnosis purposes. A fter install WLAN PCMCIA Card, you can: a. Share your Internet access by using just one connection b. Share printers and other peripheral devices c. Share data and image files between networked PCs d. Play multi-player games WLAN PCMCIA Card can wirelessly transmit and receive data, minimizing the need for wired connections, at a speed of up to eleven megabit per second. With WLAN PCMCIA Card, you can locate your PC wherever you want wi…

Text truncated - open the document above for the full version.

PCMCIA BLOCK DIAGRAM

LABEL

Training Research Co., Ltd. No. 2, Lane 194, Huan-Ho St., Hsi-Chih, Taipei Hsien 221, Taiwan, R.O.C. TEL: 886-2-26935155 FAX: 886-2-26934440 TRCSince1985 ® Measurement of MPE 1. Foreword In adopt with the Human Exposure IEEE C95.1, and according to the FCC 1.1310. The Maximum Permissible Exposure (MPE) is obligated to measure in order to prove the safety of radiation harmfulness to the human body. The Gain of the antenna used is measured in an Anechoic chamber. The maximum total power to the antenna is to be recorded. By adopting the Friis Transmission Formula and the power gain of the antenna, we can find the distance right away from the product, where the limit of the MPE is. 2. Description of EUT EUT : WLAN PCMCIA Card Classification : Portable&Mobile Device (i) Under normal use condition, the antenna is at least 2.5cm away from the user; (ii) Warning statement for keeping 2.5cm separation distance and the prohibition of operating next to the person has been printed in the user’s manual Model No. : 8800-510 / 8800-511 / 8800-512 Granted FCC ID : L8G8800001 Frequency Range : 2.412 GHz ~ 2.462GHz Antenna Kit : 2 external fixed antennas Supported Channel: 11 Channel Modulation Skill : DBPSK, DQPSK, CCK Power Type : Powered by the PCMCIA slot of the client’s device Training Research Co., Ltd. No. 2, Lane 194, Huan-Ho St., Hsi-Chih, Taipei Hsien 221, Taiwan, R.O.C. TEL: 886-2-26935155 FAX: 886-2-26934440 TRCSince1985 ® 3. Limits for Maximum Permissible Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Filed Strength (H) (A/m) Power Density (S) (mW/cm2) Averaging Time |E| 2 , |H| 2 or S (minutes) (A) Limits for Occupational/Controlled Exposure 0.3-3.0 614 1.63 100 6 3.0-30 1842/f 4.89/f 900/f 2 6 30-300 61.4 0.163 1.0 6 300-1500 -- -- f/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 100 30 1.34-30 824/f 2.19/f 180/f 2 30 30-300 27.5 0.073 0.2 30 300-1500 -- -- f/1500 30 1500-100,000 -- -- 1.0 30 [The EUT is tested in transmit and receive modes and in the first, middle and the last channel separately. The following shows only our observation have the greatest emissions.] According to OET BULLETIN 56 Fourth Edition/August 1999, Equation for Predicting RF Fields: Friis Transmission Formula: 2 22 /008684.0 )20(4 259.167.34 4 cmmW R PG S= × == ππ Where: S = power density (in appropriate units, e.g. mW/cm2) P = power input to the antenna (in appropriate units, e.g., mW) G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) The Numeric gain G of antenna with a gain specified in dB is determined by: G = Log -1 (dB antenna gain/10) G = Log -1 (1 / 10) = 1.259 PCMCIA External Antenna Frequency Range 2.4 ~2.5 GHz Nominal Impedance 50 Ohm VSWR 2.0 Gain 1 dBi Radiation Omnidirection Polarization Vertical Electronic Wave 1/2 Dipole VSWR H-Plane E-Plane 0 45 90 135 180 225 270 315 0 0 -10 -10 -20 -20 -30 -30-40

Test Report -------------------------------------------------------------------------------- 1/50 Report No.: L2715129 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 MEASUREMENT REPORT of WIRELESS LAN PCMCIA CARD Applicant : LANTECH Computer Company Model No. : 8800-510 / 8800-511 / 8800-512 EUT : WLAN PCMCIA Card FCC ID : L8G8800001 Report No. : L2715129 Tested by : Training Research Co., Ltd. TEL : 886-2-26935155 FAX : 886-2-26934440 2, Lane 194, Huan-Ho Street, Hsichih, Taipei Hsien 221, Taiwan, R.O.C. Test Report -------------------------------------------------------------------------------- 3/50 Report No.: L2715129 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Tables of Contents I. GENERAL ......................................................................................................................... 4 1.1 Introduction .................................................................................................................. 5 1.2 Description of EUT ....................................................................................................... 5 1.3 Description of Support Equipment ................................................................................. 6 1.4 Configuration of System Under Test .............................................................................. 8 1.5 Verify the Frequency and Channel ................................................................................. 9 1.6 Test Procedure ............................................................................................................ 10 1.7 Location of the Test Site ............................................................................................... 10 1.8 General Test Condition ................................................................................................. 10 II. Section 15.101(a) : Equipment Authorization of Unintentional Radiators....................... 11 III. Section 15.203 : Antenna Requirement............................................................................. 12 IV. Section 15.207 : Power Line Conducted Emissions for AC Powered Units ................... 13 4.1 Test Condition & Setup ................................................................................................ 13 4.2 List of Test Instruments ................................................................................................ 13 4.3 Test Configuration ........................................................................................................ 14 4.4 Test Result of Conducted Emissions ............................................................................. 15 V. Section 15.247(a) : Technical Description of the EUT..................................................... 18 VI. Section 15.247(a)(2) : Bandwidth for Direct Sequence System ..................................... 19 6.1 Test Condition & Setup ................................................................................................ 19 6.2 Test Instruments Configuration ...................................................................................... 19 6.3 List of Test Instruments ................................................................................................ 19 6.4 Test Result of Bandwidth ............................................................................................... 20 VII. Section 15.247(b) : Power Output .................................................................................... 24 7.1 Test Condition & Setup ................................................................................................ 24 7.2 List of Test Instruments ................................................................................................ 25 7.3 Test Result ................................................................................................................... 26 VIII.Section 15.247(c) : Spurious Emissions (Radiated) ....................................................... 32 8.1 Test Condition & Setup ................................................................................................ 32 8.2 List of Test Instruments ................................................................................................ 33 8.3 Test Instruments Configuration ...................................................................................... 34 8.4 Test Result of Spurious Radiated Emissions .................................................................. 35 8.5 Test Result of Bandedge................................................................................................. 42 IX.Section 15.247(d) : Power Spectral Density ...................................................................... 45 9.1 Test Condition & Setup ................................................................................................ 45 9.2 Test Instruments Configuration ...................................................................................... 45 9.3 List of Test Instruments.................................................................................................. 45 Test Report -------------------------------------------------------------------------------- 4/50 Report No.: L2715129 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 9.4 Test Result of Power Spectral Density .......................................................................... 46 Appendix A: Set Up Procedure ............................................................................................... 50 Test Report -------------------------------------------------------------------------------- 5/50 Report No.: L2715129 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 . GENERAL 1.1 Introduction The following measurement report is submitted on behalf of Applicant in support of a Wireless Access PCMCIA Card certification in accordance with …

Text truncated - open the document above for the full version.

Test Report --------------------------------------------------------------------------------- 1/2 Report No.: L2715129 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 VII. Section 15.247(b): Power Output 1.1 Test Condition & Setup A: B: 1. The output of the transmitter terminated by Schottkey Detector Diode (Hewlett- Packard HSMS-2850) 2. The output of the Shocttkey Diode Detector connected to the vertical channel of an oscilloscope. The observed trace of the oscilloscope shall be recorded as "A". 3. The combination of the diode detector and the oscilloscope capable of faithfully reproducing the envelope of peaks and duty cycle of the transmitter output signal. 4. The transmitter replaced by a signal generator. The output frequency of the signal made equal to the center of the frequency range occupied by the transmitter and unmodulated. 5. The output of the signal generator raised to reach the peak of trace "A" named X. 6. The signal generator output level XmW is the transmitter output peak power. Recording the following. EUT Oscilloscope HSMS-2850 Oscilloscope Signal Generator HSMS-2850 6dB Attenuator Test Report --------------------------------------------------------------------------------- 2/2 Report No.: L2715129 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 1.2 List of Test Instruments Instrument Name Model No. Brand Serial No. Oscilloscope 54600A H P 3227A07030 Signal Generator 83711A H P 3429A00434 Shocttkey Diode HSMS-2850 Mini-Circuits N/A 6dB Attenuator BW-S6W2 Mini-Circuits N/A 1.3 Test Result Formula: Signal generator + Antenna gain + |Cable loss| = Output peak power Signal Generator Antenna Gain Cable Loss Limit Output peak power Channel dBm dBi dBm (DTS) dBm mW CH1 14.1 1.0 -1.16 100mW 15.26 33.57 CH6 12.8 1.0 -1.16 100mW 13.96 24.89 CH11 12.3 1.0 -2.01 100mW 14.31 26.98 Note: The limit is vary according to the equipment class, listed below: 1. Digital Transmission System (DTS): 100mW 2. Spread Spectrum Transmitter (DSS): 1W Test Report --------------------------------------------------------------------------------- 3/2 Report No.: L2715129 Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440

Test setup photos (L2715129) / LANTECH WLAN PCMCIA Card FCC ID: L8G8800001 Test Instruments Configuration of Conducted Emissions Test Instruments Configuration of Bandwidth Test Configuration of Bandwidth for Direct Sequence System P.S.: Notebook computer to control the EUT at maximal power output and channel Number and set antenna kit Test Condition & Setup of Power Output A: B: EUT Spectrum Analyzer (RBW:100kHz; VBW: 100kHz) EUT HSMS-2850 Oscilloscope HSMS-2850 Oscilloscope Signal Generator 6dB Attenuator Test Instruments Configuration of the Spurious Radiated Emissions Front View of the Test Configuration Rear View of the Test Configuration The test configuration for frequency between 1GHz to 18GHz is same as above. Test Instruments Configuration of Power Spectral Density Test Configuration of Power Spectral Density P.S.: Notebook computer to control the EUT at maximal power output and channel Number and set antenna kit EUT Spectrum Analyzer (RBW:3kHz; VBW: 10kHz)
