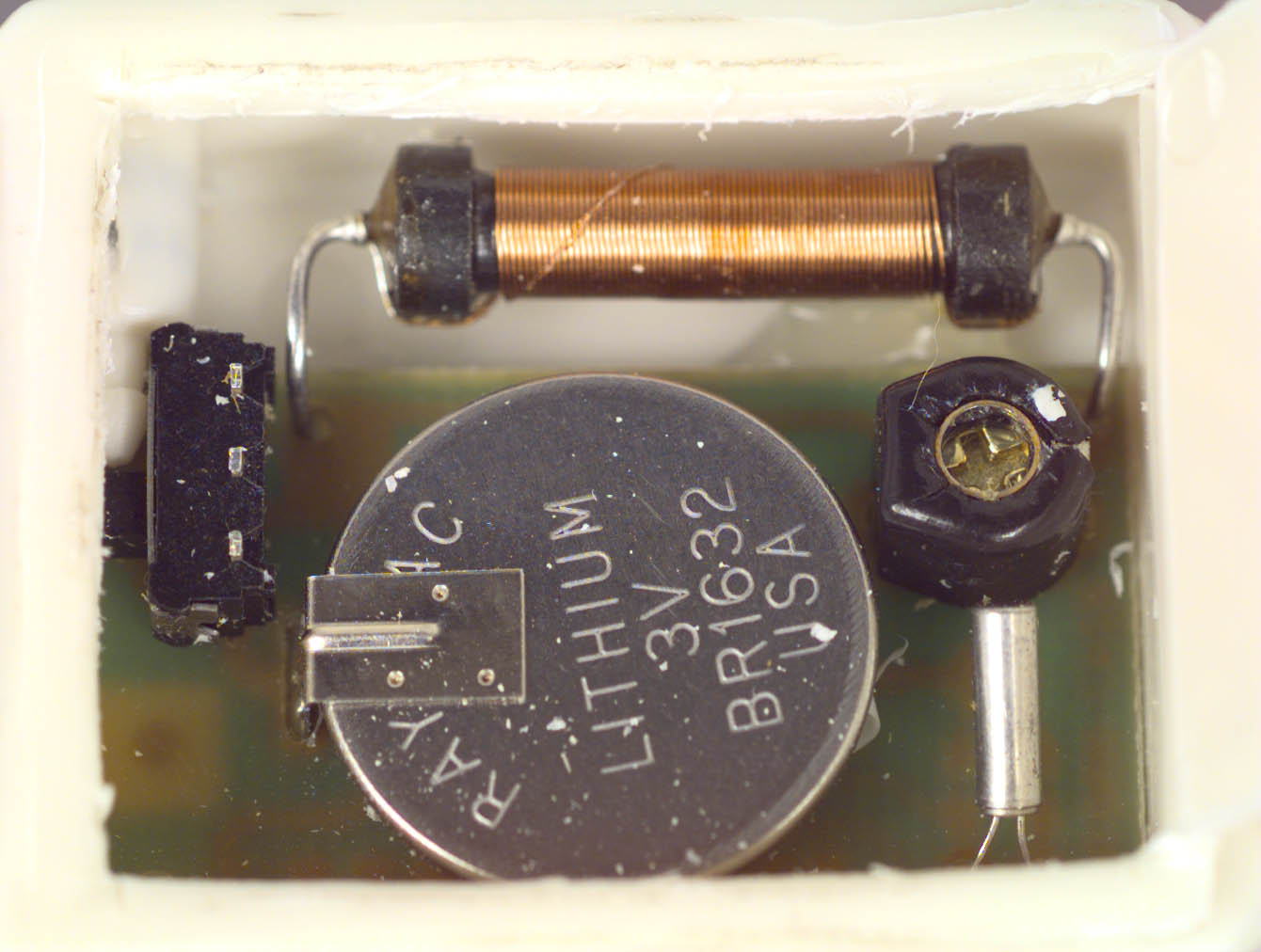

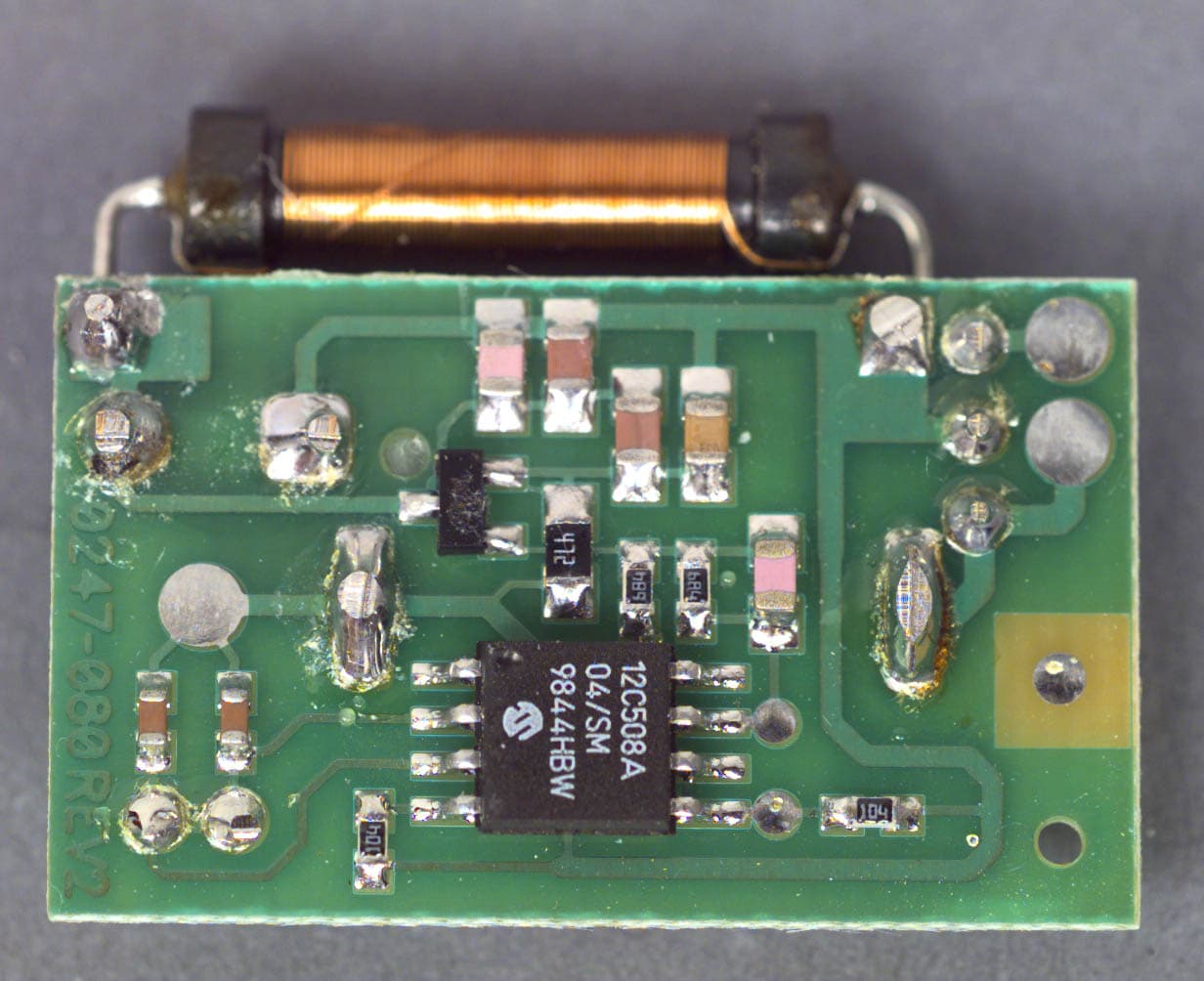

LA5SWSD005WanderGuard E+ Transmitter

Offices In Hull (UK), Ottawa (Canada), Dallas (USA) And Arnhem (The Netherlands) March 13, 2000 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, Maryland 21046 USA KTL 3325 River Road RR #5 Ottawa, Ontario Canada K1V 1H2 Tel: 613-737-9680 Fax: 613-737-9691 Toll Free: 1-800-563-6336 Email: [email protected] Internet: www.ktl.com Dear Sir/Madam:Our File Ref. 9R02177 FCC ID: LA5SWSD005 Applicant: Senior Technologies Inc. Equipment: WanderGuard E+ Transmitter FCC Confirmation no.: EA97024 We have successfully electronically filed all the required documentation for an application for certification in accordance with FCC Part 15, Subpart C, Para. No. 15.209 on the above mentioned equipment, March 13, 2000. Enclosed, please find a cheque in the amount of $940.00 US, a copy of FCC Remittance Form 159, a copy of the FCC Form 731 confirmation number and a copy of the list of exhibits. If you require additional information, please do not hesitate to contact me at 1-800-563-6336 (extension 232). Thank you in advance for your assistance in this matter. Sincerely, Ruby Dulmage Regulatory Submissions Clerk KTL Ottawa Inc. [email protected] Encl.

Master: ktlPT15209 Date: June 3, 1999 KTL Test Report:9R02177 Version: 2.0 Applicant:Senior Technologies Inc. P.O. Box 80238 Lincoln, NE 68501 USA Equipment Under Test:WanderGuard E+ Transmitter (E.U.T.) FCC ID:LA5 SWSD005 In Accordance With:FCC Part 15, Subpart C, Paragraph 15.209 General Limits For Low Power Transmitters Tested By:KTL Ottawa Inc. 3325 River Road, R.R. 5 Ottawa, Ontario K1V 1H2 Authorized By: Kevin Carr, Technologist Date: Total Number of Pages:16 KTL OttawaFCC PART 15, SUBPART C PARAGRAPH 15.209 PROJECT NO.: 9R02177 EQUIPMENT: WanderGuard E+ Transmitter FCC ID: LA5 SWSD005 VERSION: 2.0 Page 2 of 14 Table Of Contents Section 1. Summary Of Test Results.....................................................................................3 Section 2. General Equipment Specification........................................................................5 Section 3. Radiated Emissions...............................................................................................7 Section 4. Occupied Bandwidth..........................................................................................11 Section 5. Test Equipment List...........................................................................................14 Annex A Test Diagrams....................................................................................................A1 KTL OttawaFCC PART 15, SUBPART C PARAGRAPH 15.209 PROJECT NO.: 9R02177 EQUIPMENT: WanderGuard E+ Transmitter FCC ID: LA5 SWSD005 VERSION: 2.0 Page 3 of 14 Section 1.Summary Of Test Results Manufacturer:Senior Technologies Inc. Model No.:32013 Serial No.:None General:All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with FCC Part 15, Subpart C for low power devices. All tests were conducted using measurement procedure ANSI C63.4-1992. Radiated Emissions were made on an open area test site. New SubmissionProduction Unit Class II Permissive ChangePre-Production Unit DCD Equipment Code THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. See “ Summary of Test Data”. NVLAP LAB CODE: 100351-0 TESTED BY: _____________________________________ DATE: ___________________ Russell Grant, Wireless Group Manager KTL Ottawa Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. KTL Ottawa Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. KTL OttawaFCC PART 15, SUBPART C PARAGRAPH 15.209 PROJECT NO.: 9R02177 EQUIPMENT: WanderGuard E+ Transmitter FCC ID: LA5 SWSD005 VERSION: 2.0 Page 4 of 14 Summary Of Test Data NAME OF TESTPARA. NO.RESULT Powerline Conducted Emissions15.207Not Applicable Radiated Emissions15.209Complies Occupied BandwidthNot SpecifiedComplies Footnotes For N/A’s: Test Conditions: IndoorTemperature:22°C Humidity:30% OutdoorTemperature:18°C Humidity:40% KTL OttawaFCC PART 15, SUBPART C PARAGRAPH 15.209 PROJECT NO.: 9R02177 EQUIPMENT: WanderGuard E+ Transmitter FCC ID: LA5 SWSD005 VERSION: 2.0 Page 5 of 14 Section 2.General Equipment Specification Frequency Range: 508 kHz (Fixed) Operating Frequency(ies) of Sample: 508 kHz Modulation: Pulse Emission Designator: 18K0PON Integral Antenna YesNo KTL OttawaFCC PART 15, SUBPART C PARAGRAPH 15.209 PROJECT NO.: 9R02177 EQUIPMENT: WanderGuard E+ Transmitter FCC ID: LA5 SWSD005 VERSION: 2.0 Page 6 of 14 Theory of Operation The EUT is a 90-day continuous transmitting device worn on the wrists of elderly residents of skilled care nursing facilities. It is designed to prevent residents with dementia from exiting the facility by themselves, which often leads to injury or accidental death. Receivers located at the exit doors detect the magnetic field of the transmitting device when the resident approaches to within approx. 4-5 feet of the door. The EUT is designed so that it will not be detected at greater distances. An alarm is then sounded to alert nursing staff, who immediately proceed to the door to prevent the resident from leaving the facility. KTL OttawaFCC PART 15, SUBPART C PARAGRAPH 15.209 PROJECT NO.: 9R02177 EQUIPMENT: WanderGuard E+ Transmitter FCC ID: LA5 SWSD005 VERSION: 2.0 Page 7 of 14 Section 3.Radiated Emissions NAME OF TEST: Radiated EmissionsPARA. NO.: 15.209 TESTED BY: Russell GrantDATE: February 15, 2000 Minimum Standard:The field strength of emissions from the device shall not exceed the following limits. Fundamental (MHz) Field Strength (μμV/m) Field Strength (dBμμV) 0.009 - 0.4902400/F(kHz) @ 300m— 0.490 - 1.70524000/F(kHz) @ 30m— 1.705 - 3030 @ 30m— 30 - 8810040.0 88 - 21615043.5 216 - 96020046.0 Above 96050054.0 Test Results:Complies. The worst-case emission level is –31.3 dBμV/m @ 30m at 1016 kHz. This is 58.8 dB below the specification limit. Measurement Data:(Procedure ANSI C63.4-1992) Maximizing Emission Levels: For hand held equipment or equipment that may be mounted in a variety of positions, the E.U.T. was tested on three orthogonal axis to determine orientation of worst-case emission levels. Below 30 MHz an active loop antenna is used at a fixed height of 1 meter. The loop is rotated about it's vertical axis to obtain worst-case results. Spectrum Searched: The spectrum was searched from the lowest frequency generated in the E.U.T. up to 1000 MHz, or the 10 th harmonic of the fundamental emission. Near-Field Measurement: Emissions below 30 MHz are measured in the near-field and an extrapolation factor of 40 dB per decade is used to determine the limit. KTL OttawaFCC PART 15, SUBPART C PA…
